#include <stdint.h>

Include dependency graph for ax100_tx.h:

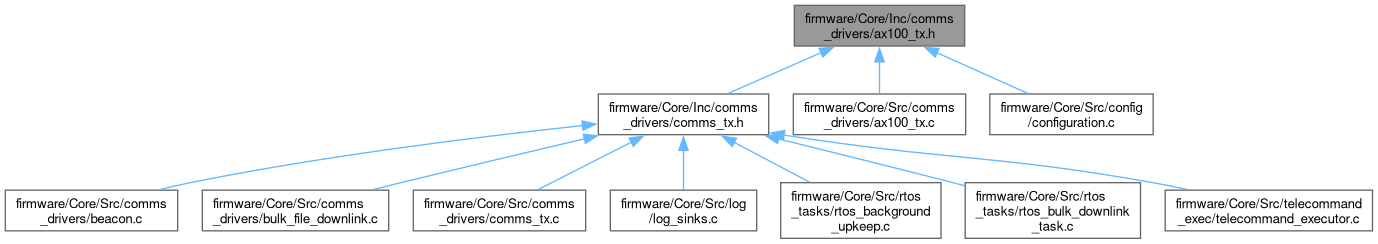

This graph shows which files directly or indirectly include this file:

Macros
#define	AX100_DOWNLINK_MAX_BYTES 200
	The maximum number of CTS bytes that can be sent to the AX100 in a single downlink packet.

#define	AX100_CSP_HEADER_LENGTH_BYTES 4

Functions
uint8_t	AX100_downlink_bytes (uint8_t *data, uint16_t data_len)
	Send data to the ax100 for downlink.

Variables
uint32_t	AX100_enable_downlink_uart_logs
	When enabled, the radio packets will be sent to the Debug UART for debugging purposes.

uint32_t	AX100_enable_downlink_inhibited_uart_logs
	When enabled, log messages like "Downlink inhibited: ..." will be sent to the Debug UART.

Macro Definition Documentation

◆ AX100_CSP_HEADER_LENGTH_BYTES

#define AX100_CSP_HEADER_LENGTH_BYTES 4

#define AX100_DOWNLINK_MAX_BYTES 200

The maximum number of CTS bytes that can be sent to the AX100 in a single downlink packet.

Note: This value does not include the CSP header (4 bytes), but DOES include any CTS-SAT-1 header bytes (e.g., sequence numbers).

uint8_t AX100_downlink_bytes	(	uint8_t *	data,
		uint16_t	data_len )

Send data to the ax100 for downlink.

Parameters

data	pointer to the data to downlink
data_len	length of the data

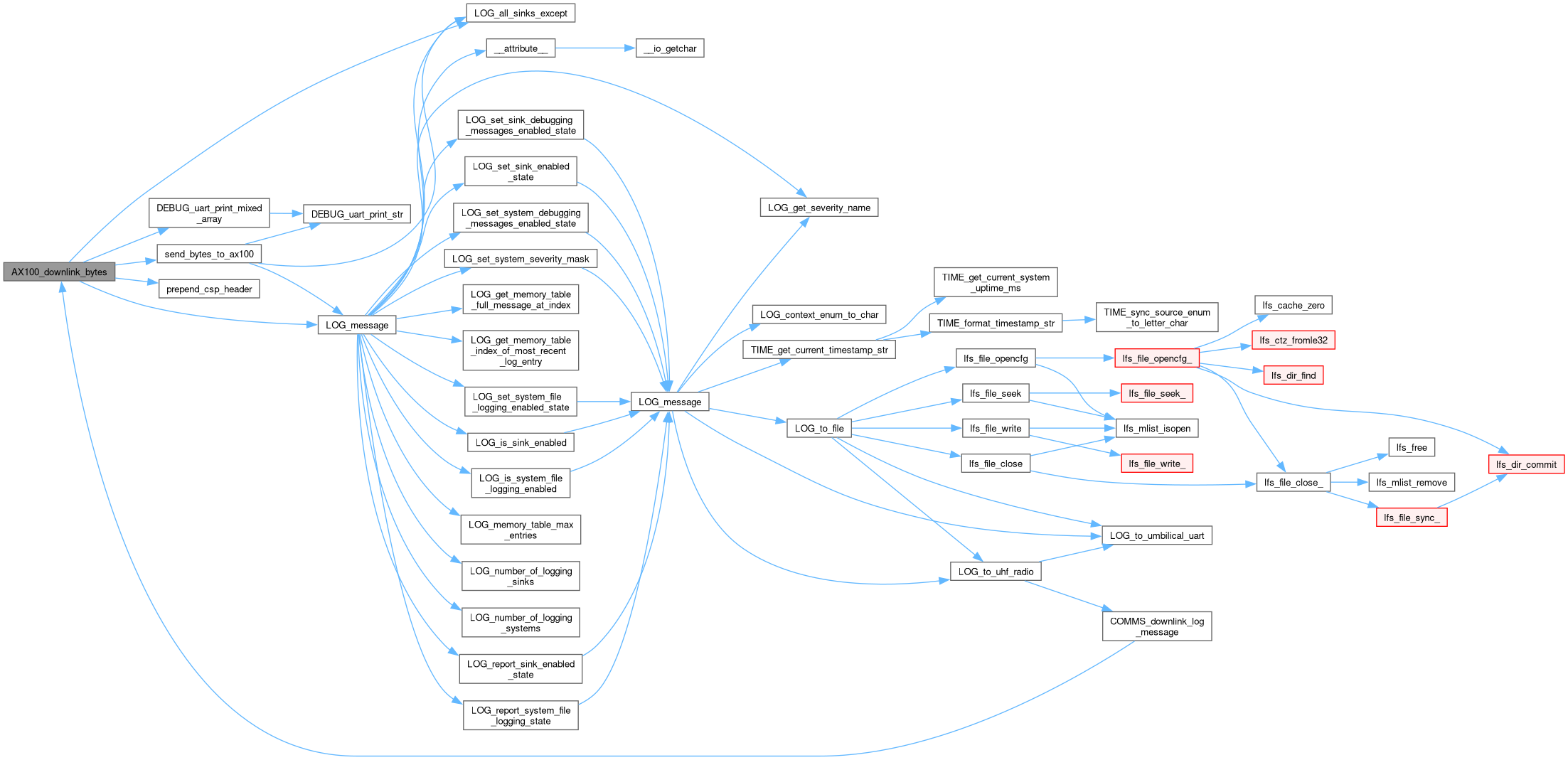

Here is the call graph for this function:

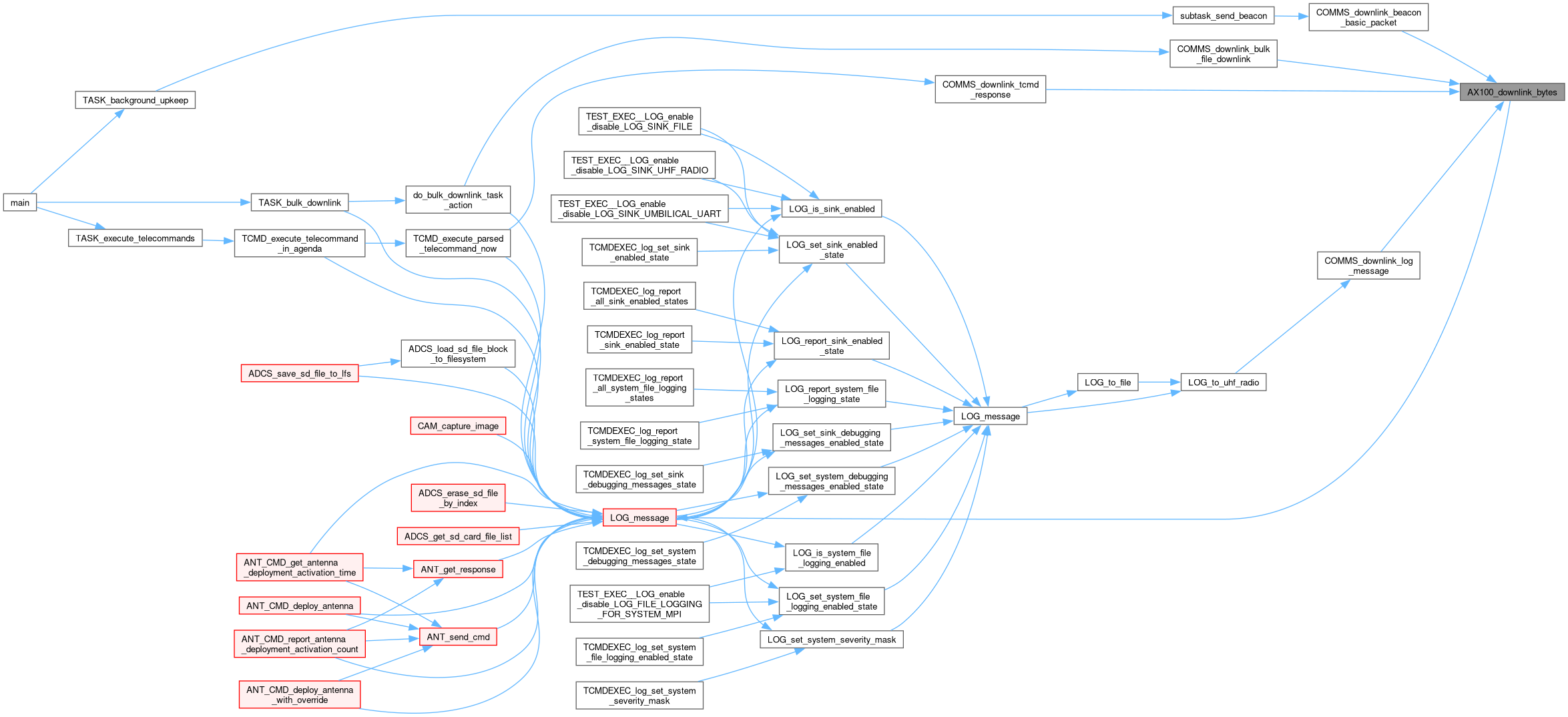

Here is the caller graph for this function:

uint32_t AX100_enable_downlink_inhibited_uart_logs

extern

When enabled, log messages like "Downlink inhibited: ..." will be sent to the Debug UART.

Note: Logs are important to ensure that radio downlinks aren't sent before the antenna is deployed. These logs get very annoying though, so they can be turned off with this variable.; Only useful for configuration in ground testing.

uint32_t AX100_enable_downlink_uart_logs

extern

When enabled, the radio packets will be sent to the Debug UART for debugging purposes.
