comms_tx.h File Reference

#include "comms_drivers/ax100_tx.h"

Include dependency graph for comms_tx.h:

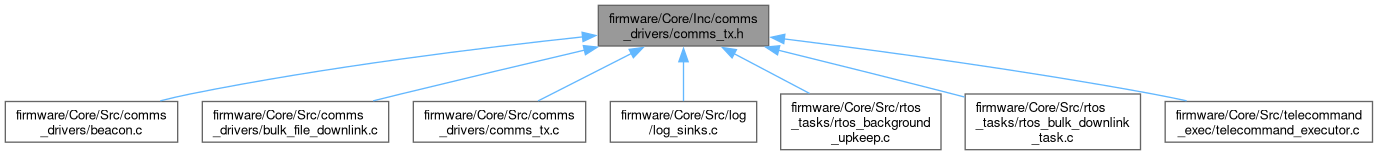

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	COMMS_beacon_basic_packet_t
struct	COMMS_log_message_packet_t
struct	COMMS_tcmd_response_packet_t
struct	COMMS_bulk_file_downlink_packet_t

Macros
#define	COMMS_LOG_MESSAGE_PACKET_MAX_DATA_BYTES_PER_PACKET   199
#define	COMMS_TCMD_RESPONSE_PACKET_MAX_DATA_BYTES_PER_PACKET   186
#define	COMMS_BULK_FILE_DOWNLINK_PACKET_MAX_DATA_BYTES_PER_PACKET   195
#define	COMMS_BEACON_FRIENDLY_MESSAGE_SIZE   42

Enumerations
enum	COMMS_packet_type_enum_t {   COMMS_PACKET_TYPE_BEACON_BASIC = 0x01 , COMMS_PACKET_TYPE_BEACON_PERIPHERAL = 0x02 , COMMS_PACKET_TYPE_LOG_MESSAGE = 0x03 , COMMS_PACKET_TYPE_TCMD_RESPONSE = 0x04 ,   COMMS_PACKET_TYPE_BULK_FILE_DOWNLINK = 0x10 }
	Packet types for the COMMS downlink packets. More...

Functions
uint8_t	COMMS_downlink_tcmd_response (uint64_t ts_sent, uint8_t response_code, uint16_t duration_ms, char *response, uint32_t response_len)
uint8_t	COMMS_downlink_log_message (const char log_message_str[])
uint8_t	COMMS_downlink_bulk_file_downlink (uint16_t file_seq_num, uint32_t file_offset, uint8_t data[], uint16_t data_len)
uint8_t	COMMS_downlink_beacon_basic_packet ()

Macro Definition Documentation

COMMS_BEACON_FRIENDLY_MESSAGE_SIZE

#define COMMS_BEACON_FRIENDLY_MESSAGE_SIZE   42

COMMS_BULK_FILE_DOWNLINK_PACKET_MAX_DATA_BYTES_PER_PACKET

#define COMMS_BULK_FILE_DOWNLINK_PACKET_MAX_DATA_BYTES_PER_PACKET   195

COMMS_LOG_MESSAGE_PACKET_MAX_DATA_BYTES_PER_PACKET

#define COMMS_LOG_MESSAGE_PACKET_MAX_DATA_BYTES_PER_PACKET   199

COMMS_TCMD_RESPONSE_PACKET_MAX_DATA_BYTES_PER_PACKET

#define COMMS_TCMD_RESPONSE_PACKET_MAX_DATA_BYTES_PER_PACKET   186

Enumeration Type Documentation

COMMS_packet_type_enum_t

enum COMMS_packet_type_enum_t

Packet types for the COMMS downlink packets.

This is the first byte (after the CSP header) of the downlink packets.

Enumerator
COMMS_PACKET_TYPE_BEACON_BASIC
COMMS_PACKET_TYPE_BEACON_PERIPHERAL
COMMS_PACKET_TYPE_LOG_MESSAGE
COMMS_PACKET_TYPE_TCMD_RESPONSE
COMMS_PACKET_TYPE_BULK_FILE_DOWNLINK

Function Documentation

COMMS_downlink_beacon_basic_packet()

uint8_t COMMS_downlink_beacon_basic_packet

(

)

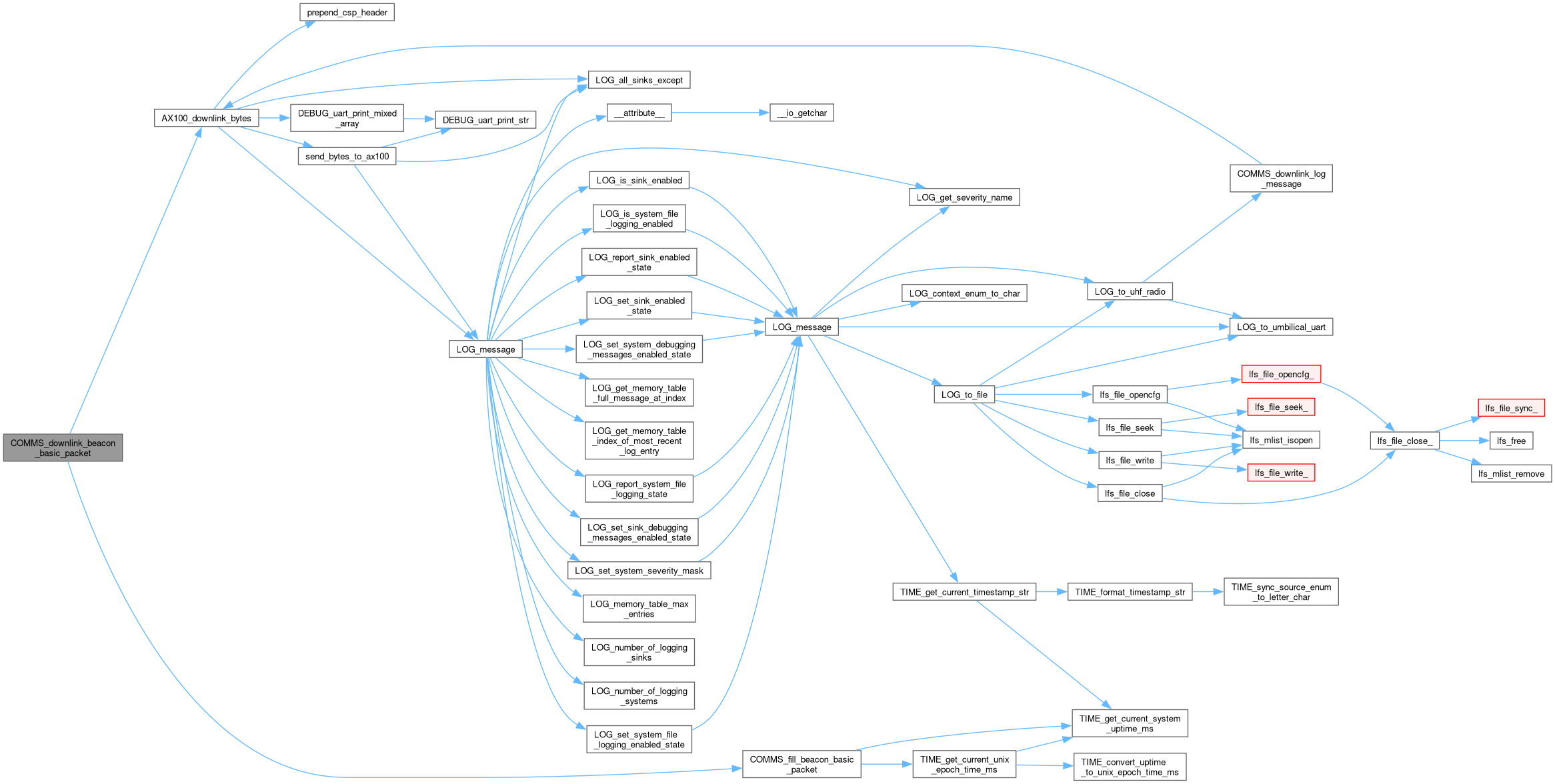

Here is the call graph for this function:

Here is the caller graph for this function:

COMMS_downlink_bulk_file_downlink()

uint8_t COMMS_downlink_bulk_file_downlink	(	uint16_t	file_seq_num,
		uint32_t	file_offset,
		uint8_t	data[],
		uint16_t	data_len )

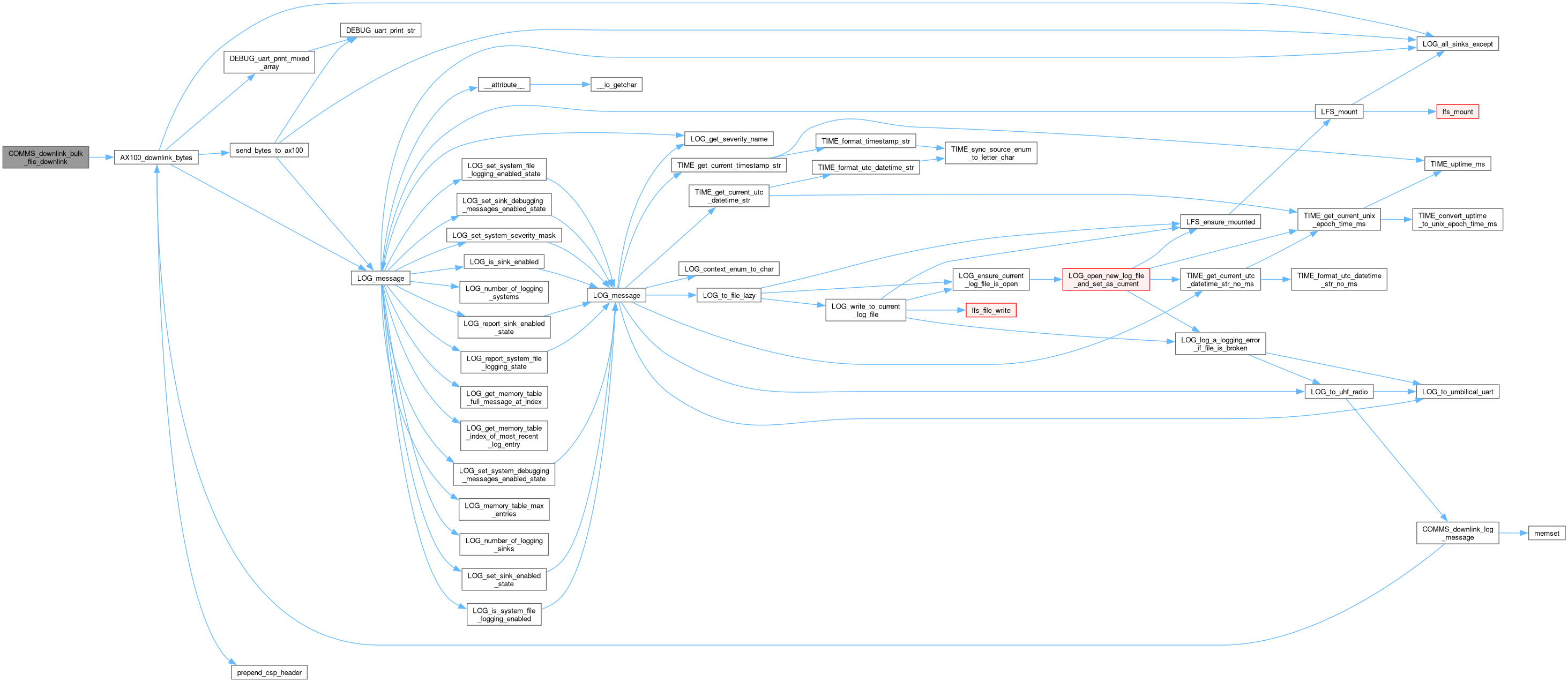

Here is the call graph for this function:

Here is the caller graph for this function:

COMMS_downlink_log_message()

uint8_t COMMS_downlink_log_message

(

const char

log_message_str[]

)

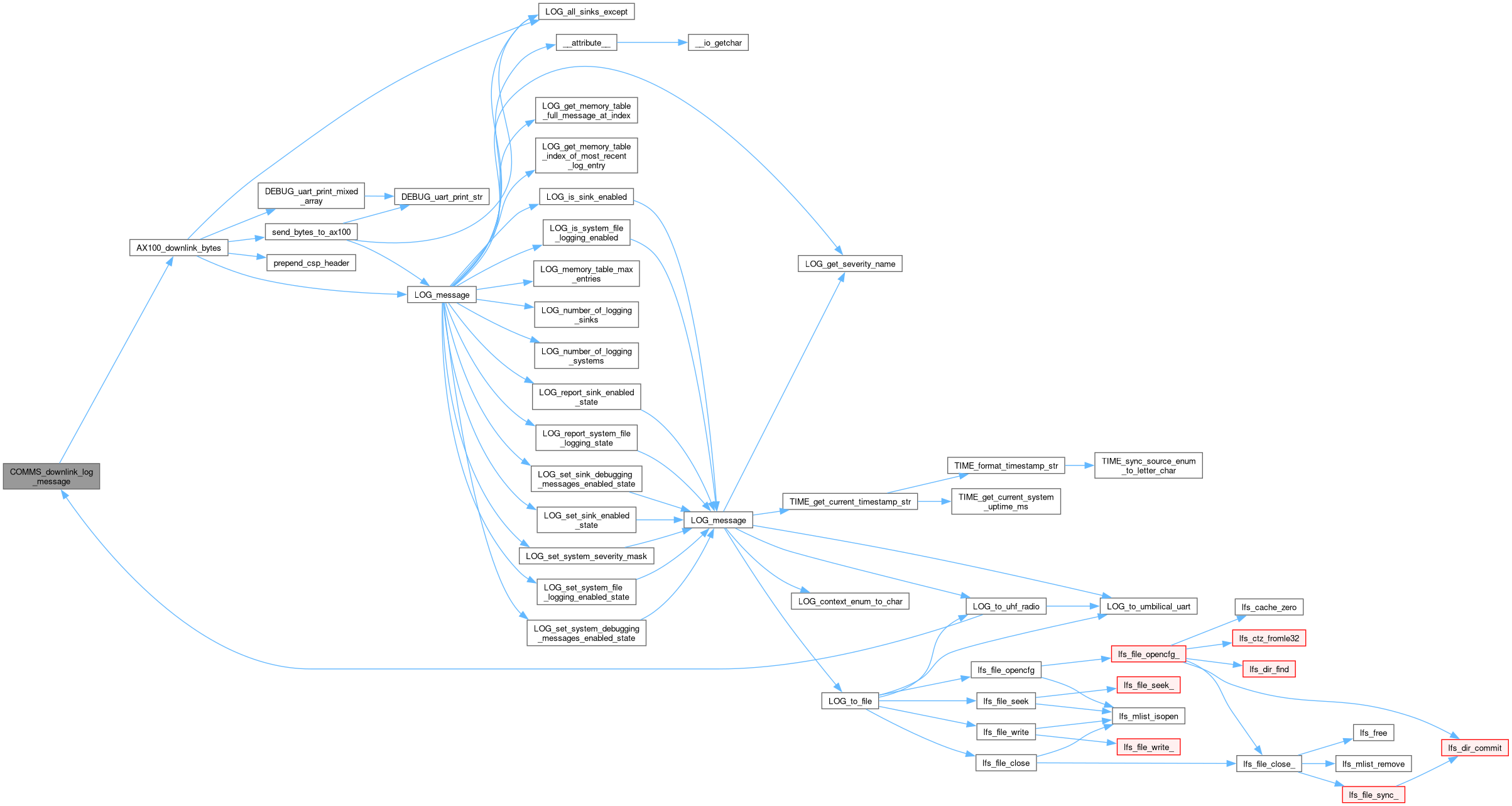

Here is the call graph for this function:

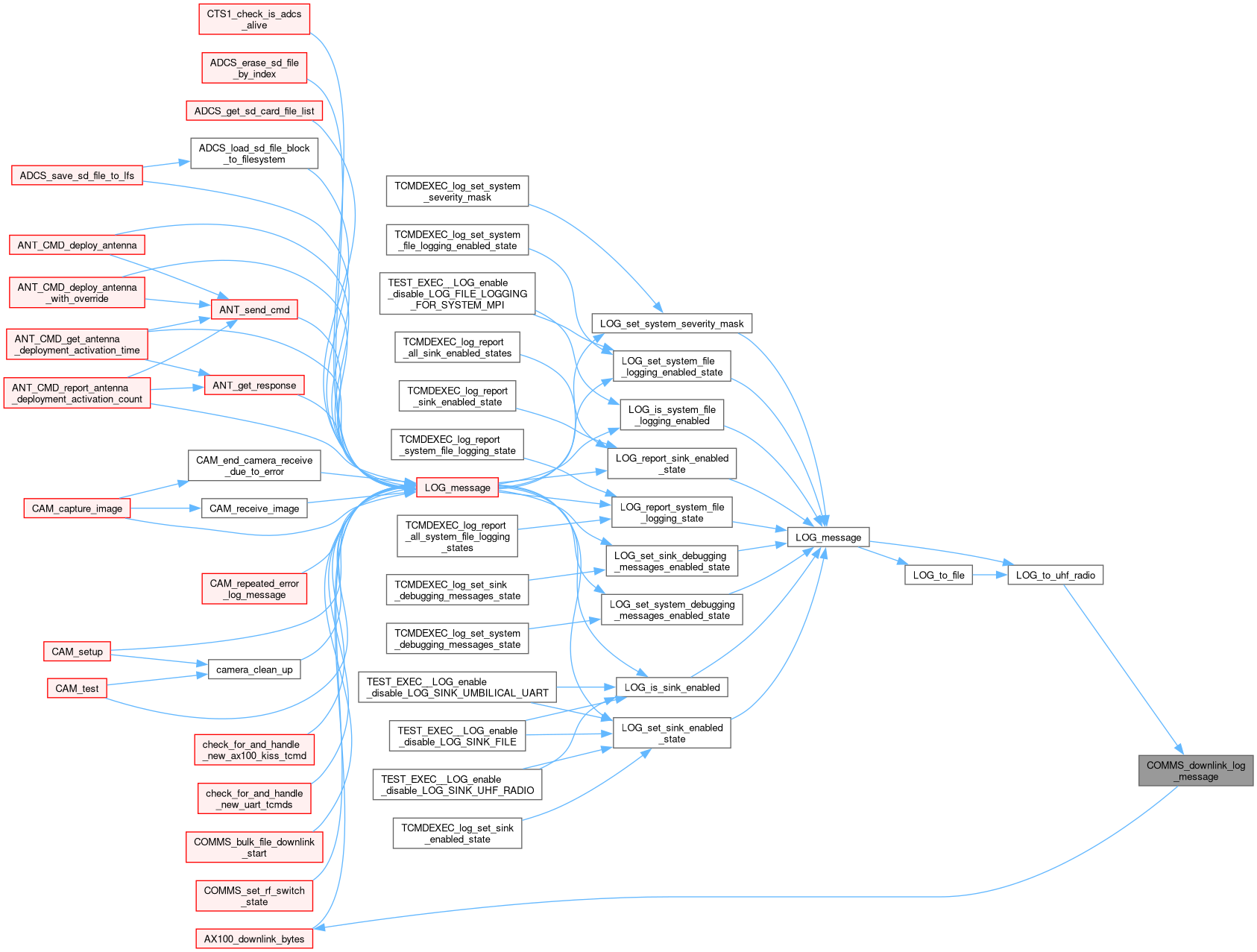

Here is the caller graph for this function:

COMMS_downlink_tcmd_response()

uint8_t COMMS_downlink_tcmd_response	(	uint64_t	ts_sent,
		uint8_t	response_code,
		uint16_t	duration_ms,
		char *	response,
		uint32_t	response_len )

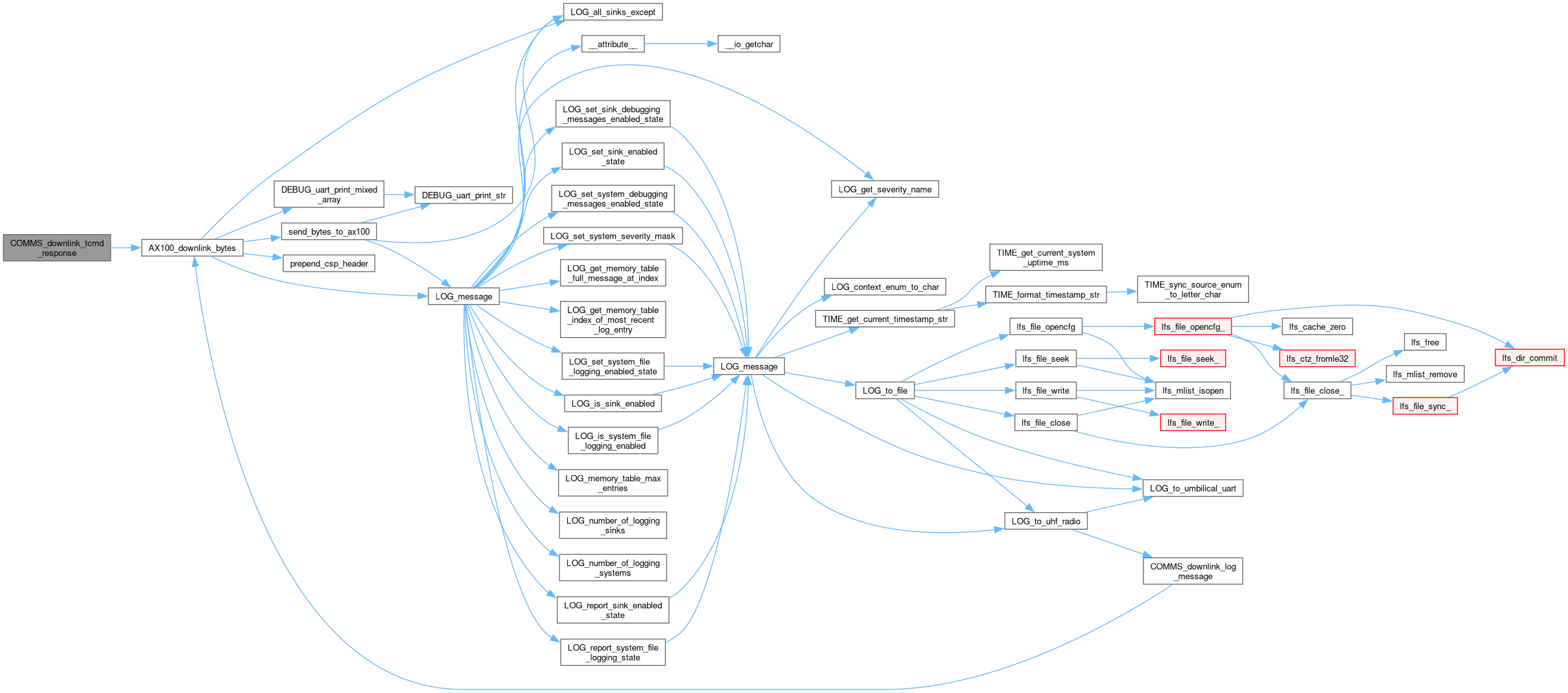

Here is the call graph for this function:

Here is the caller graph for this function:
