complete_self_check.h File Reference

#include <stdint.h>

Include dependency graph for complete_self_check.h:

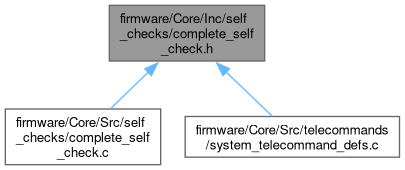

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	CTS1_system_self_check_result_struct_t

Functions
void	CTS1_run_system_self_check (CTS1_system_self_check_result_struct_t *result)
	Perform the system self-check and store the results in the provided result struct.
void	CTS1_self_check_struct_TO_json_list (CTS1_system_self_check_result_struct_t self_check_struct, char dest_json_str[], uint16_t dest_json_str_size, uint8_t show_passes)
	Convert the self-check struct to a JSON string.

Function Documentation

CTS1_run_system_self_check()

void CTS1_run_system_self_check

(

CTS1_system_self_check_result_struct_t *

result

)

Perform the system self-check and store the results in the provided result struct.

Parameters

result

Pointer to the struct to store the results of the self-check.

Note

Powers off all systems that are tested after testing them. Powers on several systems.

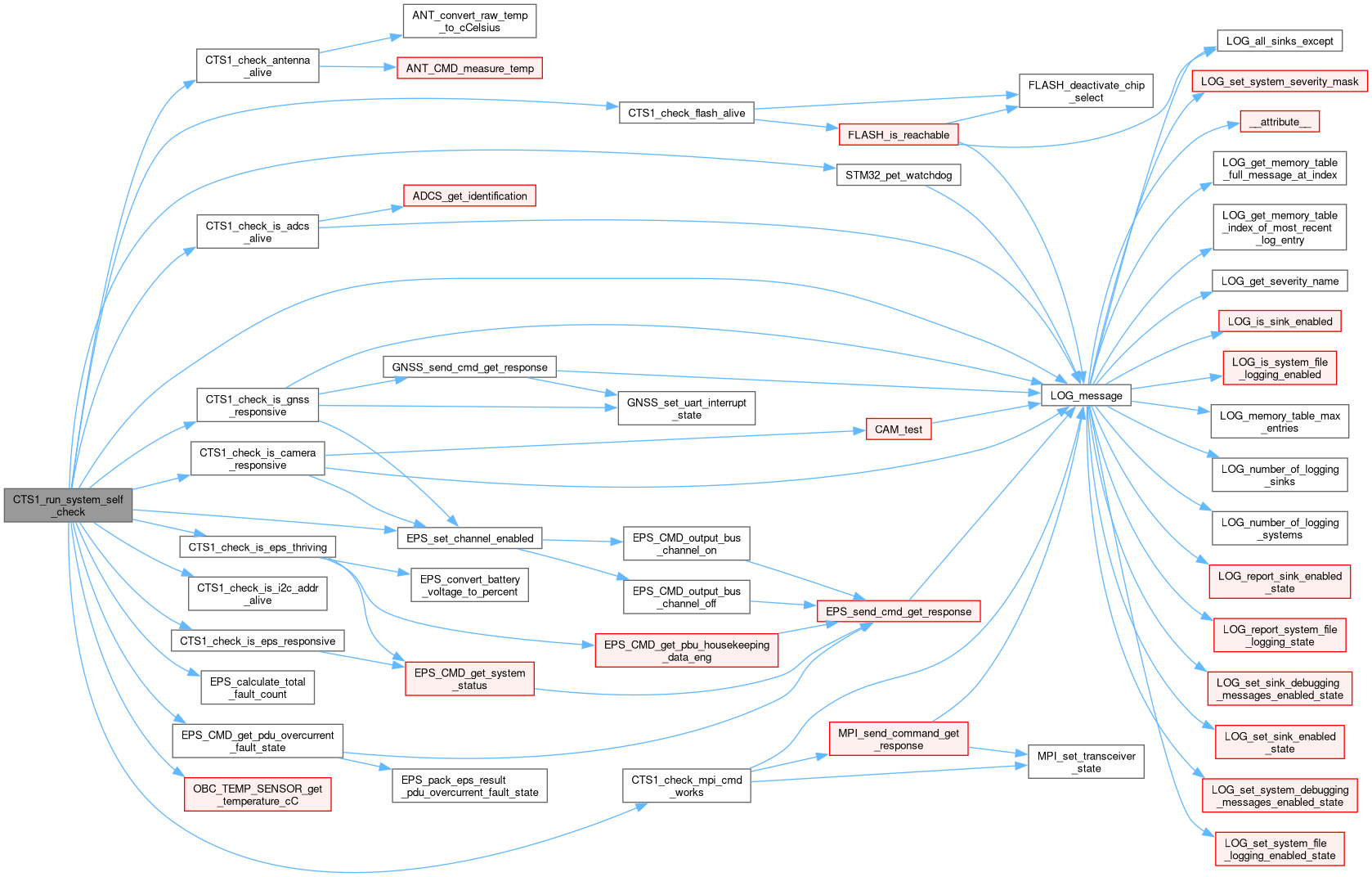

Here is the call graph for this function:

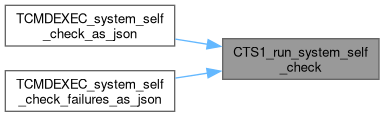

Here is the caller graph for this function:

CTS1_self_check_struct_TO_json_list()

void CTS1_self_check_struct_TO_json_list	(	CTS1_system_self_check_result_struct_t	self_check_struct,
		char	dest_json_str[],
		uint16_t	dest_json_str_size,
		uint8_t	show_passes )

Convert the self-check struct to a JSON string.

Parameters

self_check_struct	Self-check struct to convert to JSON.
dest_json_str	Destination string to write the JSON to.
dest_json_str_size	Size of the destination string (max length to write).
show_passes	If 1, include the passed checks in the JSON.

Here is the call graph for this function:

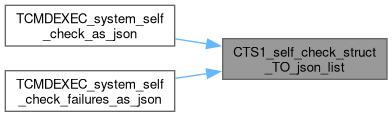

Here is the caller graph for this function:
