configuration.h File Reference

#include <stdint.h>

Include dependency graph for configuration.h:

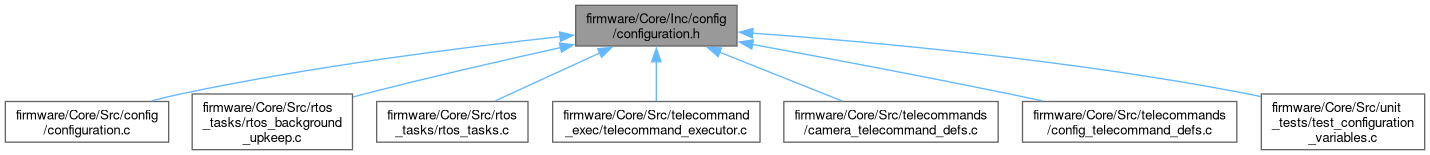

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	CONFIG_integer_config_entry_t
struct	CONFIG_string_config_entry_t

Functions
int16_t	CONFIG_get_int_var_index (const char *search_name)
	Finds an int config variable in CONFIG_int_config_variables and returns its index.
int16_t	CONFIG_get_str_var_index (const char *search_name)
	Finds a string config variable in CONFIG_str_config_variables and returns its index.
uint8_t	CONFIG_set_int_variable (const char *var_name, const uint64_t new_value)
	Assigns a new value to an integer configuration variable.
uint8_t	CONFIG_set_str_variable (const char *var_name, const char *new_value)
	Assigns a new value to a string configuration variable.
uint16_t	CONFIG_int_var_to_json (const char *config_var, char *json_str, const uint16_t json_str_max_len)
	Converts an integer configuration variable to a JSON string.
uint16_t	CONFIG_all_int_vars_to_json (char *json_str, const uint16_t json_str_size)
	Converts ALL integer configuration variables to a tightly-packed JSON dictionary string.
uint16_t	CONFIG_str_var_to_json (const char *var_name, char *json_str, const uint16_t json_str_max_len)
	Converts a string configuration variable to a JSON string.

Variables
static const uint8_t	CONFIG_MAX_VARIABLE_NAME_LENGTH = 200
static const uint8_t	CONFIG_MAX_JSON_STRING_LENGTH = UINT8_MAX
uint32_t	EPS_monitor_interval_ms
	The interval at which the EPS_monitor_and_disable_overcurrent_channels task runs.
const uint32_t	CONFIG_freertos_min_remaining_stack_percent
	The percentage of the stack space that should remain free. If the free space falls below this percentage, a warning will be logged.
CONFIG_integer_config_entry_t	CONFIG_int_config_variables []
const uint8_t	CONFIG_int_config_variables_count
CONFIG_string_config_entry_t	CONFIG_str_config_variables []
const uint8_t	CONFIG_str_config_variables_count
uint32_t	TCMD_require_unique_tssent
	Boolean. Whether to enforce unique @tssent suffix tag value for all telecommands.

Function Documentation

CONFIG_all_int_vars_to_json()

uint16_t CONFIG_all_int_vars_to_json	(	char *	json_str,
		const uint16_t	json_str_size )

Converts ALL integer configuration variables to a tightly-packed JSON dictionary string.

Parameters

json_str	Buffer to write the JSON string to
json_str_size	Max length of the buffer

Returns

Length of the JSON string

Note

The JSON string is in the format: {"var1":value,"var2":value,...}

Here is the call graph for this function:

Here is the caller graph for this function:

CONFIG_get_int_var_index()

int16_t CONFIG_get_int_var_index

(

const char *

search_name

)

Finds an int config variable in CONFIG_int_config_variables and returns its index.

Parameters

name	Name of the variable being searched, as registered in CONFIG_int_config_variables

Returns

-1 if not found, otherwise the index of the variable in CONFIG_int_config_variables

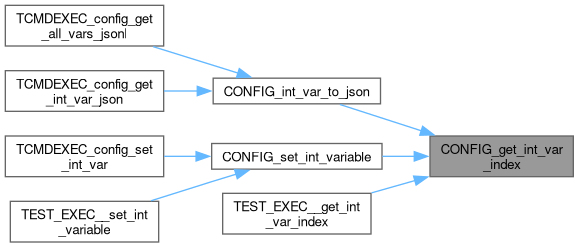

Here is the caller graph for this function:

CONFIG_get_str_var_index()

int16_t CONFIG_get_str_var_index

(

const char *

search_name

)

Finds a string config variable in CONFIG_str_config_variables and returns its index.

Parameters

name	Name of the variable being searched, as registered in CONFIG_str_config_variables

Returns

-1 if not found, otherwise the index of the variable in CONFIG_str_config_variables

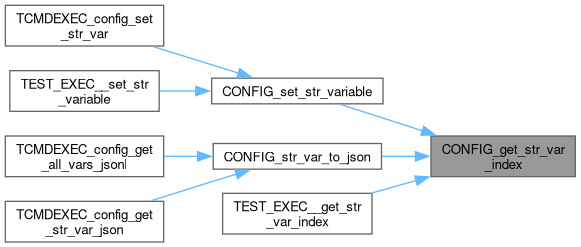

Here is the caller graph for this function:

CONFIG_int_var_to_json()

uint16_t CONFIG_int_var_to_json	(	const char *	var_name,
		char *	json_str,
		const uint16_t	json_str_max_len )

Converts an integer configuration variable to a JSON string.

Parameters

var_name	Name of the variable
json_str	Buffer to write the JSON string to
json_str_max_len	Max length of the buffer

Returns

Length of the JSON string

Note

The JSON string is in the format: {"name":"var_name","value":value}

Here is the call graph for this function:

Here is the caller graph for this function:

CONFIG_set_int_variable()

uint8_t CONFIG_set_int_variable	(	const char *	var_name,
		const uint64_t	new_value )

Assigns a new value to an integer configuration variable.

Parameters

var_name	Name of the variable
new_value	New value

Returns

0 if success, > 0 if failure

Here is the call graph for this function:

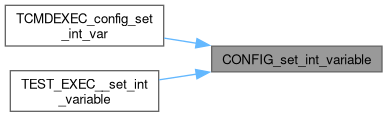

Here is the caller graph for this function:

CONFIG_set_str_variable()

uint8_t CONFIG_set_str_variable	(	const char *	var_name,
		const char *	new_value )

Assigns a new value to a string configuration variable.

Parameters

config_var	Pointer to the configuration variable
new_value	New value

Returns

0 if success, > 0 if failure

Here is the call graph for this function:

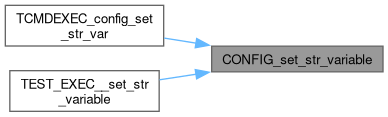

Here is the caller graph for this function:

CONFIG_str_var_to_json()

uint16_t CONFIG_str_var_to_json	(	const char *	var_name,
		char *	json_str,
		const uint16_t	json_str_max_len )

Converts a string configuration variable to a JSON string.

Parameters

var_name	Name of the variable
json_str	Buffer to write the JSON string to
json_str_max_len	Max length of the buffer

Returns

If successful, Length of the JSON string (>1), otherwise 1

Note

The JSON string is in the format: {"name":"var_name","value":"value"}

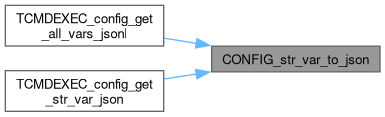

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

CONFIG_freertos_min_remaining_stack_percent

const uint32_t CONFIG_freertos_min_remaining_stack_percent

extern

The percentage of the stack space that should remain free. If the free space falls below this percentage, a warning will be logged.

CONFIG_int_config_variables

CONFIG_integer_config_entry_t CONFIG_int_config_variables[]

extern

CONFIG_int_config_variables_count

const uint8_t CONFIG_int_config_variables_count

extern

CONFIG_MAX_JSON_STRING_LENGTH

const uint8_t CONFIG_MAX_JSON_STRING_LENGTH = UINT8_MAX

static

CONFIG_MAX_VARIABLE_NAME_LENGTH

const uint8_t CONFIG_MAX_VARIABLE_NAME_LENGTH = 200

static

CONFIG_str_config_variables

CONFIG_string_config_entry_t CONFIG_str_config_variables[]

extern

CONFIG_str_config_variables_count

const uint8_t CONFIG_str_config_variables_count

extern

EPS_monitor_interval_ms

uint32_t EPS_monitor_interval_ms

extern

The interval at which the EPS_monitor_and_disable_overcurrent_channels task runs.

TCMD_require_unique_tssent

uint32_t TCMD_require_unique_tssent

extern

Boolean. Whether to enforce unique @tssent suffix tag value for all telecommands.

When enabled, telecommands with duplicate @tssent suffixes will be rejected.

Note

When enabled, telecommands without a @tssent value will be rejected.

1 = require, 0 = don't require
