debug_uart.c File Reference

#include "main.h"
#include "debug_tools/debug_i2c.h"
#include "debug_tools/debug_uart.h"
#include "transforms/arrays.h"
#include <stdint.h>
#include <string.h>
#include <stdio.h>
#include <ctype.h>

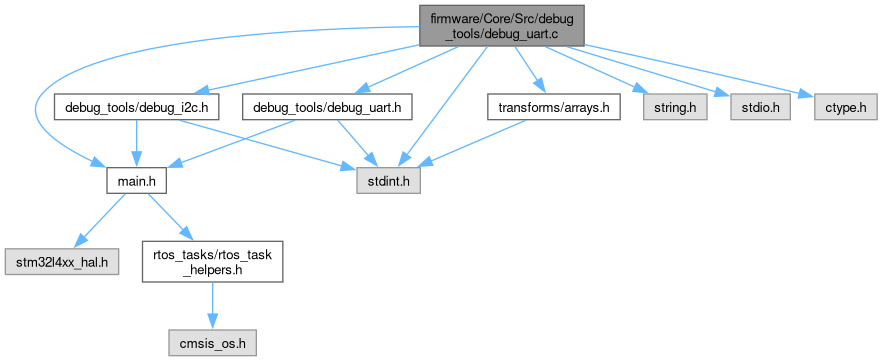

Include dependency graph for debug_uart.c:

Functions
void	DEBUG_uart_print_str (const char *str)
void	DEBUG_uart_print_str_max_len (const char *str, size_t n)
void	DEBUG_uart_print_uint32 (uint32_t value)
void	DEBUG_uart_print_int32 (int32_t value)
void	DEBUG_uart_print_uint64 (uint64_t value)
void	DEBUG_uart_print_array_hex (const uint8_t *array, uint32_t array_len)
	Print an array of bytes in hex format, like 00 01 02 ...
void	DEBUG_uart_write_bytes (const uint8_t *data, uint32_t data_len)
void	DEBUG_uart_print_mixed_array (const uint8_t *array, uint16_t array_len, const char *prefix)
	Print array in hex + ASCII format for UART debugging, aligned.

Function Documentation

DEBUG_uart_print_array_hex()

void DEBUG_uart_print_array_hex	(	const uint8_t *	array,
		uint32_t	array_len )

Print an array of bytes in hex format, like 00 01 02 ...

Parameters

array	A pointer to the array of bytes.
array_len	The length of the array.

Here is the call graph for this function:

Here is the caller graph for this function:

DEBUG_uart_print_int32()

void DEBUG_uart_print_int32

(

int32_t

value

)

Here is the call graph for this function:

DEBUG_uart_print_mixed_array()

void DEBUG_uart_print_mixed_array	(	const uint8_t *	array,
		uint16_t	array_len,
		const char *	prefix )

Print array in hex + ASCII format for UART debugging, aligned.

Parameters

array	Pointer to the byte array.
array_len	Length of the array.
prefix	Prefix string to prepend to the hex line (e.g., "AX100 Down")

Here is the call graph for this function:

Here is the caller graph for this function:

DEBUG_uart_print_str()

void DEBUG_uart_print_str

(

const char *

str

)

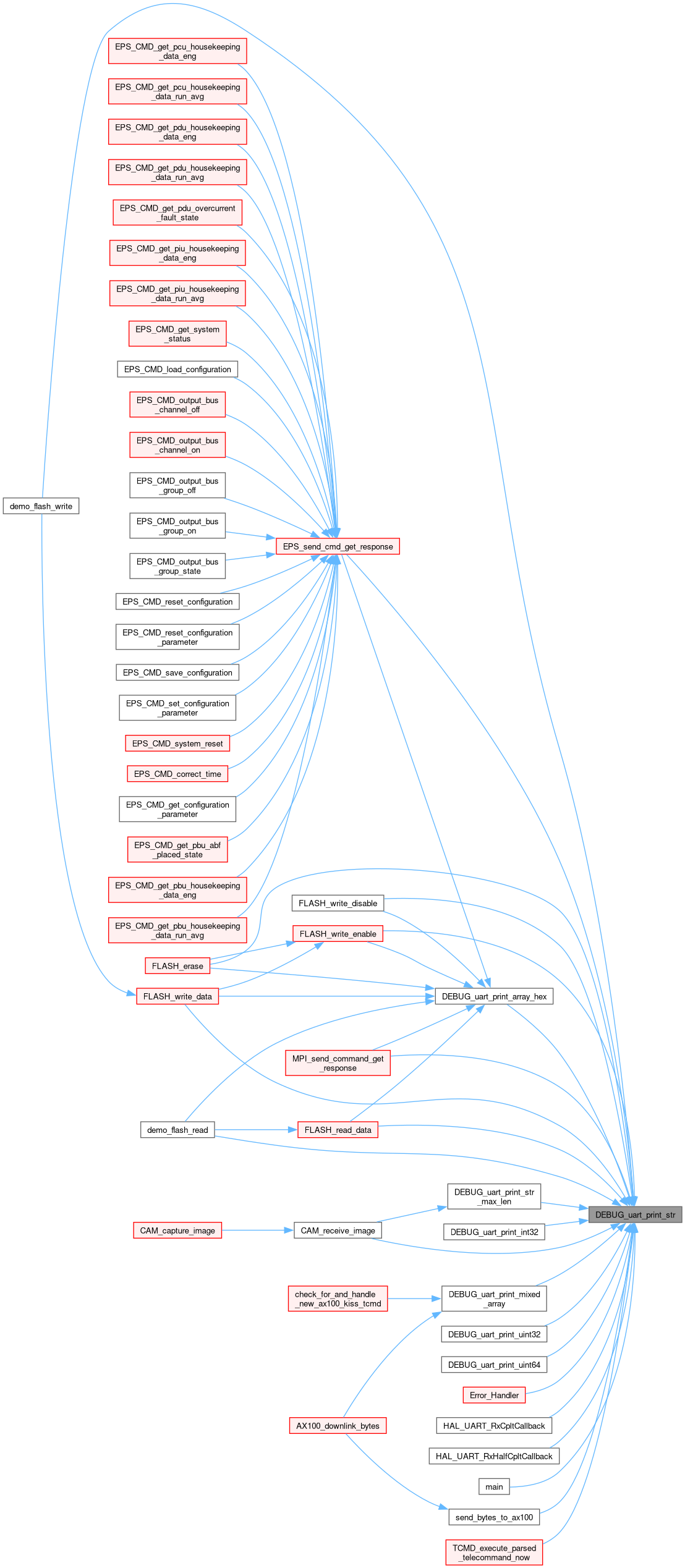

Here is the caller graph for this function:

DEBUG_uart_print_str_max_len()

void DEBUG_uart_print_str_max_len	(	const char *	str,
		size_t	n )

Here is the call graph for this function:

Here is the caller graph for this function:

DEBUG_uart_print_uint32()

void DEBUG_uart_print_uint32

(

uint32_t

value

)

Here is the call graph for this function:

DEBUG_uart_print_uint64()

void DEBUG_uart_print_uint64

(

uint64_t

value

)

Here is the call graph for this function:

DEBUG_uart_write_bytes()

void DEBUG_uart_write_bytes	(	const uint8_t *	data,
		uint32_t	data_len )
