eps_internal_drivers.c File Reference

#include "main.h"
#include "debug_tools/debug_uart.h"
#include "debug_tools/debug_i2c.h"
#include "eps_drivers/eps_types.h"
#include "eps_drivers/eps_internal_drivers.h"
#include "uart_handler/uart_handler.h"
#include "stm32/stm32_timing_helpers.h"
#include "log/log.h"
#include <stdint.h>
#include <string.h>

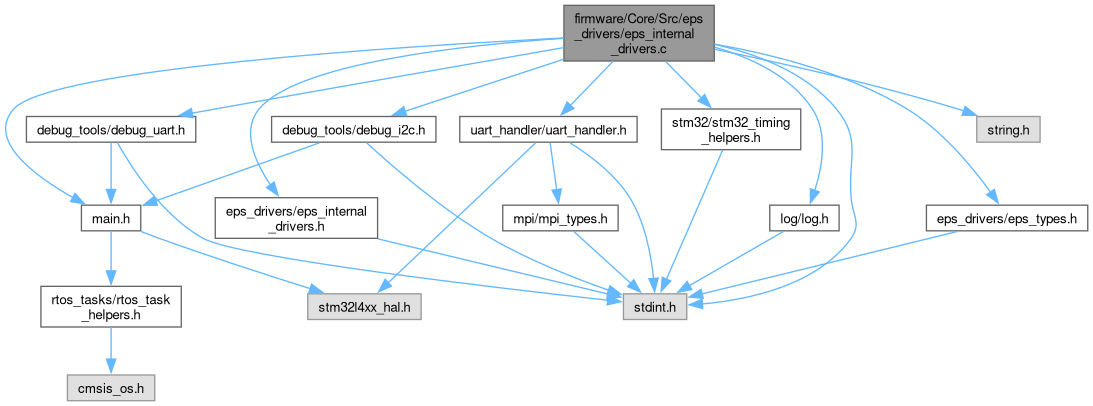

Include dependency graph for eps_internal_drivers.c:

Functions
uint8_t	EPS_send_cmd_get_response (const uint8_t cmd_buf[], uint8_t cmd_buf_len, uint8_t rx_buf[], uint16_t rx_buf_len)
	Sends a command to the EPS, and receives the response.
uint8_t	EPS_run_argumentless_cmd (uint8_t command_code)
	Sends an argumentless command to the EPS (expecting no data in the response).

Variables
UART_HandleTypeDef *	UART_eps_port_handle
static const uint32_t	EPS_TX_TIMEOUT_MS = 1000
static const uint32_t	EPS_RX_TIMEOUT_BEFORE_FIRST_BYTE_MS = 50
static const uint32_t	EPS_RX_TIMEOUT_BETWEEN_BYTES_MS = 25
uint32_t	CONFIG_EPS_enable_uart_debug_print = 0
	When enabled, the EPS's raw data is sent to the debug UART.

Function Documentation

EPS_run_argumentless_cmd()

uint8_t EPS_run_argumentless_cmd

(

uint8_t

command_code

)

Sends an argumentless command to the EPS (expecting no data in the response).

Parameters

command_code

Command code number.

Returns

0 on success, >0 if error.

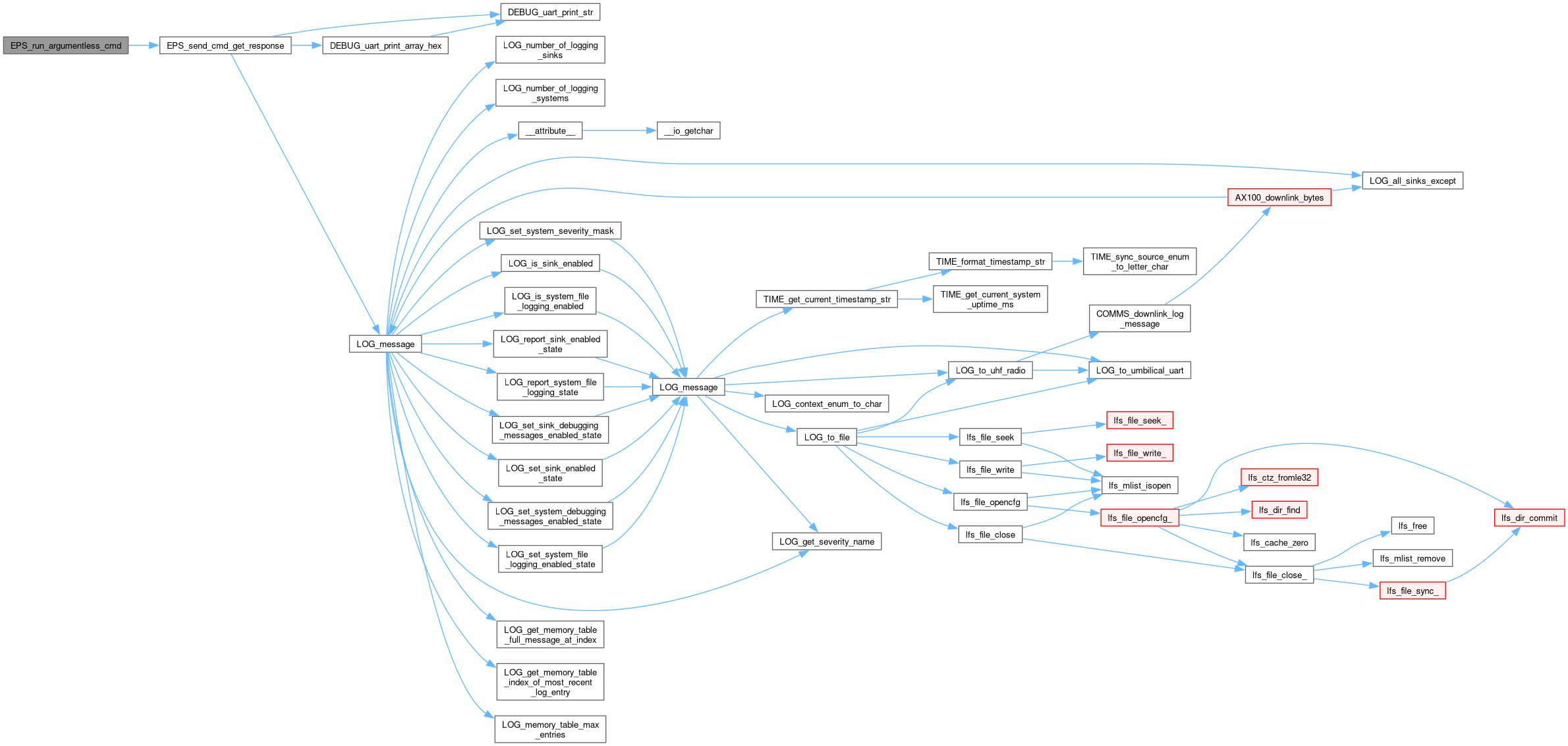

Here is the call graph for this function:

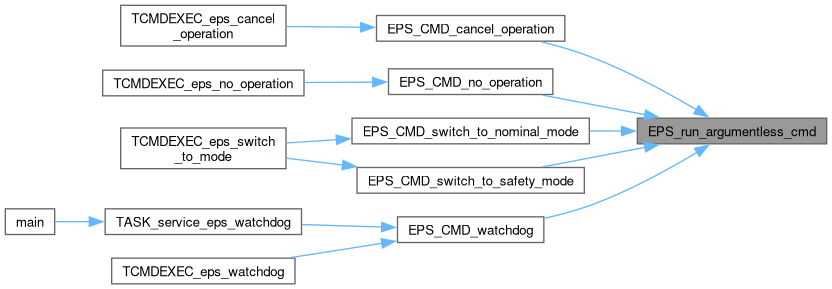

Here is the caller graph for this function:

EPS_send_cmd_get_response()

uint8_t EPS_send_cmd_get_response	(	const uint8_t	cmd_buf[],
		uint8_t	cmd_buf_len,
		uint8_t	rx_buf[],
		uint16_t	rx_buf_len )

Sends a command to the EPS, and receives the response.

Parameters

cmd_buf	Array of bytes to send to the EPS, including the command code, STID, IVID, etc.
cmd_buf_len	Exact length of the command buffer.
rx_buf	Buffer to store the response. Is filled with the response, without tags.
rx_buf_len	Length of the response buffer. Must be the command length.

Returns

0 on success, >0 if error.

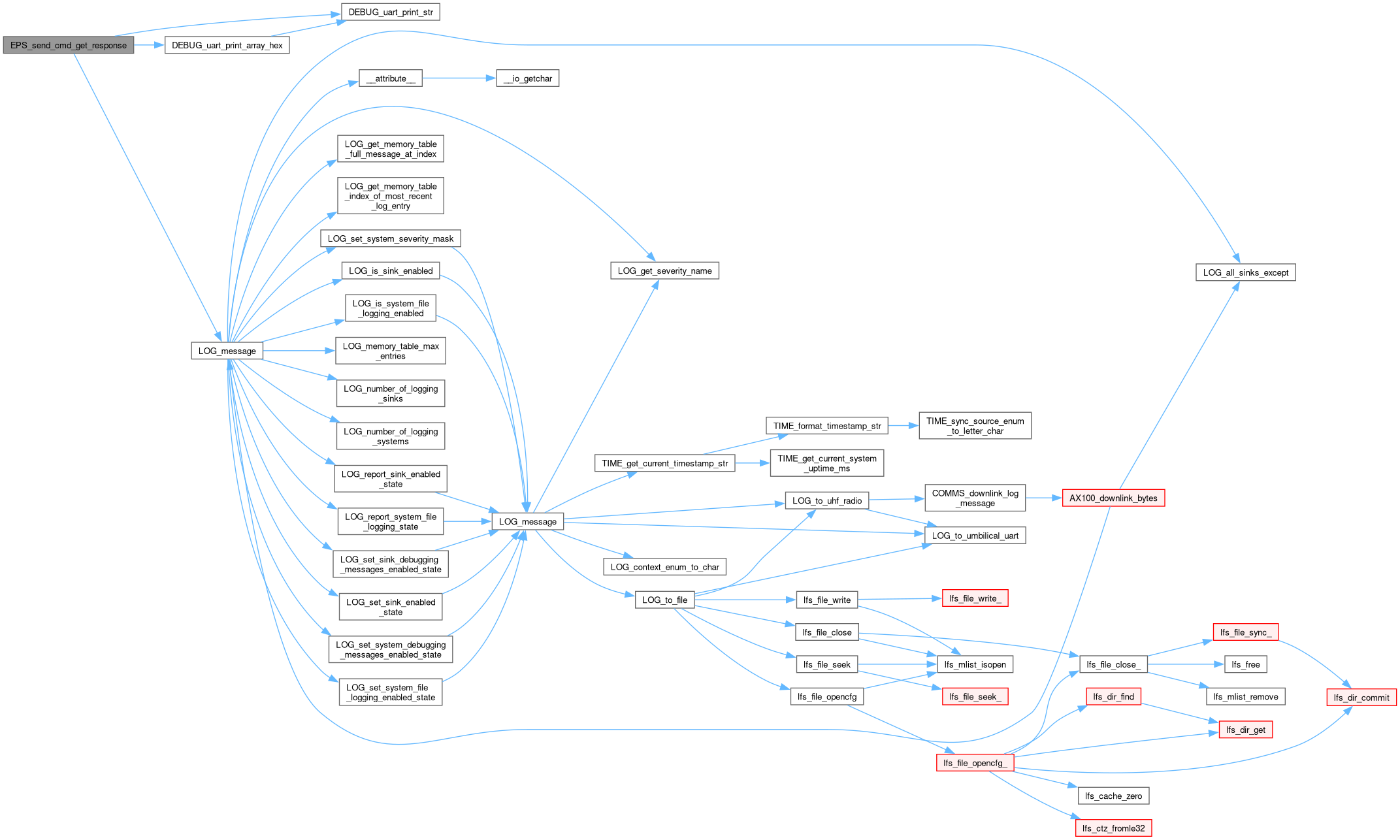

Here is the call graph for this function:

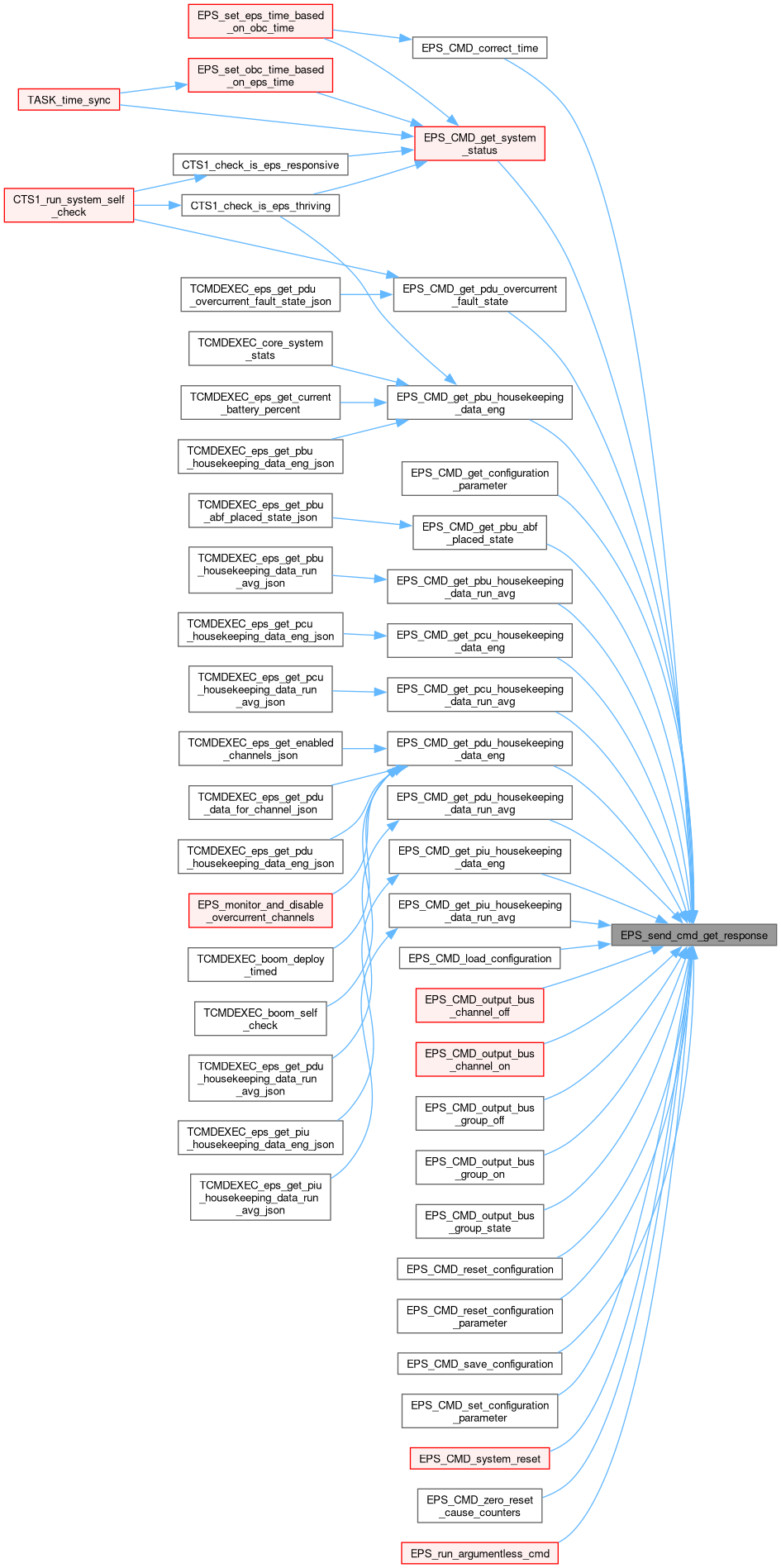

Here is the caller graph for this function:

Variable Documentation

CONFIG_EPS_enable_uart_debug_print

uint32_t CONFIG_EPS_enable_uart_debug_print = 0

When enabled, the EPS's raw data is sent to the debug UART.

EPS_RX_TIMEOUT_BEFORE_FIRST_BYTE_MS

const uint32_t EPS_RX_TIMEOUT_BEFORE_FIRST_BYTE_MS = 50

static

EPS_RX_TIMEOUT_BETWEEN_BYTES_MS

const uint32_t EPS_RX_TIMEOUT_BETWEEN_BYTES_MS = 25

static

EPS_TX_TIMEOUT_MS

const uint32_t EPS_TX_TIMEOUT_MS = 1000

static

UART_eps_port_handle

UART_HandleTypeDef* UART_eps_port_handle

extern
