flash_internal_spi.h File Reference

#include <stdint.h>

Include dependency graph for flash_internal_spi.h:

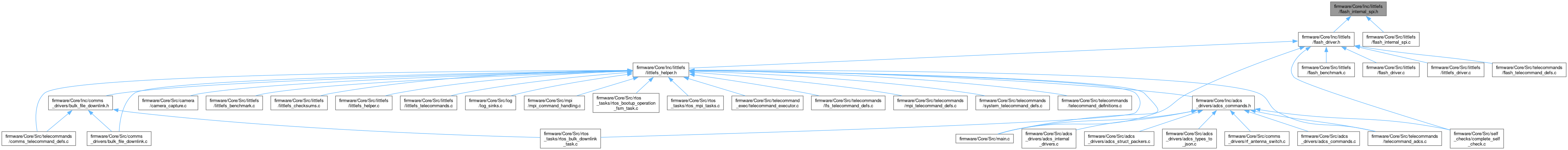

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	FLASH_SPI_Data_t

Enumerations
enum	FLASH_error_enum_t {   FLASH_ERR_OK = 0 , FLASH_ERR_SPI_TRANSMIT_FAILED = -3 , FLASH_ERR_SPI_RECEIVE_FAILED = -4 , FLASH_ERR_DEVICE_BUSY_TIMEOUT = -6 ,   FLASH_ERR_UNKNOWN = -7 , FLASH_ERR_STATUS_REG_ERROR = -8 , FLASH_ERR_SPI_TRANSMIT_TIMEOUT = -10 , FLASH_ERR_SPI_RECEIVE_TIMEOUT = -11 }
enum	FLASH_command_t {   FLASH_CMD_PAGE_READ = 0x13 , FLASH_CMD_READ_FROM_CACHE = 0x03 , FLASH_CMD_PROGRAM_LOAD = 0x02 , FLASH_CMD_PROGRAM_EXECUTE = 0x10 ,   FLASH_CMD_BLOCK_ERASE = 0xD8 , FLASH_CMD_WRITE_ENABLE = 0x06 , FLASH_CMD_WRITE_DISABLE = 0x04 , FLASH_CMD_GET_FEATURES = 0x0F ,   FLASH_CMD_SET_FEATURES = 0x1F , FLASH_CMD_READ_ID = 0x9F , FLASH_CMD_RESET = 0xFF }

Functions
FLASH_error_enum_t	FLASH_SPI_send_command (const FLASH_SPI_Data_t cmd[], uint8_t chip_number)
FLASH_error_enum_t	FLASH_SPI_send_command_with_data (const FLASH_SPI_Data_t cmd[], FLASH_SPI_Data_t *data, uint8_t chip_number)
FLASH_error_enum_t	FLASH_SPI_send_command_receive_response (const FLASH_SPI_Data_t cmd[], uint8_t *response, uint16_t response_size, uint8_t chip_number)
void	FLASH_SPI_enable_then_disable_chip_select (uint8_t chip_number)

Enumeration Type Documentation

FLASH_command_t

enum FLASH_command_t

Enumerator
FLASH_CMD_PAGE_READ
FLASH_CMD_READ_FROM_CACHE
FLASH_CMD_PROGRAM_LOAD
FLASH_CMD_PROGRAM_EXECUTE
FLASH_CMD_BLOCK_ERASE
FLASH_CMD_WRITE_ENABLE
FLASH_CMD_WRITE_DISABLE
FLASH_CMD_GET_FEATURES
FLASH_CMD_SET_FEATURES
FLASH_CMD_READ_ID
FLASH_CMD_RESET

FLASH_error_enum_t

enum FLASH_error_enum_t

Enumerator
FLASH_ERR_OK
FLASH_ERR_SPI_TRANSMIT_FAILED
FLASH_ERR_SPI_RECEIVE_FAILED
FLASH_ERR_DEVICE_BUSY_TIMEOUT
FLASH_ERR_UNKNOWN
FLASH_ERR_STATUS_REG_ERROR
FLASH_ERR_SPI_TRANSMIT_TIMEOUT
FLASH_ERR_SPI_RECEIVE_TIMEOUT

Function Documentation

FLASH_SPI_enable_then_disable_chip_select()

void FLASH_SPI_enable_then_disable_chip_select

(

uint8_t

chip_number

)

Here is the call graph for this function:

Here is the caller graph for this function:

FLASH_SPI_send_command()

FLASH_error_enum_t FLASH_SPI_send_command	(	const FLASH_SPI_Data_t	cmd[],
		uint8_t	chip_number )

Here is the call graph for this function:

Here is the caller graph for this function:

FLASH_SPI_send_command_receive_response()

FLASH_error_enum_t FLASH_SPI_send_command_receive_response	(	const FLASH_SPI_Data_t	cmd[],
		uint8_t *	response,
		uint16_t	response_size,
		uint8_t	chip_number )

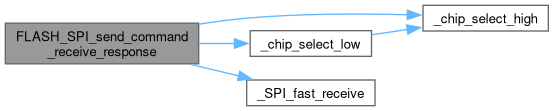

Here is the call graph for this function:

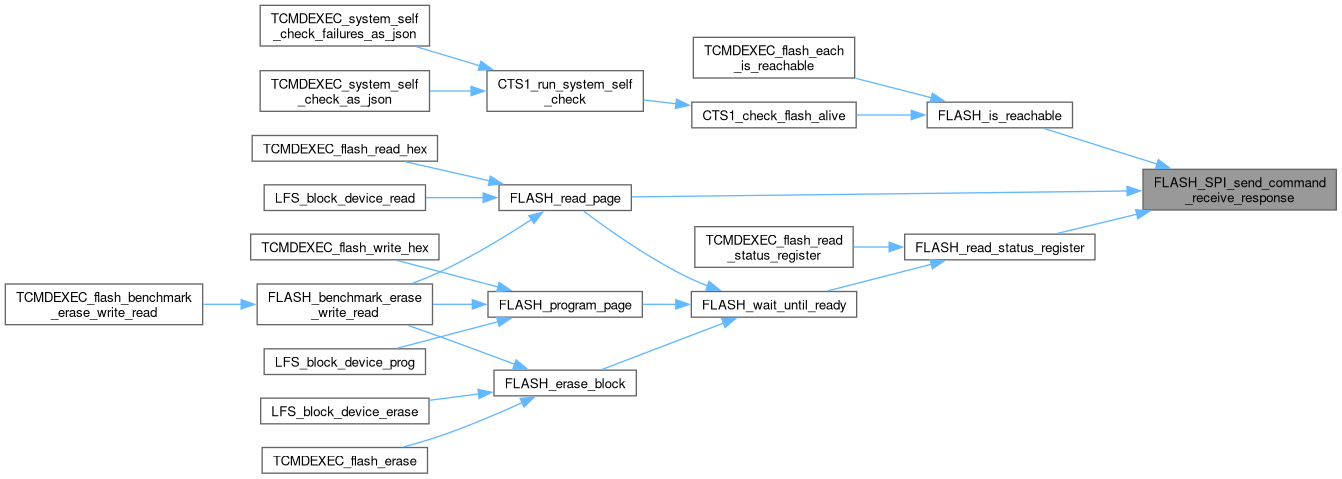

Here is the caller graph for this function:

FLASH_SPI_send_command_with_data()

FLASH_error_enum_t FLASH_SPI_send_command_with_data	(	const FLASH_SPI_Data_t	cmd[],
		FLASH_SPI_Data_t *	data,
		uint8_t	chip_number )

Here is the call graph for this function:

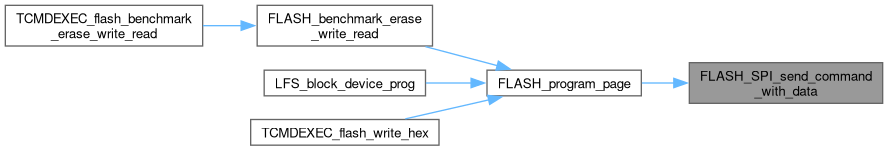

Here is the caller graph for this function:
