flash_telecommand_defs.c File Reference

#include "telecommand_exec/telecommand_args_helpers.h"
#include "telecommands/flash_telecommand_defs.h"
#include "littlefs/flash_driver.h"
#include "littlefs/flash_benchmark.h"
#include "debug_tools/debug_uart.h"
#include "log/log.h"
#include <stdio.h>
#include <string.h>
#include <inttypes.h>

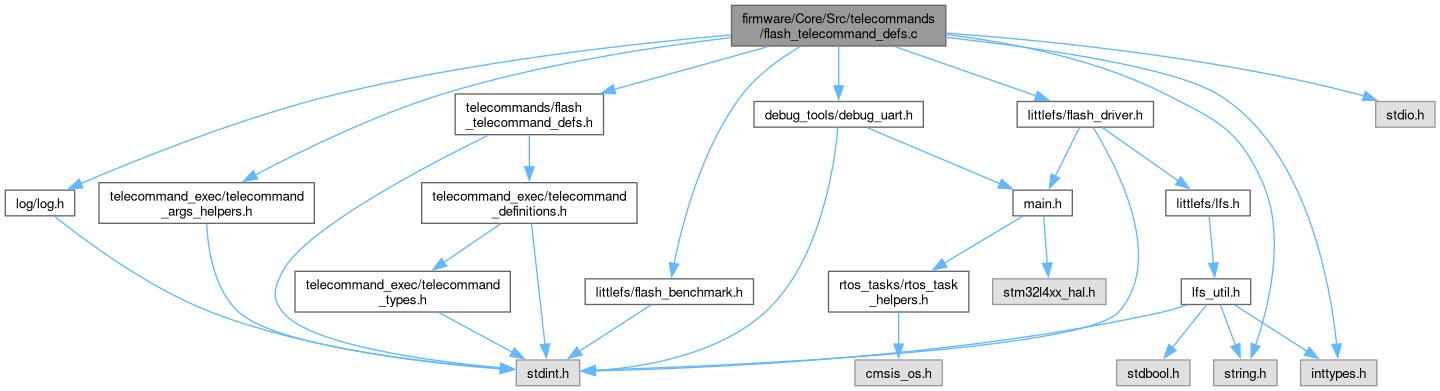

Include dependency graph for flash_telecommand_defs.c:

Functions
uint8_t	TCMDEXEC_flash_activate_each_cs (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Telecommand: Read bytes as hex from a flash address.
uint8_t	TCMDEXEC_flash_each_is_reachable (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Telecommand: Read bytes as hex from a flash address.
uint8_t	TCMDEXEC_flash_read_hex (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Telecommand: Read bytes as hex from a page number.
uint8_t	TCMDEXEC_flash_write_hex (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Telecommand: Write a hex string of bytes to a page number.
uint8_t	TCMDEXEC_flash_erase (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Telecommand: Erase a block of flash memory containing the given page number.
uint8_t	TCMDEXEC_flash_benchmark_erase_write_read (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Telecommand: Benchmarks the erase/write/read operations on the flash memory module.
uint8_t	TCMDEXEC_flash_reset (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Telecommand: Reset the flash memory module.
uint8_t	TCMDEXEC_flash_read_status_register (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Telecommand: Read and print Status Register value as hex from the flash memory module.
uint8_t	TCMDEXEC_flash_write_enable (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Telecommand: Set the write enable lath to high on the flash memory module.

Variables
uint8_t	read_buf [FLASH_MAX_BYTES_PER_PAGE]
uint8_t	bytes_to_write [FLASH_MAX_BYTES_PER_PAGE]

Function Documentation

TCMDEXEC_flash_activate_each_cs()

uint8_t TCMDEXEC_flash_activate_each_cs	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Telecommand: Read bytes as hex from a flash address.

Parameters

args_str

No args.

Returns

0 always

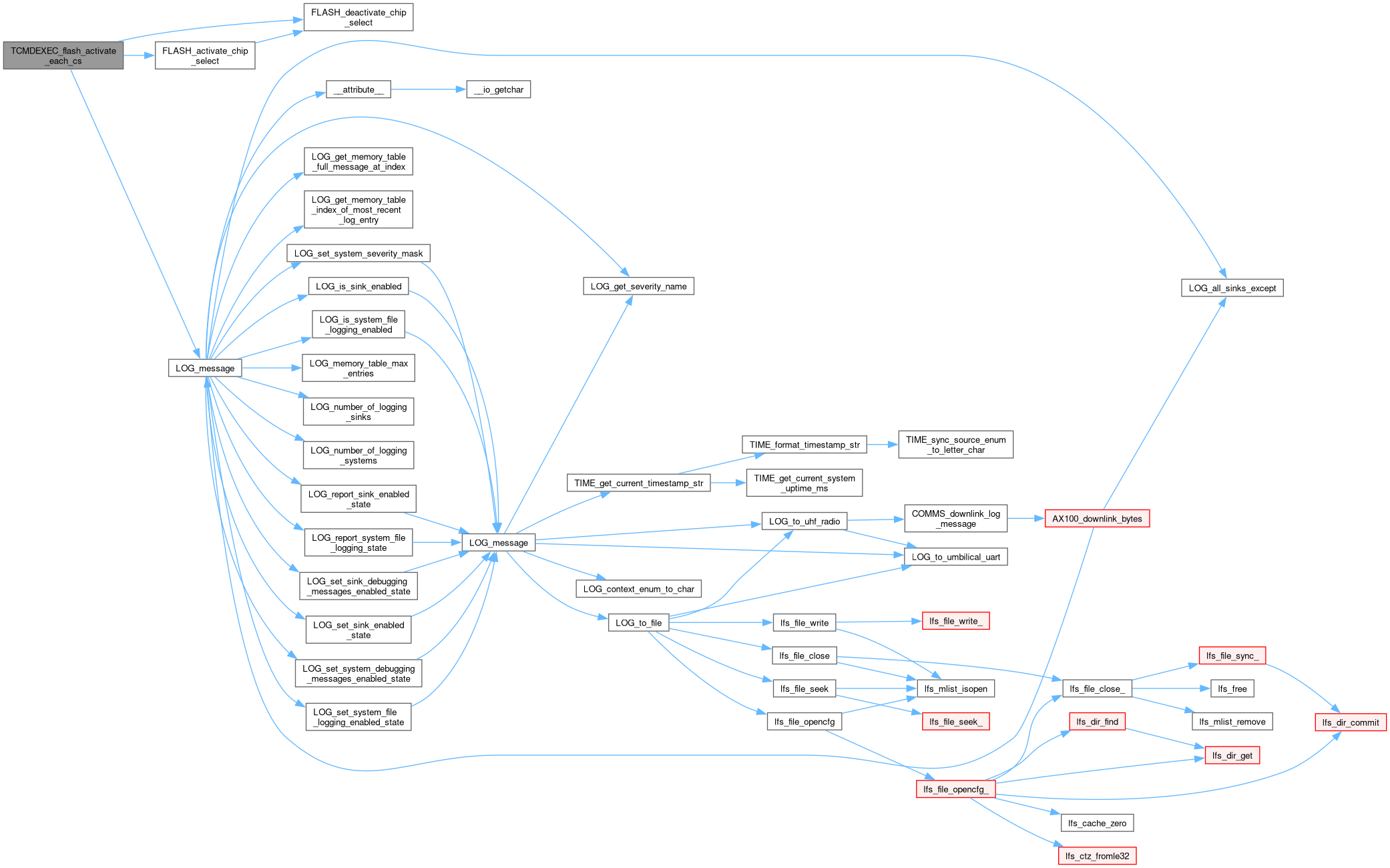

Here is the call graph for this function:

TCMDEXEC_flash_benchmark_erase_write_read()

uint8_t TCMDEXEC_flash_benchmark_erase_write_read	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Telecommand: Benchmarks the erase/write/read operations on the flash memory module.

Parameters

args_str

Arg 0: Chip Number (CS number) as uint Arg 1: Test Data Address as uint Arg 2: Test Data Length as uint

Returns

0 on success, >0 on error

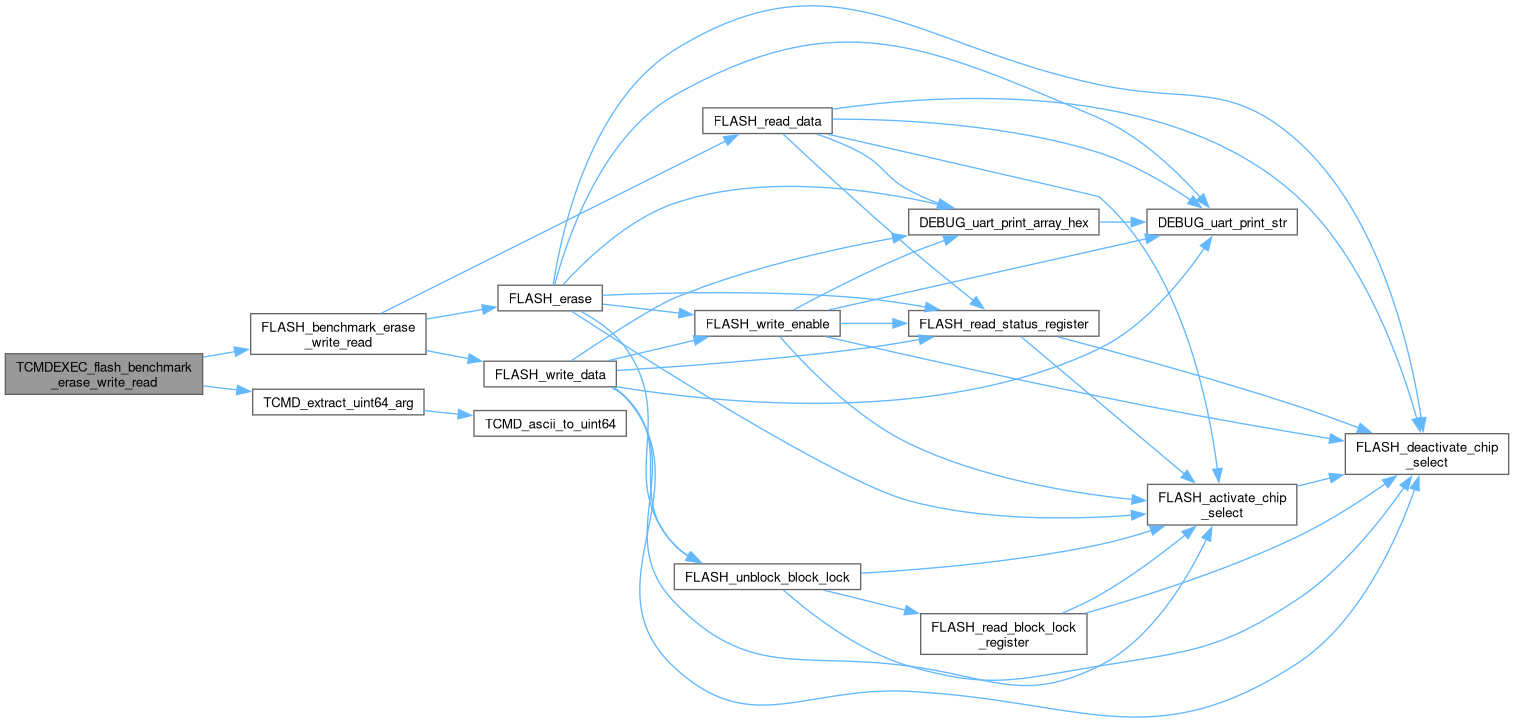

Here is the call graph for this function:

TCMDEXEC_flash_each_is_reachable()

uint8_t TCMDEXEC_flash_each_is_reachable	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Telecommand: Read bytes as hex from a flash address.

Parameters

args_str

No args.

Returns

0 always

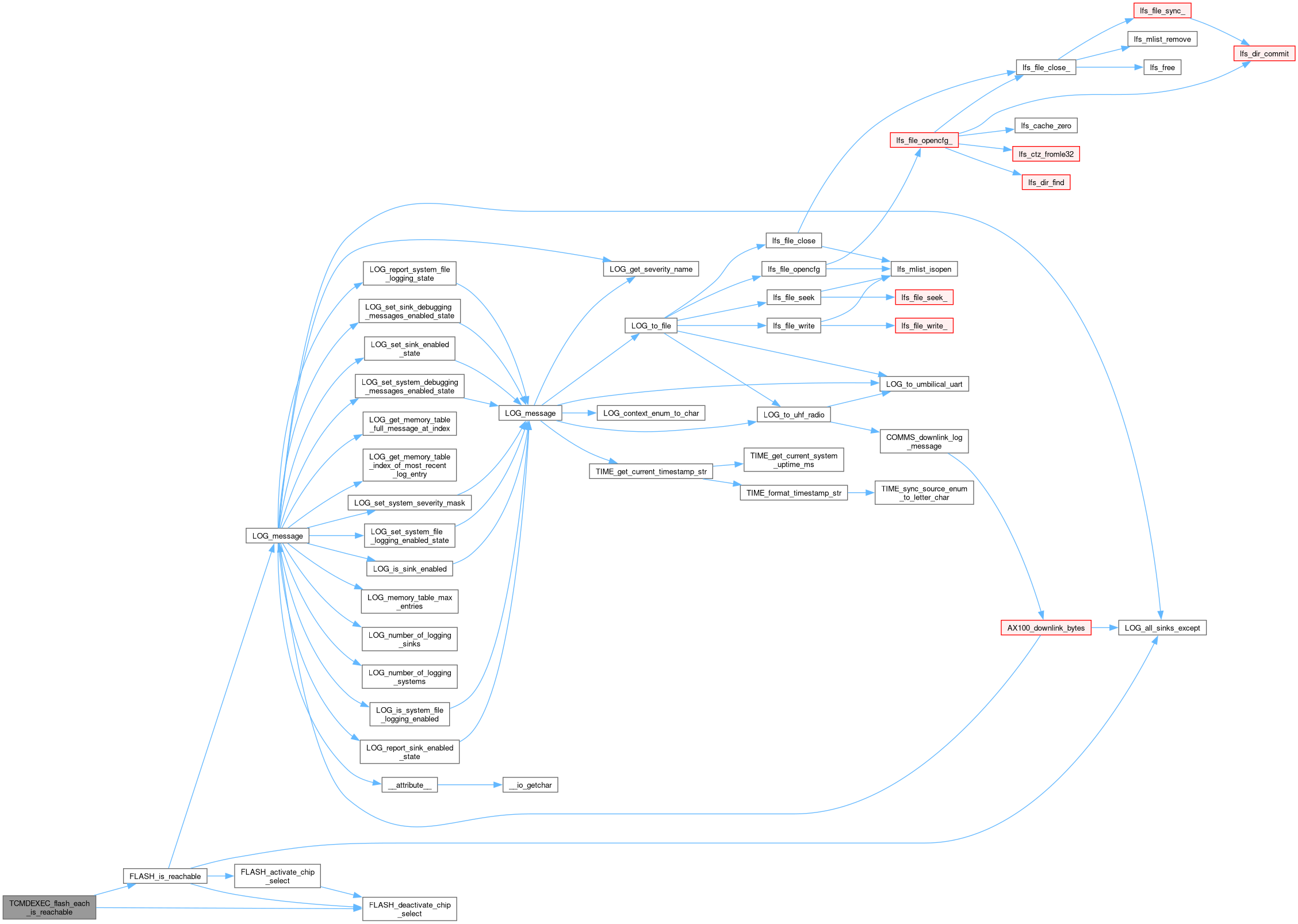

Here is the call graph for this function:

TCMDEXEC_flash_erase()

uint8_t TCMDEXEC_flash_erase	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Telecommand: Erase a block of flash memory containing the given page number.

Parameters

args_str

Arg 0: Chip Number (CS number) as uint Arg 1: Page number as uint

Returns

0 on success, >0 on error

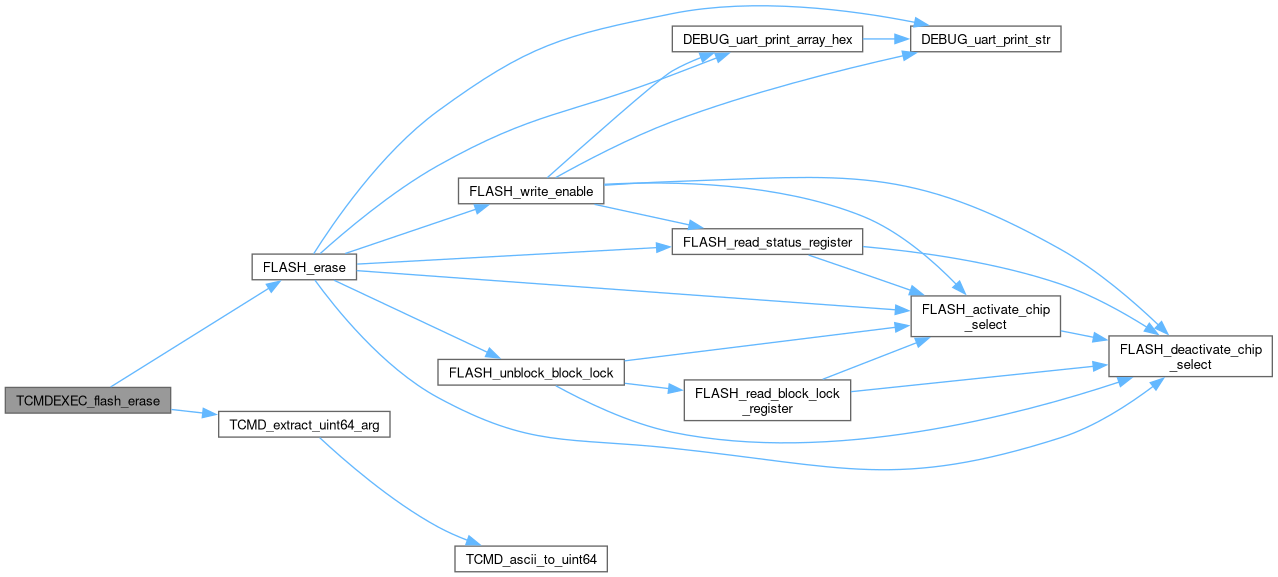

Here is the call graph for this function:

TCMDEXEC_flash_read_hex()

uint8_t TCMDEXEC_flash_read_hex	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Telecommand: Read bytes as hex from a page number.

Parameters

args_str

Arg 0: Chip Number (CS number) as uint Arg 1: Page number as uint Arg 2: Number of bytes to read as uint

Returns

0 on success, >0 on error

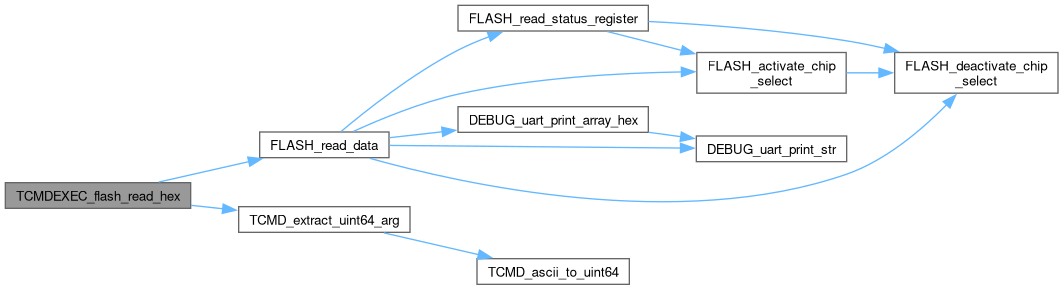

Here is the call graph for this function:

TCMDEXEC_flash_read_status_register()

uint8_t TCMDEXEC_flash_read_status_register	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Telecommand: Read and print Status Register value as hex from the flash memory module.

Parameters

args_str

Arg 0: Chip Number (CS number) as uint

Returns

0 on success, >0 on error

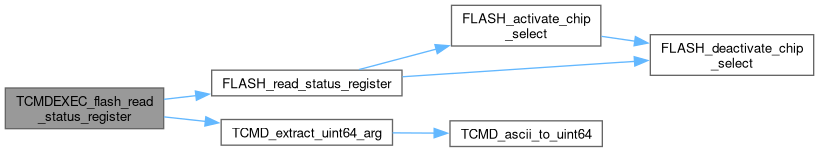

Here is the call graph for this function:

TCMDEXEC_flash_reset()

uint8_t TCMDEXEC_flash_reset	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Telecommand: Reset the flash memory module.

Parameters

args_str

Arg 0: Chip Number (CS number) as uint

Returns

0 on success, >0 on error

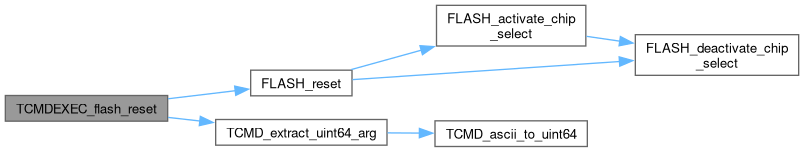

Here is the call graph for this function:

TCMDEXEC_flash_write_enable()

uint8_t TCMDEXEC_flash_write_enable	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Telecommand: Set the write enable lath to high on the flash memory module.

Parameters

args_str

Arg 0: Chip Number (CS number) as uint

Returns

0 on success, >0 on error

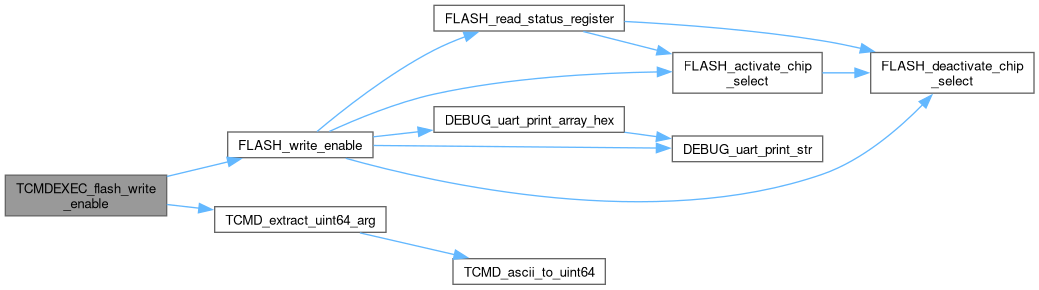

Here is the call graph for this function:

TCMDEXEC_flash_write_hex()

uint8_t TCMDEXEC_flash_write_hex	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Telecommand: Write a hex string of bytes to a page number.

Parameters

args_str

Arg 0: Chip Number (CS number) as uint Arg 1: Page number as uint Arg 2: Hex string of bytes to write (any case, allows space/underscore separators)

Returns

0 on success, >0 on error

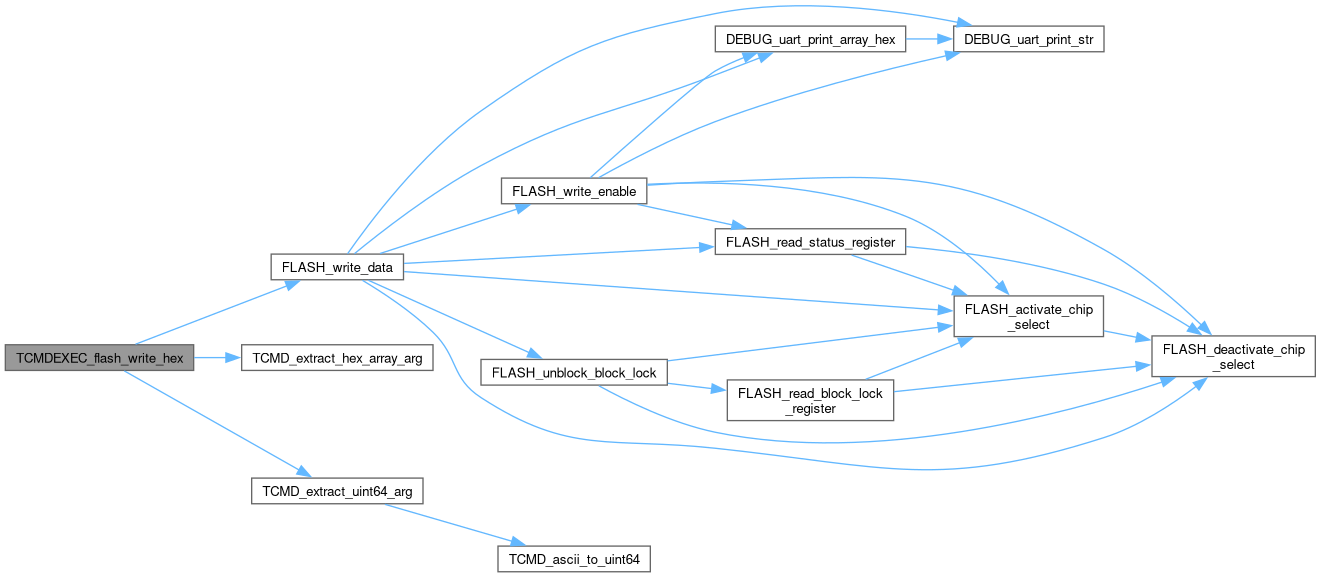

Here is the call graph for this function:

Variable Documentation

bytes_to_write

uint8_t bytes_to_write[FLASH_MAX_BYTES_PER_PAGE]

read_buf

uint8_t read_buf[FLASH_MAX_BYTES_PER_PAGE]
