gnss_firehose_storage.c File Reference

#include "gnss_receiver/gnss_firehose_storage.h"
#include "gnss_receiver/gnss_internal_drivers.h"
#include "uart_handler/uart_handler.h"
#include "log/log.h"
#include "littlefs/littlefs_helper.h"
#include "timekeeping/timekeeping.h"
#include "transforms/arrays.h"
#include <stdint.h>
#include <stdio.h>

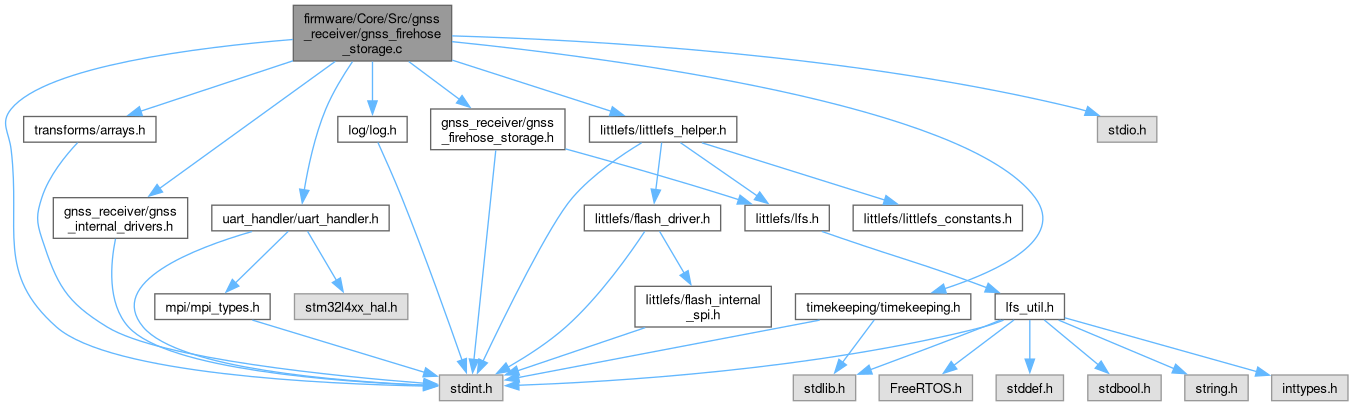

Include dependency graph for gnss_firehose_storage.c:

Functions
static int8_t	GNSS_write_firehose_file_header ()
static int8_t	GNSS_write_firehose_file_footer (const char reason_for_stopping[])
	Write the end-of-recording JSON data to the file.
static int8_t	GNSS_prepare_to_receive_data (const char output_file_path[])
	Opens a file to store incoming GNSS data.
uint8_t	GNSS_enable_firehose_storage_mode (const char output_file_path[])
	Configures the OBC to receive and store all data from the GNSS receiver to a file.
uint8_t	GNSS_disable_firehose_storage_mode (const char reason_for_stopping[])
uint8_t	GNSS_subtask_store_firehose_data_to_file ()
	Store pending data in the UART_gnss_buffer to the GNSS firehose file.

Variables
uint8_t	GNSS_firehose_file_is_open = 0
volatile uint32_t	GNSS_firehose_bytes_lost = 0
lfs_file_t	GNSS_firehose_file_pointer
uint32_t	GNSS_recording_start_uptime_ms = 0
static uint32_t	last_gnss_flush_uptime_ms = 0
uint32_t	GNSS_firehose_flush_interval_ms = 30000

Function Documentation

GNSS_disable_firehose_storage_mode()

uint8_t GNSS_disable_firehose_storage_mode

(

const char

reason_for_stopping[]

)

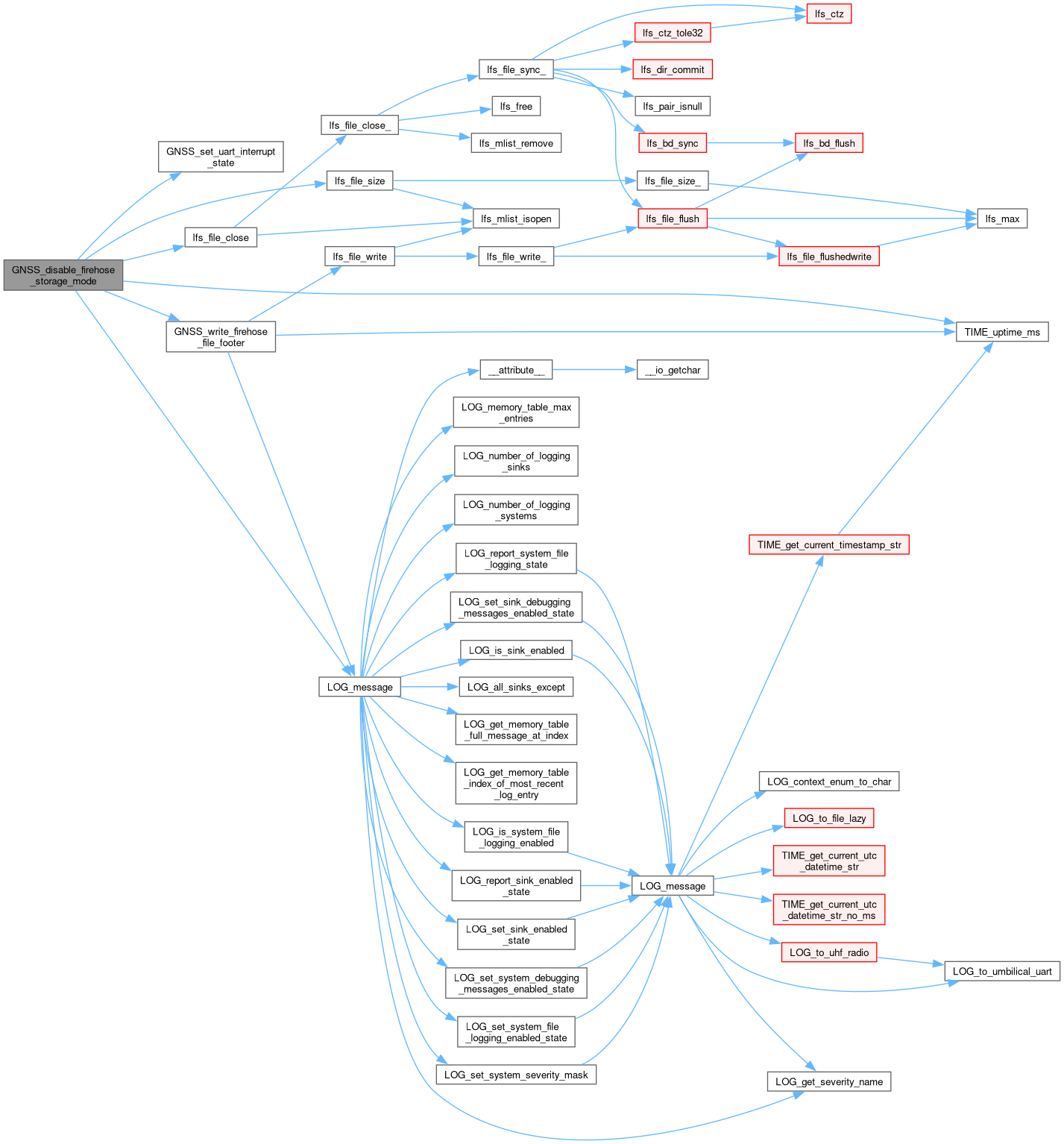

Here is the call graph for this function:

Here is the caller graph for this function:

GNSS_enable_firehose_storage_mode()

uint8_t GNSS_enable_firehose_storage_mode

(

const char

output_file_path[]

)

Configures the OBC to receive and store all data from the GNSS receiver to a file.

Returns

0: Success. Non-zero: Error.

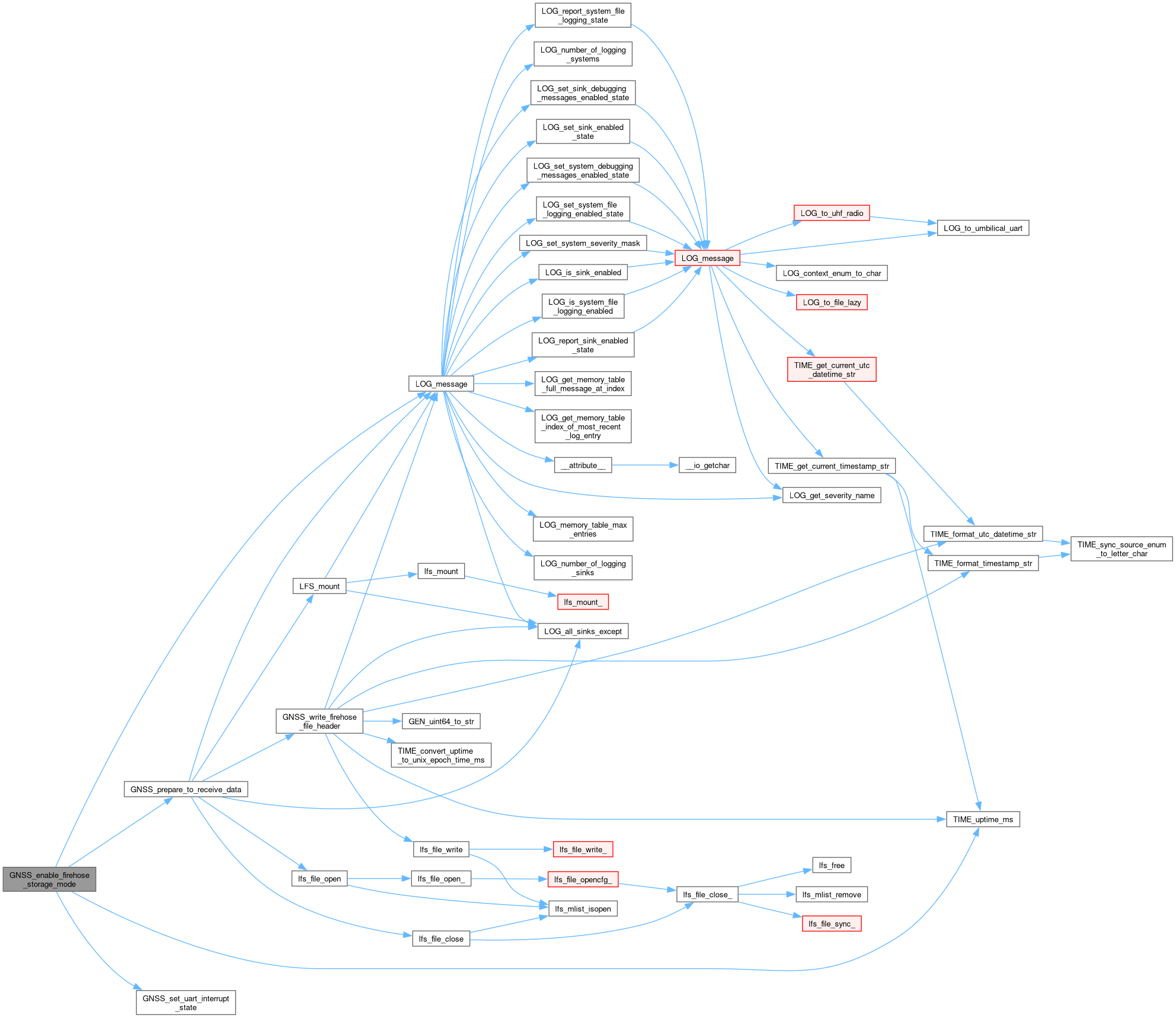

Here is the call graph for this function:

Here is the caller graph for this function:

GNSS_prepare_to_receive_data()

int8_t GNSS_prepare_to_receive_data ( const char output_file_path[] )

static

Opens a file to store incoming GNSS data.

Returns

0: System successfully prepared for GNSS data, < 0: Error

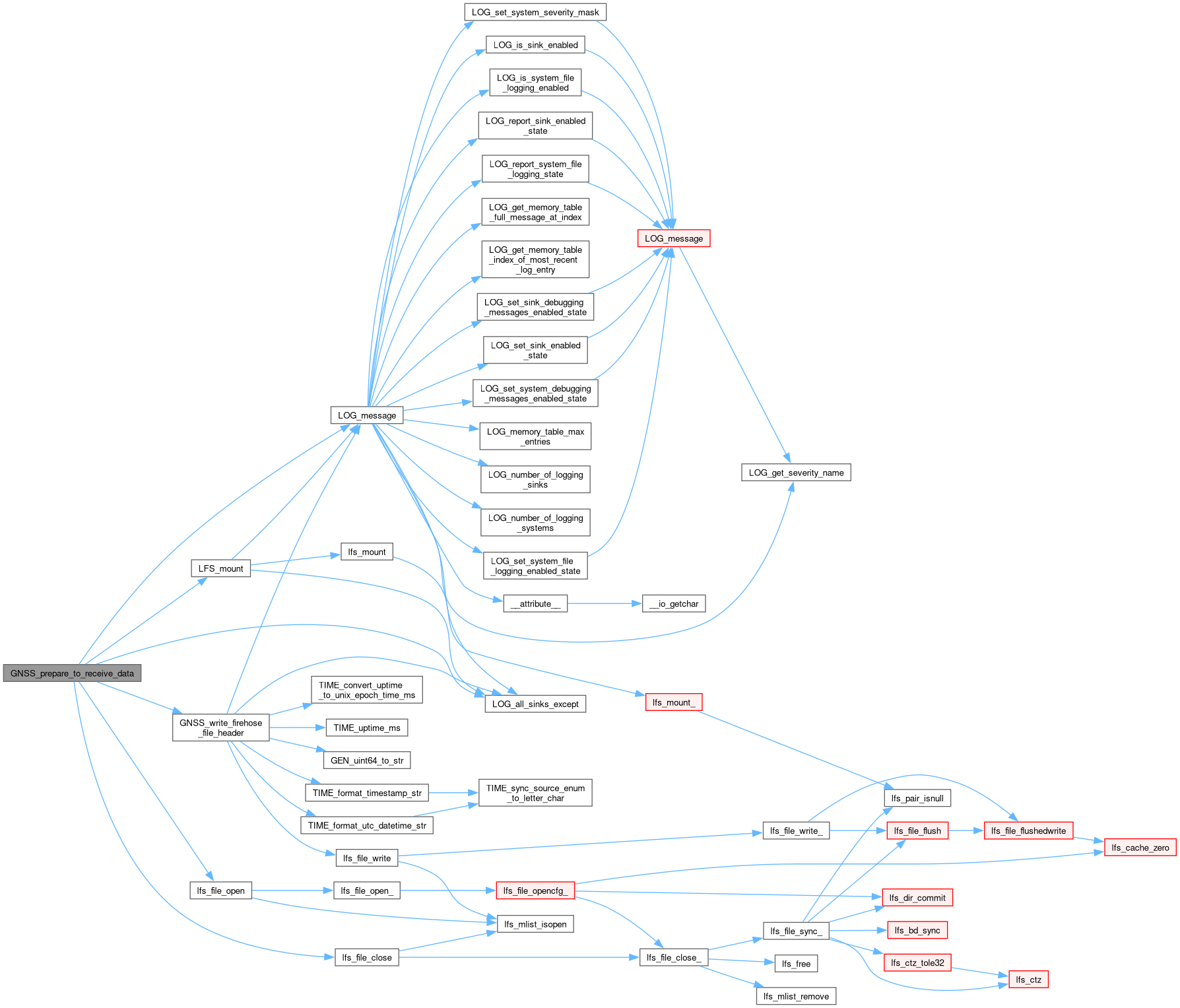

Here is the call graph for this function:

Here is the caller graph for this function:

GNSS_subtask_store_firehose_data_to_file()

uint8_t GNSS_subtask_store_firehose_data_to_file

(

)

Store pending data in the UART_gnss_buffer to the GNSS firehose file.

Returns

0 on success or no-op. Non-zero: Error.

Note

Intended to be called in a periodic background loop, but also can be called from telecommand.

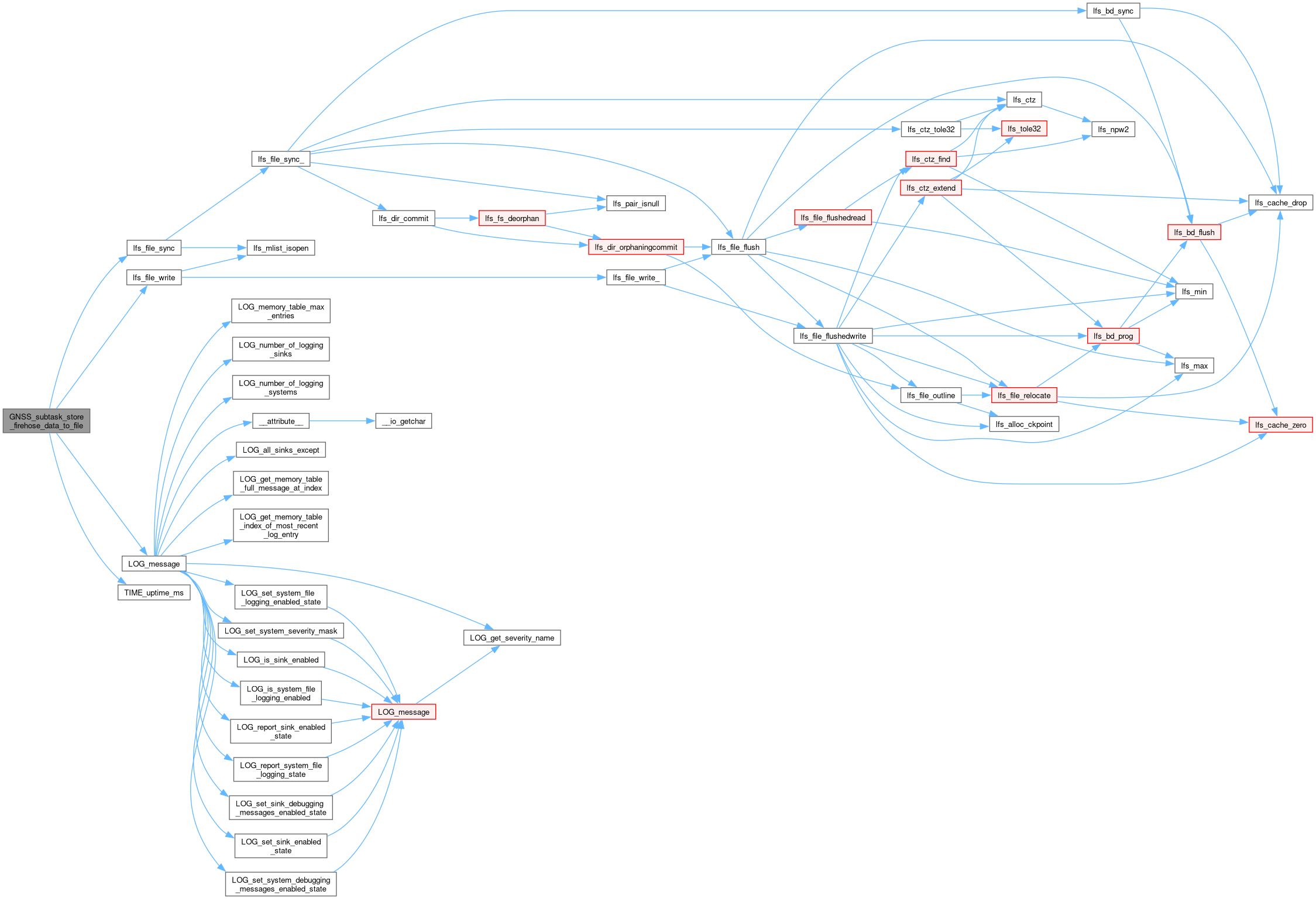

Here is the call graph for this function:

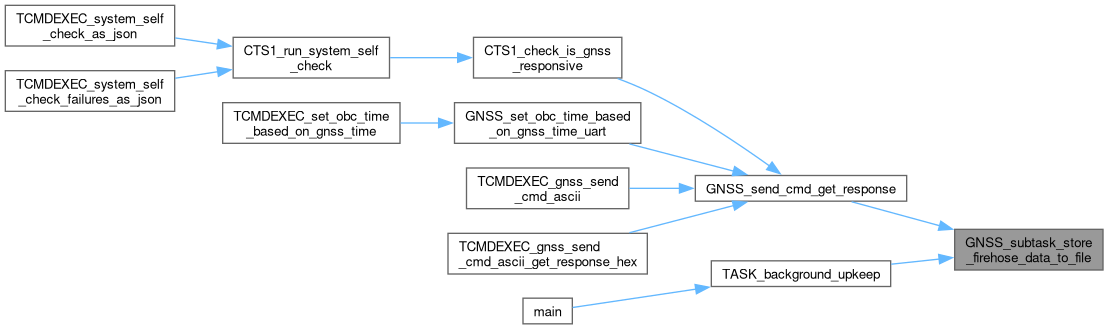

Here is the caller graph for this function:

GNSS_write_firehose_file_footer()

int8_t GNSS_write_firehose_file_footer ( const char reason_for_stopping[] )

static

Write the end-of-recording JSON data to the file.

Returns

0 on success.

Note

The normal timestamp function is called right before this function, so no need to include timestamps in here.

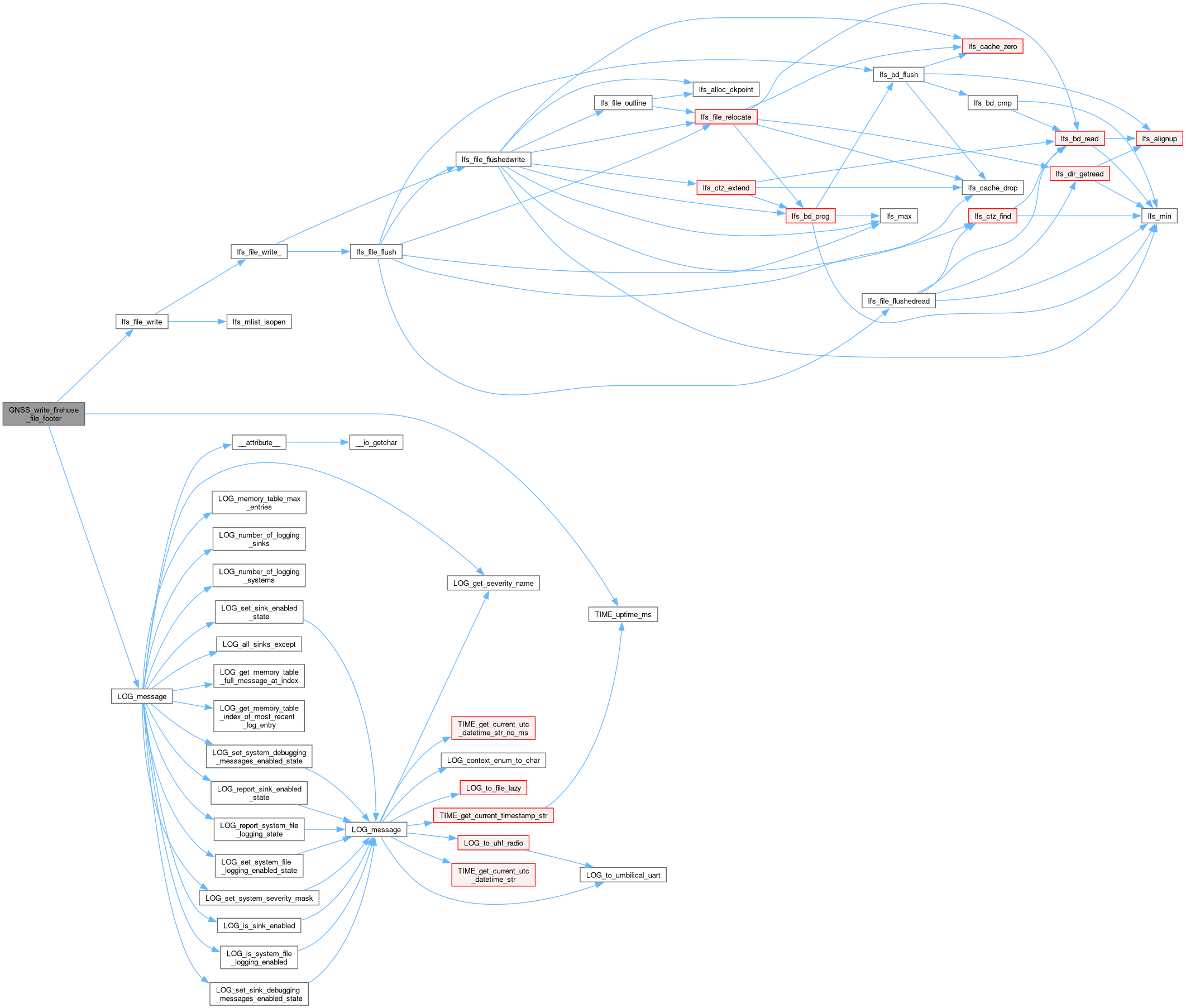

Here is the call graph for this function:

Here is the caller graph for this function:

GNSS_write_firehose_file_header()

int8_t GNSS_write_firehose_file_header ( )

static

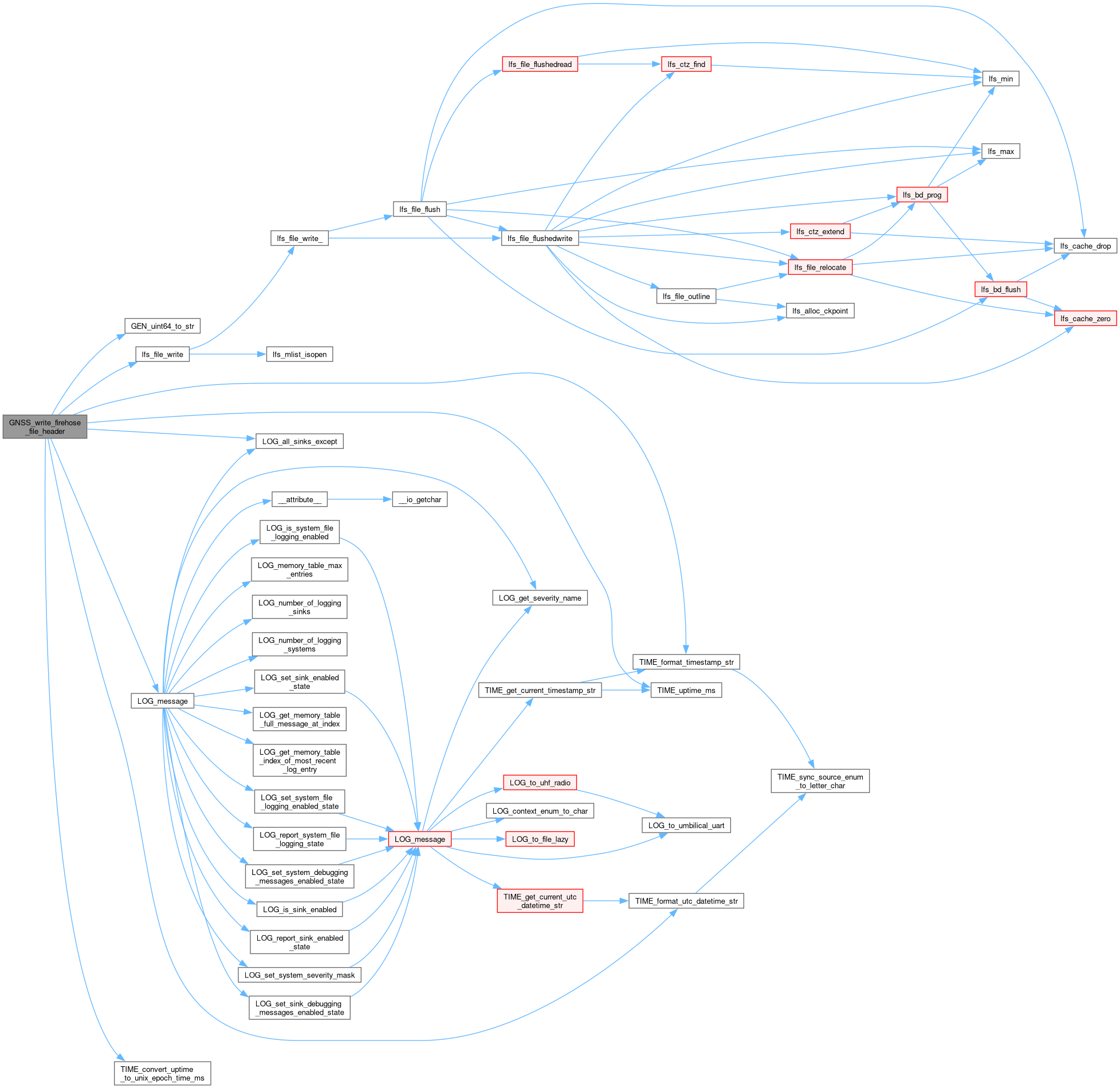

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

GNSS_firehose_bytes_lost

volatile uint32_t GNSS_firehose_bytes_lost = 0

GNSS_firehose_file_is_open

uint8_t GNSS_firehose_file_is_open = 0

GNSS_firehose_file_pointer

lfs_file_t GNSS_firehose_file_pointer

GNSS_firehose_flush_interval_ms

uint32_t GNSS_firehose_flush_interval_ms = 30000

GNSS_recording_start_uptime_ms

uint32_t GNSS_recording_start_uptime_ms = 0

last_gnss_flush_uptime_ms

uint32_t last_gnss_flush_uptime_ms = 0

static
