gnss_telecommand_defs.h File Reference

#include <stdint.h>

Include dependency graph for gnss_telecommand_defs.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
uint8_t	TCMDEXEC_gnss_send_cmd_ascii (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Send a command to the GNSS and receive the response as ASCII.
uint8_t	TCMDEXEC_gnss_send_cmd_ascii_get_response_hex (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Send a command to the GNSS (text) and receive the response as hex.
uint8_t	TCMDEXEC_gnss_enable_firehose_storage_mode (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
uint8_t	TCMDEXEC_gnss_disable_firehose_storage_mode (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Disables the GNSS firehose storage mode (closes the firehose file).

Function Documentation

TCMDEXEC_gnss_disable_firehose_storage_mode()

uint8_t TCMDEXEC_gnss_disable_firehose_storage_mode	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Disables the GNSS firehose storage mode (closes the firehose file).

Parameters

args_str

No args.

Returns

0: Success, >0: Failure

Note

This telecommand does not control EPS power. You must disable the GNSS power afterwards.

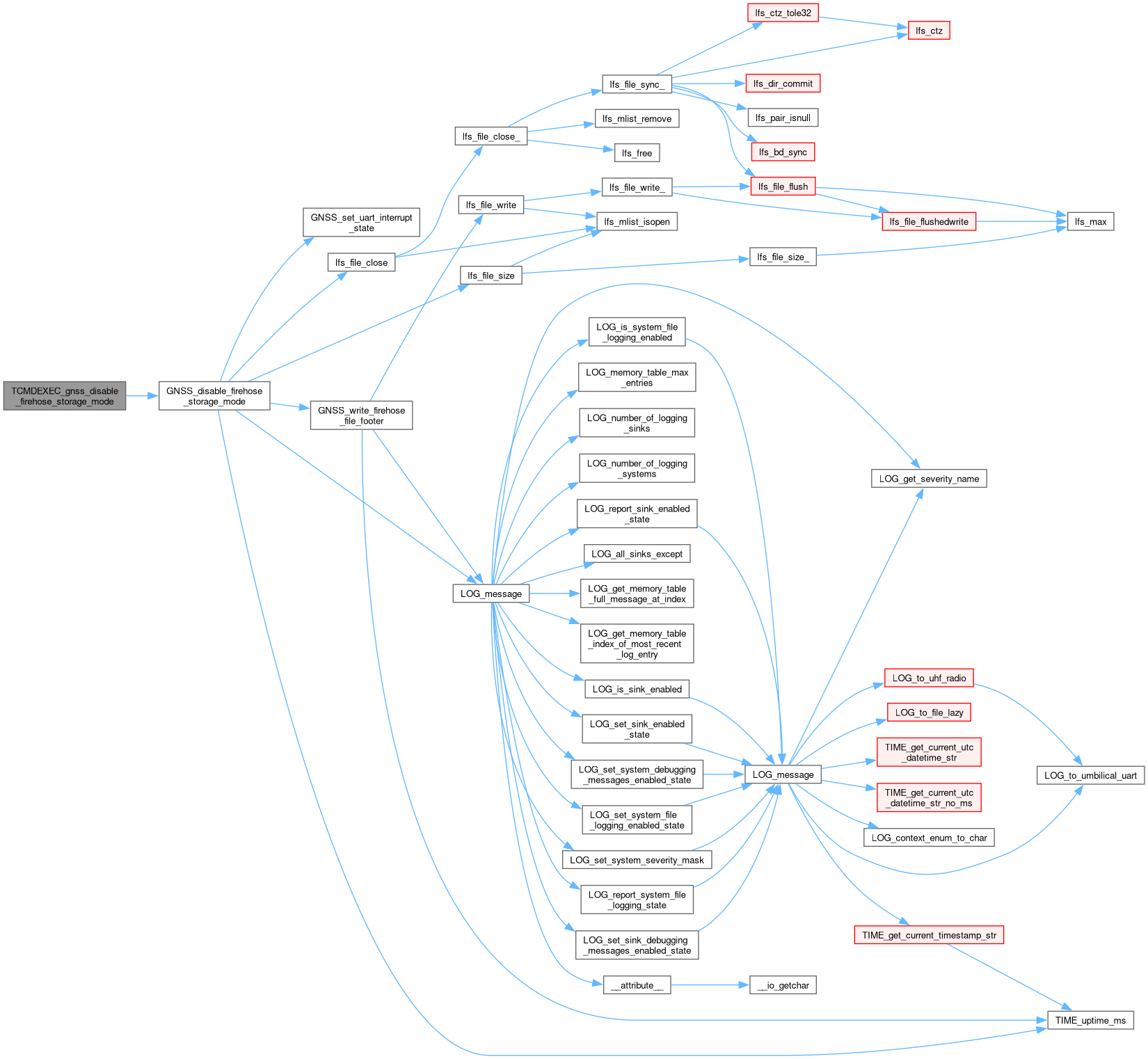

Here is the call graph for this function:

TCMDEXEC_gnss_enable_firehose_storage_mode()

uint8_t TCMDEXEC_gnss_enable_firehose_storage_mode	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

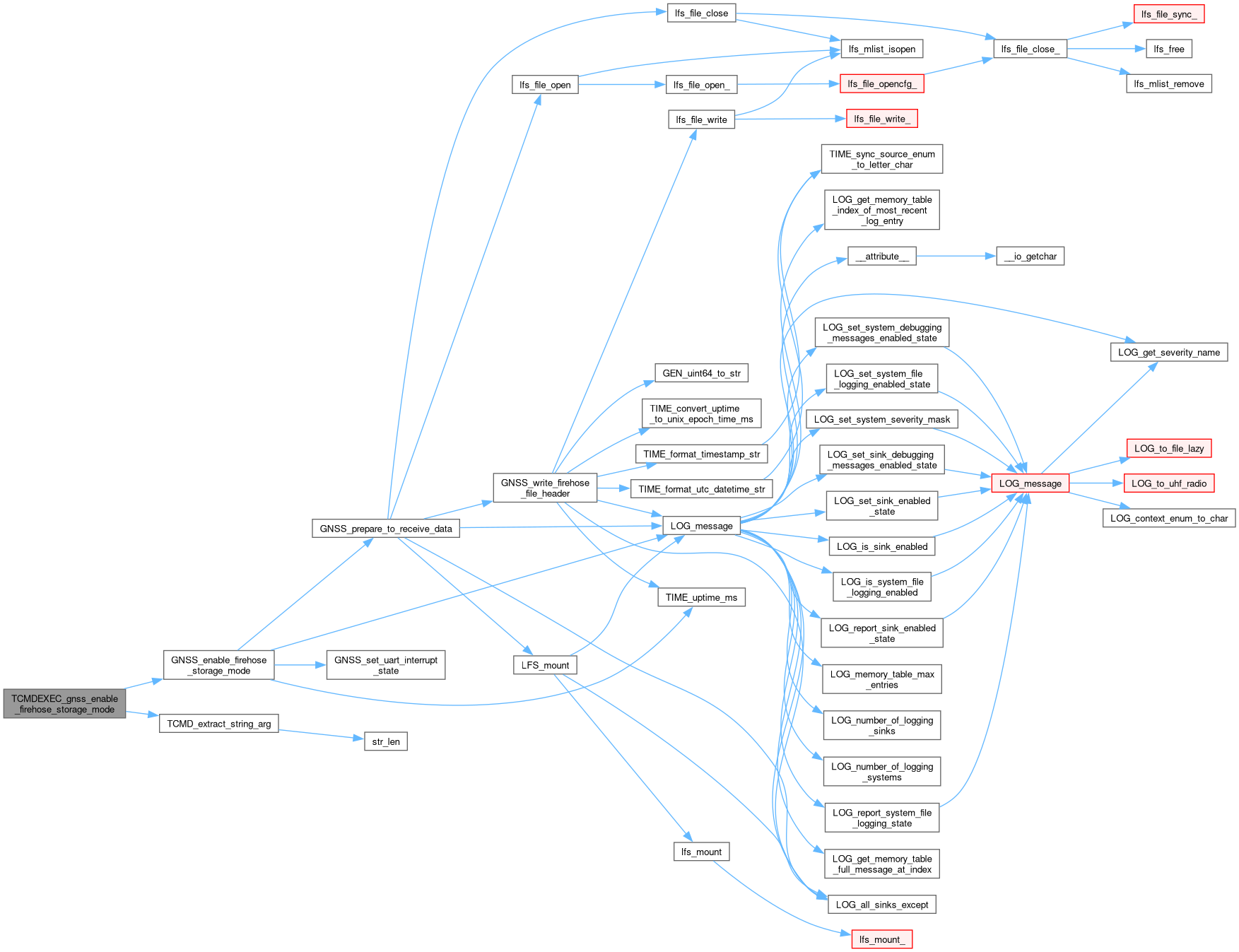

Here is the call graph for this function:

TCMDEXEC_gnss_send_cmd_ascii()

uint8_t TCMDEXEC_gnss_send_cmd_ascii	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Send a command to the GNSS and receive the response as ASCII.

Parameters

args_str	Arg 0: Log command to be sent to GNSS eg "log bestxyza once" (string)
response_output_buf	The buffer to write the response to
response_output_buf_len	The maximum length of the response_output_buf (its size)

Returns

0 on success, > 0 error

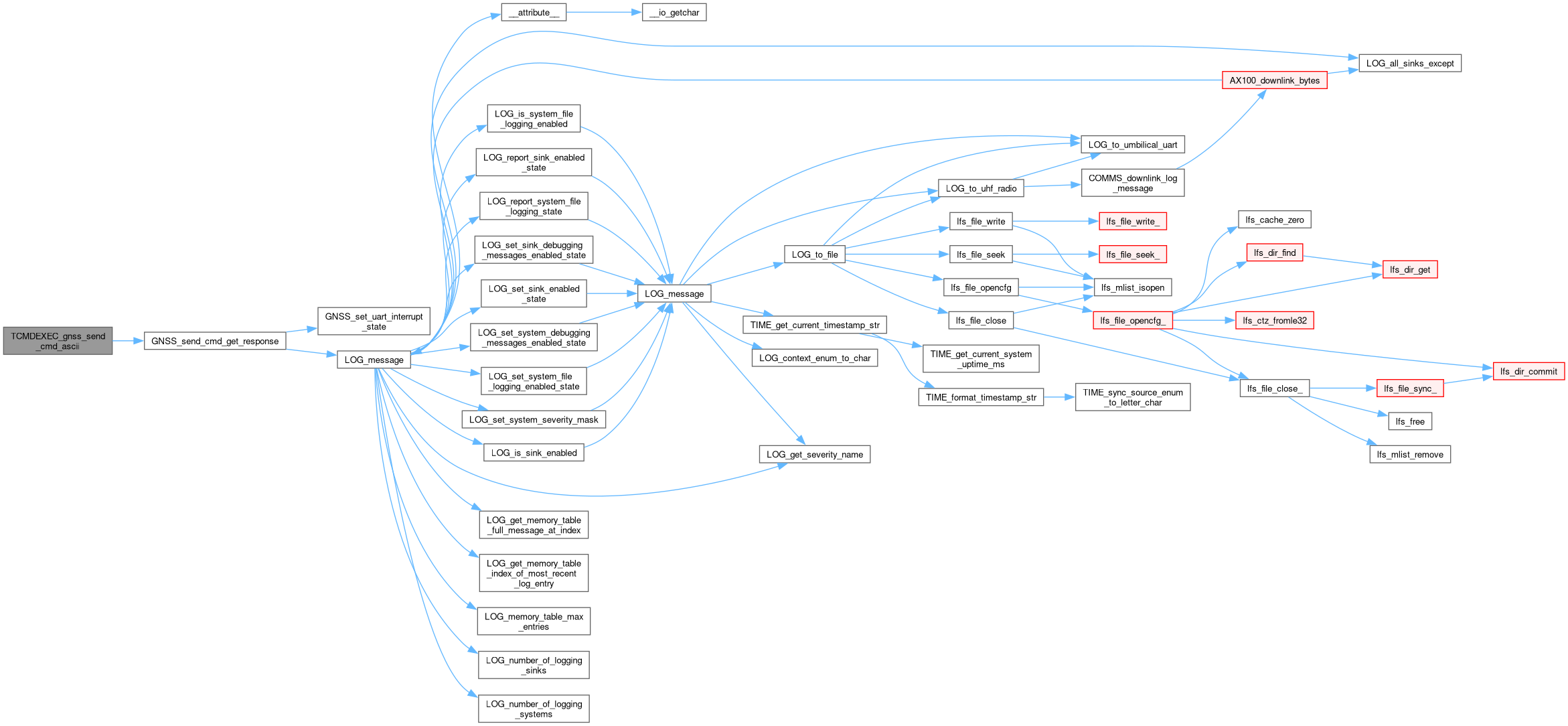

Here is the call graph for this function:

TCMDEXEC_gnss_send_cmd_ascii_get_response_hex()

uint8_t TCMDEXEC_gnss_send_cmd_ascii_get_response_hex	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Send a command to the GNSS (text) and receive the response as hex.

Parameters

args_str	Arg 0: Log command to be sent to GNSS eg "log bestxyzb once" (string)
response_output_buf	The buffer to write the response to (output as hex)
response_output_buf_len	The maximum length of the response_output_buf (its size)

Returns

0 on success, > 0 error

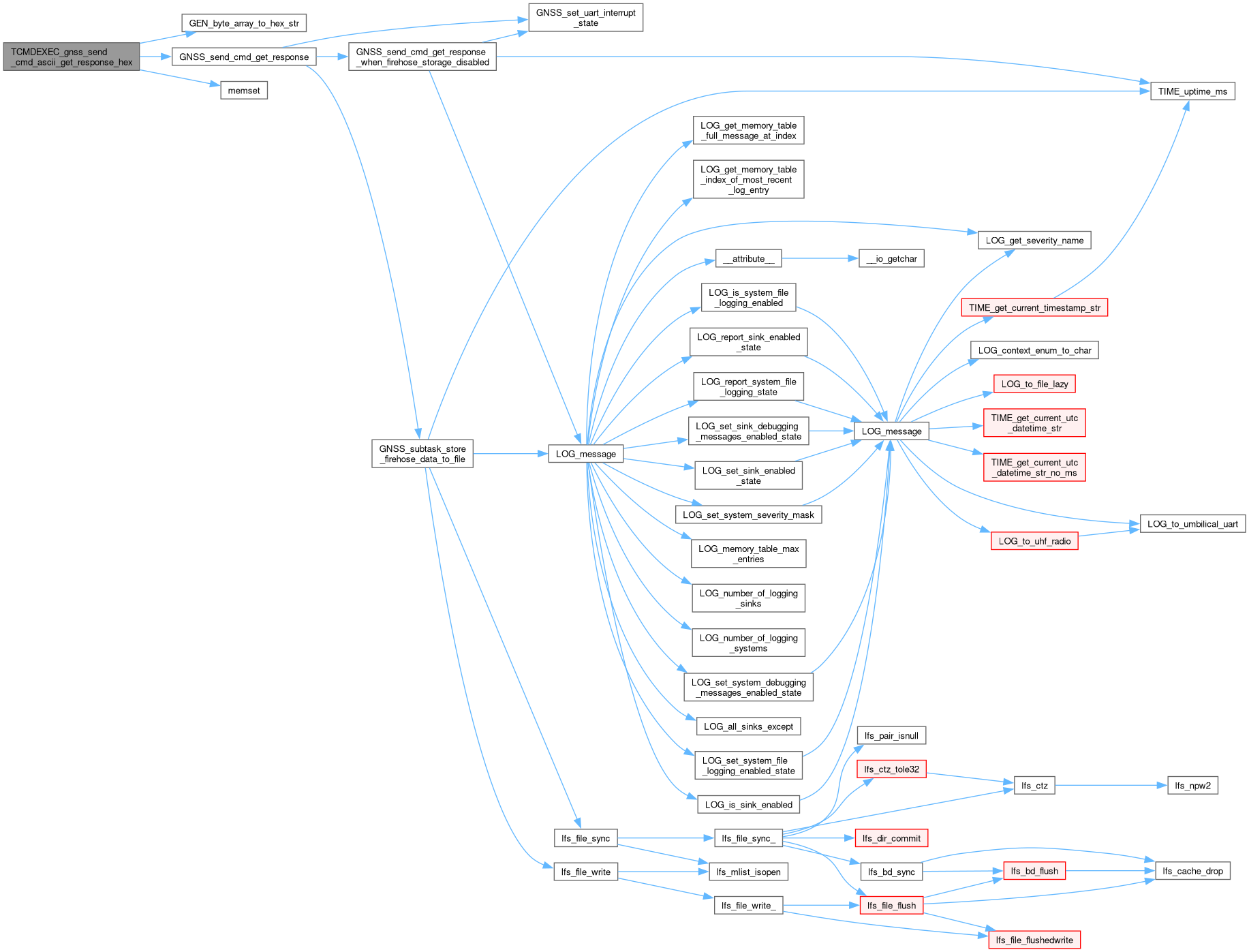

Here is the call graph for this function:
