#include <stdint.h>

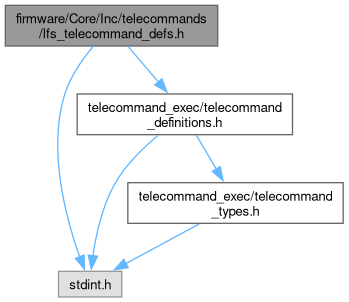

Include dependency graph for lfs_telecommand_defs.h:

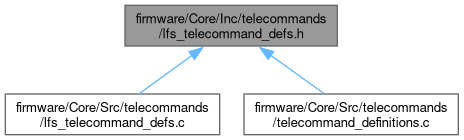

This graph shows which files directly or indirectly include this file:

Functions
uint8_t	TCMDEXEC_fs_format_storage (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
	Format the LittleFS storage. ERASES ALL FILES. Unmounts the filesystem if necessary.
uint8_t	TCMDEXEC_fs_mount (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
uint8_t	TCMDEXEC_fs_unmount (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
uint8_t	TCMDEXEC_fs_list_directory (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
	Telecommand: List all the files and directories within a given directory.
uint8_t	TCMDEXEC_fs_list_directory_json (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
	Telecommand: List all the files and directories within a given directory, as a JSON dict (key are paths, values are sizes).
uint8_t	TCMDEXEC_fs_make_directory (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
	Telecommand: Create a directory.
uint8_t	TCMDEXEC_fs_write_file_str (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
	Telecommand: Write data to a file in LittleFS.
uint8_t	TCMDEXEC_fs_write_file_hex (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
	Telecommand: Write hex data to a file in LittleFS with offset support.
uint8_t	TCMDEXEC_fs_delete_file (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
	Telecommand: Deletes a specified file in LittleFS.
uint8_t	TCMDEXEC_fs_delete_dir (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
	Telecommand: Deletes a specified directory, including all subfolders/subfiles.
uint8_t	TCMDEXEC_fs_read_file_hex (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
	Reads a file from LittleFS, and responds with its contents as 2-digit hex bytes (no spaces).
uint8_t	TCMDEXEC_fs_read_text_file (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
	Reads a file from LittleFS, and responds with its contents as a string.
uint8_t	TCMDEXEC_fs_read_file_sha256_hash_json (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
	Calculates the SHA256 hash of a file in LittleFS and returns it as a little-endian hex string.
uint8_t	TCMDEXEC_fs_demo_write_then_read (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
	Writes a file to LittleFS, then reads it back.
uint8_t	TCMDEXEC_fs_demo_write_random_data (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
	Write a file with pseudorandom data to LittleFS.
uint8_t	TCMDEXEC_fs_benchmark_write_read (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
	Telecommand: Benchmark LittleFS write and read operations.
uint8_t	TCMDEXEC_fs_get_filesystem_stats_json (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
	Generate a JSON string containing filesystem stats and debugging info.
uint8_t	TCMDEXEC_fs_compress_file_with_heatshrink (const char args_str, char response_output_buf, uint16_t response_output_buf_len)
	Compress a file using heatshrink.

Function Documentation

◆ TCMDEXEC_fs_benchmark_write_read()

uint8_t TCMDEXEC_fs_benchmark_write_read	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Telecommand: Benchmark LittleFS write and read operations.

Parameters

args_str

Arg 0: Write chunk size (bytes)
Arg 1: Write chunk count

Returns: 0 on success, 1 if error parsing args, 2 if benchmark failed

Note: The maximum write chunk size is 127 bytes, apparently; need to investigate why so small.

Here is the call graph for this function:

◆ TCMDEXEC_fs_compress_file_with_heatshrink()

uint8_t TCMDEXEC_fs_compress_file_with_heatshrink	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Compress a file using heatshrink.

Parameters

args_str	Arg 0: Input file path Arg 1: Output file path (e.g., suffix with ".hs") Arg 2: window_sz2 (min 4, recommended 8, max 15, like CLI -w arg) Arg 3: lookahead_sz2 (min 3, recommended 4, less than window_sz2, like CLI -l arg)
response_output_buf	Outputs the compression ratio as a message.

Returns: 0 on success. 1 on arg parsing errors.

Note: Can cause system to crash and reboot. Safe to use, but just be aware.; Requires that window_sz2 > lookahead_sz2.; Heatshrink does NOT embed the window sizes in the data. You must remember them, and use them when decompressing.

Here is the call graph for this function:

◆ TCMDEXEC_fs_delete_dir()

uint8_t TCMDEXEC_fs_delete_dir	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Telecommand: Deletes a specified directory, including all subfolders/subfiles.

Parameters

args_str

Arg 0: Directory name to be deleted

Note: Do not add quotations around the argument, write as is.

Here is the call graph for this function:

◆ TCMDEXEC_fs_delete_file()

uint8_t TCMDEXEC_fs_delete_file	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Telecommand: Deletes a specified file in LittleFS.

Parameters

args_str

Arg 0: File name to be deleted

Note: Do not add quotations around the argument, write as is.

Here is the call graph for this function:

◆ TCMDEXEC_fs_demo_write_random_data()

uint8_t TCMDEXEC_fs_demo_write_random_data	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Write a file with pseudorandom data to LittleFS.

Parameters

args_str	Arg 0: File path as string Arg 1: File size in bytes (approx., best-effort) Arg 2: Amount of randomness - 0 = no randomness, 1 = highly predictable, 255 = very random
response_output_buf
response_output_buf_len

Returns: 0 on success, >0 on error

Here is the call graph for this function:

◆ TCMDEXEC_fs_demo_write_then_read()

uint8_t TCMDEXEC_fs_demo_write_then_read	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Writes a file to LittleFS, then reads it back.

Parameters

args_str	Arg 0: File path as string
response_output_buf
response_output_buf_len

Returns

Here is the call graph for this function:

◆ TCMDEXEC_fs_format_storage()

uint8_t TCMDEXEC_fs_format_storage	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Format the LittleFS storage. ERASES ALL FILES. Unmounts the filesystem if necessary.

Returns: LFS errror code from LFS_format().

Here is the call graph for this function:

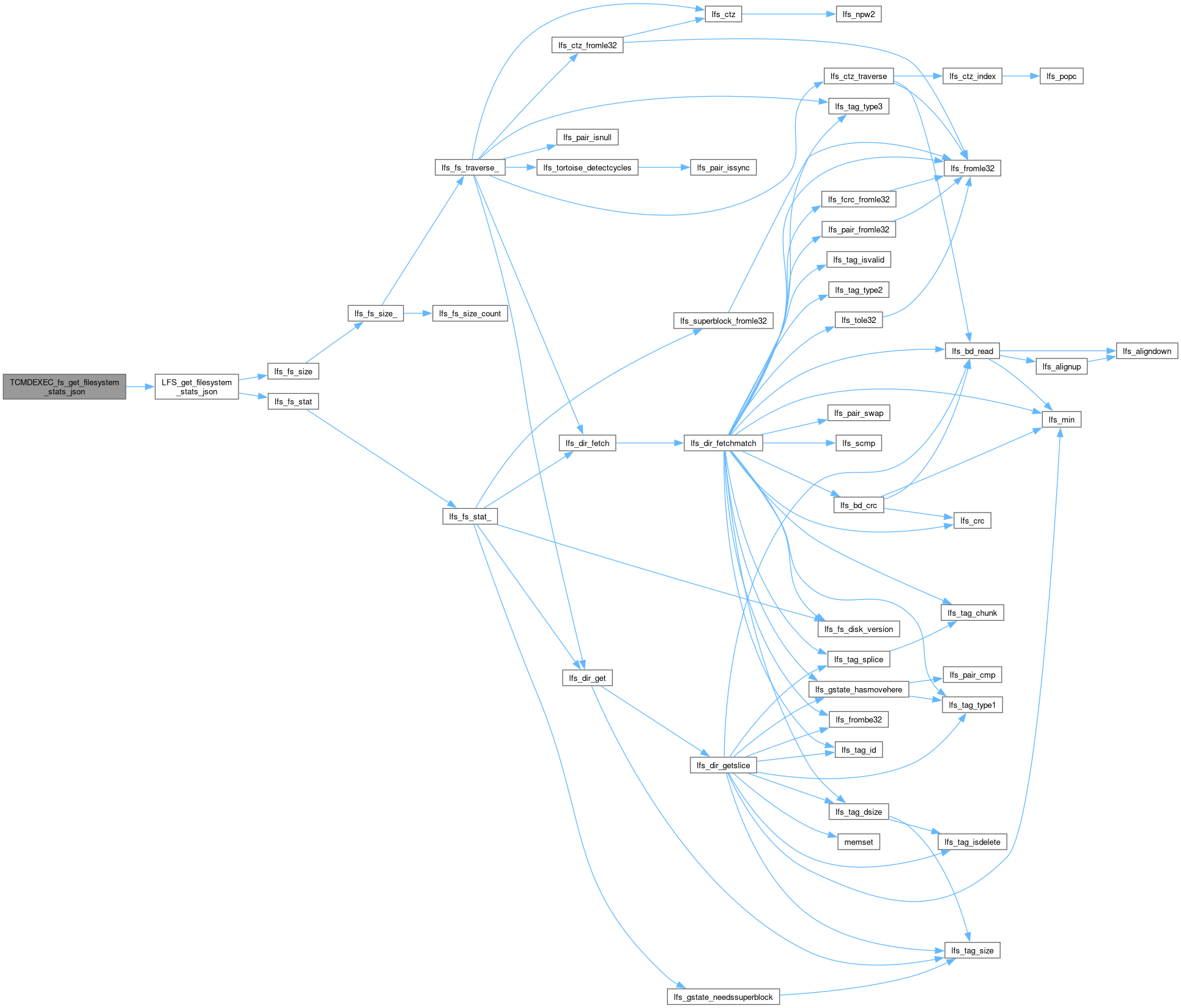

◆ TCMDEXEC_fs_get_filesystem_stats_json()

uint8_t TCMDEXEC_fs_get_filesystem_stats_json	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Generate a JSON string containing filesystem stats and debugging info.

Parameters

args_str No arguments.

Returns: 0 on success, 1 on error.

Note: Used space may be approximate, due to the nature of LittleFS Copy-on-Write (COW).

Here is the call graph for this function:

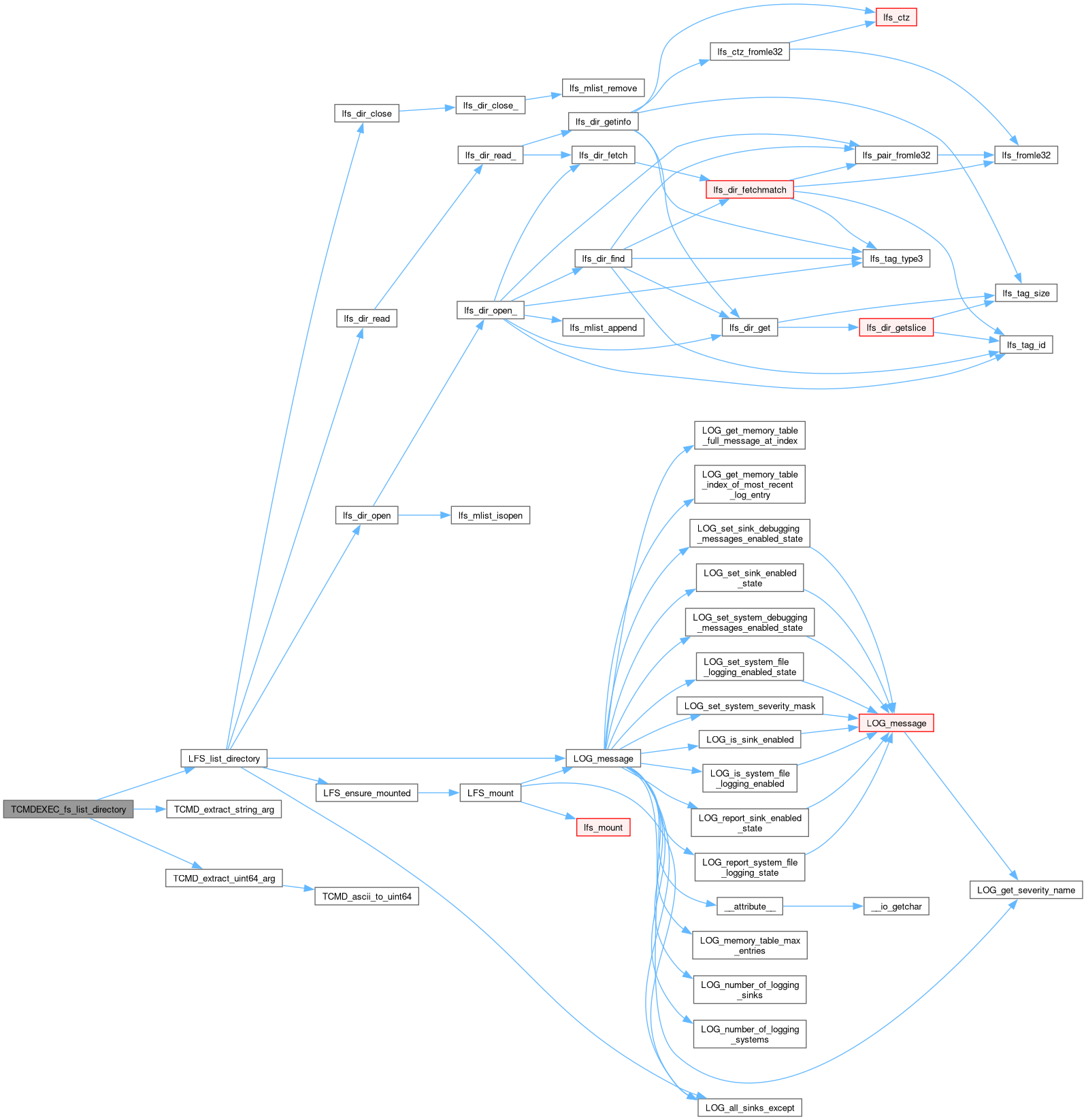

◆ TCMDEXEC_fs_list_directory()

uint8_t TCMDEXEC_fs_list_directory	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Telecommand: List all the files and directories within a given directory.

Parameters

args_str

Arg 0: Root Directory path as string
Arg 1: (Offset) Number of entries to skip at the beginning
Arg 2: (Count) Number entries to display

Here is the call graph for this function:

◆ TCMDEXEC_fs_list_directory_json()

uint8_t TCMDEXEC_fs_list_directory_json	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Telecommand: List all the files and directories within a given directory, as a JSON dict (key are paths, values are sizes).

Parameters

args_str

Arg 0: Root Directory path as string
Arg 1: (Offset) Number of entries to skip at the beginning
Arg 2: (Count) Number entries to display

Note: In the resulting JSON, the JSON value of directories is "null".

Here is the call graph for this function:

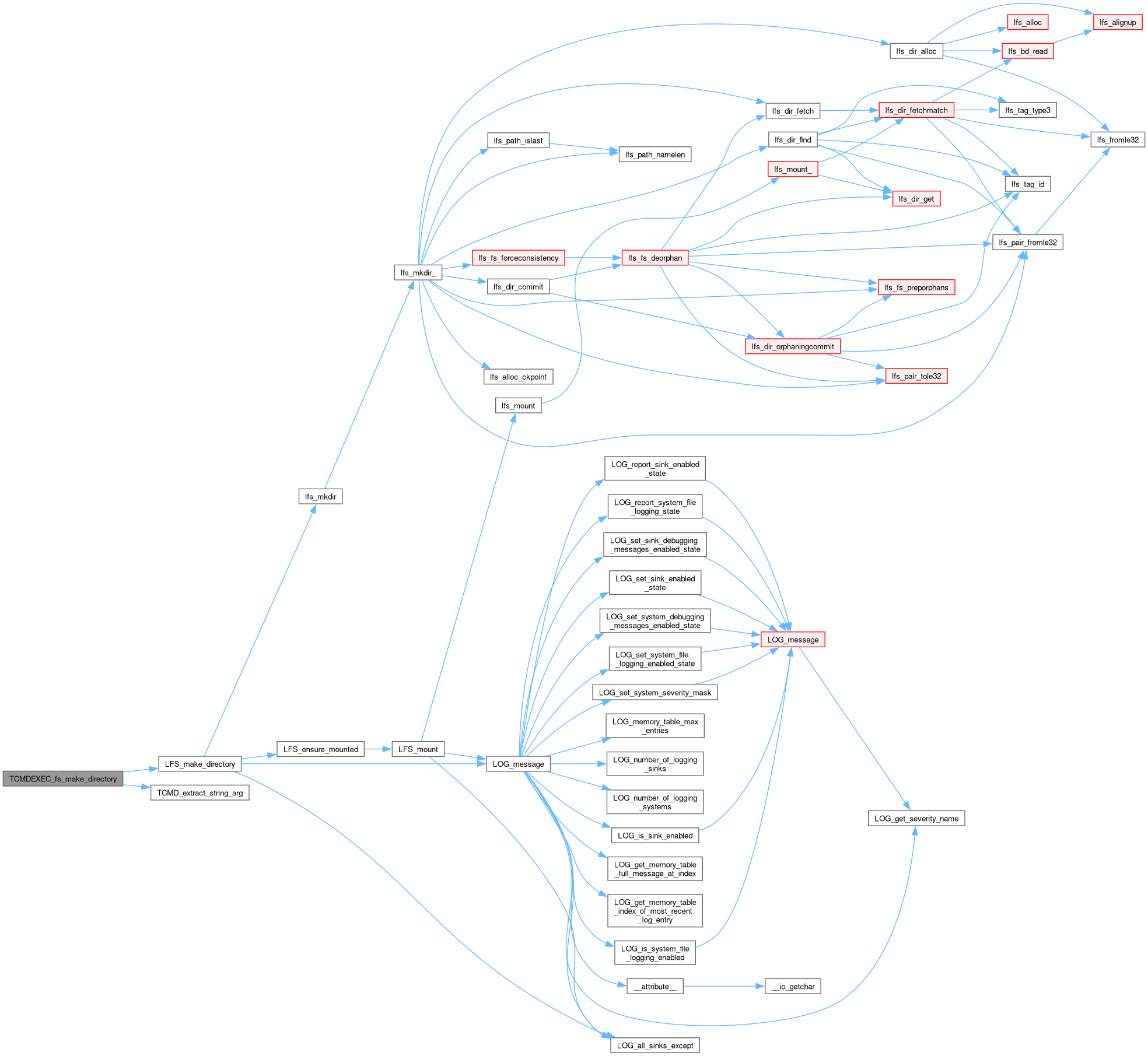

◆ TCMDEXEC_fs_make_directory()

uint8_t TCMDEXEC_fs_make_directory	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Telecommand: Create a directory.

Parameters

args_str

Arg 0: Directory Name as string (e.g., "/dir1", "/dir1/subdir1")

Here is the call graph for this function:

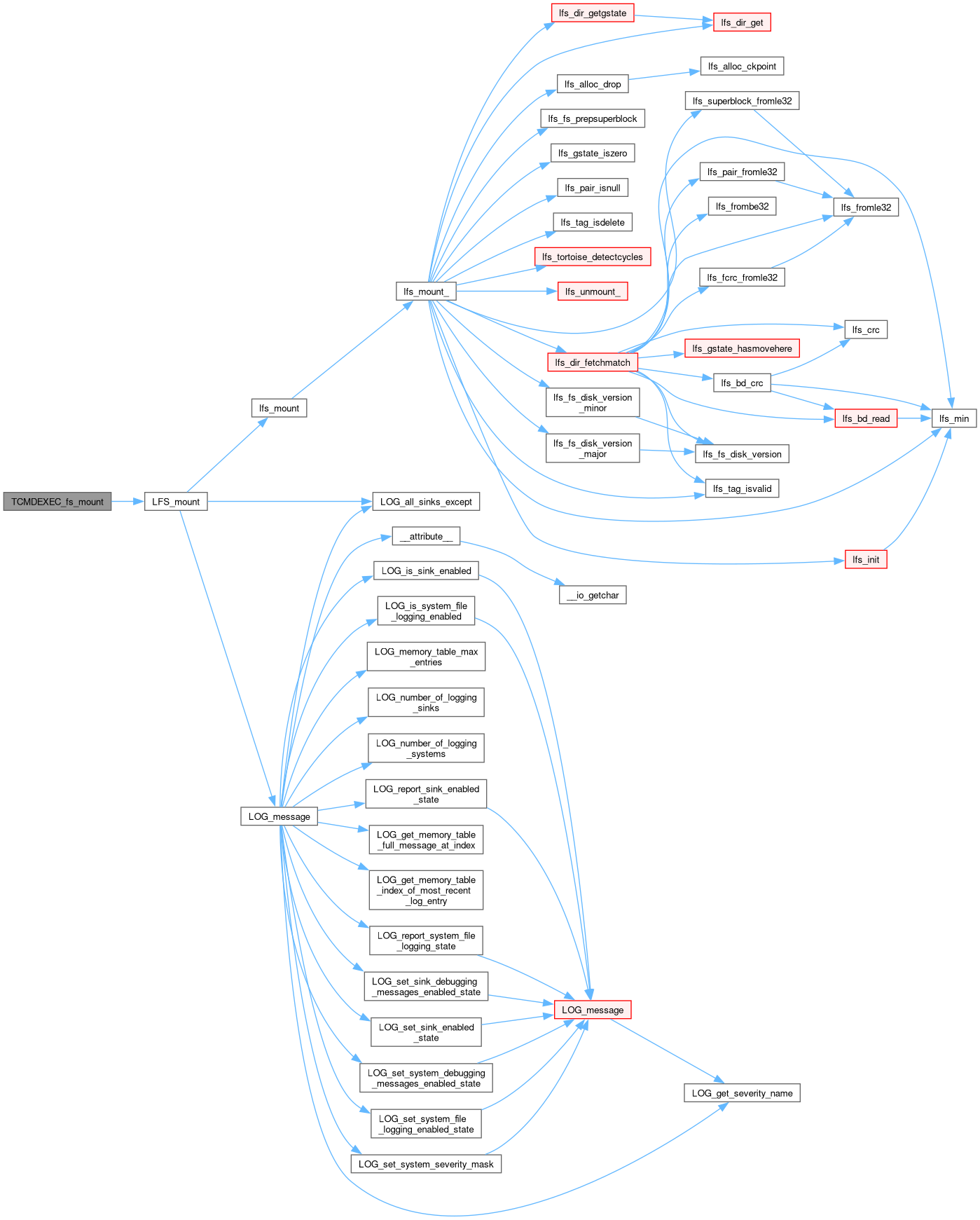

◆ TCMDEXEC_fs_mount()

uint8_t TCMDEXEC_fs_mount	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Here is the call graph for this function:

◆ TCMDEXEC_fs_read_file_hex()

uint8_t TCMDEXEC_fs_read_file_hex	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Reads a file from LittleFS, and responds with its contents as 2-digit hex bytes (no spaces).

Parameters

args_str

Arg 0: File path as string
Arg 1: Start offset (bytes). Nominally, pick 0.
Arg 2: Length to read (bytes). 0 to read max.

Returns: 0 on success, >0 on error

Here is the call graph for this function:

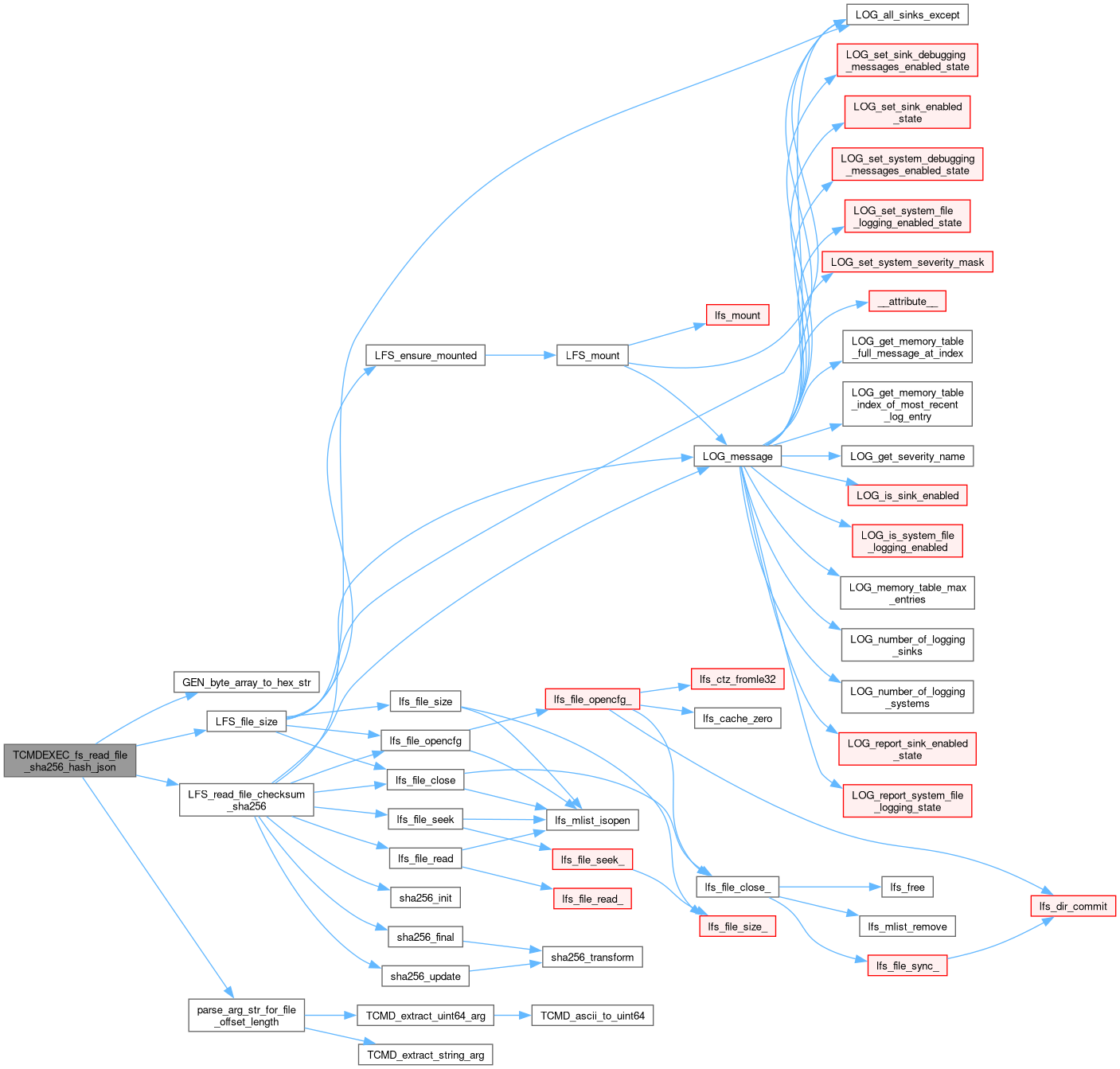

◆ TCMDEXEC_fs_read_file_sha256_hash_json()

uint8_t TCMDEXEC_fs_read_file_sha256_hash_json	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Calculates the SHA256 hash of a file in LittleFS and returns it as a little-endian hex string.

Parameters

args_str

Arg 0: File path as string
Arg 1: Start offset (bytes). Nominally, pick 0.
Arg 2: Length to read (bytes). 0 to read max.

Returns: 0 on success, >0 on error

Here is the call graph for this function:

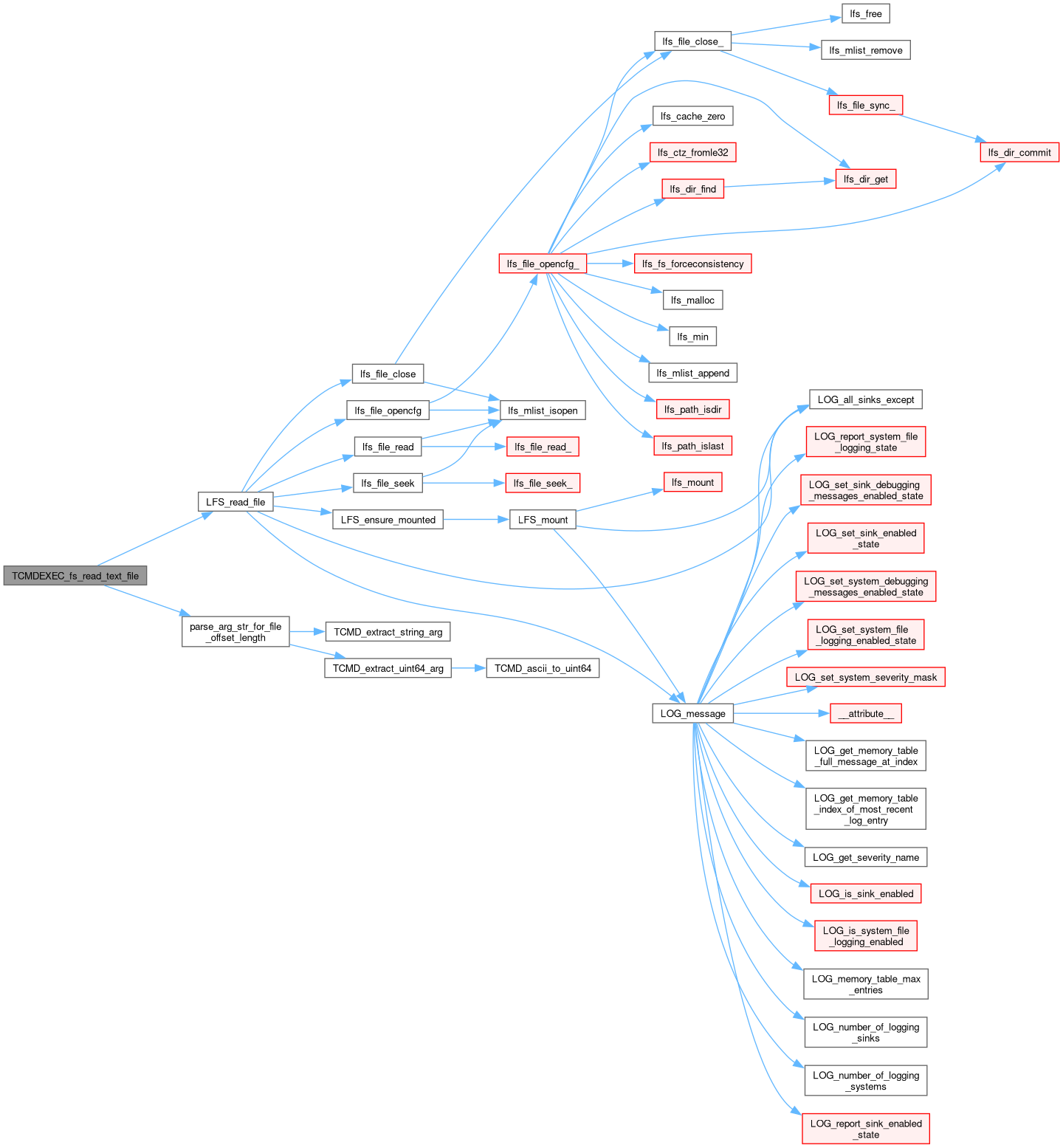

◆ TCMDEXEC_fs_read_text_file()

uint8_t TCMDEXEC_fs_read_text_file	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Reads a file from LittleFS, and responds with its contents as a string.

Parameters

args_str

Arg 0: File path as string
Arg 1: Start offset (bytes). Nominally, pick 0.
Arg 2: Length to read (bytes). 0 to read max.

Returns: 0 on success, >0 on error

Here is the call graph for this function:

◆ TCMDEXEC_fs_unmount()

uint8_t TCMDEXEC_fs_unmount	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Here is the call graph for this function:

◆ TCMDEXEC_fs_write_file_hex()

uint8_t TCMDEXEC_fs_write_file_hex	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Telecommand: Write hex data to a file in LittleFS with offset support.

Parameters

args_str

Arg 0: File path as string
Arg 1: Offset within the file to start writing (uint64)
Arg 2: Hex string to write to file (e.g., "DEADBEEF" or "DE AD BE EF")

Note: The maximum number of bytes that can be written is 105 bytes

Here is the call graph for this function:

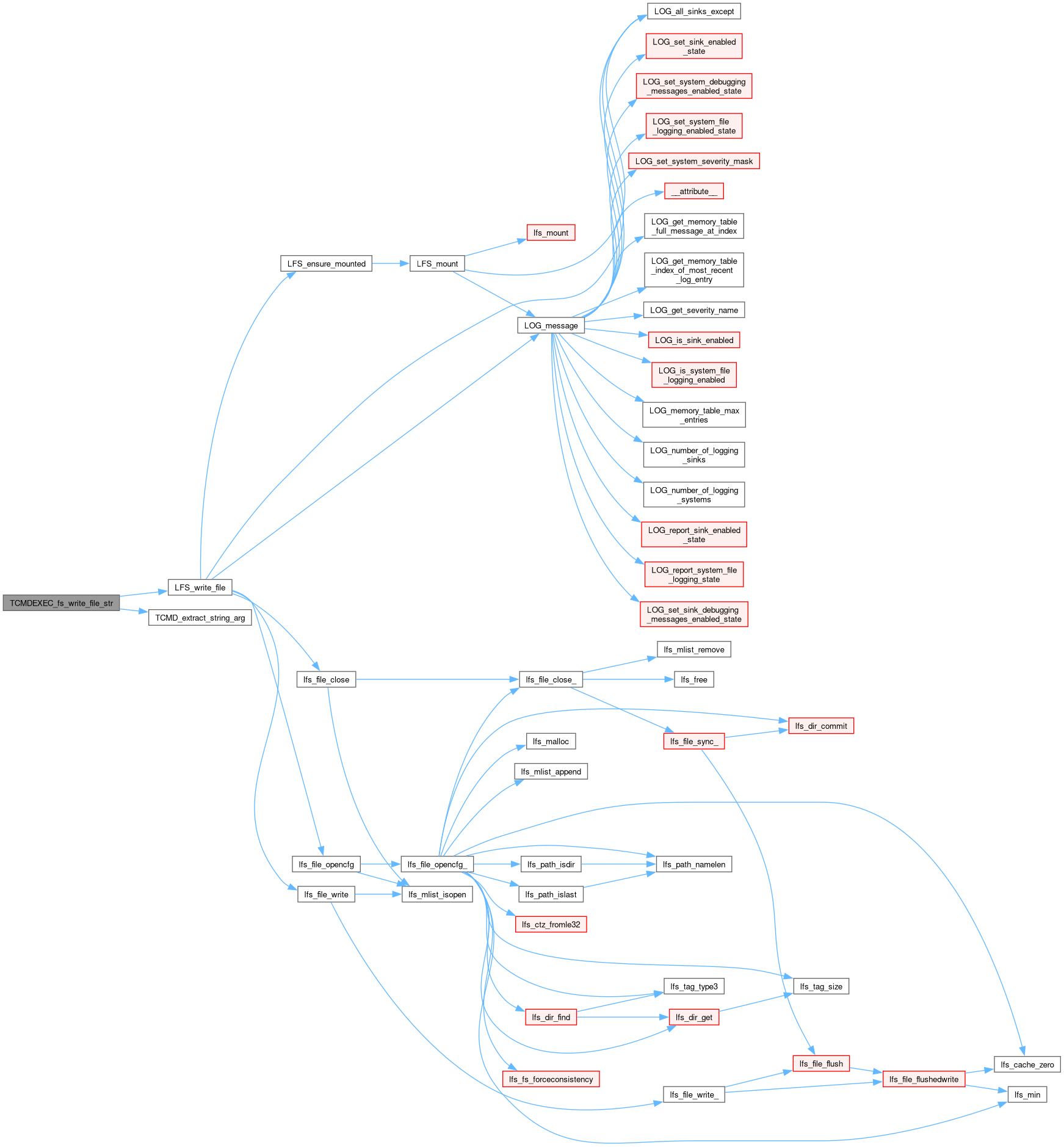

◆ TCMDEXEC_fs_write_file_str()

uint8_t TCMDEXEC_fs_write_file_str	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Telecommand: Write data to a file in LittleFS.

Parameters

args_str

Arg 0: File path as string
Arg 1: String to write to file (up to 512 bytes)

Here is the call graph for this function:
