littlefs_helper.c File Reference

#include <stdint.h>
#include "littlefs/littlefs_helper.h"
#include "littlefs/lfs.h"
#include "littlefs/littlefs_driver.h"
#include "log/log.h"

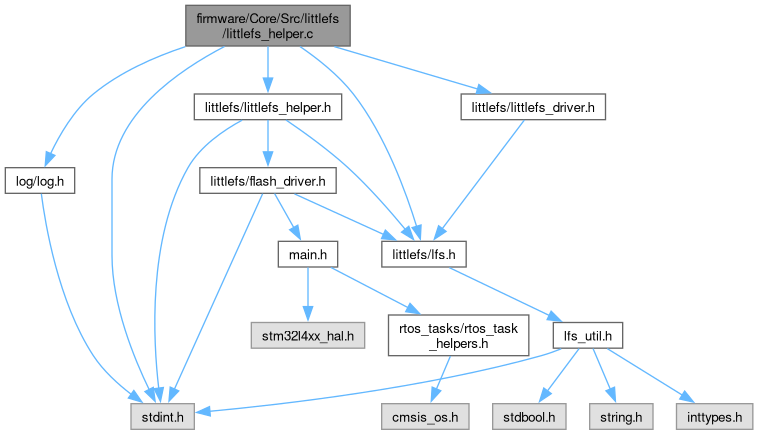

Include dependency graph for littlefs_helper.c:

Macros
#define	FLASH_CHIP_PAGE_SIZE_BYTES   2048
#define	FLASH_CHIP_BLOCK_SIZE_BYTES   FLASH_CHIP_PAGE_SIZE_BYTES * FLASH_CHIP_PAGES_PER_BLOCK
#define	FLASH_LOOKAHEAD_SIZE   16

Functions
int8_t	LFS_format ()
	Formats Memory Module so it can successfully mount LittleFS.
int8_t	LFS_mount ()
	Mounts LittleFS to the Memory Module.
int8_t	LFS_unmount ()
	Unmounts LittleFS to the Memory Module.
int8_t	LFS_ensure_mounted ()
	Mounts LFS filesystem if not already mounted. Does nothing if LFS is already mounted.
int8_t	LFS_ensure_unmounted ()
	Mounts LFS filesystem if not already mounted. Does nothing if LFS is already mounted.
int8_t	LFS_list_directory (const char root_directory[], uint16_t offset, int16_t count)
	Lists contents of LittleFS Directory, where each entry is sent as a log message.
int8_t	LFS_make_directory (const char dir_name[])
	Creates directory.
int8_t	LFS_delete_file (const char file_name[])
	Removes / deletes the file specified.
int8_t	LFS_write_file (const char file_name[], uint8_t *write_buffer, uint32_t write_buffer_len)
	Creates/Opens LittleFS File to write to the Memory Module.
int8_t	LFS_append_file (const char file_name[], uint8_t *write_buffer, uint32_t write_buffer_len)
	Creates/Opens LittleFS File to append contents.
int8_t	LFS_write_file_with_offset (const char file_name[], lfs_soff_t offset, uint8_t *write_buffer, uint32_t write_buffer_len)
	Creates / Opens LittleFS File and writes data at a specific offset.
lfs_ssize_t	LFS_read_file (const char file_name[], lfs_soff_t offset, uint8_t *read_buffer, uint32_t read_buffer_size)
	Opens LittleFS File to read from the Memory Module.
lfs_ssize_t	LFS_file_size (const char file_name[])
	Returns the file size.

Variables
uint8_t	LFS_is_lfs_mounted = 0
uint8_t	LFS_read_buffer [FLASH_CHIP_PAGE_SIZE_BYTES]
uint8_t	LFS_prog_buffer [FLASH_CHIP_PAGE_SIZE_BYTES]
uint8_t	LFS_lookahead_buf [FLASH_LOOKAHEAD_SIZE]
uint8_t	LFS_file_buffer [FLASH_CHIP_PAGE_SIZE_BYTES]
lfs_t	LFS_filesystem
struct lfs_config	LFS_cfg
struct lfs_file_config	LFS_file_cfg

Macro Definition Documentation

FLASH_CHIP_BLOCK_SIZE_BYTES

#define FLASH_CHIP_BLOCK_SIZE_BYTES   FLASH_CHIP_PAGE_SIZE_BYTES * FLASH_CHIP_PAGES_PER_BLOCK

FLASH_CHIP_PAGE_SIZE_BYTES

#define FLASH_CHIP_PAGE_SIZE_BYTES   2048

FLASH_LOOKAHEAD_SIZE

#define FLASH_LOOKAHEAD_SIZE   16

Function Documentation

LFS_append_file()

int8_t LFS_append_file	(	const char	file_name[],
		uint8_t *	write_buffer,
		uint32_t	write_buffer_len )

Creates/Opens LittleFS File to append contents.

Parameters

file_name	- Pointer to cstring holding the file name to create or open
write_buffer	- Pointer to buffer holding the data to write
write_buffer_len	- Size of the data to write

Returns

0 on success, 1 if LFS is unmounted, negative LFS error codes on failure

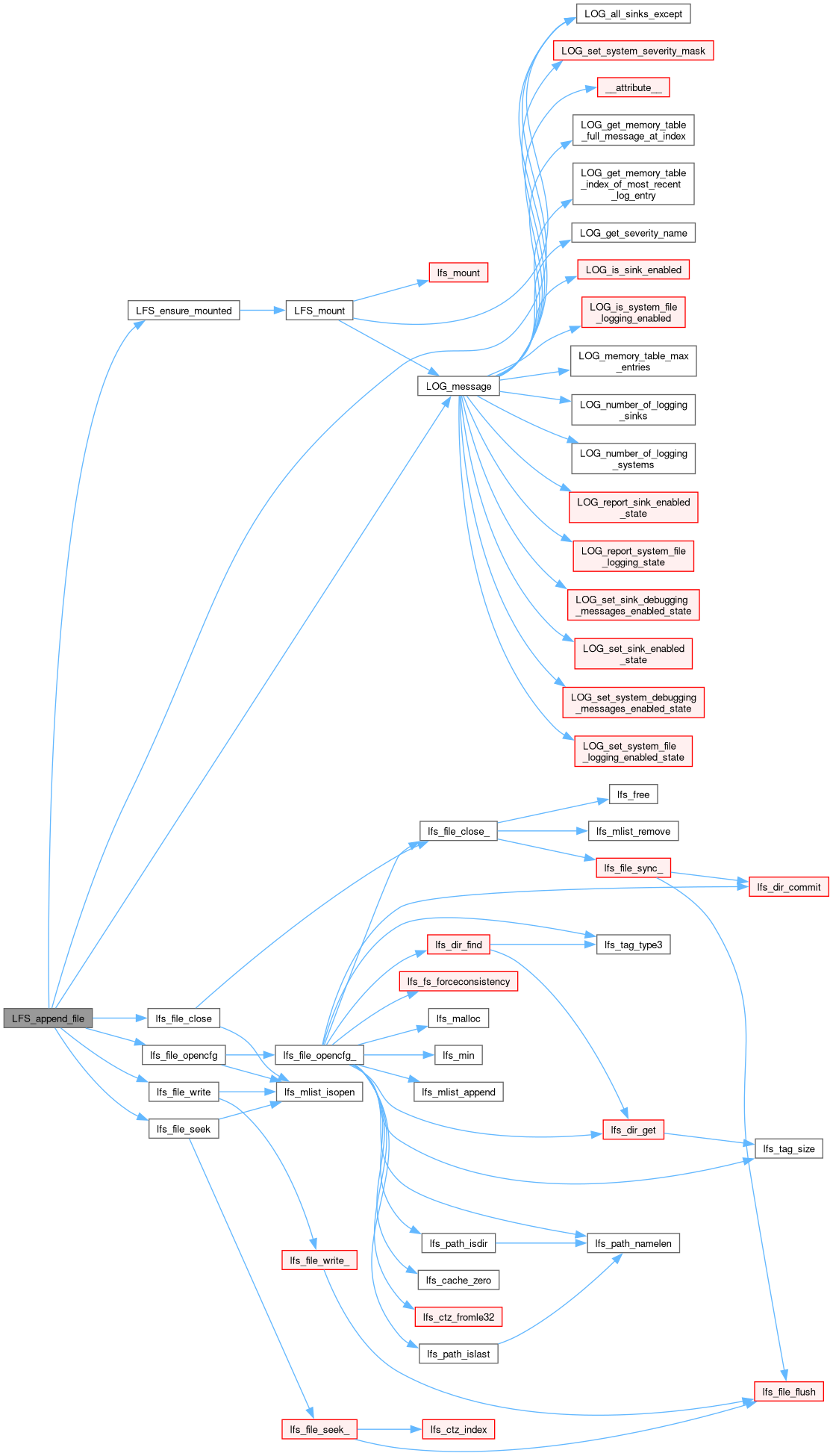

Here is the call graph for this function:

LFS_delete_file()

int8_t LFS_delete_file

(

const char

file_name[]

)

Removes / deletes the file specified.

Parameters

file_name

Pointer to cstring holding the file name to remove

Returns

0 on success, 1 if LFS is unmounted, negative LFS error codes on failure

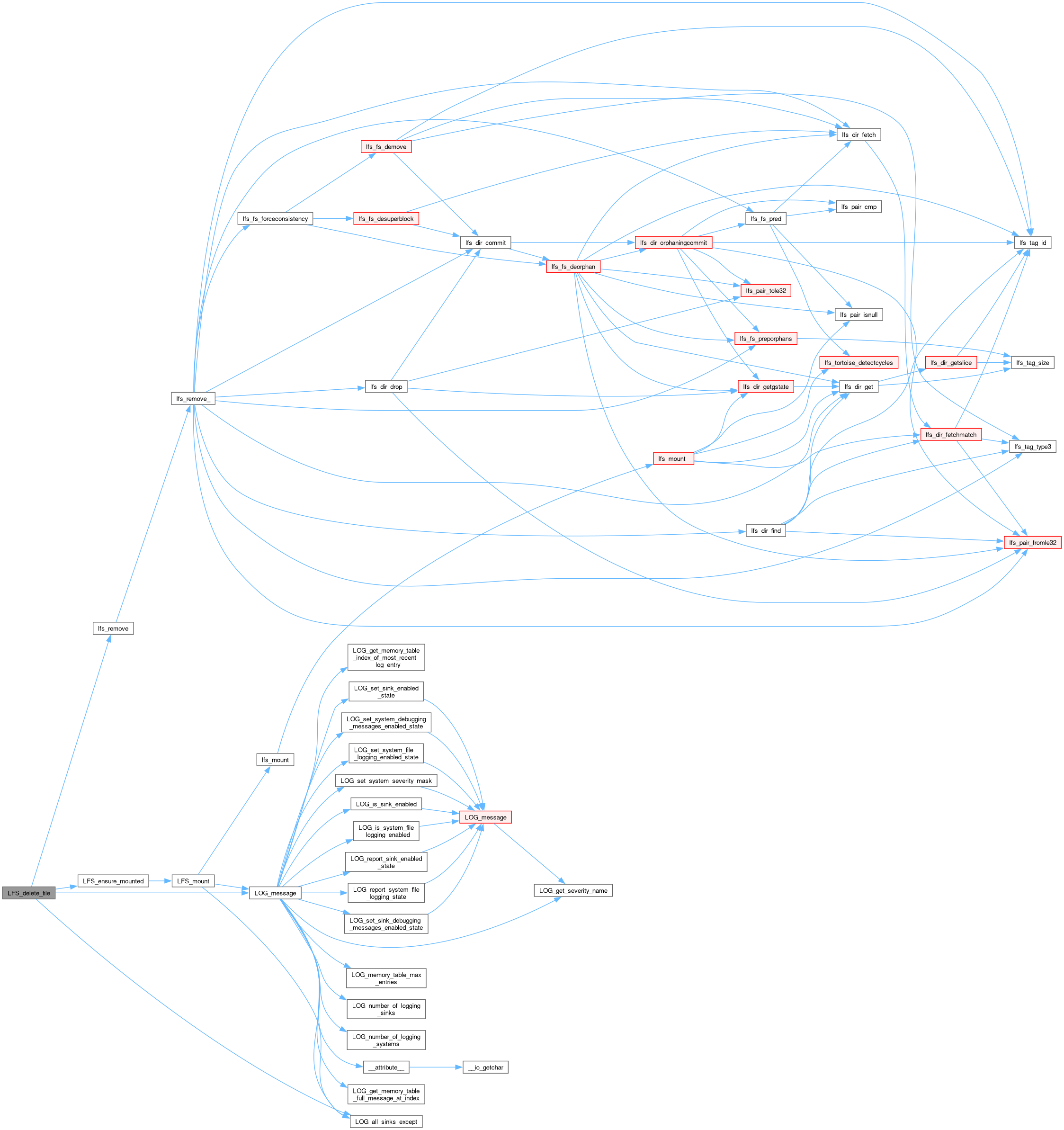

Here is the call graph for this function:

Here is the caller graph for this function:

LFS_ensure_mounted()

int8_t LFS_ensure_mounted

(

)

Mounts LFS filesystem if not already mounted. Does nothing if LFS is already mounted.

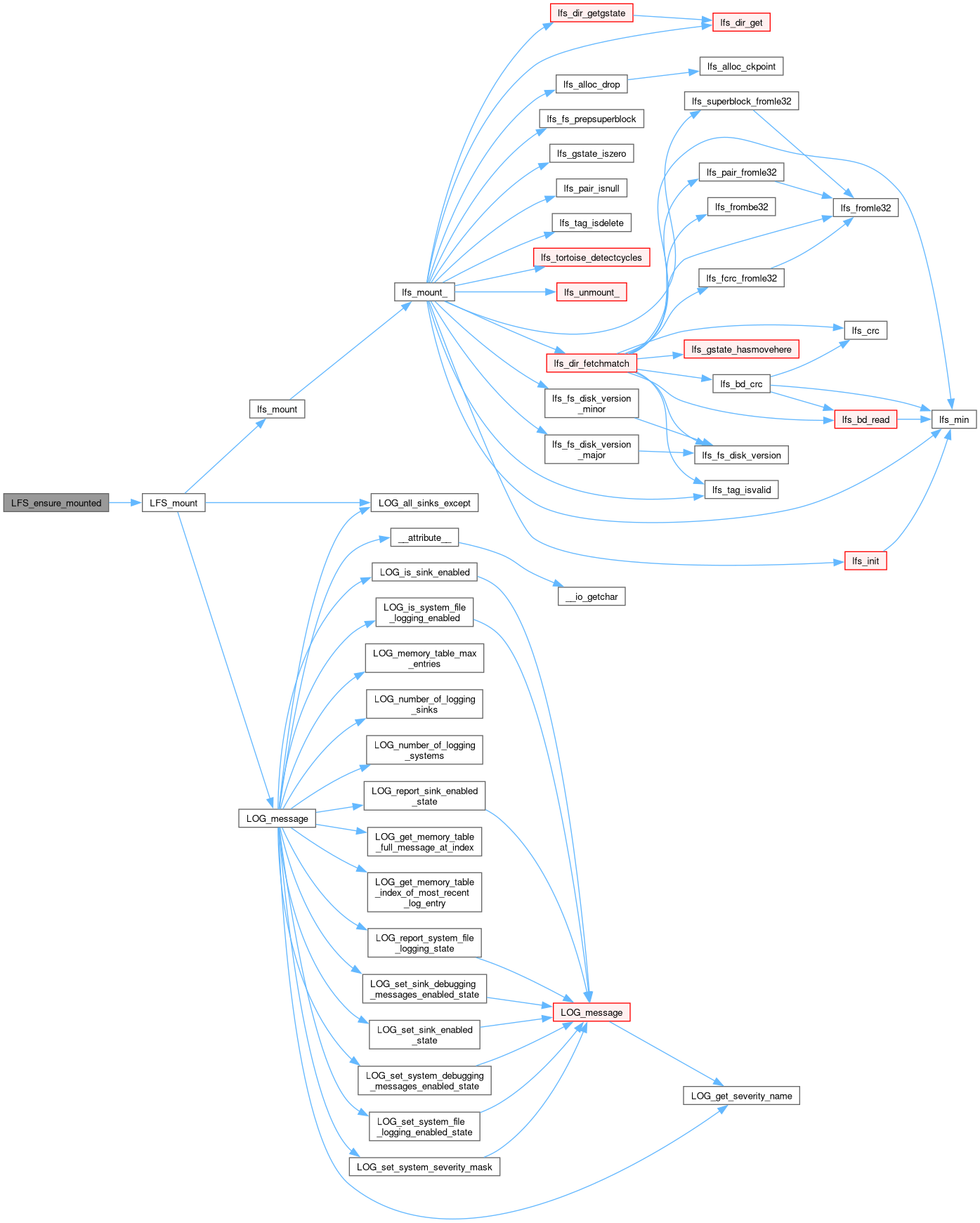

Here is the call graph for this function:

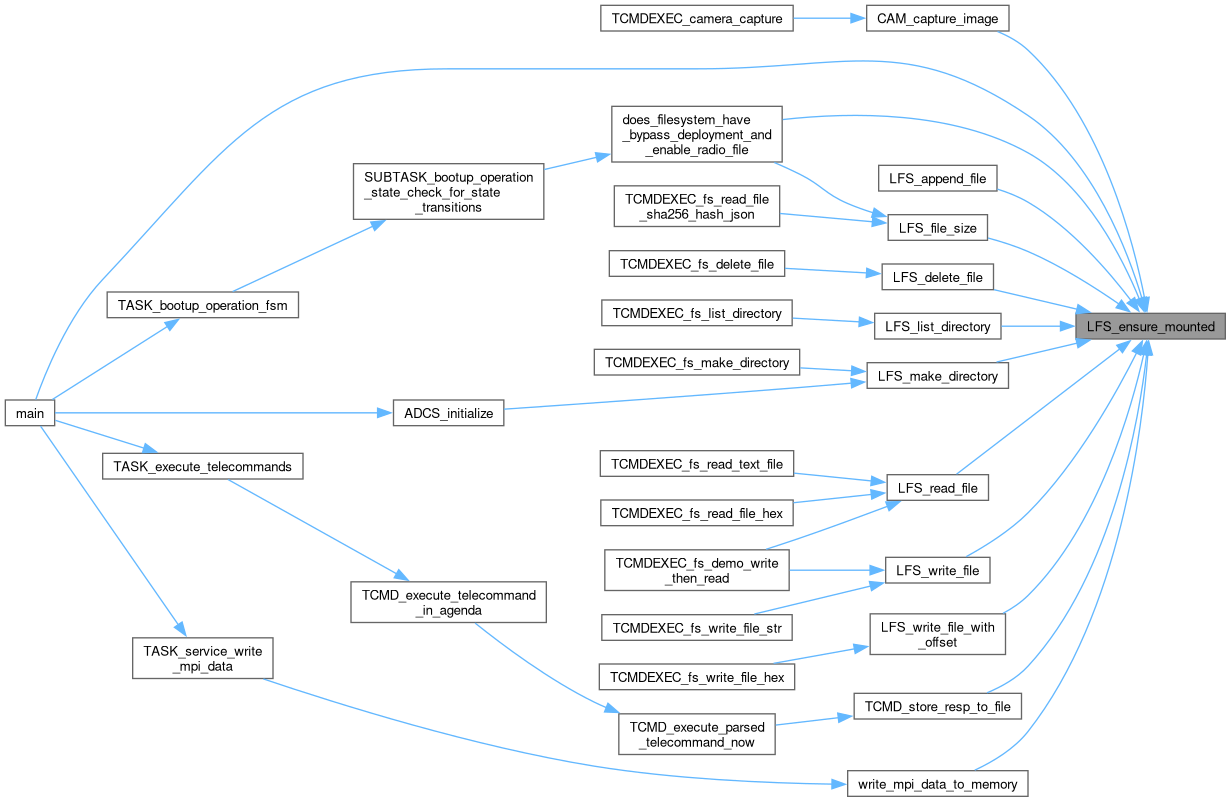

Here is the caller graph for this function:

LFS_ensure_unmounted()

int8_t LFS_ensure_unmounted

(

)

Mounts LFS filesystem if not already mounted. Does nothing if LFS is already mounted.

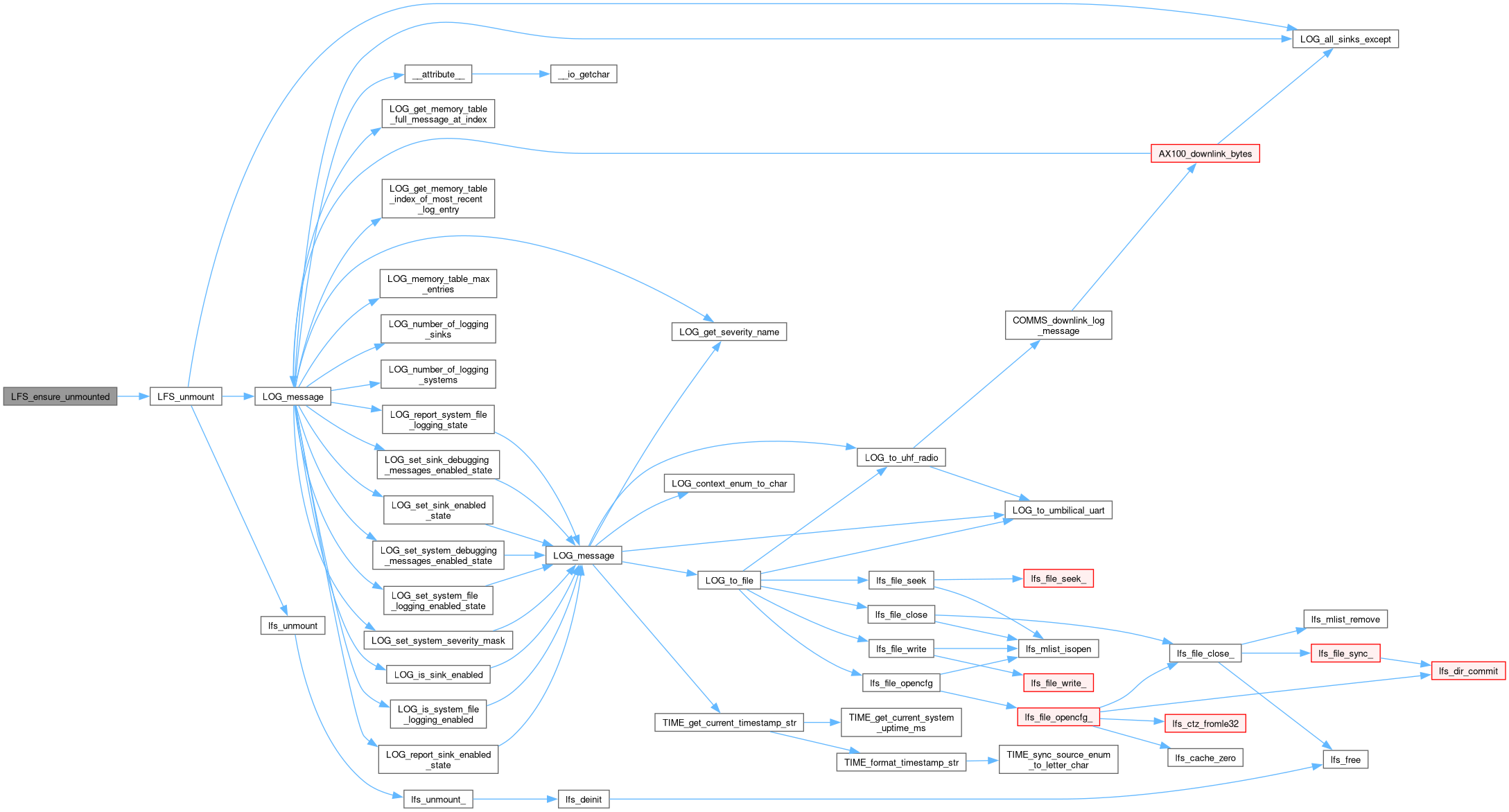

Here is the call graph for this function:

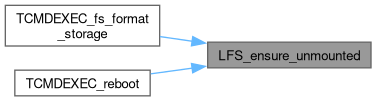

Here is the caller graph for this function:

LFS_file_size()

lfs_ssize_t LFS_file_size

(

const char

file_name[]

)

Returns the file size.

Parameters

file_name

- Pointer to buffer holding the file name to open

Returns

Returns negative values if read or file open failed, else the number of bytes in the file

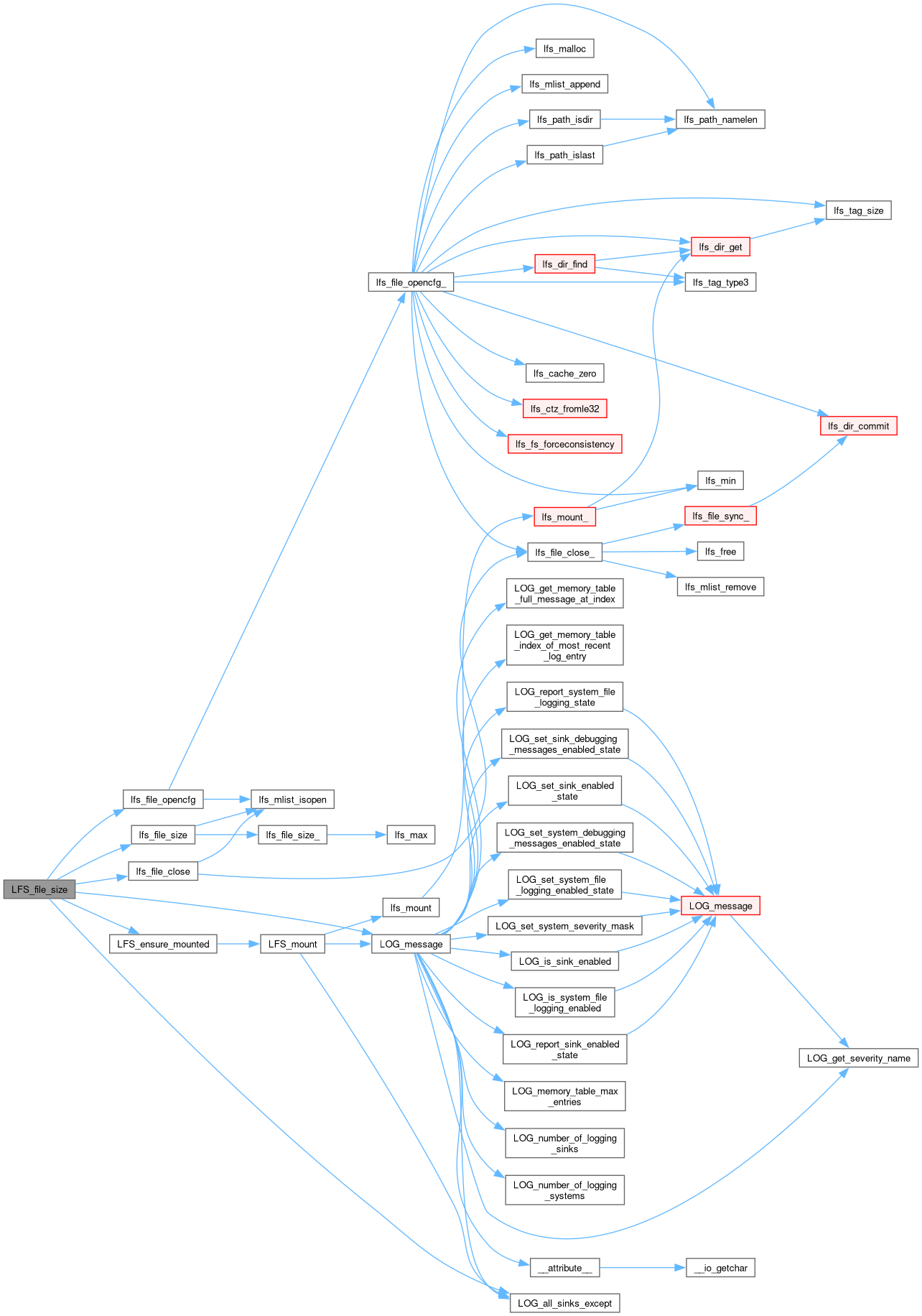

Here is the call graph for this function:

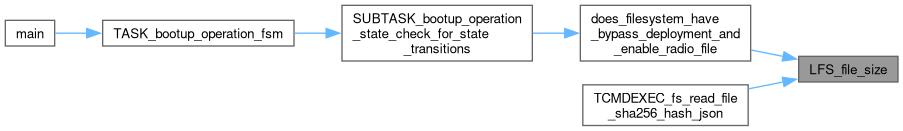

Here is the caller graph for this function:

LFS_format()

int8_t LFS_format

(

)

Formats Memory Module so it can successfully mount LittleFS.

Parameters

None

Returns

0 on success, 1 if LFS is already mounted, negative LFS error codes on failure

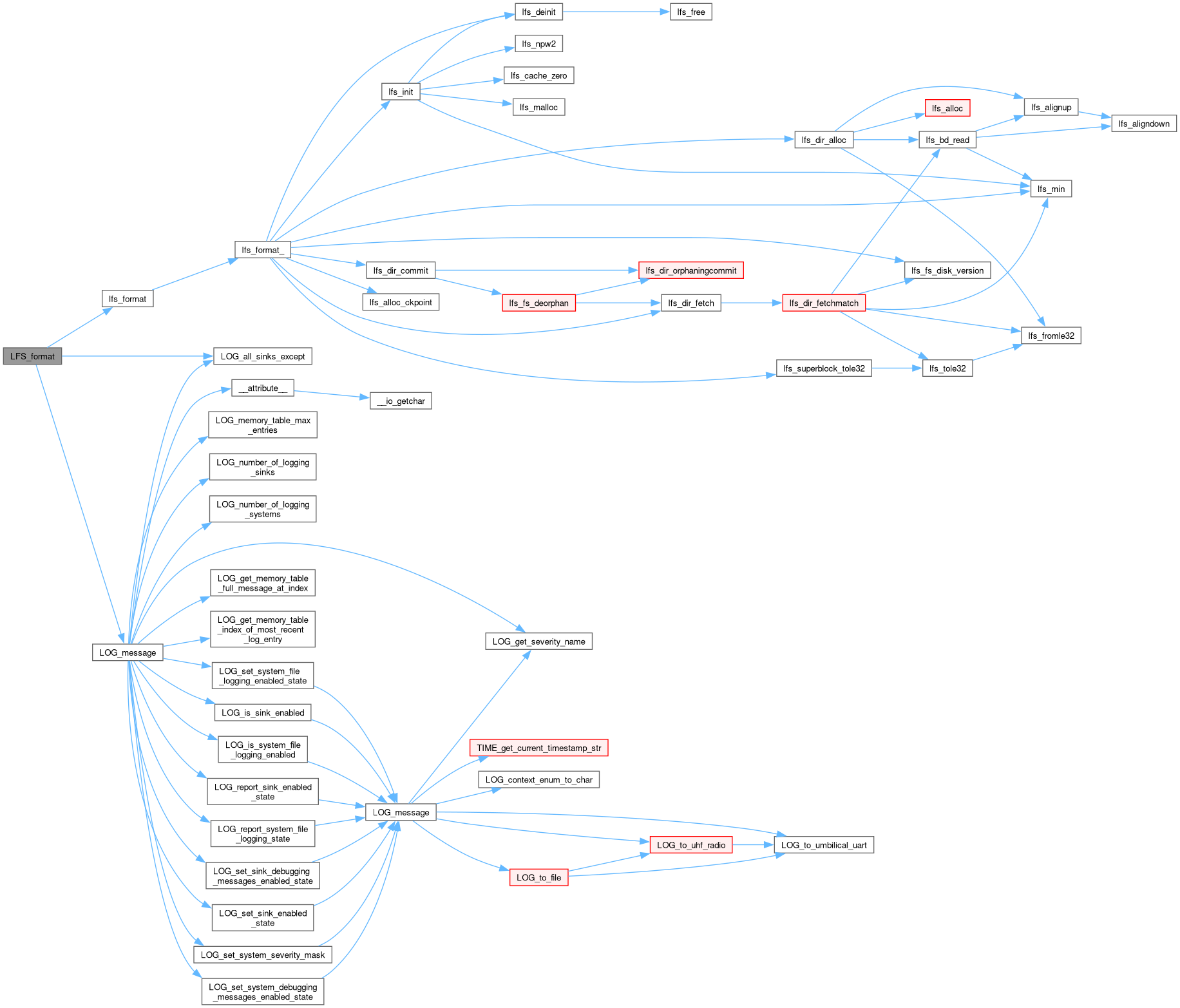

Here is the call graph for this function:

Here is the caller graph for this function:

LFS_list_directory()

int8_t LFS_list_directory	(	const char	root_directory[],
		uint16_t	offset,
		int16_t	count )

Lists contents of LittleFS Directory, where each entry is sent as a log message.

Parameters

root_directory	cstring holding the root directory to open and read
offset	Number of entries to skip before listing directory
count	Number of entries to list in total (if 0, prints all entries)

Returns

0 on success, 1 if LFS is unmounted, negative LFS error codes on failure

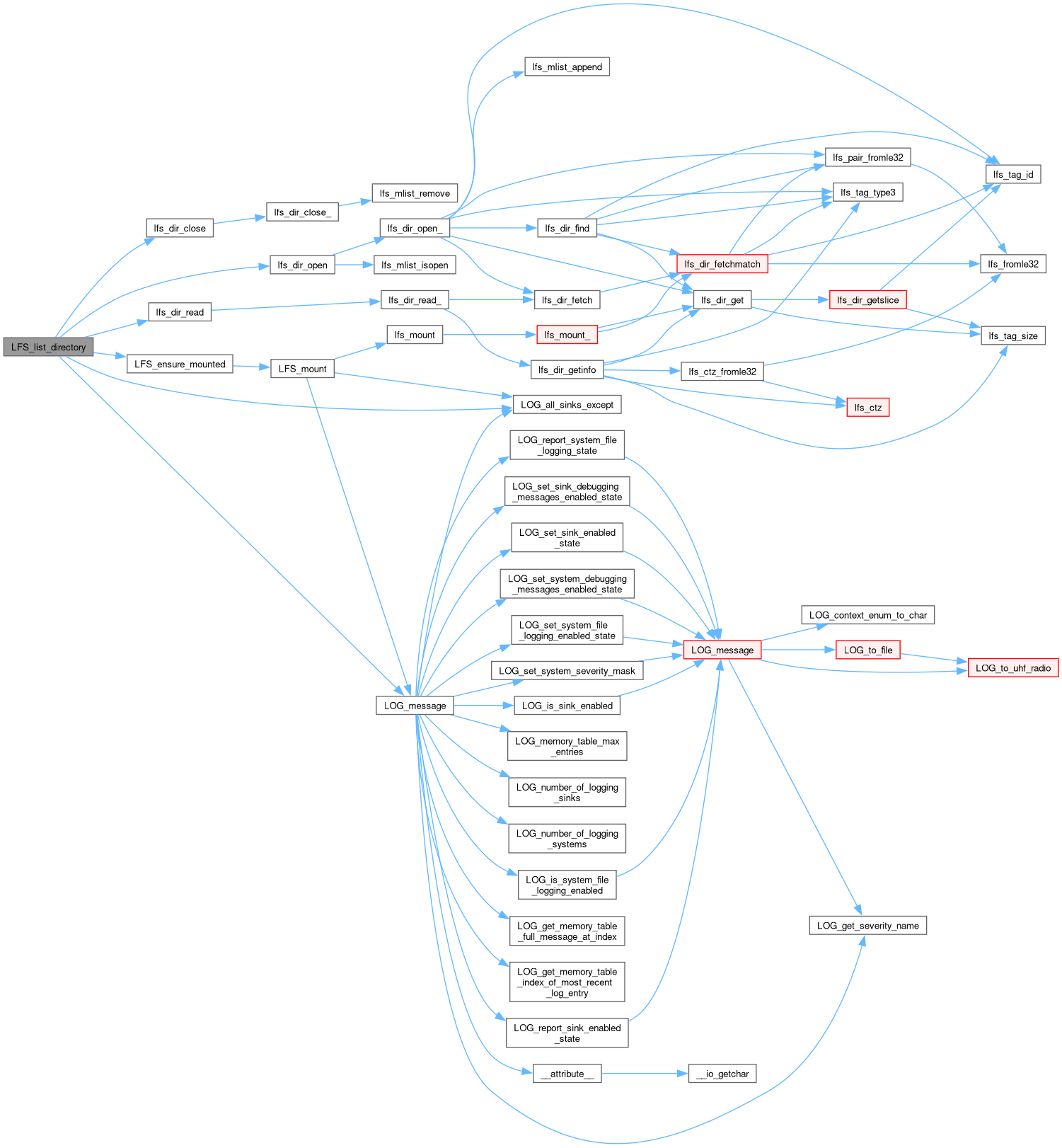

Here is the call graph for this function:

Here is the caller graph for this function:

LFS_make_directory()

int8_t LFS_make_directory

(

const char

dir_name[]

)

Creates directory.

Parameters

dir_name

Pointer to cstring holding the name of the directory

Returns

0 on success, 1 if LFS is unmounted, negative LFS error codes on failure

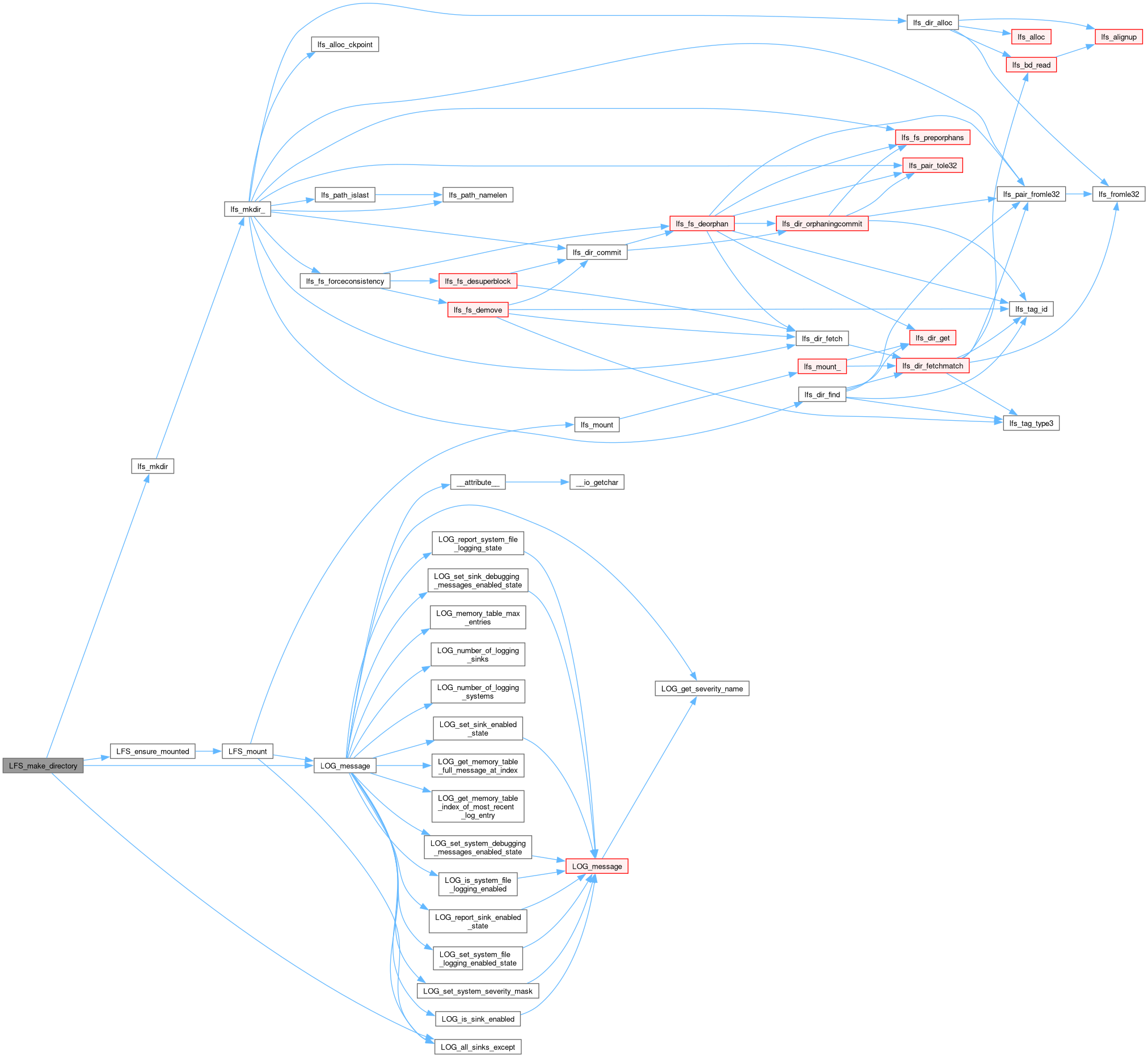

Here is the call graph for this function:

Here is the caller graph for this function:

LFS_mount()

int8_t LFS_mount

(

)

Mounts LittleFS to the Memory Module.

Parameters

None

Returns

0 on success, 1 if LFS is already mounted, negative LFS error codes on failure

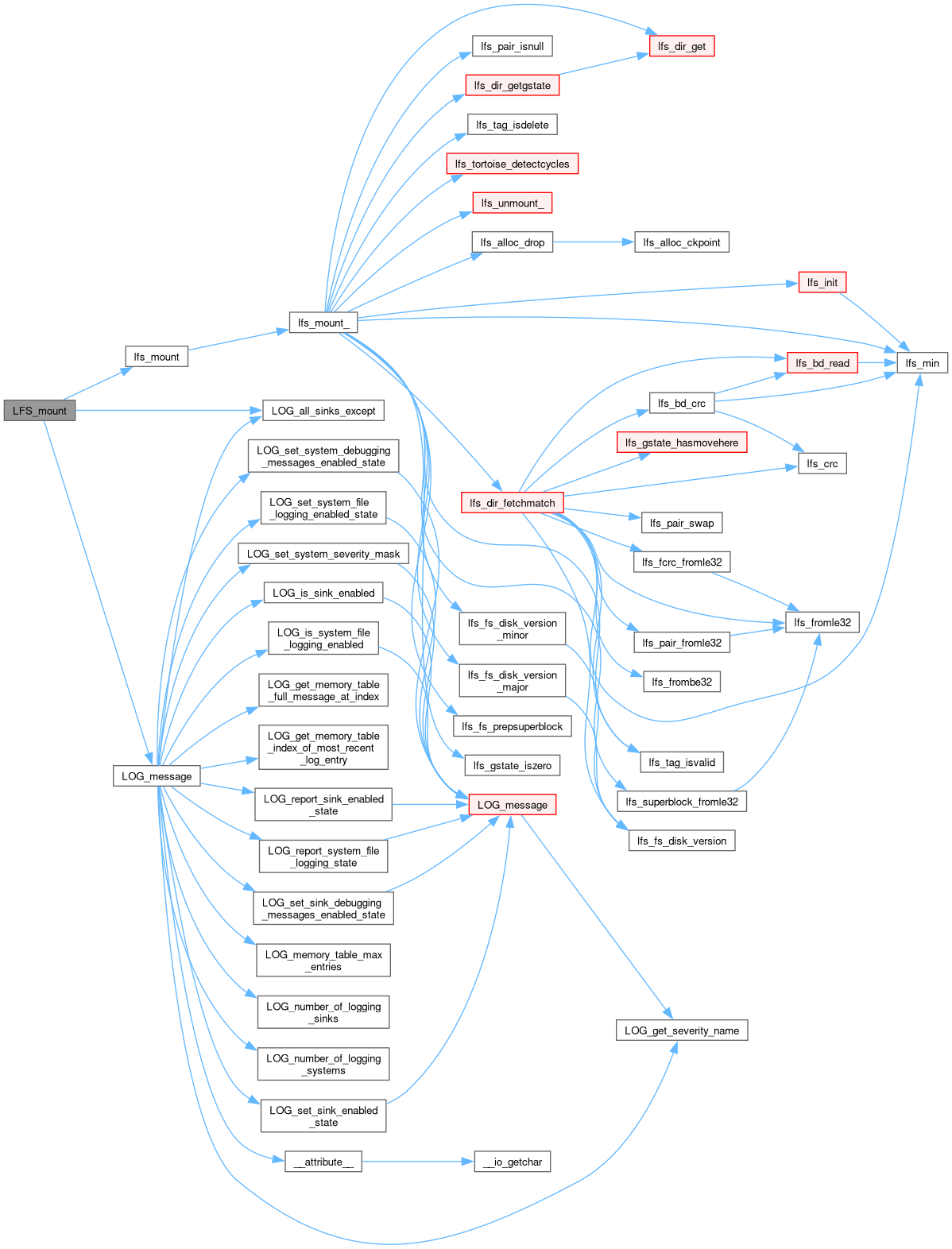

Here is the call graph for this function:

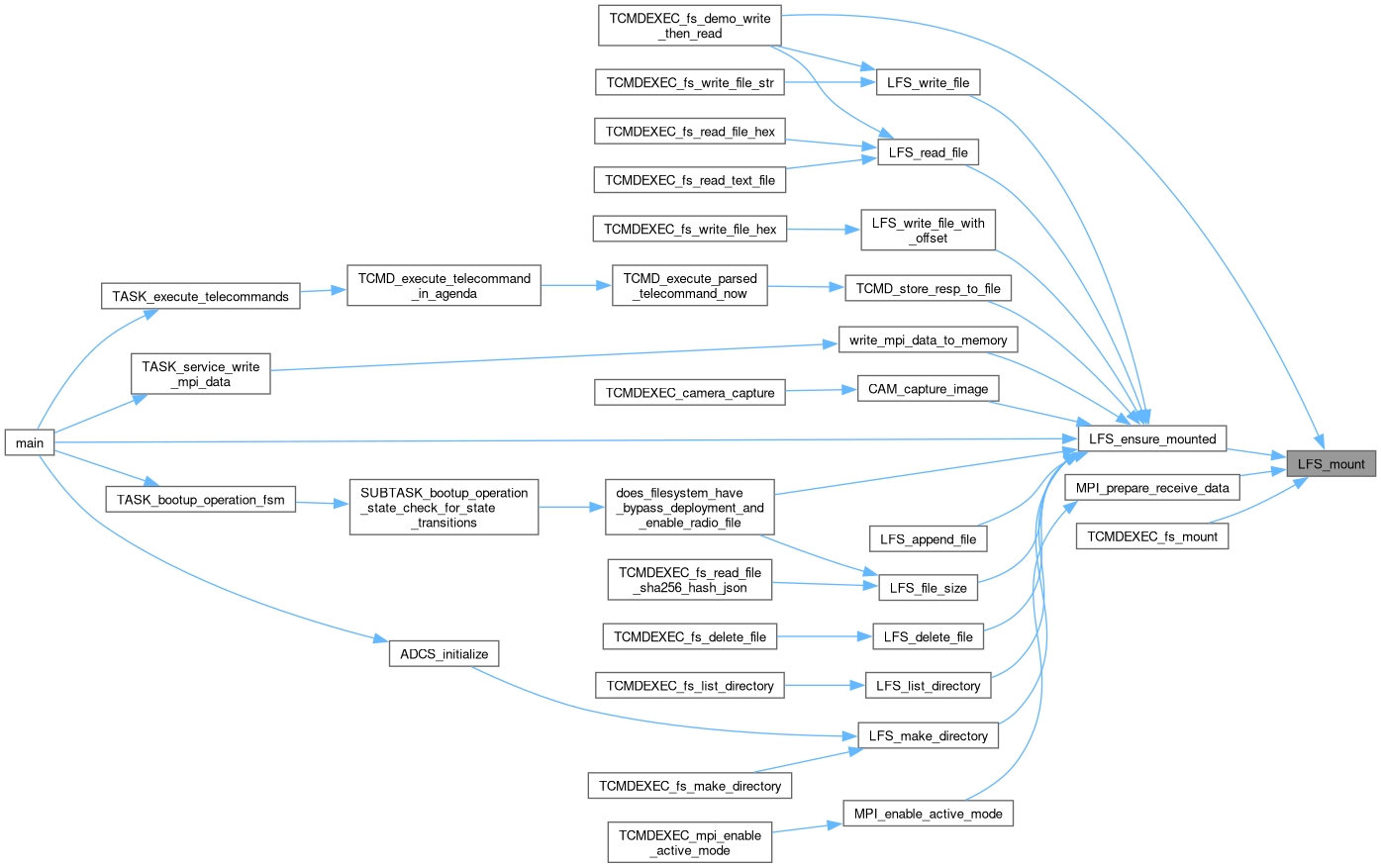

Here is the caller graph for this function:

LFS_read_file()

lfs_ssize_t LFS_read_file	(	const char	file_name[],
		lfs_soff_t	offset,
		uint8_t *	read_buffer,
		uint32_t	read_buffer_size )

Opens LittleFS File to read from the Memory Module.

Parameters

file_name	- Pointer to buffer holding the file name to open
offset	- position within the file to read from
read_buffer	- Pointer to buffer where the read data will be stored
read_buffer_size	- Size of the data to read

Returns

Returns negative values if read or file open failed, else the number of bytes read.

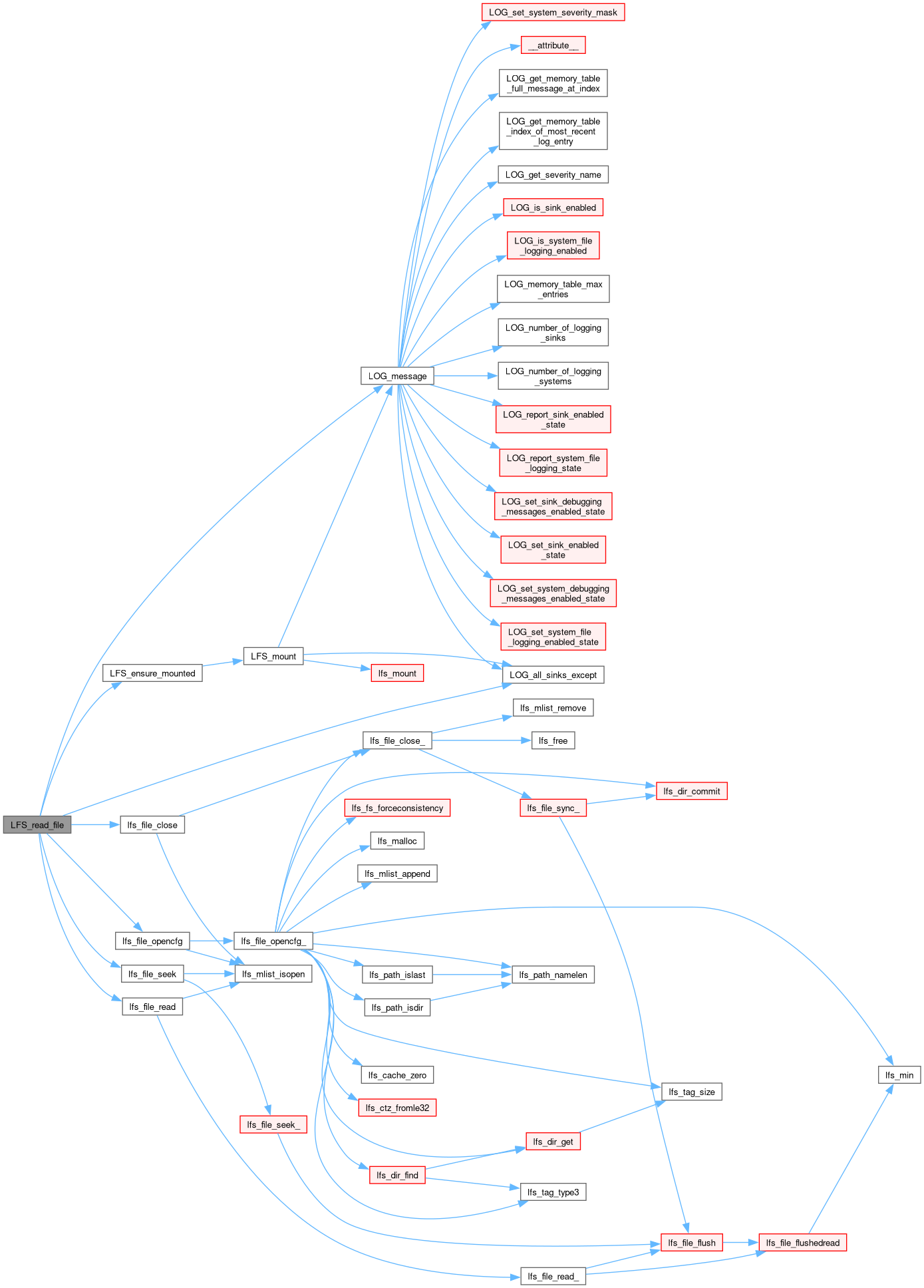

Here is the call graph for this function:

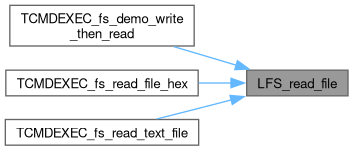

Here is the caller graph for this function:

LFS_unmount()

int8_t LFS_unmount

(

)

Unmounts LittleFS to the Memory Module.

Parameters

None

Returns

0 on success, 1 if LFS is already unmounted, negative LFS error codes on failure

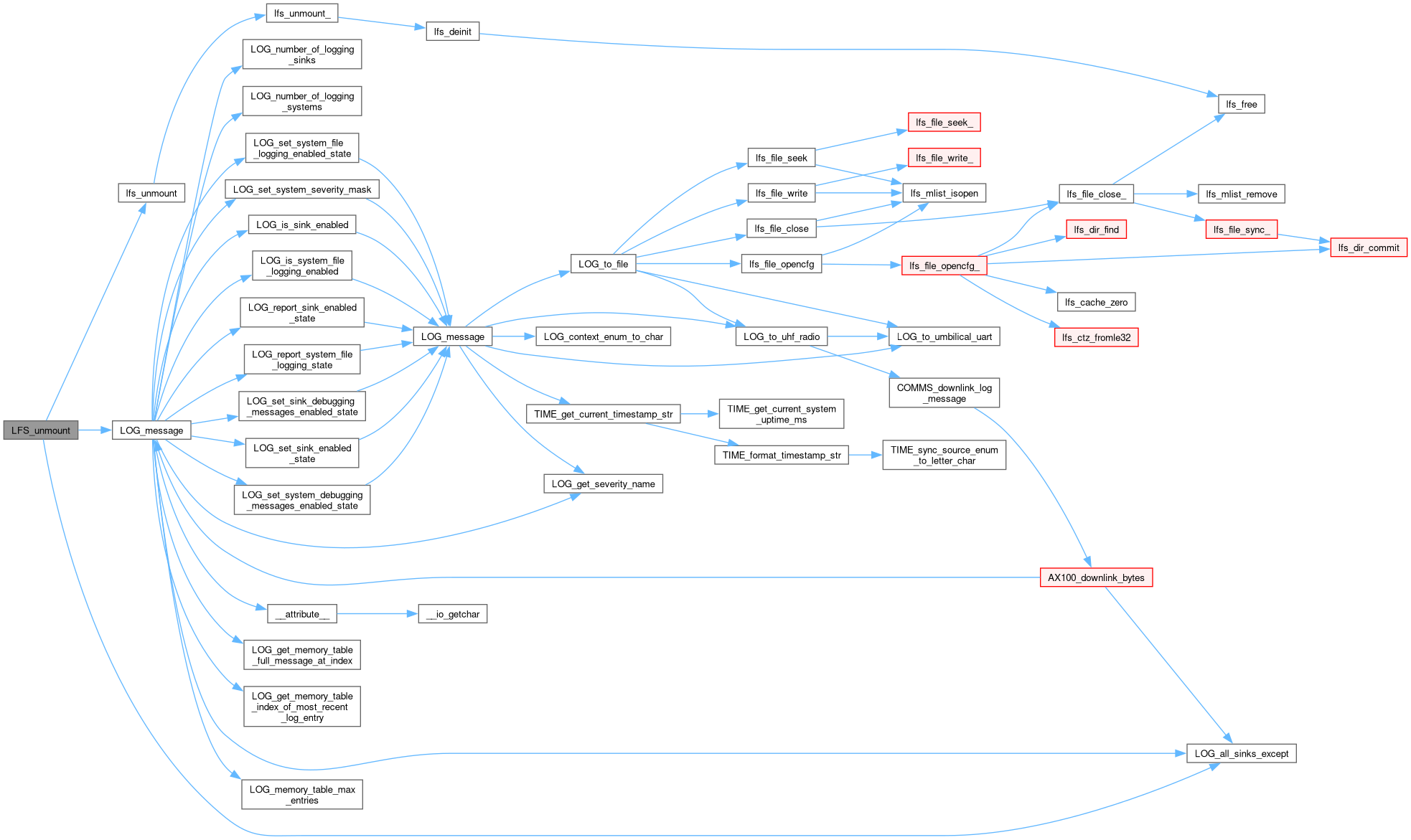

Here is the call graph for this function:

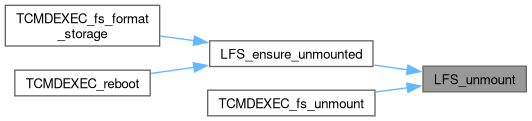

Here is the caller graph for this function:

LFS_write_file()

int8_t LFS_write_file	(	const char	file_name[],
		uint8_t *	write_buffer,
		uint32_t	write_buffer_len )

Creates/Opens LittleFS File to write to the Memory Module.

Parameters

file_name	- Pointer to cstring holding the file name to create or open
write_buffer	- Pointer to buffer holding the data to write
write_buffer_len	- Size of the data to write

Returns

0 on success, 1 if LFS is unmounted, negative LFS error codes on failure

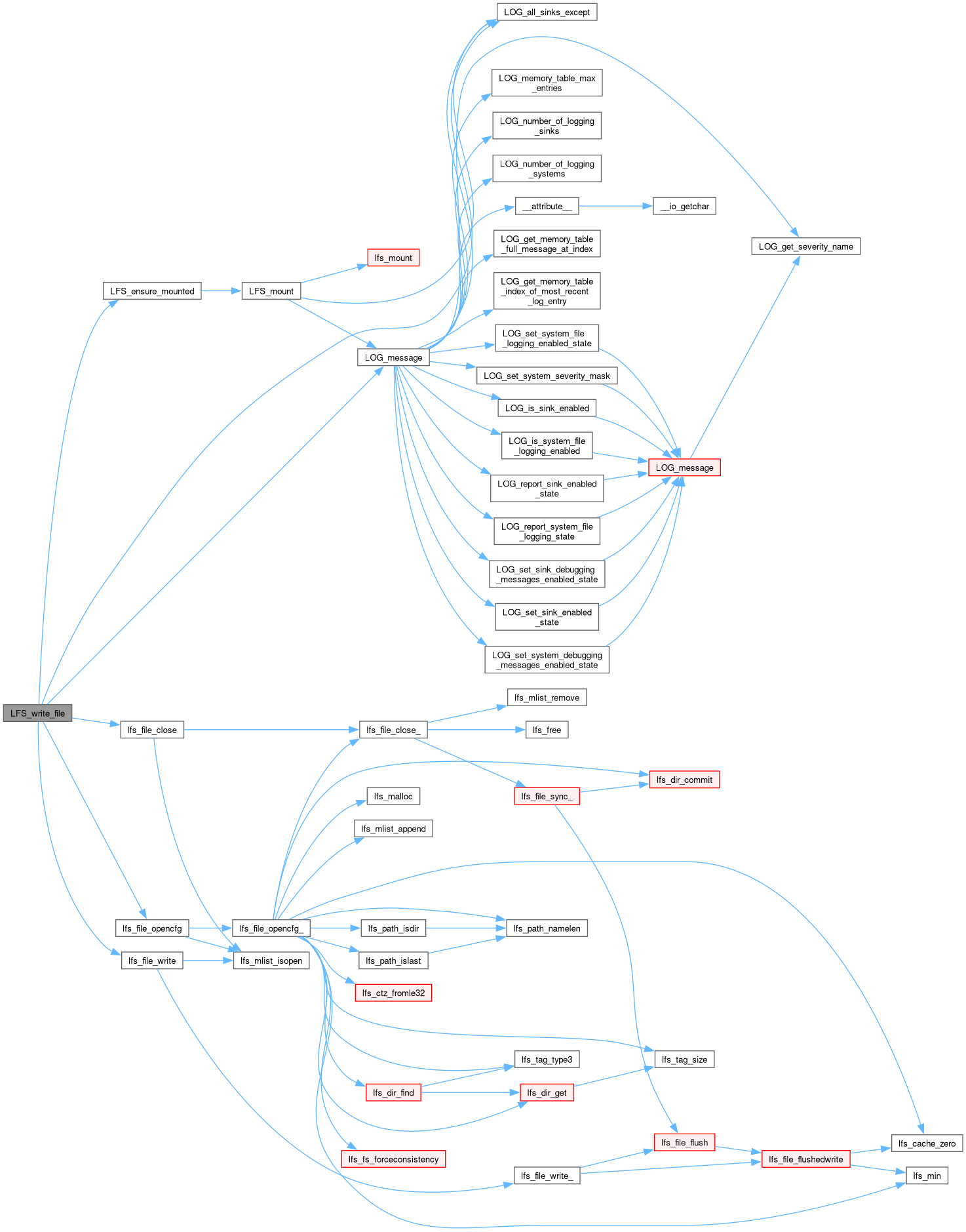

Here is the call graph for this function:

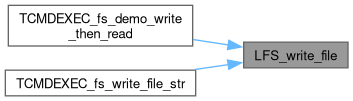

Here is the caller graph for this function:

LFS_write_file_with_offset()

int8_t LFS_write_file_with_offset	(	const char	file_name[],
		lfs_soff_t	offset,
		uint8_t *	write_buffer,
		uint32_t	write_buffer_len )

Creates / Opens LittleFS File and writes data at a specific offset.

Parameters

file_name	- Pointer to cstring holding the file name to create or open
offset	- Position within the file to write the data
write_buffer	- Pointer to buffer holding the data to write
write_buffer_len	- Size of the data to write

Return values

0	on success, 1 if LFS is unmounted, negative LFS error codes on failure

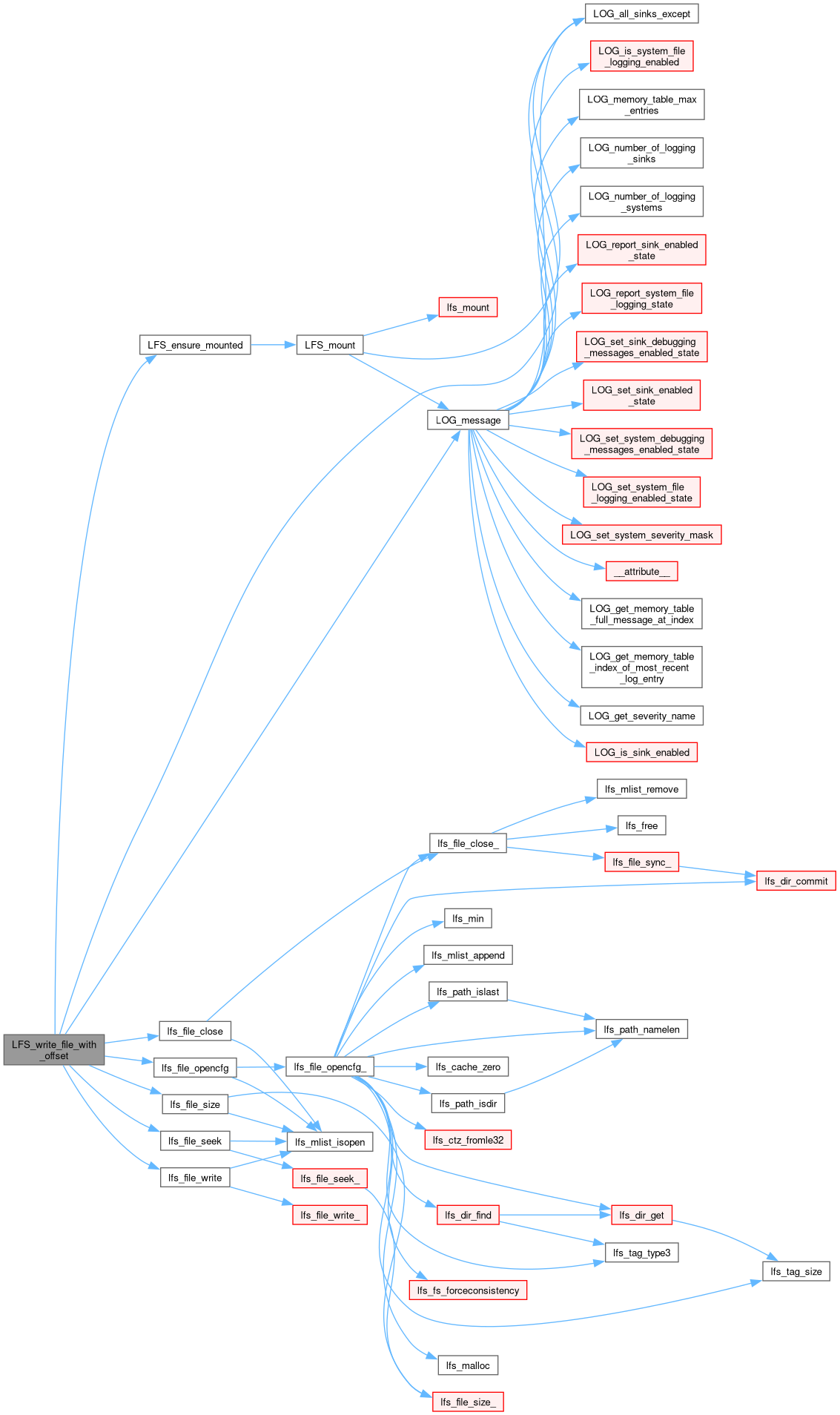

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

LFS_cfg

struct lfs_config LFS_cfg

Initial value:

= {
    .read = LFS_block_device_read,
    .prog = LFS_block_device_prog,
    .erase = LFS_block_device_erase,
    .sync = LFS_block_device_sync,


    .read_size = FLASH_CHIP_PAGE_SIZE_BYTES,
    .prog_size = FLASH_CHIP_PAGE_SIZE_BYTES,
    .block_size = FLASH_CHIP_BLOCK_SIZE_BYTES,
    .block_count = (FLASH_CHIP_SIZE_BYTES / FLASH_CHIP_BLOCK_SIZE_BYTES),
    .block_cycles = 100,
    .cache_size = FLASH_CHIP_PAGE_SIZE_BYTES,
    .lookahead_size = FLASH_LOOKAHEAD_SIZE,
    .compact_thresh = -1,

    .read_buffer = LFS_read_buffer,
    .prog_buffer = LFS_prog_buffer,
    .lookahead_buffer = LFS_lookahead_buf}

LFS_file_buffer

uint8_t LFS_file_buffer[FLASH_CHIP_PAGE_SIZE_BYTES]

LFS_file_cfg

struct lfs_file_config LFS_file_cfg

Initial value:

= {
    .buffer = LFS_file_buffer,
    .attr_count = 0,
    .attrs = NULL}

LFS_filesystem

lfs_t LFS_filesystem

littlefs_helper.h

Created on: May 2, 2024 Author: Saksham Puri

LFS_is_lfs_mounted

uint8_t LFS_is_lfs_mounted = 0

LFS_lookahead_buf

uint8_t LFS_lookahead_buf[FLASH_LOOKAHEAD_SIZE]

LFS_prog_buffer

uint8_t LFS_prog_buffer[FLASH_CHIP_PAGE_SIZE_BYTES]

LFS_read_buffer

uint8_t LFS_read_buffer[FLASH_CHIP_PAGE_SIZE_BYTES]
