mpi_command_handling.c File Reference

#include "mpi/mpi_command_handling.h"
#include "mpi/mpi_types.h"
#include "mpi/mpi_transceiver.h"
#include "eps_drivers/eps_channel_control.h"
#include "uart_handler/uart_handler.h"
#include "log/log.h"
#include "debug_tools/debug_uart.h"
#include "littlefs/littlefs_helper.h"
#include "timekeeping/timekeeping.h"
#include "transforms/arrays.h"
#include "main.h"
#include "stm32l4xx_hal.h"
#include <string.h>
#include <stdio.h>

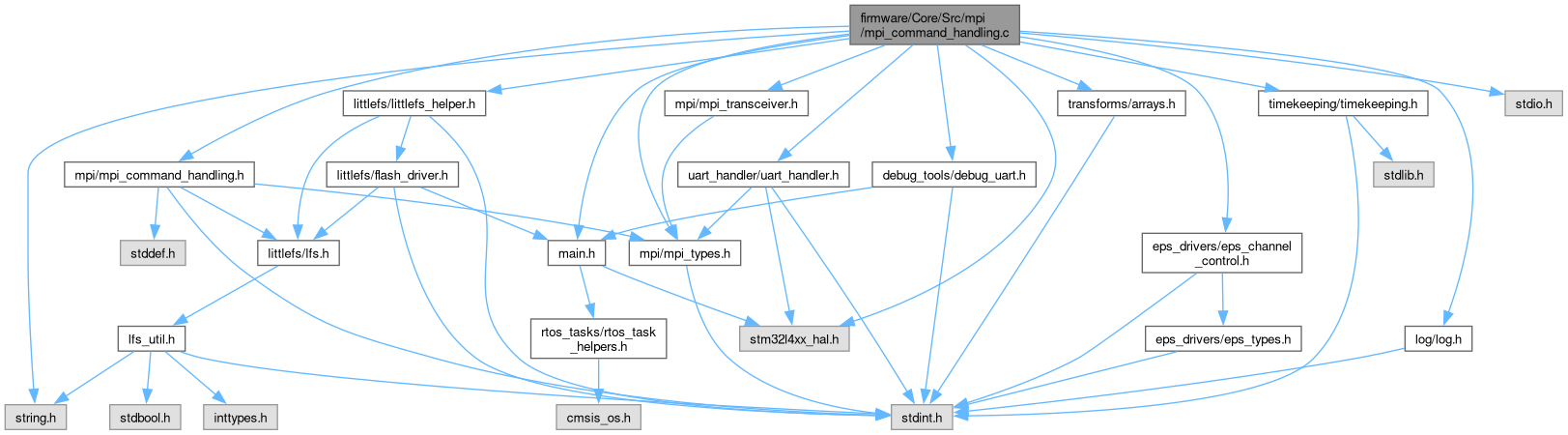

Include dependency graph for mpi_command_handling.c:

Functions
uint8_t	MPI_send_command_get_response (const uint8_t *bytes_to_send, const size_t bytes_to_send_len, uint8_t *rx_buffer, const size_t rx_buffer_max_size, uint16_t *rx_buffer_len)
	Sends commandcode+params to the MPI as bytes.
uint8_t	MPI_validate_command_response (const uint8_t command_code, uint8_t *rx_buffer, const uint16_t rx_buffer_len)
	The MPI responds to each telecommand with a response code consisting of an echo of the telecommand code byte and a status byte (either 254 or OxFE) for success or error code otherwise.
static void	MPI_power_on ()
	Turns on MPI by setting the corresponding EPS channel.
static int8_t	MPI_write_file_header ()
static int8_t	MPI_prepare_receive_data (const char output_file_path[])
	Turns on MPI and prepares a LFS file to store MPI data in.
uint8_t	MPI_enable_active_mode (const char output_file_path[])
	Turns on MPI science mode and Enables DMA interrupt for MPI channel.
static void	MPI_power_off ()
	Turns off MPI by resetting the corresponding EPS channel.
uint8_t	MPI_disable_active_mode ()

Variables
static const uint16_t	MPI_TX_TIMEOUT_DURATION_MS = 100
	Timeout duration for transmit HAL call, in milliseconds.
static const uint16_t	MPI_RX_TIMEOUT_DURATION_MS = 2000
	Timeout duration for receive in milliseconds. Same between bytes and at the start.
volatile MPI_rx_mode_t	MPI_current_uart_rx_mode = MPI_RX_MODE_NOT_LISTENING_TO_MPI
	Current mode under which the MPI is being operated.
uint8_t	MPI_science_data_file_is_open = 0
uint32_t	MPI_science_data_bytes_lost = 0
lfs_file_t	MPI_science_data_file_pointer
uint32_t	MPI_recording_start_uptime_ms

Function Documentation

MPI_disable_active_mode()

uint8_t MPI_disable_active_mode

(

)

Here is the call graph for this function:

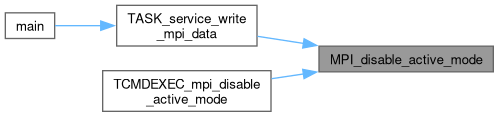

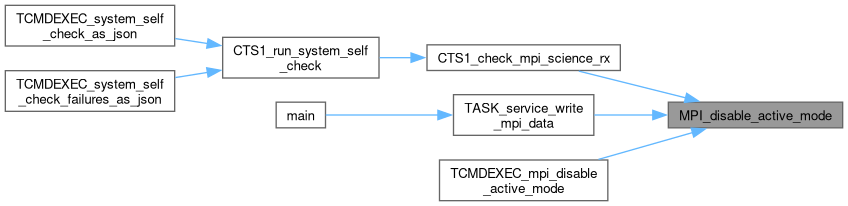

Here is the caller graph for this function:

MPI_enable_active_mode()

uint8_t MPI_enable_active_mode

(

const char

output_file_path[]

)

Turns on MPI science mode and Enables DMA interrupt for MPI channel.

Returns

0: MPI and DMA successfully enabled, < 0: Error

Here is the call graph for this function:

Here is the caller graph for this function:

MPI_power_off()

static void MPI_power_off ( )

static

Turns off MPI by resetting the corresponding EPS channel.

Here is the call graph for this function:

Here is the caller graph for this function:

MPI_power_on()

static void MPI_power_on ( )

static

Turns on MPI by setting the corresponding EPS channel.

Here is the call graph for this function:

Here is the caller graph for this function:

MPI_prepare_receive_data()

static int8_t MPI_prepare_receive_data ( const char output_file_path[] )

static

Turns on MPI and prepares a LFS file to store MPI data in.

Returns

0: System successfully prepared for MPI data, < 0: Error

Here is the call graph for this function:

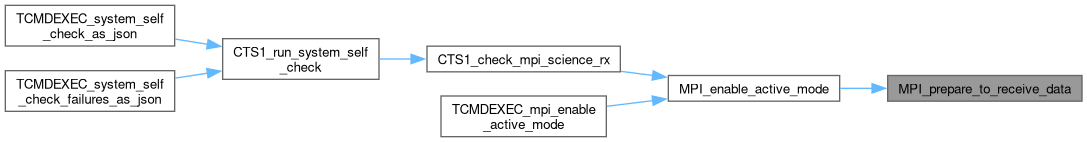

Here is the caller graph for this function:

MPI_send_command_get_response()

uint8_t MPI_send_command_get_response	(	const uint8_t *	bytes_to_send,
		const size_t	bytes_to_send_len,
		uint8_t *	rx_buffer,
		const size_t	rx_buffer_max_size,
		uint16_t *	rx_buffer_len )

Sends commandcode+params to the MPI as bytes.

Parameters

bytes_to_send	Buffer containing the telecommand + params (IF ANY) as hex bytes
bytes_to_send_len	Size of telecommand buffer
rx_buffer	Buffer to store incoming response from the MPI
rx_buffer_max_size	The maximum size of the MPI response buffer
rx_buffer_len	Pointer to variable that will contain the length of the populated MPI response buffer

Returns

0: Success, 2: Failed UART transmission, 3: Failed UART reception, 4: Timeout waiting for 1st byte from MPI, 8: Not enough space in the MPI response buffer

Note

If the MPI is in "science data" mode, it will be disabled after the command is executed.

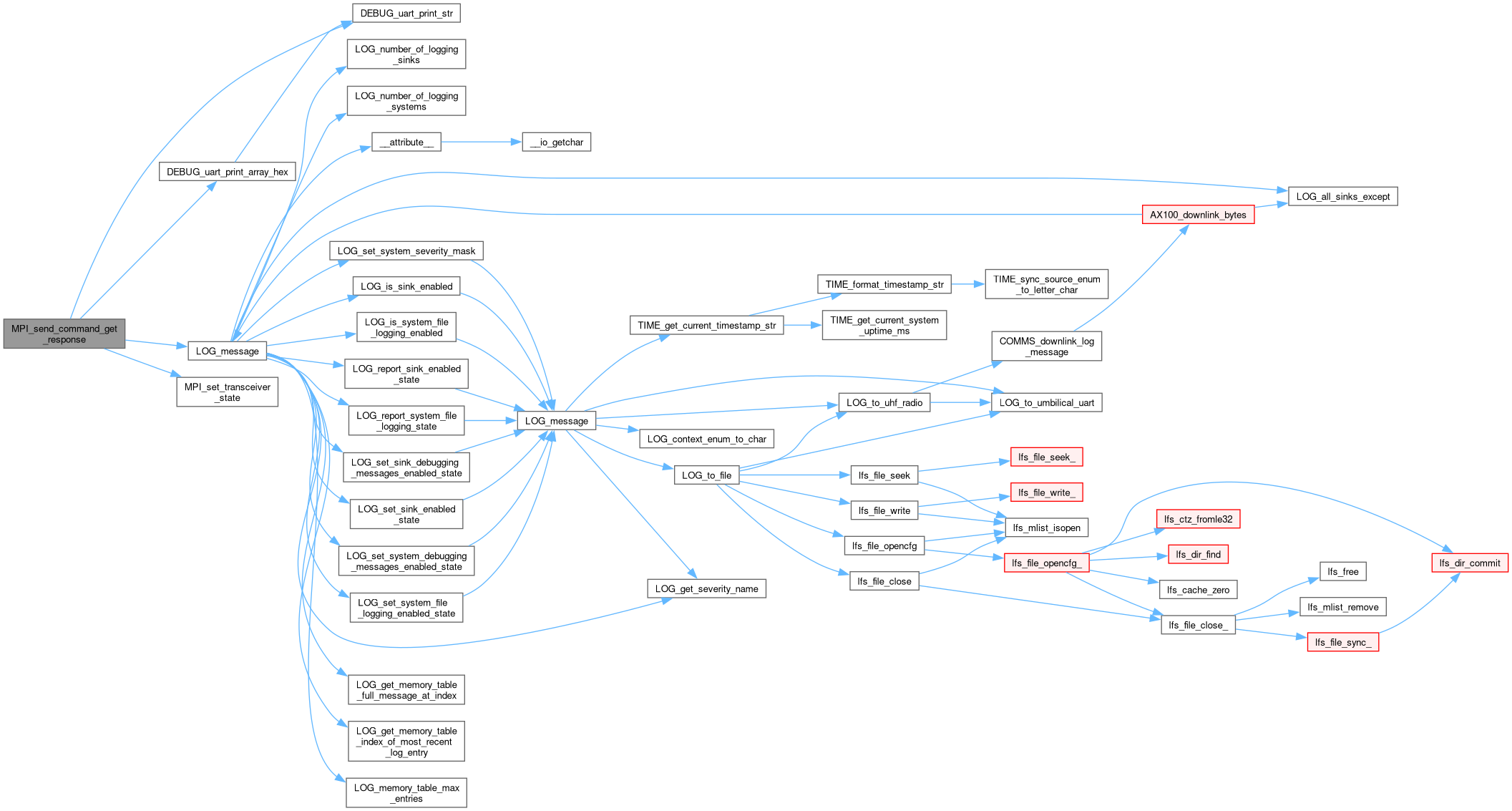

Here is the call graph for this function:

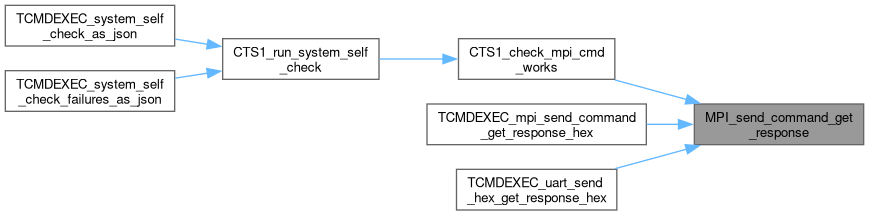

Here is the caller graph for this function:

MPI_validate_command_response()

uint8_t MPI_validate_command_response	(	const uint8_t	command_code,
		uint8_t *	rx_buffer,
		const uint16_t	rx_buffer_len )

The MPI responds to each telecommand with a response code consisting of an echo of the telecommand code byte and a status byte (either 254 or OxFE) for success or error code otherwise.

Parameters

tx_buffer	MPI telecommand buffer containing bytes sent
rx_buffer	MPI response buffer containing bytes received
tx_buffer_size	Size of the MPI response buffer

Returns

0: MPI successfully executed telecommand, 5: MPI failed to execute telecommand, 6: Invalid response from the MPI

Here is the caller graph for this function:

MPI_write_file_header()

static int8_t MPI_write_file_header ( )

static

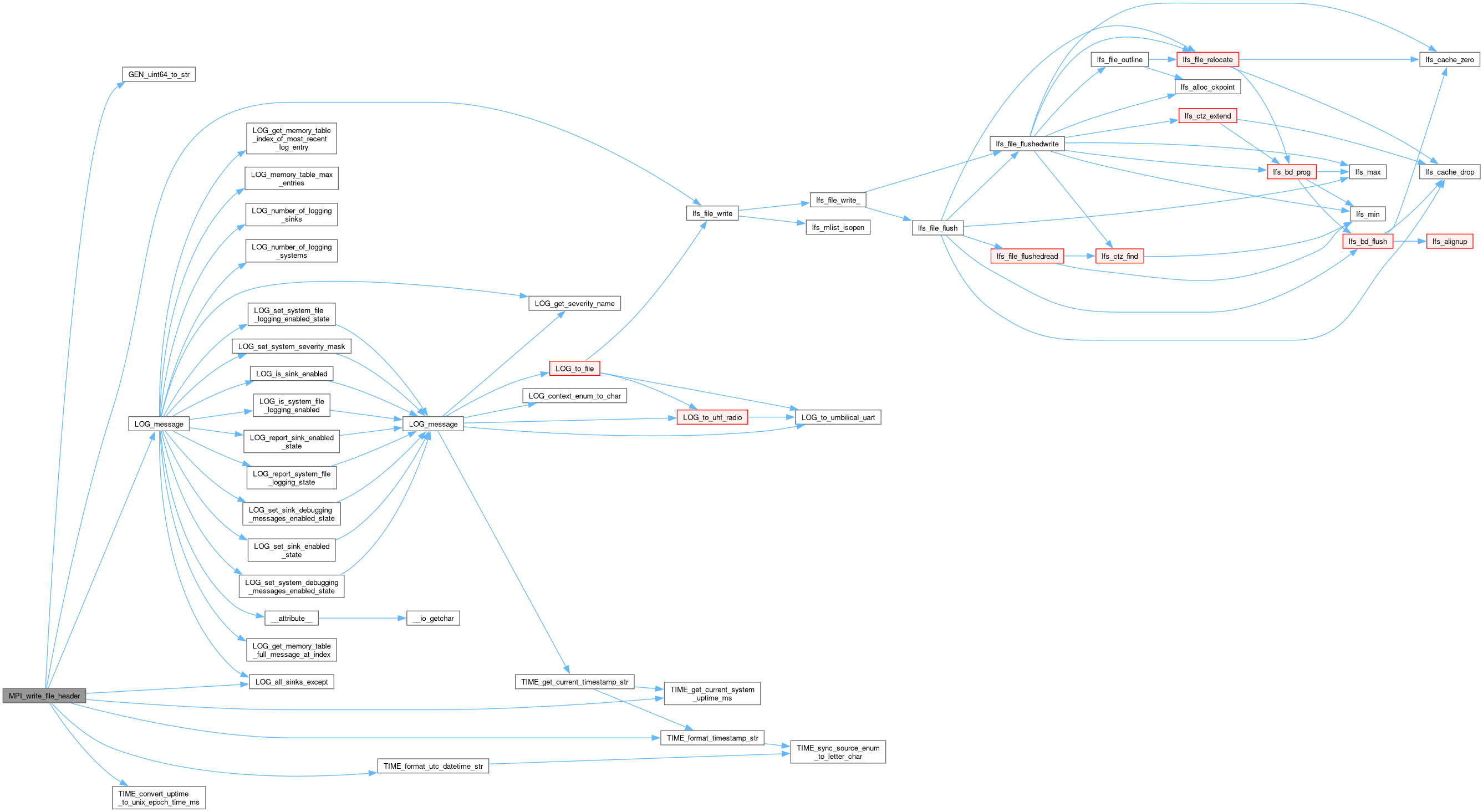

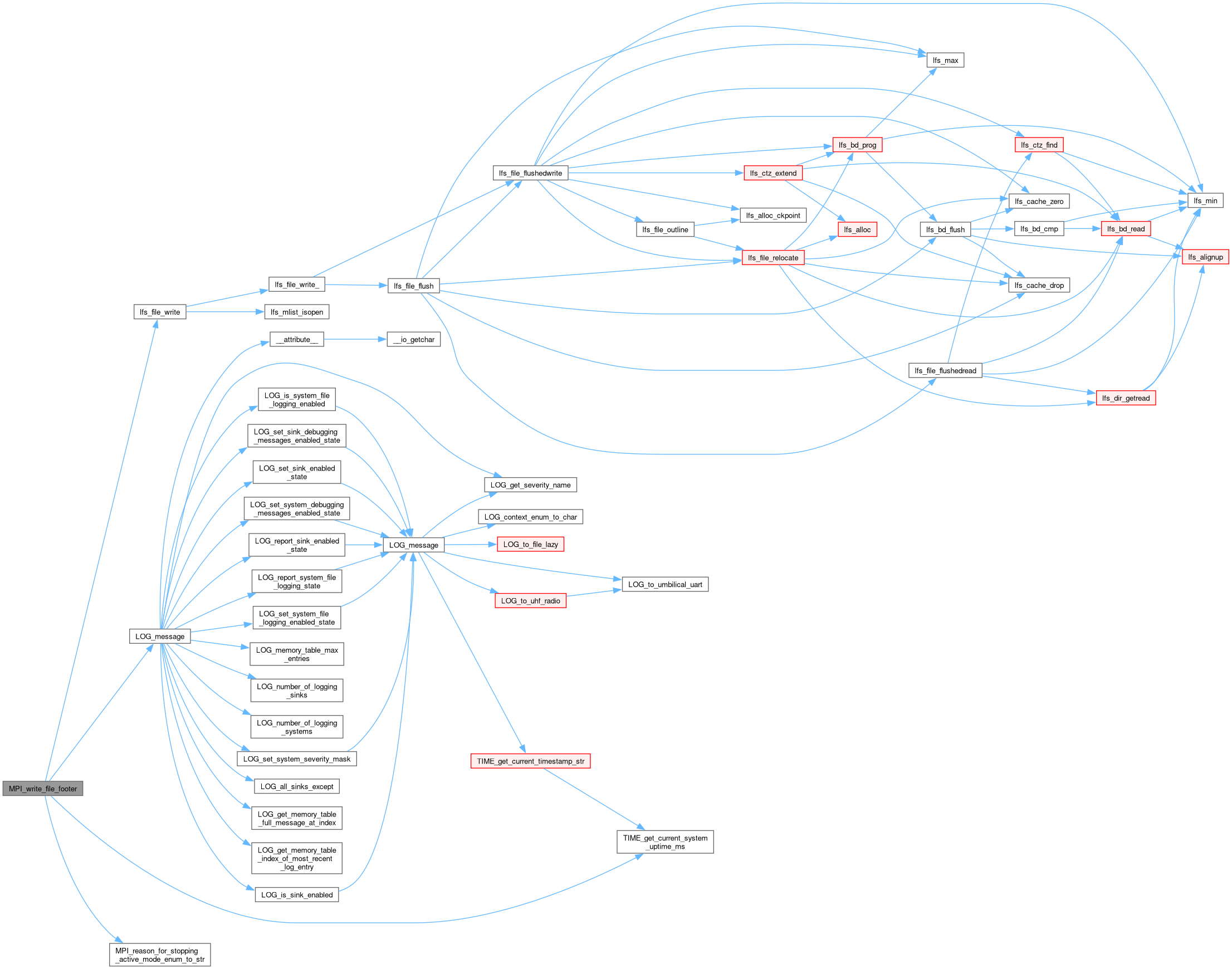

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

MPI_current_uart_rx_mode

volatile MPI_rx_mode_t MPI_current_uart_rx_mode = MPI_RX_MODE_NOT_LISTENING_TO_MPI

Current mode under which the MPI is being operated.

MPI_recording_start_uptime_ms

uint32_t MPI_recording_start_uptime_ms

MPI_RX_TIMEOUT_DURATION_MS

const uint16_t MPI_RX_TIMEOUT_DURATION_MS = 2000

static

Timeout duration for receive in milliseconds. Same between bytes and at the start.

MPI_science_data_bytes_lost

uint32_t MPI_science_data_bytes_lost = 0

MPI_science_data_file_is_open

uint8_t MPI_science_data_file_is_open = 0

MPI_science_data_file_pointer

lfs_file_t MPI_science_data_file_pointer

MPI_TX_TIMEOUT_DURATION_MS

const uint16_t MPI_TX_TIMEOUT_DURATION_MS = 100

static

Timeout duration for transmit HAL call, in milliseconds.
