mpi_command_handling.h File Reference

#include <stdint.h>
#include <stddef.h>
#include "mpi/mpi_types.h"
#include "littlefs/lfs.h"

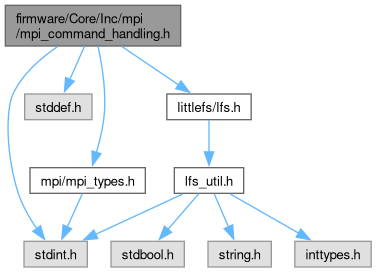

Include dependency graph for mpi_command_handling.h:

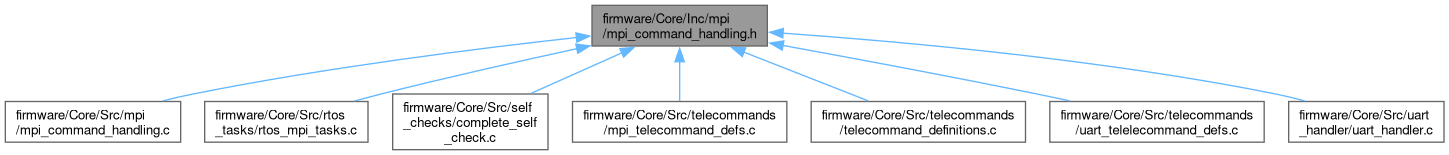

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations
enum	MPI_reason_for_stopping_active_mode_enum_t {   MPI_REASON_FOR_STOPPING_NOT_SET , MPI_REASON_FOR_STOPPING_TEMPERATURE_EXCEEDED , MPI_REASON_FOR_STOPPING_TELECOMMAND , MPI_REASON_FOR_STOPPING_MAX_TIME_EXCEEDED ,   MPI_REASON_FOR_STOPPING_SELF_CHECK_DONE }

Functions
uint8_t	MPI_send_command_get_response (const uint8_t *bytes_to_send, const size_t bytes_to_send_len, uint8_t *rx_buffer, const size_t rx_buffer_max_size, uint16_t *rx_buffer_len)
	Sends commandcode+params to the MPI as bytes.
uint8_t	MPI_enable_active_mode (const char output_file_path[])
	Turns on MPI science mode and Enables DMA interrupt for MPI channel.
uint8_t	MPI_disable_active_mode (MPI_reason_for_stopping_active_mode_enum_t reason_for_stopping)
uint8_t	MPI_validate_command_response (const uint8_t command_code, uint8_t *rx_buffer, const uint16_t rx_buffer_len)
	The MPI responds to each telecommand with a response code consisting of an echo of the telecommand code byte and a status byte (either 254 or OxFE) for success or error code otherwise.
char *	MPI_reason_for_stopping_active_mode_enum_to_str (MPI_reason_for_stopping_active_mode_enum_t reason)

Variables
static const uint8_t	MPI_COMMAND_SUCCESS_RESPONSE_VALUE = 0xFE
volatile MPI_rx_mode_enum_t	MPI_current_uart_rx_mode
	Current mode under which the MPI is being operated.
uint8_t	MPI_science_data_file_is_open
volatile uint32_t	MPI_science_data_bytes_lost
lfs_file_t	MPI_science_data_file_pointer
uint32_t	MPI_recording_start_uptime_ms

Enumeration Type Documentation

MPI_reason_for_stopping_active_mode_enum_t

enum MPI_reason_for_stopping_active_mode_enum_t

Enumerator
MPI_REASON_FOR_STOPPING_NOT_SET
MPI_REASON_FOR_STOPPING_TEMPERATURE_EXCEEDED
MPI_REASON_FOR_STOPPING_TELECOMMAND
MPI_REASON_FOR_STOPPING_MAX_TIME_EXCEEDED
MPI_REASON_FOR_STOPPING_SELF_CHECK_DONE

Function Documentation

MPI_disable_active_mode()

uint8_t MPI_disable_active_mode

(

MPI_reason_for_stopping_active_mode_enum_t

reason_for_stopping

)

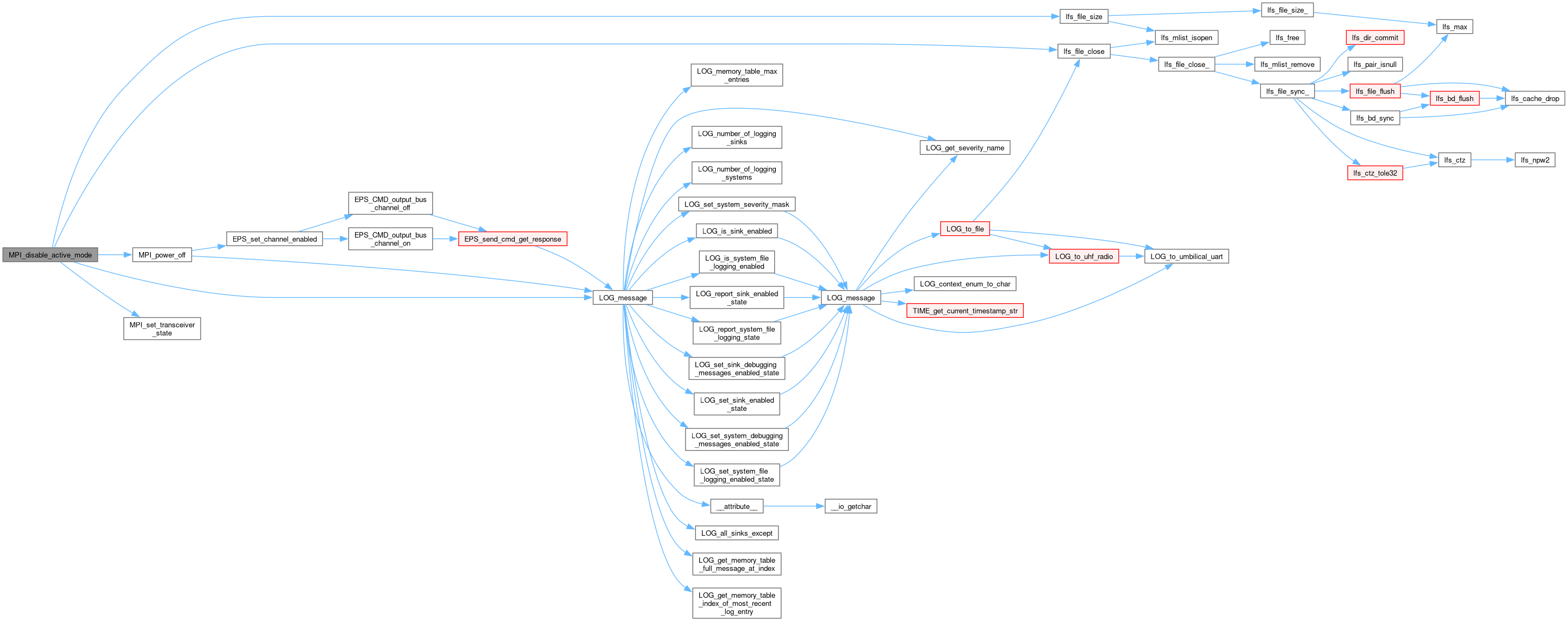

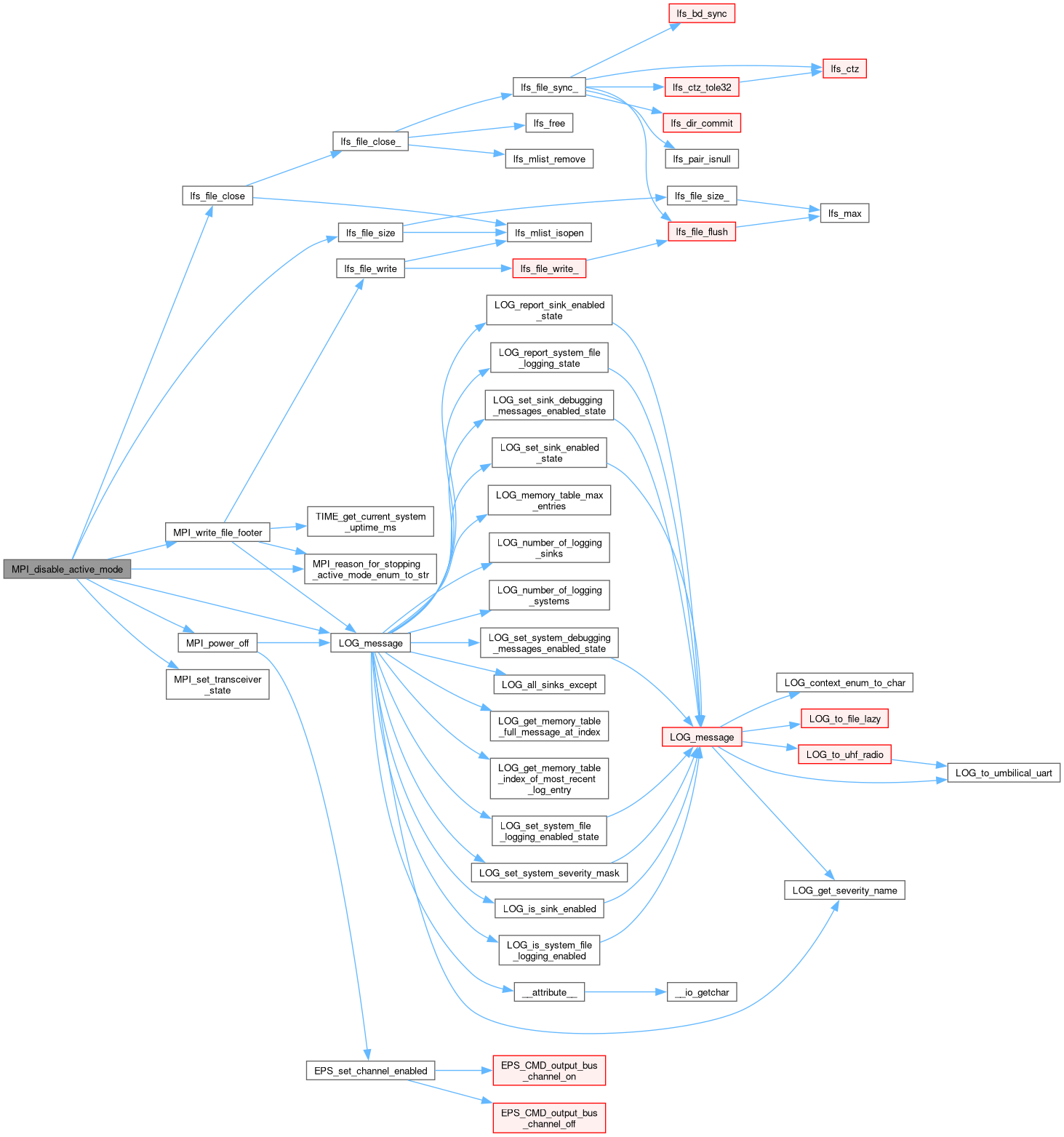

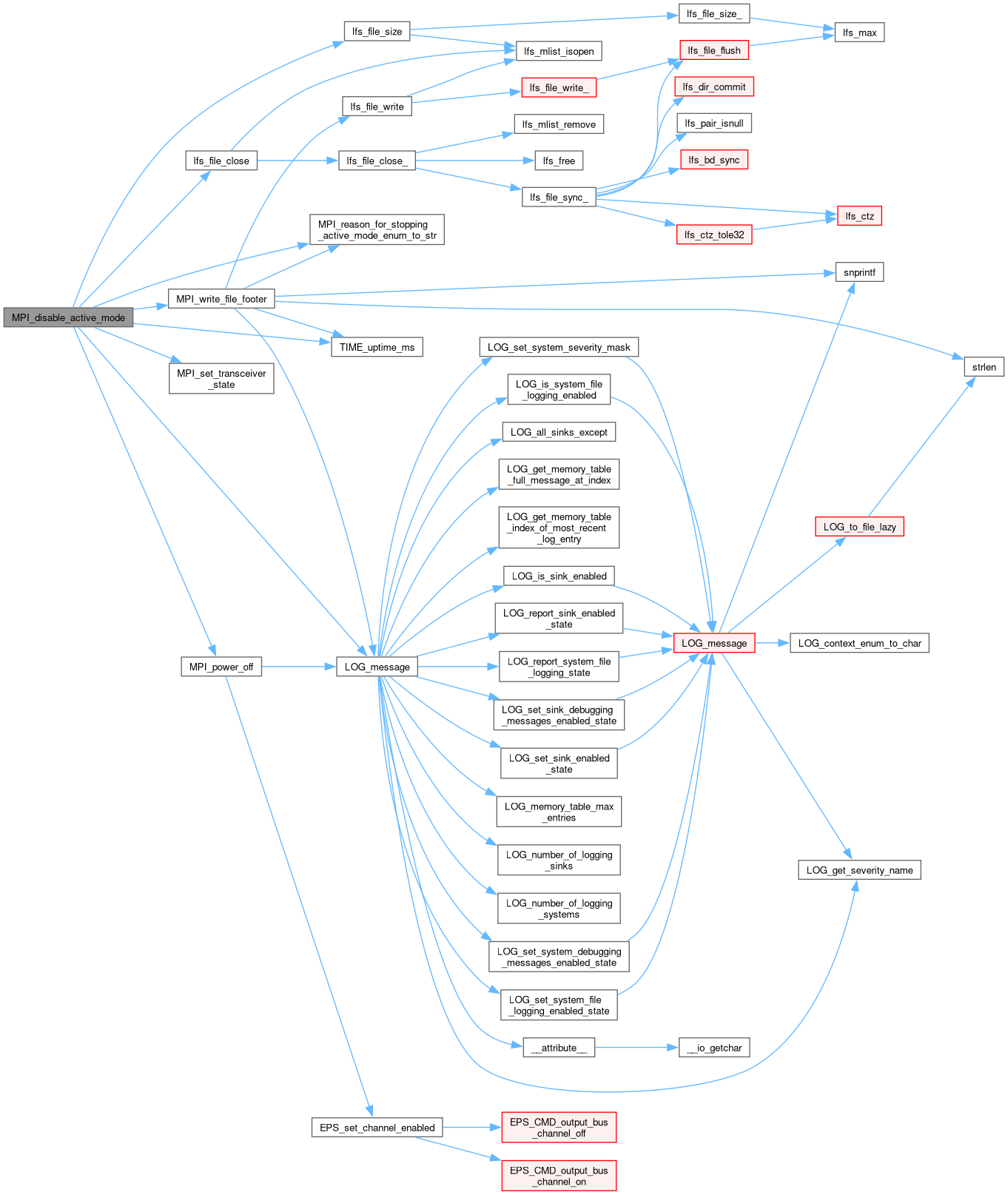

Here is the call graph for this function:

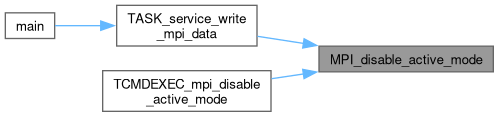

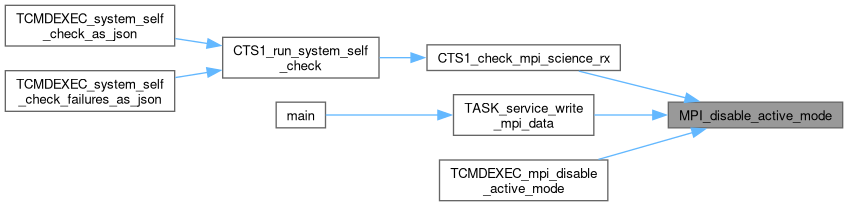

Here is the caller graph for this function:

MPI_enable_active_mode()

uint8_t MPI_enable_active_mode

(

const char

output_file_path[]

)

Turns on MPI science mode and Enables DMA interrupt for MPI channel.

Returns

0: MPI and DMA successfully enabled, < 0: Error

Here is the call graph for this function:

Here is the caller graph for this function:

MPI_reason_for_stopping_active_mode_enum_to_str()

char * MPI_reason_for_stopping_active_mode_enum_to_str

(

MPI_reason_for_stopping_active_mode_enum_t

reason

)

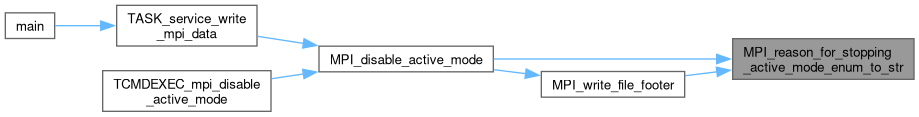

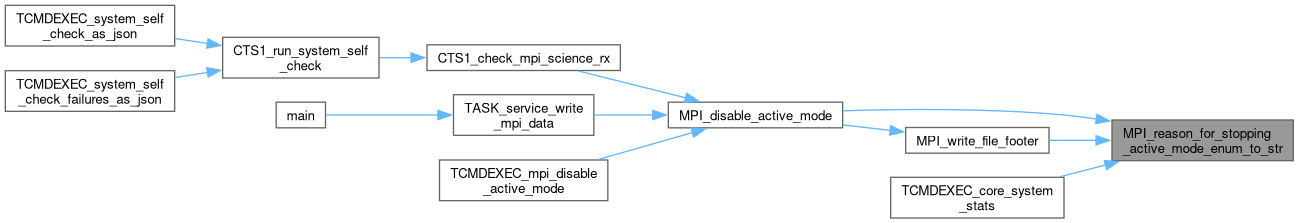

Here is the caller graph for this function:

MPI_send_command_get_response()

uint8_t MPI_send_command_get_response	(	const uint8_t *	bytes_to_send,
		const size_t	bytes_to_send_len,
		uint8_t *	rx_buffer,
		const size_t	rx_buffer_max_size,
		uint16_t *	rx_buffer_len )

Sends commandcode+params to the MPI as bytes.

Parameters

bytes_to_send	Buffer containing the telecommand + params (IF ANY) as hex bytes
bytes_to_send_len	Size of telecommand buffer
rx_buffer	Buffer to store incoming response from the MPI
rx_buffer_max_size	The maximum size of the MPI response buffer
rx_buffer_len	Pointer to variable that will contain the length of the populated MPI response buffer

Returns

0: Success, 2: Failed UART transmission, 3: Failed UART reception, 4: Timeout waiting for 1st byte from MPI, 8: Not enough space in the MPI response buffer

Note

If the MPI is in "science data" mode, it will be disabled after the command is executed.

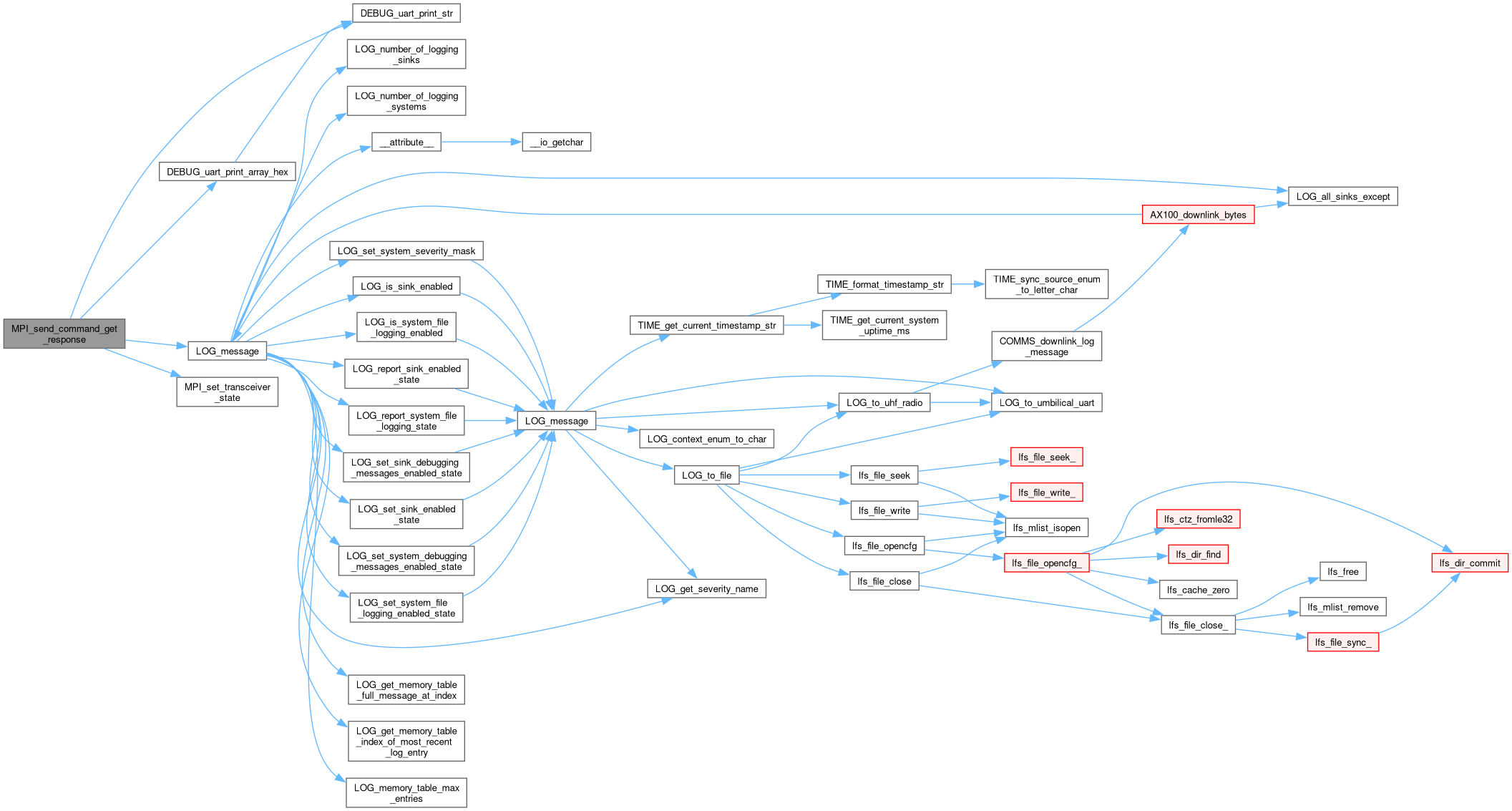

Here is the call graph for this function:

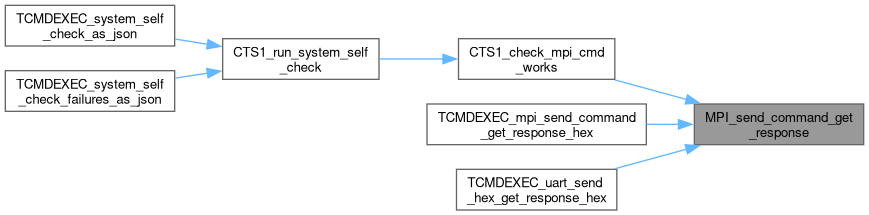

Here is the caller graph for this function:

MPI_validate_command_response()

uint8_t MPI_validate_command_response	(	const uint8_t	command_code,
		uint8_t *	rx_buffer,
		const uint16_t	rx_buffer_len )

The MPI responds to each telecommand with a response code consisting of an echo of the telecommand code byte and a status byte (either 254 or OxFE) for success or error code otherwise.

Parameters

tx_buffer	MPI telecommand buffer containing bytes sent
rx_buffer	MPI response buffer containing bytes received
tx_buffer_size	Size of the MPI response buffer

Returns

0: MPI successfully executed telecommand, 5: MPI failed to execute telecommand, 6: Invalid response from the MPI

Here is the caller graph for this function:

Variable Documentation

MPI_COMMAND_SUCCESS_RESPONSE_VALUE

const uint8_t MPI_COMMAND_SUCCESS_RESPONSE_VALUE = 0xFE

static

MPI_current_uart_rx_mode

volatile MPI_rx_mode_enum_t MPI_current_uart_rx_mode

extern

Current mode under which the MPI is being operated.

MPI_recording_start_uptime_ms

uint32_t MPI_recording_start_uptime_ms

extern

MPI_science_data_bytes_lost

volatile uint32_t MPI_science_data_bytes_lost

extern

MPI_science_data_file_is_open

uint8_t MPI_science_data_file_is_open

extern

MPI_science_data_file_pointer

lfs_file_t MPI_science_data_file_pointer

extern
