build_tcmd_and_config_docs Namespace Reference

Functions
list|dict	download_json (str url)
str	strip_readiness_prefix (str readiness_level)
str	escape_md_cell (str|None text)
str	render_telecommand_section (list[dict] telecommands)
str	render_config_variable_section (dict config_data)
None	generate_markdown_file (Path output_path)
None	main ()

Variables
str	TELECOMMAND_LIST_URL = "https://raw.githubusercontent.com/CalgaryToSpace/CTS-SAT-1-Ground-Support/refs/heads/main/cts1_ground_support/bundled_data/cts_sat_1_telecommand_list.json"
str	CONFIG_VARIABLE_LIST_URL = "https://raw.githubusercontent.com/CalgaryToSpace/CTS-SAT-1-Ground-Support/refs/heads/main/cts1_ground_support/bundled_data/cts_sat_1_config_variable_list.json"
str	READINESS_LEVEL_PREFIX = "TCMD_READINESS_LEVEL_"
str	MD_FILE_TEMPLATE

Detailed Description

Generate a Markdown file listing all telecommands and configuration variables.

The telecommand and configuration variable definitions are downloaded from the
CTS-SAT-1-Ground-Support repository's bundled data files (which are themselves
auto-generated from the OBC firmware source).

Run this script with:
```bash
pip install uv

uv run docs/generation/build_tcmd_and_config_list.py
```

The `uv` tool automatically installs the required dependencies specified in the
`dependencies` section below.

Function Documentation

download_json()

list | dict download_json

(

str

url

)

Downloads a JSON file from `url` and returns its parsed content.

Here is the caller graph for this function:

escape_md_cell()

str escape_md_cell

(

str | None

text

)

Makes a string safe to put inside a single Markdown table cell.

Pipes are escaped, and newlines are replaced with `<br>` so multi-line
docstrings render as multi-line cells.

Here is the caller graph for this function:

generate_markdown_file()

None generate_markdown_file

(

Path

output_path

)

Downloads source data and writes the assembled Markdown file.

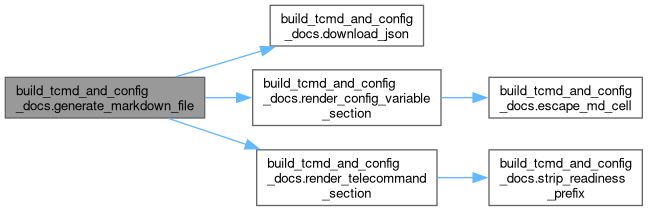

Here is the call graph for this function:

Here is the caller graph for this function:

main()

None main

(

void

)

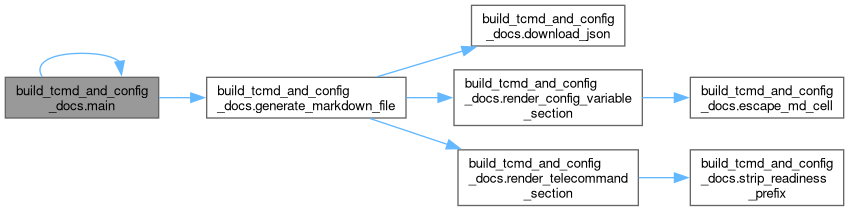

Here is the call graph for this function:

Here is the caller graph for this function:

render_config_variable_section()

str render_config_variable_section

(

dict

config_data

)

Renders the configuration variables section of the Markdown file.

Here is the call graph for this function:

Here is the caller graph for this function:

render_telecommand_section()

str render_telecommand_section

(

list[dict]

telecommands

)

Renders the telecommand section of the Markdown file.

Here is the call graph for this function:

Here is the caller graph for this function:

strip_readiness_prefix()

str strip_readiness_prefix

(

str

readiness_level

)

Strips the verbose `TCMD_READINESS_LEVEL_` prefix for nicer display.

Here is the caller graph for this function:

Variable Documentation

CONFIG_VARIABLE_LIST_URL

str build_tcmd_and_config_docs.CONFIG_VARIABLE_LIST_URL = "https://raw.githubusercontent.com/CalgaryToSpace/CTS-SAT-1-Ground-Support/refs/heads/main/cts1_ground_support/bundled_data/cts_sat_1_config_variable_list.json"

MD_FILE_TEMPLATE

str build_tcmd_and_config_docs.MD_FILE_TEMPLATE

Initial value:

=  """\
# Telecommands and Configuration Variables

This is an auto-generated reference of all telecommands and configuration
variables supported by the CTS-SAT-1 OBC firmware. It is generated by the
`{this_script_file_name}` script.

Source data downloaded from the
[`CTS-SAT-1-Ground-Support`](https://github.com/CalgaryToSpace/CTS-SAT-1-Ground-Support)
repository's bundled data files.

## Table of Contents

- [Telecommands](#telecommands)
  - [Readiness Levels](#readiness-levels)
  - [Summary Table](#summary-table)
  - [Telecommand Details](#telecommand-details)
- [Configuration Variables](#configuration-variables)
  - [Summary Table](#summary-table-1)
  - [Integer Configuration Variable Details](#integer-configuration-variable-details)
  - [String Configuration Variable Details](#string-configuration-variable-details)

---

{telecommand_section}

---

{config_variable_section}
"""

READINESS_LEVEL_PREFIX

str build_tcmd_and_config_docs.READINESS_LEVEL_PREFIX = "TCMD_READINESS_LEVEL_"

TELECOMMAND_LIST_URL

str build_tcmd_and_config_docs.TELECOMMAND_LIST_URL = "https://raw.githubusercontent.com/CalgaryToSpace/CTS-SAT-1-Ground-Support/refs/heads/main/cts1_ground_support/bundled_data/cts_sat_1_telecommand_list.json"
