obc_temperature_sensor.h File Reference

#include <stdint.h>

Include dependency graph for obc_temperature_sensor.h:

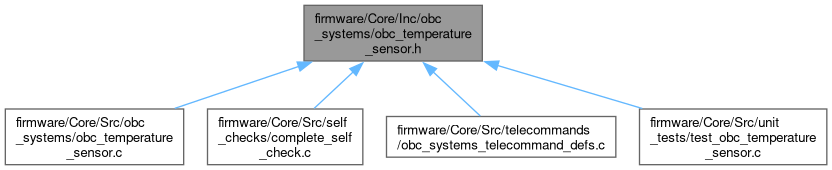

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Set_Precision_Data

Enumerations
enum	Temperature_Sensor_Data_Precision_Insignificant_Bytes_t { OBC_TEMP_SENSOR_TWELVE_BIT_PRECISION_INSIGNIFICANT_BYTES = 4 , OBC_TEMP_SENSOR_ELEVEN_BIT_PRECISION_INSIGNIFICANT_BYTES , OBC_TEMP_SENSOR_TEN_BIT_PRECISION_INSIGNIFICANT_BYTES , OBC_TEMP_SENSOR_NINE_BIT_PRECISION_INSIGNIFICANT_BYTES }

Functions
uint8_t	OBC_TEMP_SENSOR_read_temperature (int32_t *result)
	Reads the temperature from the STDS75DS2F and stores it in the provided variable pointer result. Precision can be configured from 9 to 12 bits. Temperature range is -55 to 125 degrees celsius with +/- 3 degrees celsius over the whole range.
int32_t	OBC_TEMP_SENSOR_convert_raw_to_deg_c (uint8_t raw_bytes[], uint8_t precision_coefficient, Temperature_Sensor_Data_Precision_Insignificant_Bytes_t precision_insignificant_bits, uint16_t precision_scaling_factor)
	Converts the raw bytes provided to a temperature in celsius and multiplied by a scaling factor based on the provided precision. Works on the four MSBs. Reference https://www.st.com/resource/en/datasheet/stds75.pdf page 15 and 18 for information on calculations and format of temperature data.
uint8_t	OBC_TEMP_SENSOR_set_temp_precision (uint8_t arg_precision, uint32_t *temp_precision_conversion_delay, uint32_t *temp_scaling_factor)
	Set the temp temperature precision in the config register.
uint8_t	OBC_TEMP_SENSOR_configure_precision_values (uint8_t arg_precision, struct Set_Precision_Data *precision_data)
	Configures the precision global variables in preparation for setting the precision.
int8_t	OBC_TEMP_SENSOR_get_temp_precision (void)
	Reads the temperature precision from the config register. Refer to https://www.st.com/resource/en/datasheet/stds75.pdf page 17, table 6 and 7 for more information.
int32_t	OBC_TEMP_SENSOR_get_temperature_cC ()
	The simplest and most foolproof way to get the OBC temperature in centi-celsius.

Variables
static const int32_t	OBC_TEMP_SENSOR_ERROR_TEMPERATURE_CC = 99999
	A fake temperature, in cC, which indicates an error in reading the temperature.
static const float	OBC_TEMP_SENSOR_nine_bit_precision_coefficient = 2
static const float	OBC_TEMP_SENSOR_ten_bit_precision_coefficient = 4
static const float	OBC_TEMP_SENSOR_eleven_bit_precision_coefficient = 8
static const float	OBC_TEMP_SENSOR_twelve_bit_precision_coefficient = 16
static const uint16_t	OBC_TEMP_SENSOR_nine_bit_scaling_factor = 10
static const uint16_t	OBC_TEMP_SENSOR_ten_bit_scaling_factor = 100
static const uint16_t	OBC_TEMP_SENSOR_eleven_bit_scaling_factor = 1000
static const uint16_t	OBC_TEMP_SENSOR_twelve_bit_scaling_factor = 10000

Enumeration Type Documentation

Temperature_Sensor_Data_Precision_Insignificant_Bytes_t

enum Temperature_Sensor_Data_Precision_Insignificant_Bytes_t

Enumerator
OBC_TEMP_SENSOR_TWELVE_BIT_PRECISION_INSIGNIFICANT_BYTES
OBC_TEMP_SENSOR_ELEVEN_BIT_PRECISION_INSIGNIFICANT_BYTES
OBC_TEMP_SENSOR_TEN_BIT_PRECISION_INSIGNIFICANT_BYTES
OBC_TEMP_SENSOR_NINE_BIT_PRECISION_INSIGNIFICANT_BYTES

Function Documentation

OBC_TEMP_SENSOR_configure_precision_values()

uint8_t OBC_TEMP_SENSOR_configure_precision_values	(	uint8_t	arg_precision,
		struct Set_Precision_Data *	precision_data )

Configures the precision global variables in preparation for setting the precision.

Parameters

arg_precision	precision to set the temperature to in decimal (9, 10, 11, 12).
precision_data	struct containing all the values needed in precision calculations.

Returns

0 on success, 1 if user passed in an invalid precision value.

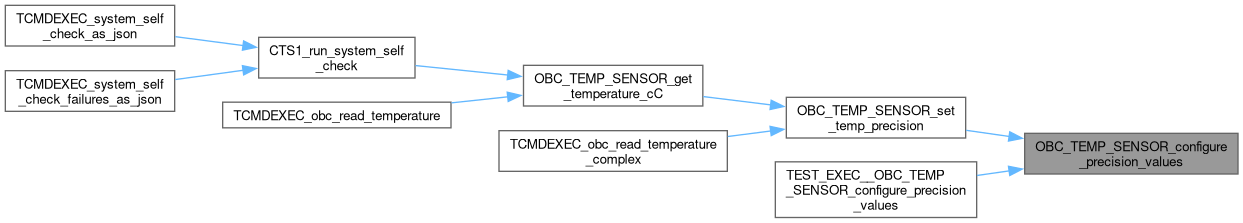

Here is the caller graph for this function:

OBC_TEMP_SENSOR_convert_raw_to_deg_c()

int32_t OBC_TEMP_SENSOR_convert_raw_to_deg_c	(	uint8_t	raw_bytes[],
		uint8_t	precision_coefficient,
		Temperature_Sensor_Data_Precision_Insignificant_Bytes_t	precision_insignificant_bits,
		uint16_t	precision_scaling_factor )

Converts the raw bytes provided to a temperature in celsius and multiplied by a scaling factor based on the provided precision. Works on the four MSBs. Reference https://www.st.com/resource/en/datasheet/stds75.pdf page 15 and 18 for information on calculations and format of temperature data.

Parameters

raw_bytes	Bytes to convert to celsius float value
TEMP_SENSOR_data_precision_coefficient	Coefficient used to get the temperature in the correct precision.
TEMP_SENSOR_data_precision_insignificant_bits	Value used to remove always zero bits and bits not used the provided precision.
precision_scaling_factor	Value used to convert the temperature into a representation with no fractional parts.

Returns

the temperature in celsius after conversion.

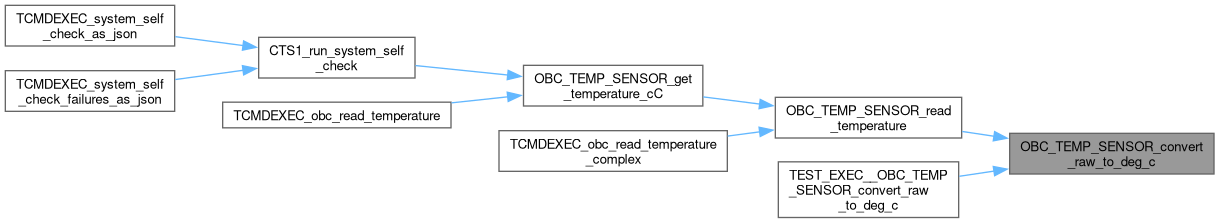

Here is the caller graph for this function:

OBC_TEMP_SENSOR_get_temp_precision()

int8_t OBC_TEMP_SENSOR_get_temp_precision

(

void

)

Reads the temperature precision from the config register. Refer to https://www.st.com/resource/en/datasheet/stds75.pdf page 17, table 6 and 7 for more information.

Parameters

None

Returns

-1 if there is an error otherwise the temperature precision in the least significant two bits as 0x01, 0x02, 0x03, 0x04.

OBC_TEMP_SENSOR_get_temperature_cC()

int32_t OBC_TEMP_SENSOR_get_temperature_cC

(

)

The simplest and most foolproof way to get the OBC temperature in centi-celsius.

Returns

The temperature in cC, if successful. 99999 (OBC_TEMP_SENSOR_ERROR_TEMPERATURE_CC) if unsuccessful.

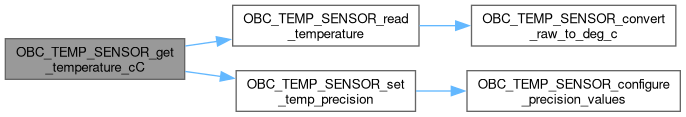

Here is the call graph for this function:

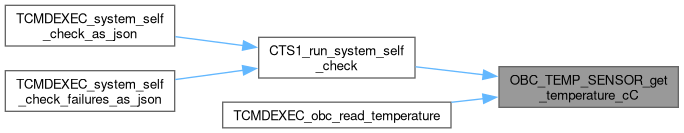

Here is the caller graph for this function:

OBC_TEMP_SENSOR_read_temperature()

uint8_t OBC_TEMP_SENSOR_read_temperature

(

int32_t *

result

)

Reads the temperature from the STDS75DS2F and stores it in the provided variable pointer result. Precision can be configured from 9 to 12 bits. Temperature range is -55 to 125 degrees celsius with +/- 3 degrees celsius over the whole range.

Parameters

result

Memory location to store the temperature result (units: degrees celsius).

Returns

0 if successful, 1 if config register error, 2 if temp register error.

Note

You may think this gets you the temperature in cC, but it doesn't!!

Here is the call graph for this function:

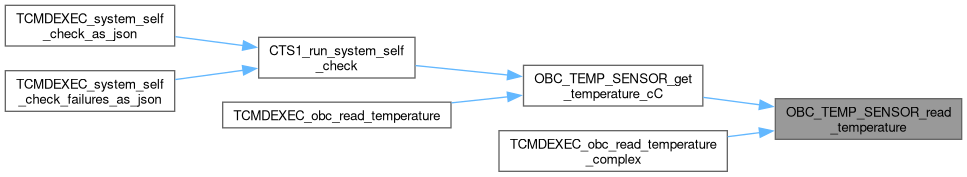

Here is the caller graph for this function:

OBC_TEMP_SENSOR_set_temp_precision()

uint8_t OBC_TEMP_SENSOR_set_temp_precision	(	uint8_t	arg_precision,
		uint32_t *	temp_precision_conversion_delay_ms,
		uint32_t *	temp_scaling_factor )

Set the temp temperature precision in the config register.

Parameters

arg_precision	Precision to set the temperature to in decimal (9, 10, 11, 12).
temp_precision_conversion_delay_ms	Pointer to store the conversion delay.
temp_scaling_factor	Pointer to store the scaling factor.

Returns

0 on success, 1 on write error, 2 when passed an invalid precision value.

Here is the call graph for this function:

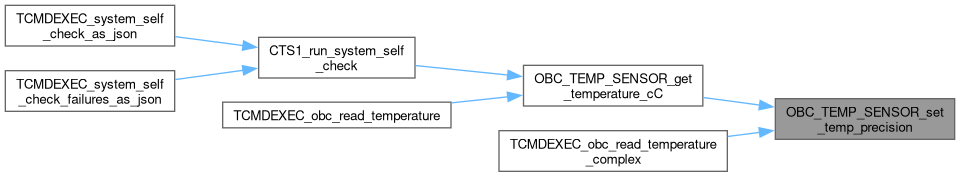

Here is the caller graph for this function:

Variable Documentation

OBC_TEMP_SENSOR_eleven_bit_precision_coefficient

const float OBC_TEMP_SENSOR_eleven_bit_precision_coefficient = 8

static

OBC_TEMP_SENSOR_eleven_bit_scaling_factor

const uint16_t OBC_TEMP_SENSOR_eleven_bit_scaling_factor = 1000

static

OBC_TEMP_SENSOR_ERROR_TEMPERATURE_CC

const int32_t OBC_TEMP_SENSOR_ERROR_TEMPERATURE_CC = 99999

static

A fake temperature, in cC, which indicates an error in reading the temperature.

OBC_TEMP_SENSOR_nine_bit_precision_coefficient

const float OBC_TEMP_SENSOR_nine_bit_precision_coefficient = 2

static

OBC_TEMP_SENSOR_nine_bit_scaling_factor

const uint16_t OBC_TEMP_SENSOR_nine_bit_scaling_factor = 10

static

OBC_TEMP_SENSOR_ten_bit_precision_coefficient

const float OBC_TEMP_SENSOR_ten_bit_precision_coefficient = 4

static

OBC_TEMP_SENSOR_ten_bit_scaling_factor

const uint16_t OBC_TEMP_SENSOR_ten_bit_scaling_factor = 100

static

OBC_TEMP_SENSOR_twelve_bit_precision_coefficient

const float OBC_TEMP_SENSOR_twelve_bit_precision_coefficient = 16

static

OBC_TEMP_SENSOR_twelve_bit_scaling_factor

const uint16_t OBC_TEMP_SENSOR_twelve_bit_scaling_factor = 10000

static
