rf_antenna_switch.h File Reference

#include <stdint.h>

Include dependency graph for rf_antenna_switch.h:

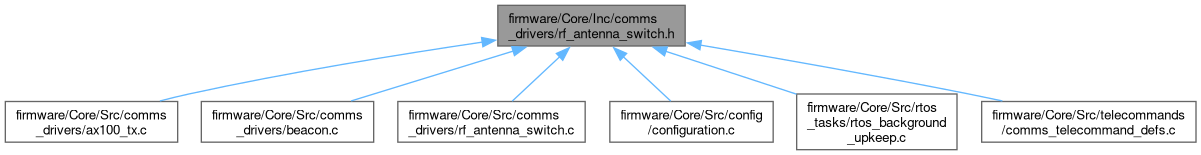

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Enumerations
enum	COMMS_rf_switch_control_mode_enum_t {   COMMS_RF_SWITCH_CONTROL_MODE_TOGGLE_BEFORE_EVERY_BEACON = 0 , COMMS_RF_SWITCH_CONTROL_MODE_FORCE_ANT1 = 1 , COMMS_RF_SWITCH_CONTROL_MODE_FORCE_ANT2 = 2 , COMMS_RF_SWITCH_CONTROL_MODE_USE_ADCS_NORMAL = 3 ,   COMMS_RF_SWITCH_CONTROL_MODE_USE_ADCS_FLIPPED = 4 , COMMS_RF_SWITCH_CONTROL_MODE_UNKNOWN = 255 }

Functions
void	COMMS_set_rf_switch_state (uint8_t antenna_num)
	Sets the state of the dipole switch on the OBC to either Antenna 1 or Antenna 2.
uint8_t	COMMS_find_optimal_antenna_using_adcs ()
	Determines the optimal antenna to use based on the satellite's attitude angles.
void	COMMS_toggle_rf_switch_state ()
	Toggles the active antenna (selected by RF switch), from 1 to 2 or from 2 to 1.
COMMS_rf_switch_control_mode_enum_t	COMMS_rf_switch_control_mode_enum_from_string (const char *str)
const char *	COMMS_rf_switch_control_mode_enum_to_string (COMMS_rf_switch_control_mode_enum_t mode)

Variables
uint8_t	COMMS_active_rf_switch_antenna
COMMS_rf_switch_control_mode_enum_t	COMMS_rf_switch_control_mode
uint32_t	COMMS_max_duration_without_uplink_before_setting_default_rf_switch_mode_sec
	If the satellite goes this long without receiving an uplink, the COMMS_rf_switch_control_mode will be set back to TOGGLE_BEFORE_EVERY_BEACON.

Enumeration Type Documentation

COMMS_rf_switch_control_mode_enum_t

enum COMMS_rf_switch_control_mode_enum_t

Enumerator
COMMS_RF_SWITCH_CONTROL_MODE_TOGGLE_BEFORE_EVERY_BEACON
COMMS_RF_SWITCH_CONTROL_MODE_FORCE_ANT1
COMMS_RF_SWITCH_CONTROL_MODE_FORCE_ANT2
COMMS_RF_SWITCH_CONTROL_MODE_USE_ADCS_NORMAL
COMMS_RF_SWITCH_CONTROL_MODE_USE_ADCS_FLIPPED
COMMS_RF_SWITCH_CONTROL_MODE_UNKNOWN

Function Documentation

COMMS_find_optimal_antenna_using_adcs()

uint8_t COMMS_find_optimal_antenna_using_adcs

(

)

Determines the optimal antenna to use based on the satellite's attitude angles.

Returns

1 if Antenna 1 is optimal, 2 if Antenna 2 is optimal, 0 if an error occurs in retrieving attitude data.

Note

Utilizes estimated roll and pitch angles from the ADCS to make a decision on antenna orientation.

Angles were based of of the following logic -> https://docs.google.com/document/d/1kpgU5hM9LwyNtvdzwdpbq_XNiqCRhPLB0nauKUpm5I4/edit?tab=t.0

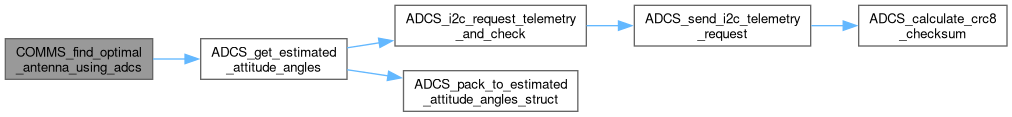

Here is the call graph for this function:

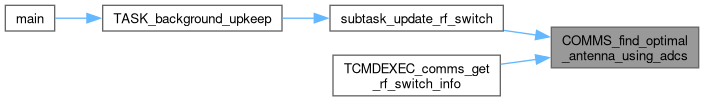

Here is the caller graph for this function:

COMMS_rf_switch_control_mode_enum_from_string()

COMMS_rf_switch_control_mode_enum_t COMMS_rf_switch_control_mode_enum_from_string

(

const char *

str

)

Here is the caller graph for this function:

COMMS_rf_switch_control_mode_enum_to_string()

const char * COMMS_rf_switch_control_mode_enum_to_string

(

COMMS_rf_switch_control_mode_enum_t

mode

)

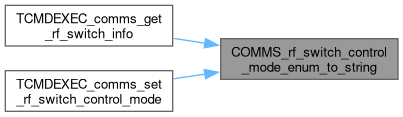

Here is the caller graph for this function:

COMMS_set_rf_switch_state()

void COMMS_set_rf_switch_state

(

uint8_t

antenna_num

)

Sets the state of the dipole switch on the OBC to either Antenna 1 or Antenna 2.

Parameters

antenna_num

Either 1 or 2. If not 1 or 2, then remains unchanged.

Note

Specification in https://github.com/CalgaryToSpace/CTS-SAT-1-OBC-Firmware/issues/417.

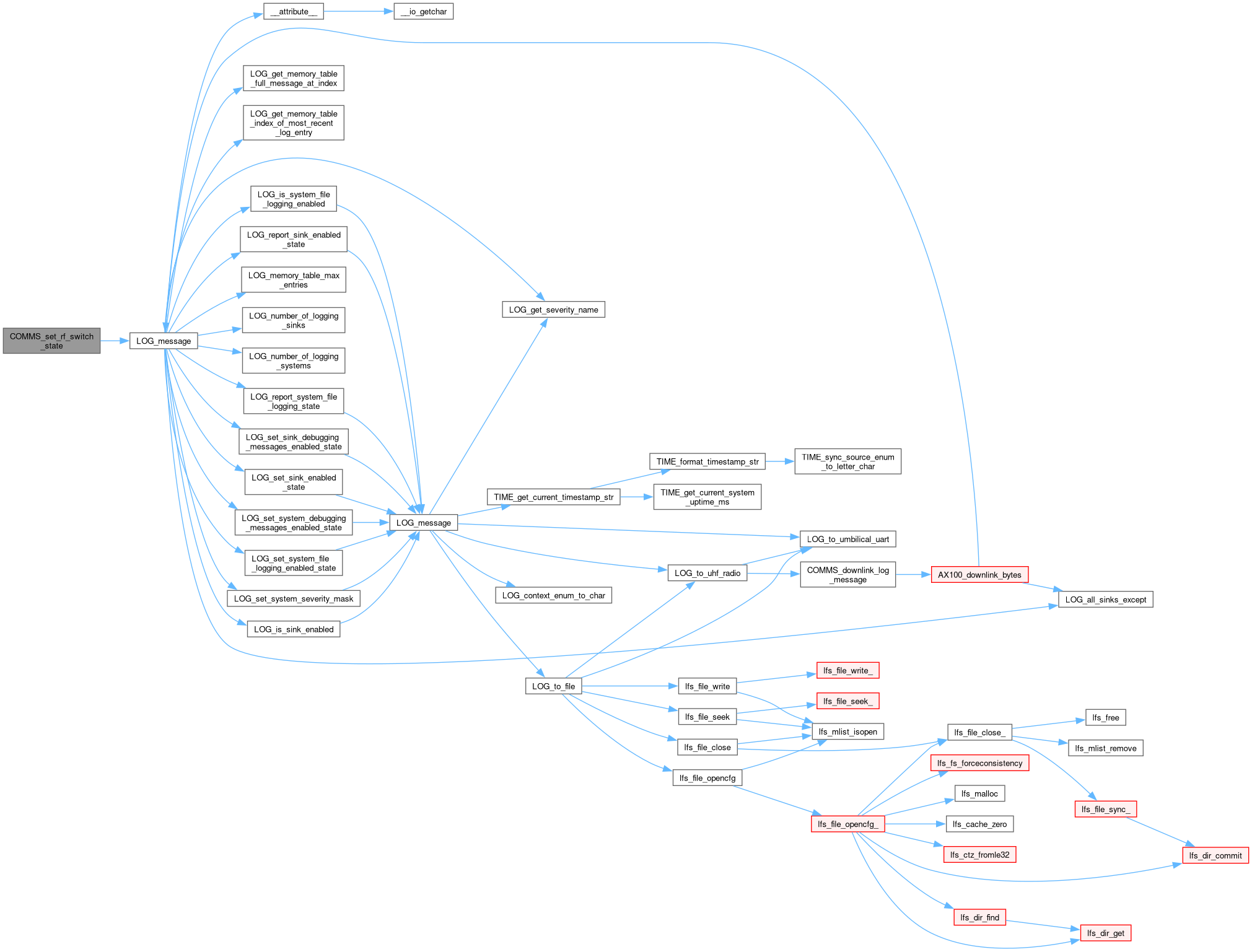

Here is the call graph for this function:

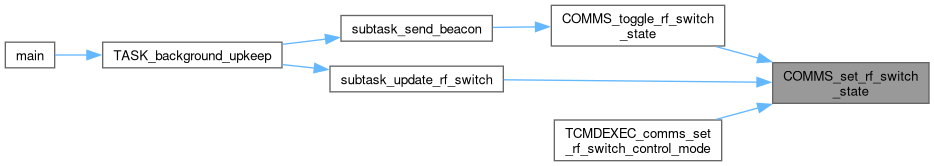

Here is the caller graph for this function:

COMMS_toggle_rf_switch_state()

void COMMS_toggle_rf_switch_state

(

)

Toggles the active antenna (selected by RF switch), from 1 to 2 or from 2 to 1.

Note

This function can be used to manually toggle the active antenna, regardless of the result of COMMS_find_optimal_antenna.

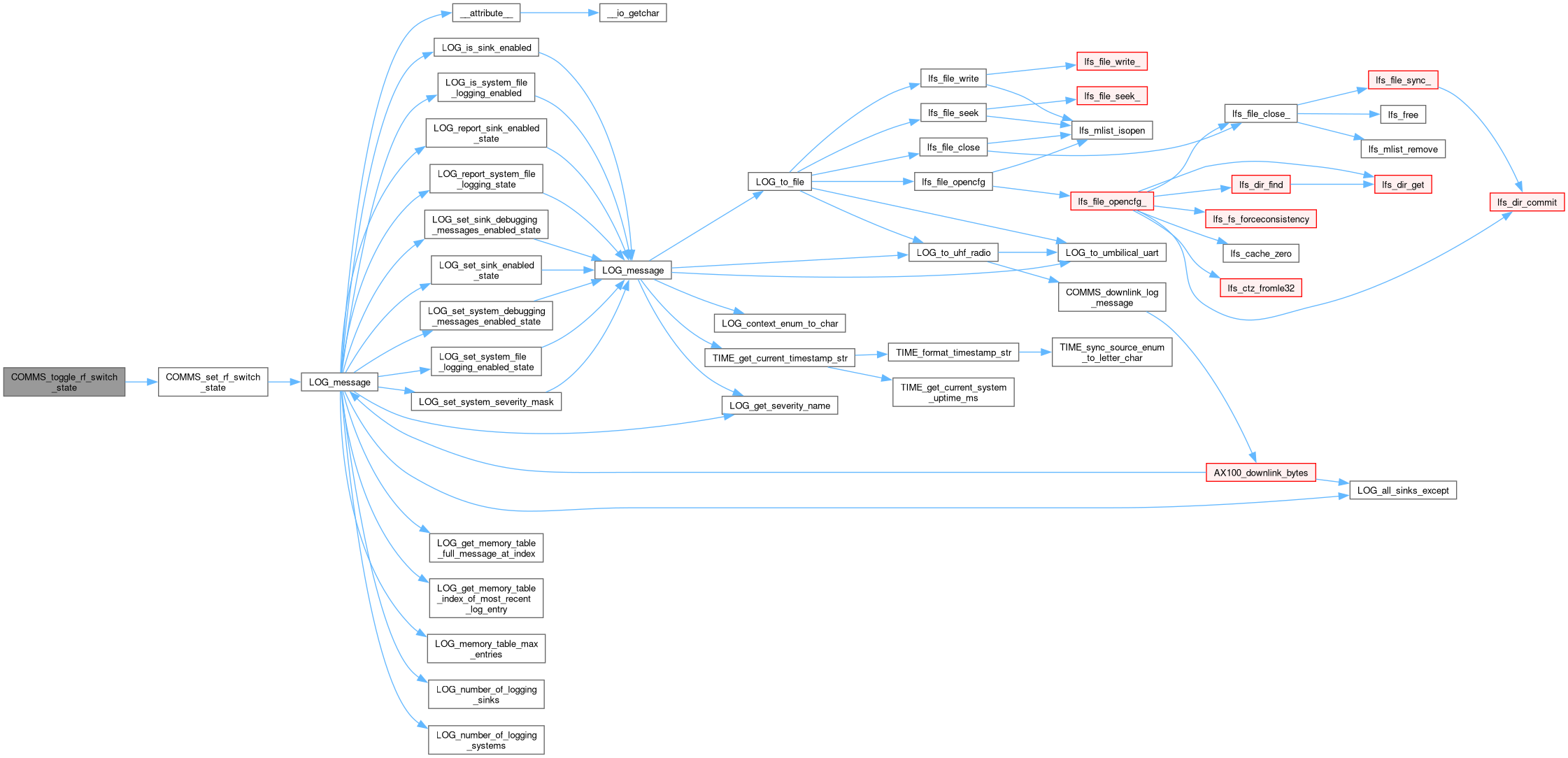

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

COMMS_active_rf_switch_antenna

uint8_t COMMS_active_rf_switch_antenna

extern

COMMS_max_duration_without_uplink_before_setting_default_rf_switch_mode_sec

uint32_t COMMS_max_duration_without_uplink_before_setting_default_rf_switch_mode_sec

extern

If the satellite goes this long without receiving an uplink, the COMMS_rf_switch_control_mode will be set back to TOGGLE_BEFORE_EVERY_BEACON.

COMMS_rf_switch_control_mode

COMMS_rf_switch_control_mode_enum_t COMMS_rf_switch_control_mode

extern
