#include <stdint.h>

Include dependency graph for rtos_bootup_operation_fsm_task.h:

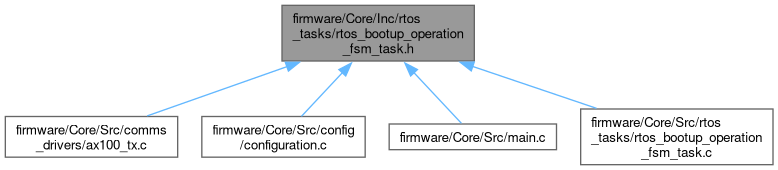

This graph shows which files directly or indirectly include this file:

Enumerations
enum	CTS1_operation_state_enum_t { CTS1_OPERATION_STATE_BOOTED_AND_WAITING , CTS1_OPERATION_STATE_DEPLOYING , CTS1_OPERATION_STATE_NOMINAL_WITH_RADIO_TX , CTS1_OPERATION_STATE_NOMINAL_WITHOUT_RADIO_TX }

Functions
char *	CTS1_operation_state_enum_TO_str (CTS1_operation_state_enum_t state)

void	TASK_bootup_operation_fsm (void *argument)
	FreeRTOS task - FSM which handles the bootup and operation state/state.

Variables
uint32_t	COMMS_uptime_to_start_ant_deployment_sec
	The uptime, as defined in the Launch Provider ICD, at which the antennas should be deployed.

CTS1_operation_state_enum_t	CTS1_operation_state

Enumeration Type Documentation

◆ CTS1_operation_state_enum_t

enum CTS1_operation_state_enum_t

Enumerator
CTS1_OPERATION_STATE_BOOTED_AND_WAITING
CTS1_OPERATION_STATE_DEPLOYING
CTS1_OPERATION_STATE_NOMINAL_WITH_RADIO_TX
CTS1_OPERATION_STATE_NOMINAL_WITHOUT_RADIO_TX

Function Documentation

◆ CTS1_operation_state_enum_TO_str()

char * CTS1_operation_state_enum_TO_str ( CTS1_operation_state_enum_t state )

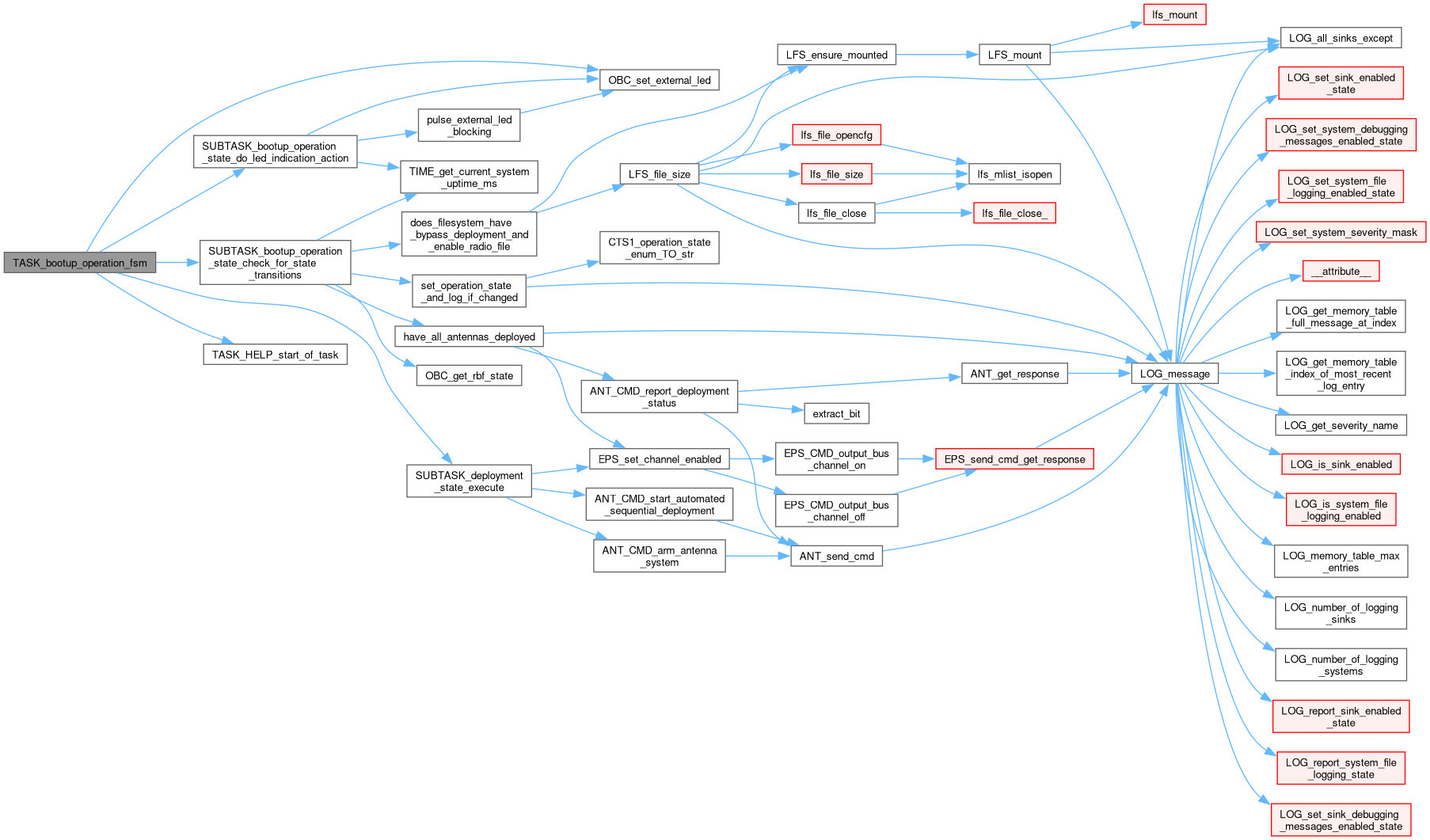

Here is the caller graph for this function:

◆ TASK_bootup_operation_fsm()

void TASK_bootup_operation_fsm ( void * argument )

FreeRTOS task - FSM which handles the bootup and operation state/state.

During LEOPS (launch and early operations), it deploys the comms antennas and permits radio TX. During the rest of the mission, it bypasses the 30 minute deployment wait time, and also blinks the LED to indicate the current state.
