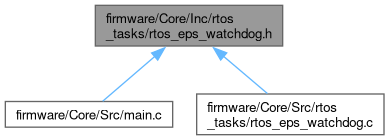

This graph shows which files directly or indirectly include this file:

Functions
void	TASK_service_eps_watchdog (void *argument)
	periodically sends a command to the eps to reset the watchdog timer

Function Documentation

◆ TASK_service_eps_watchdog()

void TASK_service_eps_watchdog ( void * argument )

periodically sends a command to the eps to reset the watchdog timer

Note: The eps has two watchdog timers: The "watchdog reset" and the "peripheral reset". The "watchdog reset" resets the entire eps system when TTC_WDG_TIMEOUT (default 300s, see ISIS.EPS2.ICD.SW.IVID.7 pg. 85) seconds pass without a command being received. The "peripheral reset" resets the communication peripheral on the eps's mcu after 0.65 * TTC_WDG_TIMEOUT seconds. The "peripheral reset" allows for more graceful resets if the eps's communication peripheral was responsible for loss of connection.

Here is the call graph for this function:

Here is the caller graph for this function:
