stm32_internal_flash_drivers.h File Reference

#include <stdint.h>
#include "stm32l4xx_hal.h"
#include "stm32l4xx_hal_flash.h"

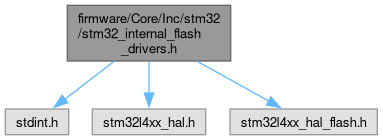

Include dependency graph for stm32_internal_flash_drivers.h:

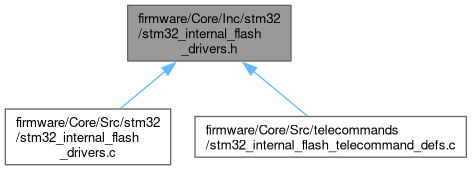

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	STM32_internal_flash_write_status_t

Macros
#define	FLASH_BANK_1_START_PAGE   0u
#define	FLASH_BANK_1_END_PAGE   255u
#define	FLASH_BANK_2_START_PAGE   256u
#define	FLASH_BANK_2_END_PAGE   511u
#define	NUMBER_OF_PAGES_PER_FLASH_BANK   256u

Enumerations
enum	STM32_INTERNAL_FLASH_memory_region_addresses_t {   STM32_INTERNAL_FLASH_MEMORY_REGION_RAM_ADDRESS = 0x20000000 , STM32_INTERNAL_FLASH_MEMORY_REGION_RAM_2_ADDRESS = 0x10000000 , STM32_INTERNAL_FLASH_MEMORY_REGION_RAM_3_ADDRESS = 0x20040000 , STM32_INTERNAL_FLASH_MEMORY_REGION_FLASH_BANK_1_ADDRESS = 0x08000000 ,   STM32_INTERNAL_FLASH_MEMORY_REGION_FLASH_BANK_2_ADDRESS = 0x08100000 }
	Flash Partitions. More...
enum	STM32_internal_flash_write_return_t {   STM32_INTERNAL_FLASH_WRITE_SUCCESS , STM32_INTERNAL_FLASH_WRITE_ADDRESS_TOO_LOW , STM32_INTERNAL_FLASH_WRITE_ADDRESS_TOO_HIGH , STM32_INTERNAL_FLASH_WRITE_ADDRESS_OVERLAPS_BOTH_FLASH_BANKS ,   STM32_INTERNAL_FLASH_WRITE_UNLOCK_FAILED , STM32_INTERNAL_FLASH_WRITE_LOCK_FAILED , STM32_INTERNAL_FLASH_WRITE_OPERATION_FAILED }

Functions
STM32_internal_flash_write_return_t	STM32_internal_flash_write (uint32_t address, uint8_t *data, uint32_t length, STM32_internal_flash_write_status_t *status)
	Writes data to the flash memory in chunks of 8 bytes.
uint8_t	STM32_internal_flash_read (uint32_t address, uint8_t *buffer, uint32_t length)
	Reads data from the flash memory.
uint8_t	STM32_internal_flash_page_erase (uint8_t flash_bank, uint16_t start_page_erase, uint16_t number_of_pages_to_erase, uint32_t *page_error)
	Erase pages from provided flash bank of flash memory.
uint8_t	STM32_internal_flash_bank_erase (uint8_t flash_bank, uint32_t *bank_erase_error)
	Erase flash bank.
uint8_t	STM32_internal_flash_get_option_bytes (FLASH_OBProgramInitTypeDef *ob_data)
	Gets option bytes configuration from the stm32 internal flash memory.
uint8_t	STM32_internal_flash_set_active_flash_bank (uint8_t wanted_active_flash_bank)
	Sets the active flash bank to either 1 or 2 (only if it is different than the current active flash bank).
uint8_t	STM32_internal_flash_get_active_flash_bank ()
	Returns active flash bank.
uint8_t	STM32_internal_flash_what_bank_is_this_address (uint32_t address, uint32_t length)
	Data-only operation to determine what bank (1 or 2) the address is in.
uint8_t	STM32_internal_flash_calculate_sha256 (uint32_t address, uint32_t length, uint8_t hash[32])
	Calculates the SHA256 hash of a chunk of STM32 internal flash.

Macro Definition Documentation

FLASH_BANK_1_END_PAGE

#define FLASH_BANK_1_END_PAGE   255u

FLASH_BANK_1_START_PAGE

#define FLASH_BANK_1_START_PAGE   0u

FLASH_BANK_2_END_PAGE

#define FLASH_BANK_2_END_PAGE   511u

FLASH_BANK_2_START_PAGE

#define FLASH_BANK_2_START_PAGE   256u

NUMBER_OF_PAGES_PER_FLASH_BANK

#define NUMBER_OF_PAGES_PER_FLASH_BANK   256u

Enumeration Type Documentation

STM32_INTERNAL_FLASH_memory_region_addresses_t

enum STM32_INTERNAL_FLASH_memory_region_addresses_t

Flash Partitions.

Note

look in the STM32L4R5XX_FLASH.ld file to see the address of each partition, update this as needed

Enumerator
STM32_INTERNAL_FLASH_MEMORY_REGION_RAM_ADDRESS
STM32_INTERNAL_FLASH_MEMORY_REGION_RAM_2_ADDRESS
STM32_INTERNAL_FLASH_MEMORY_REGION_RAM_3_ADDRESS
STM32_INTERNAL_FLASH_MEMORY_REGION_FLASH_BANK_1_ADDRESS
STM32_INTERNAL_FLASH_MEMORY_REGION_FLASH_BANK_2_ADDRESS

STM32_internal_flash_write_return_t

enum STM32_internal_flash_write_return_t

Enumerator
STM32_INTERNAL_FLASH_WRITE_SUCCESS
STM32_INTERNAL_FLASH_WRITE_ADDRESS_TOO_LOW
STM32_INTERNAL_FLASH_WRITE_ADDRESS_TOO_HIGH
STM32_INTERNAL_FLASH_WRITE_ADDRESS_OVERLAPS_BOTH_FLASH_BANKS
STM32_INTERNAL_FLASH_WRITE_UNLOCK_FAILED
STM32_INTERNAL_FLASH_WRITE_LOCK_FAILED
STM32_INTERNAL_FLASH_WRITE_OPERATION_FAILED

Function Documentation

STM32_internal_flash_bank_erase()

uint8_t STM32_internal_flash_bank_erase	(	uint8_t	flash_bank,
		uint32_t *	bank_erase_error )

Erase flash bank.

Parameters

flash_bank	1 or 2, which flash bank to erase
page_error	address of page which failed on error, defaults to UINT32_MAX on success

Returns

0 on success, more than 0 on error

Here is the call graph for this function:

Here is the caller graph for this function:

STM32_internal_flash_calculate_sha256()

uint8_t STM32_internal_flash_calculate_sha256	(	uint32_t	address,
		uint32_t	length,
		uint8_t	hash[32] )

Calculates the SHA256 hash of a chunk of STM32 internal flash.

Parameters

address	Start address in flash memory
length	Number of bytes to hash
hash	Output buffer (must be 32 bytes)

Returns

0 on success, >0 on error. 30 on invalid ranges.

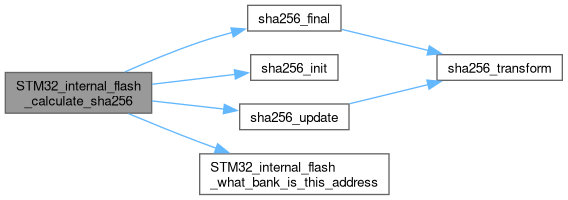

Here is the call graph for this function:

Here is the caller graph for this function:

STM32_internal_flash_get_active_flash_bank()

uint8_t STM32_internal_flash_get_active_flash_bank

(

)

Returns active flash bank.

Returns

1 is Flash Bank 1, 2 is Flash Bank 2

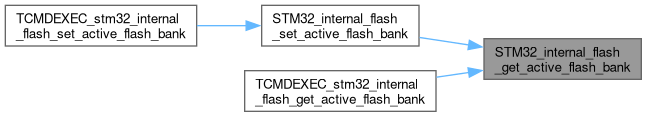

Here is the caller graph for this function:

STM32_internal_flash_get_option_bytes()

uint8_t STM32_internal_flash_get_option_bytes

(

FLASH_OBProgramInitTypeDef *

ob_data

)

Gets option bytes configuration from the stm32 internal flash memory.

Parameters

ob_data

pointer to an FLASH_OBProgramInitTypeDef structure that contains the configuration information for the programming.

Returns

0 always

Here is the caller graph for this function:

STM32_internal_flash_page_erase()

uint8_t STM32_internal_flash_page_erase	(	uint8_t	flash_bank,
		uint16_t	start_page_erase,
		uint16_t	number_of_pages_to_erase,
		uint32_t *	page_error )

Erase pages from provided flash bank of flash memory.

Parameters

flash_bank	1 or 2, which flash bank to erase
start_page_erase	what page to start erasing from (0-255 for bank 1, 256-511 for bank 2, inclusive)
number_of_pages_to_erase	how many pages to erase. MAX is 256, MIN is 1.
page_error	address of page which failed on error, defaults to UINT32_MAX on success

Returns

0 on success, 1 if HAL_FLASH_Unlock() failed, 2 if HAL_FLASH_Lock() failed

Here is the caller graph for this function:

STM32_internal_flash_read()

uint8_t STM32_internal_flash_read	(	uint32_t	address,
		uint8_t *	buffer,
		uint32_t	length )

Reads data from the flash memory.

Parameters

address	address to start reading from
buffer	buffer to store the read data, must be length long
length	number of bytes to read

Returns

0 on success, > 0 on error

Here is the caller graph for this function:

STM32_internal_flash_set_active_flash_bank()

uint8_t STM32_internal_flash_set_active_flash_bank

(

uint8_t

wanted_active_flash_bank

)

Sets the active flash bank to either 1 or 2 (only if it is different than the current active flash bank).

On Success, will load application in desired flash bank

By Default, the active flash bank is 1

Parameters

wanted_active_flash_bank

1 or 2

Returns

0 on success, > 0 otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

STM32_internal_flash_what_bank_is_this_address()

uint8_t STM32_internal_flash_what_bank_is_this_address	(	uint32_t	address,
		uint32_t	length )

Data-only operation to determine what bank (1 or 2) the address is in.

Parameters

address
length

Returns

1 if the range is completely in BANK_1. 2 if the range is completely in BANK_2. 0 if the range falls outside of the banks, or overlaps the two banks.

Here is the caller graph for this function:

STM32_internal_flash_write()

STM32_internal_flash_write_return_t STM32_internal_flash_write	(	uint32_t	address,
		uint8_t *	data,
		uint32_t	length,
		STM32_internal_flash_write_status_t *	status )

Writes data to the flash memory in chunks of 8 bytes.

Parameters

address	Address in the flash memory where the data will be written.
data	uint8_t buffer containing the data to be written.
length	Length of the data to be written.

Returns

0 on success, > 0 on error

Note

Writes data in chunks of 8 bytes. Ex: Suppose we wanted to write to address 0x00, and suppose that at address 0x00, the first 8 bytes looks like the following: [1,2,3,4,5,6,7,8]. If we wanted to write [25,26,27,28], it would result in the following: [25,26,27,28,0,0,0,0], clearing the rest of the bytes.

Here is the call graph for this function:

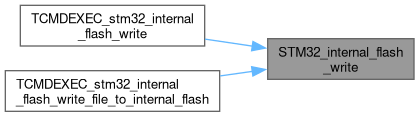

Here is the caller graph for this function:
