system_telecommand_defs.h File Reference

#include <stdint.h>
#include "telecommand_exec/telecommand_types.h"

Include dependency graph for system_telecommand_defs.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
uint8_t	TCMDEXEC_hello_world (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	A simple telecommand that responds with "Hello, world!" (log message and TCMD response).
uint8_t	TCMDEXEC_obc_firmware_version (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Get the currently-running OBC Firmware Version (build date/time, comment).
uint8_t	TCMDEXEC_core_system_stats (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Get many essential system stats as a JSON dict.
uint8_t	TCMDEXEC_available_telecommands (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
uint8_t	TCMDEXEC_reboot (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Reboot the OBC. Unmounts the filesystem first for safety.
uint8_t	TCMDEXEC_system_self_check_failures_as_json (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	System self-check of all peripherals and systems.
uint8_t	TCMDEXEC_system_self_check_as_json (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	System self-check of all peripherals and systems.
uint8_t	TCMDEXEC_obc_get_rbf_state (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
uint8_t	TCMDEXEC_get_all_system_thermal_info (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Get a variety of system thermal info as JSON.
uint8_t	TCMDEXEC_exec_blob_from_fs (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Executes an arbitrary blob/program from the filesystem.

Function Documentation

TCMDEXEC_available_telecommands()

uint8_t TCMDEXEC_available_telecommands	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

TCMDEXEC_core_system_stats()

uint8_t TCMDEXEC_core_system_stats	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Get many essential system stats as a JSON dict.

Parameters

args_str

No arguments.

Returns

0 on success. Cannot fail.

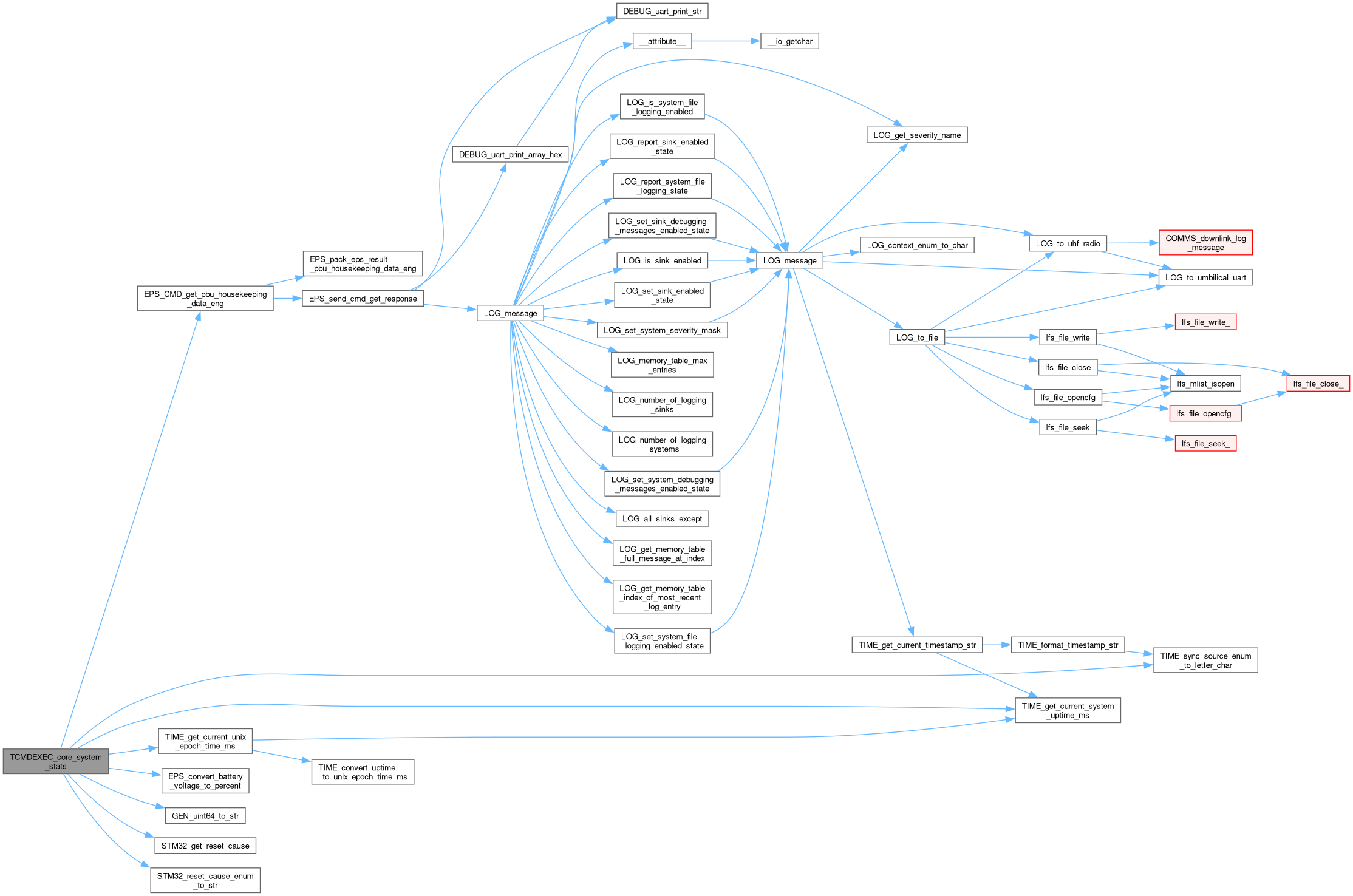

Here is the call graph for this function:

TCMDEXEC_exec_blob_from_fs()

uint8_t TCMDEXEC_exec_blob_from_fs	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Executes an arbitrary blob/program from the filesystem.

Parameters

args_str	Arg 0: File name of the blob Arg 1: Where to load blob (0=malloc, 1=mpi_buffer_one, 2=mpi_buffer_two) Arg 2: Argument to pass to the blob function (e.g., another filename)
response_output_buf	The blob optionally writes its intermediate workings and results to this buffer.

Returns

99 on pre-blob execution error. Otherwise, blob return value (presumably 0 on success).

Refer to misc_tools/exec_blob/README.md for more information on how to use this complex telecommand.

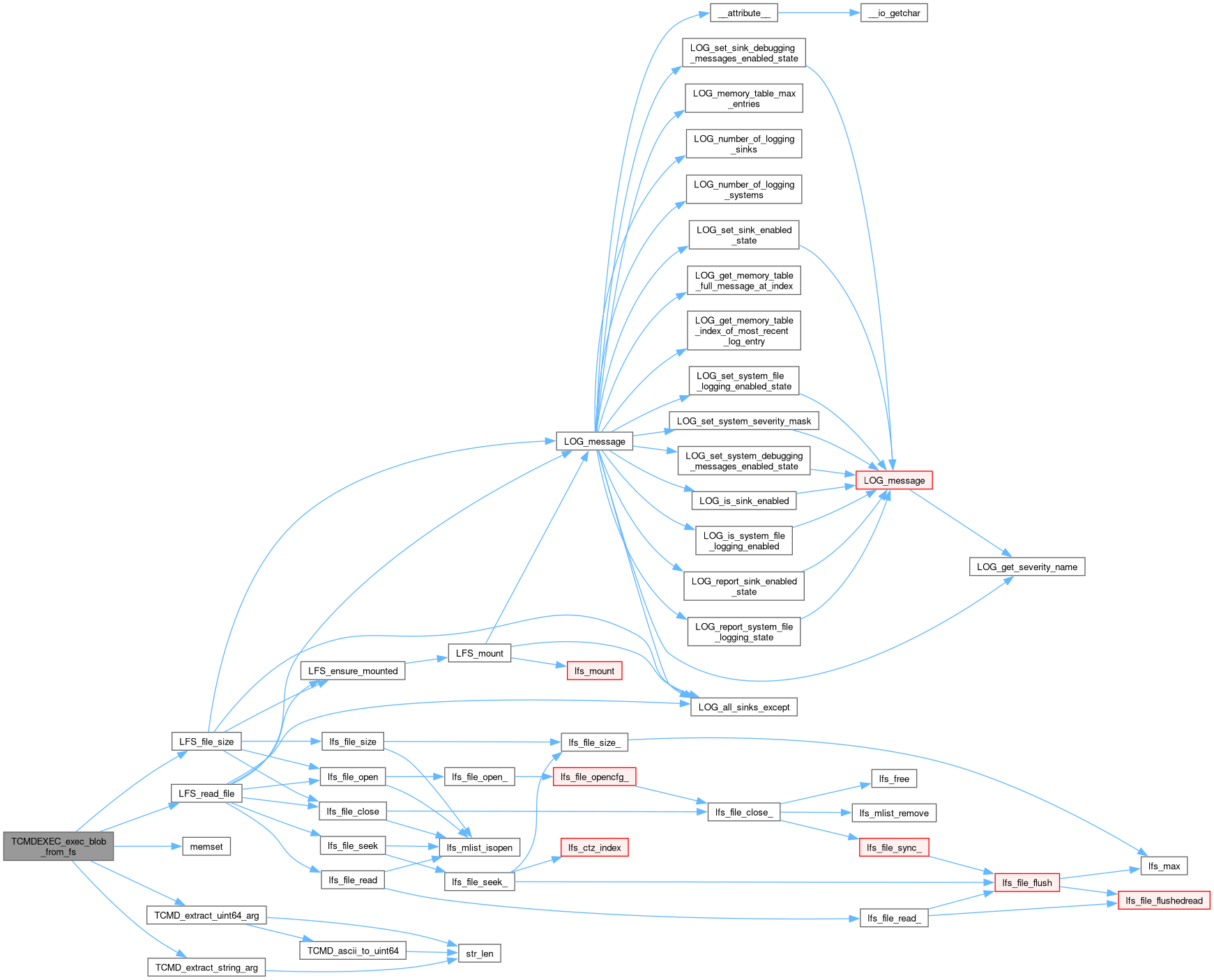

Here is the call graph for this function:

TCMDEXEC_get_all_system_thermal_info()

uint8_t TCMDEXEC_get_all_system_thermal_info	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Get a variety of system thermal info as JSON.

Parameters

args_str

No arguments.

Returns

0 on success.

Note

Fields include OBC temp, antenna temps, solar panel generation, battery info.

The EPS_CHANNEL_3V3_UHF_ANTENNA_DEPLOY channel is powered off after, even if it was powered on previously. Totally safe, but just an FYI.

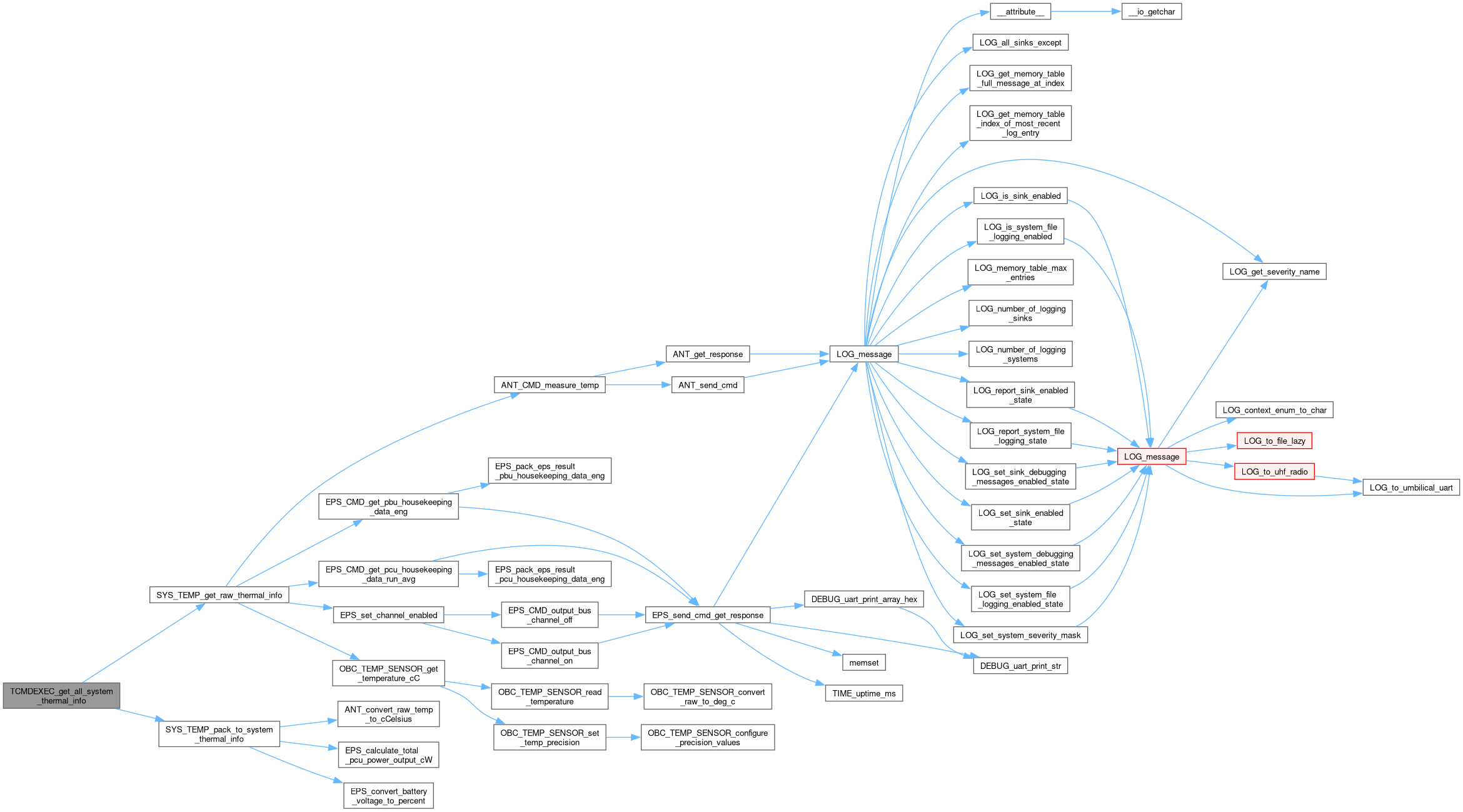

Here is the call graph for this function:

TCMDEXEC_hello_world()

uint8_t TCMDEXEC_hello_world	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

A simple telecommand that responds with "Hello, world!" (log message and TCMD response).

Parameters

args_str	No arguments expected
response_output_buf	The buffer to write the response to
response_output_buf_len	The maximum length of the response_output_buf (its size)

Returns

0 if successful, >0 if an error occurred (but hello_world can't return an error)

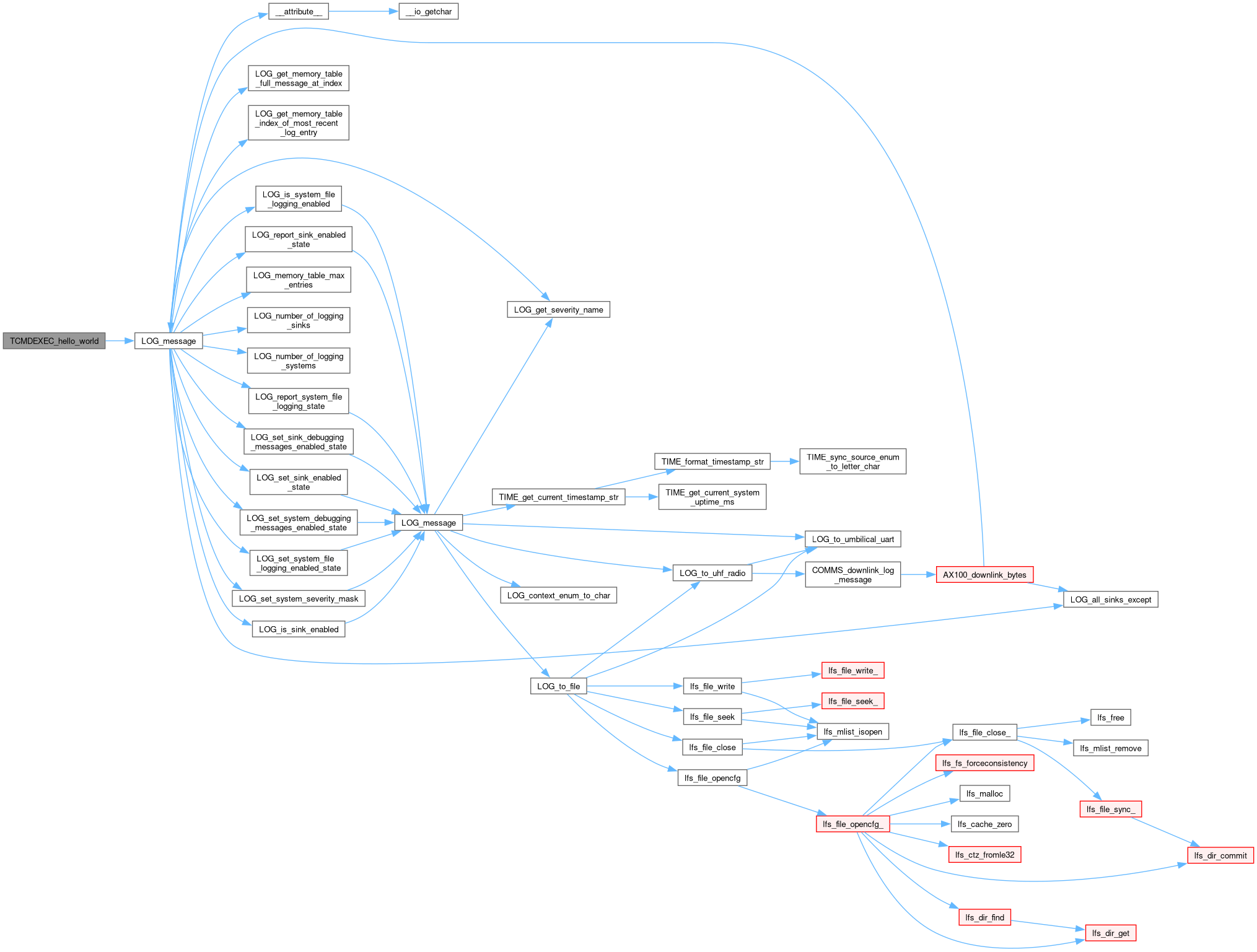

Here is the call graph for this function:

TCMDEXEC_obc_firmware_version()

uint8_t TCMDEXEC_obc_firmware_version	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Get the currently-running OBC Firmware Version (build date/time, comment).

Parameters

args_str

No arguments.

Returns

0 on success (cannot fail).

TCMDEXEC_obc_get_rbf_state()

uint8_t TCMDEXEC_obc_get_rbf_state	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Here is the call graph for this function:

TCMDEXEC_reboot()

uint8_t TCMDEXEC_reboot	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Reboot the OBC. Unmounts the filesystem first for safety.

Parameters

args_str
response_output_buf
response_output_buf_len

Returns

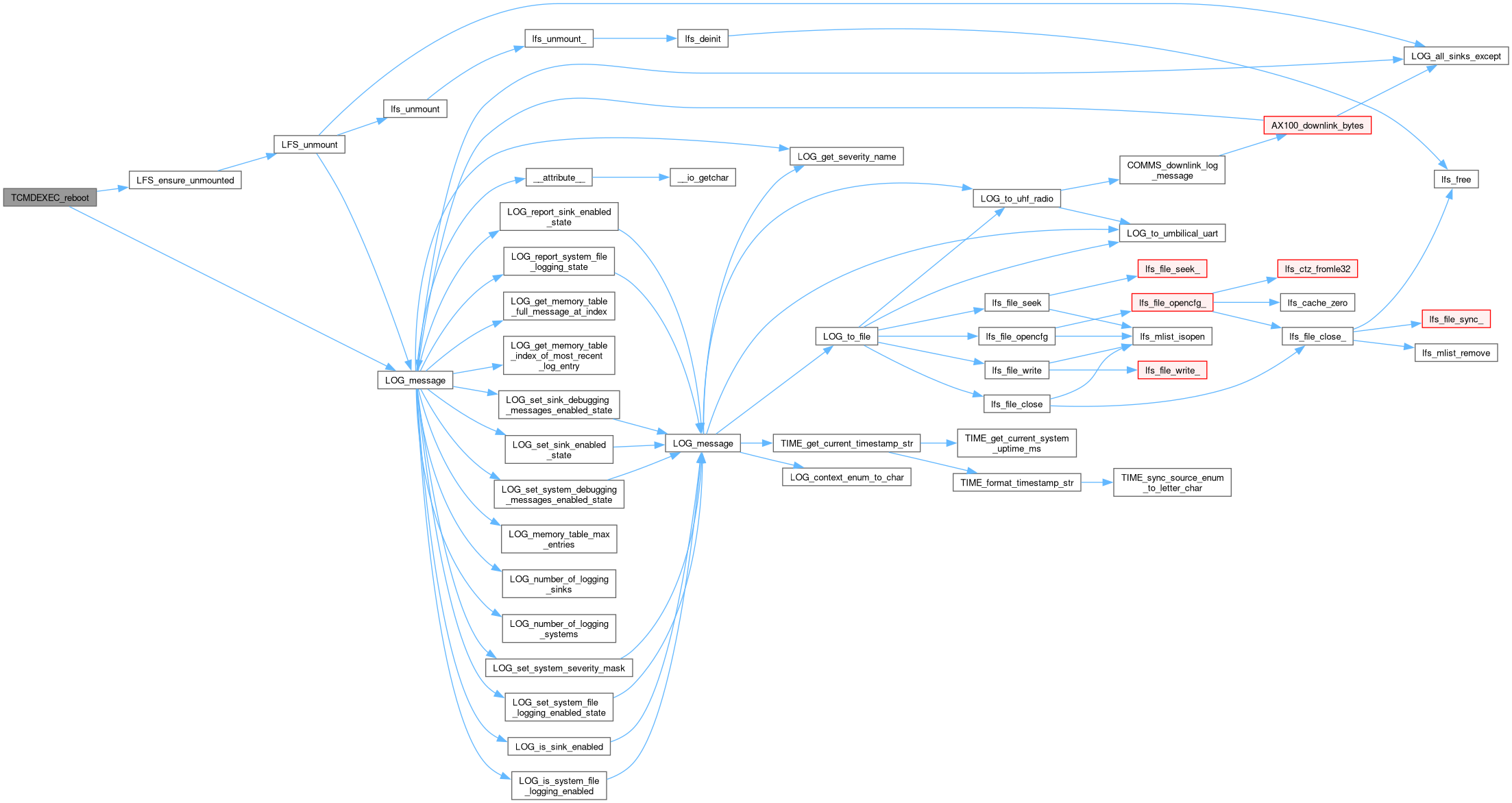

Here is the call graph for this function:

TCMDEXEC_system_self_check_as_json()

uint8_t TCMDEXEC_system_self_check_as_json	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

System self-check of all peripherals and systems.

Parameters

args_str	No arguments expected
response_output_buf	Buffer is filled with a JSON list of strings of the FAILING checks

Returns

0 regardless; see the response_output_buf for the results of the self-check.

Note

Output is a JSON list of the failing checks (as strings). Returns 0 regardless.

Here is the call graph for this function:

TCMDEXEC_system_self_check_failures_as_json()

uint8_t TCMDEXEC_system_self_check_failures_as_json	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

System self-check of all peripherals and systems.

Parameters

args_str	No arguments expected
response_output_buf	Buffer is filled with a JSON list of strings of the FAILING checks

Returns

0 regardless; see the response_output_buf for the results of the self-check.

Note

Output is a JSON list of the failing checks (as strings). Returns 0 regardless.

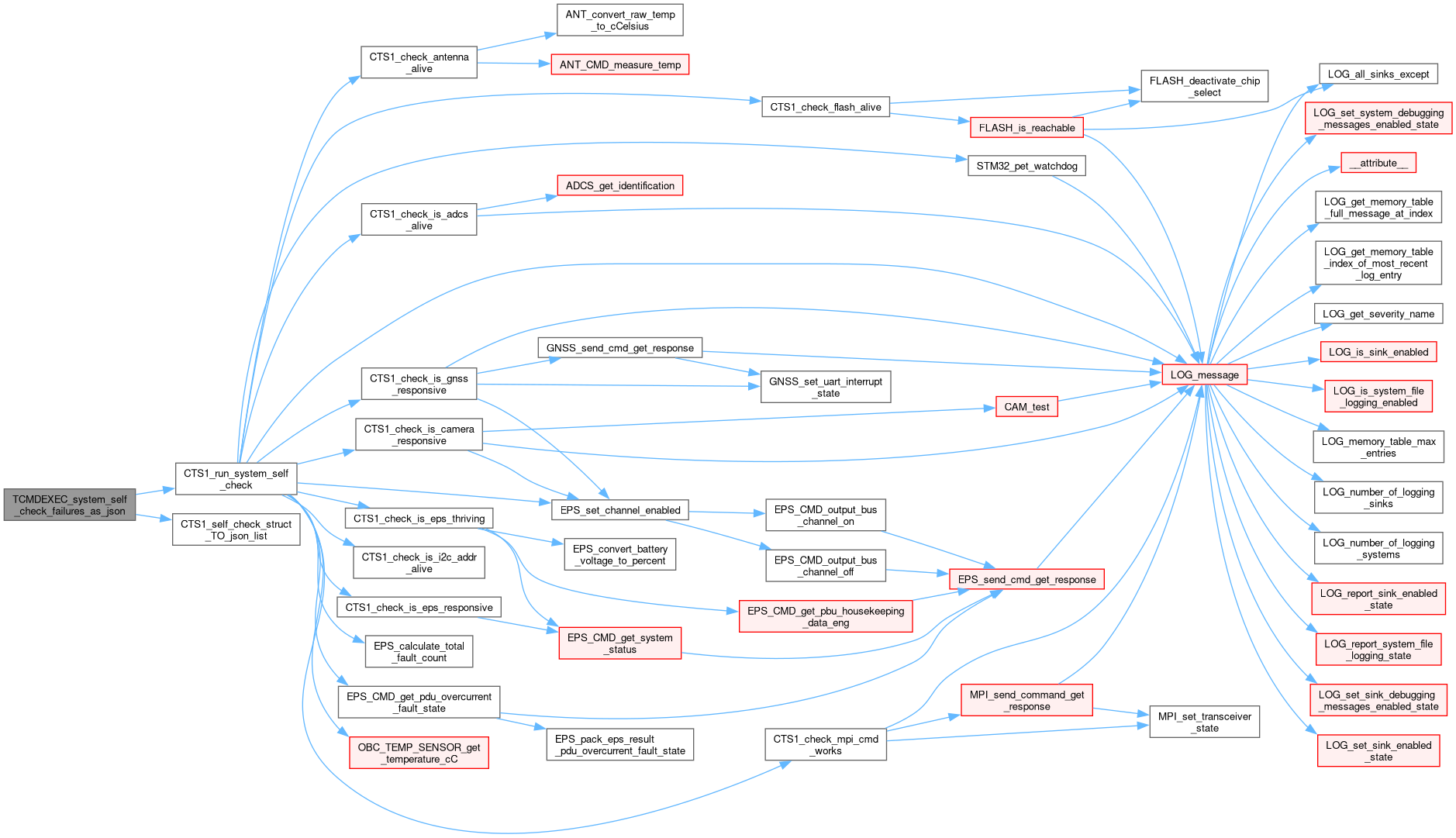

Here is the call graph for this function:
