system_temperature.c File Reference

#include "main.h"
#include "stdio.h"
#include <stdint.h>
#include "obc_systems/obc_temperature_sensor.h"
#include "system/system_temperature.h"
#include "antenna_deploy_drivers/ant_commands.h"
#include "eps_drivers/eps_calculations.h"
#include "eps_drivers/eps_commands.h"
#include "eps_drivers/eps_channel_control.h"

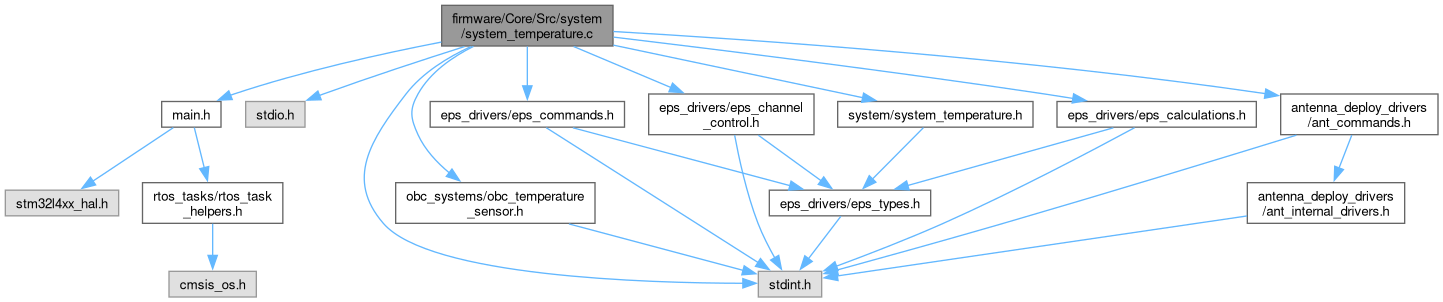

Include dependency graph for system_temperature.c:

Functions
uint8_t	SYS_TEMP_get_raw_thermal_info (SYS_TEMP_raw_thermal_info_t *result, uint8_t *error_ret)
	Grabs required data/data structures from drivers containing thermal information.
uint8_t	SYS_TEMP_pack_to_system_thermal_info (SYS_TEMP_raw_thermal_info_t *input, SYS_TEMP_thermal_info_t *result, uint8_t error_ret)
	Takes the raw thermal data and converts them to human readable values.

Function Documentation

SYS_TEMP_get_raw_thermal_info()

uint8_t SYS_TEMP_get_raw_thermal_info	(	SYS_TEMP_raw_thermal_info_t *	result,
		uint8_t *	error_ret )

Grabs required data/data structures from drivers containing thermal information.

Parameters

result	Struct that contains various raw thermal data.
error_ret	Initial input should be 0. Contains bit information on error status for ANT A, ANT B, PBU and PCU

Returns

0 if data was successfully stored, anything else if error.

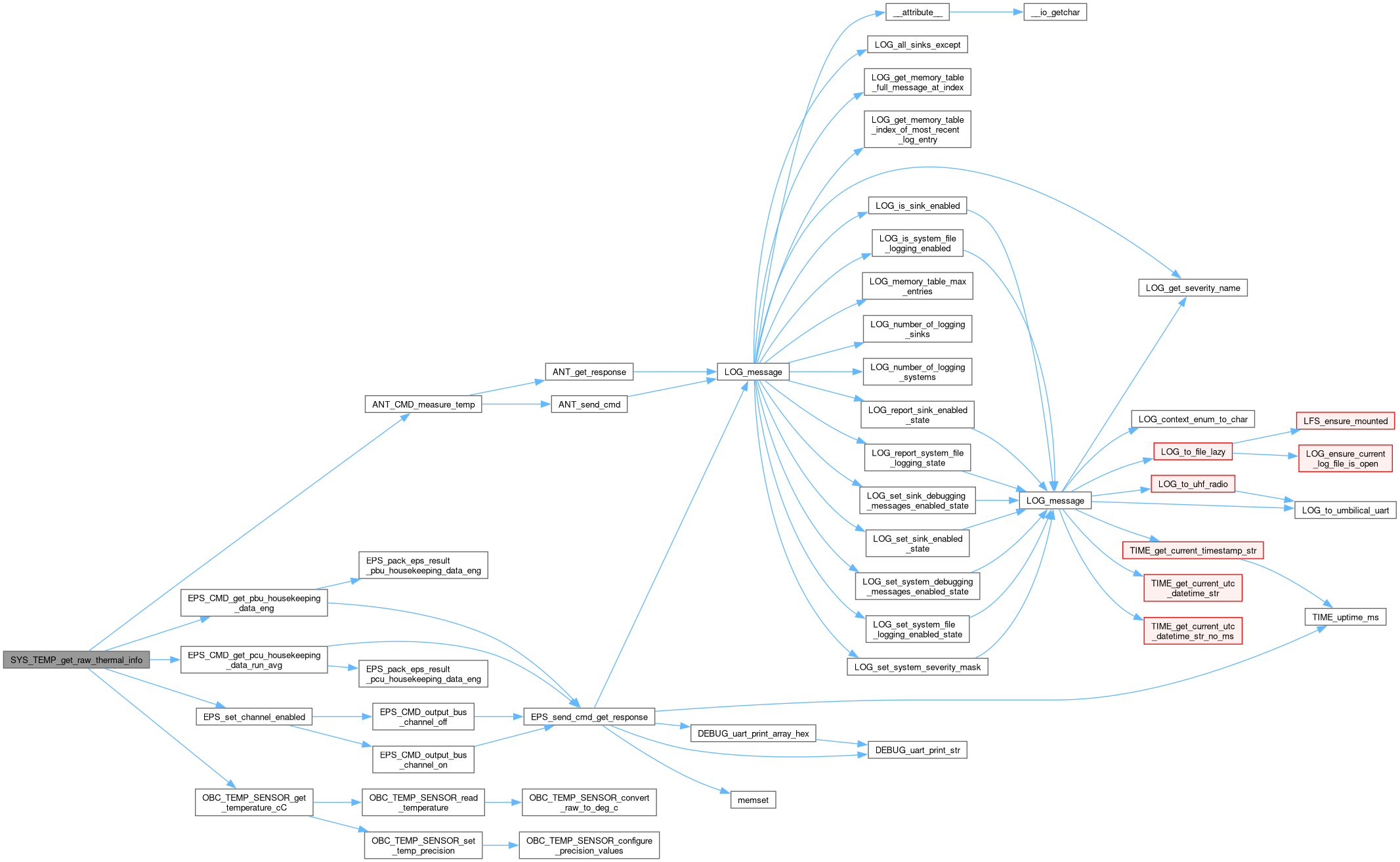

Here is the call graph for this function:

Here is the caller graph for this function:

SYS_TEMP_pack_to_system_thermal_info()

uint8_t SYS_TEMP_pack_to_system_thermal_info	(	SYS_TEMP_raw_thermal_info_t *	input,
		SYS_TEMP_thermal_info_t *	result,
		uint8_t	error_ret )

Takes the raw thermal data and converts them to human readable values.

Parameters

input	The structure containing various raw thermal data.
result	The structure containing the processed thermal data.
error_ret	Bitfield containing error status on collecting data for the ANT A, ANT B, PCU and PBU

Returns

0 on successful conversion, otherwise failed.

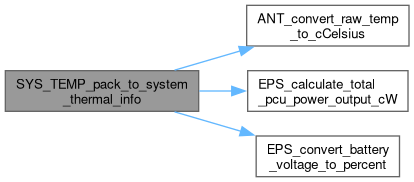

Here is the call graph for this function:

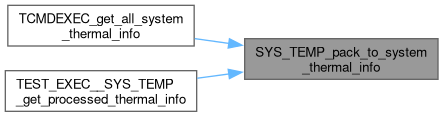

Here is the caller graph for this function:
