system_temperature.h File Reference

#include "eps_drivers/eps_types.h"

Include dependency graph for system_temperature.h:

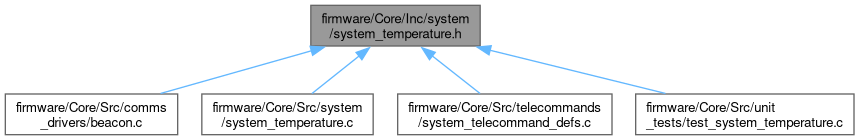

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	SYS_TEMP_thermal_info_t
struct	SYS_TEMP_raw_thermal_info_t

Macros
#define	EPS_BATTERY_PACK_SENSOR_SIZE   3

Enumerations
enum	SYS_TEMP_thermal_info_error_enum_t { SYS_TEMP_ANT_A_STATUS = 1 << 0 , SYS_TEMP_ANT_B_STATUS = 1 << 1 , SYS_TEMP_PCU_STATUS = 1 << 2 , SYS_TEMP_PBU_STATUS = 1 << 3 }

Functions
uint8_t	SYS_TEMP_get_raw_thermal_info (SYS_TEMP_raw_thermal_info_t *result, uint8_t *error_ret)
	Grabs required data/data structures from drivers containing thermal information.
uint8_t	SYS_TEMP_pack_to_system_thermal_info (SYS_TEMP_raw_thermal_info_t *input, SYS_TEMP_thermal_info_t *result, uint8_t error_ret)
	Takes the raw thermal data and converts them to human readable values.

Macro Definition Documentation

EPS_BATTERY_PACK_SENSOR_SIZE

#define EPS_BATTERY_PACK_SENSOR_SIZE   3

Enumeration Type Documentation

SYS_TEMP_thermal_info_error_enum_t

enum SYS_TEMP_thermal_info_error_enum_t

Enumerator
SYS_TEMP_ANT_A_STATUS
SYS_TEMP_ANT_B_STATUS
SYS_TEMP_PCU_STATUS
SYS_TEMP_PBU_STATUS

Function Documentation

SYS_TEMP_get_raw_thermal_info()

uint8_t SYS_TEMP_get_raw_thermal_info	(	SYS_TEMP_raw_thermal_info_t *	result,
		uint8_t *	error_ret )

Grabs required data/data structures from drivers containing thermal information.

Parameters

result	Struct that contains various raw thermal data.
error_ret	Initial input should be 0. Contains bit information on error status for ANT A, ANT B, PBU and PCU

Returns

0 if data was successfully stored, anything else if error.

Here is the call graph for this function:

Here is the caller graph for this function:

SYS_TEMP_pack_to_system_thermal_info()

uint8_t SYS_TEMP_pack_to_system_thermal_info	(	SYS_TEMP_raw_thermal_info_t *	input,
		SYS_TEMP_thermal_info_t *	result,
		uint8_t	error_ret )

Takes the raw thermal data and converts them to human readable values.

Parameters

input	The structure containing various raw thermal data.
result	The structure containing the processed thermal data.
error_ret	Bitfield containing error status on collecting data for the ANT A, ANT B, PCU and PBU

Returns

0 on successful conversion, otherwise failed.

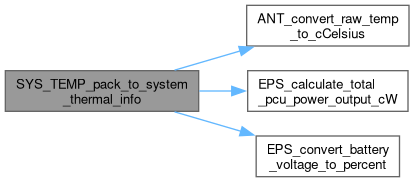

Here is the call graph for this function:

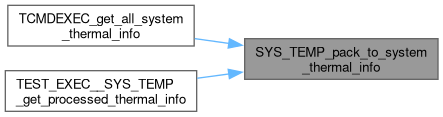

Here is the caller graph for this function:
