telecommand_args_helpers.h File Reference

#include <stdint.h>

Include dependency graph for telecommand_args_helpers.h:

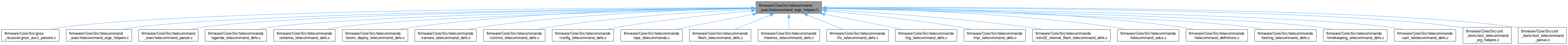

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
uint8_t	TCMD_ascii_to_uint64 (const char *str, uint32_t str_len, uint64_t *result)
	Extracts a uint64, starting from the beginning of str, to a maximum length of str_len.
uint8_t	TCMD_extract_uint64_arg (const char *str, uint32_t str_len, uint8_t arg_index, uint64_t *result)
	Extracts the nth comma-separated argument from the input string, assuming it's a uint64.
uint8_t	TCMD_extract_string_arg (const char *str, uint8_t arg_index, char *result, uint16_t result_max_len)
	Extracts the nth comma-separated argument from the input string, assuming it's a string.
uint8_t	TCMD_extract_hex_array_arg (const char *args_str, uint8_t arg_index, uint8_t result_array[], uint16_t result_array_size, uint16_t *result_length)
	Extracts the nth comma-separated argument from the input string, assuming it's a hex string.
uint8_t	TCMD_ascii_to_double (const char *str, uint32_t str_len, double *result)
	Extracts the longest substring of double characters, starting from the beginning of the string, to a maximum length or until the first non-double character is found.
uint8_t	TCMD_extract_double_arg (const char *str, uint32_t str_len, uint8_t arg_index, double *result)
	Extracts the nth comma-separated argument from the input string, assuming it's a double.
uint8_t	TCMD_ascii_to_int64 (const char *str, uint32_t str_len, int64_t *result)
	Extracts an int64, starting from the beginning of str, to a maximum length of str_len.
uint8_t	TCMD_extract_int64_arg (const char *str, uint32_t str_len, uint8_t arg_index, int64_t *result)
	Extracts the nth comma-separated argument from the input string, assuming it's an int64.

Function Documentation

TCMD_ascii_to_double()

uint8_t TCMD_ascii_to_double	(	const char *	str,
		uint32_t	str_len,
		double *	result )

Extracts the longest substring of double characters, starting from the beginning of the string, to a maximum length or until the first non-double character is found.

Parameters

str	Input string, starting with a double
str_len	Max length of the input string
result	Pointer to the result

Returns

0 if successful, 1 if the string is empty, 2 if the string does not start with a double

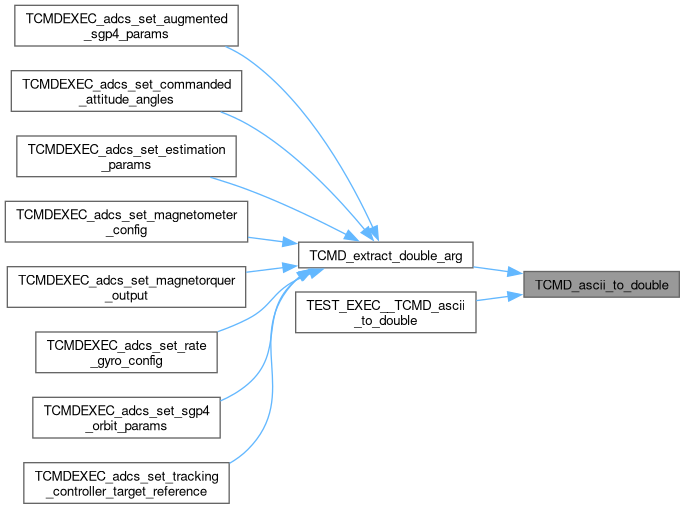

Here is the caller graph for this function:

TCMD_ascii_to_int64()

uint8_t TCMD_ascii_to_int64	(	const char *	str,
		uint32_t	str_len,
		int64_t *	result )

Extracts an int64, starting from the beginning of str, to a maximum length of str_len.

Parameters

str	Input string, starting with an integer or negative sign.
str_len	Length of the input string. The first str_len characters are considered.
result	Pointer to the result

Returns

0 if successful, 1 if the string is empty, 2 if the string does not entirely encapsulate an integer

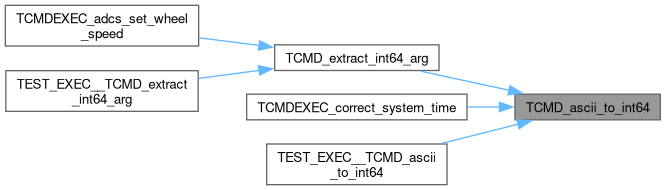

Here is the caller graph for this function:

TCMD_ascii_to_uint64()

uint8_t TCMD_ascii_to_uint64	(	const char *	str,
		uint32_t	str_len,
		uint64_t *	result )

Extracts a uint64, starting from the beginning of str, to a maximum length of str_len.

Parameters

str	Input string, starting with an integer
str_len	Length of the input string. The first str_len characters are considered.
result	Pointer to the result

Returns

0 if successful, 1 if the string is empty, 2 if the string size is longer than 19 characters, 3 if the string contains non-integer characters.

Note

Result is not written to if an error occurs. The max digit length that can be store in the result is 19. If the input string is longer than 19 characters, an error will be returned.

Here is the caller graph for this function:

TCMD_extract_double_arg()

uint8_t TCMD_extract_double_arg	(	const char *	str,
		uint32_t	str_len,
		uint8_t	arg_index,
		double *	result )

Extracts the nth comma-separated argument from the input string, assuming it's a double.

Parameters

str	Input string
str_len	Length of the input string
arg_index	Index of the argument to extract (0-based)
result	Pointer to the result

Returns

0 if successful, 1 if the string is empty, 2 if the string does not contain enough arguments 3 if the argument is not a double, 4 for other error

Here is the call graph for this function:

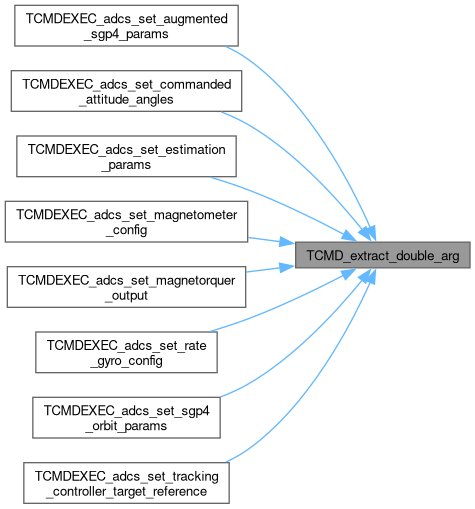

Here is the caller graph for this function:

TCMD_extract_hex_array_arg()

uint8_t TCMD_extract_hex_array_arg	(	const char *	args_str,
		uint8_t	arg_index,
		uint8_t	result_array[],
		uint16_t	result_array_size,
		uint16_t *	result_length )

Extracts the nth comma-separated argument from the input string, assuming it's a hex string.

Parameters

args_str	Input string containing comma-separated arguments (null-terminated)
arg_index	Index of the argument to extract (0-based)
result	Pointer to the result; a byte array containing the values of the hex string
result_array_size	Size of the result array
result_length	Pointer to variable that will contain the length of the result after converting

Returns

0 if successful, >0 for error

Note

Delimiters between bytes are ignored, but delimiters within a byte are not allowed.

Here is the caller graph for this function:

TCMD_extract_int64_arg()

uint8_t TCMD_extract_int64_arg	(	const char *	str,
		uint32_t	str_len,
		uint8_t	arg_index,
		int64_t *	result )

Extracts the nth comma-separated argument from the input string, assuming it's an int64.

Parameters

str	Input string
str_len	Length of the input string
arg_index	Index of the argument to extract (0-based)
result	Pointer to the result

Returns

0 if successful, 1 if the string is empty, 2 if the string does not contain enough arguments 3 if the argument is not an integer, 4 for other error

Here is the call graph for this function:

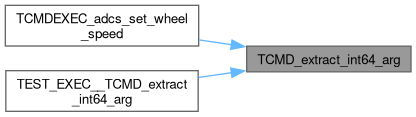

Here is the caller graph for this function:

TCMD_extract_string_arg()

uint8_t TCMD_extract_string_arg	(	const char *	str,
		uint8_t	arg_index,
		char *	result,
		uint16_t	result_max_len )

Extracts the nth comma-separated argument from the input string, assuming it's a string.

Parameters

str	Input string (null-terminated).
arg_index	Index of the argument to extract (0-based).
result	Pointer to the result, to be filled with the extracted string (null-terminated).
result_max_len	Maximum length of the result, including the null-terminator.

Returns

0 if successful, 1 if the string is empty, 2 if the string does not contain enough arguments 3 for other error

Here is the caller graph for this function:

TCMD_extract_uint64_arg()

uint8_t TCMD_extract_uint64_arg	(	const char *	str,
		uint32_t	str_len,
		uint8_t	arg_index,
		uint64_t *	result )

Extracts the nth comma-separated argument from the input string, assuming it's a uint64.

Parameters

str	Input string
str_len	Length of the input string
arg_index	Index of the argument to extract (0-based)
result	Pointer to the result

Returns

0 if successful, 1 if the string is empty, 2 if the string does not contain enough arguments 3 if the argument is not an integer, 4 for other error

Here is the call graph for this function:
