telecommand_parser.h File Reference

#include "telecommand_exec/telecommand_types.h"
#include "telecommand_exec/telecommand_definitions.h"

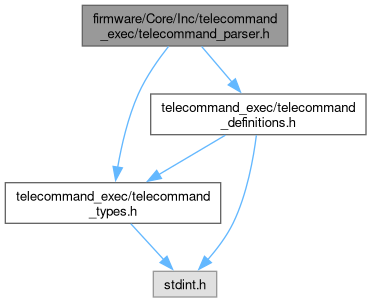

Include dependency graph for telecommand_parser.h:

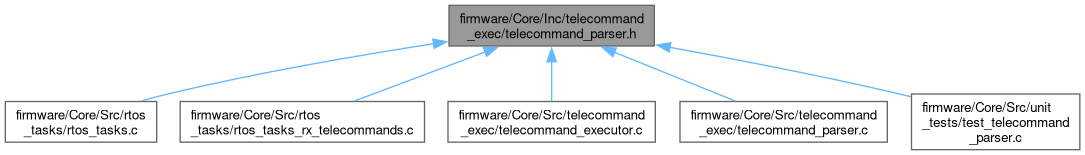

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	TCMD_ARGS_STR_NO_PARENS_SIZE   255
#define	TCMD_PREFIX_STR   "CTS1+"
#define	TCMD_PREFIX_STR_LEN   5

Functions
uint8_t	TCMD_is_char_alphanumeric (char c)
	Returns whether a character is alphanumeric (0-9, A-Z, a-z).
uint8_t	TCMD_is_char_valid_telecommand_name_char (char c)
	Returns whether a character is a valid character in a telecommand name.
uint8_t	TCMD_check_starts_with_device_id (const char *tcmd_str, uint32_t tcmd_str_len)
	Returns whether tcmd_str starts with CTS1+ (TCMD_PREFIX_STR).
int32_t	TCMD_parse_telecommand_get_index (const char *tcmd_str, uint32_t tcmd_str_len)
	Finds an index into TCMD_telecommand_definitions for the given telecommand string.
uint8_t	TCMD_process_suffix_tag_tssent (const char *tcmd_suffix_tag_str, const uint16_t tcmd_suffix_tag_str_len, uint64_t *tssent_time_ms)
	Parses the @tssent=xxxx tag from the telecommand string.
uint8_t	TCMD_process_suffix_tag_tsexec (const char *tcmd_suffix_tag_str, const uint16_t tcmd_suffix_tag_str_len, uint64_t *tsexec_time_ms)
	Parses the @tsexec=xxxx tag from the telecommand string.
uint8_t	TCMD_process_suffix_tag_sha256 (const char *tcmd_suffix_tag_str, const uint16_t tcmd_suffix_tag_str_len, const char *tcmd_str, const int32_t end_of_args_idx)
	Parses the @sha256=xxxx tag from the telecommand string.
uint8_t	TCMD_process_suffix_tag_resp_fname (const char *tcmd_suffix_tag_str, const uint16_t tcmd_suffix_tag_str_len, char *resp_fname, const uint8_t resp_fname_len)
	Parses the @resp_fname=xxxx tag from the telecommand string.
uint8_t	TCMD_get_suffix_tag_uint64 (const char *str, const char *tag_name, uint64_t *value_dest)
	Searches for a str like \@tag_name=xxxx, and sets uint64_t xxxx into out_value.
uint8_t	TCMD_get_suffix_tag_hex_array (const char *str, const char *tag_name, uint8_t *value_dest)
	Searches for a str like \@tag_name=xxxx, and sets uint8_t array xxxx into value_dest.
uint8_t	TCMD_get_suffix_tag_str (const char *str, const char *tag_name, char *value_dest, uint16_t value_dest_max_len)
	Searches for a str like \@tag_name=xxxx, and sets char array xxxx into value_dest.
uint8_t	TCMD_parse_full_telecommand (const char tcmd_str[], TCMD_parsed_tcmd_to_execute_t *parsed_tcmd_output)
	Parses a telecommand into everything needed to execute it.

Variables
static const uint8_t	TCMD_SHA256_LENGTH_BYTES = 32

Macro Definition Documentation

TCMD_ARGS_STR_NO_PARENS_SIZE

#define TCMD_ARGS_STR_NO_PARENS_SIZE   255

TCMD_PREFIX_STR

#define TCMD_PREFIX_STR   "CTS1+"

TCMD_PREFIX_STR_LEN

#define TCMD_PREFIX_STR_LEN   5

Function Documentation

TCMD_check_starts_with_device_id()

uint8_t TCMD_check_starts_with_device_id	(	const char *	tcmd_str,
		uint32_t	tcmd_str_len )

Returns whether tcmd_str starts with CTS1+ (TCMD_PREFIX_STR).

Parameters

tcmd_str	The telecommand string to check.
tcmd_str_len	The length of the telecommand string.

Returns

1 if tcmd_str starts with CTS1+, 0 otherwise.

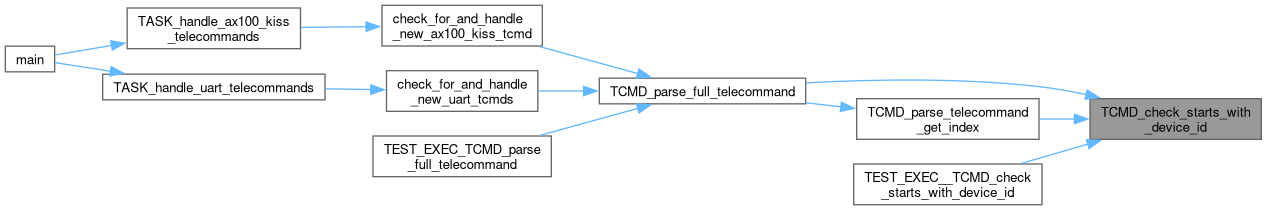

Here is the caller graph for this function:

TCMD_get_suffix_tag_hex_array()

uint8_t TCMD_get_suffix_tag_hex_array	(	const char *	str,
		const char *	tag_name,
		uint8_t *	value_dest )

Searches for a str like \@tag_name=xxxx, and sets uint8_t array xxxx into value_dest.

Parameters

str	The string to search within for the tag. Excluding the tag name, the length of the string must be 256 characters.
tag_name	The tag to search for, including the '@' and '='.
value_dest	The destination for the value. *value_dest will be set.

Returns

0 if the tag was found successfully. >0 if the tag was not found, or there was an error.

Note

This function will return an error if the character after the string is not one of the following: {'#', '@', '\0', '!'}.

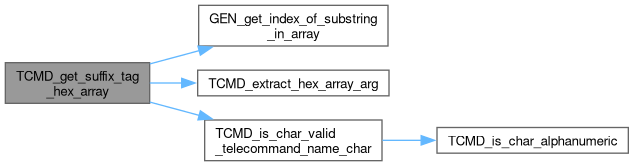

Here is the call graph for this function:

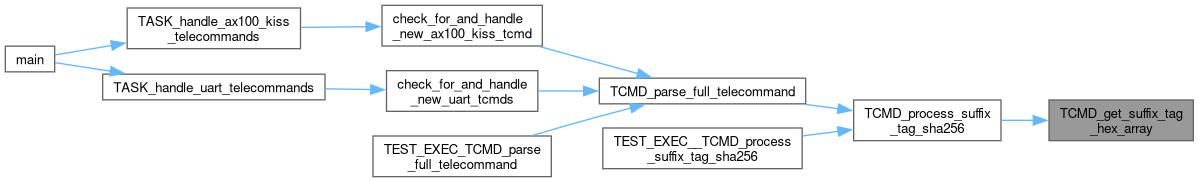

Here is the caller graph for this function:

TCMD_get_suffix_tag_str()

uint8_t TCMD_get_suffix_tag_str	(	const char *	str,
		const char *	tag_name,
		char *	value_dest,
		uint16_t	value_dest_max_len )

Searches for a str like \@tag_name=xxxx, and sets char array xxxx into value_dest.

Parameters

str	The string to search within for the tag. Excluding the tag name, the length of the string must be TCMD_MAX_RESP_FNAME_LEN.
tag_name	The tag to search for, including the '@' and '='.
value_dest	The destination for the value. *value_dest will be set.

Returns

0 if the tag was found successfully. >0 if the tag was not found, or there was an error.

Note

This function will return an error if the character after the string is not one of the following: {'#', '@', '\0', '!'}.

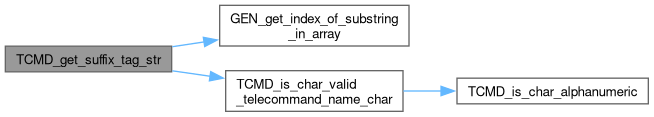

Here is the call graph for this function:

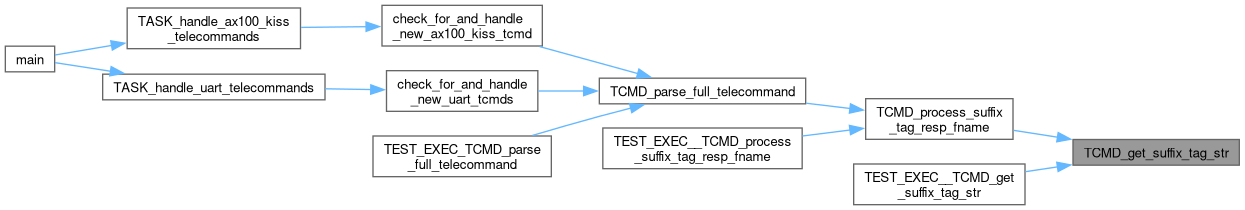

Here is the caller graph for this function:

TCMD_get_suffix_tag_uint64()

uint8_t TCMD_get_suffix_tag_uint64	(	const char *	str,
		const char *	tag_name,
		uint64_t *	value_dest )

Searches for a str like \@tag_name=xxxx, and sets uint64_t xxxx into out_value.

Parameters

str	The string (haystack) to search with for the tag.
tag_name	The tag to search for, including the '@' and '='.
value_dest	The destination for the value. *value_dest will be set.

Returns

0 if the tag was found successfully. >0 if the tag was not found, or there was an error.

Note

This function will return an error if the character after the number is not in: #\@\0!

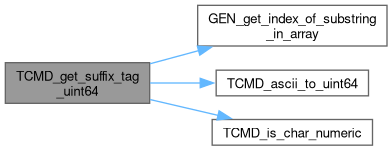

Here is the call graph for this function:

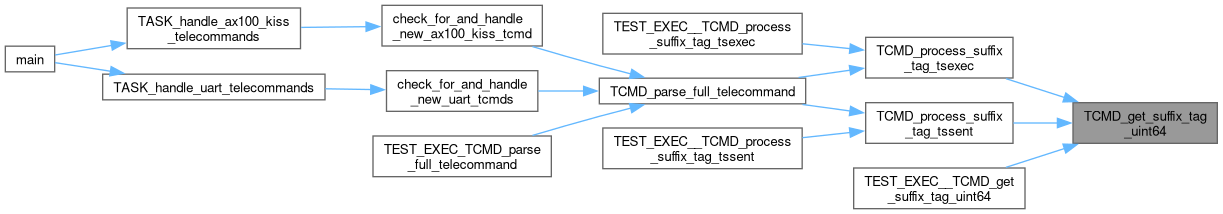

Here is the caller graph for this function:

TCMD_is_char_alphanumeric()

uint8_t TCMD_is_char_alphanumeric

(

char

c

)

Returns whether a character is alphanumeric (0-9, A-Z, a-z).

Parameters

c	The character to check.

Returns

1 if the character is alphanumeric, 0 otherwise.

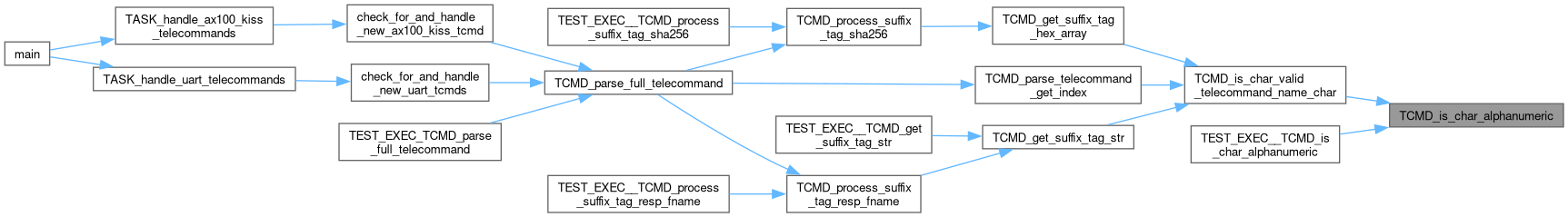

Here is the caller graph for this function:

TCMD_is_char_valid_telecommand_name_char()

uint8_t TCMD_is_char_valid_telecommand_name_char

(

char

c

)

Returns whether a character is a valid character in a telecommand name.

Parameters

c	The character to check.

Returns

1 if the character is valid, 0 otherwise.

Here is the call graph for this function:

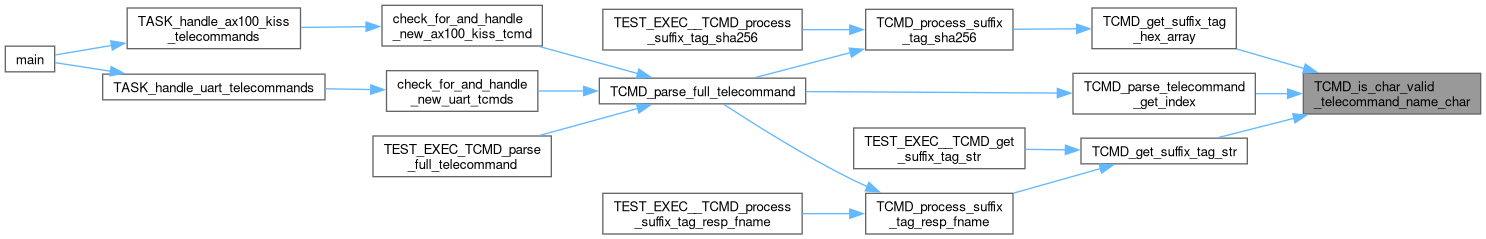

Here is the caller graph for this function:

TCMD_parse_full_telecommand()

uint8_t TCMD_parse_full_telecommand	(	const char	tcmd_str[],
		TCMD_parsed_tcmd_to_execute_t *	parsed_tcmd_output )

Parses a telecommand into everything needed to execute it.

Parameters

tcmd_str	The telecommand string to parse. Must be null-terminated.
parsed_tcmd_output	Pointer to the output struct, which is modified by this function. Not modified if an error occurs.

Returns

0 on success, >0 on error.

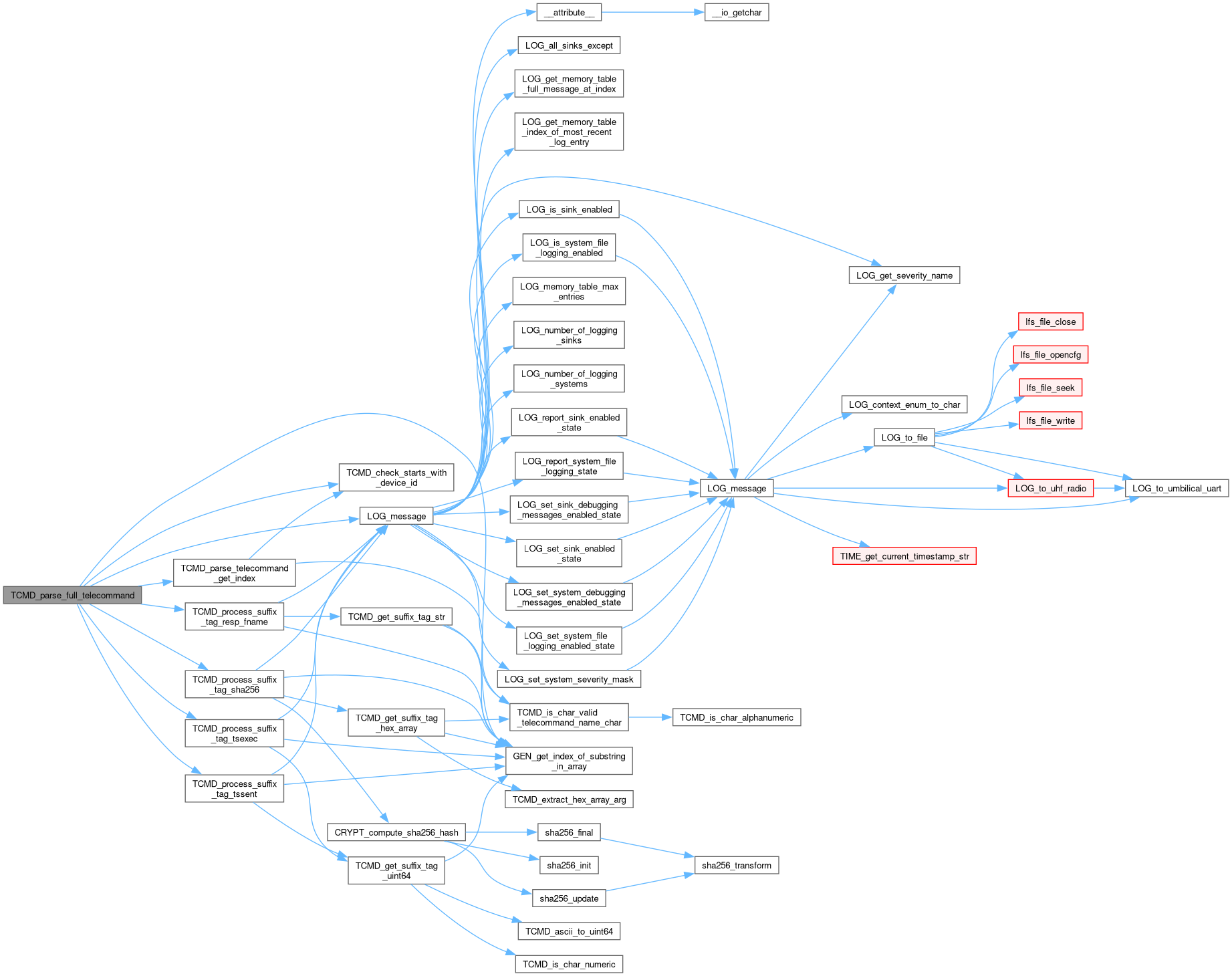

Here is the call graph for this function:

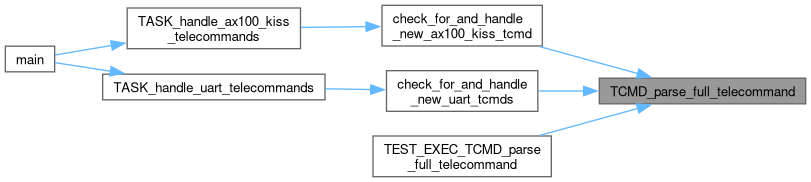

Here is the caller graph for this function:

TCMD_parse_telecommand_get_index()

int32_t TCMD_parse_telecommand_get_index	(	const char *	tcmd_str,
		uint32_t	tcmd_str_len )

Finds an index into TCMD_telecommand_definitions for the given telecommand string.

This function searches for the longest matching telecommand string in TCMD_telecommand_definitions, where all alpha-numeric characters at the start of the to-be-parsed telecommand match the telecommand string in TCMD_telecommand_definitions. This function is case-sensitive.

Parameters

tcmd_str

The telecommand string to search within, starting with prefix, optionally including args.

Returns

The index into TCMD_telecommand_definitions for the given telecommand string. <0 if error. Returns -1 if telecommand not found. Returns -2 if strlen of tcmd_str is less than TCMD_PREFIX_STR_LEN. Returns -3 if tcmd_str does not start with TCMD_PREFIX_STR.

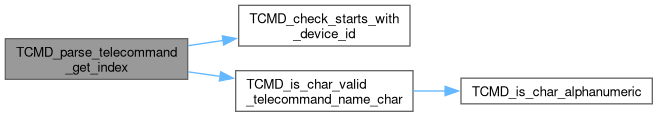

Here is the call graph for this function:

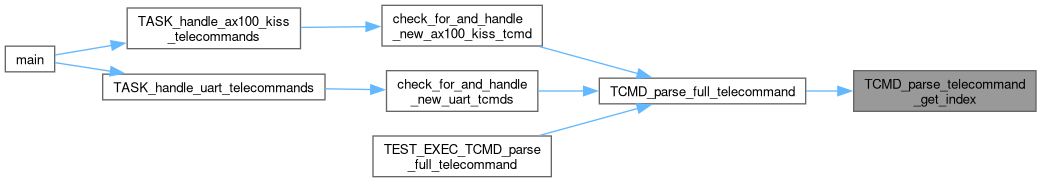

Here is the caller graph for this function:

TCMD_process_suffix_tag_resp_fname()

uint8_t TCMD_process_suffix_tag_resp_fname	(	const char *	tcmd_suffix_tag_str,
		const uint16_t	tcmd_suffix_tag_str_len,
		char *	resp_fname,
		const uint8_t	resp_fname_len )

Parses the @resp_fname=xxxx tag from the telecommand string.

Parameters

tcmd_suffix_tag_str	The telecommand suffix tag string.
tcmd_suffix_tag_str_len	The length of the telecommand suffix tag string.
resp_fname	The destination for the log filename.
resp_fname_len	The length of the log filename.

The log filename is the name of the file to which the telecommand will be logged.

If the length of the filename is > TCMD_MAX_RESP_FNAME_LEN, the filename will be truncated.

Returns

0 if the tag was found successfully or the tag is not present. >0 if there was an error.

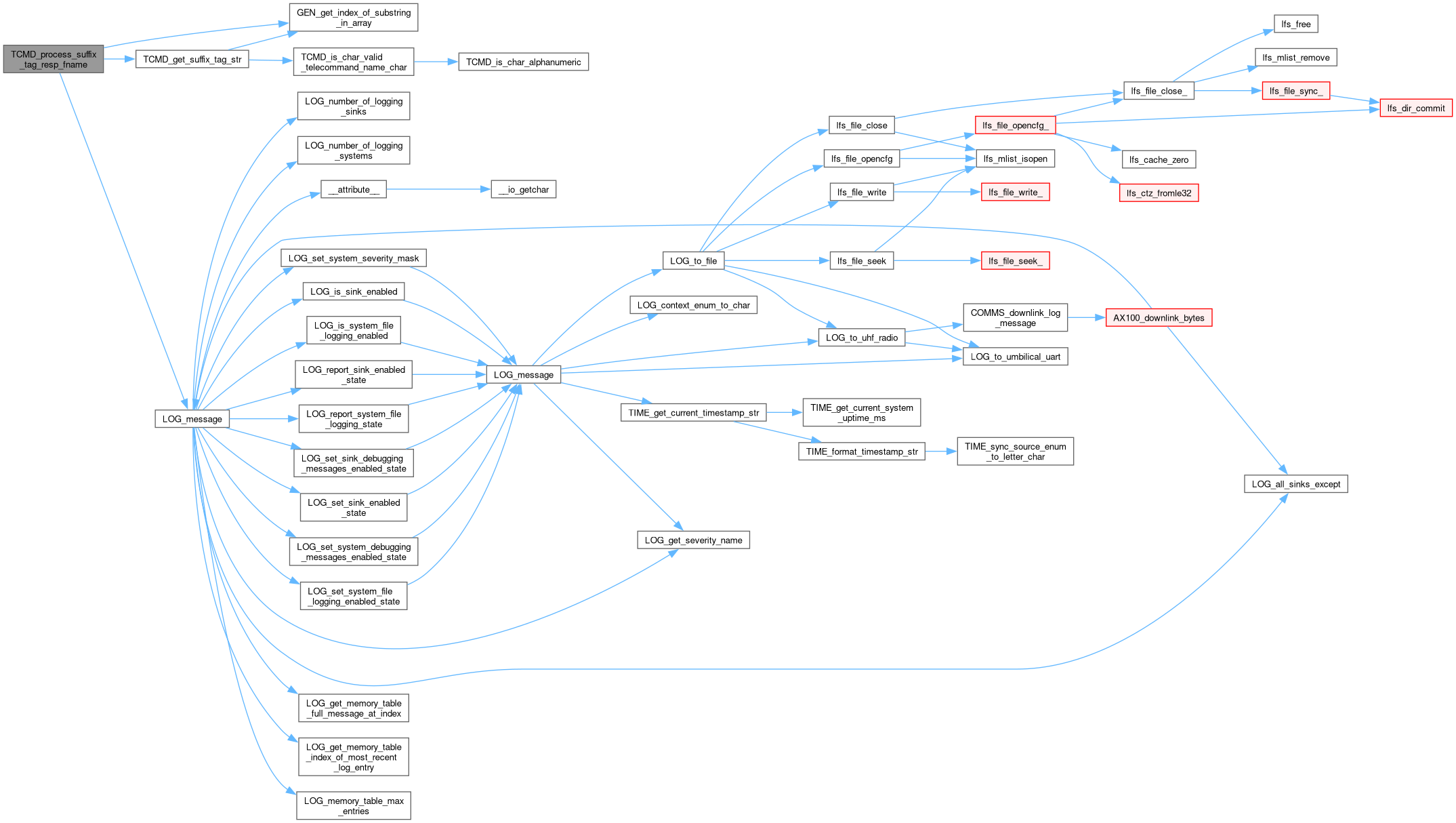

Here is the call graph for this function:

Here is the caller graph for this function:

TCMD_process_suffix_tag_sha256()

uint8_t TCMD_process_suffix_tag_sha256	(	const char *	tcmd_suffix_tag_str,
		const uint16_t	tcmd_suffix_tag_str_len,
		const char *	tcmd_str,
		const int32_t	end_of_args_idx )

Parses the @sha256=xxxx tag from the telecommand string.

This function checks that the SHA256 hash of the telecommand string matches the hash provided in the tag.

Parameters

tcmd_suffix_tag_str	The telecommand suffix tag string.
tcmd_str	The telecommand string.
end_of_args_idx	The index of the end of the arguments in the telecommand string.
sha256_hash	The destination for the SHA256 hash.

Returns

0 if the tag was found successfully or the tag is not present (and not required) . >0 if there was an error.

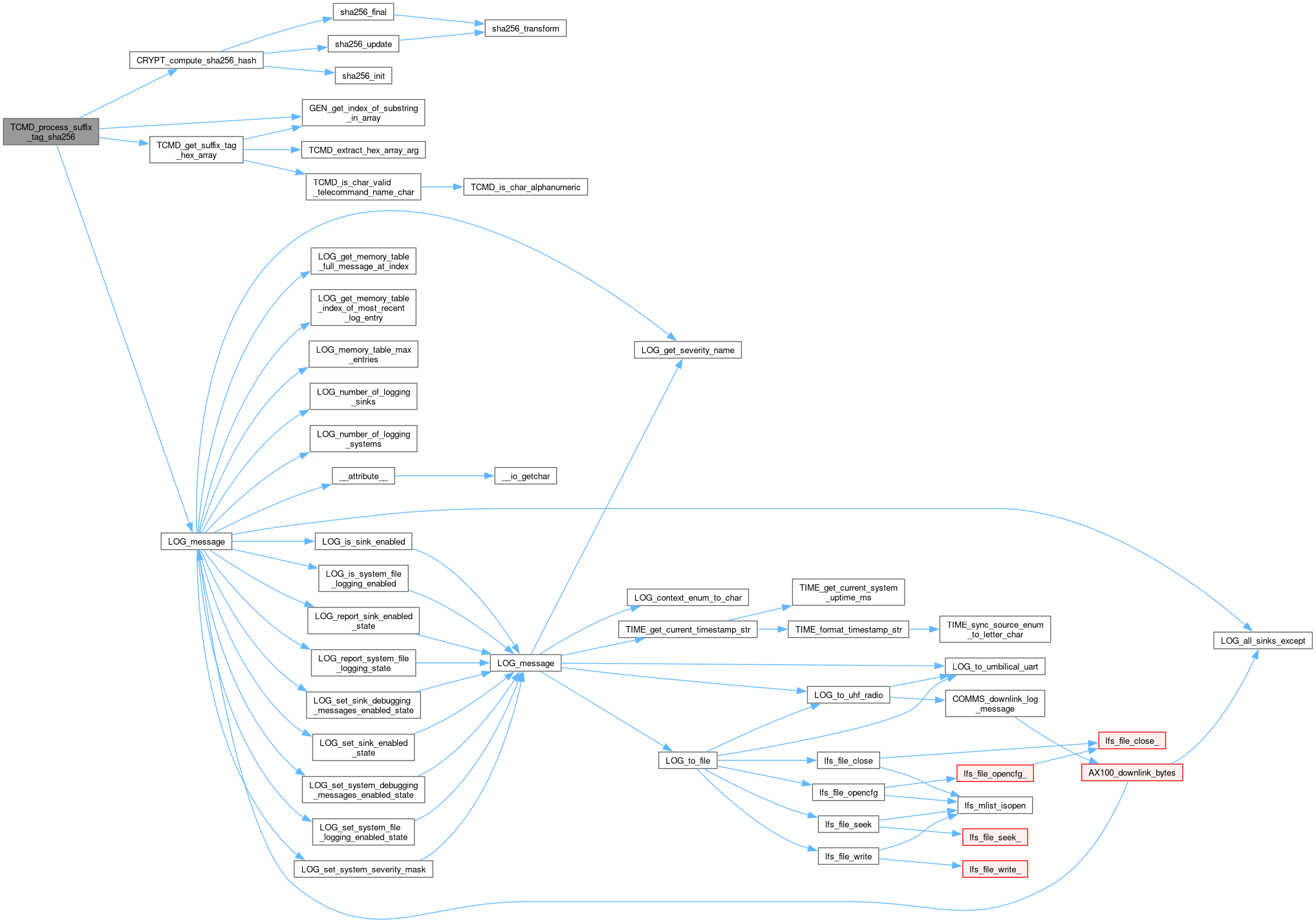

Here is the call graph for this function:

Here is the caller graph for this function:

TCMD_process_suffix_tag_tsexec()

uint8_t TCMD_process_suffix_tag_tsexec	(	const char *	tcmd_suffix_tag_str,
		const uint16_t	tcmd_suffix_tag_str_len,
		uint64_t *	tsexec_time_ms )

Parses the @tsexec=xxxx tag from the telecommand string.

This function checks that the timestamp to execute is valid.

Parameters

tcmd_suffix_tag_str	The telecommand suffix tag string.
tcmd_suffix_tag_str_len	The length of the telecommand suffix tag string.
tsexec_time_ms	The destination for the timestamp to execute.

The timestamp to execute is the time at which the telecommand should be executed.

Returns

0 if the tag was found successfully or the tag is not present. >0 if there was an error.

Here is the call graph for this function:

Here is the caller graph for this function:

TCMD_process_suffix_tag_tssent()

uint8_t TCMD_process_suffix_tag_tssent	(	const char *	tcmd_suffix_tag_str,
		const uint16_t	tcmd_suffix_tag_str_len,
		uint64_t *	tssent_time_ms )

Parses the @tssent=xxxx tag from the telecommand string.

Parameters

tcmd_suffix_tag_str	The telecommand suffix tag string.
tcmd_suffix_tag_str_len	The length of the telecommand suffix tag string.
tssent_time_ms	The destination for the timestamp sent.

Returns

0 if the tag was found successfully or there is no tssent tag. >0 if there was an error.

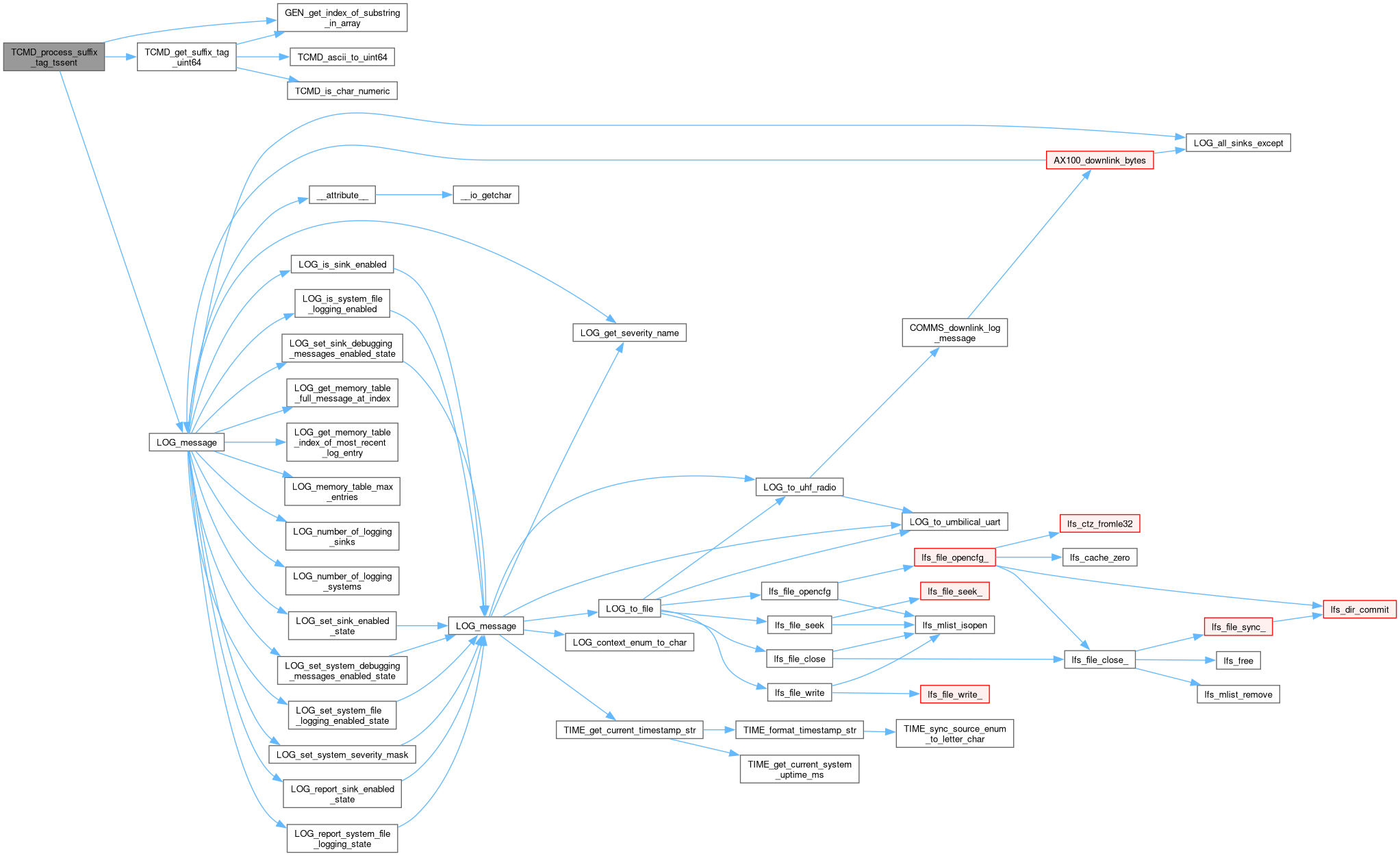

Here is the call graph for this function:

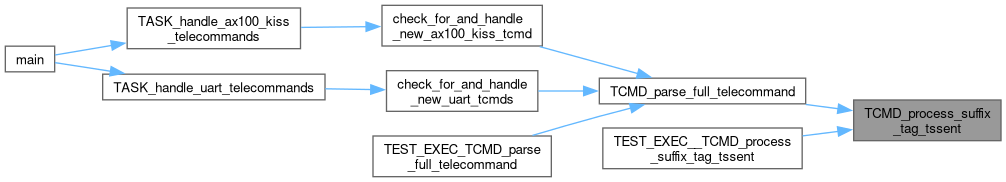

Here is the caller graph for this function:

Variable Documentation

TCMD_SHA256_LENGTH_BYTES

const uint8_t TCMD_SHA256_LENGTH_BYTES = 32

static
