timekeeping_telecommand_defs.c File Reference

#include "telecommands/timekeeping_telecommand_defs.h"
#include "telecommand_exec/telecommand_args_helpers.h"
#include "timekeeping/timekeeping.h"
#include "eps_drivers/eps_time.h"
#include "gnss_receiver/gnss_time.h"
#include <stdio.h>
#include <string.h>

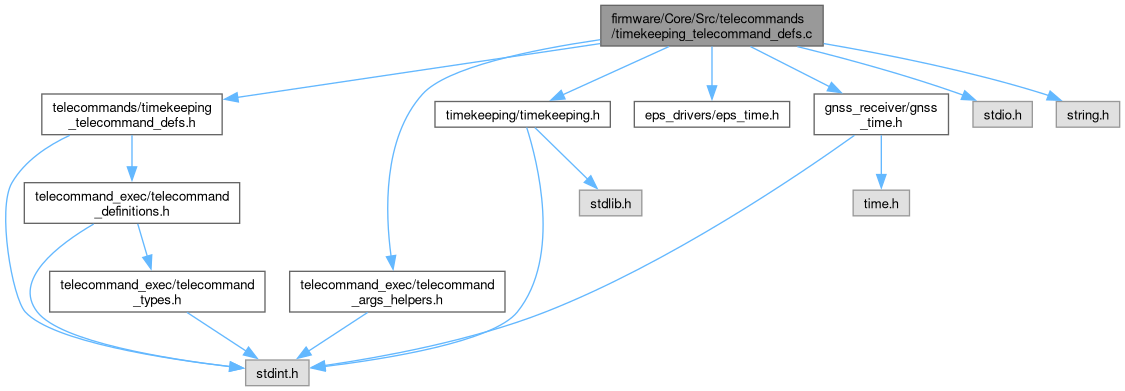

Include dependency graph for timekeeping_telecommand_defs.c:

Functions
uint8_t	TCMDEXEC_get_system_time (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
uint8_t	TCMDEXEC_set_system_time (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Set the system time to the provided Unix epoch time in milliseconds.
uint8_t	TCMDEXEC_correct_system_time (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Adjust the system time by a correction offset in ms.
uint8_t	TCMDEXEC_set_obc_time_based_on_eps_time (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Sync's obc time to eps time (+/- 1 second).
uint8_t	TCMDEXEC_set_obc_time_based_on_gnss_time (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Sync OBC time based on the GNSS time report (+/- ~100ms, based on system latency).
uint8_t	TCMDEXEC_set_obc_time_based_on_gnss_pps (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Corrects the OBC time based on the GNSS PPS signal. Very precise.
uint8_t	TCMDEXEC_set_eps_time_based_on_obc_time (const char *args_str, char *response_output_buf, uint16_t response_output_buf_len)
	Sync's eps time to obc time (+/- 1 second).

Function Documentation

TCMDEXEC_correct_system_time()

uint8_t TCMDEXEC_correct_system_time	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Adjust the system time by a correction offset in ms.

Parameters

args_str

Arg 0: Correction time in milliseconds (int64_t). Positive = forward in time, negative = backward in time.

Returns

0 if successful, 1 if error

Note

Math: new_system_time_ms = current_system_time_ms + correction_time_ms

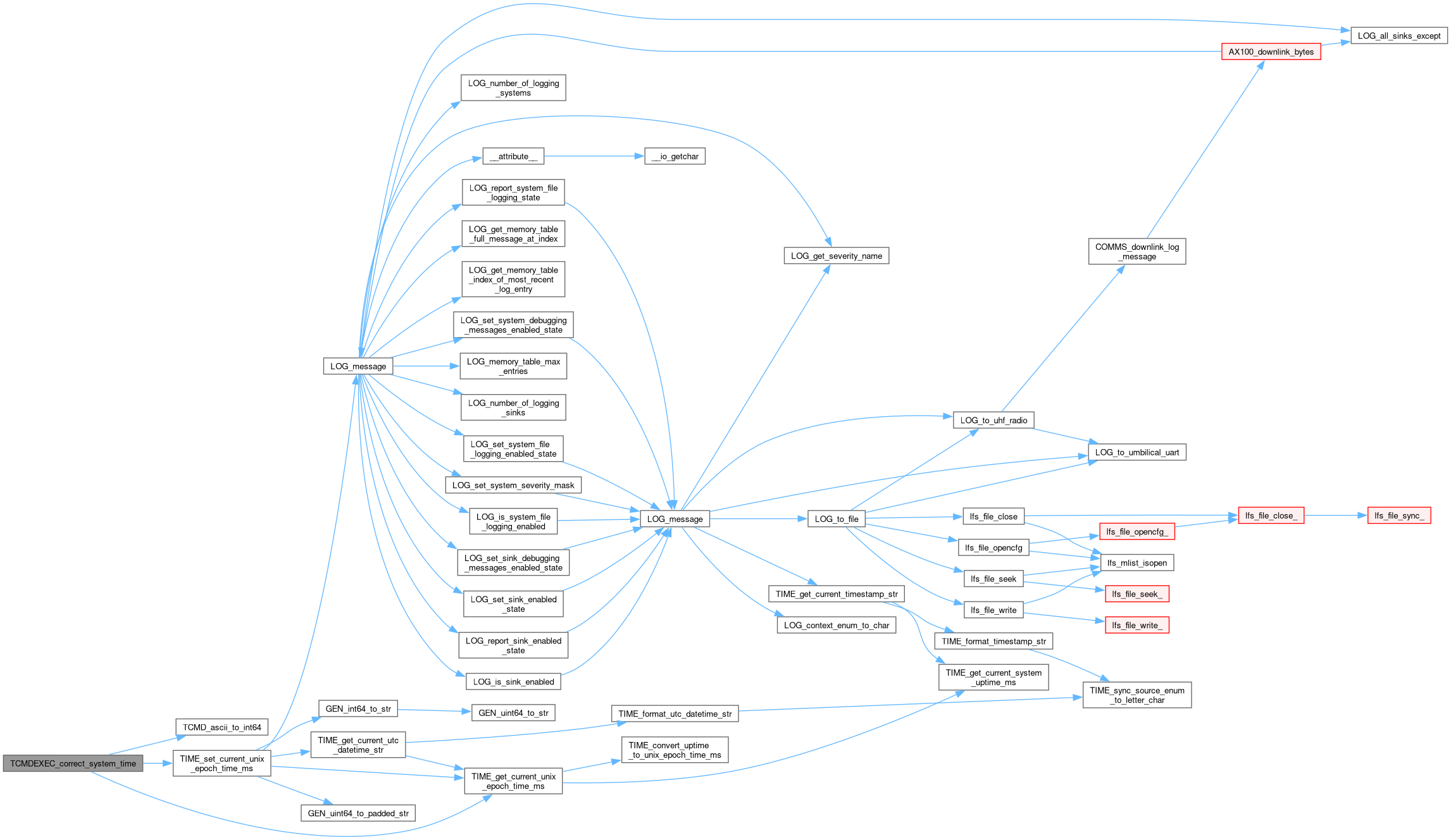

Here is the call graph for this function:

TCMDEXEC_get_system_time()

uint8_t TCMDEXEC_get_system_time	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

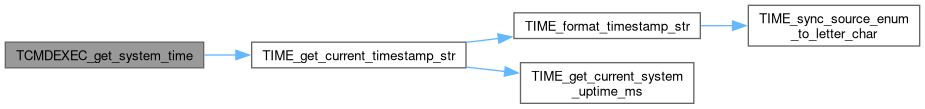

Here is the call graph for this function:

TCMDEXEC_set_eps_time_based_on_obc_time()

uint8_t TCMDEXEC_set_eps_time_based_on_obc_time	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Sync's eps time to obc time (+/- 1 second).

Returns

0 on success, >0 on failure.

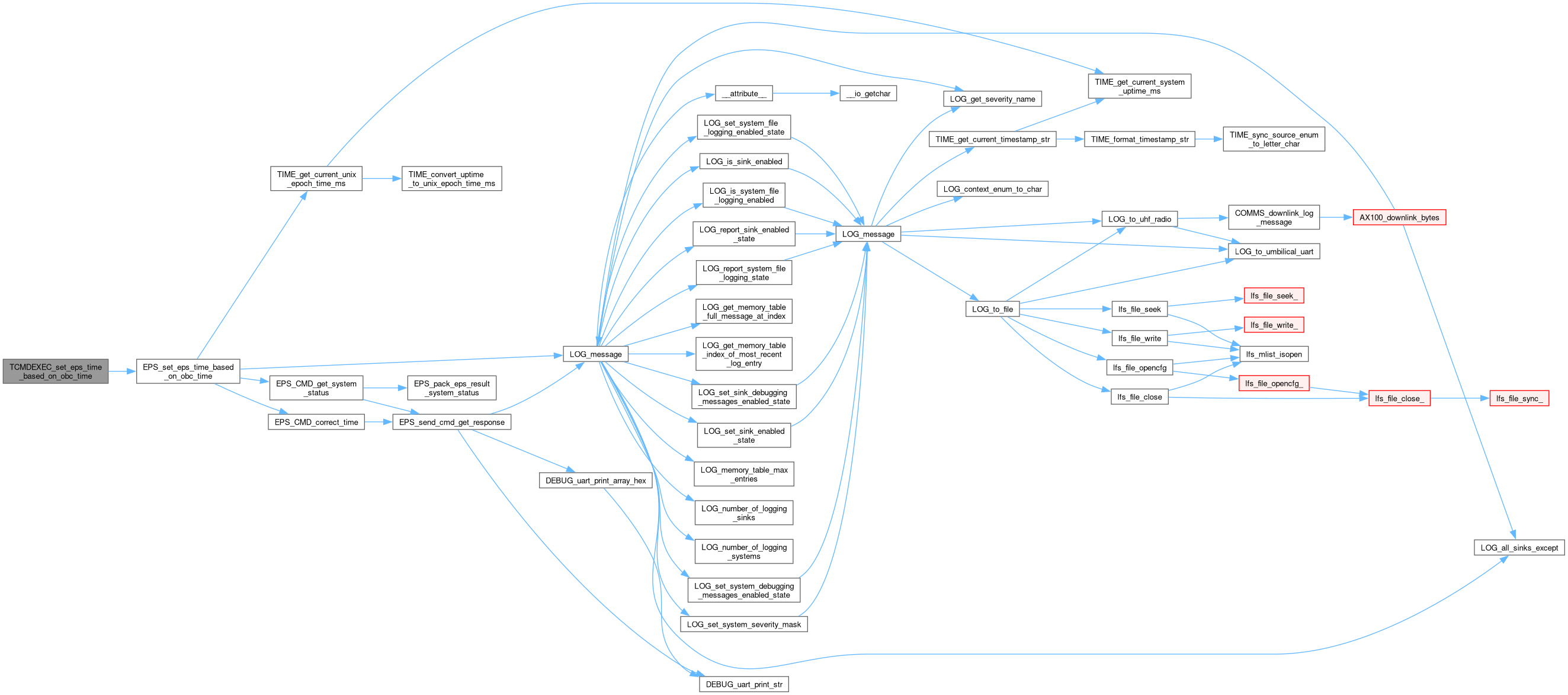

Here is the call graph for this function:

TCMDEXEC_set_obc_time_based_on_eps_time()

uint8_t TCMDEXEC_set_obc_time_based_on_eps_time	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Sync's obc time to eps time (+/- 1 second).

Returns

0 on success, >0 on failure.

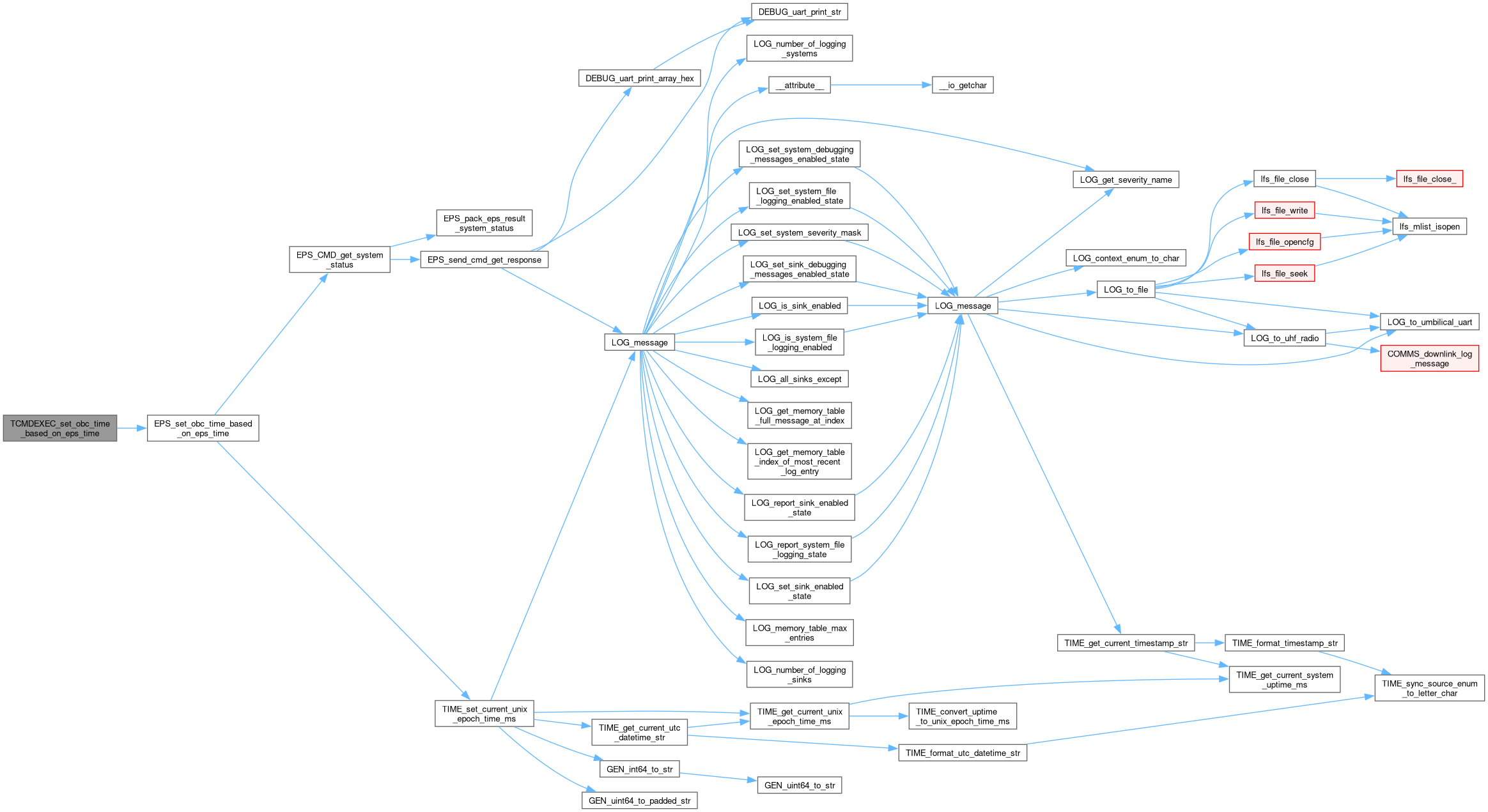

Here is the call graph for this function:

TCMDEXEC_set_obc_time_based_on_gnss_pps()

uint8_t TCMDEXEC_set_obc_time_based_on_gnss_pps	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Corrects the OBC time based on the GNSS PPS signal. Very precise.

Parameters

args_str

No arguments.

Returns

0 on success, >0 on failure.

Note

Requires that the GNSS receiver's EPS channel is already powered on, and that a time fix is ready.

Requires an accurate GNSS time fix, and requires that set_obc_time_based_on_gnss_time has been run recently (or that the OBC time is correct within 500ms based on another time source).

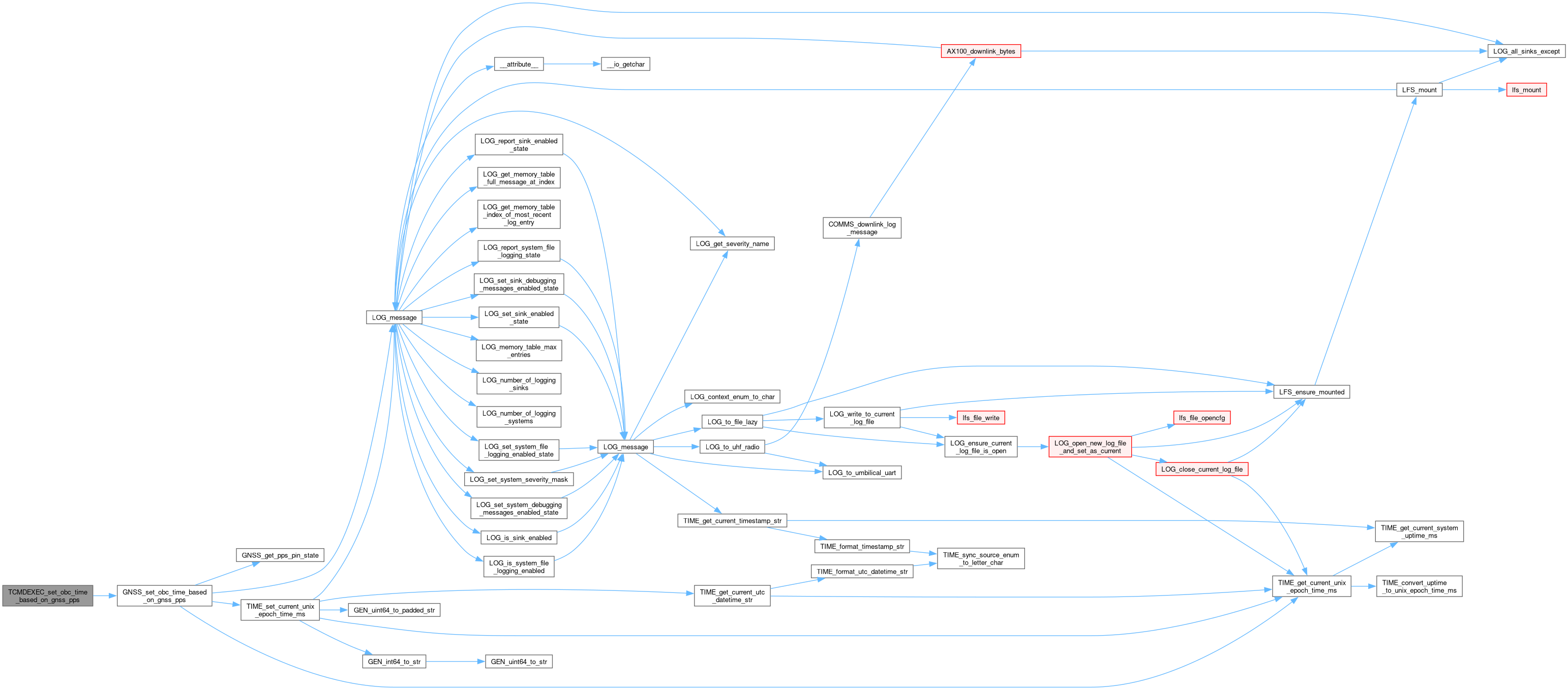

Here is the call graph for this function:

TCMDEXEC_set_obc_time_based_on_gnss_time()

uint8_t TCMDEXEC_set_obc_time_based_on_gnss_time	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Sync OBC time based on the GNSS time report (+/- ~100ms, based on system latency).

Parameters

args_str

No arguments.

Returns

0 on success, >0 on failure.

Note

Requires that the GNSS receiver's EPS channel is already powered on, and that a time fix is ready.

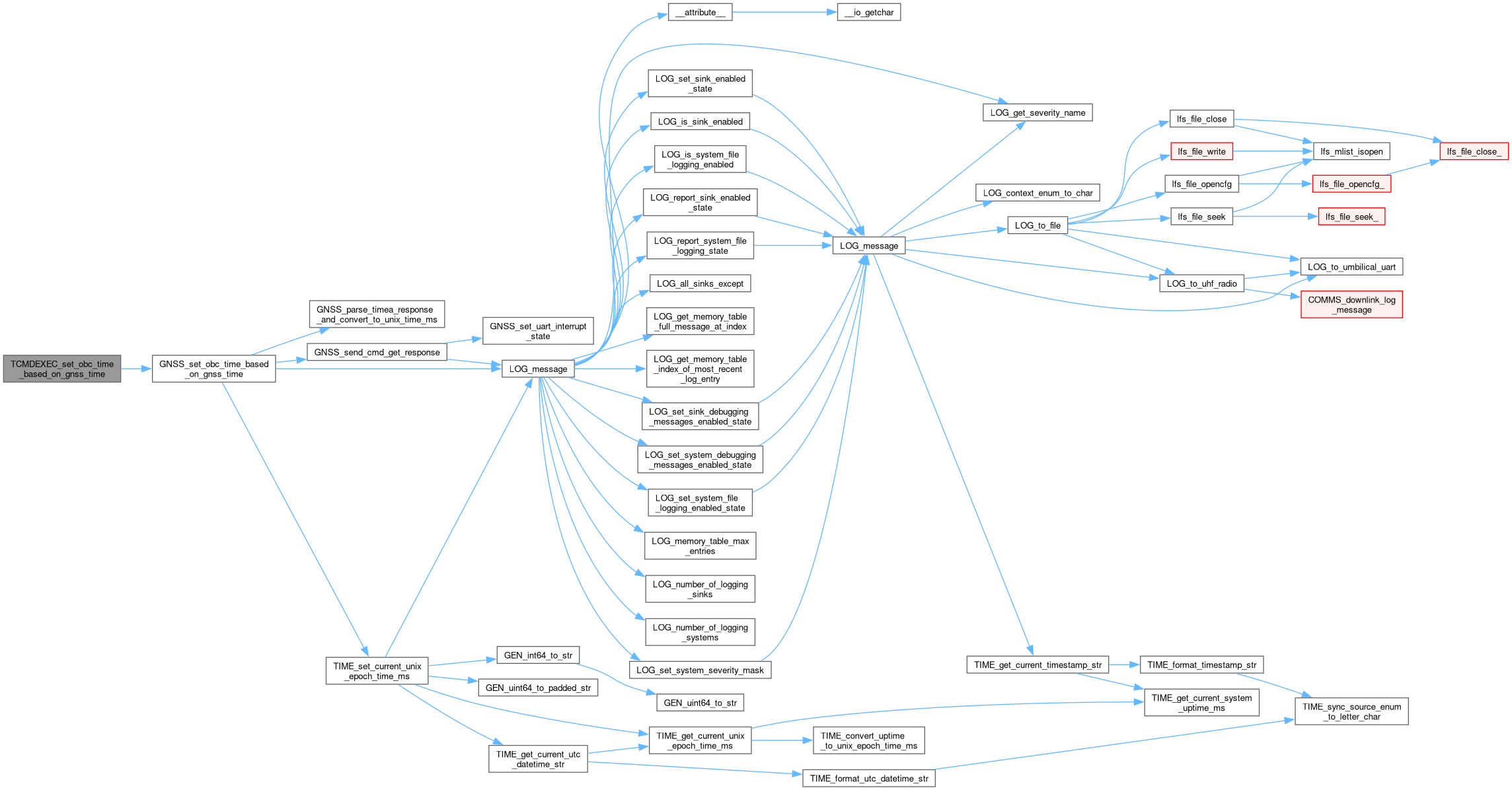

Here is the call graph for this function:

TCMDEXEC_set_system_time()

uint8_t TCMDEXEC_set_system_time	(	const char *	args_str,
		char *	response_output_buf,
		uint16_t	response_output_buf_len )

Set the system time to the provided Unix epoch time in milliseconds.

Parameters

args_str

Arg 0: Unix epoch time in milliseconds (uint64_t)

Returns

0 if successful, 1 if error

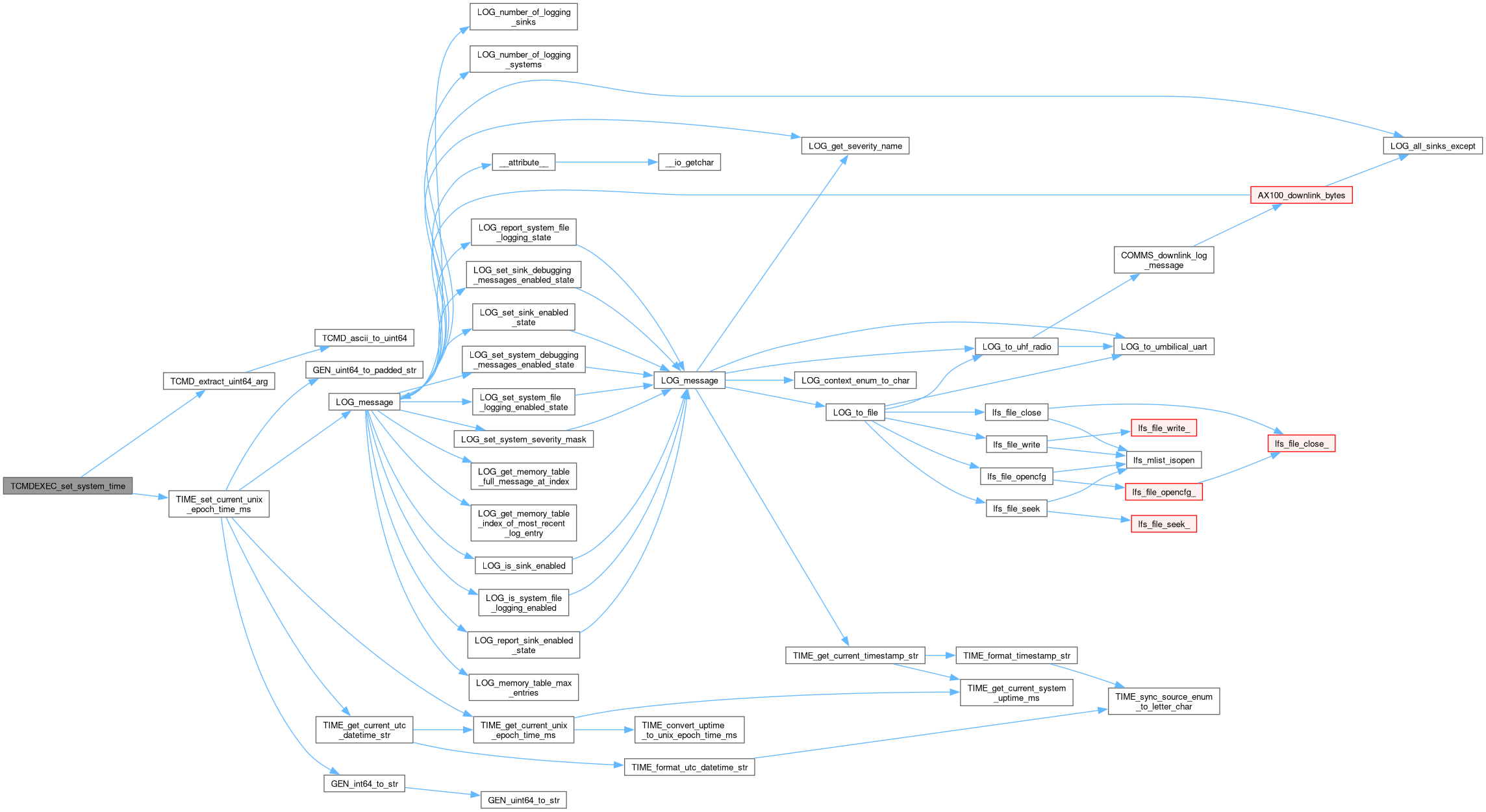

Here is the call graph for this function:
