uart_control.h File Reference

#include "stm32l4xx_hal.h"
#include <stdint.h>

Include dependency graph for uart_control.h:

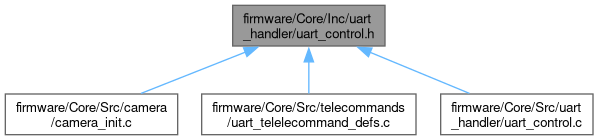

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
uint8_t	UART_set_baud_rate (UART_HandleTypeDef *port_handle, uint32_t new_baud_rate)
	Set the STM32 UART peripheral's baud rate to a different value.
UART_HandleTypeDef *	UART_get_port_handle_by_name (const char port_name[])
	Get the UART port handle by its name.

Function Documentation

UART_get_port_handle_by_name()

UART_HandleTypeDef * UART_get_port_handle_by_name

(

const char

port_name[]

)

Get the UART port handle by its name.

Parameters

port_name

Case-insensitive name of the UART port to retrieve the handle for.

Returns

Pointer to the UART handle structure for the specified port name, or NULL if not found.

Warning

This function MUST be checked for NULL return value before use.

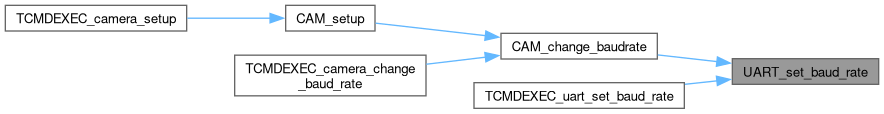

Here is the caller graph for this function:

UART_set_baud_rate()

uint8_t UART_set_baud_rate	(	UART_HandleTypeDef *	port_handle,
		uint32_t	new_baud_rate )

Set the STM32 UART peripheral's baud rate to a different value.

Parameters

port_handle	Pointer to the UART handle structure for the port to change the baud rate of.
new_baud_rate	The new baud rate to set the STM32 UART peripheral to (in bits per second). Common values are 9600, 115200, 230400, etc.

Returns

0 on success, >0 on error.

Here is the caller graph for this function:
