#include <stdint.h>
#include "stm32l4xx_hal.h"
#include "stm32l4xx_hal_uart.h"

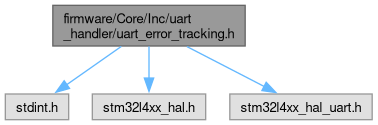

Include dependency graph for uart_error_tracking.h:

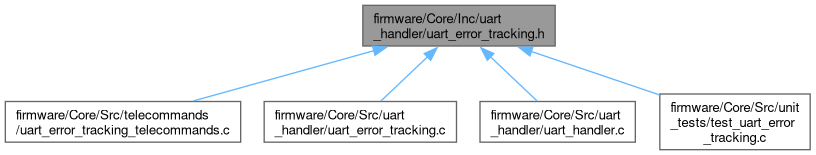

This graph shows which files directly or indirectly include this file:

Classes
struct	UART_error_counts_single_subsystem_struct_t
	These will be an error defined in the stm32l4xx_hal_uart.h file. More...

Macros
#define	UART_ERROR_TRACKING_JSON_BUFFER_LEN 768

Functions
void	UART_track_error_from_isr (USART_TypeDef *huart_instance, uint32_t error_code)
	Track the error for a given UART instance.
uint8_t	UART_single_subsystem_error_info_to_json (UART_error_counts_single_subsystem_struct_t error_info_struct, char json_buffer, uint16_t json_buffer_len)
uint8_t	UART_get_errors_json (char *json_buf, uint16_t json_buf_len)

Variables
UART_error_counts_single_subsystem_struct_t	UART_error_mpi_error_info
UART_error_counts_single_subsystem_struct_t	UART_error_ax100_error_info
UART_error_counts_single_subsystem_struct_t	UART_error_gnss_error_info
UART_error_counts_single_subsystem_struct_t	UART_error_camera_error_info
UART_error_counts_single_subsystem_struct_t	UART_error_eps_error_info
UART_error_counts_single_subsystem_struct_t	UART_error_telecommand_error_info

Macro Definition Documentation

◆ UART_ERROR_TRACKING_JSON_BUFFER_LEN

#define UART_ERROR_TRACKING_JSON_BUFFER_LEN 768

uint8_t UART_get_errors_json	(	char *	json_buf,
		uint16_t	json_buf_len )

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t UART_single_subsystem_error_info_to_json	(	UART_error_counts_single_subsystem_struct_t *	error_info_struct,
		char *	json_buffer,
		uint16_t	json_buffer_len )

Here is the call graph for this function:

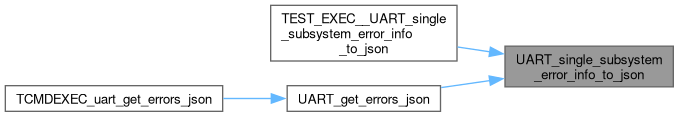

Here is the caller graph for this function:

void UART_track_error_from_isr	(	USART_TypeDef *	huart_instance,
		uint32_t	error_code )

Track the error for a given UART instance.

Parameters

huart_instance	The uart instance we are tracking the error for
error_code	The error code to track

Note: This function will check if the error code is a known error and increment the corresponding error count; There can't be any Log_message as this will be called in the HAL_UART_ErrorCallback function

Here is the caller graph for this function:
