#include "stm32l4xx_hal.h"
#include <stdint.h>
#include "mpi/mpi_types.h"

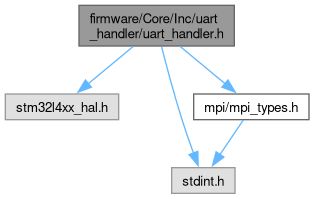

Include dependency graph for uart_handler.h:

This graph shows which files directly or indirectly include this file:

Classes
struct	AX100_kiss_frame_struct_t

Macros
#define	AX100_MAX_KISS_FRAMES_IN_RX_QUEUE 8
#define	AX100_MAX_KISS_FRAME_SIZE_BYTES 500

Enumerations
enum	CAMERA_uart_write_state_enum_t { CAMERA_UART_WRITE_STATE_IDLE , CAMERA_UART_WRITE_STATE_HALF_FILLING , CAMERA_UART_WRITE_STATE_HALF_FILLED_WAITING_FS_WRITE , CAMERA_UART_WRITE_STATE_HALF_WRITTEN_TO_FS }

Functions
void	UART_init_uart_handlers (void)
	Enable the UART interrupts for always-enabled systems.
void	GNSS_set_uart_interrupt_state (uint8_t new_enabled)
	Sets the UART interrupt state (enabled/disabled).
uint8_t	CAMERA_set_expecting_data (uint8_t new_enabled)
	Sets the UART interrupt state (enabled/disabled).

Variables
volatile CAMERA_uart_write_state_enum_t	CAMERA_uart_half_1_state
volatile CAMERA_uart_write_state_enum_t	CAMERA_uart_half_2_state
UART_HandleTypeDef *	UART_telecommand_port_handle
UART_HandleTypeDef *	UART_mpi_port_handle
UART_HandleTypeDef *	UART_ax100_port_handle
UART_HandleTypeDef *	UART_gnss_port_handle
UART_HandleTypeDef *	UART_camera_port_handle
UART_HandleTypeDef *	UART_eps_port_handle
const uint16_t	UART_telecommand_buffer_len
volatile uint8_t	UART_telecommand_buffer []
volatile uint16_t	UART_telecommand_buffer_write_idx
volatile uint32_t	UART_telecommand_last_write_time_ms
const uint16_t	UART_mpi_buffer_len
volatile uint8_t	UART_mpi_buffer []
volatile uint16_t	UART_mpi_buffer_write_idx
volatile uint32_t	UART_mpi_last_write_time_ms
volatile uint8_t	UART_mpi_last_rx_byte
volatile uint32_t	UART_ax100_last_write_time_ms
const uint16_t	UART_gnss_buffer_len
volatile uint8_t	UART_gnss_buffer []
volatile uint16_t	UART_gnss_buffer_write_idx
volatile uint32_t	UART_gnss_last_write_time_ms
const uint16_t	UART_camera_dma_buffer_len
const uint16_t	UART_camera_dma_buffer_len_half
volatile uint8_t	UART_camera_dma_buffer []
volatile uint8_t	UART_camera_pending_fs_write_half_1_buf []
volatile uint8_t	UART_camera_pending_fs_write_half_2_buf []
volatile uint32_t	UART_camera_last_write_time_ms
const uint16_t	UART_eps_buffer_len
volatile uint8_t	UART_eps_buffer []
volatile uint16_t	UART_eps_buffer_write_idx
volatile uint32_t	UART_eps_last_write_time_ms
volatile uint8_t	UART_eps_is_expecting_data
volatile uint8_t	UART_gnss_buffer_last_rx_byte
volatile uint8_t	UART_gnss_uart_interrupt_enabled
const uint8_t	UART_mpi_rx_dma_buffer_len
volatile uint8_t	UART_mpi_rx_dma_buffer []
const uint16_t	MPI_science_buffer_len
	Length of the MPI_science_buffer_one and MPI_science_buffer_two arrays.
volatile uint8_t	MPI_science_buffer_one []
volatile uint8_t	MPI_science_buffer_two []
volatile MPI_buffer_state_enum_t	MPI_buffer_one_state
	Current state of the MPI_active_data_median_buffer (pending write vs. written).
volatile MPI_buffer_state_enum_t	MPI_buffer_two_state
volatile uint32_t	MPI_buffer_one_last_filled_uptime_ms
volatile uint32_t	MPI_buffer_two_last_filled_uptime_ms
volatile AX100_kiss_frame_struct_t	UART_AX100_kiss_frame_queue [AX100_MAX_KISS_FRAMES_IN_RX_QUEUE]
volatile uint8_t	UART_AX100_kiss_frame_queue_head
volatile uint8_t	UART_AX100_kiss_frame_queue_tail

Macro Definition Documentation

◆ AX100_MAX_KISS_FRAME_SIZE_BYTES

#define AX100_MAX_KISS_FRAME_SIZE_BYTES 500

◆ AX100_MAX_KISS_FRAMES_IN_RX_QUEUE

#define AX100_MAX_KISS_FRAMES_IN_RX_QUEUE 8

Enumeration Type Documentation

◆ CAMERA_uart_write_state_enum_t

enum CAMERA_uart_write_state_enum_t

Enumerator
CAMERA_UART_WRITE_STATE_IDLE
CAMERA_UART_WRITE_STATE_HALF_FILLING
CAMERA_UART_WRITE_STATE_HALF_FILLED_WAITING_FS_WRITE
CAMERA_UART_WRITE_STATE_HALF_WRITTEN_TO_FS

Function Documentation

◆ CAMERA_set_expecting_data()

uint8_t CAMERA_set_expecting_data ( uint8_t new_enabled )

Sets the UART interrupt state (enabled/disabled).

Parameters

new_enabled 1: command sent, expecting data; 0: not expecting data

Here is the caller graph for this function:

◆ GNSS_set_uart_interrupt_state()

void GNSS_set_uart_interrupt_state ( uint8_t new_enabled )

Sets the UART interrupt state (enabled/disabled).

Parameters

new_enabled 1: enable interrupt; 0: disable interrupt

Note: This function must be called very carefully. This type of GNSS is known to, in the wrong mode, spam null bytes, which can lock up the entire system. Thus, the interrupt is disabled by default, and must be enabled explicitly by the GNSS telecommands.; Function is idempotent. Calling it when already in the desired state is a no-op.

Here is the caller graph for this function:

◆ UART_init_uart_handlers()

void UART_init_uart_handlers ( void )

Enable the UART interrupts for always-enabled systems.

Note: Should be called very early in system init. Called in main.c.

Here is the caller graph for this function:

Variable Documentation

◆ CAMERA_uart_half_1_state

volatile CAMERA_uart_write_state_enum_t CAMERA_uart_half_1_state

extern

◆ CAMERA_uart_half_2_state

volatile CAMERA_uart_write_state_enum_t CAMERA_uart_half_2_state

extern

◆ MPI_buffer_one_last_filled_uptime_ms

volatile uint32_t MPI_buffer_one_last_filled_uptime_ms

extern

◆ MPI_buffer_one_state

volatile MPI_buffer_state_enum_t MPI_buffer_one_state

extern

Current state of the MPI_active_data_median_buffer (pending write vs. written).

◆ MPI_buffer_two_last_filled_uptime_ms

volatile uint32_t MPI_buffer_two_last_filled_uptime_ms

extern

◆ MPI_buffer_two_state

volatile MPI_buffer_state_enum_t MPI_buffer_two_state

extern

◆ MPI_science_buffer_len

const uint16_t MPI_science_buffer_len

extern

Length of the MPI_science_buffer_one and MPI_science_buffer_two arrays.

◆ MPI_science_buffer_one

volatile uint8_t MPI_science_buffer_one[]

extern

◆ MPI_science_buffer_two

volatile uint8_t MPI_science_buffer_two[]

extern

◆ UART_AX100_kiss_frame_queue

volatile AX100_kiss_frame_struct_t UART_AX100_kiss_frame_queue[AX100_MAX_KISS_FRAMES_IN_RX_QUEUE]

extern

◆ UART_AX100_kiss_frame_queue_head

volatile uint8_t UART_AX100_kiss_frame_queue_head

extern

◆ UART_AX100_kiss_frame_queue_tail

volatile uint8_t UART_AX100_kiss_frame_queue_tail

extern

◆ UART_ax100_last_write_time_ms

volatile uint32_t UART_ax100_last_write_time_ms

extern

◆ UART_ax100_port_handle

UART_HandleTypeDef* UART_ax100_port_handle

extern

◆ UART_camera_dma_buffer

volatile uint8_t UART_camera_dma_buffer[]

extern

◆ UART_camera_dma_buffer_len

const uint16_t UART_camera_dma_buffer_len

extern

◆ UART_camera_dma_buffer_len_half

const uint16_t UART_camera_dma_buffer_len_half

extern

◆ UART_camera_last_write_time_ms

volatile uint32_t UART_camera_last_write_time_ms

extern

◆ UART_camera_pending_fs_write_half_1_buf

volatile uint8_t UART_camera_pending_fs_write_half_1_buf[]

extern

◆ UART_camera_pending_fs_write_half_2_buf

volatile uint8_t UART_camera_pending_fs_write_half_2_buf[]

extern

◆ UART_camera_port_handle

UART_HandleTypeDef* UART_camera_port_handle

extern

◆ UART_eps_buffer

volatile uint8_t UART_eps_buffer[]

extern

◆ UART_eps_buffer_len

const uint16_t UART_eps_buffer_len

extern

◆ UART_eps_buffer_write_idx

volatile uint16_t UART_eps_buffer_write_idx

extern

◆ UART_eps_is_expecting_data

volatile uint8_t UART_eps_is_expecting_data

extern

◆ UART_eps_last_write_time_ms

volatile uint32_t UART_eps_last_write_time_ms

extern

◆ UART_eps_port_handle

UART_HandleTypeDef* UART_eps_port_handle

extern

◆ UART_gnss_buffer

volatile uint8_t UART_gnss_buffer

extern

◆ UART_gnss_buffer_last_rx_byte

volatile uint8_t UART_gnss_buffer_last_rx_byte

extern

◆ UART_gnss_buffer_len

const uint16_t UART_gnss_buffer_len

extern

◆ UART_gnss_buffer_write_idx

volatile uint16_t UART_gnss_buffer_write_idx

extern

◆ UART_gnss_last_write_time_ms

volatile uint32_t UART_gnss_last_write_time_ms

extern

◆ UART_gnss_port_handle

UART_HandleTypeDef* UART_gnss_port_handle

extern

◆ UART_gnss_uart_interrupt_enabled

volatile uint8_t UART_gnss_uart_interrupt_enabled

extern

◆ UART_mpi_buffer

volatile uint8_t UART_mpi_buffer[]

extern

◆ UART_mpi_buffer_len

const uint16_t UART_mpi_buffer_len

extern

◆ UART_mpi_buffer_write_idx

volatile uint16_t UART_mpi_buffer_write_idx

extern

◆ UART_mpi_last_rx_byte

volatile uint8_t UART_mpi_last_rx_byte

extern

◆ UART_mpi_last_write_time_ms

volatile uint32_t UART_mpi_last_write_time_ms

extern

◆ UART_mpi_port_handle

UART_HandleTypeDef* UART_mpi_port_handle

extern

◆ UART_mpi_rx_dma_buffer

volatile uint8_t UART_mpi_rx_dma_buffer[]

extern

◆ UART_mpi_rx_dma_buffer_len

const uint8_t UART_mpi_rx_dma_buffer_len

extern

◆ UART_telecommand_buffer

volatile uint8_t UART_telecommand_buffer[]

extern

◆ UART_telecommand_buffer_len

const uint16_t UART_telecommand_buffer_len

extern

◆ UART_telecommand_buffer_write_idx

volatile uint16_t UART_telecommand_buffer_write_idx

extern

◆ UART_telecommand_last_write_time_ms

volatile uint32_t UART_telecommand_last_write_time_ms

extern

◆ UART_telecommand_port_handle

UART_HandleTypeDef* UART_telecommand_port_handle

extern
