adcs_internal_drivers.h File Reference

#include "adcs_drivers/adcs_types.h"
#include "main.h"
#include <time.h>

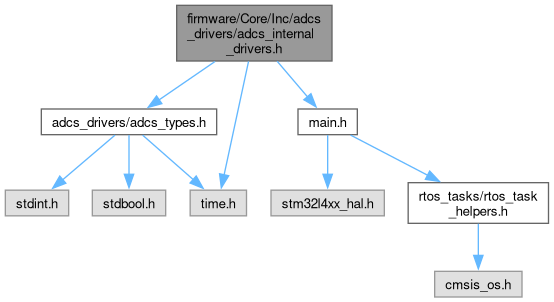

Include dependency graph for adcs_internal_drivers.h:

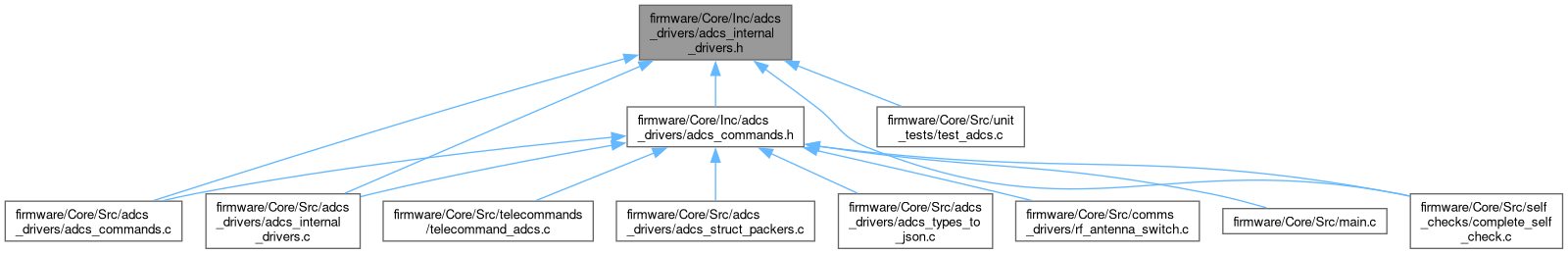

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	ADCS_i2c_HANDLE   &hi2c1

Functions
uint8_t	ADCS_convert_uint16_to_reversed_uint8_array_members (uint8_t *array, uint16_t value, uint16_t index)
	Swap low and high bytes of a uint16 to turn into uint8 and put into specified index of an array.
uint8_t	ADCS_convert_uint32_to_reversed_uint8_array_members (uint8_t *array, uint32_t value, uint16_t index)
	Reverse the order of the four bytes of a uint32 to turn into uint8 and put into specified index of an array.
uint8_t	ADCS_convert_double_to_string (double input, uint8_t precision, char *output_string, uint16_t str_len)
	Convert a double into a string with a given decimal precision.
uint8_t	ADCS_combine_sd_log_bitmasks (const uint8_t **array_in, const uint8_t array_in_len, uint8_t *array_out)
	Take an arbitrary number (up to 63) of 10-byte uint8 arrays and return a single array which is the bitwise OR of all of them.
uint8_t	ADCS_i2c_send_command_and_check (uint8_t id, uint8_t *data, uint32_t data_length, uint8_t include_checksum)
	Sends a telecommand over I2C to the ADCS, checks that it's been acknowledged, and returns the ACK error flag.
uint8_t	ADCS_i2c_request_telemetry_and_check (uint8_t id, uint8_t *data, uint32_t data_length, uint8_t include_checksum)
	Sends a telemetry request over I2C to the ADCS, and resends repeatedly if the checksums don't match.
uint8_t	ADCS_send_i2c_telecommand (uint8_t id, uint8_t *data, uint32_t data_length, uint8_t include_checksum)
	Sends a telecommand over I2C to the ADCS.
uint8_t	ADCS_send_i2c_telemetry_request (uint8_t id, uint8_t *data, uint32_t data_length, uint8_t include_checksum)
	Sends a telemetry request over I2C to the ADCS.
uint8_t	ADCS_initialize_crc8_checksum ()
	Initialize the lookup table for 8-bit CRC calculation. Code provided by ADCS Firmware Reference Manual (p.18-19).
uint8_t	ADCS_calculate_crc8_checksum (uint8_t *buffer, uint16_t len)
	Calculates an 8-bit CRC value. Code provided by ADCS Firmware Reference Manual (p.19).

Variables
static const uint8_t	ADCS_INCLUDE_CHECKSUM = 1
static const uint8_t	ADCS_NO_CHECKSUM = 0
static const uint8_t	ADCS_CHECKSUM_TIMEOUT_TRIES = 100
static const uint16_t	ADCS_PROCESSED_TIMEOUT_TRIES = 1000
static const uint16_t	ADCS_FILE_POINTER_TIMEOUT_MS = 60000
static const uint32_t	ADCS_FILE_DOWNLOAD_TIMEOUT_MS = 290000

Macro Definition Documentation

ADCS_i2c_HANDLE

#define ADCS_i2c_HANDLE   &hi2c1

Function Documentation

ADCS_calculate_crc8_checksum()

uint8_t ADCS_calculate_crc8_checksum	(	uint8_t *	buffer,
		uint16_t	len )

Calculates an 8-bit CRC value. Code provided by ADCS Firmware Reference Manual (p.19).

Parameters

[in]	buffer	the buffer containing data for which to calculate the crc value
[in]	len	the number of bytes of valid data in the buffer

Returns

the CRC value calculated (which is 0xFF for an empty buffer)

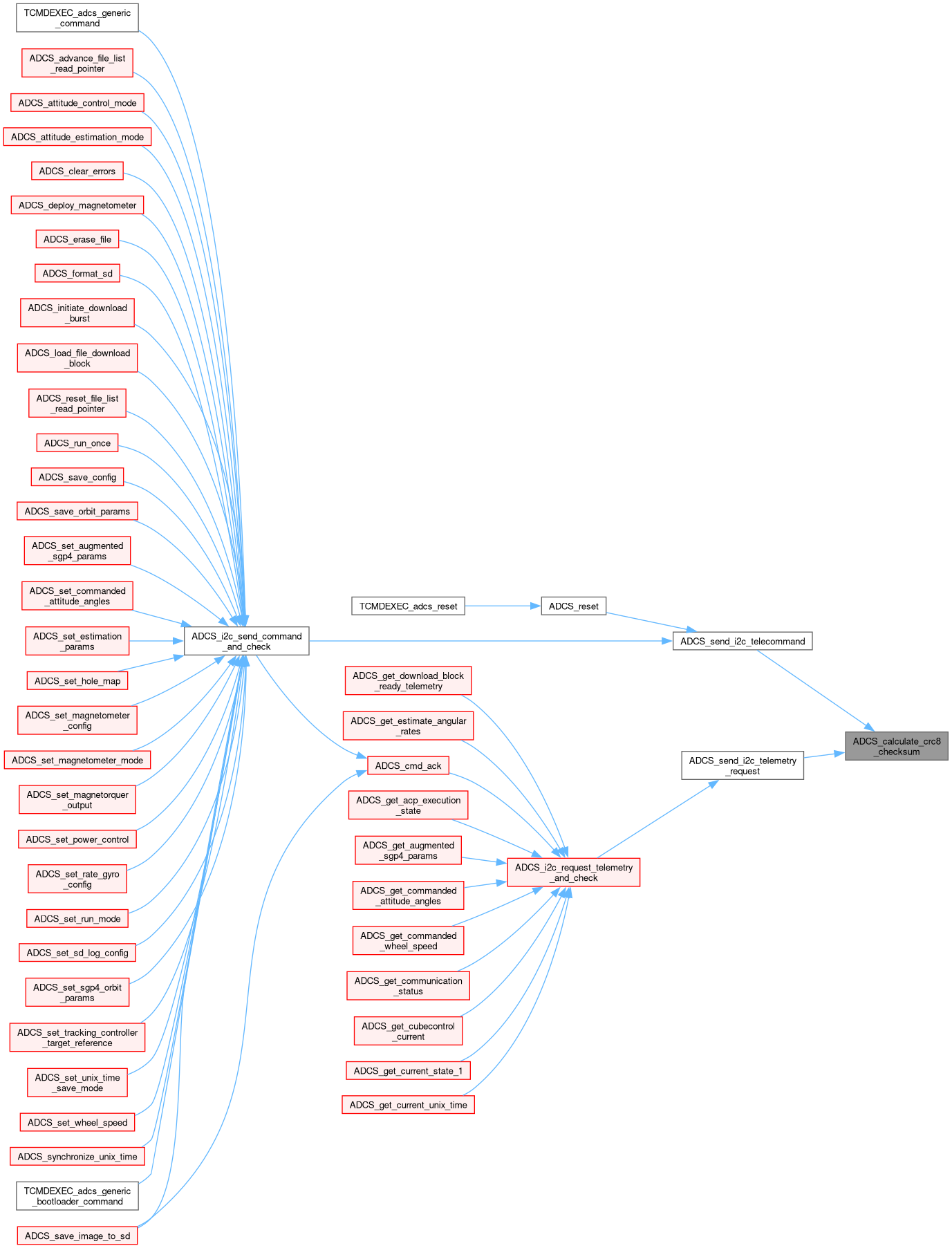

Here is the caller graph for this function:

ADCS_combine_sd_log_bitmasks()

uint8_t ADCS_combine_sd_log_bitmasks	(	const uint8_t **	array_in,
		const uint8_t	array_in_len,
		uint8_t *	array_out )

Take an arbitrary number (up to 63) of 10-byte uint8 arrays and return a single array which is the bitwise OR of all of them.

Parameters

[in]	array_in	Array of pointers to 10-byte uint8 data arrays
[in]	array_in_len	Size of the array_in array
[out]	array_out	10-byte uint8 data array to send the result to

Returns

0 once complete.

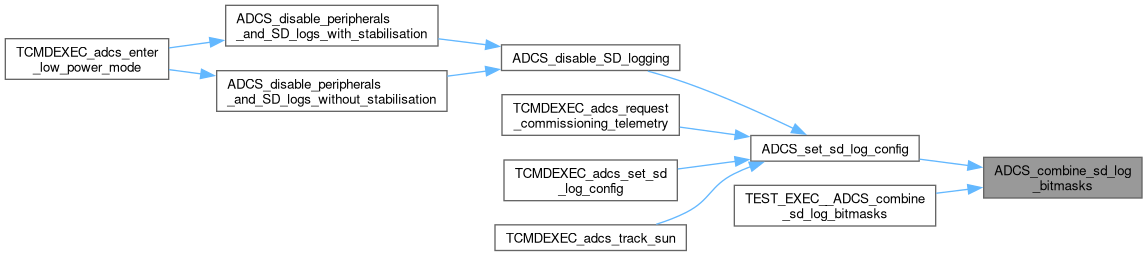

Here is the caller graph for this function:

ADCS_convert_double_to_string()

uint8_t ADCS_convert_double_to_string	(	double	input,
		uint8_t	precision,
		char *	output_string,
		uint16_t	str_len )

Convert a double into a string with a given decimal precision.

Note

This is used because snprintf doesn't support printing doubles.

Parameters

[in]	input	Value to convert.
[in]	precision	Number of decimal places to use.
[out]	output_string	Character array to write the string number to.
[in]	str_len	Length of the output string.

Returns

0 once complete, 1 if the string is too short, 2 if there was an error printing to the string.

Here is the caller graph for this function:

ADCS_convert_uint16_to_reversed_uint8_array_members()

uint8_t ADCS_convert_uint16_to_reversed_uint8_array_members	(	uint8_t *	array,
		uint16_t	value,
		uint16_t	index )

Swap low and high bytes of a uint16 to turn into uint8 and put into specified index of an array.

Parameters

[in]	value	Value to split and swap the order of.
[in]	index	Index in array to write the result. (Array must contain at least two bytes, with index pointing to the first)
[out]	array	Data array to write the two bytes to at the specified index and index + 1.

Returns

0 once complete.

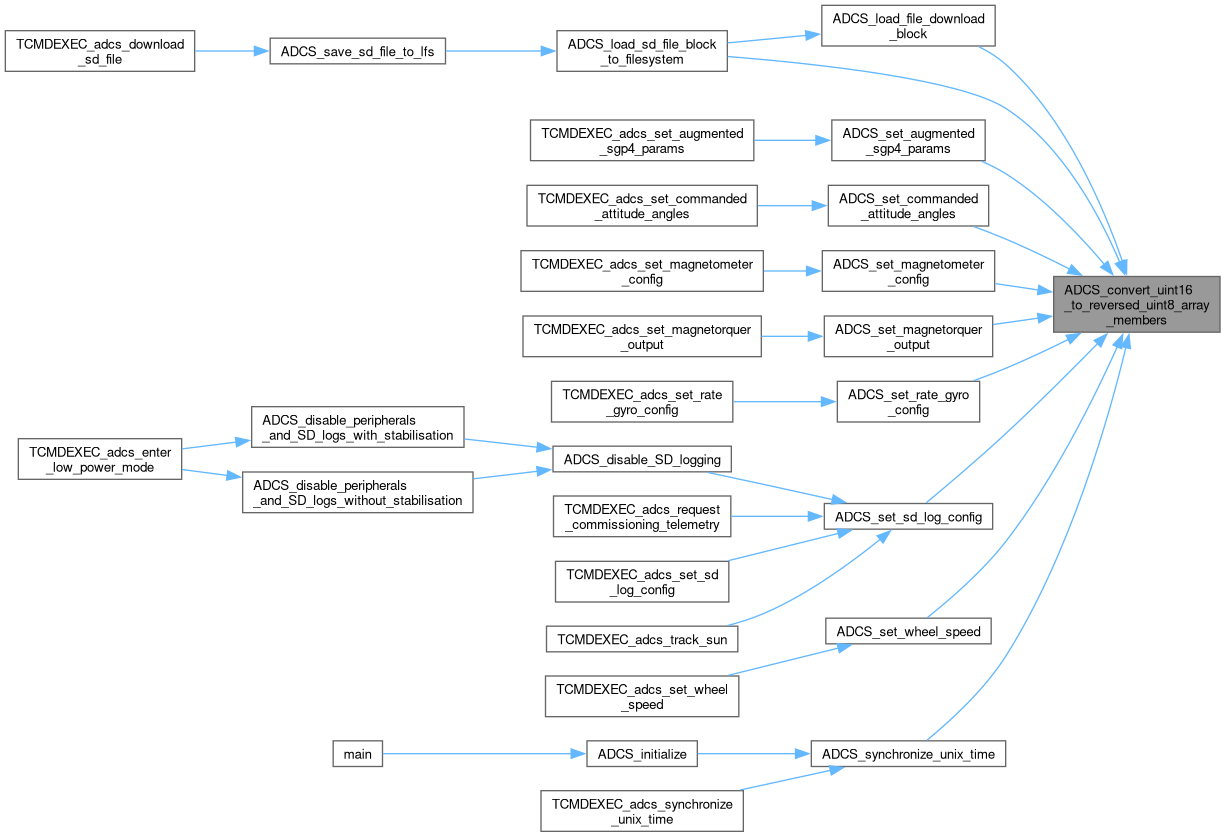

Here is the caller graph for this function:

ADCS_convert_uint32_to_reversed_uint8_array_members()

uint8_t ADCS_convert_uint32_to_reversed_uint8_array_members	(	uint8_t *	array,
		uint32_t	value,
		uint16_t	index )

Reverse the order of the four bytes of a uint32 to turn into uint8 and put into specified index of an array.

Parameters

[in]	value	Value to split and swap the order of.
[in]	index	Index in array to write the result. (Array must contain at least four bytes, with index pointing to the first)
[out]	array	Data array to write the four bytes to at the specified index and the three subsequent indices.

Returns

0 once complete.

Here is the caller graph for this function:

ADCS_i2c_request_telemetry_and_check()

uint8_t ADCS_i2c_request_telemetry_and_check	(	uint8_t	id,
		uint8_t *	data,
		uint32_t	data_length,
		uint8_t	include_checksum )

Sends a telemetry request over I2C to the ADCS, and resends repeatedly if the checksums don't match.

Parameters

[in]	id	Valid ADCS telemetry request ID (see Firmware Reference Manual)
[in]	include_checksum	Tells the ADCS whether to use a CRC8 checksum; should be either ADCS_INCLUDE_CHECKSUM or ADCS_NO_CHECKSUM
[in]	data_length	Length of the data array.
[out]	data	Data array to write the raw telemetry bytes to; length must be at least data_length (should contain the correct number of bytes for the given telemetry request ID)

Returns

0 if successful, other numbers if the HAL failed to transmit or receive data.

Here is the call graph for this function:

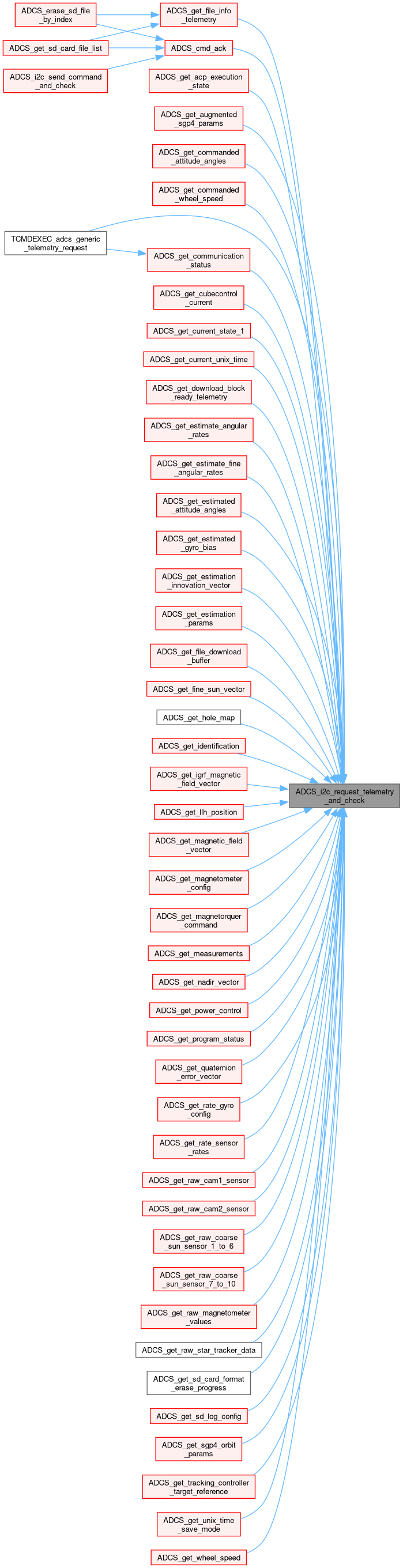

Here is the caller graph for this function:

ADCS_i2c_send_command_and_check()

uint8_t ADCS_i2c_send_command_and_check	(	uint8_t	id,
		uint8_t *	data,
		uint32_t	data_length,
		uint8_t	include_checksum )

Sends a telecommand over I2C to the ADCS, checks that it's been acknowledged, and returns the ACK error flag.

Parameters

[in]	id	Valid ADCS telecommand ID (see Firmware Reference Manual)
[in]	data	Data array to send the raw data bytes; length must be at least data_length (should contain the correct number of bytes for the given telecommand ID)
[in]	data_length	Length of the data array.
[in]	include_checksum	Tells the ADCS whether to use a CRC8 checksum; should be either ADCS_INCLUDE_CHECKSUM or ADCS_NO_CHECKSUM

Returns

0 if successful, 1 if invalid ID, 2 if incorrect parameter length, 3 if incorrect parameter value, and 4 if failed CRC

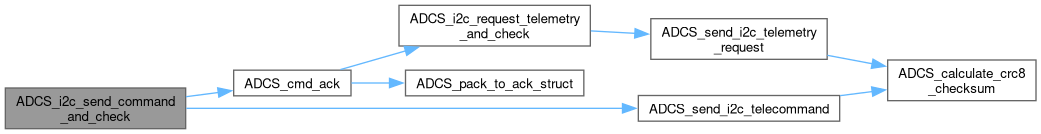

Here is the call graph for this function:

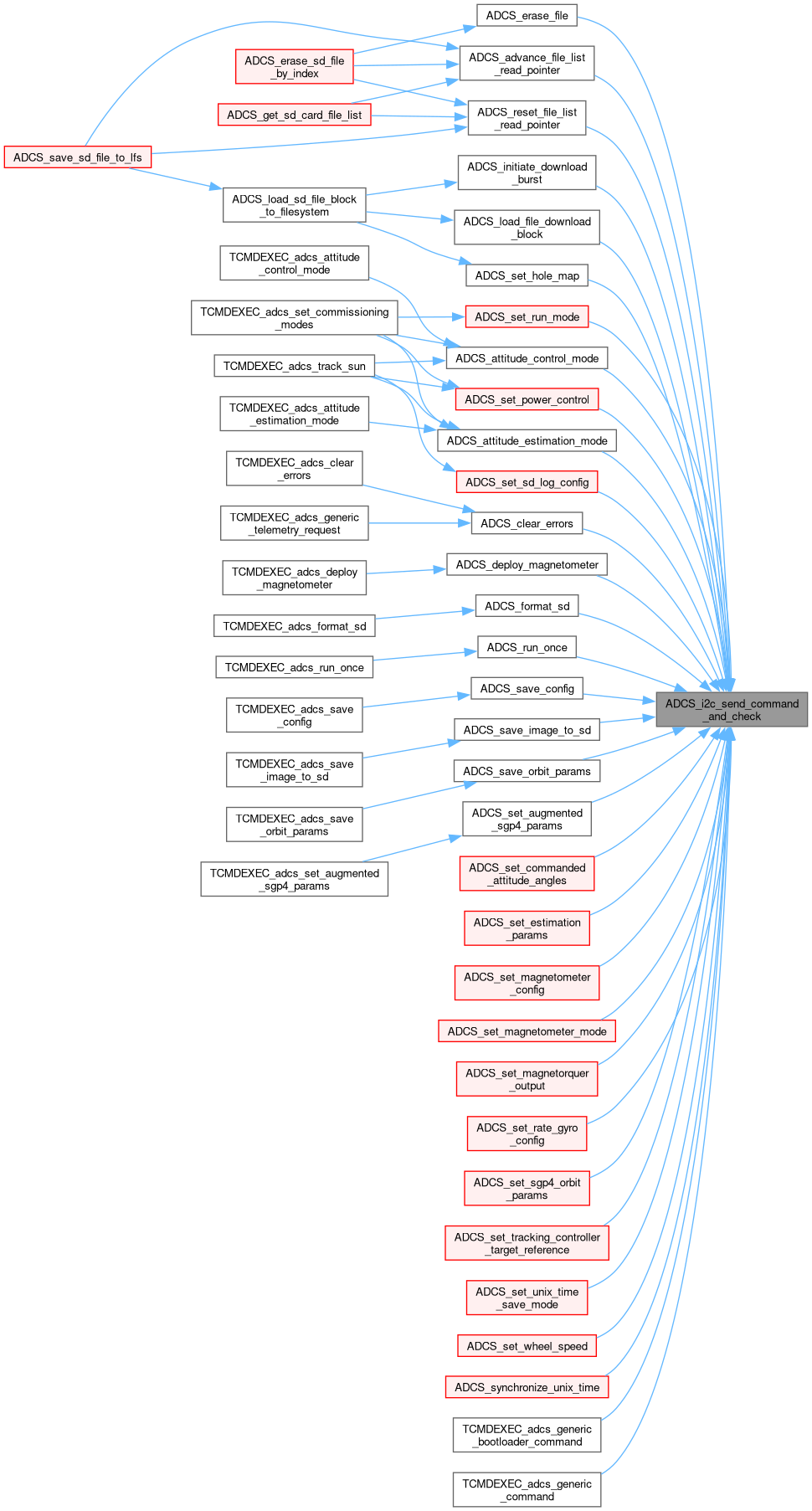

Here is the caller graph for this function:

ADCS_initialize_crc8_checksum()

uint8_t ADCS_initialize_crc8_checksum

(

)

Initialize the lookup table for 8-bit CRC calculation. Code provided by ADCS Firmware Reference Manual (p.18-19).

Returns

0 once successful.

Here is the caller graph for this function:

ADCS_send_i2c_telecommand()

uint8_t ADCS_send_i2c_telecommand	(	uint8_t	id,
		uint8_t *	data,
		uint32_t	data_length,
		uint8_t	include_checksum )

Sends a telecommand over I2C to the ADCS.

Parameters

[in]	id	Valid ADCS telecommand ID (see Firmware Reference Manual)
[in]	data	Data array to send the raw data bytes; length must be at least data_length (should contain the correct number of bytes for the given telecommand ID)
[in]	data_length	Length of the data array.
[in]	include_checksum	Tells the ADCS whether to use a CRC8 checksum; should be either ADCS_INCLUDE_CHECKSUM or ADCS_NO_CHECKSUM

Returns

0 if successful, 4 if the checksums don't match, other numbers if the HAL failed to transmit or receive data.

Here is the call graph for this function:

Here is the caller graph for this function:

ADCS_send_i2c_telemetry_request()

uint8_t ADCS_send_i2c_telemetry_request	(	uint8_t	id,
		uint8_t *	data,
		uint32_t	data_length,
		uint8_t	include_checksum )

Sends a telemetry request over I2C to the ADCS.

Parameters

[in]	id	Valid ADCS telemetry request ID (see Firmware Reference Manual)
[in]	include_checksum	Tells the ADCS whether to use a CRC8 checksum; should be either ADCS_INCLUDE_CHECKSUM or ADCS_NO_CHECKSUM
[in]	data_length	Length of the data array.
[out]	data	Data array to write the raw telemetry bytes to; length must be at least data_length (should contain the correct number of bytes for the given telemetry request ID)

Returns

0 if successful, 4 if the checksums don't match, other numbers if the HAL failed to transmit or receive data.

Here is the call graph for this function:

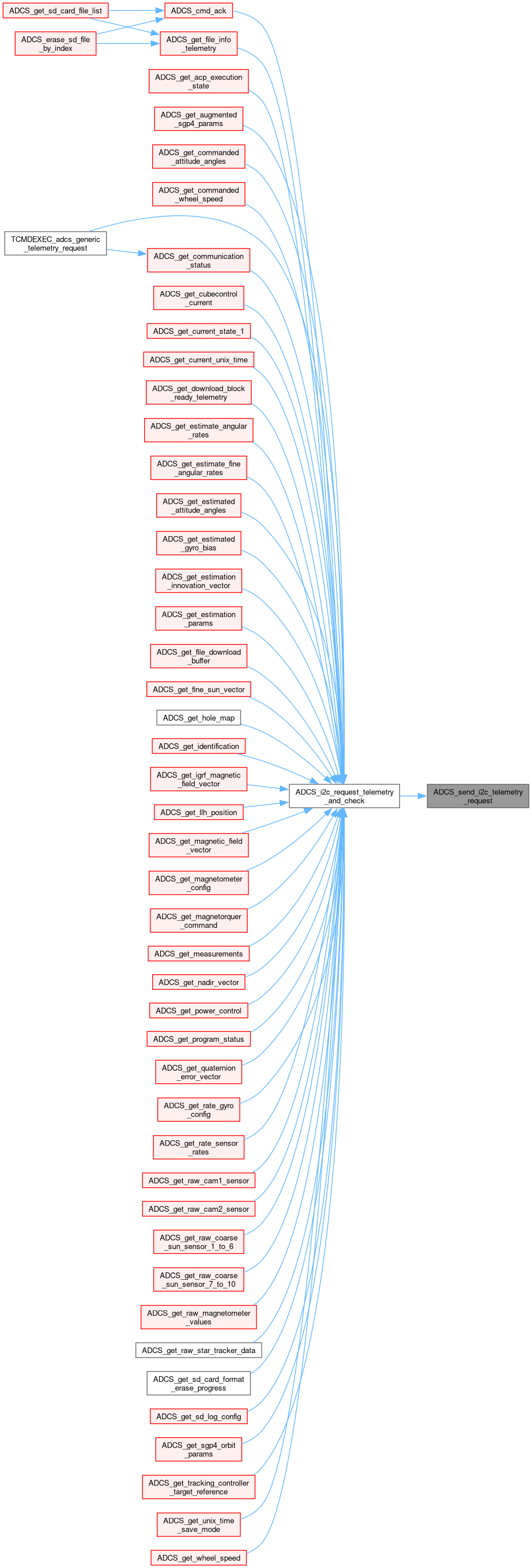

Here is the caller graph for this function:

Variable Documentation

ADCS_CHECKSUM_TIMEOUT_TRIES

const uint8_t ADCS_CHECKSUM_TIMEOUT_TRIES = 100

static

ADCS_FILE_DOWNLOAD_TIMEOUT_MS

const uint32_t ADCS_FILE_DOWNLOAD_TIMEOUT_MS = 290000

static

ADCS_FILE_POINTER_TIMEOUT_MS

const uint16_t ADCS_FILE_POINTER_TIMEOUT_MS = 60000

static

ADCS_INCLUDE_CHECKSUM

const uint8_t ADCS_INCLUDE_CHECKSUM = 1

static

ADCS_NO_CHECKSUM

const uint8_t ADCS_NO_CHECKSUM = 0

static

ADCS_PROCESSED_TIMEOUT_TRIES

const uint16_t ADCS_PROCESSED_TIMEOUT_TRIES = 1000

static
