log.c File Reference

#include "log/log.h"
#include "log/log_sinks.h"
#include "debug_tools/debug_uart.h"
#include "timekeeping/timekeeping.h"
#include <complex.h>
#include <stdint.h>
#include <stdio.h>
#include <string.h>
#include <stdarg.h>

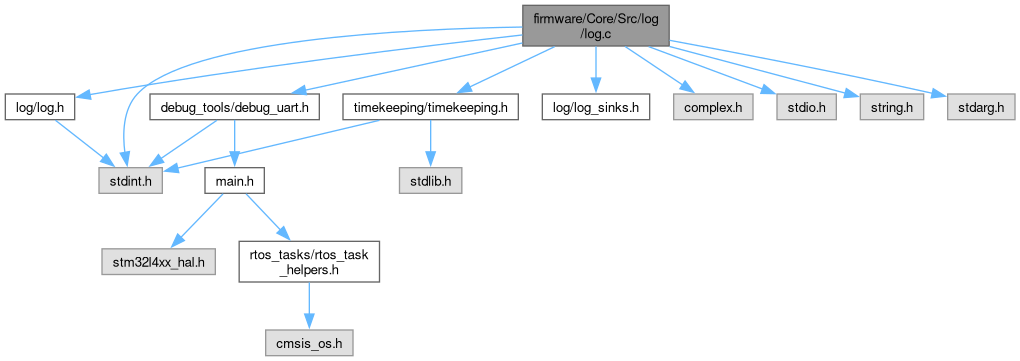

Include dependency graph for log.c:

Classes
struct	LOG_sink_t
struct	LOG_system_t
struct	LOG_memory_entry_t

Macros
#define	LOG_TIMESTAMP_MAX_LENGTH   30
#define	LOG_SINK_NAME_MAX_LENGTH   20
#define	LOG_SYSTEM_NAME_MAX_LENGTH   20
#define	LOG_FULL_MESSAGE_MAX_LENGTH   ( LOG_FORMATTED_MESSAGE_MAX_LENGTH + LOG_TIMESTAMP_MAX_LENGTH + LOG_SINK_NAME_MAX_LENGTH + LOG_SYSTEM_NAME_MAX_LENGTH + 1 )
#define	LOG_MEMORY_NUMBER_OF_ENTRIES   128

Functions
static char	LOG_context_enum_to_char (LOG_context_enum_t context)
void	LOG_message (LOG_system_enum_t system, LOG_severity_enum_t severity, uint32_t sink_mask, const char fmt[],...)
	Log a message to several destinations (sinks)
uint32_t	LOG_all_sinks_except (uint32_t sink_exceptions_mask)
	Returns all sinks, except the specified exceptions.
uint8_t	LOG_is_sink_enabled (LOG_sink_enum_t sink)
	Check logging sink status.
void	LOG_set_sink_debugging_messages_enabled_state (LOG_sink_enum_t sink, uint8_t state)
	Turn debugging messages on or off for the specified sink.
void	LOG_set_system_debugging_messages_enabled_state (LOG_system_enum_t system, uint8_t state)
	Turn debugging messages on or off for the specified system.
uint8_t	LOG_is_system_file_logging_enabled (LOG_system_enum_t system)
	Check whether file logging is enabled for a subsystem.
void	LOG_set_system_severity_mask (LOG_system_enum_t system, uint32_t severity_mask)
	Set the logging severity bitfield mask for a subsystem.
void	LOG_set_sink_enabled_state (LOG_sink_enum_t sink, uint8_t state)
	Enable or disable logging to a sink.
void	LOG_set_system_file_logging_enabled_state (LOG_system_enum_t system, uint8_t state)
	Enable or disable logging to file for a subsystem.
void	LOG_report_sink_enabled_state (LOG_sink_enum_t sink)
	Report a sink's enabled state.
void	LOG_report_system_file_logging_state (LOG_system_enum_t system)
	Report a subsystem's file-logging state.
uint16_t	LOG_number_of_logging_sinks (void)
uint16_t	LOG_number_of_logging_systems (void)
const char *	LOG_get_severity_name (LOG_severity_enum_t severity)
	Get the name of a severity enum.
uint8_t	LOG_memory_table_max_entries (void)
	Get the size in entries of the in-memory log table.
uint8_t	LOG_get_memory_table_index_of_most_recent_log_entry (void)
	Get the index of the most recent in-memory log message.
const char *	LOG_get_memory_table_full_message_at_index (uint8_t index)
	Get a pointer to the full text of the in-memory log message at the specified index.

Variables
LOG_context_enum_t	LOG_current_log_context = LOG_CONTEXT_AUTONOMOUS
static char	LOG_timestamp_string [LOG_TIMESTAMP_MAX_LENGTH] = {0}
static char	LOG_formatted_log_message [LOG_FORMATTED_MESSAGE_MAX_LENGTH] = {0}
static LOG_memory_entry_t	LOG_memory_table [LOG_MEMORY_NUMBER_OF_ENTRIES] = {0}
static uint8_t	LOG_memory_index_of_current_log_entry = LOG_MEMORY_NUMBER_OF_ENTRIES - 1
static const uint8_t	LOG_SEVERITY_MASK_ALL = 0xFF
static const uint8_t	LOG_SEVERITY_MASK_DEFAULT = LOG_SEVERITY_MASK_ALL
static LOG_sink_t	LOG_sinks []
static const uint16_t	LOG_NUMBER_OF_SINKS = sizeof(LOG_sinks) / sizeof(LOG_sink_t)
static LOG_system_t	LOG_systems []
static const uint16_t	LOG_NUMBER_OF_SYSTEMS = sizeof(LOG_systems) / sizeof(LOG_system_t)

Macro Definition Documentation

LOG_FULL_MESSAGE_MAX_LENGTH

#define LOG_FULL_MESSAGE_MAX_LENGTH   ( LOG_FORMATTED_MESSAGE_MAX_LENGTH + LOG_TIMESTAMP_MAX_LENGTH + LOG_SINK_NAME_MAX_LENGTH + LOG_SYSTEM_NAME_MAX_LENGTH + 1 )

LOG_MEMORY_NUMBER_OF_ENTRIES

#define LOG_MEMORY_NUMBER_OF_ENTRIES   128

LOG_SINK_NAME_MAX_LENGTH

#define LOG_SINK_NAME_MAX_LENGTH   20

LOG_SYSTEM_NAME_MAX_LENGTH

#define LOG_SYSTEM_NAME_MAX_LENGTH   20

LOG_TIMESTAMP_MAX_LENGTH

#define LOG_TIMESTAMP_MAX_LENGTH   30

Function Documentation

LOG_all_sinks_except()

uint32_t LOG_all_sinks_except

(

uint32_t

sink_exceptions_mask

)

Returns all sinks, except the specified exceptions.

Parameters

exceptions

Bitfield represent log sinks to exclude

Returns

Bitfield representing all log sinks, except those passed as an arg

Note

Especially useful in calls to LOG_message(), to report a failure of a specific logging sink.

Here is the caller graph for this function:

LOG_context_enum_to_char()

static char LOG_context_enum_to_char ( LOG_context_enum_t context )

static

Here is the caller graph for this function:

LOG_get_memory_table_full_message_at_index()

const char * LOG_get_memory_table_full_message_at_index

(

uint8_t

index

)

Get a pointer to the full text of the in-memory log message at the specified index.

Parameters

index

requested in-memory log message

Returns

pointer to the full text of the log message

Here is the caller graph for this function:

LOG_get_memory_table_index_of_most_recent_log_entry()

uint8_t LOG_get_memory_table_index_of_most_recent_log_entry

(

void

)

Get the index of the most recent in-memory log message.

Returns

index of the most recent log message

Here is the caller graph for this function:

LOG_get_severity_name()

const char * LOG_get_severity_name

(

LOG_severity_enum_t

severity

)

Get the name of a severity enum.

Parameters

severity

the specified severity

Returns

pointer to the statically allocated name

Here is the caller graph for this function:

LOG_is_sink_enabled()

uint8_t LOG_is_sink_enabled

(

LOG_sink_enum_t

sink

)

Check logging sink status.

Parameters

sink	the sink to check

Returns

0: disabled (or invalid sink); 1: enabled

Here is the call graph for this function:

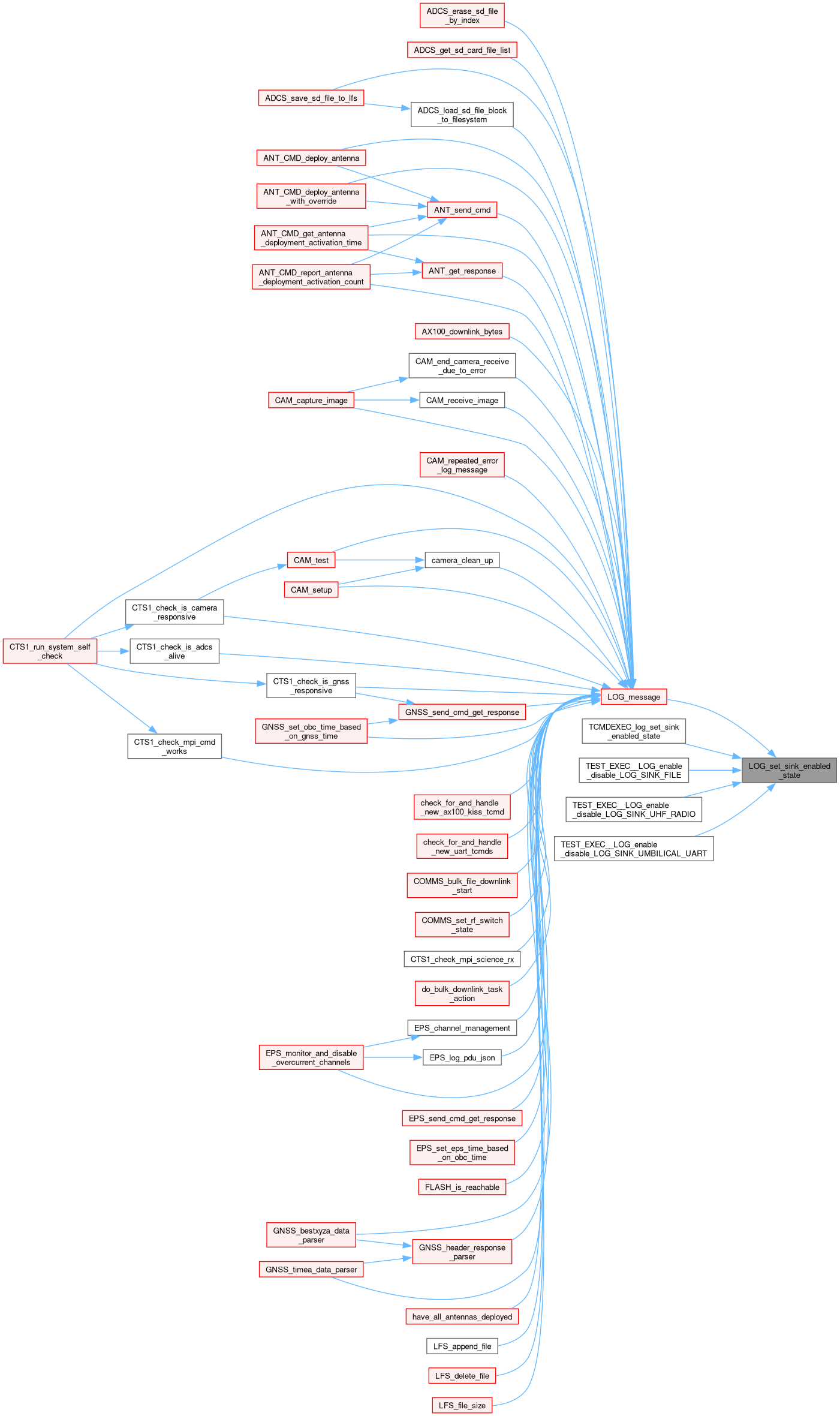

Here is the caller graph for this function:

LOG_is_system_file_logging_enabled()

uint8_t LOG_is_system_file_logging_enabled

(

LOG_system_enum_t

system

)

Check whether file logging is enabled for a subsystem.

Parameters

system

Returns

returns 1 if logging to file is enabled, 0 otherwise.

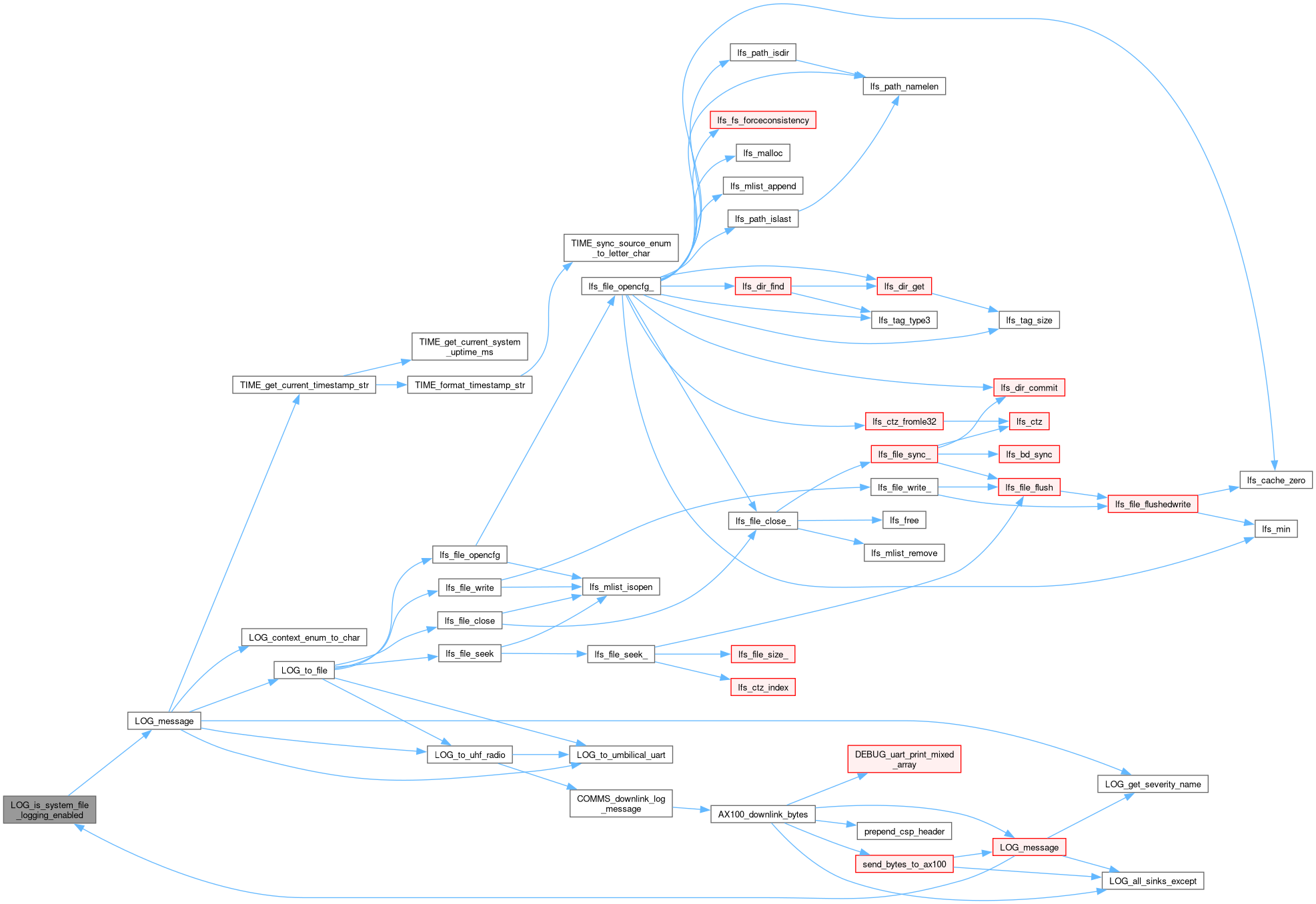

Here is the call graph for this function:

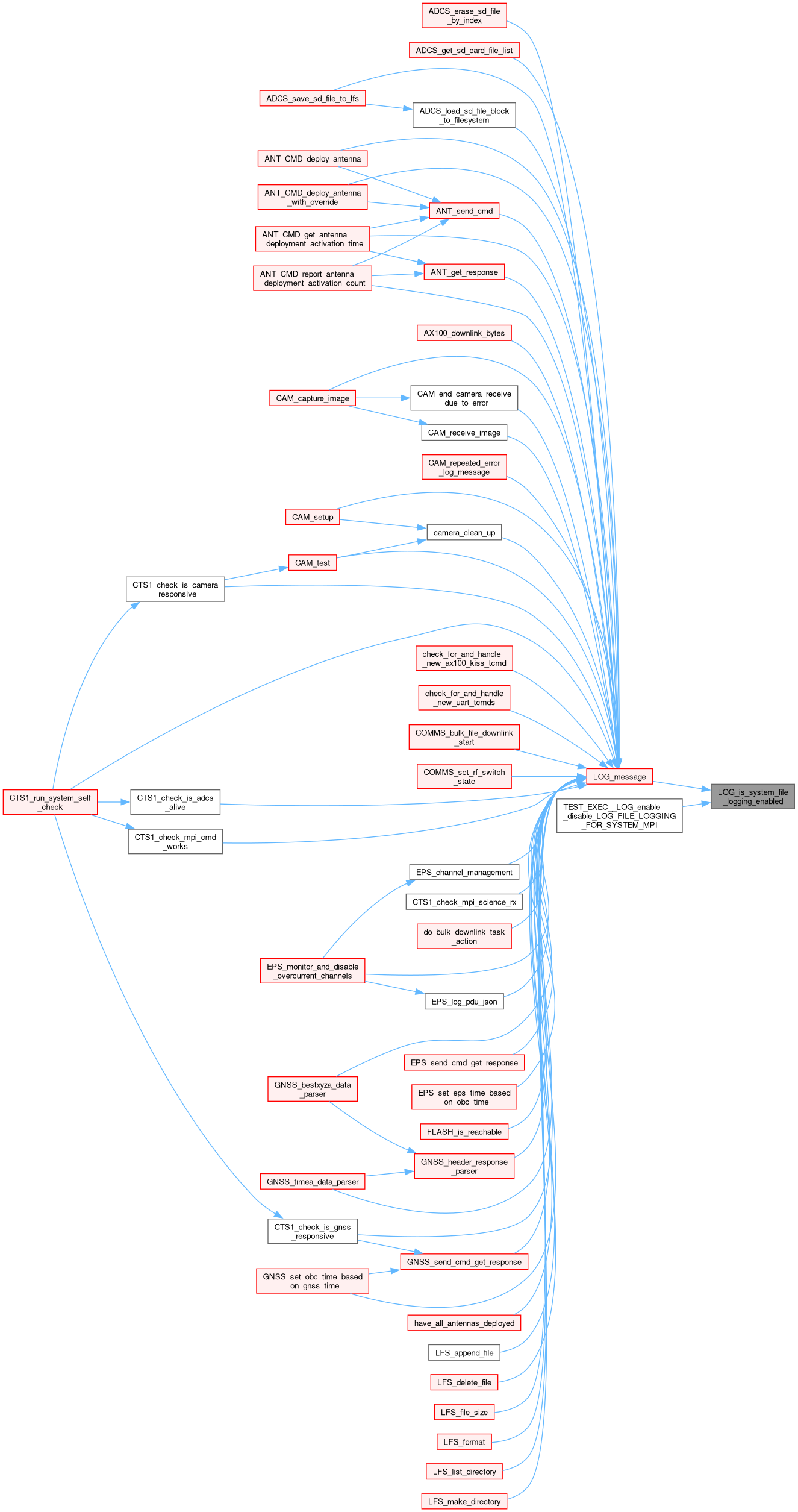

Here is the caller graph for this function:

LOG_memory_table_max_entries()

uint8_t LOG_memory_table_max_entries

(

void

)

Get the size in entries of the in-memory log table.

Returns

size of the in-memory log table

Here is the caller graph for this function:

LOG_message()

void LOG_message	(	LOG_system_enum_t	system,
		LOG_severity_enum_t	severity,
		uint32_t	sink_mask,
		const char	fmt[],
			... )

Log a message to several destinations (sinks)

Parameters

system	the system sending the log message (i.e., satellite subsystem)
severity	message severity
sink_mask	bitfield representing desired log sinks
fmt	printf-link format
...	additional printf-like message arguments

Returns

void

Normally the message should not end with a newline (
). Exclude one or more sinks using LOG_all_sinks_except(...)

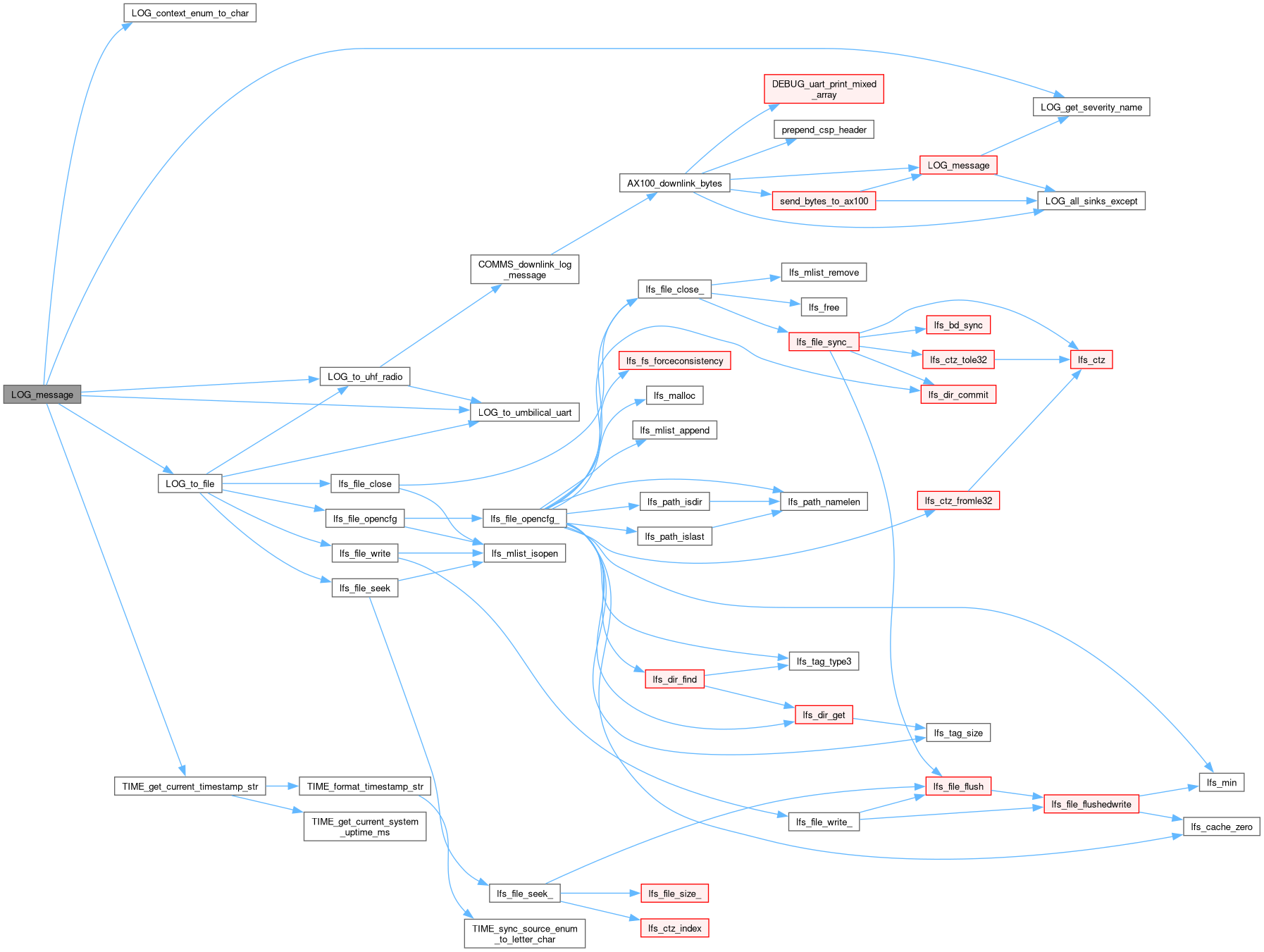

Here is the call graph for this function:

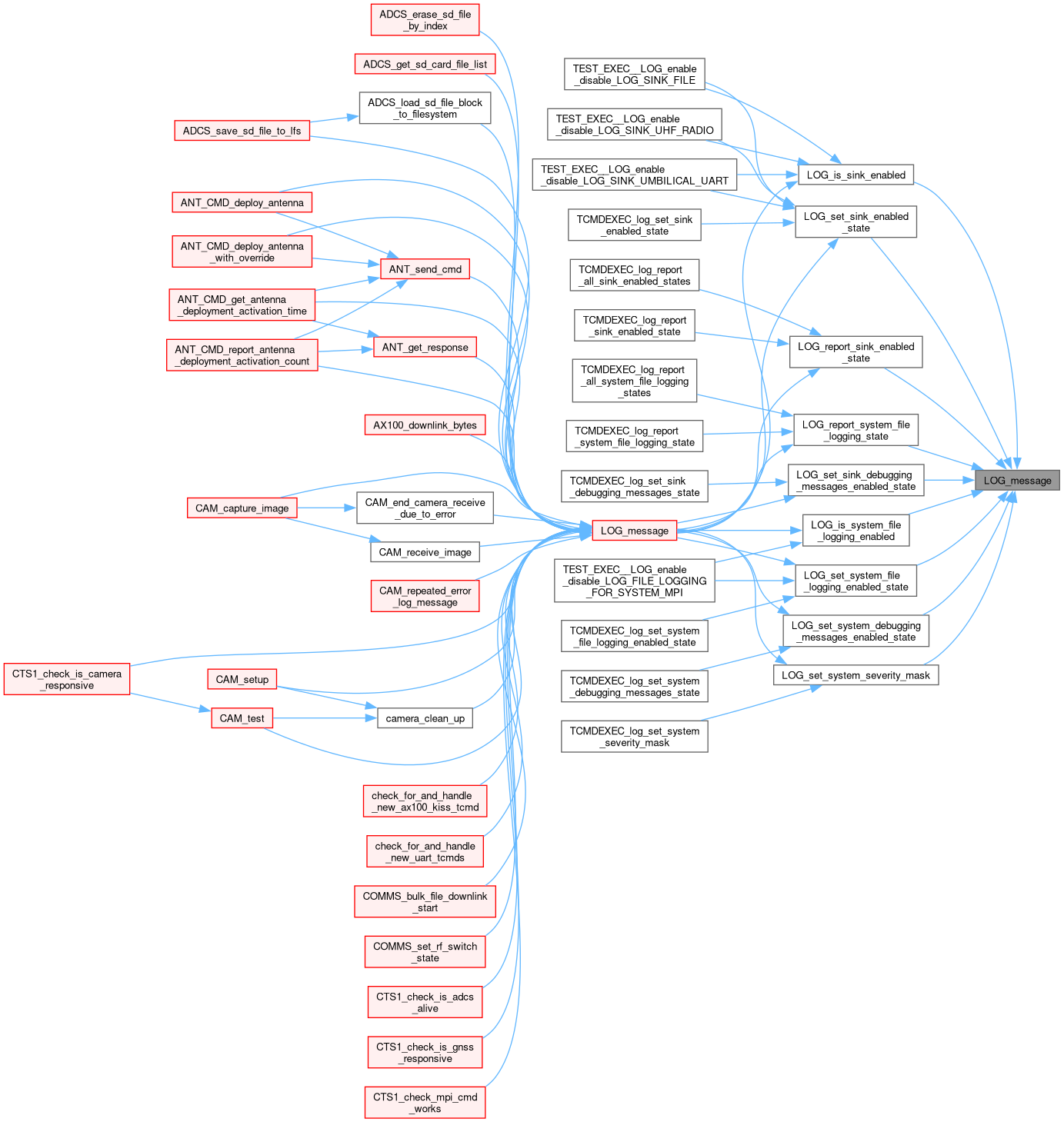

Here is the caller graph for this function:

LOG_number_of_logging_sinks()

uint16_t LOG_number_of_logging_sinks

(

void

)

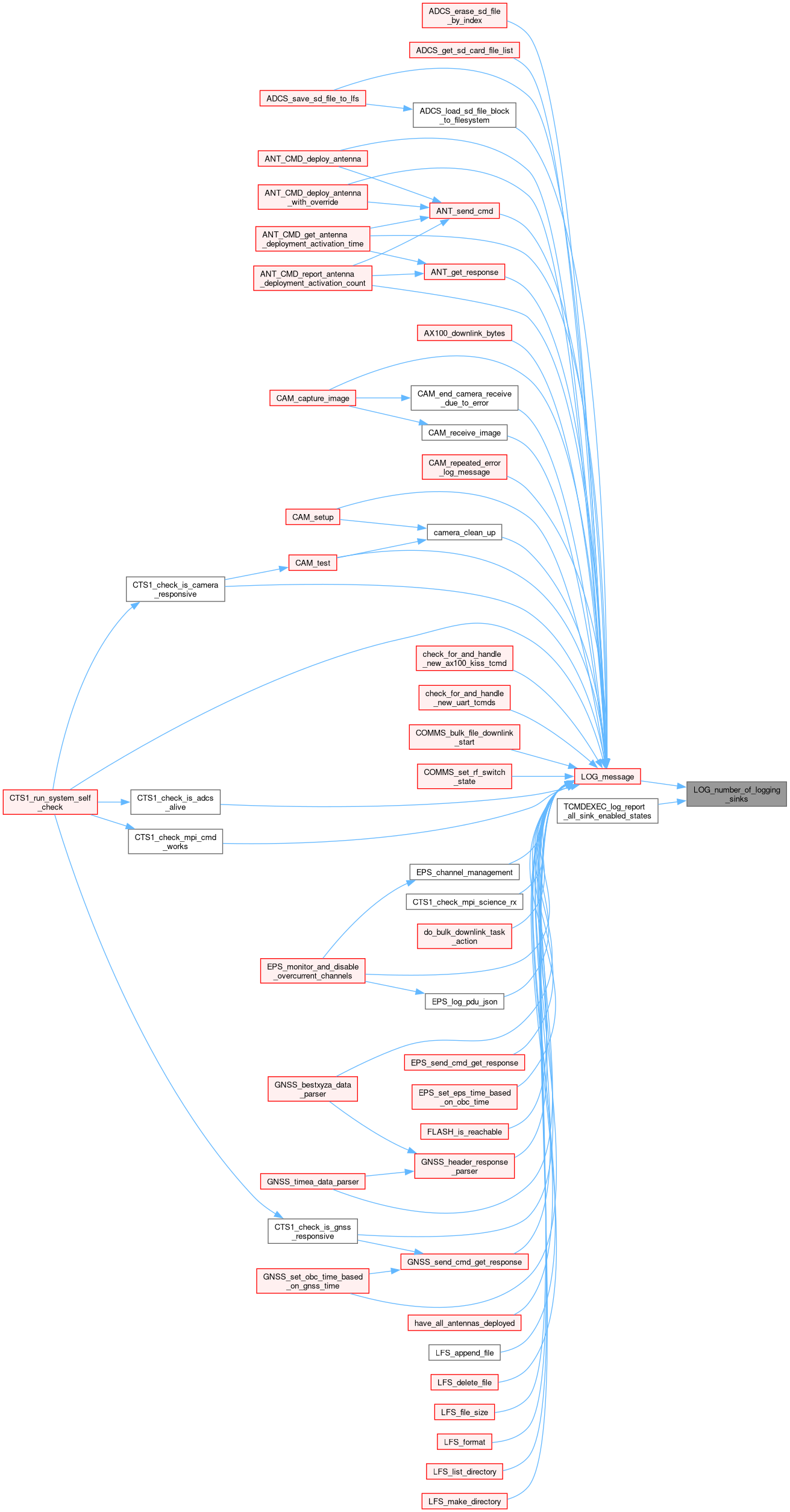

Here is the caller graph for this function:

LOG_number_of_logging_systems()

uint16_t LOG_number_of_logging_systems

(

void

)

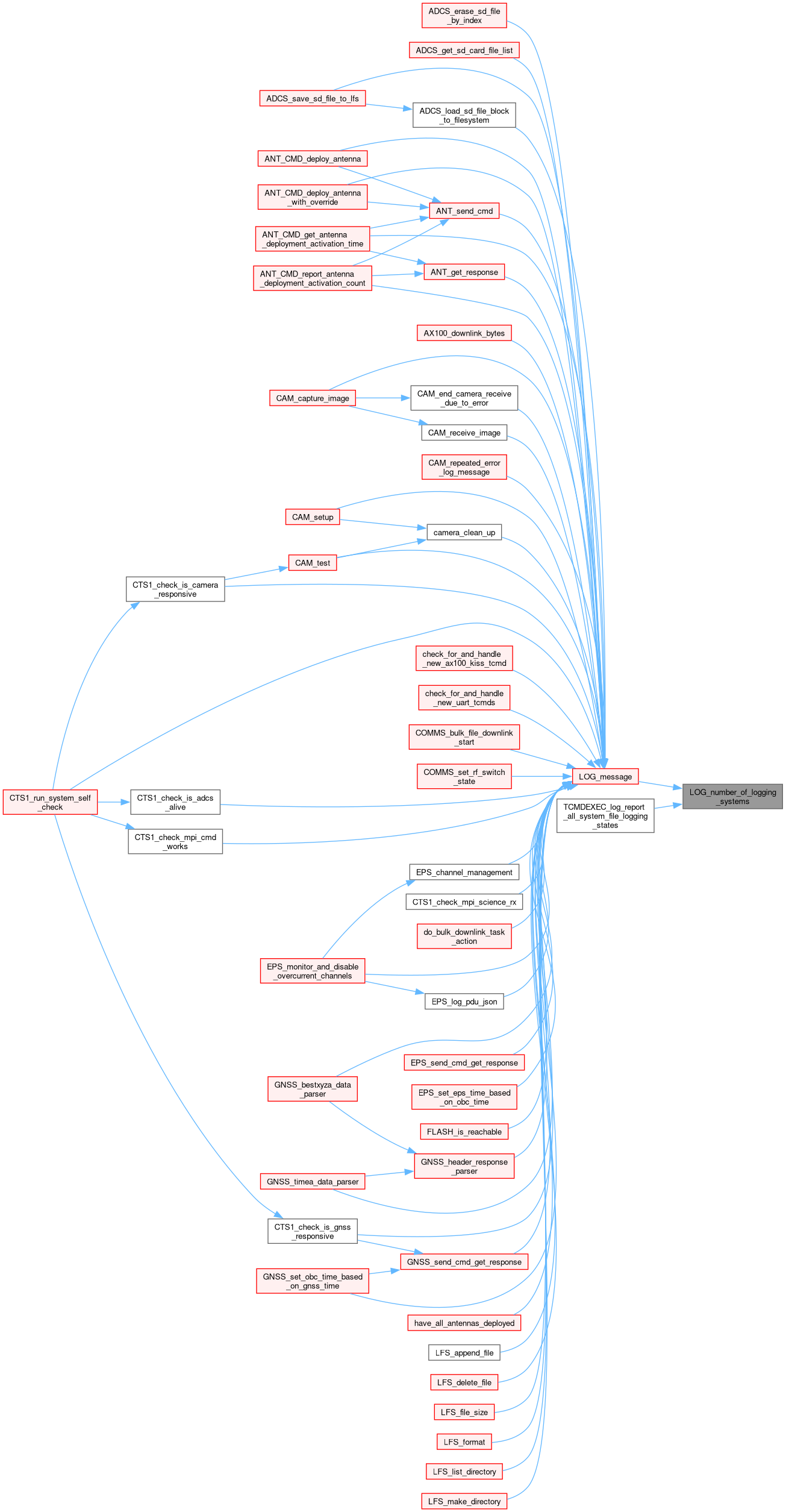

Here is the caller graph for this function:

LOG_report_sink_enabled_state()

void LOG_report_sink_enabled_state

(

LOG_sink_enum_t

sink

)

Report a sink's enabled state.

Parameters

sink	specified sink

Here is the call graph for this function:

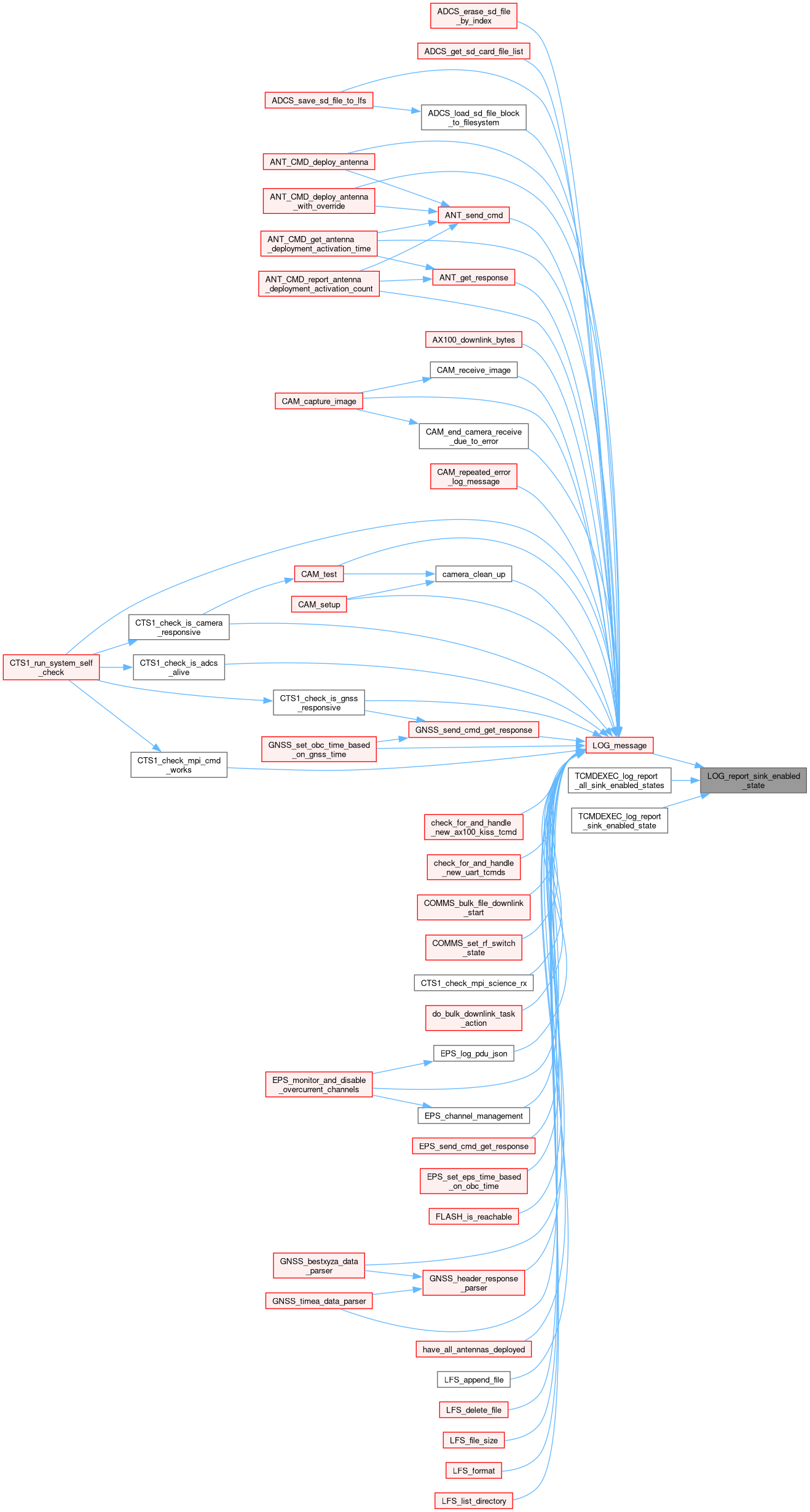

Here is the caller graph for this function:

LOG_report_system_file_logging_state()

void LOG_report_system_file_logging_state

(

LOG_system_enum_t

system

)

Report a subsystem's file-logging state.

Parameters

sink	specified sink

Note

includes the subsystem's log filename

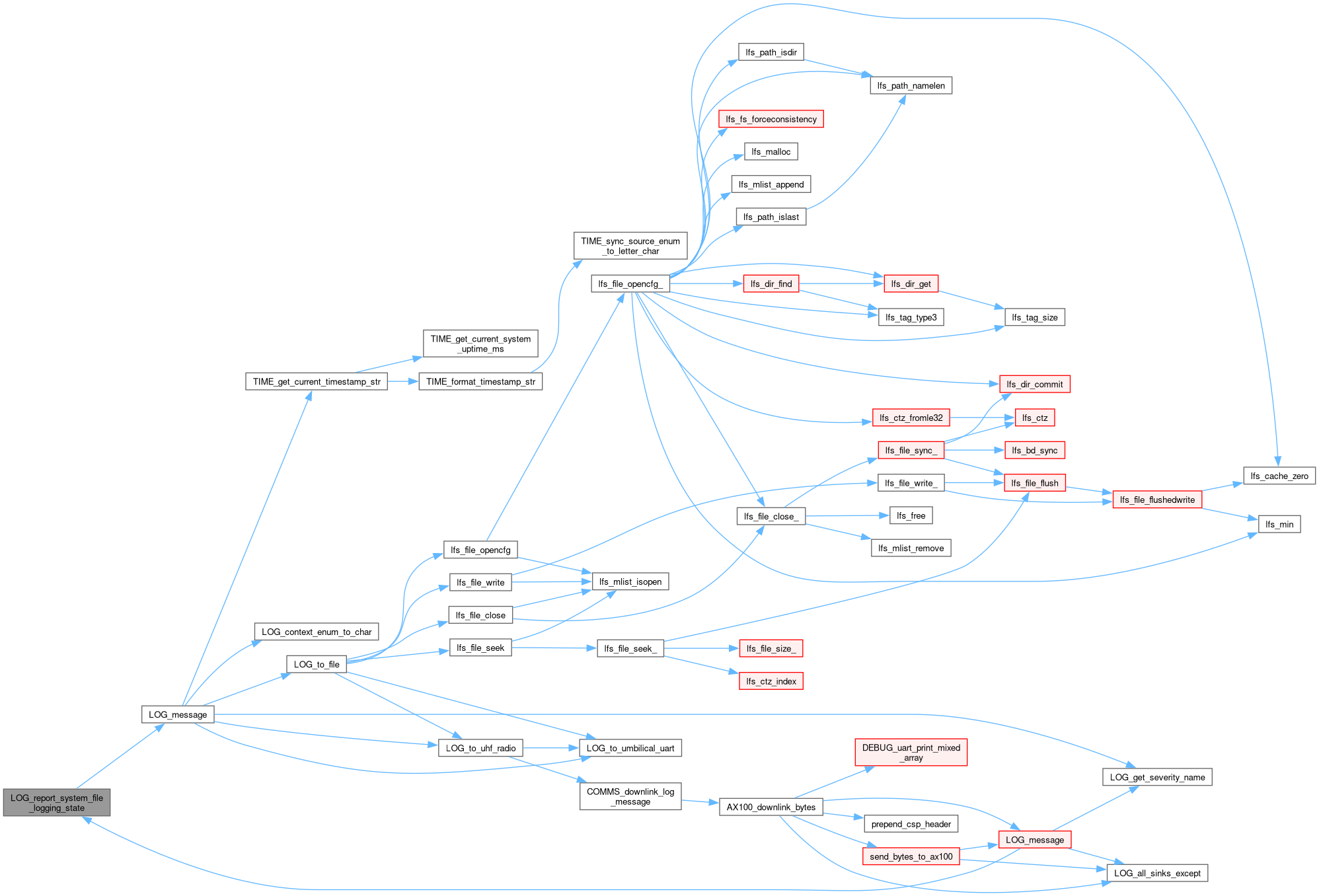

Here is the call graph for this function:

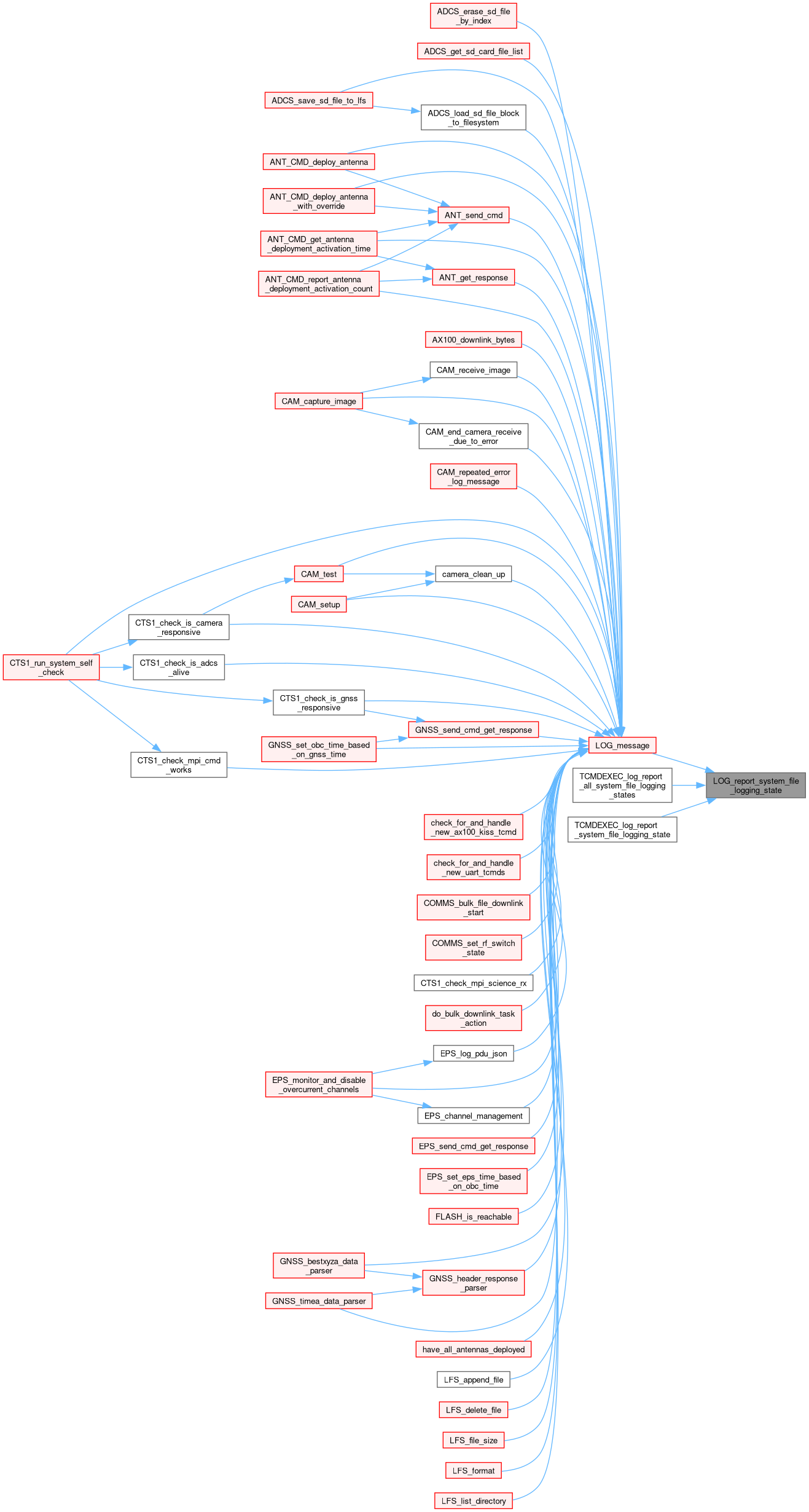

Here is the caller graph for this function:

LOG_set_sink_debugging_messages_enabled_state()

void LOG_set_sink_debugging_messages_enabled_state	(	LOG_sink_enum_t	sink,
		uint8_t	state )

Turn debugging messages on or off for the specified sink.

Parameters

sink	specified sink
state	0: debugging messages off; 1: debugging messages on

Turning off a sink's debugging messages overrides a system's debugging messages state

Here is the call graph for this function:

Here is the caller graph for this function:

LOG_set_sink_enabled_state()

void LOG_set_sink_enabled_state	(	LOG_sink_enum_t	sink,
		uint8_t	state )

Enable or disable logging to a sink.

Parameters

sink	specified sink @state 0: disable 1: enable

Here is the call graph for this function:

Here is the caller graph for this function:

LOG_set_system_debugging_messages_enabled_state()

void LOG_set_system_debugging_messages_enabled_state	(	LOG_system_enum_t	system,
		uint8_t	state )

Turn debugging messages on or off for the specified system.

Parameters

system	specified system
state	0: debugging messages off; 1: debugging messages on

Debugging messages will be disabled if turned off for a given sink

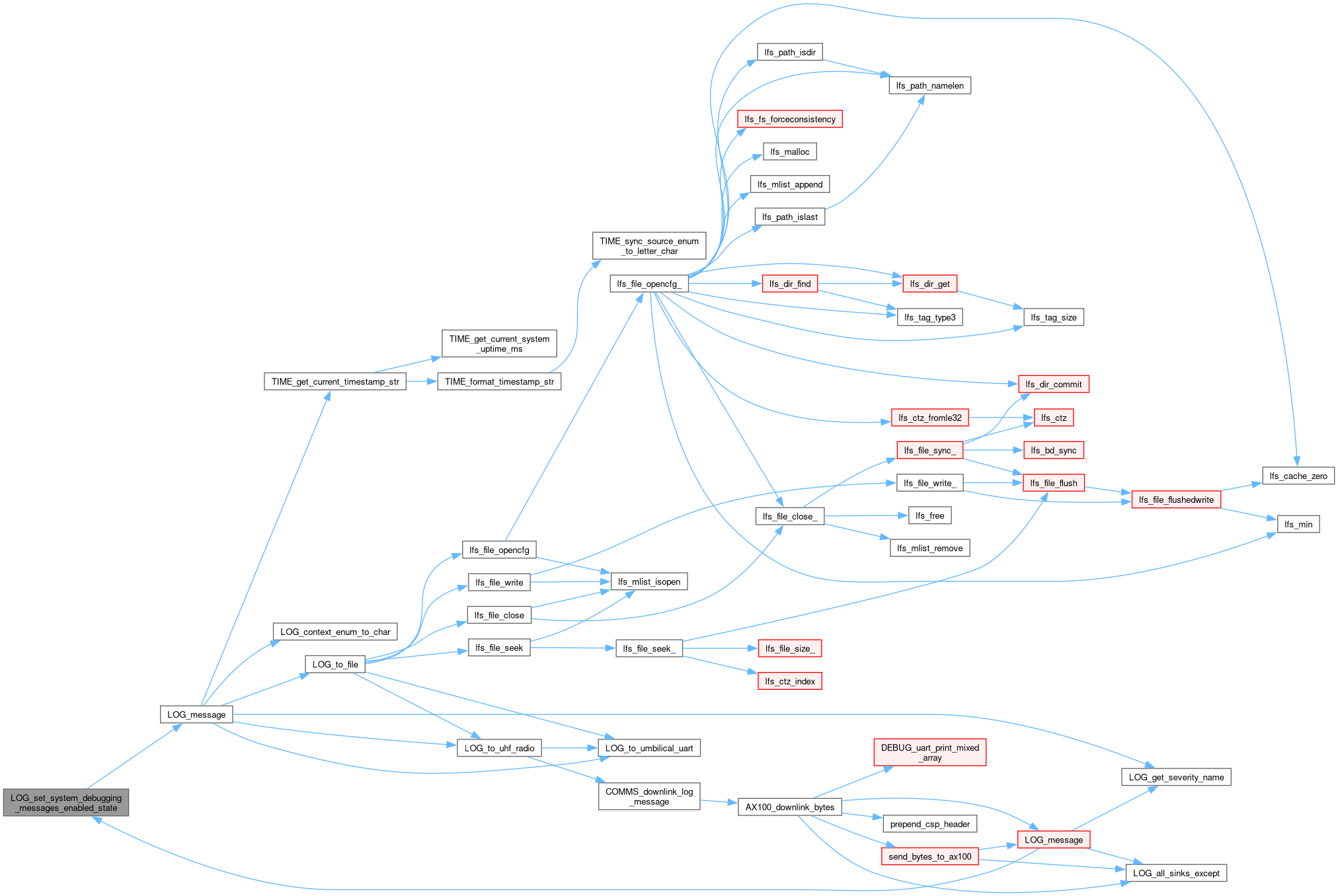

Here is the call graph for this function:

Here is the caller graph for this function:

LOG_set_system_file_logging_enabled_state()

void LOG_set_system_file_logging_enabled_state	(	LOG_system_enum_t	system,
		uint8_t	state )

Enable or disable logging to file for a subsystem.

Parameters

system

specified subsystem @state 0: disable 1: enable

Here is the call graph for this function:

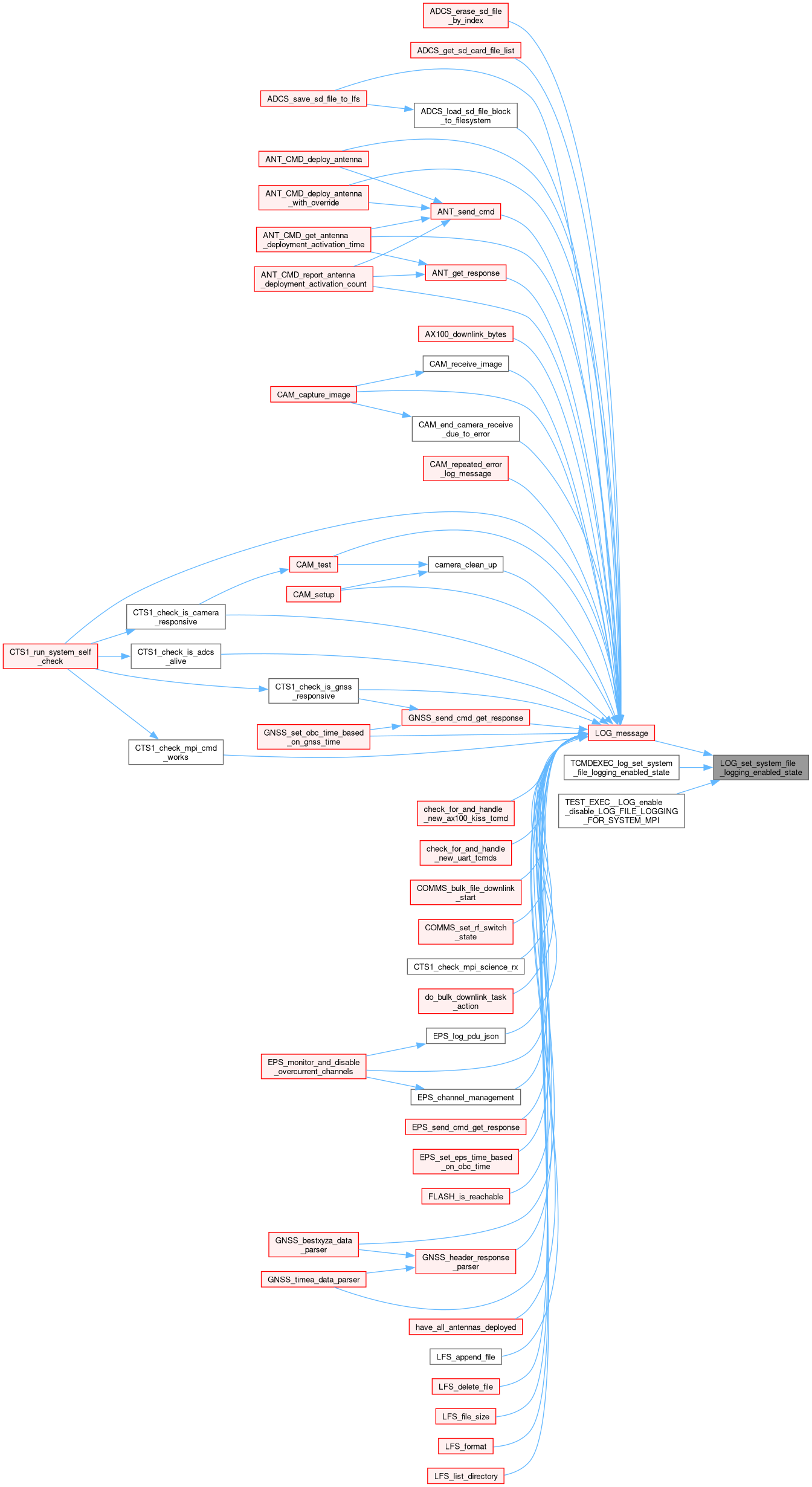

Here is the caller graph for this function:

LOG_set_system_severity_mask()

void LOG_set_system_severity_mask	(	LOG_system_enum_t	system,
		uint32_t	severity_mask )

Set the logging severity bitfield mask for a subsystem.

Parameters

system	specified system
severity_mask	bitfield representing the severities to be logged

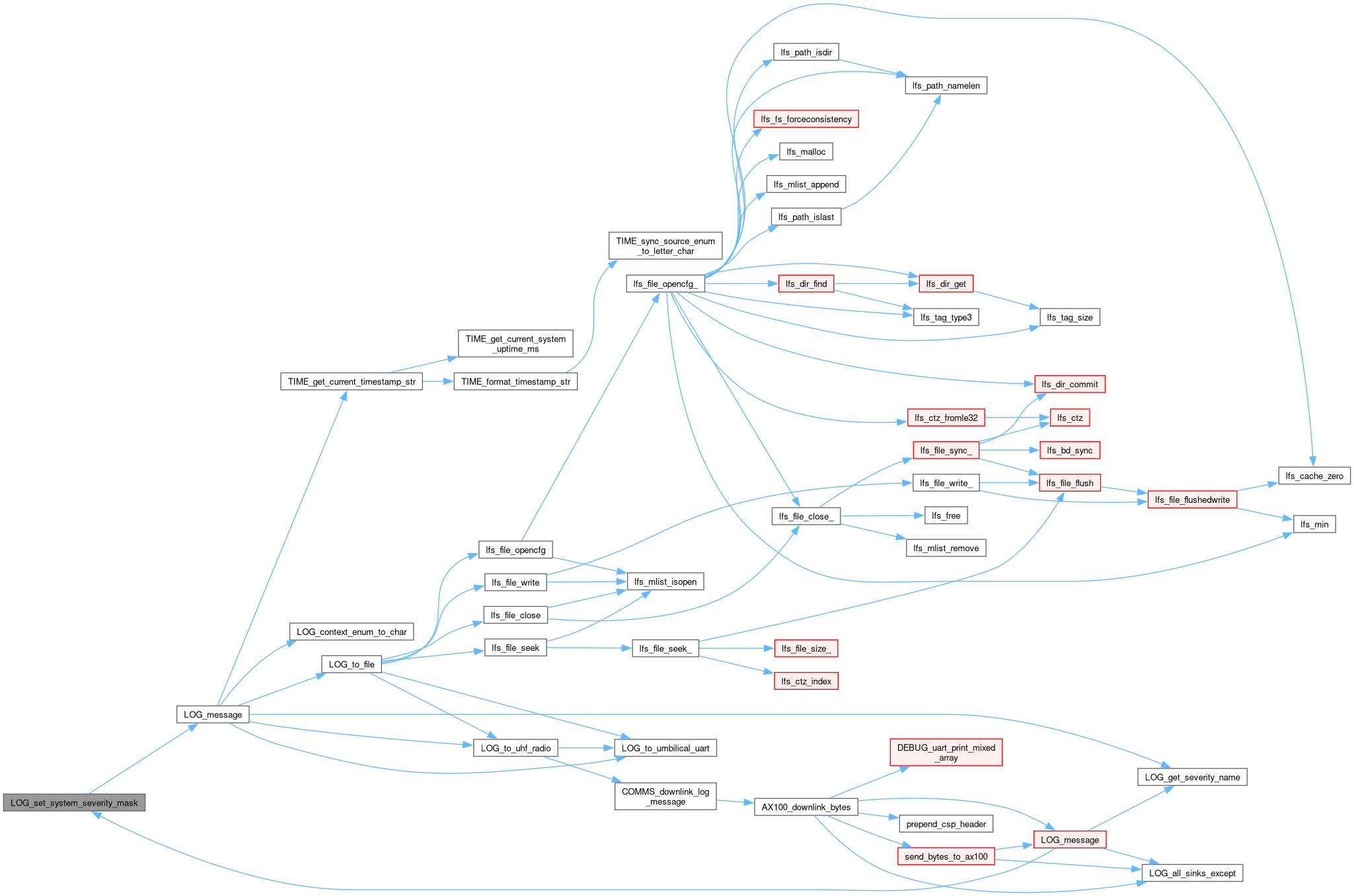

Here is the call graph for this function:

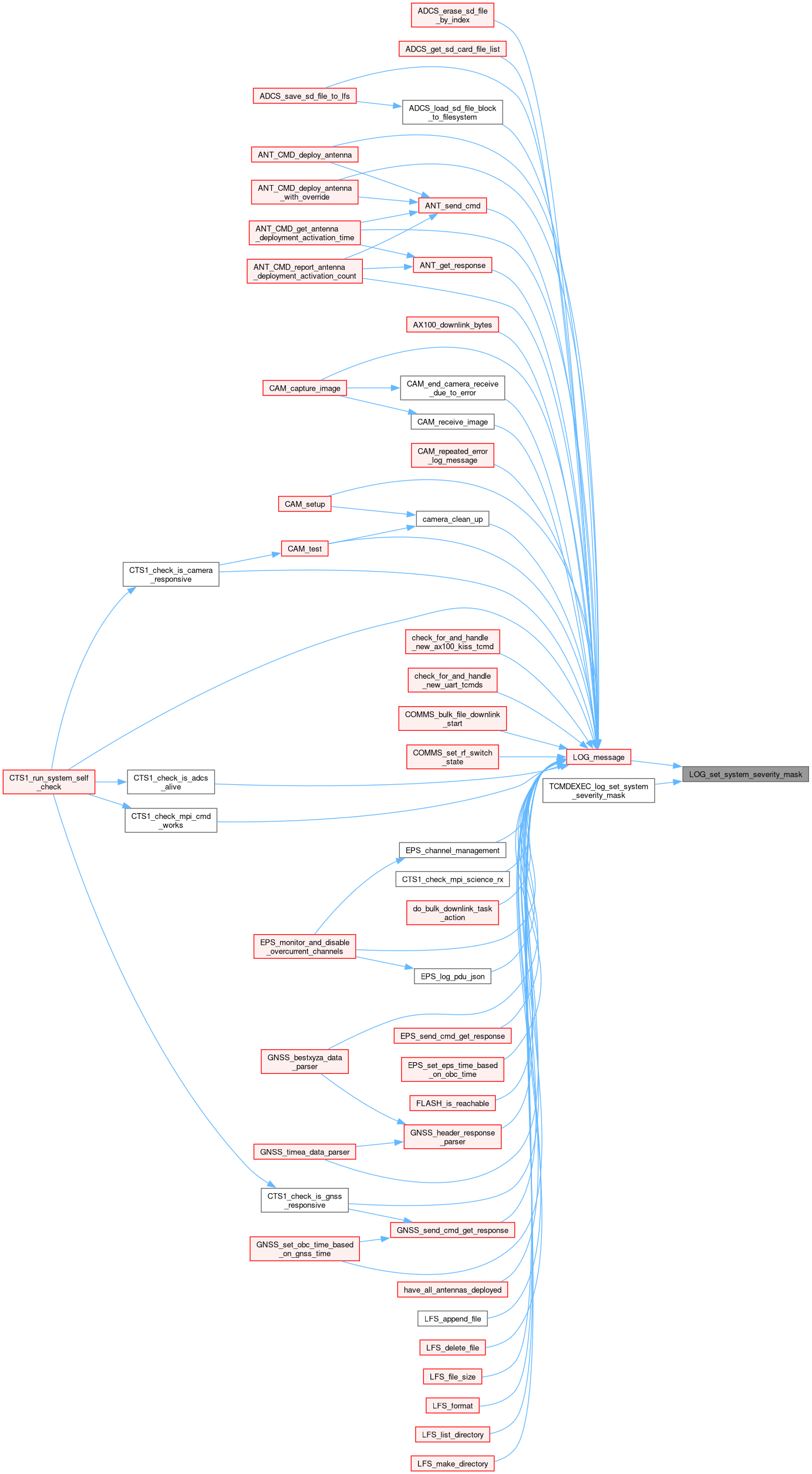

Here is the caller graph for this function:

Variable Documentation

LOG_current_log_context

LOG_context_enum_t LOG_current_log_context = LOG_CONTEXT_AUTONOMOUS

LOG_formatted_log_message

char LOG_formatted_log_message[LOG_FORMATTED_MESSAGE_MAX_LENGTH] = {0}

static

LOG_memory_index_of_current_log_entry

uint8_t LOG_memory_index_of_current_log_entry = LOG_MEMORY_NUMBER_OF_ENTRIES - 1

static

LOG_memory_table

LOG_memory_entry_t LOG_memory_table[LOG_MEMORY_NUMBER_OF_ENTRIES] = {0}

static

LOG_NUMBER_OF_SINKS

const uint16_t LOG_NUMBER_OF_SINKS = sizeof(LOG_sinks) / sizeof(LOG_sink_t)

static

LOG_NUMBER_OF_SYSTEMS

const uint16_t LOG_NUMBER_OF_SYSTEMS = sizeof(LOG_systems) / sizeof(LOG_system_t)

static

LOG_SEVERITY_MASK_ALL

const uint8_t LOG_SEVERITY_MASK_ALL = 0xFF

static

LOG_SEVERITY_MASK_DEFAULT

const uint8_t LOG_SEVERITY_MASK_DEFAULT = LOG_SEVERITY_MASK_ALL

static

LOG_sinks

LOG_sink_t LOG_sinks[]

static

Initial value:

= {
    {LOG_SINK_UHF_RADIO, "UHF radio", LOG_SINK_ON, LOG_SEVERITY_MASK_DEFAULT},
    {LOG_SINK_FILE, "log files", LOG_SINK_OFF, LOG_SEVERITY_MASK_DEFAULT},
    {LOG_SINK_UMBILICAL_UART, "umbilical UART", LOG_SINK_ON, LOG_SEVERITY_MASK_DEFAULT},
}

LOG_systems

LOG_system_t LOG_systems[]

static

Initial value:

= {
    {LOG_SYSTEM_OBC, "OBC", "/logs/obc_system.log", LOG_SYSTEM_ON, LOG_SEVERITY_MASK_DEFAULT},
    {LOG_SYSTEM_UHF_RADIO, "UHF_RADIO", "/logs/uhf_radio_system.log", LOG_SYSTEM_ON, LOG_SEVERITY_MASK_DEFAULT},
    {LOG_SYSTEM_UMBILICAL_UART, "UMBILICAL_UART", "/logs/umbilical_uart_system.log", LOG_SYSTEM_ON, LOG_SEVERITY_MASK_DEFAULT},
    {LOG_SYSTEM_GNSS, "GNSS", "/logs/gnss_system.log", LOG_SYSTEM_ON, LOG_SEVERITY_MASK_DEFAULT},
    {LOG_SYSTEM_MPI, "MPI", "/logs/mpi_system.log", LOG_SYSTEM_ON, LOG_SEVERITY_MASK_DEFAULT},
    {LOG_SYSTEM_EPS, "EPS", "/logs/eps_system.log", LOG_SYSTEM_ON, LOG_SEVERITY_MASK_DEFAULT},
    {LOG_SYSTEM_BOOM, "BOOM", "/logs/boom_system.log", LOG_SYSTEM_ON, LOG_SEVERITY_MASK_DEFAULT},
    {LOG_SYSTEM_ADCS, "ADCS", "/logs/adcs_system.log", LOG_SYSTEM_ON, LOG_SEVERITY_MASK_DEFAULT},
    {LOG_SYSTEM_LFS, "LFS", "/logs/lfs_system.log", LOG_SYSTEM_ON, LOG_SEVERITY_MASK_DEFAULT},
    {LOG_SYSTEM_FLASH, "FLASH", "/logs/flash_system.log", LOG_SYSTEM_ON, LOG_SEVERITY_MASK_DEFAULT},
    {LOG_SYSTEM_ANTENNA_DEPLOY, "ANTENNA_DEPLOY", "/logs/antenna_deploy_system.log", LOG_SYSTEM_ON, LOG_SEVERITY_MASK_DEFAULT},
    {LOG_SYSTEM_LOG, "LOG", "/logs/log_system.log", LOG_SYSTEM_ON, LOG_SEVERITY_MASK_DEFAULT},
    {LOG_SYSTEM_TELECOMMAND, "TELECOMMAND", "/logs/telecommand_system.log", LOG_SYSTEM_ON, LOG_SEVERITY_MASK_DEFAULT},
    {LOG_SYSTEM_UNIT_TEST, "UNIT_TEST", "/logs/unit_test_system.log", LOG_SYSTEM_ON, LOG_SEVERITY_MASK_DEFAULT},

    {LOG_SYSTEM_UNKNOWN, "UNKNOWN", "/logs/unknown_system.log", LOG_SYSTEM_ON, LOG_SEVERITY_MASK_DEFAULT},
}

LOG_timestamp_string

char LOG_timestamp_string[LOG_TIMESTAMP_MAX_LENGTH] = {0}

static
