log.h File Reference

#include <stdint.h>

Include dependency graph for log.h:

Go to the source code of this file.

Macros
#define	LOG_FORMATTED_MESSAGE_MAX_LENGTH   185

Enumerations
enum	LOG_severity_enum_t {   LOG_SEVERITY_DEBUG = 1 << 0 , LOG_SEVERITY_NORMAL = 1 << 1 , LOG_SEVERITY_WARNING = 1 << 2 , LOG_SEVERITY_ERROR = 1 << 3 ,   LOG_SEVERITY_CRITICAL = 1 << 4 }
enum	LOG_sink_enum_t {   LOG_SINK_NONE = 0 , LOG_SINK_UHF_RADIO = 1 << 0 , LOG_SINK_FILE = 1 << 1 , LOG_SINK_UMBILICAL_UART = 1 << 2 ,   LOG_SINK_UNKNOWN = 1 << 3 , LOG_SINK_ALL = (1 << 4) - 1 }
enum	{ LOG_SINK_OFF = 0 , LOG_SINK_ON = 1 }
enum	LOG_system_enum_t {   LOG_SYSTEM_OBC = 1 << 0 , LOG_SYSTEM_UHF_RADIO = 1 << 1 , LOG_SYSTEM_UMBILICAL_UART = 1 << 2 , LOG_SYSTEM_GNSS = 1 << 3 ,   LOG_SYSTEM_MPI = 1 << 4 , LOG_SYSTEM_EPS = 1 << 5 , LOG_SYSTEM_BOOM = 1 << 6 , LOG_SYSTEM_ADCS = 1 << 7 ,   LOG_SYSTEM_LFS = 1 << 8 , LOG_SYSTEM_FLASH = 1 << 9 , LOG_SYSTEM_ANTENNA_DEPLOY = 1 << 10 , LOG_SYSTEM_LOG = 1 << 11 ,   LOG_SYSTEM_TELECOMMAND = 1 << 12 , LOG_SYSTEM_UNIT_TEST = 1 << 13 , LOG_SYSTEM_UNKNOWN = 1 << 14 , LOG_SYSTEM_ALL = (1 << 15) - 1 }
enum	LOG_context_enum_t { LOG_CONTEXT_AUTONOMOUS , LOG_CONTEXT_IMMEDIATE_TELECOMMAND , LOG_CONTEXT_SCHEDULED_TELECOMMAND }
enum	{ LOG_SYSTEM_OFF = 0 , LOG_SYSTEM_ON = 1 }

Functions
void	LOG_message (LOG_system_enum_t source, LOG_severity_enum_t severity, uint32_t sink_mask, const char fmt[],...) __attribute__((format(printf
void uint32_t	LOG_all_sinks_except (uint32_t exceptions)
	Returns all sinks, except the specified exceptions.
uint8_t	LOG_is_sink_enabled (LOG_sink_enum_t sink)
	Check logging sink status.
void	LOG_set_sink_debugging_messages_enabled_state (LOG_sink_enum_t sink, uint8_t state)
	Turn debugging messages on or off for the specified sink.
void	LOG_set_system_debugging_messages_enabled_state (LOG_system_enum_t system, uint8_t state)
	Turn debugging messages on or off for the specified system.
uint8_t	LOG_is_system_file_logging_enabled (LOG_system_enum_t system)
	Check whether file logging is enabled for a subsystem.
void	LOG_set_system_severity_mask (LOG_system_enum_t system, uint32_t severity_mask)
	Set the logging severity bitfield mask for a subsystem.
void	LOG_set_sink_enabled_state (LOG_sink_enum_t sink, uint8_t state)
	Enable or disable logging to a sink.
void	LOG_set_system_file_logging_enabled_state (LOG_system_enum_t system, uint8_t state)
	Enable or disable logging to file for a subsystem.
void	LOG_report_sink_enabled_state (LOG_sink_enum_t sinks)
	Report a sink's enabled state.
void	LOG_report_system_file_logging_state (LOG_system_enum_t systems)
	Report a subsystem's file-logging state.
uint16_t	LOG_number_of_logging_sinks (void)
uint16_t	LOG_number_of_logging_systems (void)
const char *	LOG_get_severity_name (LOG_severity_enum_t severity)
	Get the name of a severity enum.
uint8_t	LOG_memory_table_max_entries (void)
	Get the size in entries of the in-memory log table.
uint8_t	LOG_get_memory_table_index_of_most_recent_log_entry (void)
	Get the index of the most recent in-memory log message.
const char *	LOG_get_memory_table_full_message_at_index (uint8_t index)
	Get a pointer to the full text of the in-memory log message at the specified index.

Variables
LOG_context_enum_t	LOG_current_log_context

Macro Definition Documentation

LOG_FORMATTED_MESSAGE_MAX_LENGTH

#define LOG_FORMATTED_MESSAGE_MAX_LENGTH   185

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
LOG_SYSTEM_OFF
LOG_SYSTEM_ON

anonymous enum

anonymous enum

Enumerator
LOG_SINK_OFF
LOG_SINK_ON

LOG_context_enum_t

enum LOG_context_enum_t

Enumerator
LOG_CONTEXT_AUTONOMOUS
LOG_CONTEXT_IMMEDIATE_TELECOMMAND
LOG_CONTEXT_SCHEDULED_TELECOMMAND

LOG_severity_enum_t

enum LOG_severity_enum_t

Enumerator
LOG_SEVERITY_DEBUG
LOG_SEVERITY_NORMAL
LOG_SEVERITY_WARNING
LOG_SEVERITY_ERROR
LOG_SEVERITY_CRITICAL

LOG_sink_enum_t

enum LOG_sink_enum_t

Enumerator
LOG_SINK_NONE
LOG_SINK_UHF_RADIO
LOG_SINK_FILE
LOG_SINK_UMBILICAL_UART
LOG_SINK_UNKNOWN
LOG_SINK_ALL

LOG_system_enum_t

enum LOG_system_enum_t

Enumerator
LOG_SYSTEM_OBC
LOG_SYSTEM_UHF_RADIO
LOG_SYSTEM_UMBILICAL_UART
LOG_SYSTEM_GNSS
LOG_SYSTEM_MPI
LOG_SYSTEM_EPS
LOG_SYSTEM_BOOM
LOG_SYSTEM_ADCS
LOG_SYSTEM_LFS
LOG_SYSTEM_FLASH
LOG_SYSTEM_ANTENNA_DEPLOY
LOG_SYSTEM_LOG
LOG_SYSTEM_TELECOMMAND
LOG_SYSTEM_UNIT_TEST
LOG_SYSTEM_UNKNOWN
LOG_SYSTEM_ALL

Function Documentation

LOG_all_sinks_except()

void uint32_t LOG_all_sinks_except

(

uint32_t

sink_exceptions_mask

)

Returns all sinks, except the specified exceptions.

Parameters

exceptions

Bitfield represent log sinks to exclude

Returns

Bitfield representing all log sinks, except those passed as an arg

Note

Especially useful in calls to LOG_message(), to report a failure of a specific logging sink.

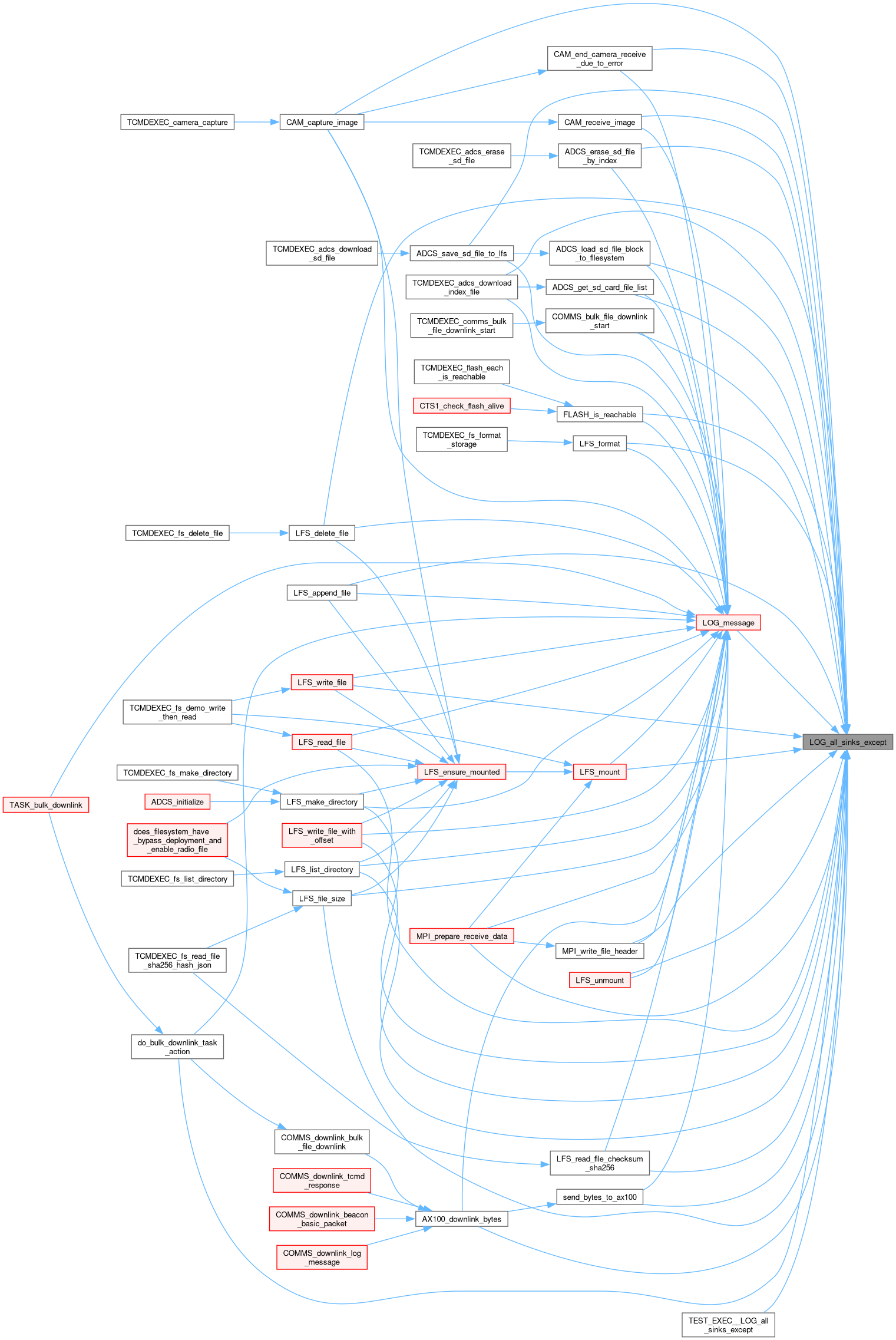

Here is the caller graph for this function:

LOG_get_memory_table_full_message_at_index()

const char * LOG_get_memory_table_full_message_at_index

(

uint8_t

index

)

Get a pointer to the full text of the in-memory log message at the specified index.

Parameters

index

requested in-memory log message

Returns

pointer to the full text of the log message

Here is the caller graph for this function:

LOG_get_memory_table_index_of_most_recent_log_entry()

uint8_t LOG_get_memory_table_index_of_most_recent_log_entry

(

void

)

Get the index of the most recent in-memory log message.

Returns

index of the most recent log message

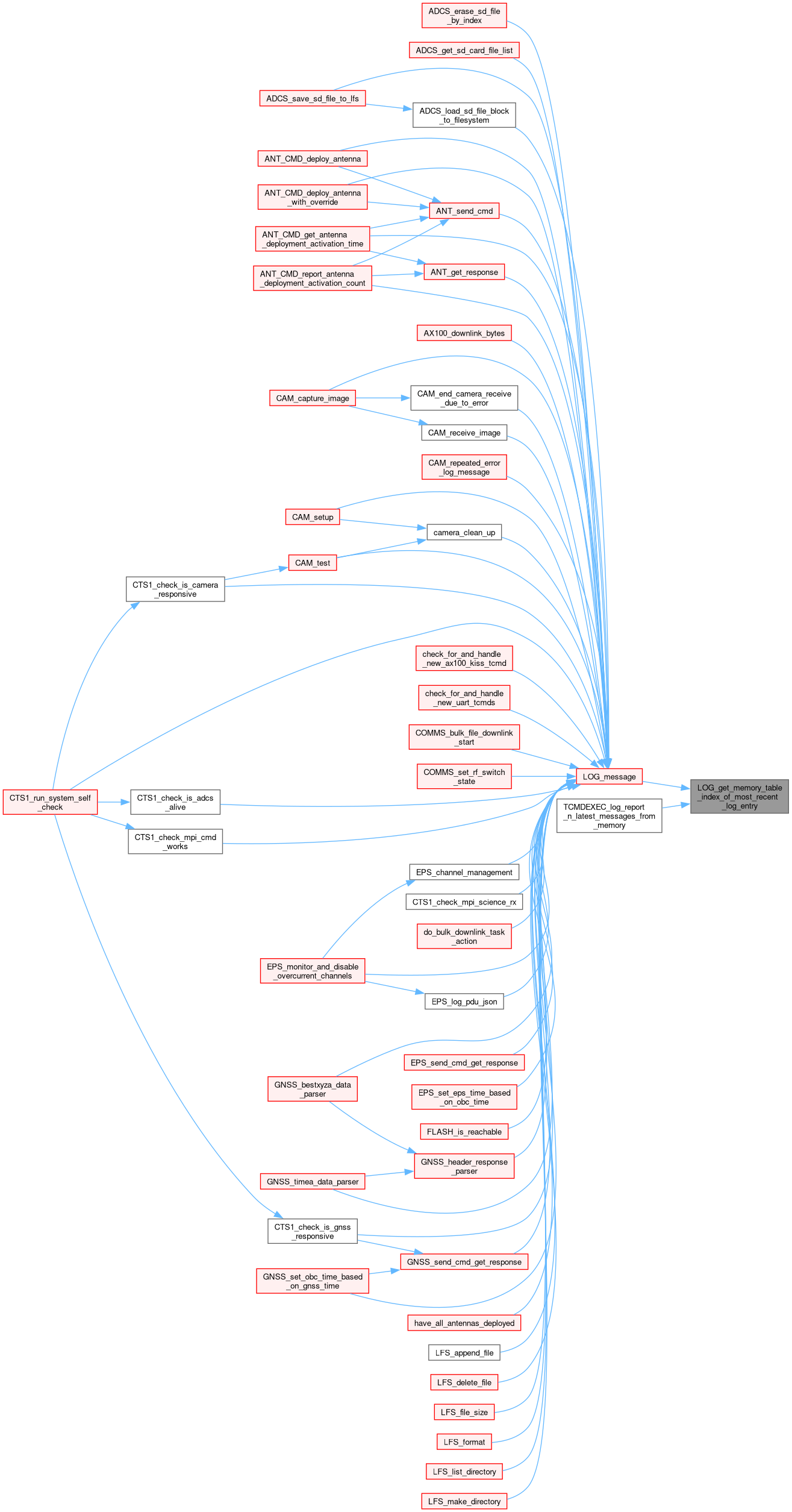

Here is the caller graph for this function:

LOG_get_severity_name()

const char * LOG_get_severity_name

(

LOG_severity_enum_t

severity

)

Get the name of a severity enum.

Parameters

severity

the specified severity

Returns

pointer to the statically allocated name

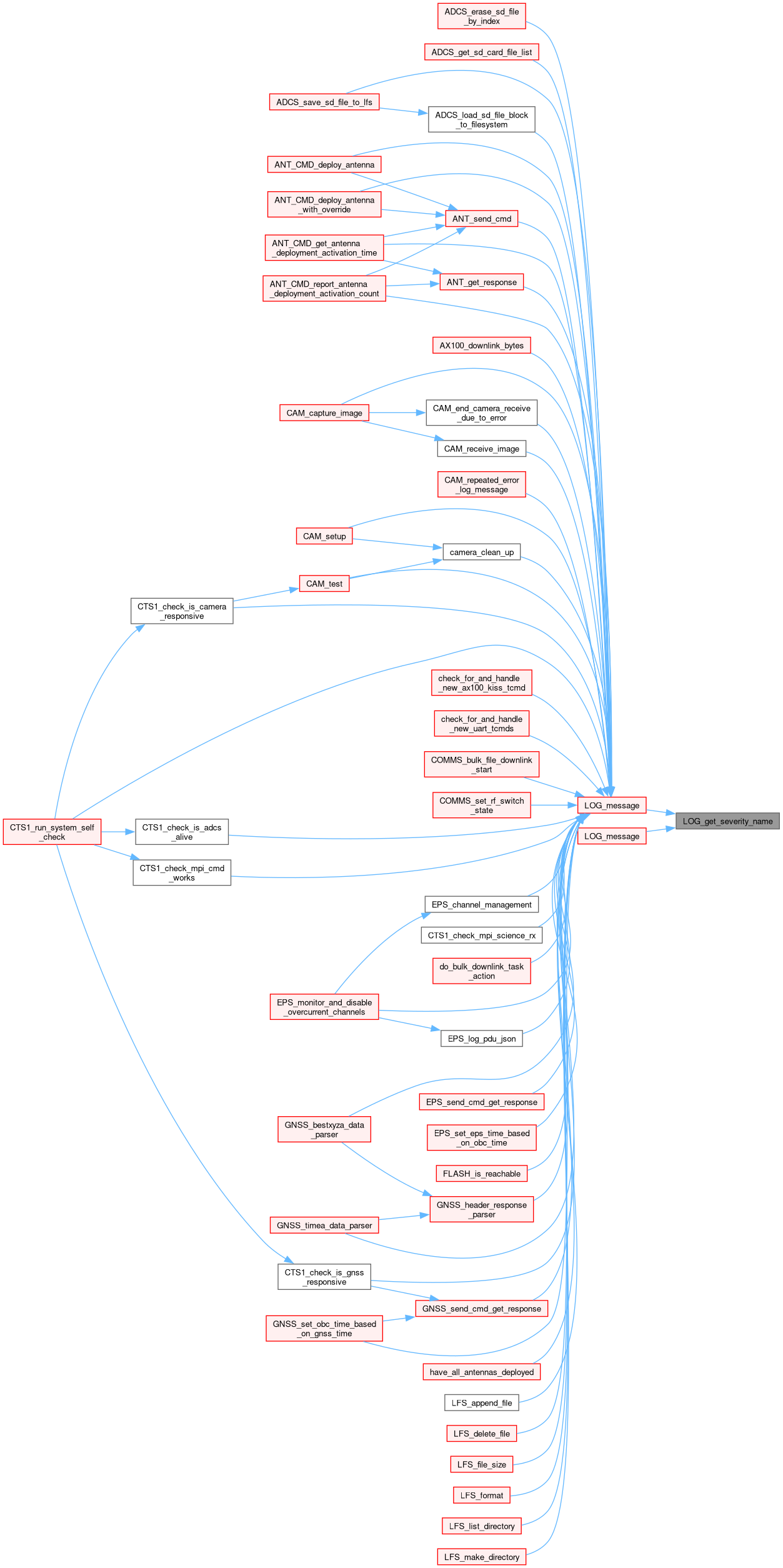

Here is the caller graph for this function:

LOG_is_sink_enabled()

uint8_t LOG_is_sink_enabled

(

LOG_sink_enum_t

sink

)

Check logging sink status.

Parameters

sink	the sink to check

Returns

0: disabled (or invalid sink); 1: enabled

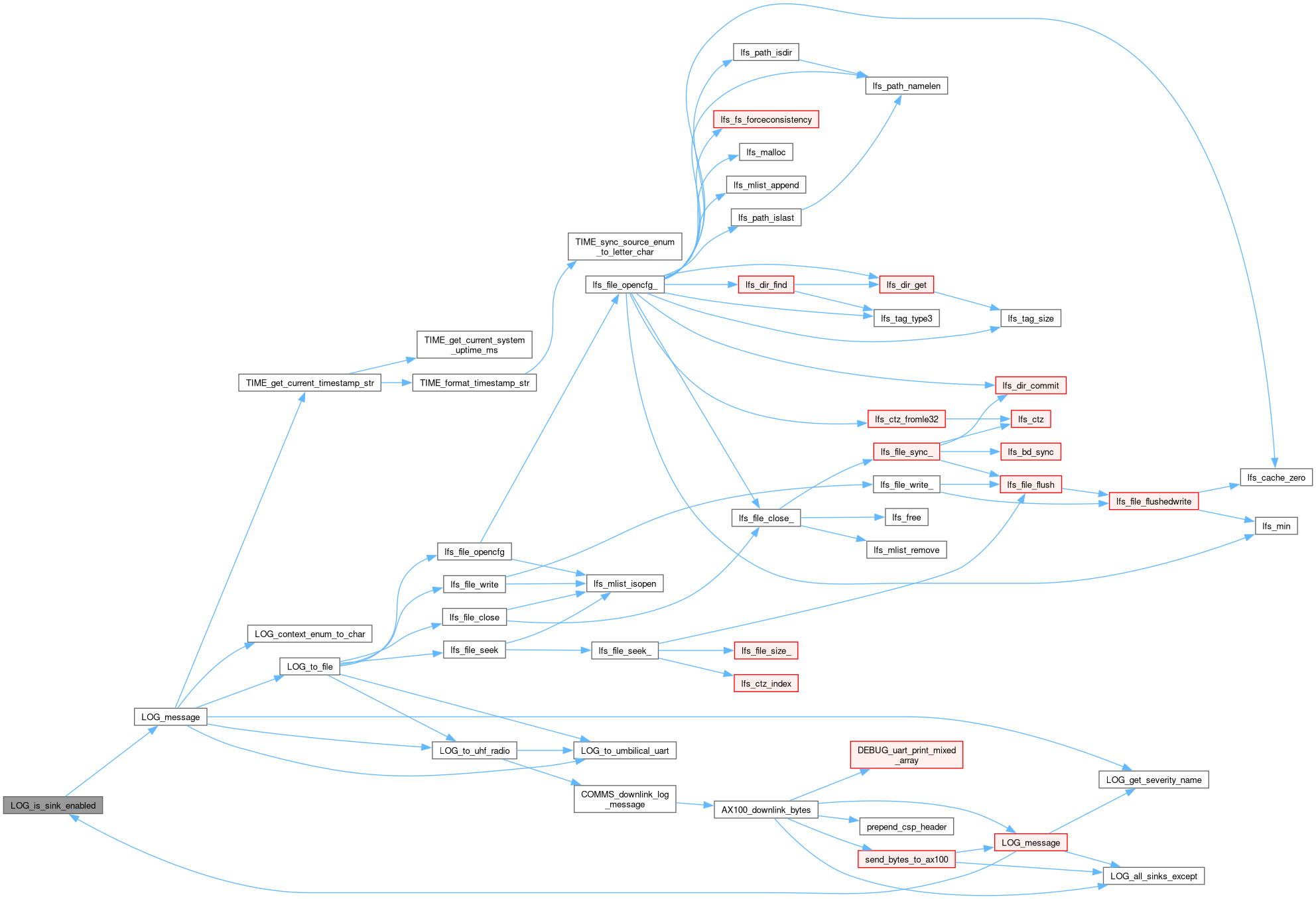

Here is the call graph for this function:

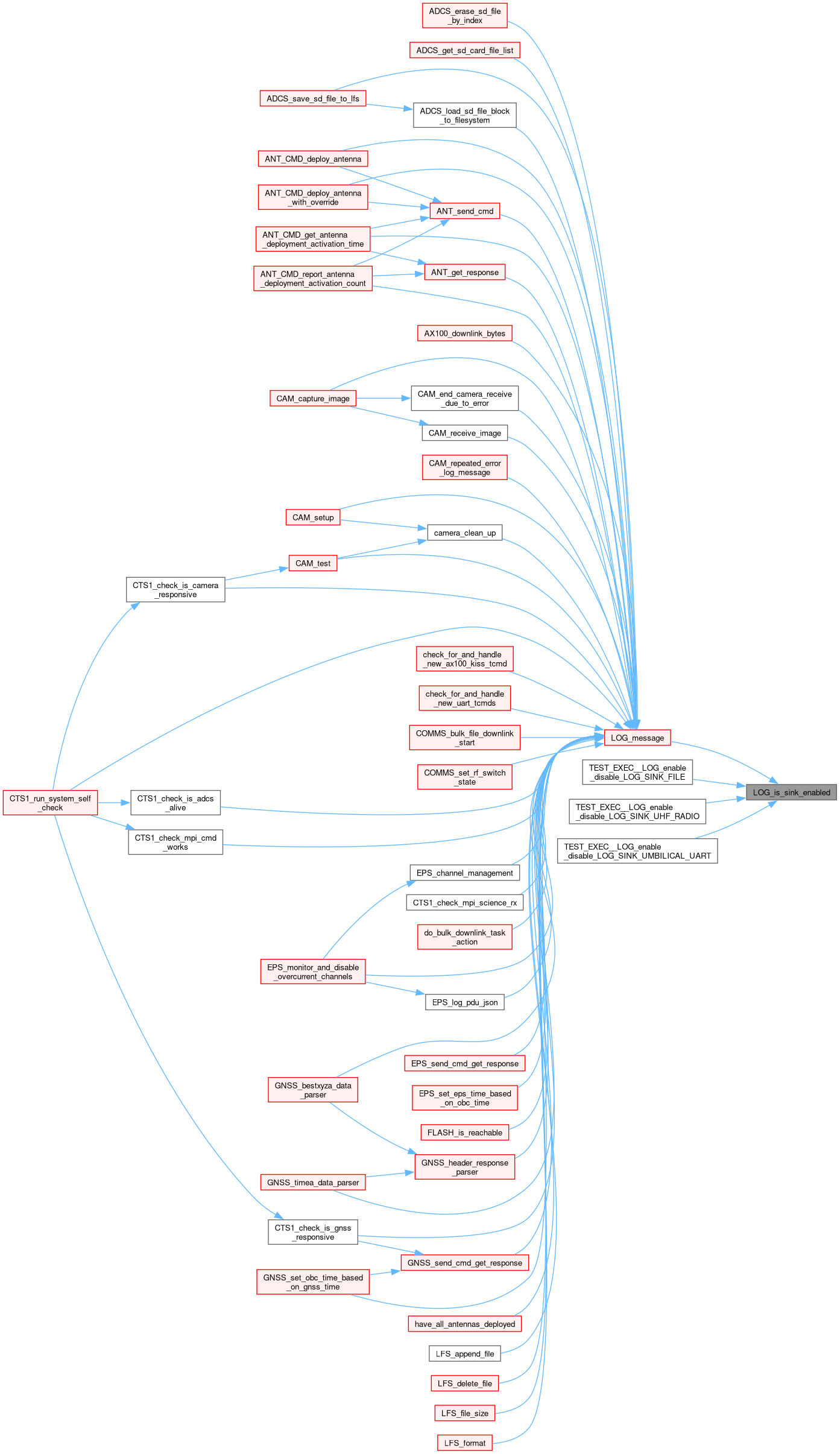

Here is the caller graph for this function:

LOG_is_system_file_logging_enabled()

uint8_t LOG_is_system_file_logging_enabled

(

LOG_system_enum_t

system

)

Check whether file logging is enabled for a subsystem.

Parameters

system

Returns

returns 1 if logging to file is enabled, 0 otherwise.

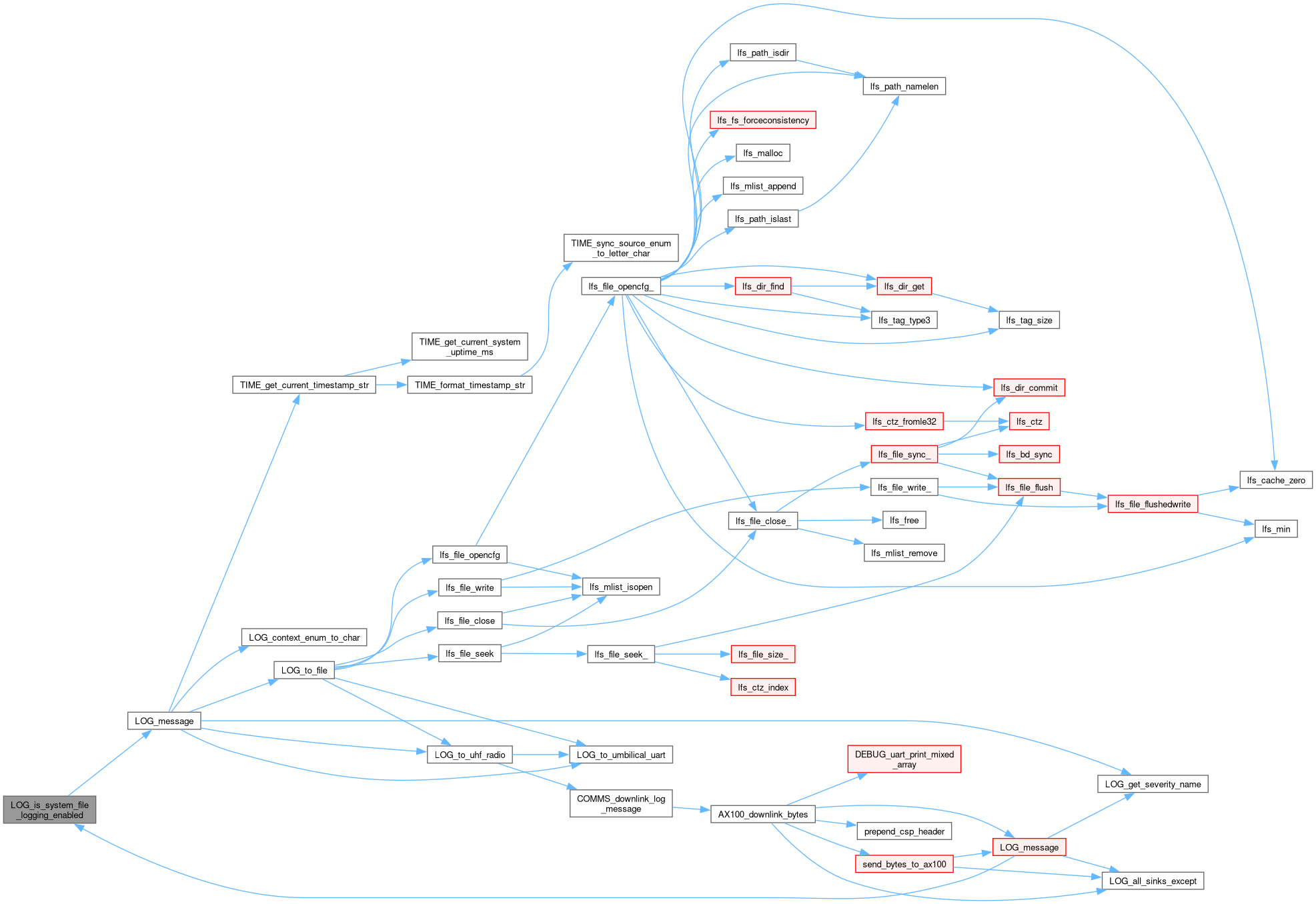

Here is the call graph for this function:

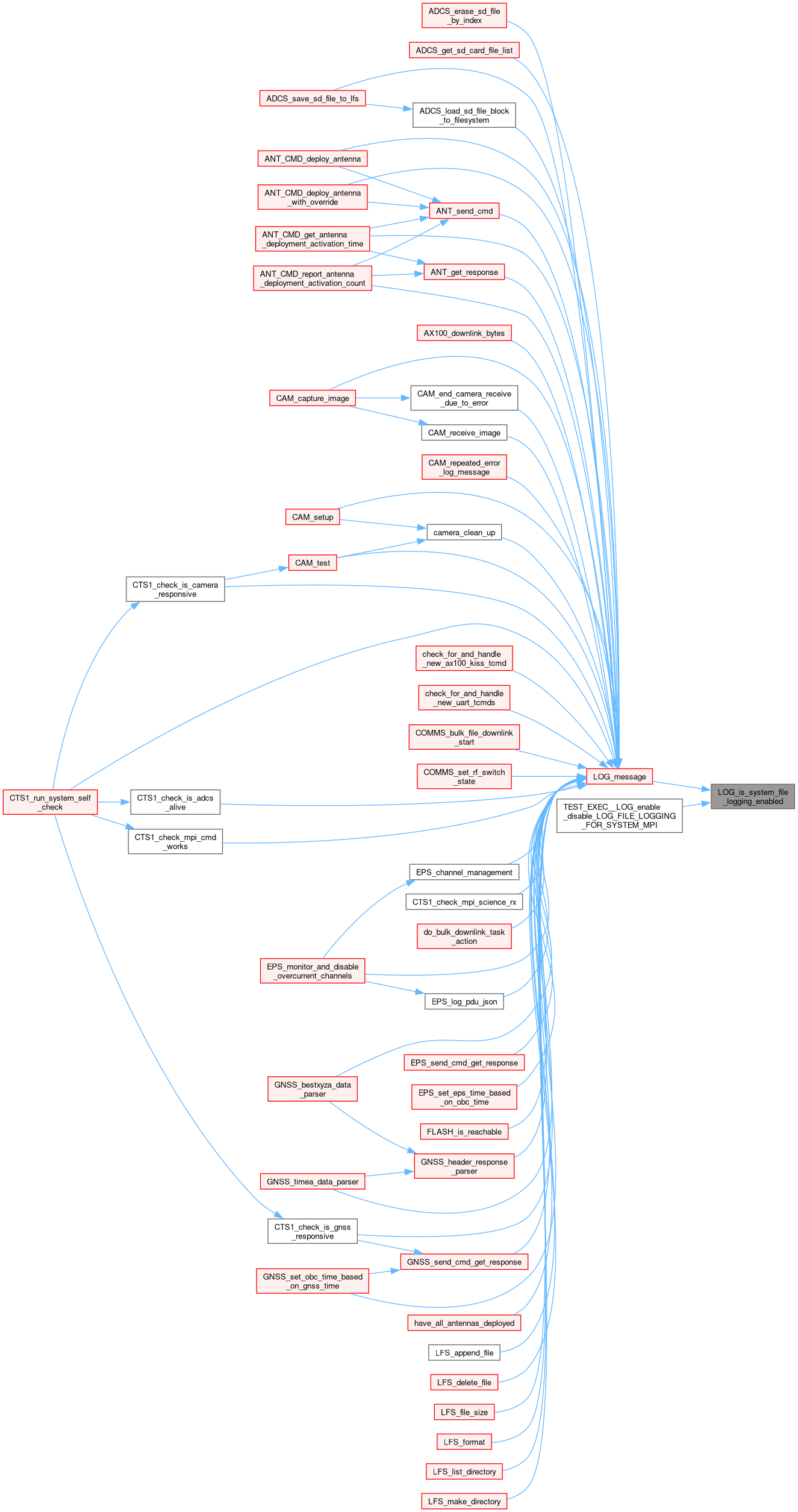

Here is the caller graph for this function:

LOG_memory_table_max_entries()

uint8_t LOG_memory_table_max_entries

(

void

)

Get the size in entries of the in-memory log table.

Returns

size of the in-memory log table

Here is the caller graph for this function:

LOG_message()

void LOG_message	(	LOG_system_enum_t	source,
		LOG_severity_enum_t	severity,
		uint32_t	sink_mask,
		const char	fmt[],
			... )

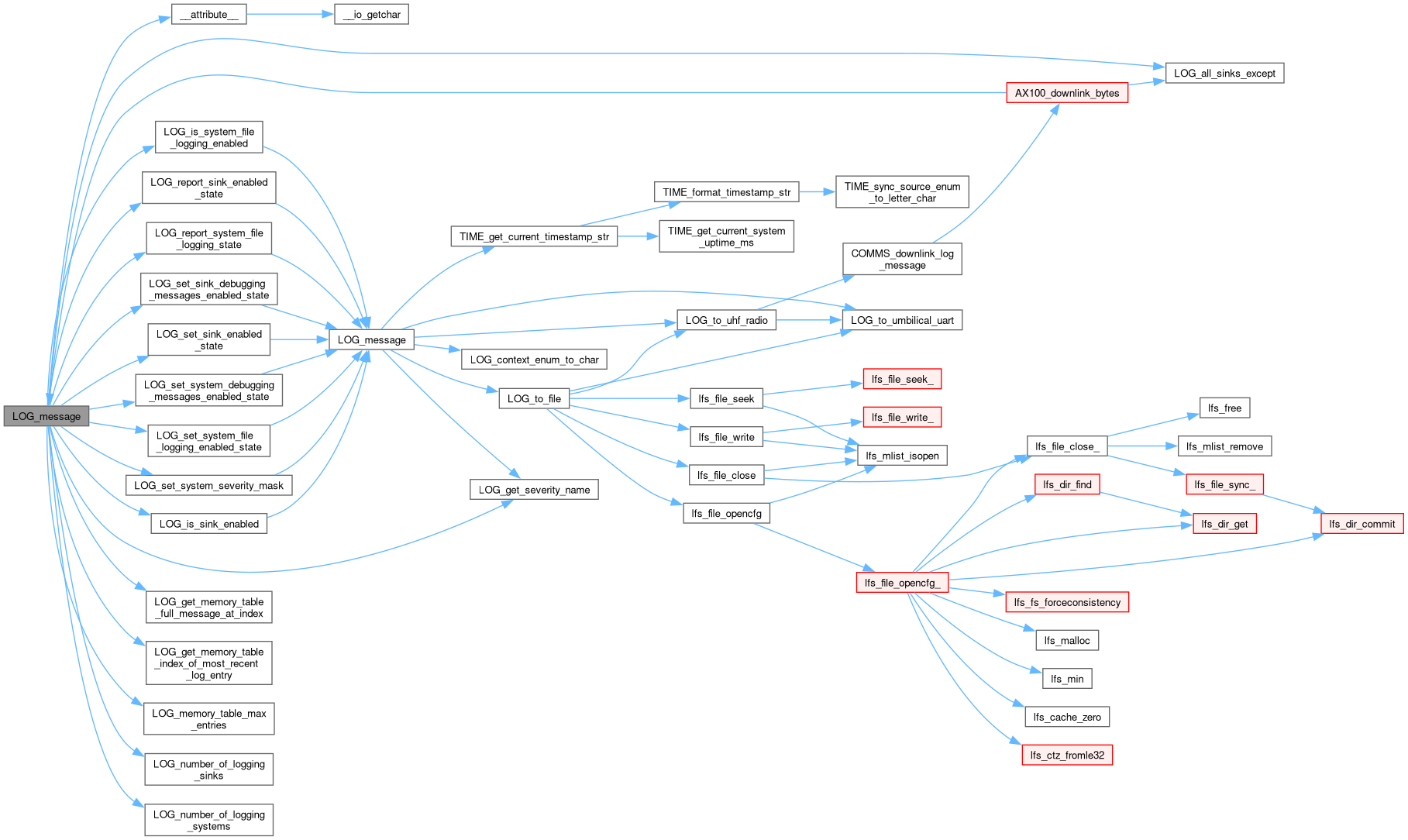

Here is the call graph for this function:

LOG_number_of_logging_sinks()

uint16_t LOG_number_of_logging_sinks

(

void

)

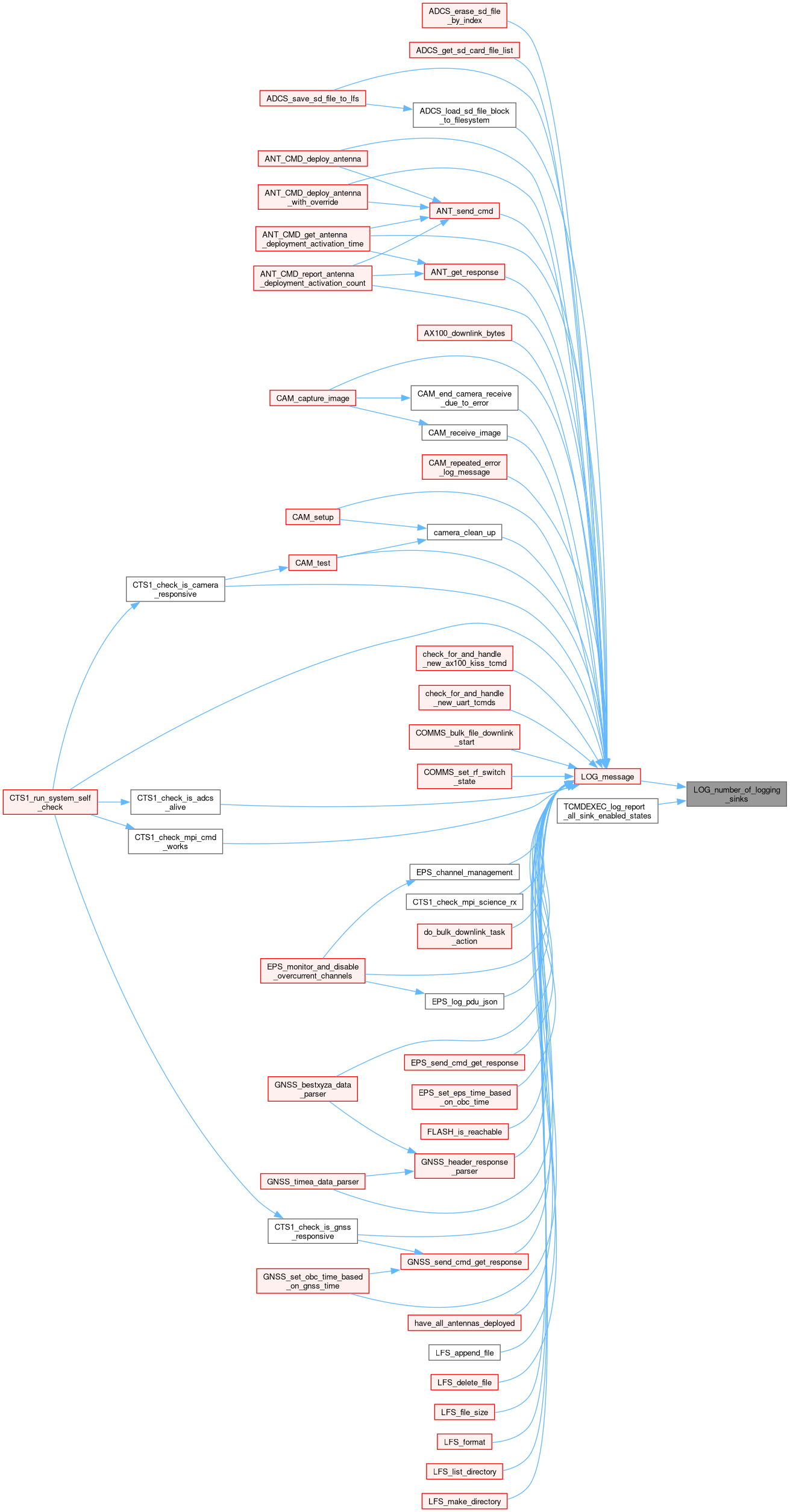

Here is the caller graph for this function:

LOG_number_of_logging_systems()

uint16_t LOG_number_of_logging_systems

(

void

)

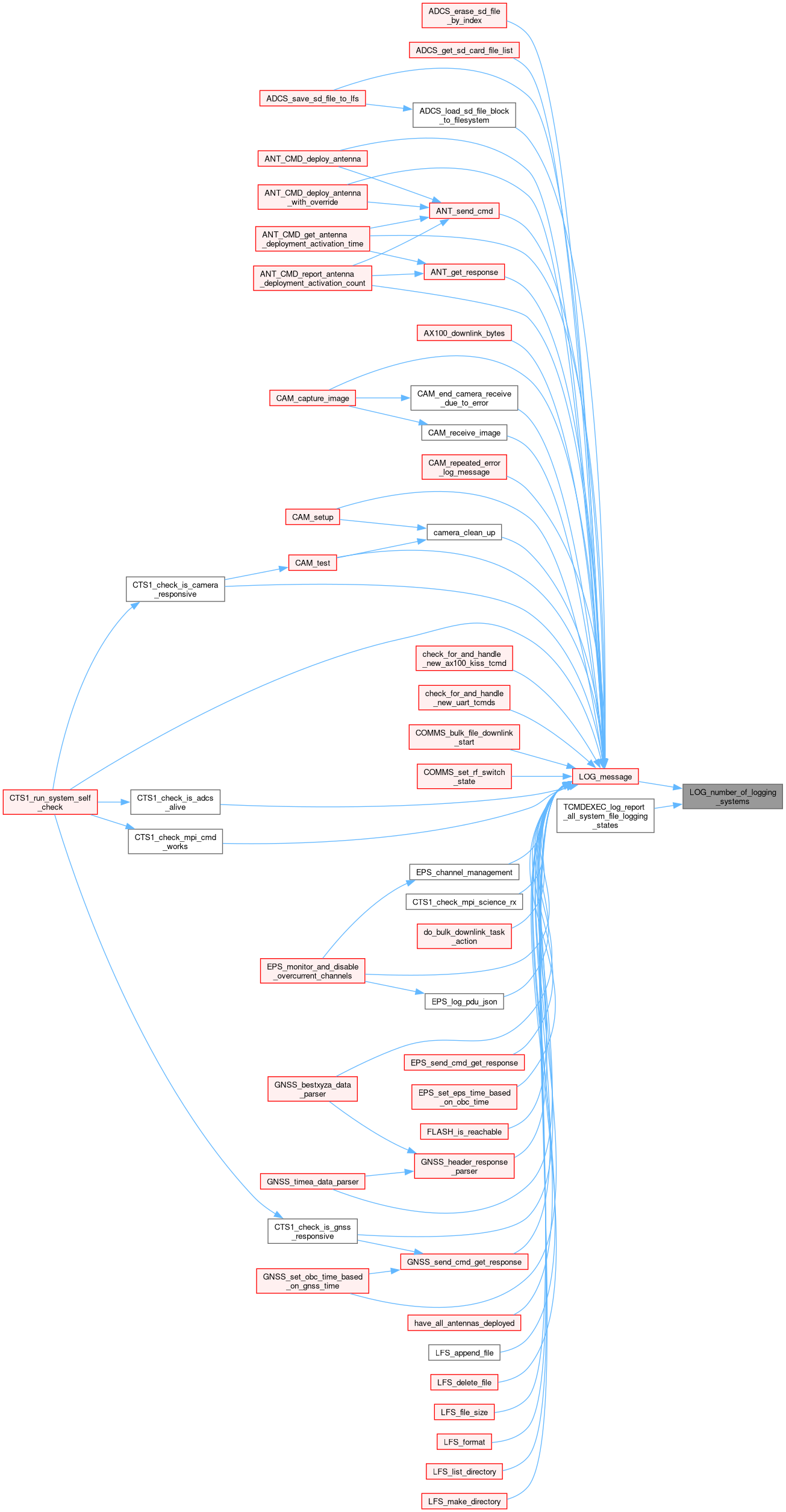

Here is the caller graph for this function:

LOG_report_sink_enabled_state()

void LOG_report_sink_enabled_state

(

LOG_sink_enum_t

sink

)

Report a sink's enabled state.

Parameters

sink	specified sink

Here is the call graph for this function:

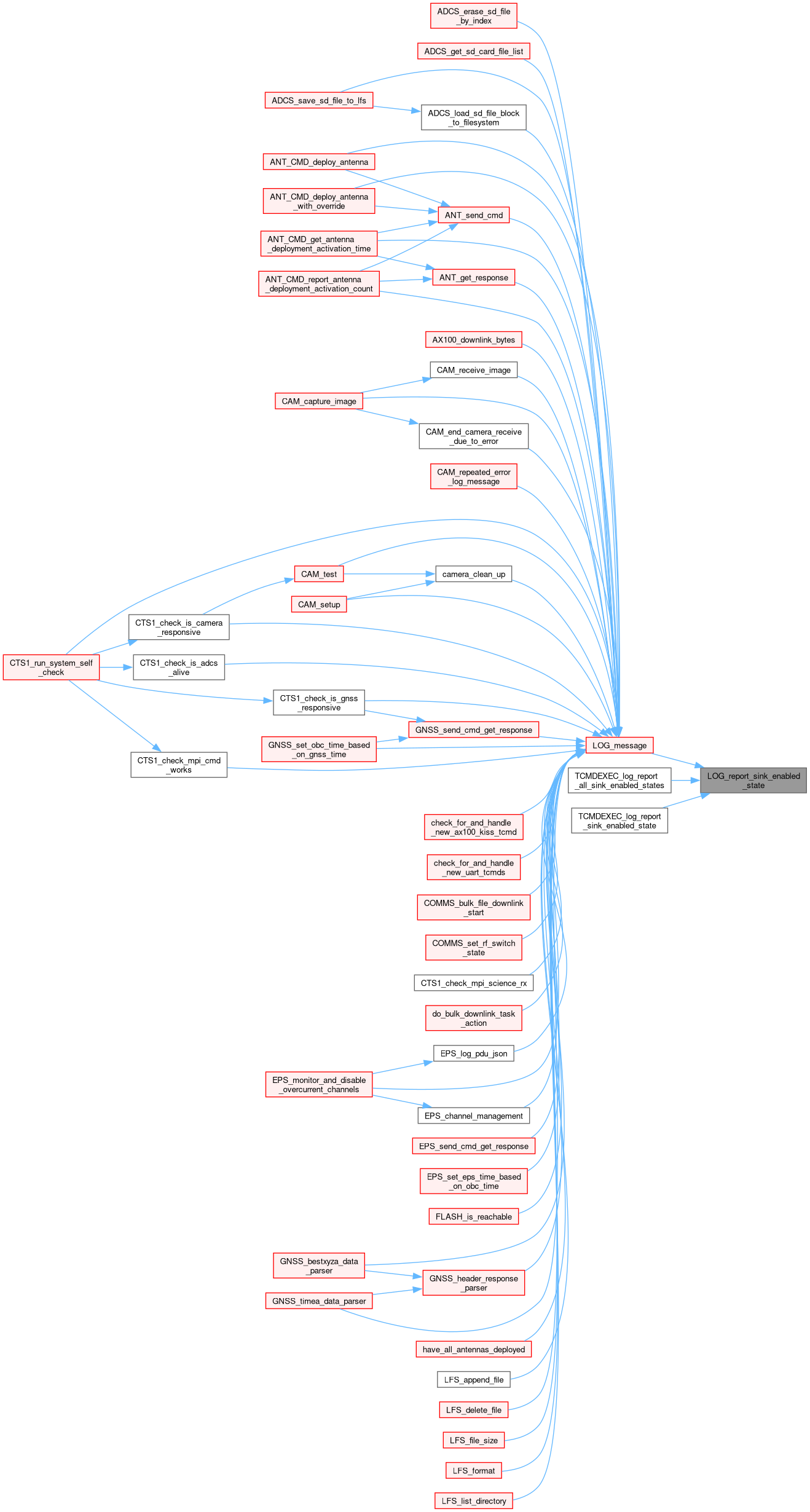

Here is the caller graph for this function:

LOG_report_system_file_logging_state()

void LOG_report_system_file_logging_state

(

LOG_system_enum_t

system

)

Report a subsystem's file-logging state.

Parameters

sink	specified sink

Note

includes the subsystem's log filename

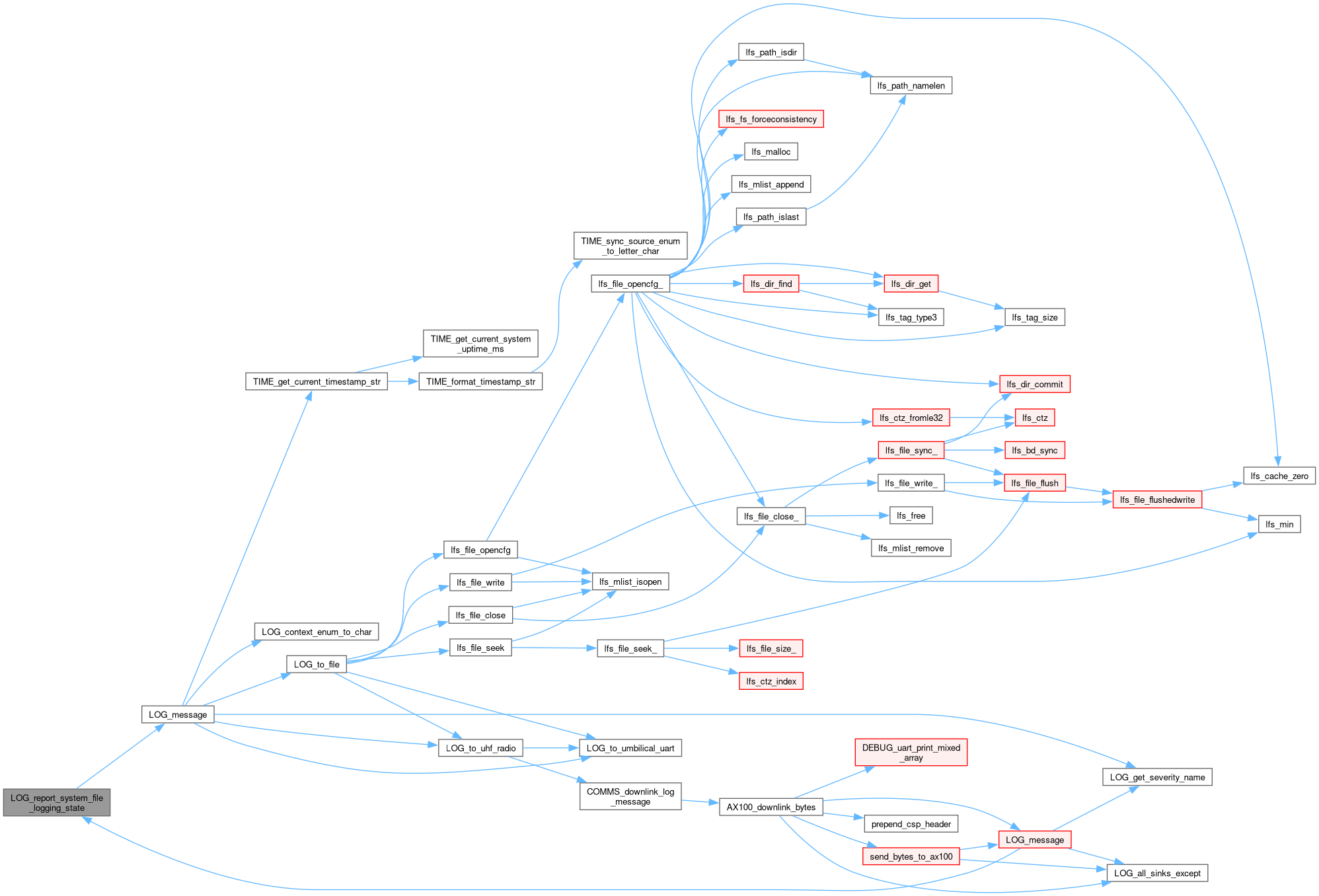

Here is the call graph for this function:

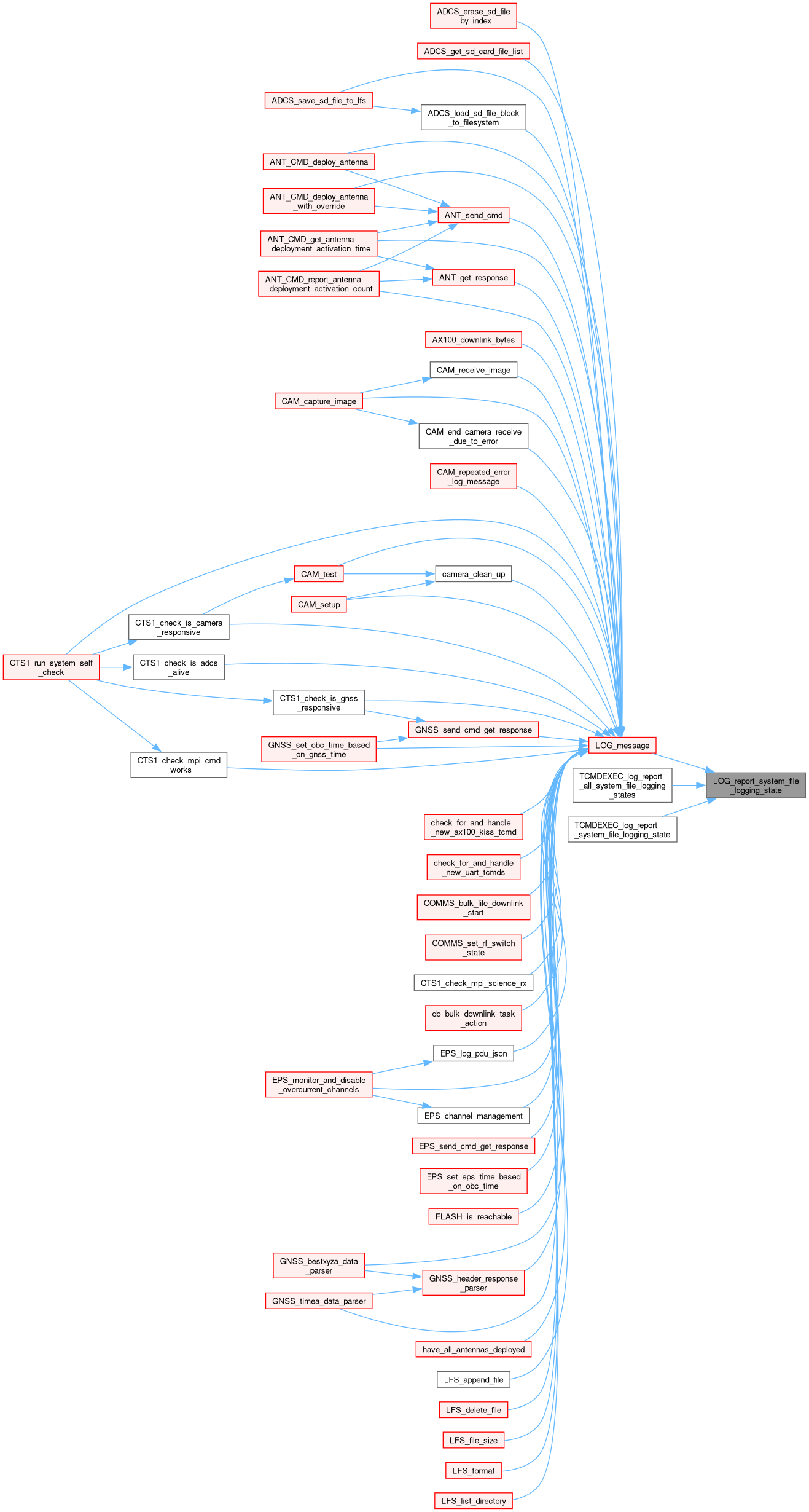

Here is the caller graph for this function:

LOG_set_sink_debugging_messages_enabled_state()

void LOG_set_sink_debugging_messages_enabled_state	(	LOG_sink_enum_t	sink,
		uint8_t	state )

Turn debugging messages on or off for the specified sink.

Parameters

sink	specified sink
state	0: debugging messages off; 1: debugging messages on

Turning off a sink's debugging messages overrides a system's debugging messages state

Here is the call graph for this function:

Here is the caller graph for this function:

LOG_set_sink_enabled_state()

void LOG_set_sink_enabled_state	(	LOG_sink_enum_t	sink,
		uint8_t	state )

Enable or disable logging to a sink.

Parameters

sink	specified sink @state 0: disable 1: enable

Here is the call graph for this function:

Here is the caller graph for this function:

LOG_set_system_debugging_messages_enabled_state()

void LOG_set_system_debugging_messages_enabled_state	(	LOG_system_enum_t	system,
		uint8_t	state )

Turn debugging messages on or off for the specified system.

Parameters

system	specified system
state	0: debugging messages off; 1: debugging messages on

Debugging messages will be disabled if turned off for a given sink

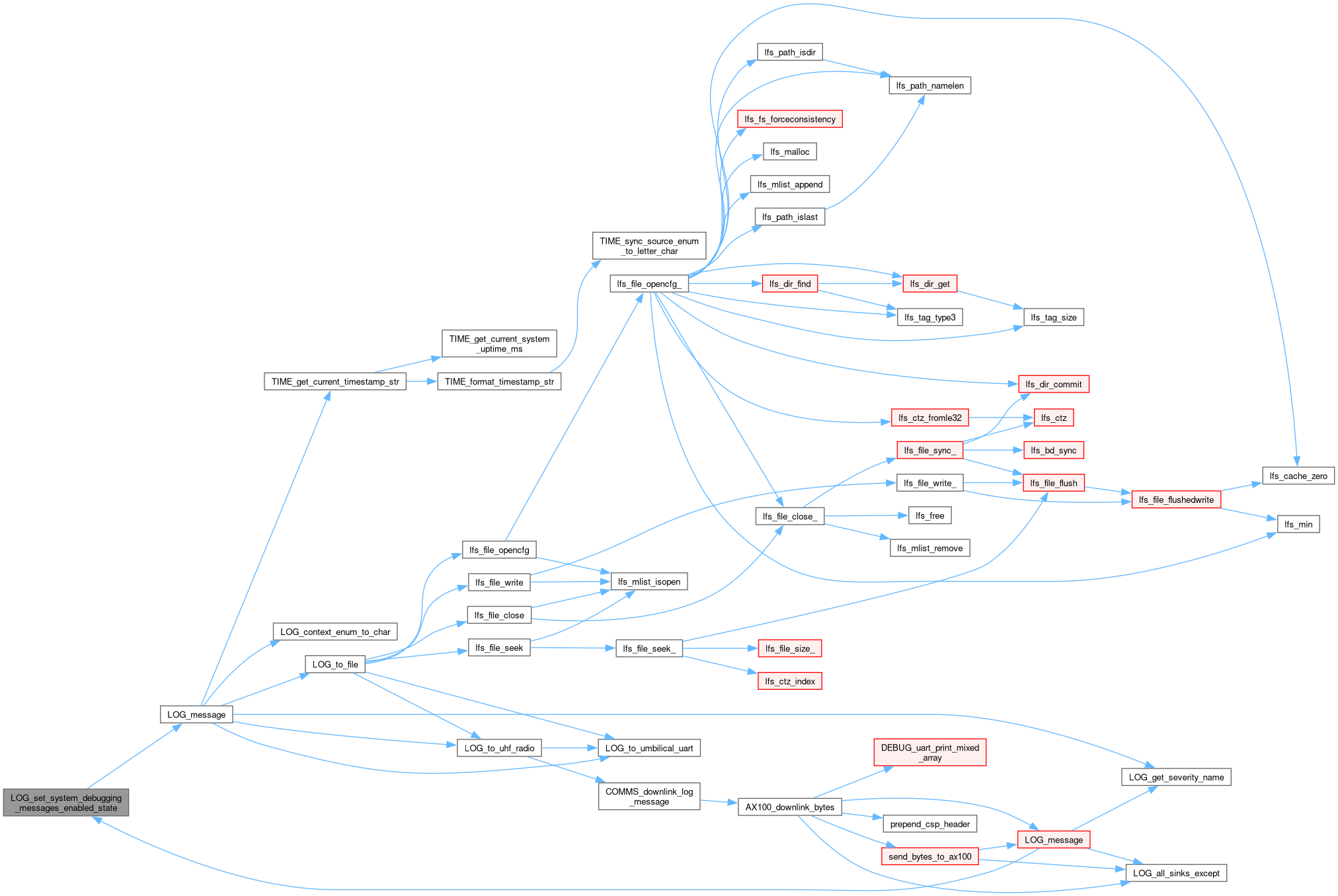

Here is the call graph for this function:

Here is the caller graph for this function:

LOG_set_system_file_logging_enabled_state()

void LOG_set_system_file_logging_enabled_state	(	LOG_system_enum_t	system,
		uint8_t	state )

Enable or disable logging to file for a subsystem.

Parameters

system

specified subsystem @state 0: disable 1: enable

Here is the call graph for this function:

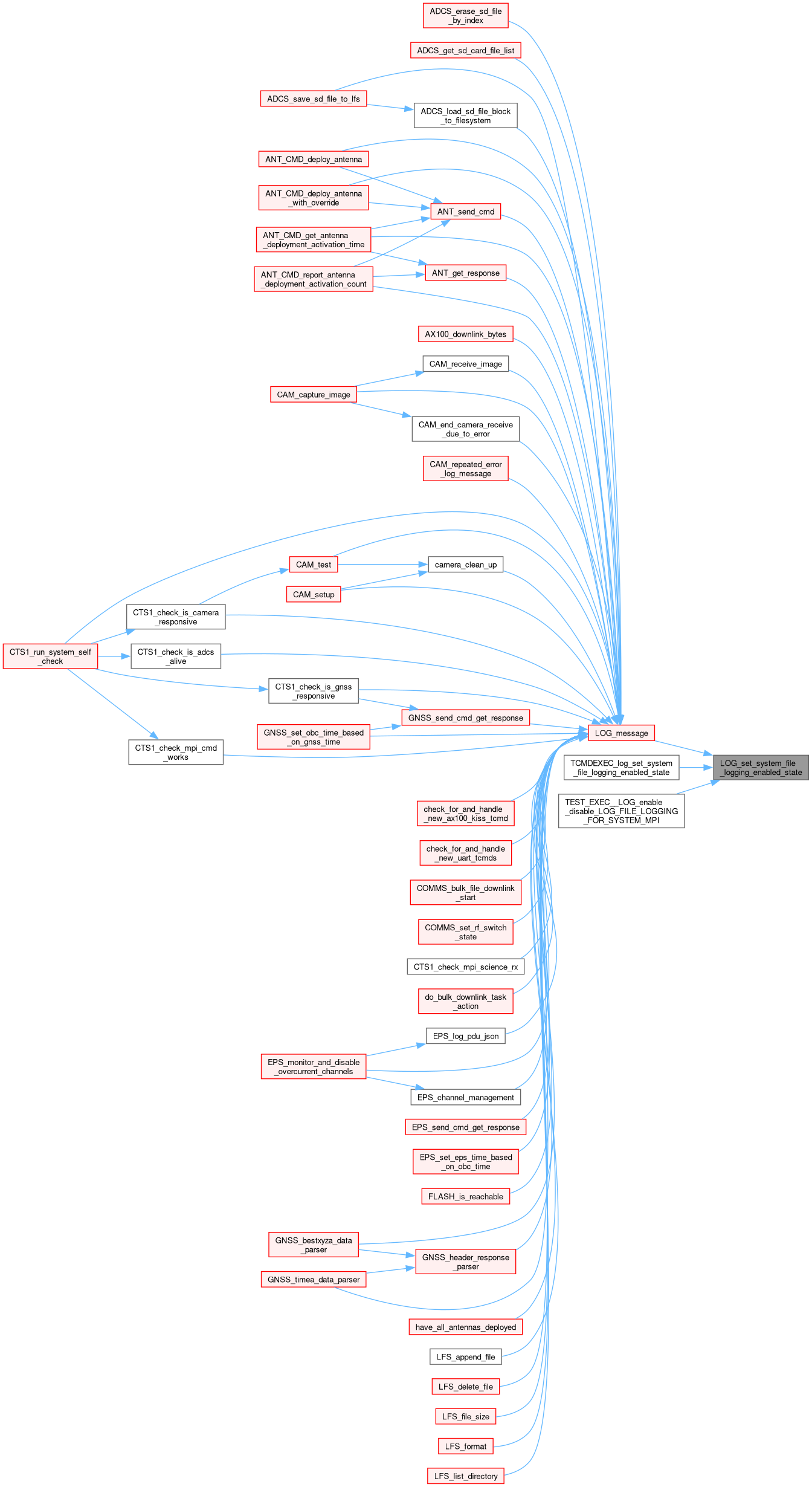

Here is the caller graph for this function:

LOG_set_system_severity_mask()

void LOG_set_system_severity_mask	(	LOG_system_enum_t	system,
		uint32_t	severity_mask )

Set the logging severity bitfield mask for a subsystem.

Parameters

system	specified system
severity_mask	bitfield representing the severities to be logged

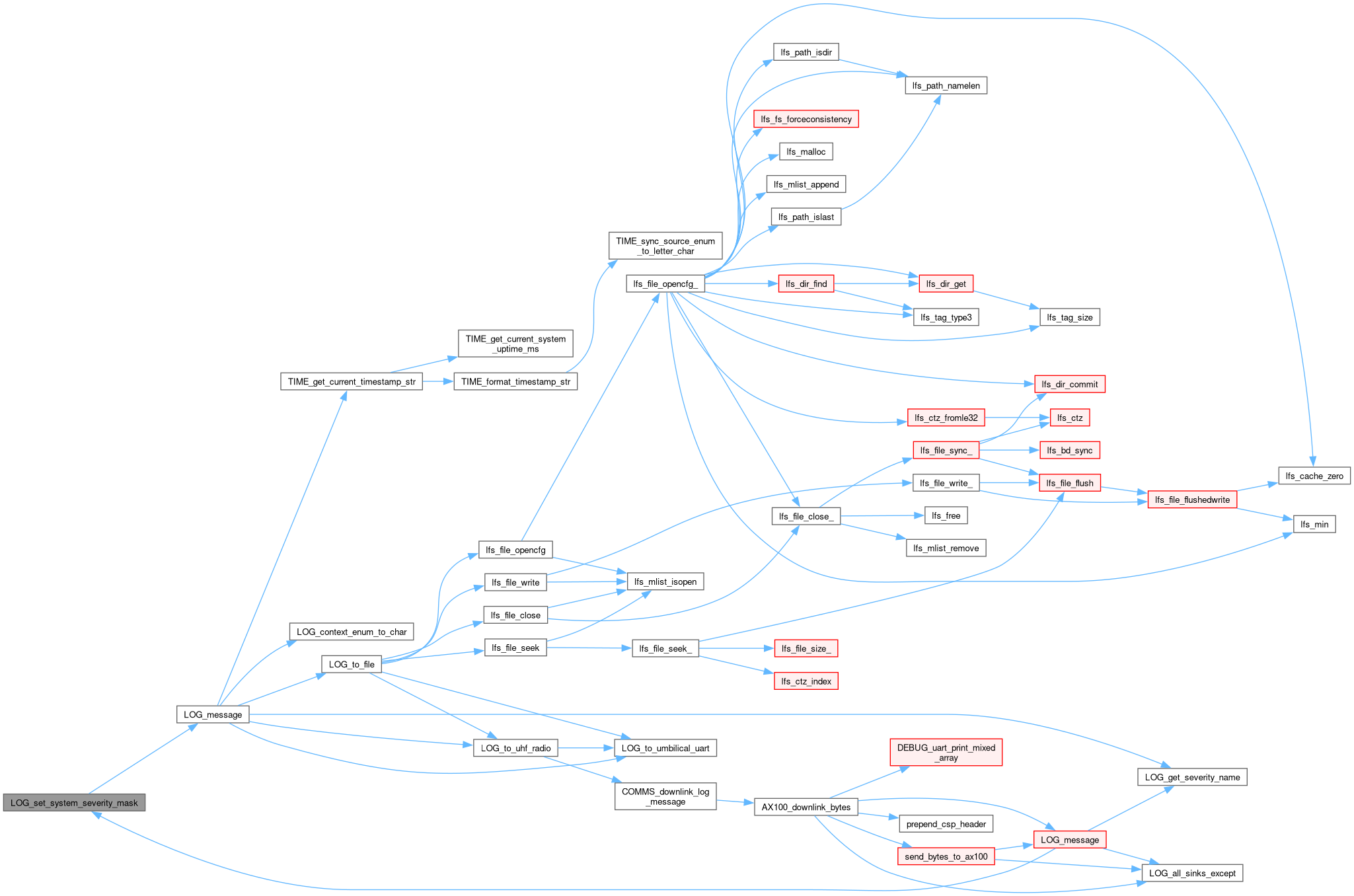

Here is the call graph for this function:

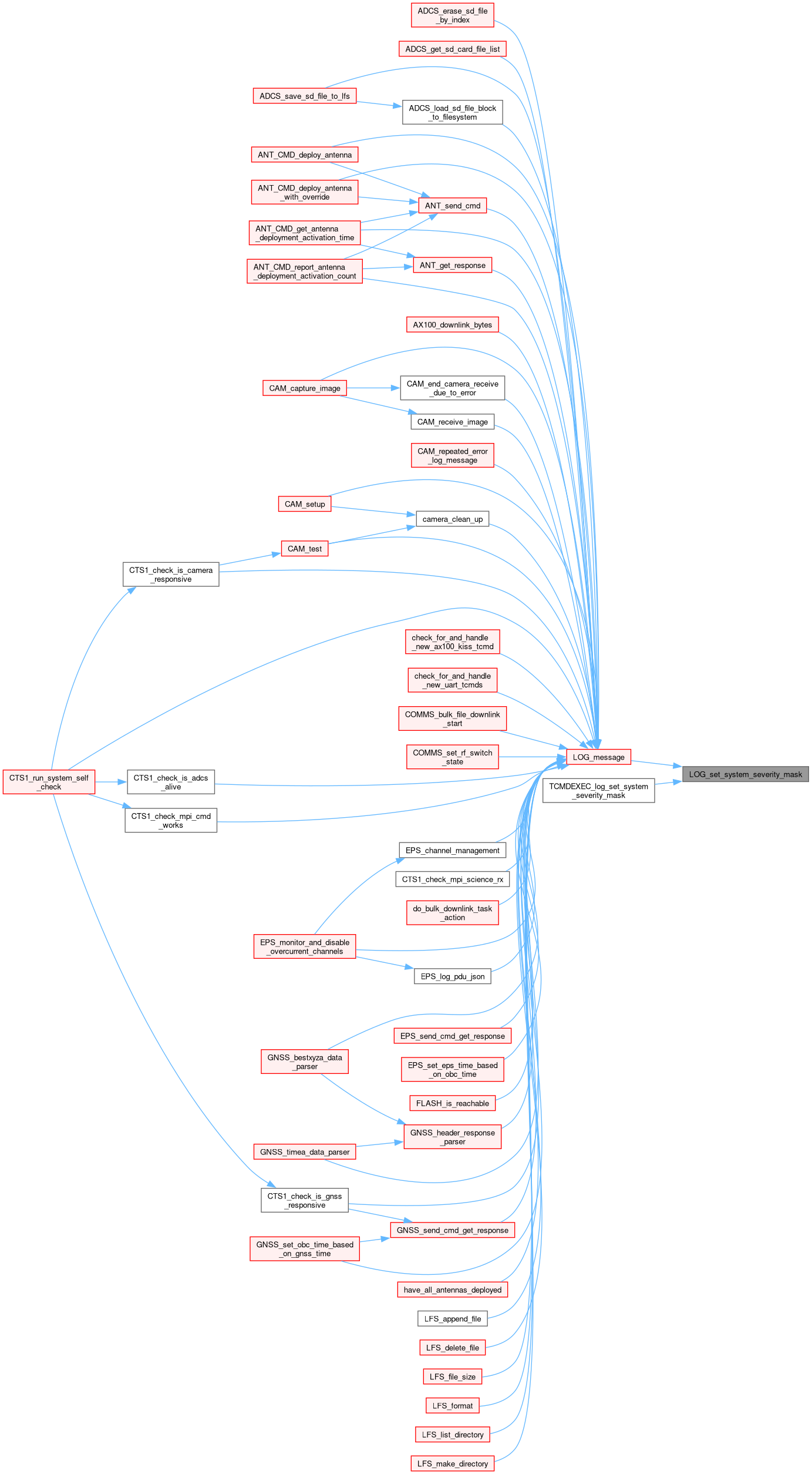

Here is the caller graph for this function:

Variable Documentation

LOG_current_log_context

LOG_context_enum_t LOG_current_log_context

extern
