rf_antenna_switch.c File Reference

#include "comms_drivers/rf_antenna_switch.h"
#include "log/log.h"
#include "adcs_drivers/adcs_types.h"
#include "adcs_drivers/adcs_commands.h"
#include "main.h"

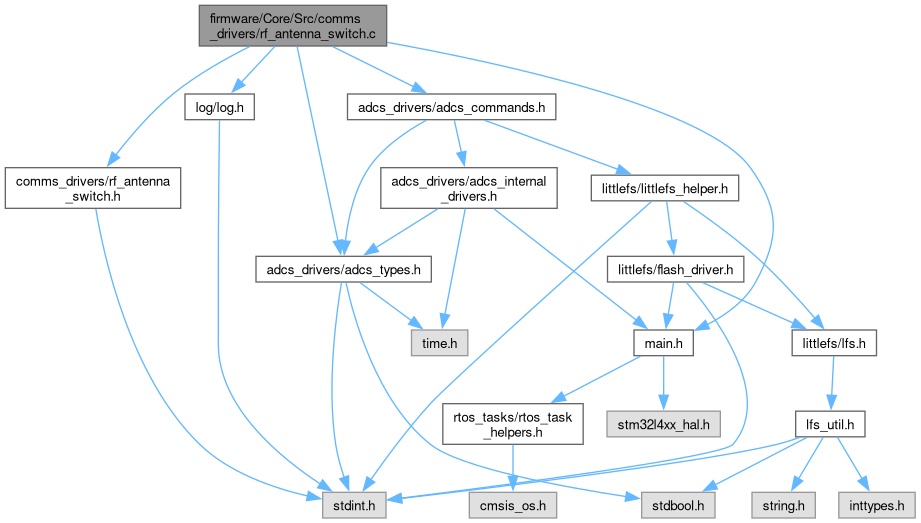

Include dependency graph for rf_antenna_switch.c:

Functions
void	COMMS_set_rf_switch_state (uint8_t antenna_num)
	Sets the state of the dipole switch on the OBC to either Antenna 1 or Antenna 2.
uint8_t	COMMS_find_optimal_antenna_using_adcs ()
	Determines the optimal antenna to use based on the satellite's attitude angles.
void	COMMS_toggle_rf_switch_state ()
	Toggles the active antenna (selected by RF switch), from 1 to 2 or from 2 to 1.
COMMS_rf_switch_control_mode_enum_t	COMMS_rf_switch_control_mode_enum_from_string (const char *str)
const char *	COMMS_rf_switch_control_mode_enum_to_string (COMMS_rf_switch_control_mode_enum_t mode)

Variables
uint8_t	COMMS_active_rf_switch_antenna = 1
COMMS_rf_switch_control_mode_enum_t	COMMS_rf_switch_control_mode = COMMS_RF_SWITCH_CONTROL_MODE_TOGGLE_BEFORE_EVERY_BEACON
uint32_t	COMMS_max_duration_without_uplink_before_setting_default_rf_switch_mode_sec = 15 * 60
	If the satellite goes this long without receiving an uplink, the COMMS_rf_switch_control_mode will be set back to TOGGLE_BEFORE_EVERY_BEACON.

Function Documentation

COMMS_find_optimal_antenna_using_adcs()

uint8_t COMMS_find_optimal_antenna_using_adcs

(

)

Determines the optimal antenna to use based on the satellite's attitude angles.

Returns

1 if Antenna 1 is optimal, 2 if Antenna 2 is optimal, 0 if an error occurs in retrieving attitude data.

Note

Utilizes estimated roll and pitch angles from the ADCS to make a decision on antenna orientation.

Angles were based of of the following logic -> https://docs.google.com/document/d/1kpgU5hM9LwyNtvdzwdpbq_XNiqCRhPLB0nauKUpm5I4/edit?tab=t.0

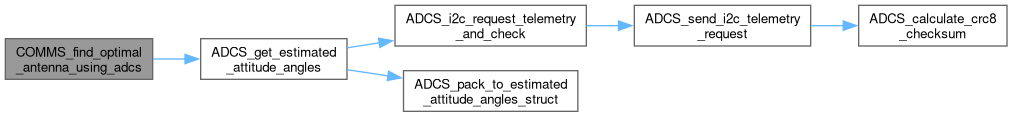

Here is the call graph for this function:

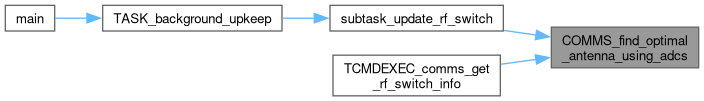

Here is the caller graph for this function:

COMMS_rf_switch_control_mode_enum_from_string()

COMMS_rf_switch_control_mode_enum_t COMMS_rf_switch_control_mode_enum_from_string

(

const char *

str

)

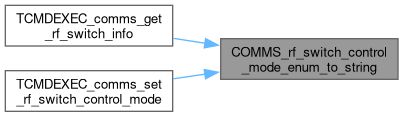

Here is the caller graph for this function:

COMMS_rf_switch_control_mode_enum_to_string()

const char * COMMS_rf_switch_control_mode_enum_to_string

(

COMMS_rf_switch_control_mode_enum_t

mode

)

Here is the caller graph for this function:

COMMS_set_rf_switch_state()

void COMMS_set_rf_switch_state

(

uint8_t

antenna_num

)

Sets the state of the dipole switch on the OBC to either Antenna 1 or Antenna 2.

Parameters

antenna_num

Either 1 or 2. If not 1 or 2, then remains unchanged.

Note

Specification in https://github.com/CalgaryToSpace/CTS-SAT-1-OBC-Firmware/issues/417.

Here is the call graph for this function:

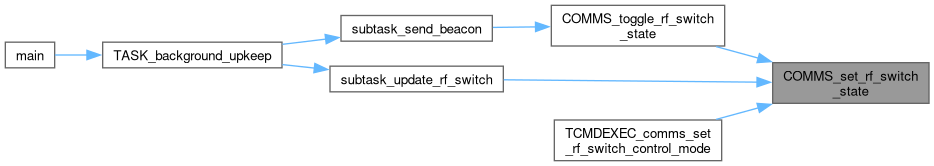

Here is the caller graph for this function:

COMMS_toggle_rf_switch_state()

void COMMS_toggle_rf_switch_state

(

)

Toggles the active antenna (selected by RF switch), from 1 to 2 or from 2 to 1.

Note

This function can be used to manually toggle the active antenna, regardless of the result of COMMS_find_optimal_antenna.

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

COMMS_active_rf_switch_antenna

uint8_t COMMS_active_rf_switch_antenna = 1

COMMS_max_duration_without_uplink_before_setting_default_rf_switch_mode_sec

uint32_t COMMS_max_duration_without_uplink_before_setting_default_rf_switch_mode_sec = 15 * 60

If the satellite goes this long without receiving an uplink, the COMMS_rf_switch_control_mode will be set back to TOGGLE_BEFORE_EVERY_BEACON.

COMMS_rf_switch_control_mode

COMMS_rf_switch_control_mode_enum_t COMMS_rf_switch_control_mode = COMMS_RF_SWITCH_CONTROL_MODE_TOGGLE_BEFORE_EVERY_BEACON
