rtos_eps_watchdog.c File Reference

#include "rtos_tasks/rtos_eps_watchdog.h"
#include "eps_drivers/eps_commands.h"
#include "eps_drivers/eps_time.h"
#include "rtos_tasks/rtos_task_helpers.h"
#include "log/log.h"
#include "timekeeping/timekeeping.h"
#include "cmsis_os.h"
#include <inttypes.h>
#include <stdint.h>

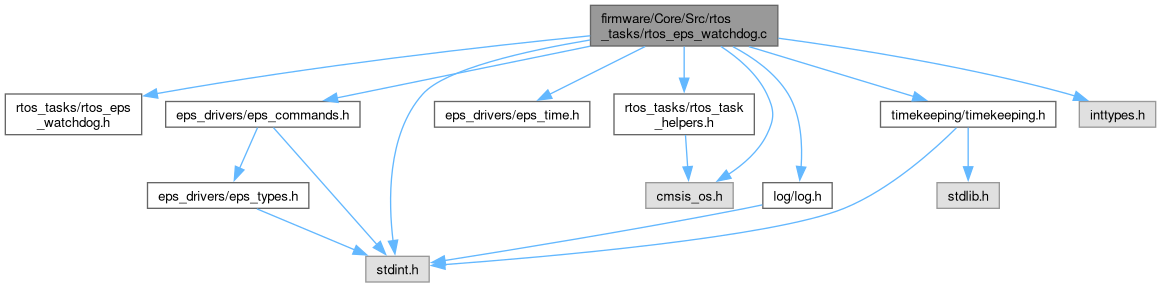

Include dependency graph for rtos_eps_watchdog.c:

Functions
void	TASK_service_eps_watchdog (void *argument)
	periodically sends a command to the eps to reset the watchdog timer

Function Documentation

TASK_service_eps_watchdog()

void TASK_service_eps_watchdog

(

void *

argument

)

periodically sends a command to the eps to reset the watchdog timer

Note

The eps has two watchdog timers: The "watchdog reset" and the "peripheral reset". The "watchdog reset" resets the entire eps system when TTC_WDG_TIMEOUT (default 300s, see ISIS.EPS2.ICD.SW.IVID.7 pg. 85) seconds pass without a command being received. The "peripheral reset" resets the communication peripheral on the eps's mcu after 0.65 * TTC_WDG_TIMEOUT seconds. The "peripheral reset" allows for more graceful resets if the eps's communication peripheral was responsible for loss of connection.

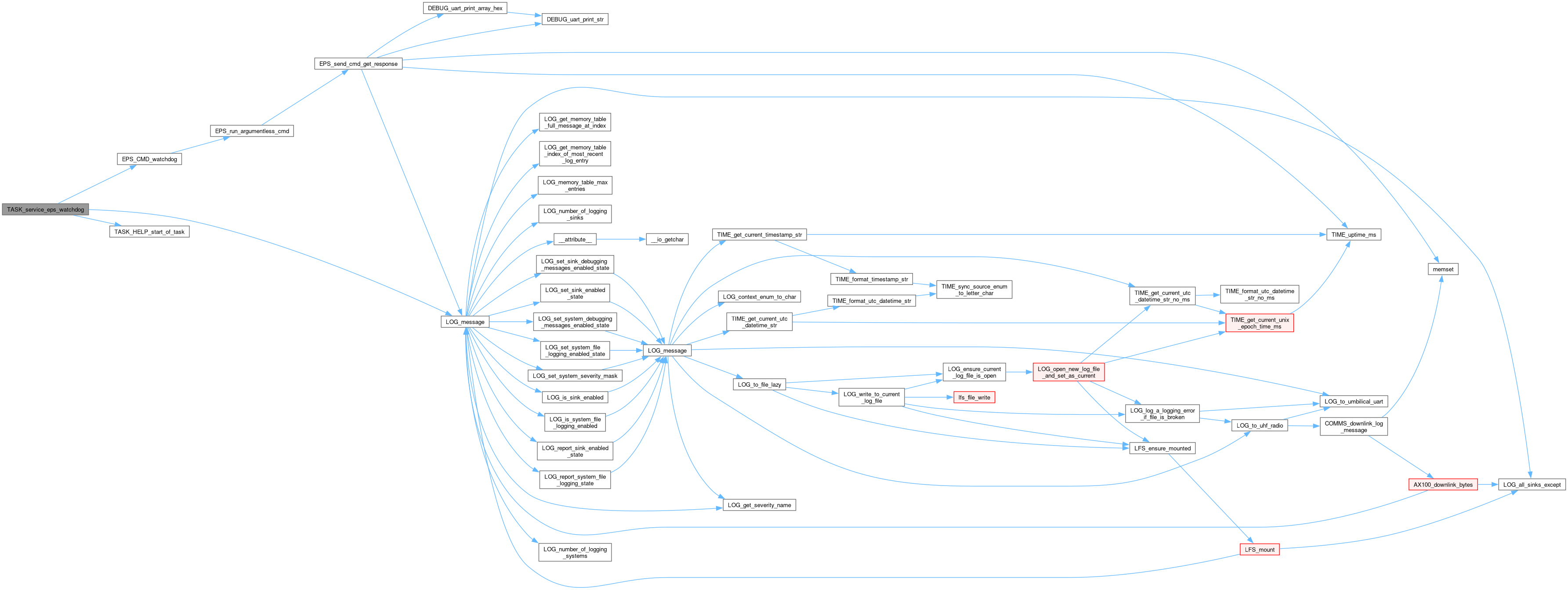

Here is the call graph for this function:

Here is the caller graph for this function:
