rtos_mpi_tasks.c File Reference

#include "rtos_tasks/rtos_task_helpers.h"
#include "mpi/mpi_command_handling.h"
#include "littlefs/littlefs_helper.h"
#include "debug_tools/debug_uart.h"
#include "cmsis_os.h"
#include "log/log.h"
#include "uart_handler/uart_handler.h"
#include "timekeeping/timekeeping.h"
#include "transforms/arrays.h"
#include <stdio.h>

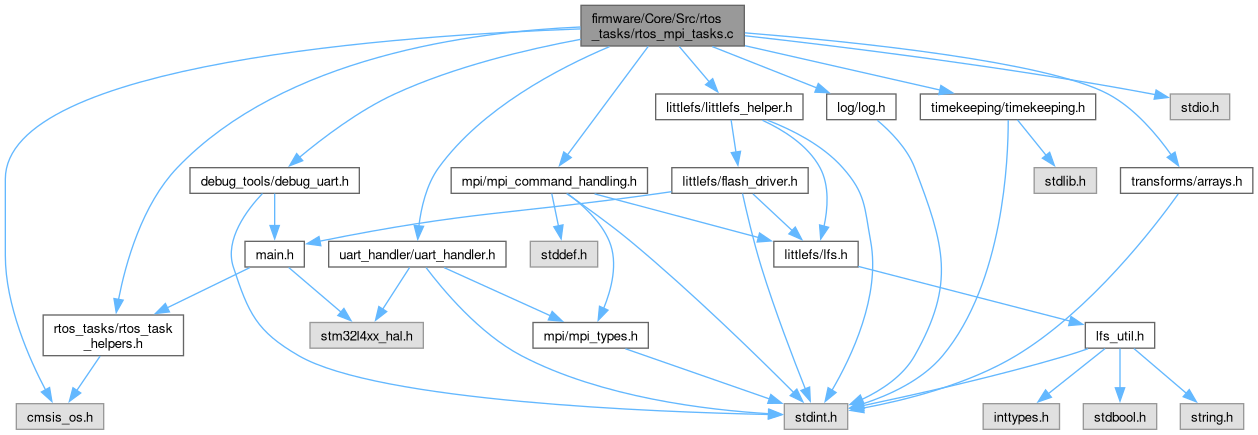

Include dependency graph for rtos_mpi_tasks.c:

Functions
static int8_t	write_mpi_timestamp_to_file (uint32_t buffer_filled_uptime_ms)
static void	write_mpi_data_to_memory (volatile uint8_t *large_buffer, uint32_t buffer_filled_uptime_ms)
int32_t	read_avg_temperature_cC_from_mpi_data_buffer (volatile uint8_t *large_buffer)
	Scan an MPI data buffer, averaging all temperature reports in it.
void	TASK_service_write_mpi_data (void *argument)

Variables
uint32_t	MPI_max_temperature_shutoff_celcius = 60
	If the MPI exceeds this value during data recording, recording will be disabled.
uint32_t	MPI_max_recording_duration_sec = 900
	Maximum duration for MPI data recording in seconds.

Function Documentation

read_avg_temperature_cC_from_mpi_data_buffer()

int32_t read_avg_temperature_cC_from_mpi_data_buffer

(

volatile uint8_t *

large_buffer

)

Scan an MPI data buffer, averaging all temperature reports in it.

Parameters

large_buffer

MPI data buffer input.

Returns

Average temperature in 100ths of a degree Celsius (cC). Returns special value -9999 on error.

Here is the caller graph for this function:

TASK_service_write_mpi_data()

void TASK_service_write_mpi_data

(

void *

argument

)

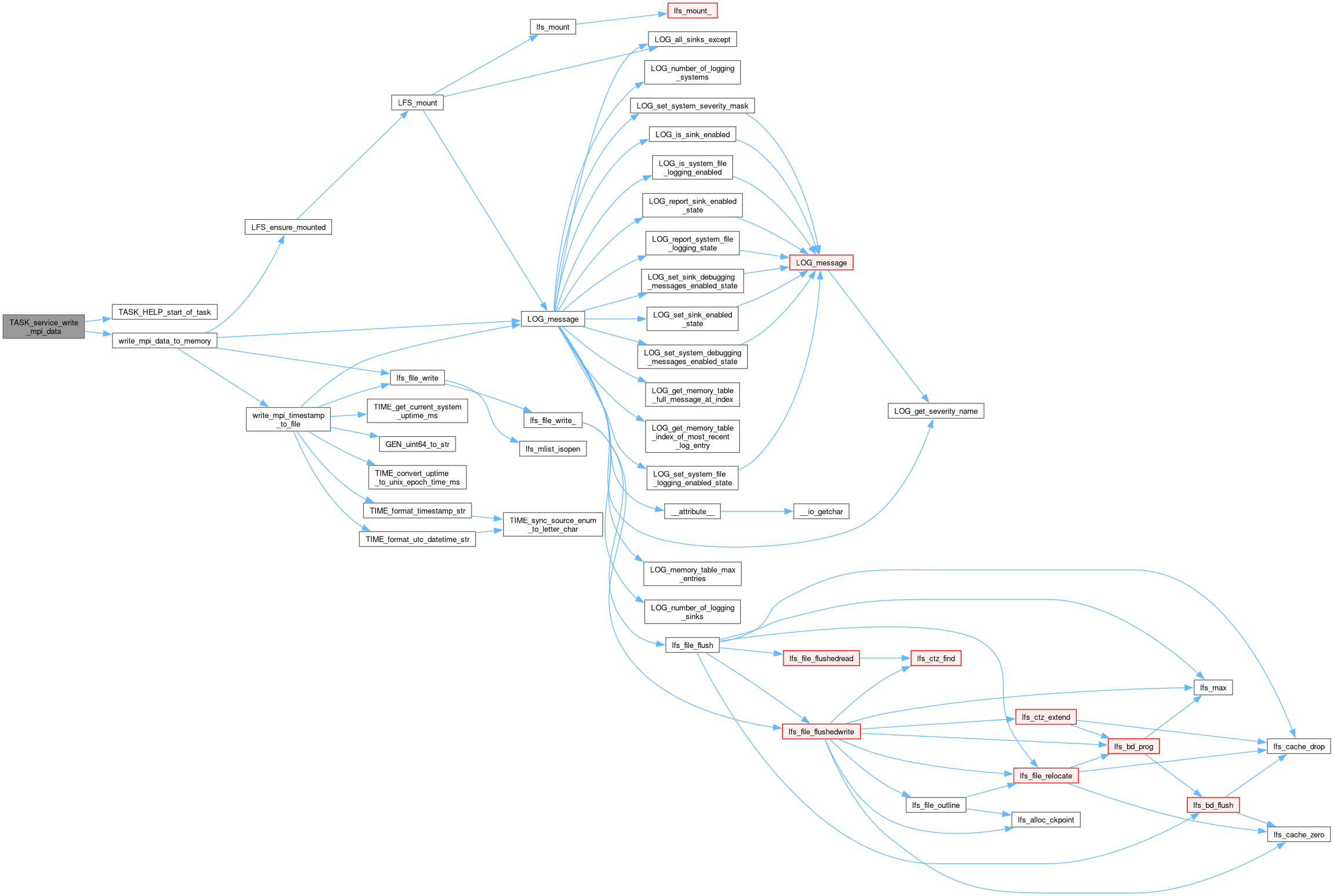

Here is the call graph for this function:

Here is the caller graph for this function:

write_mpi_data_to_memory()

void write_mpi_data_to_memory ( volatile uint8_t * large_buffer, uint32_t buffer_filled_uptime_ms )

static

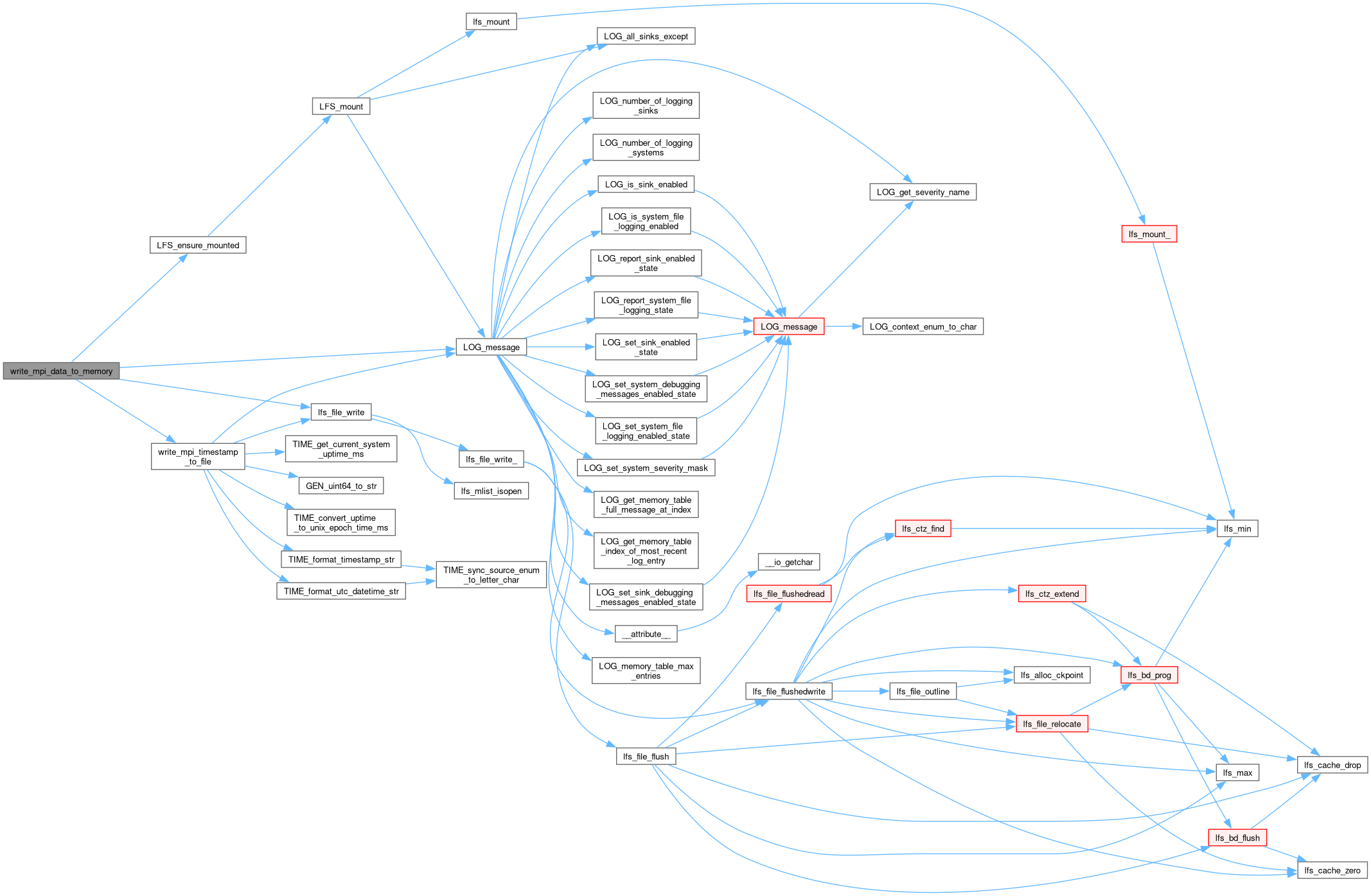

Here is the call graph for this function:

Here is the caller graph for this function:

write_mpi_timestamp_to_file()

int8_t write_mpi_timestamp_to_file ( uint32_t buffer_filled_uptime_ms )

static

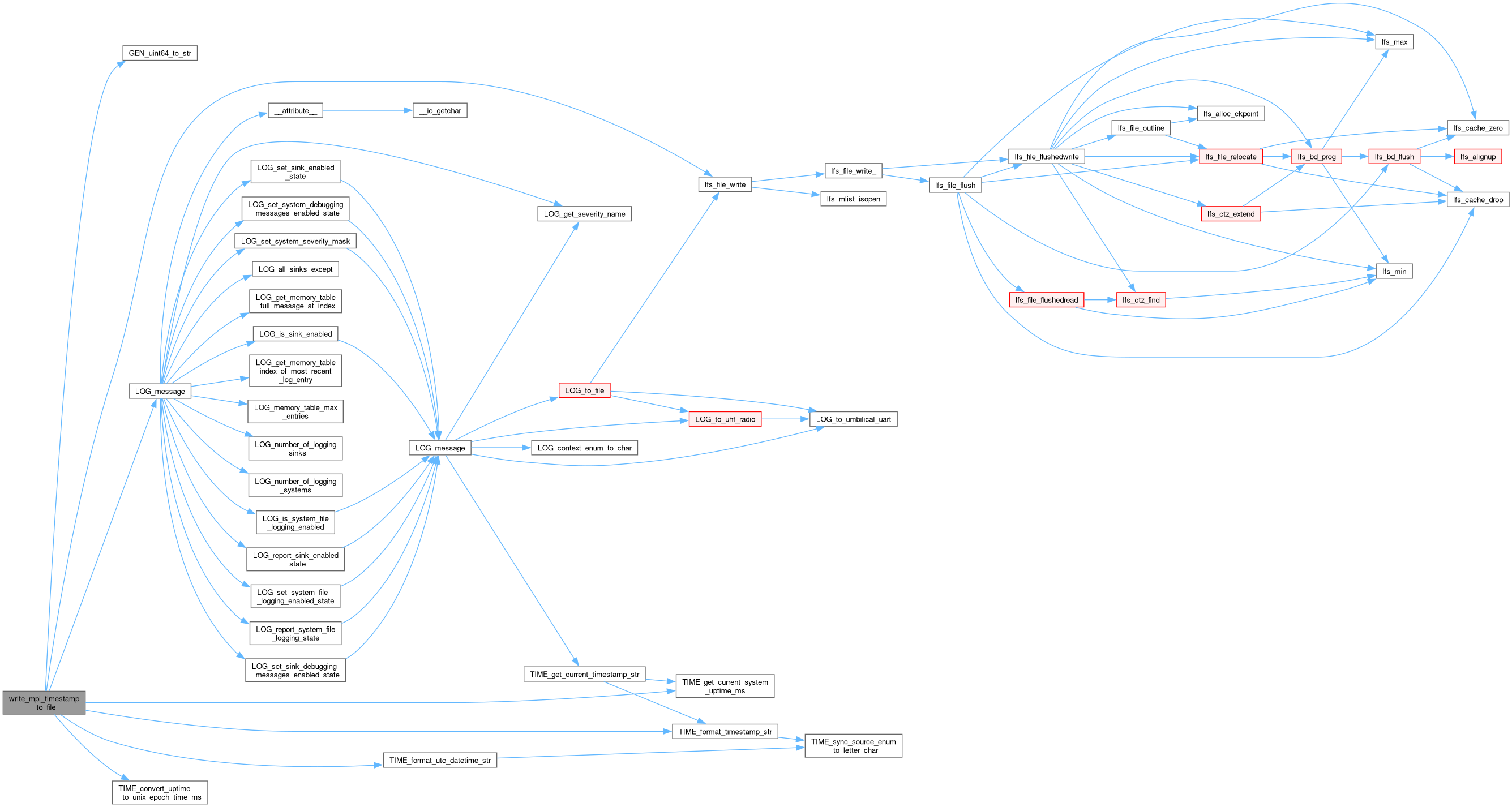

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

MPI_max_recording_duration_sec

uint32_t MPI_max_recording_duration_sec = 900

Maximum duration for MPI data recording in seconds.

Note

Set this value to 0 (via configuration) to disable the duration limit.

This configuration variable is designed to prevent against an operator failing to schedule a stop telecommand for MPI data recording.

MPI_max_temperature_shutoff_celcius

uint32_t MPI_max_temperature_shutoff_celcius = 60

If the MPI exceeds this value during data recording, recording will be disabled.

Note

Set this value to 0 (via configuration) to disable the temperature shutoff feature.
