#include "adcs_drivers/adcs_types.h"
#include "adcs_drivers/adcs_internal_drivers.h"
#include "littlefs/littlefs_helper.h"

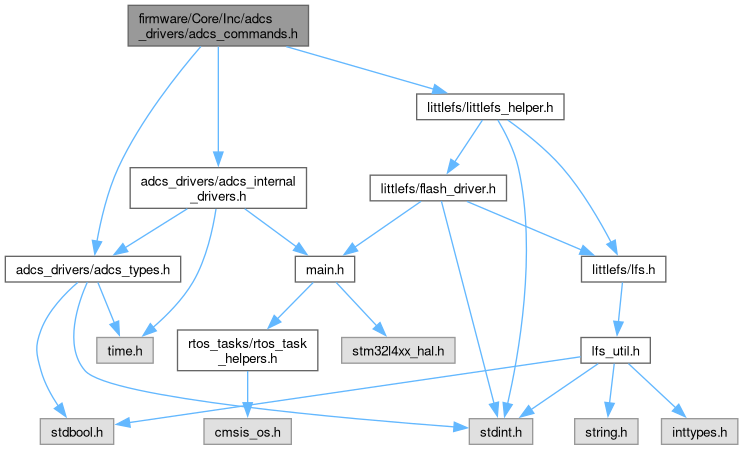

Include dependency graph for adcs_commands.h:

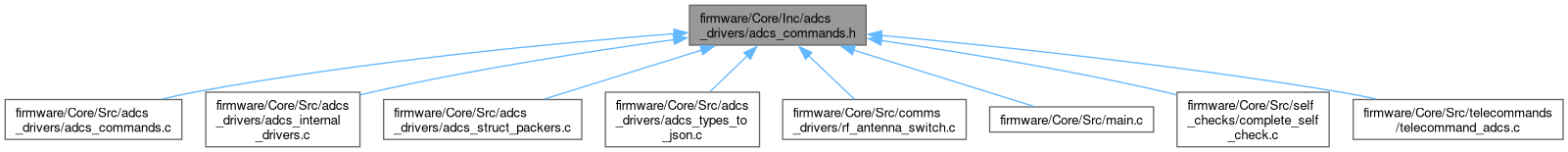

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions

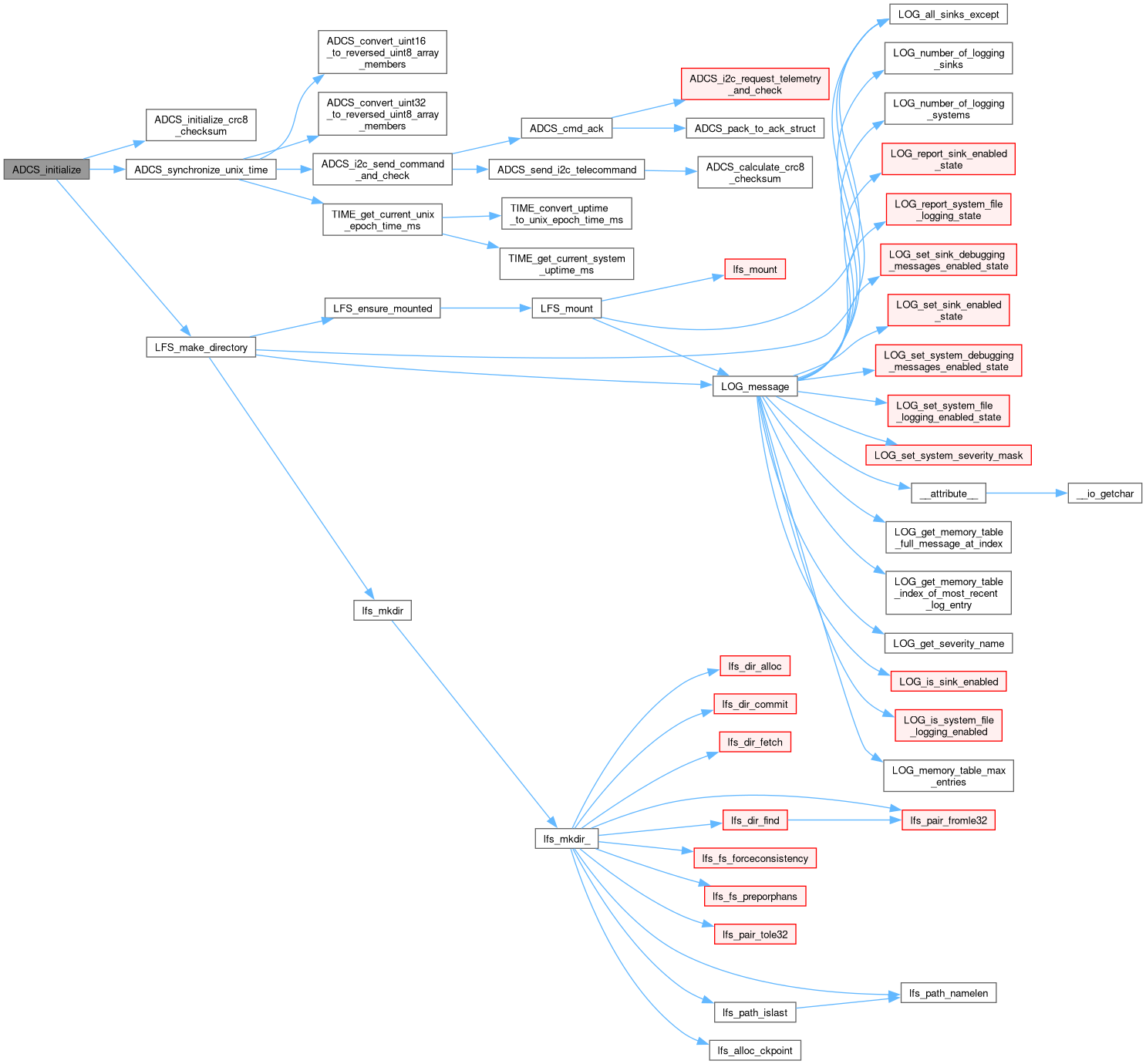

uint8_t	ADCS_initialize ()
	Initialize the ADCS CRC, timestamp, and file system directory.

uint8_t	ADCS_reset ()
	Instruct the ADCS to execute the ADCS_Reset command.

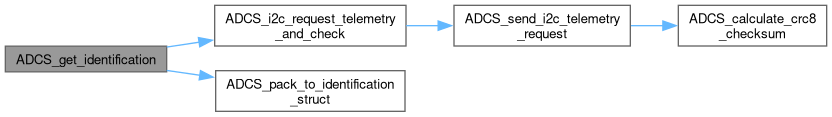

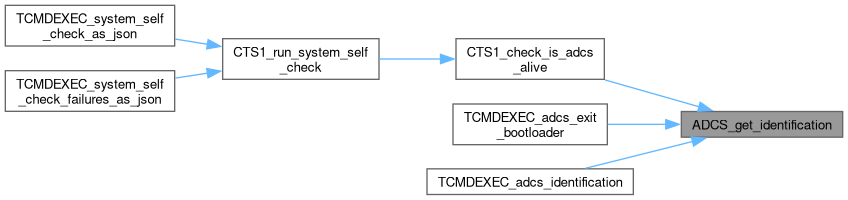

uint8_t	ADCS_get_identification (ADCS_id_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Identification command.

uint8_t	ADCS_get_program_status (ADCS_boot_running_status_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Program_Status command.

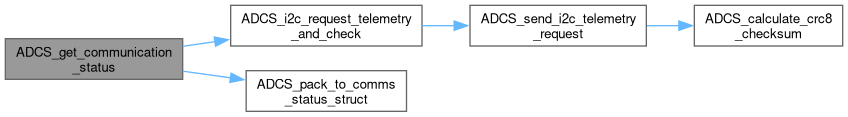

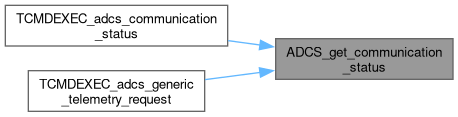

uint8_t	ADCS_get_communication_status (ADCS_comms_status_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Communication_Status command.

uint8_t	ADCS_deploy_magnetometer (uint8_t deploy_timeout)
	Instruct the ADCS to execute the ADCS_Deploy_Magnetometer command.

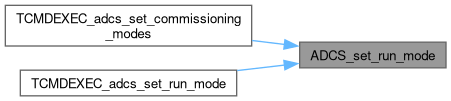

uint8_t	ADCS_set_run_mode (ADCS_run_mode_enum_t mode)
	Instruct the ADCS to execute the ADCS_Set_Run_Mode command.

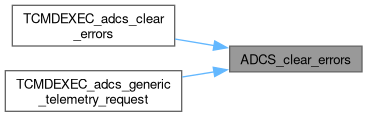

uint8_t	ADCS_clear_errors ()
	Instruct the ADCS to execute the ADCS_Clear_Errors command.

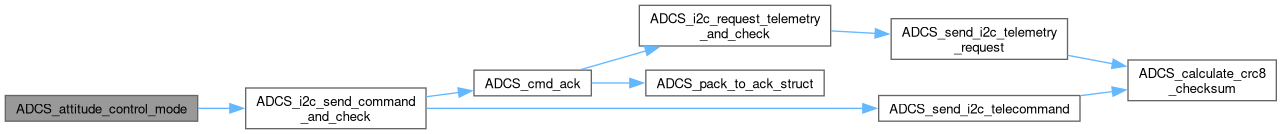

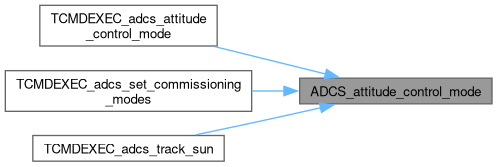

uint8_t	ADCS_attitude_control_mode (ADCS_control_mode_enum_t mode, uint16_t timeout)
	Instruct the ADCS to execute the titular command.

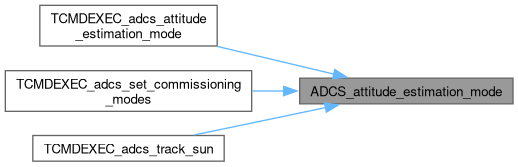

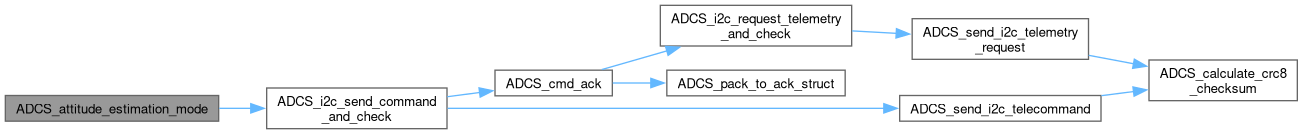

uint8_t	ADCS_attitude_estimation_mode (ADCS_estimation_mode_enum_t mode)
	Instruct the ADCS to execute the ADCS_Attitude_Estimation_Mode command.

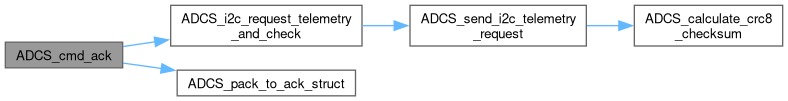

uint8_t	ADCS_cmd_ack (ADCS_cmd_ack_struct_t *ack)
	Instructs the ADCS to determine whether the last command succeeded. (Doesn't work for telemetry requests, by design.)

uint8_t	ADCS_run_once ()
	Instruct the ADCS to execute the ADCS_Run_Once command.

uint8_t	ADCS_set_magnetometer_mode (ADCS_magnetometer_mode_enum_t mode)
	Instruct the ADCS to execute the titular command.

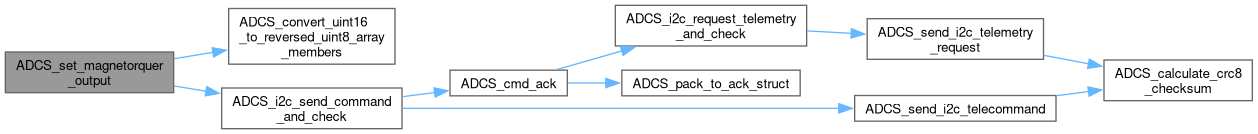

uint8_t	ADCS_set_magnetorquer_output (double x_duty, double y_duty, double z_duty)
	Instruct the ADCS to execute the ADCS_Set_Magnetorquer_Output command.

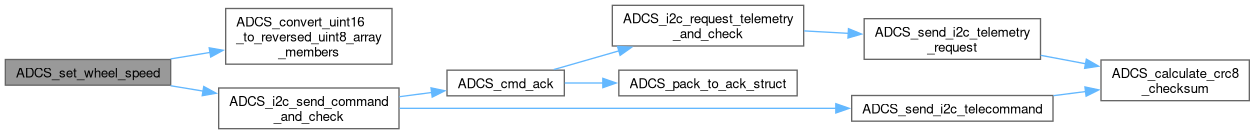

uint8_t	ADCS_set_wheel_speed (int16_t x_speed, int16_t y_speed, int16_t z_speed)
	Instruct the ADCS to execute the titular command.

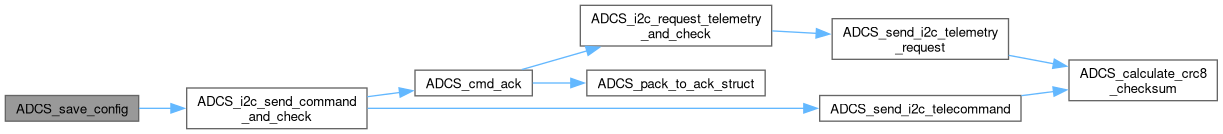

uint8_t	ADCS_save_config ()
	Instruct the ADCS to execute the ADCS_Save_Config command.

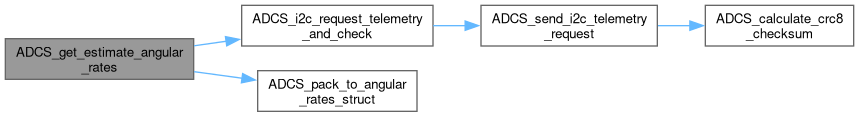

uint8_t	ADCS_get_estimate_angular_rates (ADCS_angular_rates_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Estimate_Angular_Rates command.

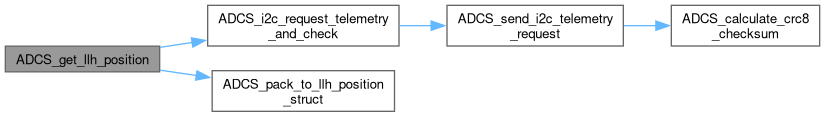

uint8_t	ADCS_get_llh_position (ADCS_llh_position_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Get_LLH_Position command.

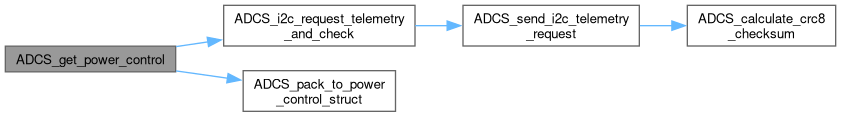

uint8_t	ADCS_get_power_control (ADCS_power_control_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Get_Power_Control command.

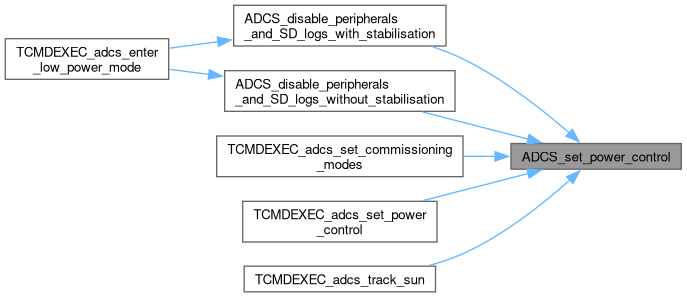

uint8_t	ADCS_set_power_control (ADCS_power_select_enum_t cube_control_signal, ADCS_power_select_enum_t cube_control_motor, ADCS_power_select_enum_t cube_sense1, ADCS_power_select_enum_t cube_sense2, ADCS_power_select_enum_t cube_star_power, ADCS_power_select_enum_t cube_wheel1_power, ADCS_power_select_enum_t cube_wheel2_power, ADCS_power_select_enum_t cube_wheel3_power, ADCS_power_select_enum_t motor_power, ADCS_power_select_enum_t gps_power)
	Set the power control mode of each component of the ADCS; for each, 0 turns the component off, 1 turns it on, and 2 keeps it the same as previously.

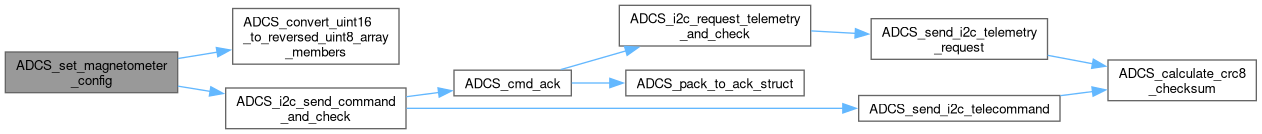

uint8_t	ADCS_set_magnetometer_config (double mounting_transform_alpha_angle, double mounting_transform_beta_angle, double mounting_transform_gamma_angle, double channel_1_offset, double channel_2_offset, double channel_3_offset, double sensitivity_matrix_s11, double sensitivity_matrix_s22, double sensitivity_matrix_s33, double sensitivity_matrix_s12, double sensitivity_matrix_s13, double sensitivity_matrix_s21, double sensitivity_matrix_s23, double sensitivity_matrix_s31, double sensitivity_matrix_s32)
	Instruct the ADCS to set the magnetometer configuration.

uint8_t	ADCS_bootloader_clear_errors ()
	Instruct the ADCS to execute the ADCS_Bootloader_Clear_Errors command.

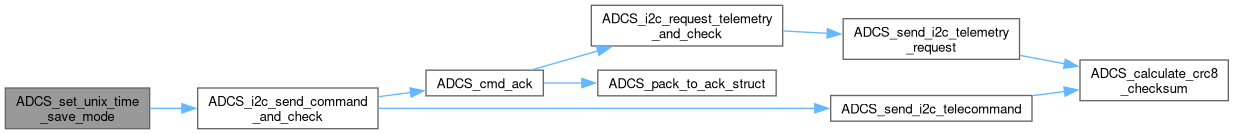

uint8_t	ADCS_set_unix_time_save_mode (bool save_now, bool save_on_update, bool save_periodic, uint8_t period_s)
	Instruct the ADCS to execute the ADCS_Set_Unix_Time_Save_Mode command.

uint8_t	ADCS_get_unix_time_save_mode (ADCS_set_unix_time_save_mode_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Get_Unix_Time_Save_Mode command.

uint8_t	ADCS_set_sgp4_orbit_params (double inclination, double eccentricity, double ascending_node_right_ascension, double perigee_argument, double b_star_drag_term, double mean_motion, double mean_anomaly, double epoch)
	Instruct the ADCS to execute the ADCS_Set_SGP4_Orbit_Params command.

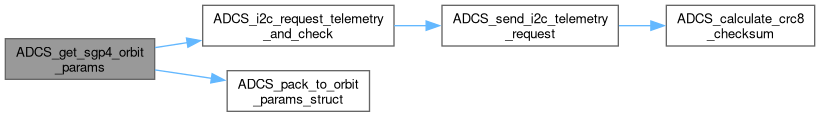

uint8_t	ADCS_get_sgp4_orbit_params (ADCS_orbit_params_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Get_SGP4_Orbit_Params command.

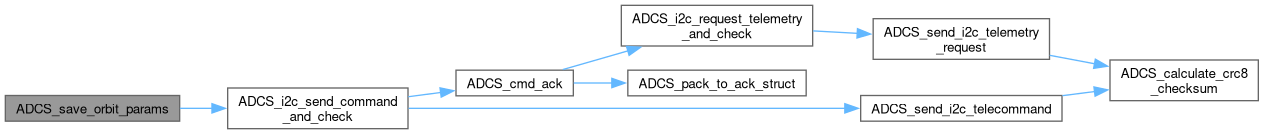

uint8_t	ADCS_save_orbit_params ()
	Instruct the ADCS to execute the ADCS_Save_Orbit_Params command.

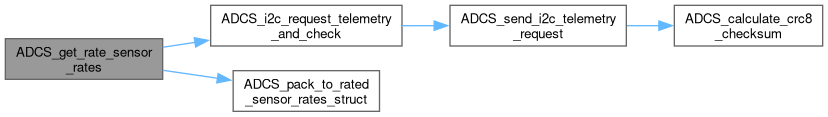

uint8_t	ADCS_get_rate_sensor_rates (ADCS_rated_sensor_rates_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Rate_Sensor_Rates command.

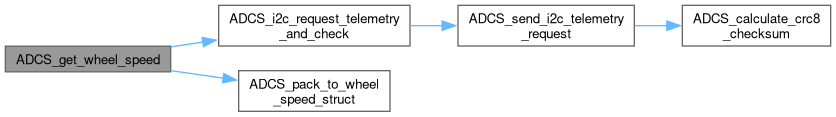

uint8_t	ADCS_get_wheel_speed (ADCS_wheel_speed_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Get_Wheel_Speed command.

uint8_t	ADCS_get_magnetorquer_command (ADCS_magnetorquer_command_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Get_Magnetorquer_Command command.

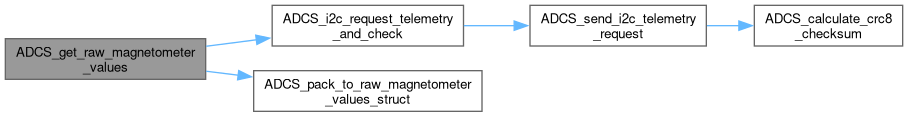

uint8_t	ADCS_get_raw_magnetometer_values (ADCS_raw_magnetometer_values_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Get_Raw_Magnetometer_Values command.

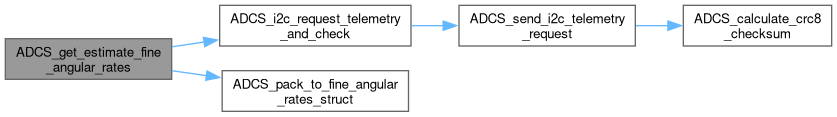

uint8_t	ADCS_get_estimate_fine_angular_rates (ADCS_fine_angular_rates_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Estimate_Fine_Angular_Rates command.

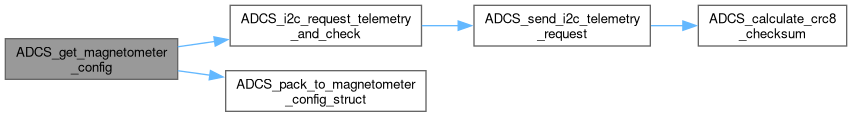

uint8_t	ADCS_get_magnetometer_config (ADCS_magnetometer_config_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Get_Magnetometer_Config command.

uint8_t	ADCS_get_commanded_attitude_angles (ADCS_commanded_angles_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Get_Commanded_Attitude_Angles command.

uint8_t	ADCS_set_commanded_attitude_angles (double x, double y, double z)
	Instruct the ADCS to execute the ADCS_Set_Commanded_Attitude_Angles command.

uint8_t	ADCS_set_estimation_params (float magnetometer_rate_filter_system_noise, float extended_kalman_filter_system_noise, float coarse_sun_sensor_measurement_noise, float sun_sensor_measurement_noise, float nadir_sensor_measurement_noise, float magnetometer_measurement_noise, float star_tracker_measurement_noise, bool use_sun_sensor, bool use_nadir_sensor, bool use_css, bool use_star_tracker, bool nadir_sensor_terminator_test, bool automatic_magnetometer_recovery, ADCS_magnetometer_mode_enum_t magnetometer_mode, ADCS_magnetometer_mode_enum_t magnetometer_selection_for_raw_magnetometer_telemetry, bool automatic_estimation_transition_due_to_rate_sensor_errors, bool wheel_30s_power_up_delay, uint8_t error_counter_reset_period_min)
	Instruct the ADCS to execute the ADCS_Set_Estimation_Params command.

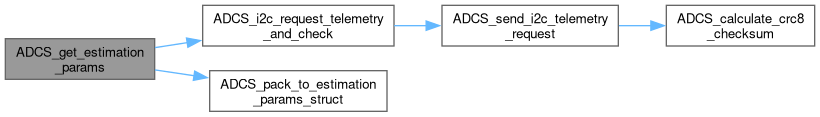

uint8_t	ADCS_get_estimation_params (ADCS_estimation_params_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Get_Estimation_Params command.

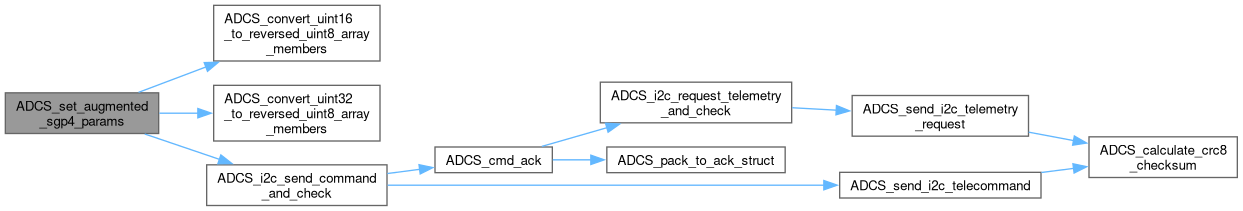

uint8_t	ADCS_set_augmented_sgp4_params (double incl_coefficient, double raan_coefficient, double ecc_coefficient, double aop_coefficient, double time_coefficient, double pos_coefficient, double maximum_position_error, ADCS_augmented_sgp4_filter_enum_t augmented_sgp4_filter, double xp_coefficient, double yp_coefficient, uint8_t gps_roll_over, double position_sd, double velocity_sd, uint8_t min_satellites, double time_gain, double max_lag, uint16_t min_samples)
	Set the Augmented SGP4 Parameters of the ADCS.

uint8_t	ADCS_get_augmented_sgp4_params (ADCS_augmented_sgp4_params_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Get_Augmented_SGP4_Params command.

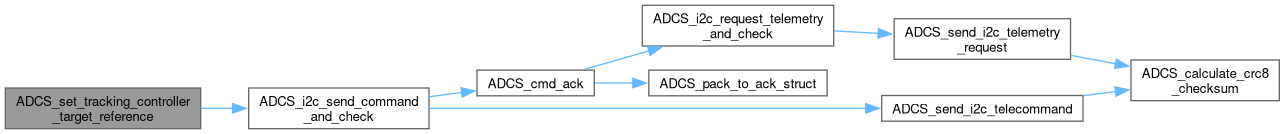

uint8_t	ADCS_set_tracking_controller_target_reference (float lon, float lat, float alt)
	Instruct the ADCS to execute the ADCS_Set_Tracking_Controller_Target_Reference command.

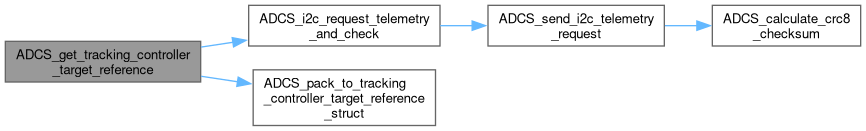

uint8_t	ADCS_get_tracking_controller_target_reference (ADCS_tracking_controller_target_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Get_Tracking_Controller_Target_Reference command.

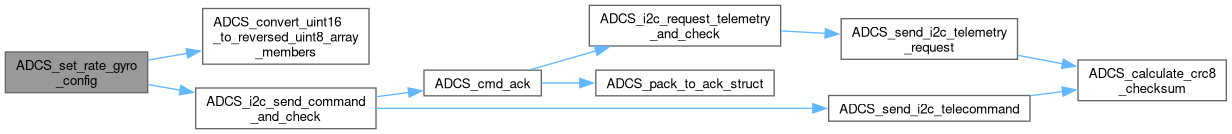

uint8_t	ADCS_set_rate_gyro_config (ADCS_axis_select_enum_t gyro1, ADCS_axis_select_enum_t gyro2, ADCS_axis_select_enum_t gyro3, double x_rate_offset, double y_rate_offset, double z_rate_offset, uint8_t rate_sensor_mult)
	Instruct the ADCS to execute the ADCS_Set_Rate_Gyro_Config command.

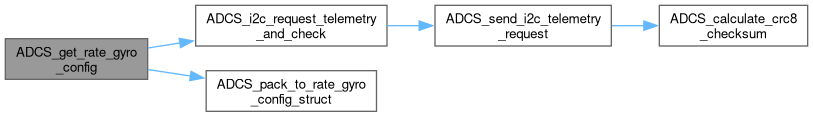

uint8_t	ADCS_get_rate_gyro_config (ADCS_rate_gyro_config_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Get_Rate_Gyro_Config command.

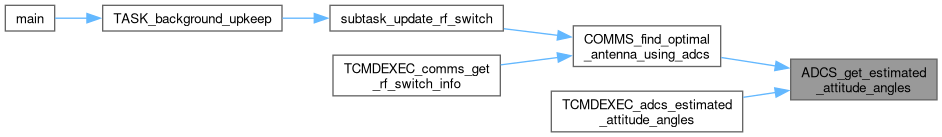

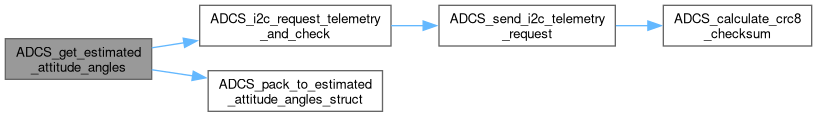

uint8_t	ADCS_get_estimated_attitude_angles (ADCS_estimated_attitude_angles_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Estimated_Attitude_Angles command.

uint8_t	ADCS_get_magnetic_field_vector (ADCS_magnetic_field_vector_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Magnetic_Field_Vector command.

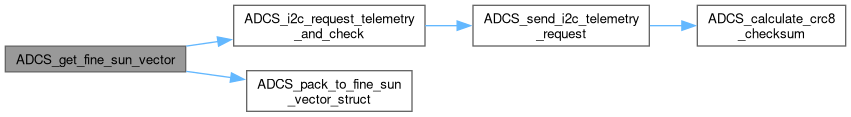

uint8_t	ADCS_get_fine_sun_vector (ADCS_fine_sun_vector_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Fine_Sun_Vector command.

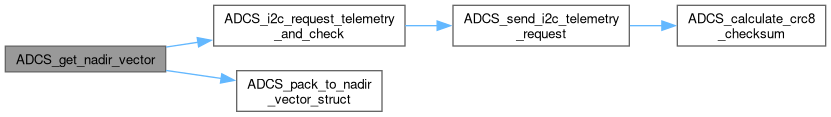

uint8_t	ADCS_get_nadir_vector (ADCS_nadir_vector_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Nadir_Vector command.

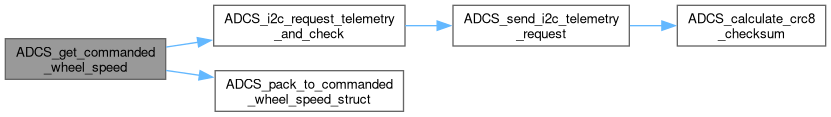

uint8_t	ADCS_get_commanded_wheel_speed (ADCS_wheel_speed_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Commanded_Wheel_Speed command.

uint8_t	ADCS_get_igrf_magnetic_field_vector (ADCS_magnetic_field_vector_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_IGRF_Magnetic_Field_Vector command.

uint8_t	ADCS_get_quaternion_error_vector (ADCS_quaternion_error_vector_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Quaternion_Error_Vector command.

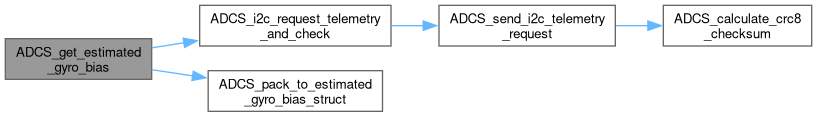

uint8_t	ADCS_get_estimated_gyro_bias (ADCS_estimated_gyro_bias_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Estimated_Gyro_Bias command.

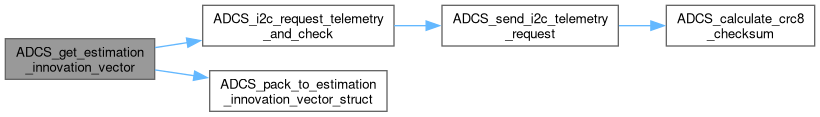

uint8_t	ADCS_get_estimation_innovation_vector (ADCS_estimation_innovation_vector_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Estimation_Innovation_Vector command.

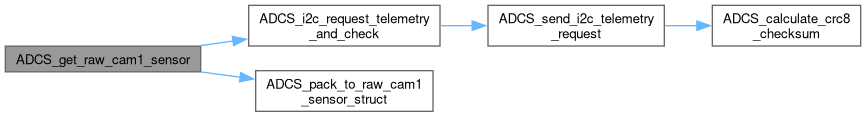

uint8_t	ADCS_get_raw_cam1_sensor (ADCS_raw_cam_sensor_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Raw_Cam1_Sensor command.

uint8_t	ADCS_get_raw_cam2_sensor (ADCS_raw_cam_sensor_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Raw_Cam2_Sensor command.

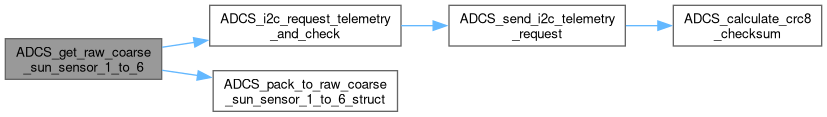

uint8_t	ADCS_get_raw_coarse_sun_sensor_1_to_6 (ADCS_raw_coarse_sun_sensor_1_to_6_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Raw_Coarse_Sun_Sensor_1_to_6 command.

uint8_t	ADCS_get_raw_coarse_sun_sensor_7_to_10 (ADCS_raw_coarse_sun_sensor_7_to_10_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Raw_Coarse_Sun_Sensor_7_to_10 command.

uint8_t	ADCS_get_cubecontrol_current (ADCS_cubecontrol_current_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_CubeControl_Current command.

uint8_t	ADCS_get_raw_gps_status (ADCS_raw_gps_status_struct_t *output_struct)

uint8_t	ADCS_get_raw_gps_time (ADCS_raw_gps_time_struct_t *output_struct)

uint8_t	ADCS_get_raw_gps_x (ADCS_raw_gps_struct_t *output_struct)

uint8_t	ADCS_get_raw_gps_y (ADCS_raw_gps_struct_t *output_struct)

uint8_t	ADCS_get_raw_gps_z (ADCS_raw_gps_struct_t *output_struct)

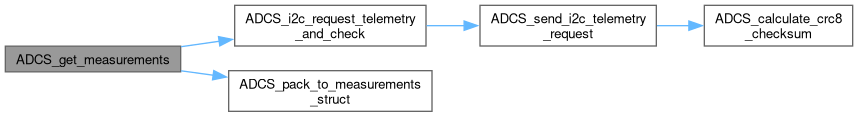

uint8_t	ADCS_get_measurements (ADCS_measurements_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_Measurements command.

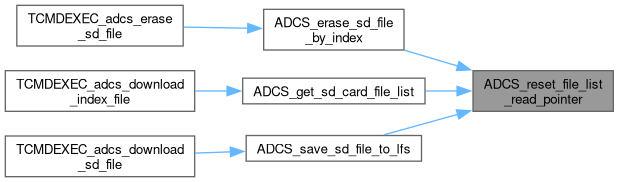

uint8_t	ADCS_reset_file_list_read_pointer ()
	Instruct the ADCS to execute the ADCS_reset_file_list_read_pointer command.

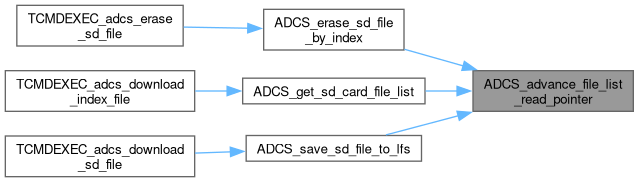

uint8_t	ADCS_advance_file_list_read_pointer ()
	Instruct the ADCS to execute the ADCS_advance_file_list_read_pointer command.

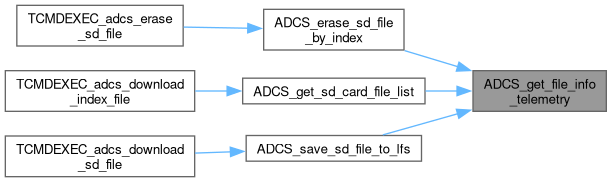

uint8_t	ADCS_get_file_info_telemetry (ADCS_file_info_struct_t *output_struct)
	Request file information telemetry from the ADCS.

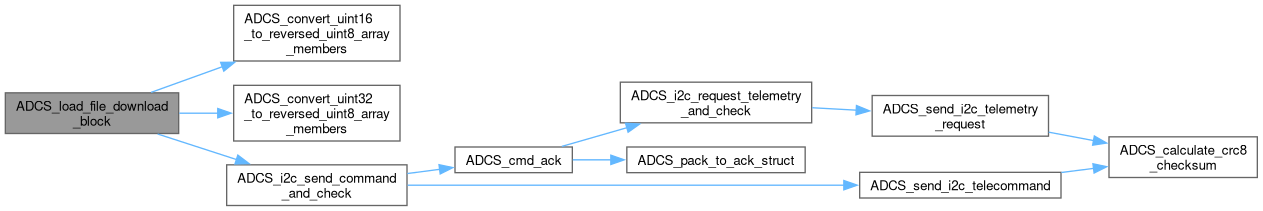

uint8_t	ADCS_load_file_download_block (ADCS_file_type_enum_t file_type, uint8_t counter, uint32_t offset, uint16_t block_length)
	Instruct the ADCS to load a file download block into the download buffer.

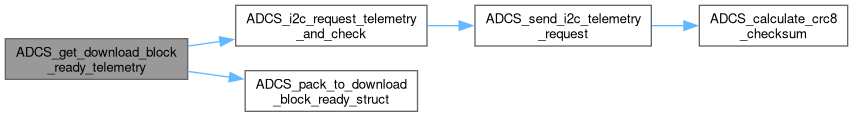

uint8_t	ADCS_get_download_block_ready_telemetry (ADCS_download_block_ready_struct_t *output_struct)
	Request Download Block Ready telemetry from the ADCS.

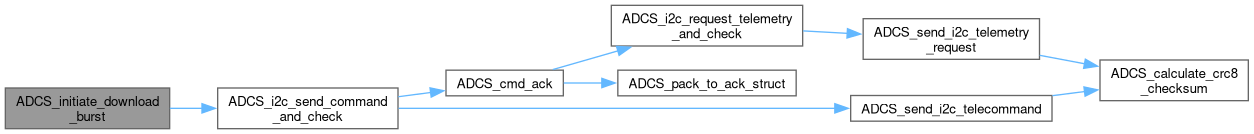

uint8_t	ADCS_initiate_download_burst (bool ignore_hole_map)
	Send the Initiate Download Burst command to the ADCS.

uint8_t	ADCS_set_hole_map (uint8_t *hole_map, uint8_t which_map)
	Send a File Upload Hole Map command to the ADCS.

uint8_t	ADCS_get_hole_map (uint8_t *hole_map_struct, uint8_t which_map)
	Retrieve a File Upload Hole Map telemetry from the ADCS.

uint8_t	ADCS_format_sd ()
	Instruct the ADCS to format the SD card.

uint8_t	ADCS_erase_file (ADCS_file_type_enum_t filetype, uint8_t filecounter, bool erase_all)
	Send the Erase File command to the ADCS.

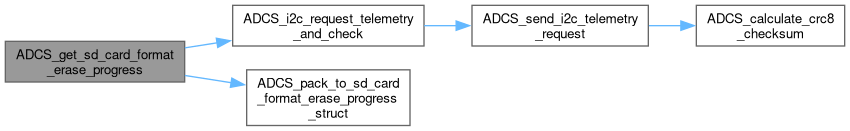

uint8_t	ADCS_get_sd_card_format_erase_progress (ADCS_sd_card_format_erase_progress_struct_t *output_struct)
	Retrieve the SD card format/erase progress telemetry from the ADCS.

uint8_t	ADCS_get_file_download_buffer (ADCS_file_download_buffer_struct_t *output_struct)
	Retrieve the File Download Buffer telemetry from the ADCS.

uint8_t	ADCS_get_acp_execution_state (ADCS_acp_execution_state_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_execution_state command.

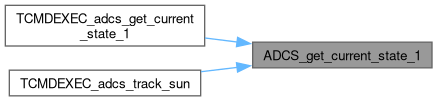

uint8_t	ADCS_get_current_state_1 (ADCS_current_state_1_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_get_current_state_1 command. (There's an ADCS_current_state_2 command which is presently not implemented)

uint8_t	ADCS_get_raw_star_tracker_data (ADCS_raw_star_tracker_struct_t *output_struct)
	Instruct the ADCS to execute the ADCS_get_raw_star_tracker_data command.

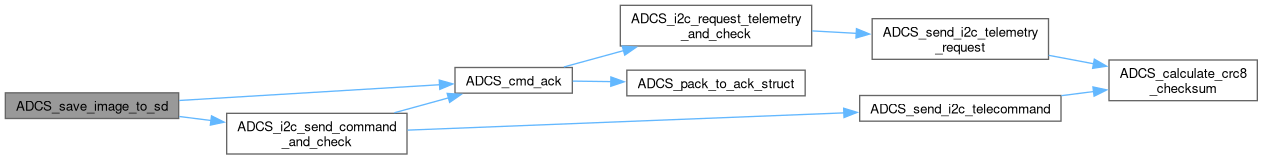

uint8_t	ADCS_save_image_to_sd (ADCS_camera_select_enum_t camera_select, ADCS_image_size_enum_t image_size)
	Instruct the ADCS to save an image to the SD card.

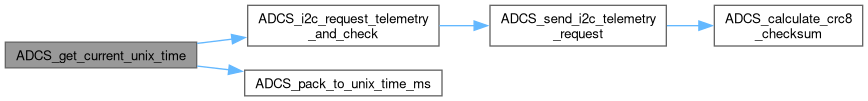

uint8_t	ADCS_get_current_unix_time (uint64_t *epoch_time_ms)
	Instruct the ADCS to execute the ADCS_get_current_unix_time command.

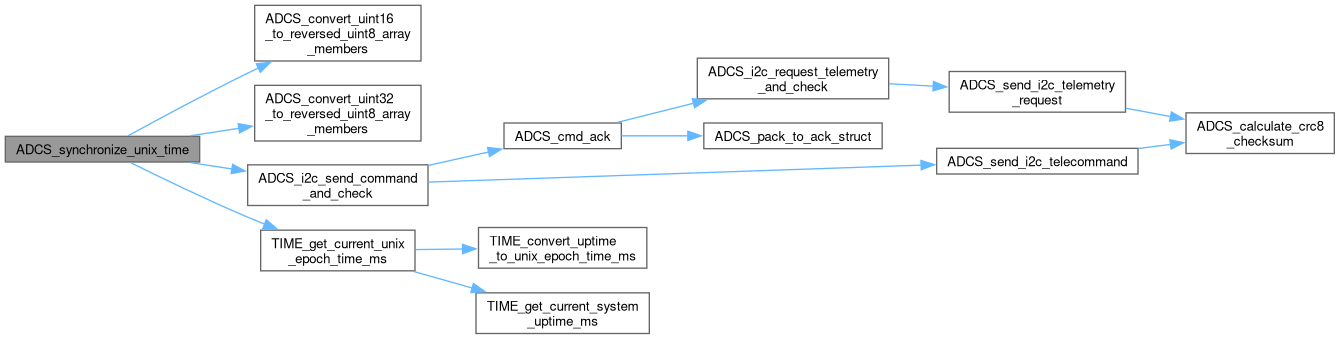

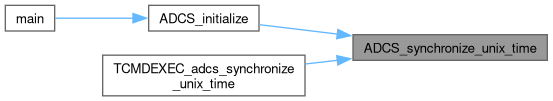

uint8_t	ADCS_synchronize_unix_time ()
	Instruct the ADCS to synchronize its Unix epoch time to the current OBC Unix time.

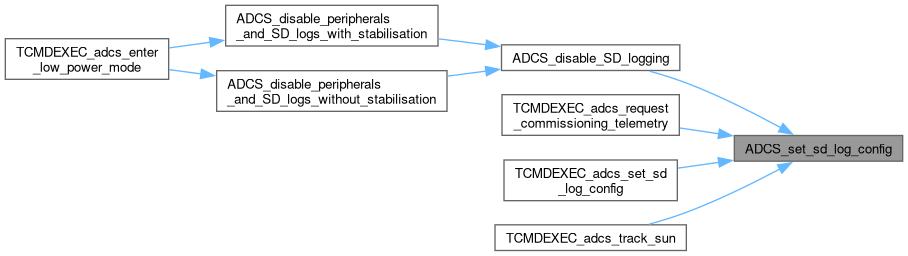

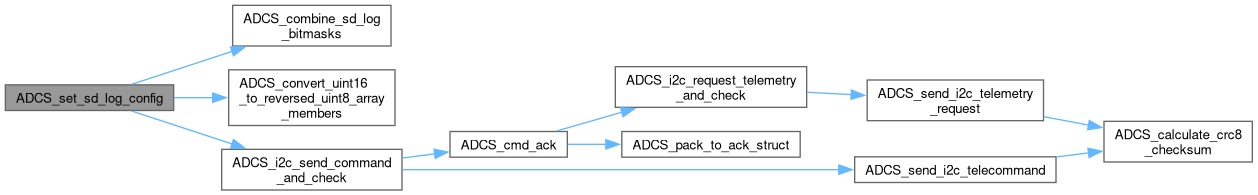

uint8_t	ADCS_set_sd_log_config (uint8_t which_log, const uint8_t **log_array, uint8_t log_array_size, uint16_t log_period, ADCS_sd_log_destination_enum_t which_sd)
	Instruct the ADCS to execute the ADCS_set_sd_log_config command.

uint8_t	ADCS_get_sd_log_config (uint8_t which_log, ADCS_sd_log_config_struct *config)
	Instruct the ADCS to execute the ADCS_get_sd_log_config command.

int16_t	ADCS_load_sd_file_block_to_filesystem (ADCS_file_info_struct_t file_info, uint8_t current_block, lfs_file_t *file)
	Save one block of the ADCS SD card file pointed to by the file pointer into the ADCS download buffer, then append it to the file in LittleFS.

int16_t	ADCS_save_sd_file_to_lfs (bool index_file_bool, uint16_t file_index)
	Save a specified file from the ADCS SD card to the ADCS subfolder in LittleFS.

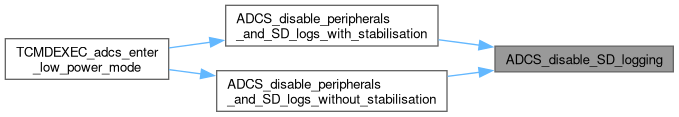

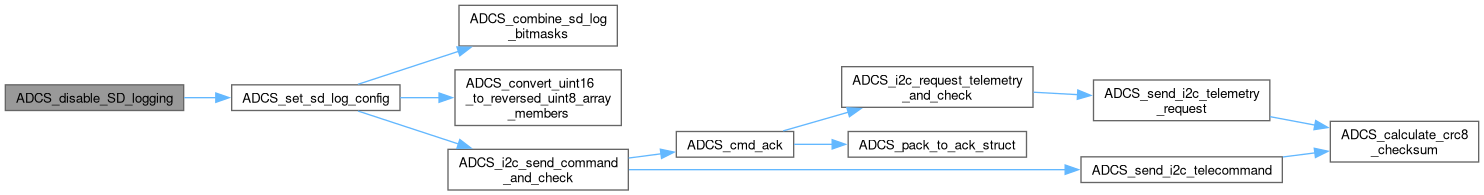

uint8_t	ADCS_disable_SD_logging ()
	Disable all active ADCS SD card logs.

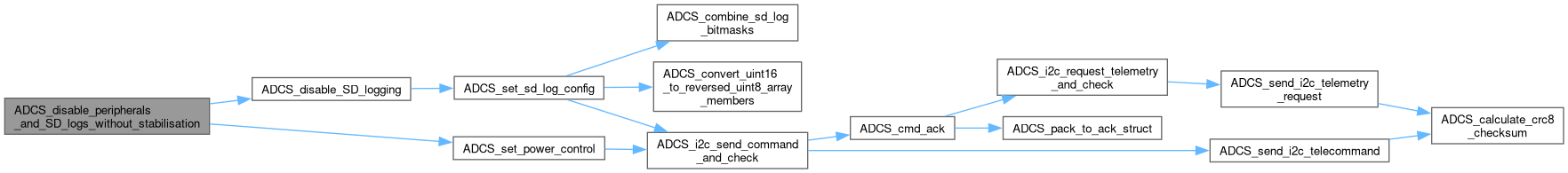

uint8_t	ADCS_disable_peripherals_and_SD_logs_without_stabilisation ()
	Disable all ADCS peripherals and active SD card logs.

uint8_t	ADCS_disable_peripherals_and_SD_logs_with_stabilisation ()
	Disable all ADCS peripherals and active SD card logs except the CubeSense Motor and Signal power, required for attitude stabilisation.

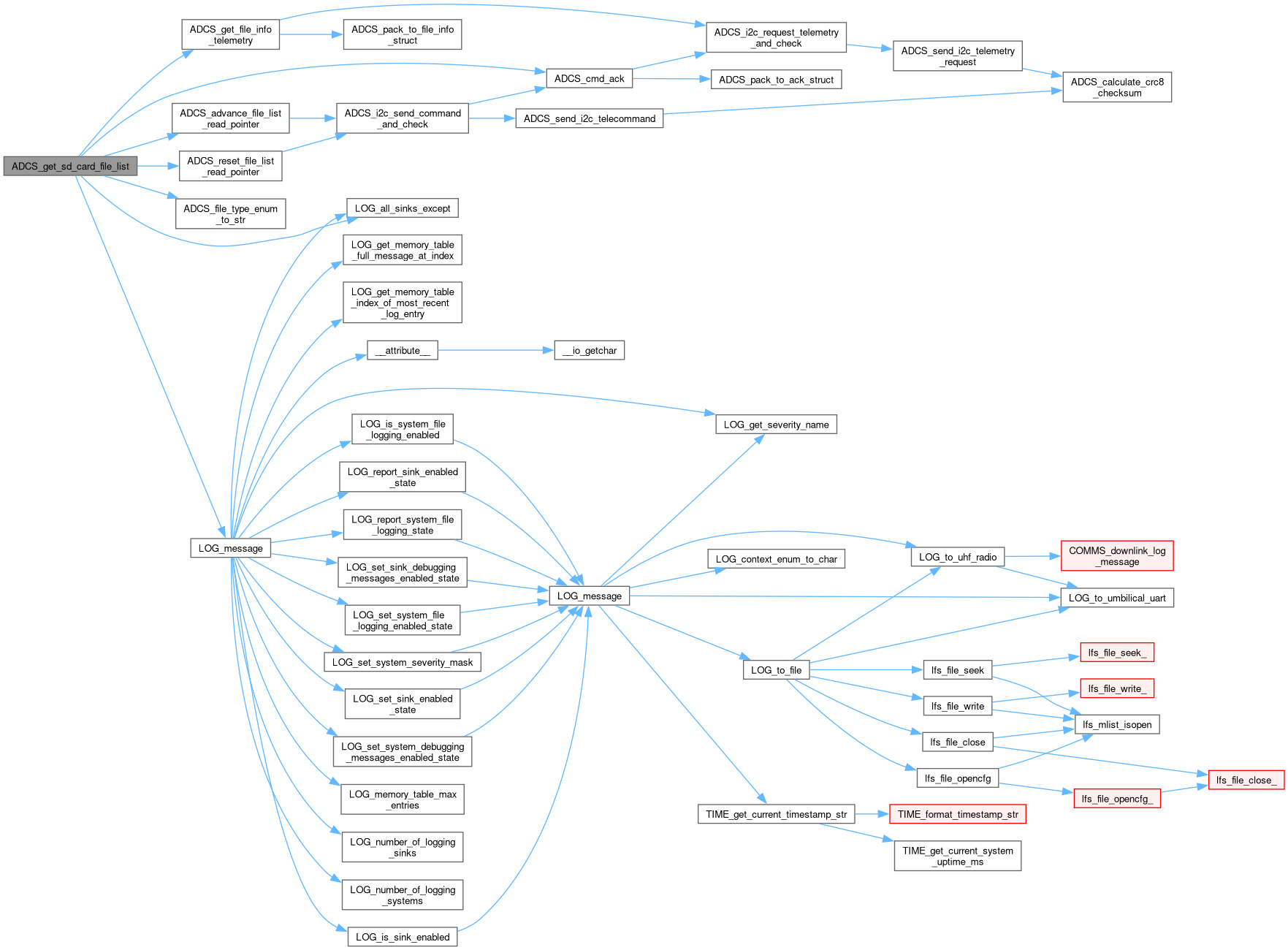

uint8_t	ADCS_get_sd_card_file_list (uint16_t num_to_read, uint16_t index_offset)
	Get the list of files from the SD card.

uint8_t	ADCS_erase_sd_file_by_index (uint16_t file_index)
	Given the index on the SD card of a file, erase that file.

uint8_t	ADCS_bootloader_run_program ()
	Run the internal flash (CubeACP) program, exiting the bootloader. If CubeACP is already running, this function does nothing.

Function Documentation

◆ ADCS_advance_file_list_read_pointer()

uint8_t ADCS_advance_file_list_read_pointer ( )

Instruct the ADCS to execute the ADCS_advance_file_list_read_pointer command.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_attitude_control_mode()

uint8_t ADCS_attitude_control_mode	(	ADCS_control_mode_enum_t	mode,
		uint16_t	timeout )

Instruct the ADCS to execute the titular command.

Parameters

mode	Control mode to set (Table 77 in Firmware Manual)
timeout	Timeout to set control mode

Returns: 0 if successful, non-zero if an error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_attitude_estimation_mode()

uint8_t ADCS_attitude_estimation_mode ( ADCS_estimation_mode_enum_t mode )

Instruct the ADCS to execute the ADCS_Attitude_Estimation_Mode command.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_bootloader_clear_errors()

uint8_t ADCS_bootloader_clear_errors ( )

Instruct the ADCS to execute the ADCS_Bootloader_Clear_Errors command.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the caller graph for this function:

◆ ADCS_bootloader_run_program()

uint8_t ADCS_bootloader_run_program ( )

Run the internal flash (CubeACP) program, exiting the bootloader. If CubeACP is already running, this function does nothing.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred.

Note: This function always returns an error, because if the ADCS leaves the bootloader it can't confirm this command, which commands it to leave the bootloader

Here is the caller graph for this function:

◆ ADCS_clear_errors()

uint8_t ADCS_clear_errors ( )

Instruct the ADCS to execute the ADCS_Clear_Errors command.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_cmd_ack()

uint8_t ADCS_cmd_ack ( ADCS_cmd_ack_struct_t * ack )

Instructs the ADCS to determine whether the last command succeeded. (Doesn't work for telemetry requests, by design.)

Parameters

[out] ack Structure containing the formatted information about the last command sent.

Returns: 0 if successful, non-zero if an error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_deploy_magnetometer()

uint8_t ADCS_deploy_magnetometer ( uint8_t deploy_timeout )

Instruct the ADCS to execute the ADCS_Deploy_Magnetometer command.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_disable_peripherals_and_SD_logs_with_stabilisation()

uint8_t ADCS_disable_peripherals_and_SD_logs_with_stabilisation ( )

Disable all ADCS peripherals and active SD card logs except the CubeSense Motor and Signal power, required for attitude stabilisation.

Note: If CubeSense Motor and/or Signal Power are already off, they will remain off.; Compared to without_stabilisation, this costs average 250 mW, maximum 1 W extra.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_disable_peripherals_and_SD_logs_without_stabilisation()

uint8_t ADCS_disable_peripherals_and_SD_logs_without_stabilisation ( )

Disable all ADCS peripherals and active SD card logs.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_disable_SD_logging()

uint8_t ADCS_disable_SD_logging ( )

Disable all active ADCS SD card logs.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_erase_file()

uint8_t ADCS_erase_file	(	ADCS_file_type_enum_t	filetype,
		uint8_t	filecounter,
		bool	erase_all )

Send the Erase File command to the ADCS.

Parameters

[in] erase_file_command Pointer to a struct containing the file type, file counter, and erase all flag.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_erase_sd_file_by_index()

uint8_t ADCS_erase_sd_file_by_index ( uint16_t file_index )

Given the index on the SD card of a file, erase that file.

Parameters

[in] file_index The index of the file.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_format_sd()

uint8_t ADCS_format_sd ( )

Instruct the ADCS to format the SD card.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_acp_execution_state()

uint8_t ADCS_get_acp_execution_state ( ADCS_acp_execution_state_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_execution_state command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_augmented_sgp4_params()

uint8_t ADCS_get_augmented_sgp4_params ( ADCS_augmented_sgp4_params_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Get_Augmented_SGP4_Params command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_commanded_attitude_angles()

uint8_t ADCS_get_commanded_attitude_angles ( ADCS_commanded_angles_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Get_Commanded_Attitude_Angles command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_commanded_wheel_speed()

uint8_t ADCS_get_commanded_wheel_speed ( ADCS_wheel_speed_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Commanded_Wheel_Speed command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_communication_status()

uint8_t ADCS_get_communication_status ( ADCS_comms_status_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Communication_Status command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_cubecontrol_current()

uint8_t ADCS_get_cubecontrol_current ( ADCS_cubecontrol_current_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_CubeControl_Current command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_current_state_1()

uint8_t ADCS_get_current_state_1 ( ADCS_current_state_1_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_get_current_state_1 command. (There's an ADCS_current_state_2 command which is presently not implemented)

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_current_unix_time()

uint8_t ADCS_get_current_unix_time ( uint64_t * epoch_time_ms )

Instruct the ADCS to execute the ADCS_get_current_unix_time command.

Parameters

epoch_time_ms Pointer to uint64 to store the time since the Unix epoch in ms, according to the ADCS

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_download_block_ready_telemetry()

uint8_t ADCS_get_download_block_ready_telemetry ( ADCS_download_block_ready_struct_t * output_struct )

Request Download Block Ready telemetry from the ADCS.

Parameters

[out] output_struct Pointer to the struct to populate with telemetry data.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_estimate_angular_rates()

uint8_t ADCS_get_estimate_angular_rates ( ADCS_angular_rates_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Estimate_Angular_Rates command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_estimate_fine_angular_rates()

uint8_t ADCS_get_estimate_fine_angular_rates ( ADCS_fine_angular_rates_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Estimate_Fine_Angular_Rates command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_estimated_attitude_angles()

uint8_t ADCS_get_estimated_attitude_angles ( ADCS_estimated_attitude_angles_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Estimated_Attitude_Angles command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_estimated_gyro_bias()

uint8_t ADCS_get_estimated_gyro_bias ( ADCS_estimated_gyro_bias_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Estimated_Gyro_Bias command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_estimation_innovation_vector()

uint8_t ADCS_get_estimation_innovation_vector ( ADCS_estimation_innovation_vector_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Estimation_Innovation_Vector command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_estimation_params()

uint8_t ADCS_get_estimation_params ( ADCS_estimation_params_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Get_Estimation_Params command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_file_download_buffer()

uint8_t ADCS_get_file_download_buffer ( ADCS_file_download_buffer_struct_t * output_struct )

Retrieve the File Download Buffer telemetry from the ADCS.

Parameters

[out] output_struct Pointer to the struct where the telemetry data will be stored.

Returns: 0 if successful, non-zero if an error occurred in transmission or processing.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_file_info_telemetry()

uint8_t ADCS_get_file_info_telemetry ( ADCS_file_info_struct_t * output_struct )

Request file information telemetry from the ADCS.

Parameters

[out] output_struct Pointer to the struct to store parsed telemetry data.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_fine_sun_vector()

uint8_t ADCS_get_fine_sun_vector ( ADCS_fine_sun_vector_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Fine_Sun_Vector command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_hole_map()

uint8_t ADCS_get_hole_map	(	uint8_t *	hole_map_struct,
		uint8_t	which_map )

Retrieve a File Upload Hole Map telemetry from the ADCS.

Parameters

[out]	hole_map_struct	Pointer to an array of uint8 to store the retrieved hole map.
[in]	which_map	Number between 1 and 8 to choose the hole map to upload.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

◆ ADCS_get_identification()

uint8_t ADCS_get_identification ( ADCS_id_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Identification command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_igrf_magnetic_field_vector()

uint8_t ADCS_get_igrf_magnetic_field_vector ( ADCS_magnetic_field_vector_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_IGRF_Magnetic_Field_Vector command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_llh_position()

uint8_t ADCS_get_llh_position ( ADCS_llh_position_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Get_LLH_Position command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_magnetic_field_vector()

uint8_t ADCS_get_magnetic_field_vector ( ADCS_magnetic_field_vector_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Magnetic_Field_Vector command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_magnetometer_config()

uint8_t ADCS_get_magnetometer_config ( ADCS_magnetometer_config_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Get_Magnetometer_Config command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_magnetorquer_command()

uint8_t ADCS_get_magnetorquer_command ( ADCS_magnetorquer_command_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Get_Magnetorquer_Command command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_measurements()

uint8_t ADCS_get_measurements ( ADCS_measurements_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Measurements command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_nadir_vector()

uint8_t ADCS_get_nadir_vector ( ADCS_nadir_vector_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Nadir_Vector command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_power_control()

uint8_t ADCS_get_power_control ( ADCS_power_control_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Get_Power_Control command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_program_status()

uint8_t ADCS_get_program_status ( ADCS_boot_running_status_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Program_Status command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_quaternion_error_vector()

uint8_t ADCS_get_quaternion_error_vector ( ADCS_quaternion_error_vector_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Quaternion_Error_Vector command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_rate_gyro_config()

uint8_t ADCS_get_rate_gyro_config ( ADCS_rate_gyro_config_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Get_Rate_Gyro_Config command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_rate_sensor_rates()

uint8_t ADCS_get_rate_sensor_rates ( ADCS_rated_sensor_rates_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Rate_Sensor_Rates command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_raw_cam1_sensor()

uint8_t ADCS_get_raw_cam1_sensor ( ADCS_raw_cam_sensor_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Raw_Cam1_Sensor command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_raw_cam2_sensor()

uint8_t ADCS_get_raw_cam2_sensor ( ADCS_raw_cam_sensor_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Raw_Cam2_Sensor command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_raw_coarse_sun_sensor_1_to_6()

uint8_t ADCS_get_raw_coarse_sun_sensor_1_to_6 ( ADCS_raw_coarse_sun_sensor_1_to_6_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Raw_Coarse_Sun_Sensor_1_to_6 command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_raw_coarse_sun_sensor_7_to_10()

uint8_t ADCS_get_raw_coarse_sun_sensor_7_to_10 ( ADCS_raw_coarse_sun_sensor_7_to_10_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Raw_Coarse_Sun_Sensor_7_to_10 command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_raw_gps_status()

uint8_t ADCS_get_raw_gps_status ( ADCS_raw_gps_status_struct_t * output_struct )

◆ ADCS_get_raw_gps_time()

uint8_t ADCS_get_raw_gps_time ( ADCS_raw_gps_time_struct_t * output_struct )

◆ ADCS_get_raw_gps_x()

uint8_t ADCS_get_raw_gps_x ( ADCS_raw_gps_struct_t * output_struct )

◆ ADCS_get_raw_gps_y()

uint8_t ADCS_get_raw_gps_y ( ADCS_raw_gps_struct_t * output_struct )

◆ ADCS_get_raw_gps_z()

uint8_t ADCS_get_raw_gps_z ( ADCS_raw_gps_struct_t * output_struct )

◆ ADCS_get_raw_magnetometer_values()

uint8_t ADCS_get_raw_magnetometer_values ( ADCS_raw_magnetometer_values_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Get_Raw_Magnetometer_Values command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_raw_star_tracker_data()

uint8_t ADCS_get_raw_star_tracker_data ( ADCS_raw_star_tracker_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_get_raw_star_tracker_data command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

◆ ADCS_get_sd_card_file_list()

uint8_t ADCS_get_sd_card_file_list	(	uint16_t	num_to_read,
		uint16_t	index_offset )

Get the list of files from the SD card.

Parameters

[in]	num_to_read	The maximum number of file entries to read.
[in]	index_offset	The index (starting at 0) from which to start reading files.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission, negative if an LFS or snprintf error code occurred.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_sd_card_format_erase_progress()

uint8_t ADCS_get_sd_card_format_erase_progress ( ADCS_sd_card_format_erase_progress_struct_t * output_struct )

Retrieve the SD card format/erase progress telemetry from the ADCS.

Parameters

[out] output_struct Pointer to the struct where the telemetry data will be stored.

Returns: 0 if successful, non-zero if an error occurred in transmission or processing.

Here is the call graph for this function:

◆ ADCS_get_sd_log_config()

uint8_t ADCS_get_sd_log_config	(	uint8_t	which_log,
		ADCS_sd_log_config_struct *	config )

Instruct the ADCS to execute the ADCS_get_sd_log_config command.

Parameters

[in]	config	Pointer to struct to store the config data
[in]	which_log	1 or 2; which specific log number to log to the SD card

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_sgp4_orbit_params()

uint8_t ADCS_get_sgp4_orbit_params ( ADCS_orbit_params_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Get_SGP4_Orbit_Params command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_tracking_controller_target_reference()

uint8_t ADCS_get_tracking_controller_target_reference ( ADCS_tracking_controller_target_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Get_Tracking_Controller_Target_Reference command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_unix_time_save_mode()

uint8_t ADCS_get_unix_time_save_mode ( ADCS_set_unix_time_save_mode_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Get_Unix_Time_Save_Mode command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_get_wheel_speed()

uint8_t ADCS_get_wheel_speed ( ADCS_wheel_speed_struct_t * output_struct )

Instruct the ADCS to execute the ADCS_Get_Wheel_Speed command.

Parameters

output_struct Pointer to struct in which to place packed ADCS telemetry data

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_initialize()

uint8_t ADCS_initialize ( )

Initialize the ADCS CRC, timestamp, and file system directory.

Returns: 0 when successful

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_initiate_download_burst()

uint8_t ADCS_initiate_download_burst ( bool ignore_hole_map )

Send the Initiate Download Burst command to the ADCS.

Parameters

[in] ignore_hole_map Boolean flag to ignore the hole map.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_load_file_download_block()

uint8_t ADCS_load_file_download_block	(	ADCS_file_type_enum_t	file_type,
		uint8_t	counter,
		uint32_t	offset,
		uint16_t	block_length )

Instruct the ADCS to load a file download block into the download buffer.

Parameters

[in]	file_type	File type to load (e.g., telemetry log, JPG, etc.).
[in]	counter	Counter value for file block.
[in]	offset	Offset in the file from which to start downloading.
[in]	block_length	Number of packets to send.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_load_sd_file_block_to_filesystem()

int16_t ADCS_load_sd_file_block_to_filesystem	(	ADCS_file_info_struct_t	file_info,
		uint8_t	current_block,
		lfs_file_t *	file )

Save one block of the ADCS SD card file pointed to by the file pointer into the ADCS download buffer, then append it to the file in LittleFS.

Parameters

[in]	file_info	A struct containing information about the currently-pointed-to file
[in]	current_block	The block to load into the download buffer
[in]	file	Pointer to LittleFS file to store everything to

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission. Specifically: bytes 0-2 are the ADCS error, bytes 3-10 are which command failed, bytes 11-16 are the index of the failure if applicable

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_reset()

uint8_t ADCS_reset ( )

Instruct the ADCS to execute the ADCS_Reset command.

Returns: 0 if successful, non-zero if a HAL error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_reset_file_list_read_pointer()

uint8_t ADCS_reset_file_list_read_pointer ( )

Instruct the ADCS to execute the ADCS_reset_file_list_read_pointer command.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_run_once()

uint8_t ADCS_run_once ( )

Instruct the ADCS to execute the ADCS_Run_Once command.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_save_config()

uint8_t ADCS_save_config ( )

Instruct the ADCS to execute the ADCS_Save_Config command.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_save_image_to_sd()

uint8_t ADCS_save_image_to_sd	(	ADCS_camera_select_enum_t	camera_select,
		ADCS_image_size_enum_t	image_size )

Instruct the ADCS to save an image to the SD card.

Parameters

[in]	camera_select	(int) Which camera to save the image from; can be Camera 1 (0) [sun], Camera 2 (1) [nadir, boom-side], or Star (2) [not on CTS-SAT-1]
[in]	image_size	(int) Resolution of the image to save; can be 1024x1024 (0), 512x512 (1), 256x256 (2), 128x128 (3), or 64x64 (4)

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_save_orbit_params()

uint8_t ADCS_save_orbit_params ( )

Instruct the ADCS to execute the ADCS_Save_Orbit_Params command.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_save_sd_file_to_lfs()

int16_t ADCS_save_sd_file_to_lfs	(	bool	index_file_bool,
		uint16_t	file_index )

Save a specified file from the ADCS SD card to the ADCS subfolder in LittleFS.

Parameters

[in]	index_file_bool	Whether this is the index file or not
[in]	file_index	Index of the file in the SD card; only used if index_file_bool is false

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission, negative if an LFS or snprintf error code occurred. Specifically, assuming no HAL or LFS error: bytes 0-2 are the ADCS error, bytes 3-10 are which command failed, bytes 11-16 are the index of the failure if applicable

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_set_augmented_sgp4_params()

uint8_t ADCS_set_augmented_sgp4_params	(	double	incl_coefficient,
		double	raan_coefficient,
		double	ecc_coefficient,
		double	aop_coefficient,
		double	time_coefficient,
		double	pos_coefficient,
		double	maximum_position_error,
		ADCS_augmented_sgp4_filter_enum_t	augmented_sgp4_filter,
		double	xp_coefficient,
		double	yp_coefficient,
		uint8_t	gps_roll_over,
		double	position_sd,
		double	velocity_sd,
		uint8_t	min_satellites,
		double	time_gain,
		double	max_lag,
		uint16_t	min_samples )

Set the Augmented SGP4 Parameters of the ADCS.

Parameters

[in]	incl_coefficient	Set inclination filter coefficient
[in]	raan_coefficient	Set RAAN filter coefficient
[in]	ecc_coefficient	Set eccentricity filter coefficient
[in]	aop_coefficient	Set argument of perigee filter coefficient
[in]	time_coefficient	Set time filter coefficient
[in]	pos_coefficient	Set position filter coefficient
[in]	maximum_position_error	Maximum position error for Augmented_SGP4 to continue working
[in]	augmented_sgp4_filter	The type of filter being used (enum)
[in]	xp_coefficient	Polar coefficient xp
[in]	yp_coefficient	Polar coefficient yp
[in]	gps_roll_over	GPS roll over number
[in]	position_sd	Maximum position standard deviation for Augmented_SGP4 to continue working
[in]	velocity_sd	Maximum velocity standard deviation for Augmented_SGP4 to continue working
[in]	min_satellites	Minimum satellites required for Augmented_SGP4 to continue working
[in]	time_gain	Time offset compensation gain
[in]	max_lag	Maximum lagged timestamp measurements to incorporate
[in]	min_samples	Minimum samples to use to get Augmented_SGP4

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_set_commanded_attitude_angles()

uint8_t ADCS_set_commanded_attitude_angles	(	double	x,
		double	y,
		double	z )

Instruct the ADCS to execute the ADCS_Set_Commanded_Attitude_Angles command.

Parameters

[in]	x	x attitude angle
[in]	y	y attitude angle
[in]	z	z attitude angle

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_set_estimation_params()

uint8_t ADCS_set_estimation_params	(	float	magnetometer_rate_filter_system_noise,
		float	extended_kalman_filter_system_noise,
		float	coarse_sun_sensor_measurement_noise,
		float	sun_sensor_measurement_noise,
		float	nadir_sensor_measurement_noise,
		float	magnetometer_measurement_noise,
		float	star_tracker_measurement_noise,
		bool	use_sun_sensor,
		bool	use_nadir_sensor,
		bool	use_css,
		bool	use_star_tracker,
		bool	nadir_sensor_terminator_test,
		bool	automatic_magnetometer_recovery,
		ADCS_magnetometer_mode_enum_t	magnetometer_mode,
		ADCS_magnetometer_mode_enum_t	magnetometer_selection_for_raw_magnetometer_telemetry,
		bool	automatic_estimation_transition_due_to_rate_sensor_errors,
		bool	wheel_30s_power_up_delay,
		uint8_t	error_counter_reset_period_min )

Instruct the ADCS to execute the ADCS_Set_Estimation_Params command.

Parameters

[in]	magnetometer_rate_filter_system_noise	Magnetometer rate filter system noise parameter
[in]	extended_kalman_filter_system_noise	EKS system noise parameter
[in]	coarse_sun_sensor_measurement_noise	CSS measurement noise parameter
[in]	sun_sensor_measurement_noise	sun sensor measurement noise parameter
[in]	nadir_sensor_measurement_noise	nadir sensor measurement noise parameter
[in]	magnetometer_measurement_noise	magnetometer measurement noise parameter
[in]	star_tracker_measurement_noise	star tracker measurement noise parameter
[in]	use_sun_sensor	whether or not to use the sun sensor measurement in extended kalman filter
[in]	use_nadir_sensor	whether or not to use the nadir sensor measurement in extended kalman filter
[in]	use_css	whether or not to use the CSS measurement in extended kalman filter
[in]	use_star_tracker	whether or not to use the star tracker measurement in extended kalman filter
[in]	nadir_sensor_terminator_test	select to ignore nadir sensor measurements when terminator is in FOV
[in]	automatic_magnetometer_recovery	select whether automatic switch to redundant magnetometer should occur in case of failure
[in]	magnetometer_mode	select magnetometer mode for estimation and control
[in]	magnetometer_selection_for_raw_magnetometer_telemetry	select magnetometer mode for the second raw telemetry frame
[in]	automatic_estimation_transition_due_to_rate_sensor_errors	enable/disable automatic transition from MEMS rate estimation mode to RKF in case of rate sensor error
[in]	wheel_30s_power_up_delay	present in CubeSupport but not in the manual – need to test
[in]	error_counter_reset_period_min	reset period for error counter

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_set_hole_map()

uint8_t ADCS_set_hole_map	(	uint8_t *	hole_map,
		uint8_t	which_map )

Send a File Upload Hole Map command to the ADCS.

Parameters

[in]	hole_map	Pointer to a 16-byte array representing the hole map.
[in]	which_map	Number between 1 and 8 to choose the hole map to upload.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_set_magnetometer_config()

uint8_t ADCS_set_magnetometer_config	(	double	mounting_transform_alpha_angle,
		double	mounting_transform_beta_angle,
		double	mounting_transform_gamma_angle,
		double	channel_1_offset,
		double	channel_2_offset,
		double	channel_3_offset,
		double	sensitivity_matrix_s11,
		double	sensitivity_matrix_s22,
		double	sensitivity_matrix_s33,
		double	sensitivity_matrix_s12,
		double	sensitivity_matrix_s13,
		double	sensitivity_matrix_s21,
		double	sensitivity_matrix_s23,
		double	sensitivity_matrix_s31,
		double	sensitivity_matrix_s32 )

Instruct the ADCS to set the magnetometer configuration.

Parameters

mounting_transform_alpha_angle	Mounting transform alpha angle [deg]
mounting_transform_beta_angle	Mounting transform beta angle [deg]
mounting_transform_gamma_angle	Mounting transform gamma angle [deg]
channel_1_offset	Channel 1 offset value
channel_2_offset	Channel 2 offset value
channel_3_offset	Channel 3 offset value
sensitivity_matrix_s11	Value (1, 1) of the magnetometer sensitivity matrix
sensitivity_matrix_s22	Value (2, 2) of the magnetometer sensitivity matrix
sensitivity_matrix_s33	Value (3, 3) of the magnetometer sensitivity matrix
sensitivity_matrix_s12	Value (1, 2) of the magnetometer sensitivity matrix
sensitivity_matrix_s13	Value (1, 3) of the magnetometer sensitivity matrix
sensitivity_matrix_s21	Value (2, 1) of the magnetometer sensitivity matrix
sensitivity_matrix_s23	Value (2, 3) of the magnetometer sensitivity matrix
sensitivity_matrix_s31	Value (3, 1) of the magnetometer sensitivity matrix
sensitivity_matrix_s32	Value (3, 2) of the magnetometer sensitivity matrix

Returns: 0 if successful, non-zero if an error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_set_magnetometer_mode()

uint8_t ADCS_set_magnetometer_mode ( ADCS_magnetometer_mode_enum_t mode )

Instruct the ADCS to execute the titular command.

Parameters

mode	Mode to set (Table 89 in Firmware Manual)

Returns: 0 if successful, non-zero if an error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_set_magnetorquer_output()

uint8_t ADCS_set_magnetorquer_output	(	double	x_duty,
		double	y_duty,
		double	z_duty )

Instruct the ADCS to execute the ADCS_Set_Magnetorquer_Output command.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_set_power_control()

uint8_t ADCS_set_power_control	(	ADCS_power_select_enum_t	cube_control_signal,
		ADCS_power_select_enum_t	cube_control_motor,
		ADCS_power_select_enum_t	cube_sense1,
		ADCS_power_select_enum_t	cube_sense2,
		ADCS_power_select_enum_t	cube_star_power,
		ADCS_power_select_enum_t	cube_wheel1_power,
		ADCS_power_select_enum_t	cube_wheel2_power,
		ADCS_power_select_enum_t	cube_wheel3_power,
		ADCS_power_select_enum_t	motor_power,
		ADCS_power_select_enum_t	gps_power )

Set the power control mode of each component of the ADCS; for each, 0 turns the component off, 1 turns it on, and 2 keeps it the same as previously.

Parameters

cube_control_signal	Power control mode for cube control signal
cube_control_motor	Power control mode for cube control motor
cube_sense1	Power control mode for cube sense 1
cube_sense2	Power control mode for cube sense 2
cube_star_power	Power control mode for cube star
cube_wheel1_power	Power control mode for cube wheel 1
cube_wheel2_power	Power control mode for cube wheel 2
cube_wheel3_power	Power control mode for cube wheel 3
motor_power	Power control mode for motor
gps_power	Power control mode for gps

Returns: 0 if successful, non-zero if an error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_set_rate_gyro_config()

uint8_t ADCS_set_rate_gyro_config	(	ADCS_axis_select_enum_t	gyro1,
		ADCS_axis_select_enum_t	gyro2,
		ADCS_axis_select_enum_t	gyro3,
		double	x_rate_offset,
		double	y_rate_offset,
		double	z_rate_offset,
		uint8_t	rate_sensor_mult )

Instruct the ADCS to execute the ADCS_Set_Rate_Gyro_Config command.

Parameters

[in]	gyro1	Axis for Gyro #1 (options are pos/neg x, pos/neg y, pos/neg z)
[in]	gyro2	Axis for Gyro #2 (options are pos/neg x, pos/neg y, pos/neg z)
[in]	gyro3	Axis for Gyro #3 (options are pos/neg x, pos/neg y, pos/neg z)
[in]	x_rate_offset	x-rate sensor offset
[in]	y_rate_offset	y-rate sensor offset
[in]	z_rate_offset	z-rate sensor offset
[in]	rate_sensor_mult	multiplier of rate sensor measurement

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_set_run_mode()

uint8_t ADCS_set_run_mode ( ADCS_run_mode_enum_t mode )

Instruct the ADCS to execute the ADCS_Set_Run_Mode command.

Parameters

[in] mode Run mode to set; can be can be off (0), enabled (1), triggered (2), or simulation (3)

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_set_sd_log_config()

uint8_t ADCS_set_sd_log_config	(	uint8_t	which_log,
		const uint8_t **	log_array,
		uint8_t	log_array_len,
		uint16_t	log_period,
		ADCS_sd_log_destination_enum_t	which_sd )

Instruct the ADCS to execute the ADCS_set_sd_log_config command.

Parameters

[in]	which_log	1 or 2; which specific log number to log to the SD card
[in]	log_array	Pointer to list of bitmasks to set the log config
[in]	log_array_len	Number of things to log
[in]	log_period	Period to log data to the SD card; if zero, then disable logging
[in]	which_sd	Which SD card to log to; 0 for primary, 1 for secondary

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_set_sgp4_orbit_params()

uint8_t ADCS_set_sgp4_orbit_params	(	double	inclination,
		double	eccentricity,
		double	ascending_node_right_ascension,
		double	perigee_argument,
		double	b_star_drag_term,
		double	mean_motion,
		double	mean_anomaly,
		double	epoch )

Instruct the ADCS to execute the ADCS_Set_SGP4_Orbit_Params command.

Parameters

[in]	inclination	inclination (degrees)
[in]	eccentricity	eccentricity (dimensionless)
[in]	ascending_node_right_ascension	right ascension of the ascending node (degrees)
[in]	perigee_argument	argument of perigee (degrees)
[in]	b_star_drag_term	b-star drag term (dimensionless)
[in]	mean_motion	mean motion (orbits per day)
[in]	mean_anomaly	mean anomaly (degrees)
[in]	epoch	epoch (double; integer component is year, decimal component is day)

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_set_tracking_controller_target_reference()

uint8_t ADCS_set_tracking_controller_target_reference	(	float	lon,
		float	lat,
		float	alt )

Instruct the ADCS to execute the ADCS_Set_Tracking_Controller_Target_Reference command.

Parameters

[in]	lon	longitude
[in]	lat	latitude
[in]	alt	altitude

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_set_unix_time_save_mode()

uint8_t ADCS_set_unix_time_save_mode	(	bool	save_now,
		bool	save_on_update,
		bool	save_periodic,
		uint8_t	period_s )

Instruct the ADCS to execute the ADCS_Set_Unix_Time_Save_Mode command.

Parameters

[in]	save_now	whether to save the current Unix time immediately (bool passed as int; 1 = save immediately, 0 = don't save immediately)
[in]	save_on_update	whether to save the current Unix time whenever a command is used to update it (bool passed as int; 1 = save on command, 0 = don't)
[in]	save_periodic	whether to save the current Unix time periodically (bool passed as int; 1 = save periodically, 0 = don't)
[in]	period_s	the period of saving the current Unix time

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_set_wheel_speed()

uint8_t ADCS_set_wheel_speed	(	int16_t	x_speed,
		int16_t	y_speed,
		int16_t	z_speed )

Instruct the ADCS to execute the titular command.

Parameters

x_speed	Wheel speed X value
y_speed	Wheel speed Y value
z_speed	Wheel speed Z value

Returns: 0 if successful, non-zero if an error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ADCS_synchronize_unix_time()

uint8_t ADCS_synchronize_unix_time ( )

Instruct the ADCS to synchronize its Unix epoch time to the current OBC Unix time.

Returns: 0 if successful, non-zero if a HAL or ADCS error occurred in transmission.

Here is the call graph for this function:

Here is the caller graph for this function:

Functions

Function Documentation

◆ ADCS_advance_file_list_read_pointer()

◆ ADCS_attitude_control_mode()

◆ ADCS_attitude_estimation_mode()

◆ ADCS_bootloader_clear_errors()

◆ ADCS_bootloader_run_program()

◆ ADCS_clear_errors()

◆ ADCS_cmd_ack()

◆ ADCS_deploy_magnetometer()

◆ ADCS_disable_peripherals_and_SD_logs_with_stabilisation()

◆ ADCS_disable_peripherals_and_SD_logs_without_stabilisation()

◆ ADCS_disable_SD_logging()

◆ ADCS_erase_file()

◆ ADCS_erase_sd_file_by_index()

◆ ADCS_format_sd()

◆ ADCS_get_acp_execution_state()

◆ ADCS_get_augmented_sgp4_params()

◆ ADCS_get_commanded_attitude_angles()

◆ ADCS_get_commanded_wheel_speed()

◆ ADCS_get_communication_status()

◆ ADCS_get_cubecontrol_current()

◆ ADCS_get_current_state_1()

◆ ADCS_get_current_unix_time()

◆ ADCS_get_download_block_ready_telemetry()

◆ ADCS_get_estimate_angular_rates()

◆ ADCS_get_estimate_fine_angular_rates()

◆ ADCS_get_estimated_attitude_angles()

◆ ADCS_get_estimated_gyro_bias()

◆ ADCS_get_estimation_innovation_vector()

◆ ADCS_get_estimation_params()

◆ ADCS_get_file_download_buffer()

◆ ADCS_get_file_info_telemetry()

◆ ADCS_get_fine_sun_vector()

◆ ADCS_get_hole_map()

◆ ADCS_get_identification()

◆ ADCS_get_igrf_magnetic_field_vector()

◆ ADCS_get_llh_position()

◆ ADCS_get_magnetic_field_vector()

◆ ADCS_get_magnetometer_config()

◆ ADCS_get_magnetorquer_command()

◆ ADCS_get_measurements()

◆ ADCS_get_nadir_vector()

◆ ADCS_get_power_control()

◆ ADCS_get_program_status()

◆ ADCS_get_quaternion_error_vector()

◆ ADCS_get_rate_gyro_config()

◆ ADCS_get_rate_sensor_rates()

◆ ADCS_get_raw_cam1_sensor()

◆ ADCS_get_raw_cam2_sensor()

◆ ADCS_get_raw_coarse_sun_sensor_1_to_6()

◆ ADCS_get_raw_coarse_sun_sensor_7_to_10()

◆ ADCS_get_raw_gps_status()

◆ ADCS_get_raw_gps_time()

◆ ADCS_get_raw_gps_x()

◆ ADCS_get_raw_gps_y()

◆ ADCS_get_raw_gps_z()

◆ ADCS_get_raw_magnetometer_values()

◆ ADCS_get_raw_star_tracker_data()

◆ ADCS_get_sd_card_file_list()

◆ ADCS_get_sd_card_format_erase_progress()

◆ ADCS_get_sd_log_config()

◆ ADCS_get_sgp4_orbit_params()

◆ ADCS_get_tracking_controller_target_reference()

◆ ADCS_get_unix_time_save_mode()

◆ ADCS_get_wheel_speed()

◆ ADCS_initialize()

◆ ADCS_initiate_download_burst()

◆ ADCS_load_file_download_block()

◆ ADCS_load_sd_file_block_to_filesystem()

◆ ADCS_reset()

◆ ADCS_reset_file_list_read_pointer()

◆ ADCS_run_once()

◆ ADCS_save_config()

◆ ADCS_save_image_to_sd()

◆ ADCS_save_orbit_params()

◆ ADCS_save_sd_file_to_lfs()

◆ ADCS_set_augmented_sgp4_params()

◆ ADCS_set_commanded_attitude_angles()

◆ ADCS_set_estimation_params()
