#include "main.h"
#include "antenna_deploy_drivers/ant_internal_drivers.h"
#include "antenna_deploy_drivers/ant_commands.h"
#include "stm32l4xx_hal_i2c.h"
#include "log/log.h"
#include <stdint.h>
#include <stdio.h>

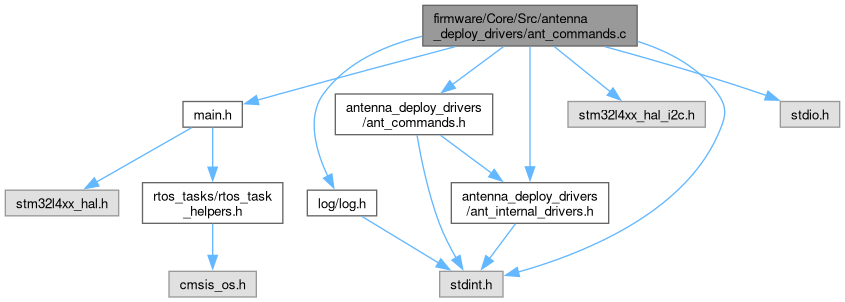

Include dependency graph for ant_commands.c:

Functions
uint8_t	ANT_CMD_reset (enum ANT_i2c_bus_mcu i2c_bus_mcu)
	Performs a reset of the antenna deployment systems microcontroller which is specified.

uint8_t	ANT_CMD_arm_antenna_system (enum ANT_i2c_bus_mcu i2c_bus_mcu)
	Arm the antenna deploy system.

uint8_t	ANT_CMD_disarm_antenna_system (enum ANT_i2c_bus_mcu i2c_bus_mcu)
	Disarms the antenna deploy system.

uint8_t	ANT_CMD_deploy_antenna (enum ANT_i2c_bus_mcu i2c_bus_mcu, uint8_t antenna, uint8_t activation_time_seconds)
	activates the deployment system for the selected antenna for the specified amount of time

uint8_t	ANT_CMD_start_automated_sequential_deployment (enum ANT_i2c_bus_mcu i2c_bus_mcu, uint8_t activation_time_seconds)
	deploys all antennas one by one sequentially.

uint8_t	ANT_CMD_deploy_antenna_with_override (enum ANT_i2c_bus_mcu i2c_bus_mcu, uint8_t antenna, uint8_t activation_time_seconds)
	initiates deployment of the selected antenna, ignoring whether the current status of that antenna is deployed

uint8_t	ANT_CMD_cancel_deployment_system_activation (enum ANT_i2c_bus_mcu i2c_bus_mcu)
	cancels any active attempts to deploy an antenna

uint8_t	ANT_CMD_measure_temp (enum ANT_i2c_bus_mcu i2c_bus_mcu, uint16_t *result)
	Measures the temperature at the antenna controller system.

int16_t	ANT_convert_raw_temp_to_cCelsius (uint16_t measurement)
	Converts temperature measurement to centi-degrees celsius.

static uint8_t	extract_bit (uint8_t byte, uint8_t position)

uint8_t	ANT_CMD_report_deployment_status (enum ANT_i2c_bus_mcu i2c_bus_mcu, ANT_deployment_status_struct_t *response)
	Writes 2 bytes of information representing the deployment status of the antennas to the passed buffer, information on interpreting the response may be found in the ISIS Antenna System user manual. Doc ID: ISIS.ANTS.UM.001 pg. 42.

uint8_t	ANT_CMD_report_antenna_deployment_activation_count (enum ANT_i2c_bus_mcu i2c_bus_mcu, uint8_t antenna, uint8_t *response)
	writes the number of times deployment has been attempted (for a specified antenna and mcu) in a response buffer.

uint8_t	ANT_CMD_get_antenna_deployment_activation_time (enum ANT_i2c_bus_mcu i2c_bus_mcu, uint8_t antenna, uint32_t *result_ms)
	writes the cumulative time (in ms increments) that the deployment system has been active (for a specified antenna and mcu) in a response buffer.

Variables
static const uint8_t	ANT_CMD_RESET = 0xAA

static const uint8_t	ANT_CMD_ARM_ANTENNA_SYSTEM = 0xAD

static const uint8_t	ANT_CMD_DISARM_ANTENNA_SYSTEM = 0xAC

static const uint8_t	ANT_CMD_DEPLOY_ANTENNA1 = 0xA1

static const uint8_t	ANT_CMD_DEPLOY_ANTENNA2 = 0xA2

static const uint8_t	ANT_CMD_DEPLOY_ANTENNA3 = 0xA3

static const uint8_t	ANT_CMD_DEPLOY_ANTENNA4 = 0xA4

static const uint8_t	ANT_CMD_DEPLOY_ALL_ANTENNAS_SEQ = 0xA5

static const uint8_t	ANT_CMD_DEPLOY_ANTENNA1_OVERRIDE = 0xBA

static const uint8_t	ANT_CMD_DEPLOY_ANTENNA2_OVERRIDE = 0xBB

static const uint8_t	ANT_CMD_DEPLOY_ANTENNA3_OVERRIDE = 0xBC

static const uint8_t	ANT_CMD_DEPLOY_ANTENNA4_OVERRIDE = 0xBD

static const uint8_t	ANT_CMD_CANCEL_DEPLOYMENT = 0xA9

static const uint8_t	ANT_CMD_MEASURE_TEMP = 0xC0

static const uint8_t	ANT_CMD_REPORT_DEPLOYMENT_STATUS = 0xC3

static const uint8_t	ANT_CMD_REPORT_ANT1_DEPLOYMENT_COUNT = 0xB0

static const uint8_t	ANT_CMD_REPORT_ANT2_DEPLOYMENT_COUNT = 0xB1

static const uint8_t	ANT_CMD_REPORT_ANT3_DEPLOYMENT_COUNT = 0xB2

static const uint8_t	ANT_CMD_REPORT_ANT4_DEPLOYMENT_COUNT = 0xB3

static const uint8_t	ANT_CMD_REPORT_ANT1_DEPLOYMENT_SYS_ACTIVATION_TIME = 0xB4

static const uint8_t	ANT_CMD_REPORT_ANT2_DEPLOYMENT_SYS_ACTIVATION_TIME = 0xB5

static const uint8_t	ANT_CMD_REPORT_ANT3_DEPLOYMENT_SYS_ACTIVATION_TIME = 0xB6

static const uint8_t	ANT_CMD_REPORT_ANT4_DEPLOYMENT_SYS_ACTIVATION_TIME = 0xB7

Function Documentation

◆ ANT_CMD_arm_antenna_system()

uint8_t ANT_CMD_arm_antenna_system ( enum ANT_i2c_bus_mcu i2c_bus_mcu )

Arm the antenna deploy system.

Parameters

i2c_bus_mcu specifies which mcu on the antenna deployment system to arm, and which i2c bus to use

Returns: 0 when the antenna deployment system has received the command, >0 otherwise

Note: arming one mcu does not arm the other. Each mcu must be armed before it can be used to deploy

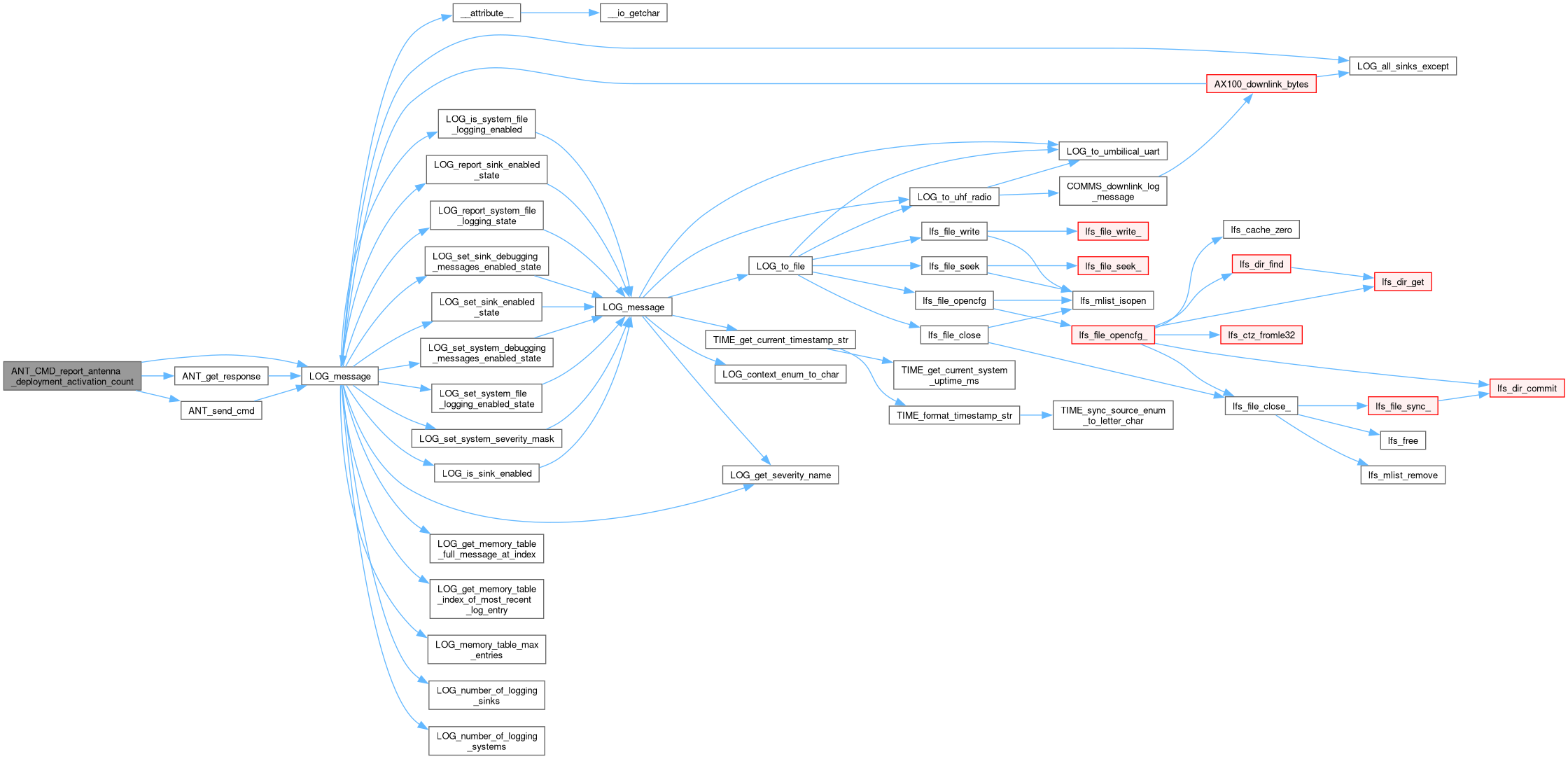

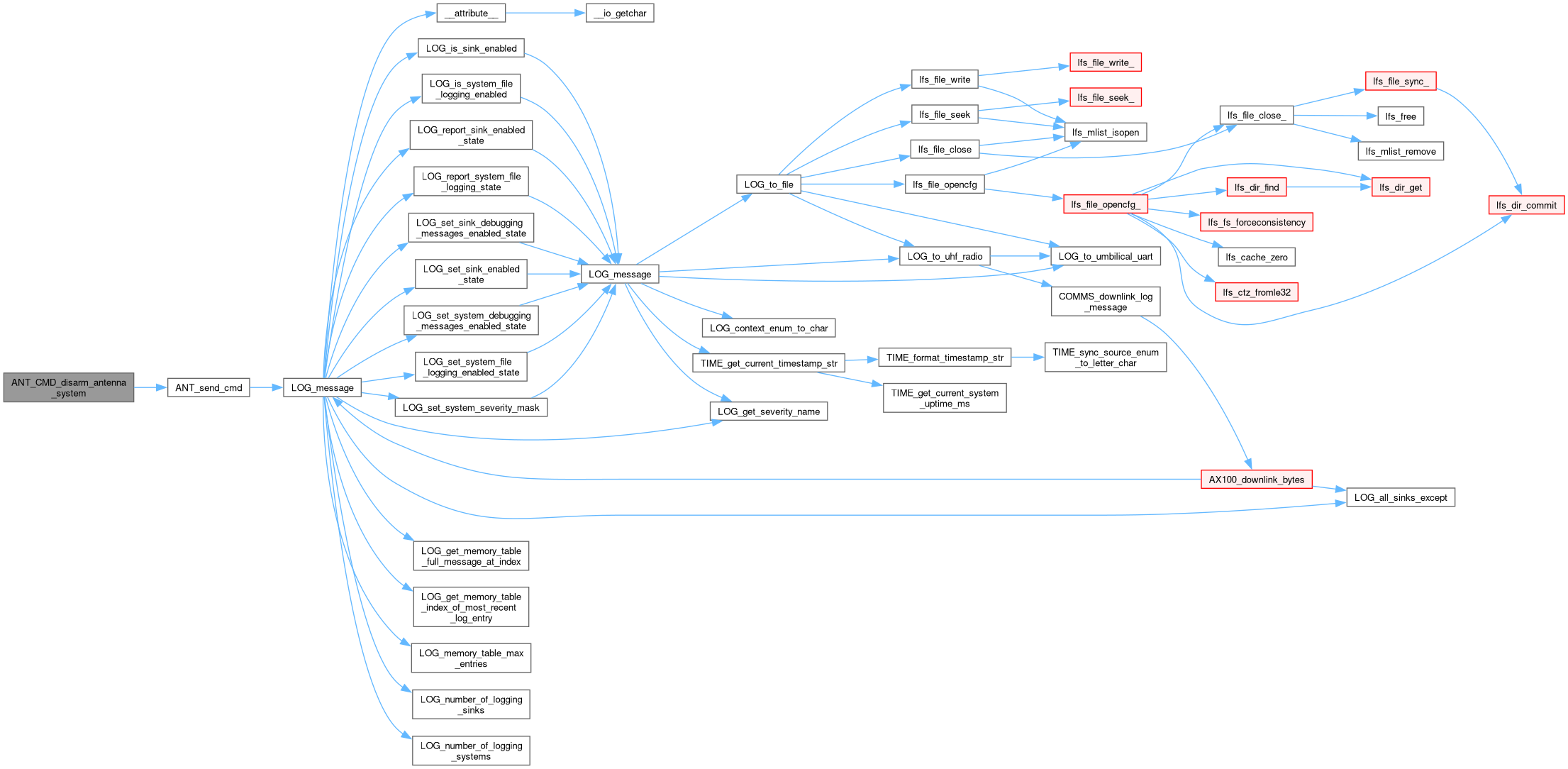

Here is the call graph for this function:

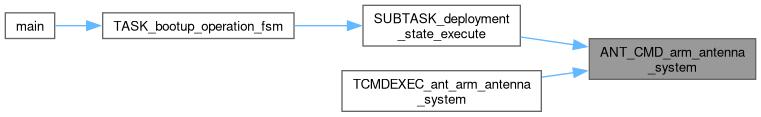

Here is the caller graph for this function:

◆ ANT_CMD_cancel_deployment_system_activation()

uint8_t ANT_CMD_cancel_deployment_system_activation ( enum ANT_i2c_bus_mcu i2c_bus_mcu )

cancels any active attempts to deploy an antenna

Parameters

i2c_bus_mcu specifies which mcu on the antenna deployment system to transmit to, and which i2c bus to use

Returns: 0 when the antenna deployment system has received the command, >0 otherwise

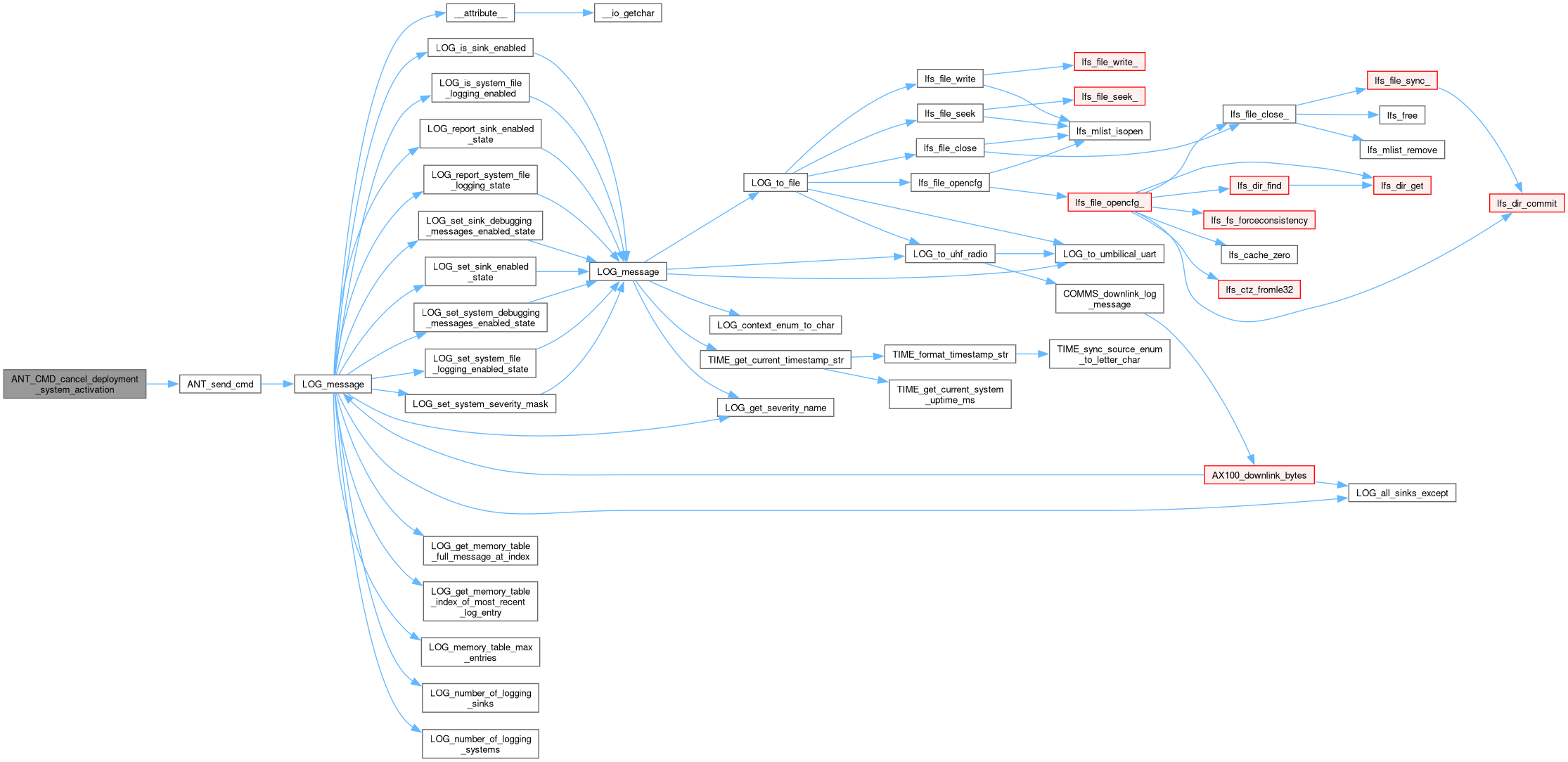

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ANT_CMD_deploy_antenna()

uint8_t ANT_CMD_deploy_antenna	(	enum ANT_i2c_bus_mcu	i2c_bus_mcu,
		uint8_t	antenna,
		uint8_t	activation_time_seconds )

activates the deployment system for the selected antenna for the specified amount of time

Parameters

i2c_bus_mcu	specifies which mcu on the antenna deployment system to use, and which i2c bus to use
antenna	The antenna number of the antenna to deploy, this is a number between 1-4.
activation_time_seconds	the amount of time the deployment system should be active for in seconds.

Returns: 0 when the antenna deployment system has received the command, >0 otherwise.

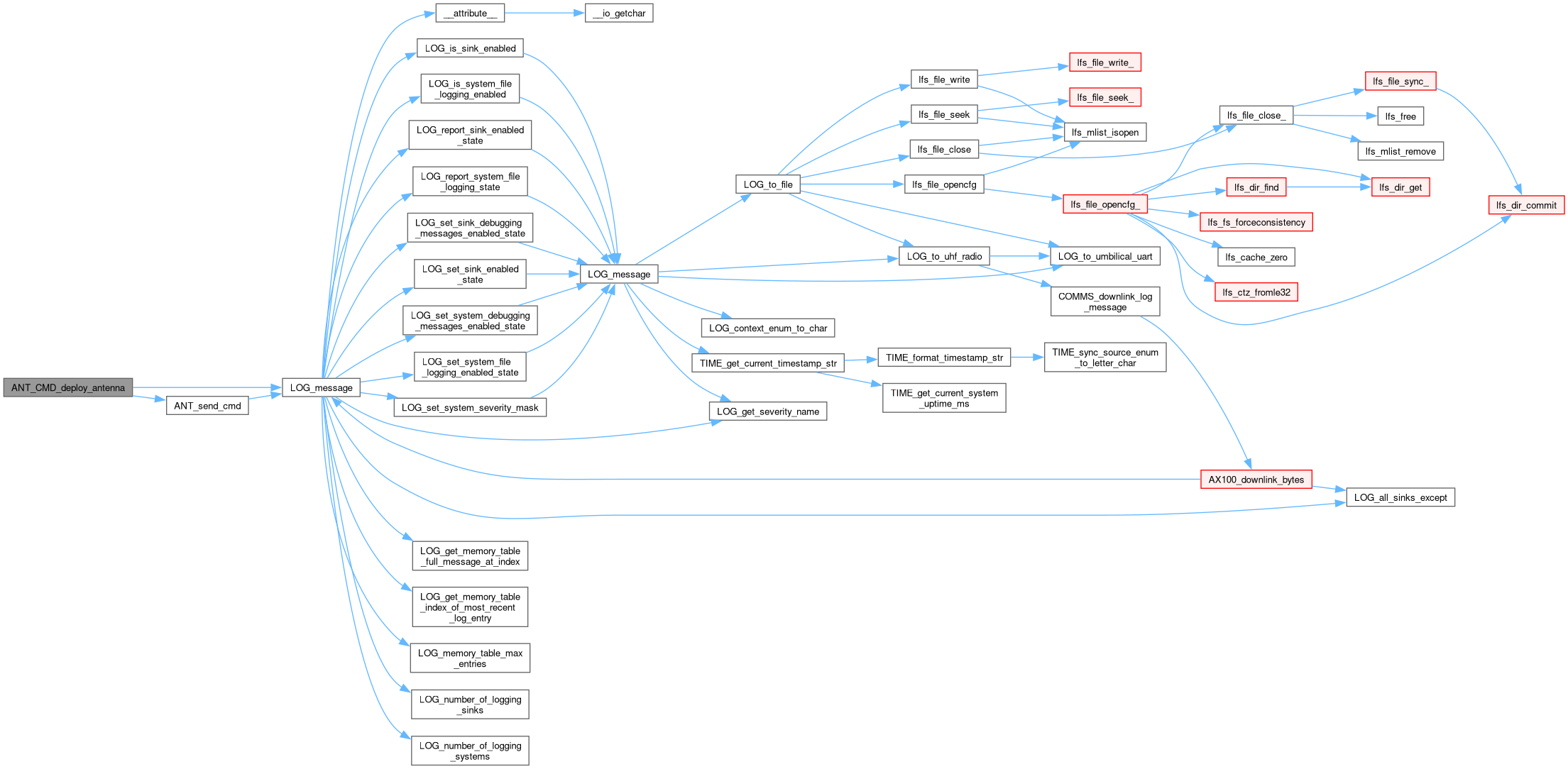

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ANT_CMD_deploy_antenna_with_override()

uint8_t ANT_CMD_deploy_antenna_with_override	(	enum ANT_i2c_bus_mcu	i2c_bus_mcu,
		uint8_t	antenna,
		uint8_t	activation_time_seconds )

initiates deployment of the selected antenna, ignoring whether the current status of that antenna is deployed

Parameters

i2c_bus_mcu	specifies which mcu on the antenna deployment system to use, and which i2c bus to use
antenna	the antenna to deploy
activation_time_seconds	the amount of time the deployment system should be active for in seconds.

Returns: 0 when the antenna deployment system has received the command, >0 otherwise.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ANT_CMD_disarm_antenna_system()

uint8_t ANT_CMD_disarm_antenna_system ( enum ANT_i2c_bus_mcu i2c_bus_mcu )

Disarms the antenna deploy system.

Parameters

i2c_bus_mcu specifies which mcu on the antenna deployment system to disarm, and which i2c bus to use

Returns: 0 when the antenna deployment system has received the command, >0 otherwise

Here is the call graph for this function:

Here is the caller graph for this function:

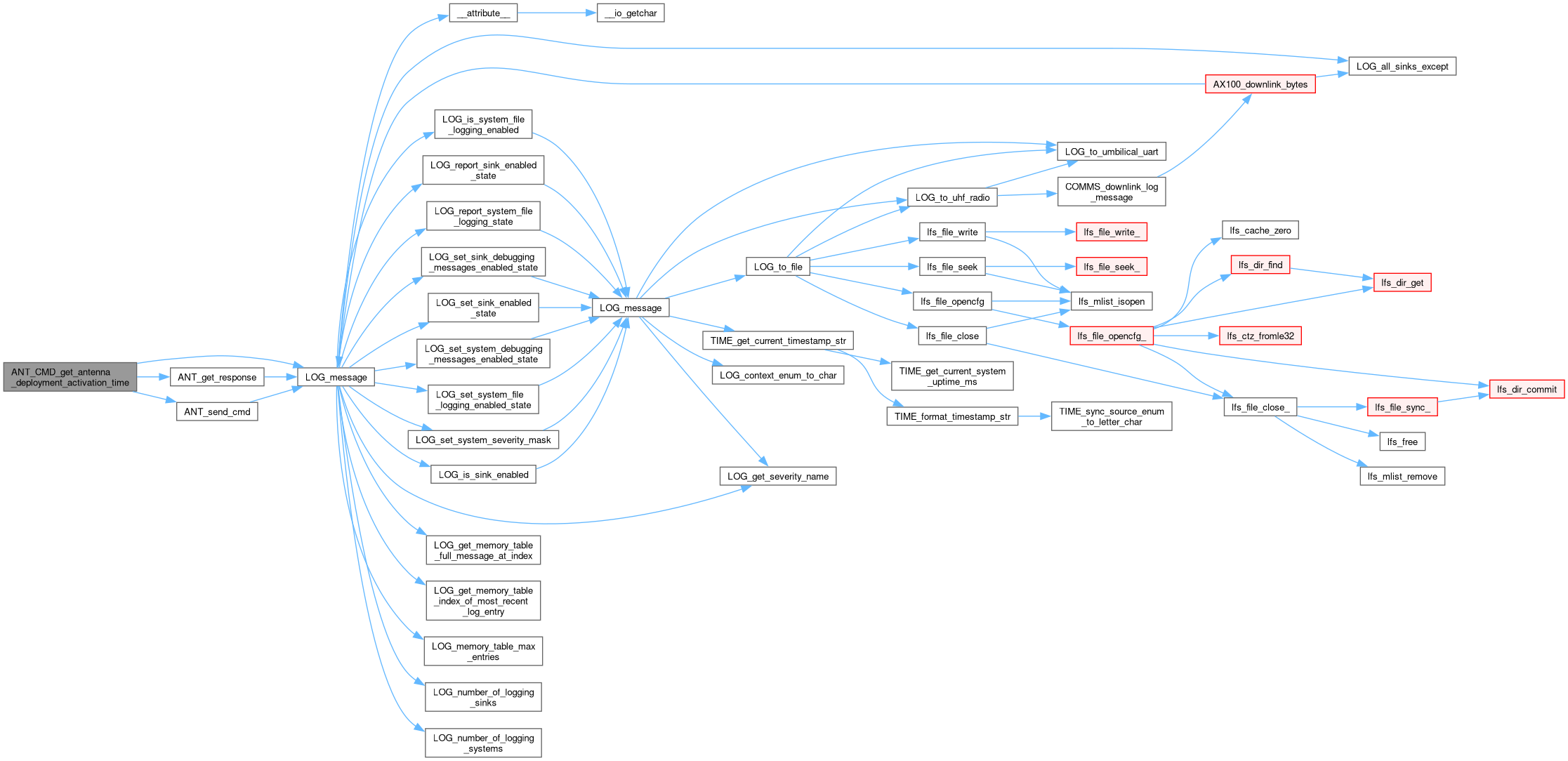

◆ ANT_CMD_get_antenna_deployment_activation_time()

uint8_t ANT_CMD_get_antenna_deployment_activation_time	(	enum ANT_i2c_bus_mcu	i2c_bus_mcu,
		uint8_t	antenna,
		uint32_t *	result_ms )

writes the cumulative time (in ms increments) that the deployment system has been active (for a specified antenna and mcu) in a response buffer.

Parameters

i2c_bus_mcu	specifies which mcu on the antenna deployment system to transmit to, and which i2c bus to use
antenna	the antenna to check. A number between 1-4
result_ms	a 2 byte buffer where the cumulative deployment time (in ms increments) will be written. divide the response by 20 to get seconds.

Returns: 0 when the antenna deployment system has received the command, >0 otherwise

Note: data written to the result buffer is only valid if 0 was returned. One should check this before using the result.

Here is the call graph for this function:

Here is the caller graph for this function:

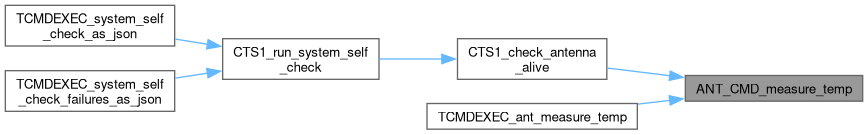

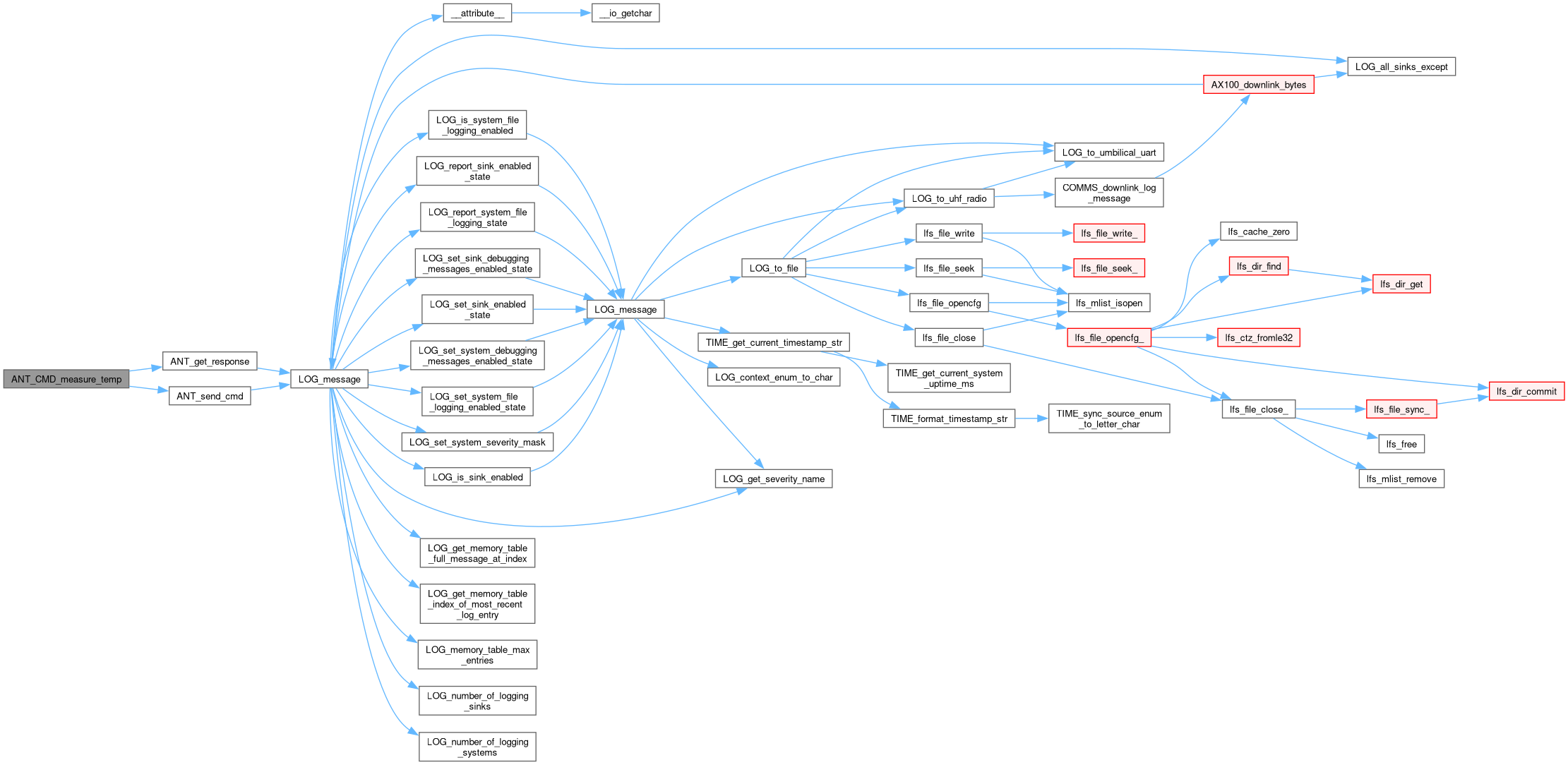

◆ ANT_CMD_measure_temp()

uint8_t ANT_CMD_measure_temp	(	enum ANT_i2c_bus_mcu	i2c_bus_mcu,
		uint16_t *	result )

Measures the temperature at the antenna controller system.

Parameters

i2c_bus_mcu	specifies which mcu on the antenna deployment system to transmit to, and which i2c bus to use
result	a pointer to a 16 bit unsigned integer where the temperature measurement is written. Refer to the "ISIS.ANTS.UM.001" datasheet by ISISpace for information on interpreting this measurement

Returns: 0 when the antenna deployment system has received the command, > 0 otherwise.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ANT_CMD_report_antenna_deployment_activation_count()

uint8_t ANT_CMD_report_antenna_deployment_activation_count	(	enum ANT_i2c_bus_mcu	i2c_bus_mcu,
		uint8_t	antenna,
		uint8_t *	response )

writes the number of times deployment has been attempted (for a specified antenna and mcu) in a response buffer.

Parameters

i2c_bus_mcu	specifies which mcu on the antenna deployment system to check, and which i2c bus to use
antenna	the antenna to check
response	a 1 byte buffer where the count of attempted deployments will be written

Returns: 0 when the antenna deployment system has received the command, >0 otherwise

Note: data written to the response buffer is only valid if 0 was returned. One should check this before using the response.

Here is the call graph for this function:

Here is the caller graph for this function:

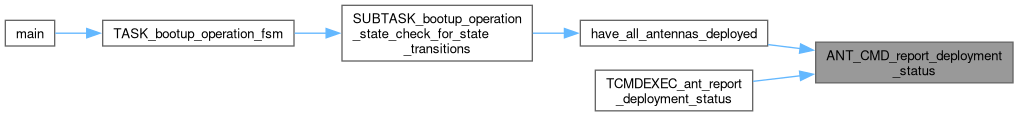

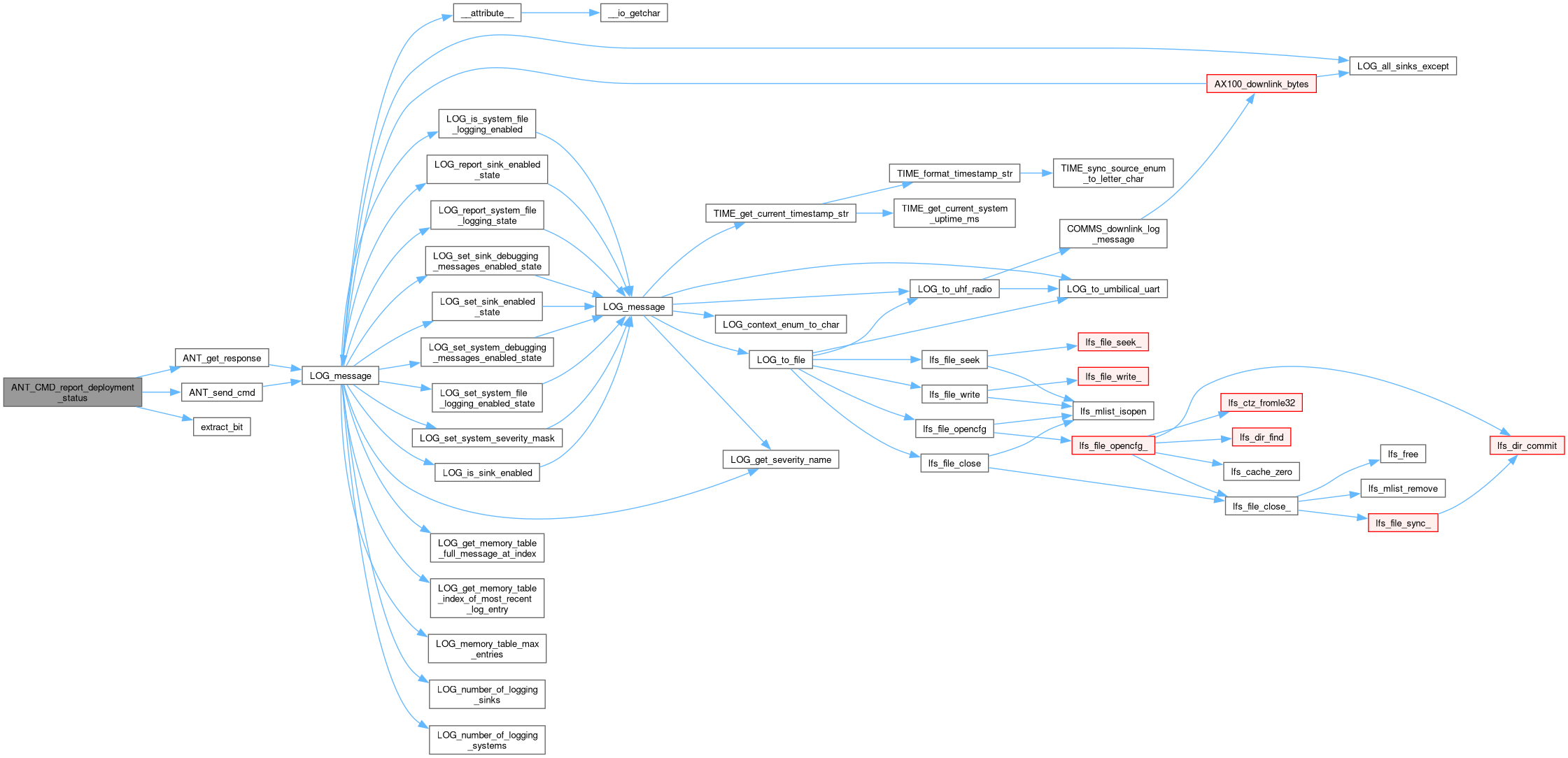

◆ ANT_CMD_report_deployment_status()

uint8_t ANT_CMD_report_deployment_status	(	enum ANT_i2c_bus_mcu	i2c_bus_mcu,
		ANT_deployment_status_struct_t *	response )

Writes 2 bytes of information representing the deployment status of the antennas to the passed buffer, information on interpreting the response may be found in the ISIS Antenna System user manual. Doc ID: ISIS.ANTS.UM.001 pg. 42.

Parameters

i2c_bus_mcu	specifies which mcu on the antenna deployment system to transmit to, and which i2c bus to use
response	a two byte buffer where the status information is written to.

Returns: 0 when the antenna deployment system has received the command, >0 otherwise

Note: - Data written to the response struct is only valid if 0 was returned. One should check this before using the response.; - This command probes the micro controller specified. data from each mcu may differ.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ANT_CMD_reset()

uint8_t ANT_CMD_reset ( enum ANT_i2c_bus_mcu i2c_bus_mcu )

Performs a reset of the antenna deployment systems microcontroller which is specified.

Parameters

i2c_bus_mcu specifies which mcu on the antenna deployment system to reset, and which i2c bus to use

Returns: 0 when the antenna deployment system has received the command, >0 otherwise

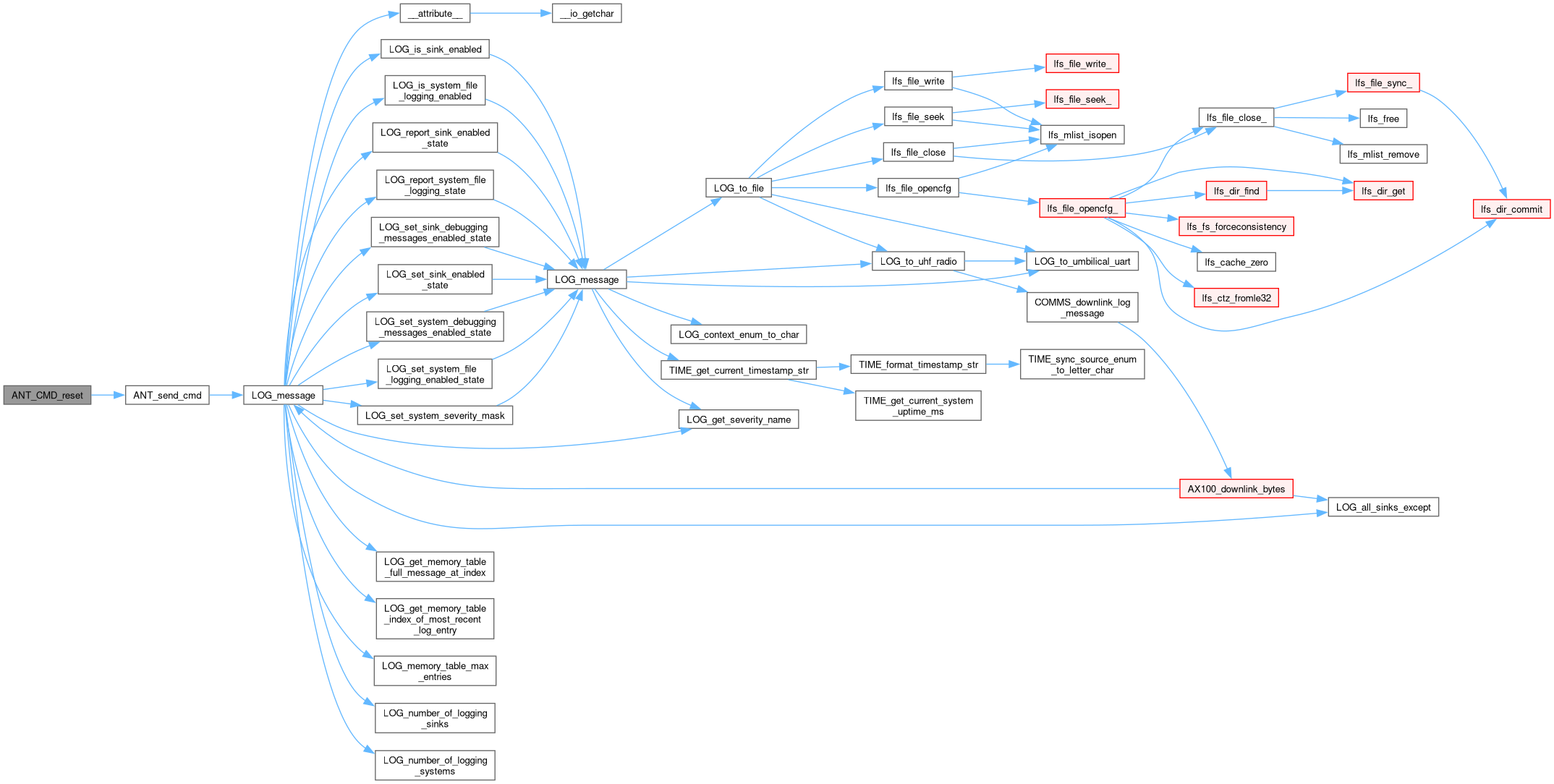

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ANT_CMD_start_automated_sequential_deployment()

uint8_t ANT_CMD_start_automated_sequential_deployment	(	enum ANT_i2c_bus_mcu	i2c_bus_mcu,
		uint8_t	activation_time_seconds )

deploys all antennas one by one sequentially.

Parameters

i2c_bus_mcu	specifies which mcu on the antenna deployment system to use, and which i2c bus to use
activation_time_seconds	the amount of time the deployment system for each antenna should be active for in seconds

Returns: 0 when the antenna deployment system has received the command, >0 otherwise

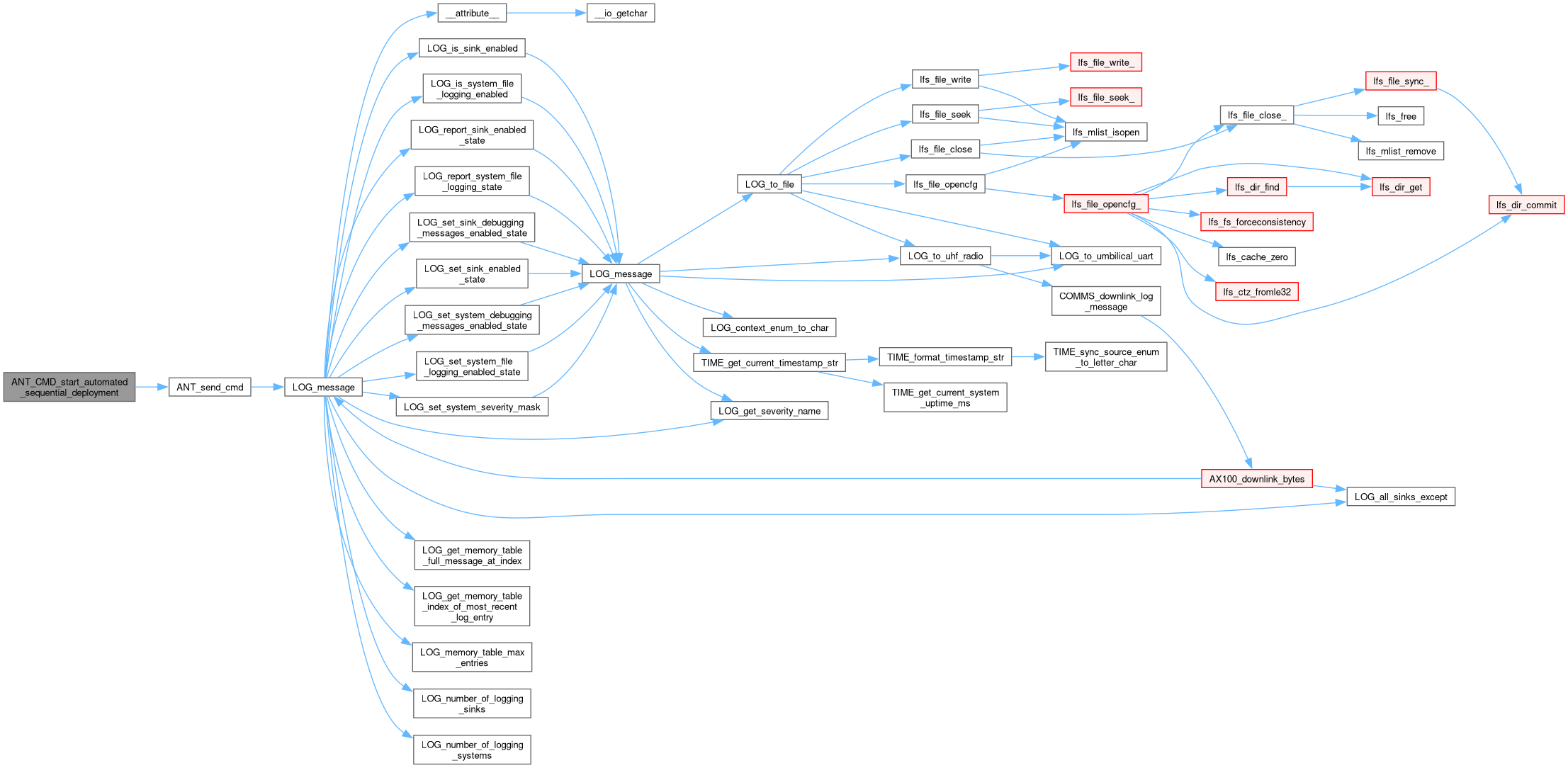

Here is the call graph for this function:

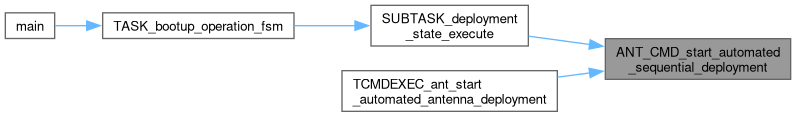

Here is the caller graph for this function:

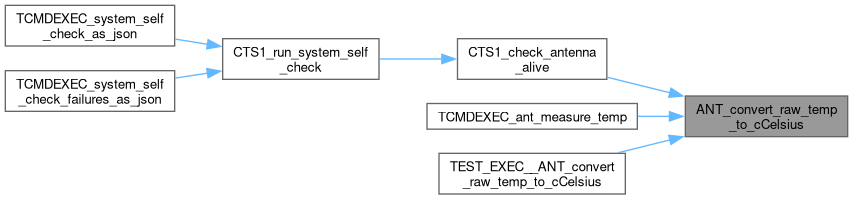

◆ ANT_convert_raw_temp_to_cCelsius()

int16_t ANT_convert_raw_temp_to_cCelsius ( uint16_t measurement )

Converts temperature measurement to centi-degrees celsius.

Parameters

measurement measurement result from ANT_CMD_measure_temp()

Returns: returns the temperature in centi-degrees celsius

Note: The formula used is based on the formula found in the data sheet for the LM94022. Derivation can be found on github issue#146.

Here is the caller graph for this function:

◆ extract_bit()

static uint8_t extract_bit	(	uint8_t	byte,
		uint8_t	position )

static

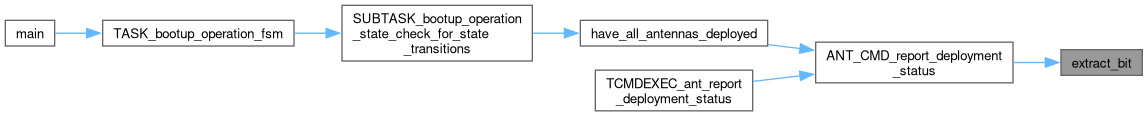

Here is the caller graph for this function:

Variable Documentation

◆ ANT_CMD_ARM_ANTENNA_SYSTEM

const uint8_t ANT_CMD_ARM_ANTENNA_SYSTEM = 0xAD

static

◆ ANT_CMD_CANCEL_DEPLOYMENT

const uint8_t ANT_CMD_CANCEL_DEPLOYMENT = 0xA9

static

◆ ANT_CMD_DEPLOY_ALL_ANTENNAS_SEQ

const uint8_t ANT_CMD_DEPLOY_ALL_ANTENNAS_SEQ = 0xA5

static

◆ ANT_CMD_DEPLOY_ANTENNA1

const uint8_t ANT_CMD_DEPLOY_ANTENNA1 = 0xA1

static

◆ ANT_CMD_DEPLOY_ANTENNA1_OVERRIDE

const uint8_t ANT_CMD_DEPLOY_ANTENNA1_OVERRIDE = 0xBA

static

◆ ANT_CMD_DEPLOY_ANTENNA2

const uint8_t ANT_CMD_DEPLOY_ANTENNA2 = 0xA2

static

◆ ANT_CMD_DEPLOY_ANTENNA2_OVERRIDE

const uint8_t ANT_CMD_DEPLOY_ANTENNA2_OVERRIDE = 0xBB

static

◆ ANT_CMD_DEPLOY_ANTENNA3

const uint8_t ANT_CMD_DEPLOY_ANTENNA3 = 0xA3

static

◆ ANT_CMD_DEPLOY_ANTENNA3_OVERRIDE

const uint8_t ANT_CMD_DEPLOY_ANTENNA3_OVERRIDE = 0xBC

static

◆ ANT_CMD_DEPLOY_ANTENNA4

const uint8_t ANT_CMD_DEPLOY_ANTENNA4 = 0xA4

static

◆ ANT_CMD_DEPLOY_ANTENNA4_OVERRIDE

const uint8_t ANT_CMD_DEPLOY_ANTENNA4_OVERRIDE = 0xBD

static

◆ ANT_CMD_DISARM_ANTENNA_SYSTEM

const uint8_t ANT_CMD_DISARM_ANTENNA_SYSTEM = 0xAC

static

◆ ANT_CMD_MEASURE_TEMP

const uint8_t ANT_CMD_MEASURE_TEMP = 0xC0

static

◆ ANT_CMD_REPORT_ANT1_DEPLOYMENT_COUNT

const uint8_t ANT_CMD_REPORT_ANT1_DEPLOYMENT_COUNT = 0xB0

static

◆ ANT_CMD_REPORT_ANT1_DEPLOYMENT_SYS_ACTIVATION_TIME

const uint8_t ANT_CMD_REPORT_ANT1_DEPLOYMENT_SYS_ACTIVATION_TIME = 0xB4

static

◆ ANT_CMD_REPORT_ANT2_DEPLOYMENT_COUNT

const uint8_t ANT_CMD_REPORT_ANT2_DEPLOYMENT_COUNT = 0xB1

static

◆ ANT_CMD_REPORT_ANT2_DEPLOYMENT_SYS_ACTIVATION_TIME

const uint8_t ANT_CMD_REPORT_ANT2_DEPLOYMENT_SYS_ACTIVATION_TIME = 0xB5

static

◆ ANT_CMD_REPORT_ANT3_DEPLOYMENT_COUNT

const uint8_t ANT_CMD_REPORT_ANT3_DEPLOYMENT_COUNT = 0xB2

static

◆ ANT_CMD_REPORT_ANT3_DEPLOYMENT_SYS_ACTIVATION_TIME

const uint8_t ANT_CMD_REPORT_ANT3_DEPLOYMENT_SYS_ACTIVATION_TIME = 0xB6

static

◆ ANT_CMD_REPORT_ANT4_DEPLOYMENT_COUNT

const uint8_t ANT_CMD_REPORT_ANT4_DEPLOYMENT_COUNT = 0xB3

static

◆ ANT_CMD_REPORT_ANT4_DEPLOYMENT_SYS_ACTIVATION_TIME

const uint8_t ANT_CMD_REPORT_ANT4_DEPLOYMENT_SYS_ACTIVATION_TIME = 0xB7

static

◆ ANT_CMD_REPORT_DEPLOYMENT_STATUS

const uint8_t ANT_CMD_REPORT_DEPLOYMENT_STATUS = 0xC3

static

◆ ANT_CMD_RESET

const uint8_t ANT_CMD_RESET = 0xAA

static

Functions

Variables

Function Documentation

◆ ANT_CMD_arm_antenna_system()

◆ ANT_CMD_cancel_deployment_system_activation()

◆ ANT_CMD_deploy_antenna()

◆ ANT_CMD_deploy_antenna_with_override()

◆ ANT_CMD_disarm_antenna_system()

◆ ANT_CMD_get_antenna_deployment_activation_time()

◆ ANT_CMD_measure_temp()

◆ ANT_CMD_report_antenna_deployment_activation_count()

◆ ANT_CMD_report_deployment_status()

◆ ANT_CMD_reset()

◆ ANT_CMD_start_automated_sequential_deployment()

◆ ANT_convert_raw_temp_to_cCelsius()

◆ extract_bit()

Variable Documentation

◆ ANT_CMD_ARM_ANTENNA_SYSTEM

◆ ANT_CMD_CANCEL_DEPLOYMENT

◆ ANT_CMD_DEPLOY_ALL_ANTENNAS_SEQ

◆ ANT_CMD_DEPLOY_ANTENNA1

◆ ANT_CMD_DEPLOY_ANTENNA1_OVERRIDE

◆ ANT_CMD_DEPLOY_ANTENNA2

◆ ANT_CMD_DEPLOY_ANTENNA2_OVERRIDE

◆ ANT_CMD_DEPLOY_ANTENNA3

◆ ANT_CMD_DEPLOY_ANTENNA3_OVERRIDE

◆ ANT_CMD_DEPLOY_ANTENNA4

◆ ANT_CMD_DEPLOY_ANTENNA4_OVERRIDE

◆ ANT_CMD_DISARM_ANTENNA_SYSTEM

◆ ANT_CMD_MEASURE_TEMP

◆ ANT_CMD_REPORT_ANT1_DEPLOYMENT_COUNT

◆ ANT_CMD_REPORT_ANT1_DEPLOYMENT_SYS_ACTIVATION_TIME

◆ ANT_CMD_REPORT_ANT2_DEPLOYMENT_COUNT

◆ ANT_CMD_REPORT_ANT2_DEPLOYMENT_SYS_ACTIVATION_TIME

◆ ANT_CMD_REPORT_ANT3_DEPLOYMENT_COUNT

◆ ANT_CMD_REPORT_ANT3_DEPLOYMENT_SYS_ACTIVATION_TIME

◆ ANT_CMD_REPORT_ANT4_DEPLOYMENT_COUNT

◆ ANT_CMD_REPORT_ANT4_DEPLOYMENT_SYS_ACTIVATION_TIME

◆ ANT_CMD_REPORT_DEPLOYMENT_STATUS

◆ ANT_CMD_RESET
