bulk_downlink_start_blob_main.c File Reference

#include <stdint.h>
#include <stdbool.h>
#include <stdarg.h>
#include "../lfs.h"

Include dependency graph for bulk_downlink_start_blob_main.c:

Macros
#define	LFS_MAX_PATH_LENGTH   200
#define	LOG(severity, fmt, ...)

Enumerations
enum	LOG_severity_enum_t {   LOG_SEVERITY_DEBUG = 1 << 0 , LOG_SEVERITY_NORMAL = 1 << 1 , LOG_SEVERITY_WARNING = 1 << 2 , LOG_SEVERITY_ERROR = 1 << 3 ,   LOG_SEVERITY_CRITICAL = 1 << 4 }
enum	COMMS_bulk_file_downlink_state_enum_t { COMMS_BULK_FILE_DOWNLINK_STATE_IDLE , COMMS_BULK_FILE_DOWNLINK_STATE_DOWNLINKING , COMMS_BULK_FILE_DOWNLINK_STATE_PAUSED }

Functions
int	snprintf (char *buf, unsigned int size, const char *fmt,...)
int	strlen (const char *s)
void	LOG_message (uint32_t source, LOG_severity_enum_t severity, uint32_t sink_mask, const char *fmt,...)
lfs_ssize_t	LFS_file_size (const char file_name[], uint8_t enable_log_messages)
	Returns the file size.
int8_t	LFS_read_file_checksum_sha256 (const char filepath[], uint32_t start_offset, uint32_t max_length, uint8_t sha256_dest[32])
	Computes the SHA256 checksum of a file in LittleFS.
void	GEN_byte_array_to_hex_str (const uint8_t *byte_array, uint32_t byte_array_len, char *dest_str, uint32_t dest_str_size)
	Writes a byte array to a hex string (no spaces between bytes).
int32_t	COMMS_bulk_file_downlink_start (char *file_path, uint32_t start_offset, uint32_t max_bytes)
	Initiate a bulk file downlink over the UHF radio.
static uint32_t	TIME_uptime_ms ()
static uint16_t	parse_token (const char *src, uint16_t src_offset, uint16_t src_len, char *dst, uint16_t dst_size)
static int8_t	hex_to_int (char c)
static int32_t	parse_int (const char *s, bool *ok)
	Parse a string into an integer.
static int8_t	bulk_downlink_start_fixed (const char *src_file_path, uint32_t start_offset, uint32_t byte_count)
	Main operation in this blob.
static int8_t	fill_response_output_buffer (const char *src_file_path, uint32_t start_offset, uint32_t max_length, char *response_output_buf, uint16_t response_output_buf_len)
	Fill the response output buffer with info about the file (very helpful for decoding).
	__attribute__ ((used, section(".text.entry")))

Variables
static const uint32_t	LOG_SYSTEM_TELECOMMAND = 1 << 12
static const uint32_t	LOG_SINK_ALL = (1 << 4) - 1
static const char	ARG_DELIM = ';'
static const char *	BLOB_NAME = "bulk_downlink_start_blob"
lfs_t	LFS_filesystem
volatile uint32_t	TIME_uptime_ms_from_tim6
COMMS_bulk_file_downlink_state_enum_t	COMMS_bulk_file_downlink_state
char	COMMS_bulk_file_downlink_file_path [LFS_MAX_PATH_LENGTH]

Macro Definition Documentation

LFS_MAX_PATH_LENGTH

#define LFS_MAX_PATH_LENGTH   200

LOG

#define LOG	(		severity,
			fmt,
			... )

Value:

LOG_message(LOG_SYSTEM_TELECOMMAND, severity, LOG_SINK_ALL, fmt, ##__VA_ARGS__)

Enumeration Type Documentation

COMMS_bulk_file_downlink_state_enum_t

enum COMMS_bulk_file_downlink_state_enum_t

Enumerator
COMMS_BULK_FILE_DOWNLINK_STATE_IDLE
COMMS_BULK_FILE_DOWNLINK_STATE_DOWNLINKING
COMMS_BULK_FILE_DOWNLINK_STATE_PAUSED

LOG_severity_enum_t

enum LOG_severity_enum_t

Enumerator
LOG_SEVERITY_DEBUG
LOG_SEVERITY_NORMAL
LOG_SEVERITY_WARNING
LOG_SEVERITY_ERROR
LOG_SEVERITY_CRITICAL

Function Documentation

__attribute__()

__attribute__

(

(used, section(".text.entry"))

)

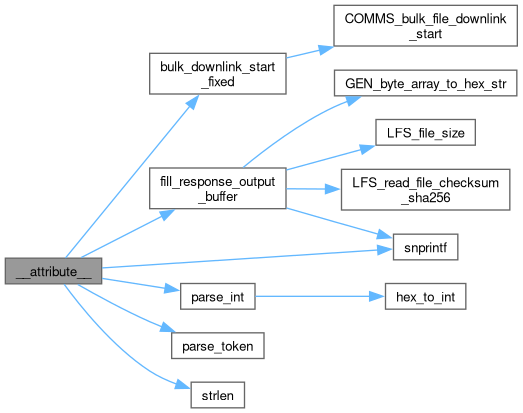

Here is the call graph for this function:

bulk_downlink_start_fixed()

int8_t bulk_downlink_start_fixed ( const char * src_file_path, uint32_t start_offset, uint32_t byte_count )

static

Main operation in this blob.

Parameters

src_file_path
start_offset
byte_count

Returns

Implementation is like this: The goal here is not to re-implement COMMS_bulk_file_downlink_start(), but rather to set the state to trick that function into first closing the open file (if applicable), and then doing its normal thing (which is 100% correct).

We are fixing a bug in the "end of bulk downlink" logic by a hack at the start of the next downlink, basically.

Here is the call graph for this function:

Here is the caller graph for this function:

COMMS_bulk_file_downlink_start()

int32_t COMMS_bulk_file_downlink_start	(	char *	file_path,
		uint32_t	start_offset,
		uint32_t	max_bytes )

Initiate a bulk file downlink over the UHF radio.

Parameters

file_path	File name/path to downlink.
start_offset	The byte offset in the file to start downlinking from (0 for start).
max_bytes	The maximum number of bytes to downlink. Maximum value is 1000000 (1 MB, COMMS_bulk_file_downlink_total_bytes), for safety (to avoid a very very long-running downlink chain). Values >1 MB will be limited to 1 MB, and value 0 will be set to 1 MB.

Returns

0 on success. Negative LFS failure code on LFS failure. Positive error code on other (logical/request) errors.

Note

1 MB takes about 15 minutes to downlink at 9600 baud.

This function is safe to call at any point (including mid-downlink, or mid-pause). It will close the previous file and start a new downlink.

Here is the caller graph for this function:

fill_response_output_buffer()

int8_t fill_response_output_buffer ( const char * src_file_path, uint32_t start_offset, uint32_t max_length, char * response_output_buf, uint16_t response_output_buf_len )

static

Fill the response output buffer with info about the file (very helpful for decoding).

Note

This is a totally new feature, independent from the original bulk downlink telecommand. It is observed as a helpful feature for re-assembling the downlinked files during mission ops.

Parameters

src_file_path
start_offset
max_length	Max length of the file to read, or 0 to read full file.
response_output_buf
response_output_buf_len

Returns

0 on success, non-zero on error.

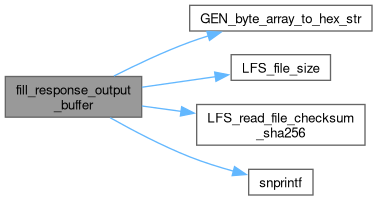

Here is the call graph for this function:

Here is the caller graph for this function:

GEN_byte_array_to_hex_str()

void GEN_byte_array_to_hex_str ( const uint8_t * byte_array, uint32_t byte_array_len, char * dest_str, uint32_t dest_str_size )

extern

Writes a byte array to a hex string (no spaces between bytes).

Parameters

byte_array	Input byte array.
byte_array_len	Length of input byte_array.
dest_str	The destination to write a C-string to.
dest_str_size	The size of the dest_str array, allocated before calling. Must be at least byte_array_len * 3 + 1 to fit the entire string.

Here is the caller graph for this function:

hex_to_int()

int8_t hex_to_int ( char c )

static

Here is the caller graph for this function:

LFS_file_size()

lfs_ssize_t LFS_file_size	(	const char	file_name[],
		uint8_t	enable_log_messages )

Returns the file size.

Parameters

file_name

- Pointer to buffer holding the file name to open

Returns

Returns negative values if read or file open failed, else the number of bytes in the file.

Here is the caller graph for this function:

LFS_read_file_checksum_sha256()

int8_t LFS_read_file_checksum_sha256 ( const char filepath[], uint32_t start_offset, uint32_t max_length, uint8_t sha256_dest[32] )

extern

Computes the SHA256 checksum of a file in LittleFS.

Parameters

filepath	Path to the file to read and compute the checksum for.
start_offset	The offset in the file from which to start reading.
max_length	The maximum number of bytes to read from the file. 0 means read the entire file.
sha256_dest	32-byte array to be filled with checksum.

Returns

0 on success. Negative LFS error codes on error.

Here is the caller graph for this function:

LOG_message()

void LOG_message ( uint32_t source, LOG_severity_enum_t severity, uint32_t sink_mask, const char * fmt, ... )

extern

parse_int()

int32_t parse_int ( const char * s, bool * ok )

static

Parse a string into an integer.

Parameters

s	String to parse. Valid formats: "0x<digits>" or "<digits>". Underscores are ignored.

Returns

Parsed integer, or 0 if invalid.

Here is the call graph for this function:

Here is the caller graph for this function:

parse_token()

uint16_t parse_token ( const char * src, uint16_t src_offset, uint16_t src_len, char * dst, uint16_t dst_size )

static

Here is the caller graph for this function:

snprintf()

int snprintf ( char * buf, unsigned int size, const char * fmt, ... )

extern

strlen()

int strlen ( const char * s )

extern

TIME_uptime_ms()

uint32_t TIME_uptime_ms ( void )

inlinestatic

Variable Documentation

ARG_DELIM

const char ARG_DELIM = ';'

static

BLOB_NAME

const char* BLOB_NAME = "bulk_downlink_start_blob"

static

COMMS_bulk_file_downlink_file_path

char COMMS_bulk_file_downlink_file_path[LFS_MAX_PATH_LENGTH]

extern

COMMS_bulk_file_downlink_state

COMMS_bulk_file_downlink_state_enum_t COMMS_bulk_file_downlink_state

extern

LFS_filesystem

lfs_t LFS_filesystem

extern

littlefs_helper.h

Created on: May 2, 2024 Author: Saksham Puri

LOG_SINK_ALL

const uint32_t LOG_SINK_ALL = (1 << 4) - 1

static

LOG_SYSTEM_TELECOMMAND

const uint32_t LOG_SYSTEM_TELECOMMAND = 1 << 12

static

TIME_uptime_ms_from_tim6

volatile uint32_t TIME_uptime_ms_from_tim6

extern
