rtos_tasks_rx_telecommands.c File Reference

#include "main.h"
#include "rtos_tasks/rtos_task_helpers.h"
#include "rtos_tasks/rtos_tasks_rx_telecommands.h"
#include "telecommand_exec/telecommand_parser.h"
#include "telecommand_exec/telecommand_executor.h"
#include "uart_handler/uart_handler.h"
#include "transforms/arrays.h"
#include "log/log.h"
#include "debug_tools/debug_uart.h"
#include "cmsis_os.h"
#include <string.h>
#include <stdio.h>
#include <time.h>

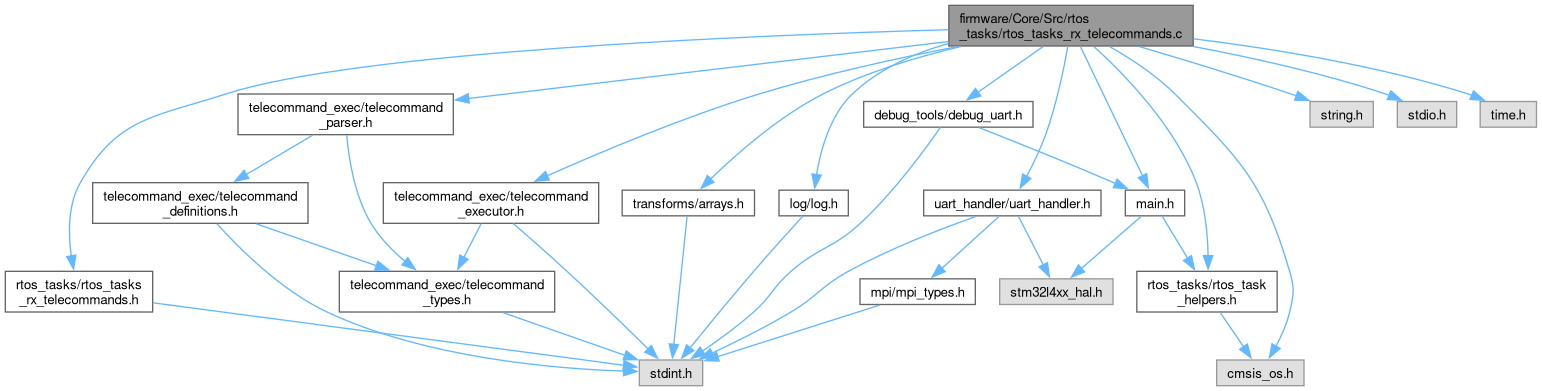

Include dependency graph for rtos_tasks_rx_telecommands.c:

Enumerations
enum	TCMD_check_result_enum_t { TCMD_CHECK_STATUS_NO_TCMD = 0 , TCMD_CHECK_STATUS_TCMD_SCHEDULED = 1 , TCMD_CHECK_STATUS_TCMD_INVALID_AND_DISCARDED = 2 }

Functions
static TCMD_check_result_enum_t	check_for_and_handle_new_uart_tcmds ()
	Checks for an available telecommand in the UART buffer, and schedules it for execution.
void	TASK_handle_uart_telecommands (void *argument)
static TCMD_check_result_enum_t	check_for_and_handle_new_ax100_kiss_tcmd (uint8_t csp_packet_array[], uint16_t csp_packet_array_len)
	Checks for an available telecommand in the UART buffer, and schedules it for execution.
void	TASK_handle_ax100_kiss_telecommands (void *argument)

Variables
uint32_t	AX100_uptime_at_last_received_kiss_tcmd_ms = 0
	The system uptime, as of the last time a telecommand was received by the AX100 (and sent to OBC via KISS).
uint32_t	TCMD_handle_umbilical_tcmds_interval_ms = 400
	The interval between handling telecommands (parsing and adding to agenda) from the umbilical UART.
uint32_t	TCMD_handle_ax100_tcmds_interval_ms = 400
	The interval between handling telecommands (parsing and adding to agenda) uplinked via the UHF radio. Note: Does not include execution. Decrease this to 200ms-250ms (or lower) if bulk uplinking large amounts of data (e.g., firmware).

Enumeration Type Documentation

TCMD_check_result_enum_t

enum TCMD_check_result_enum_t

Enumerator
TCMD_CHECK_STATUS_NO_TCMD
TCMD_CHECK_STATUS_TCMD_SCHEDULED
TCMD_CHECK_STATUS_TCMD_INVALID_AND_DISCARDED

Function Documentation

check_for_and_handle_new_ax100_kiss_tcmd()

TCMD_check_result_enum_t check_for_and_handle_new_ax100_kiss_tcmd ( uint8_t csp_packet_array[], uint16_t csp_packet_array_len )

static

Checks for an available telecommand in the UART buffer, and schedules it for execution.

Returns

0 if no telecommand was available; 1 if a telecommand was found and executed.

Parameters

csp_packet_array	The CSP packet to read, starting with 4 bytes of CSP, and reading until null-termination after the CSP header.
csp_packet_array_len	The length of the csp_packet_array.

Note

This function is only used in this file.

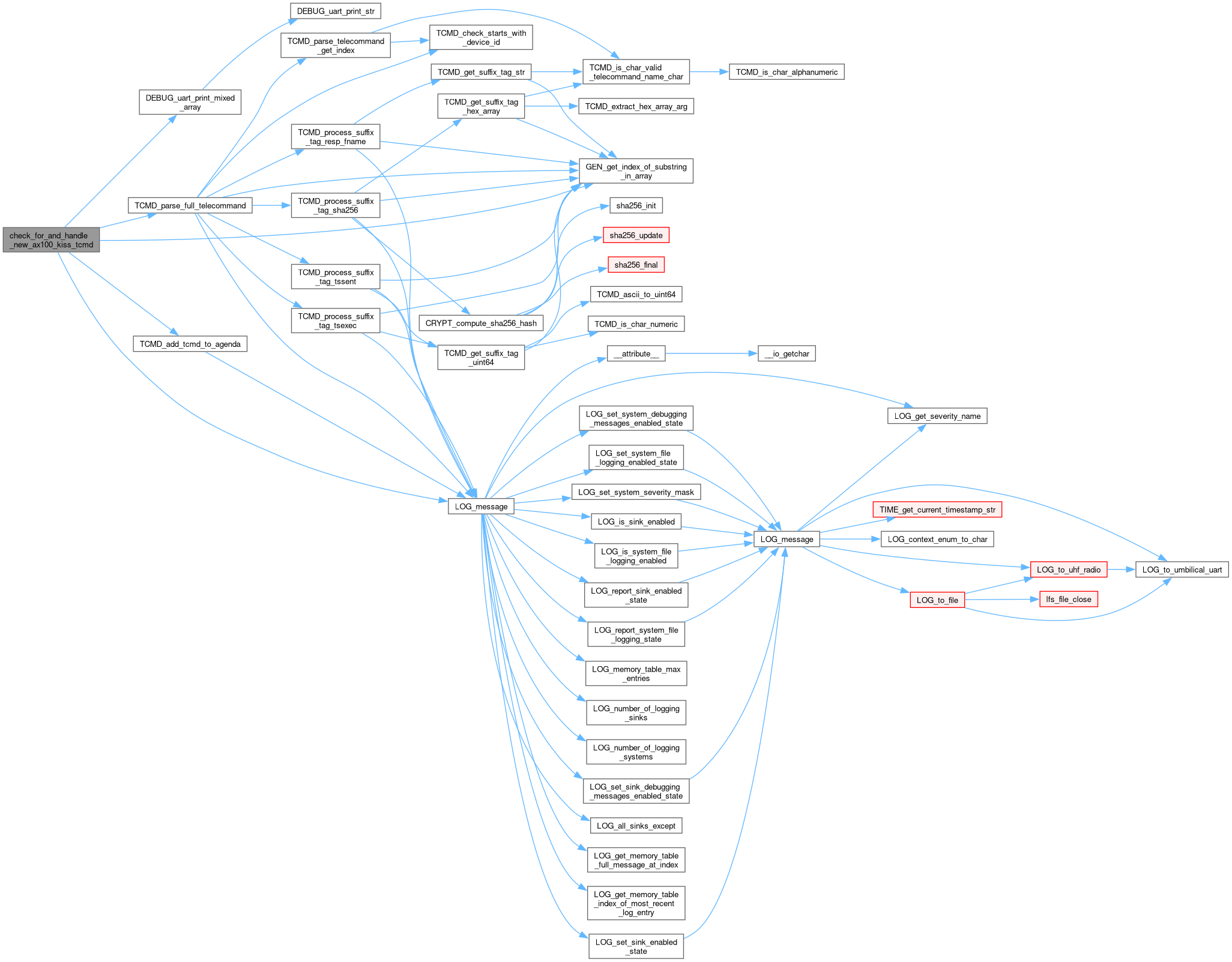

Here is the call graph for this function:

Here is the caller graph for this function:

check_for_and_handle_new_uart_tcmds()

TCMD_check_result_enum_t check_for_and_handle_new_uart_tcmds ( )

static

Checks for an available telecommand in the UART buffer, and schedules it for execution.

Returns

0 if no telecommand was available; 1 if a telecommand was found and executed.

Note

This function is only used in this file.

Global extern variables used:

• UART_telecommand_buffer
• UART_telecommand_buffer_write_idx
• UART_telecommand_last_write_time_ms

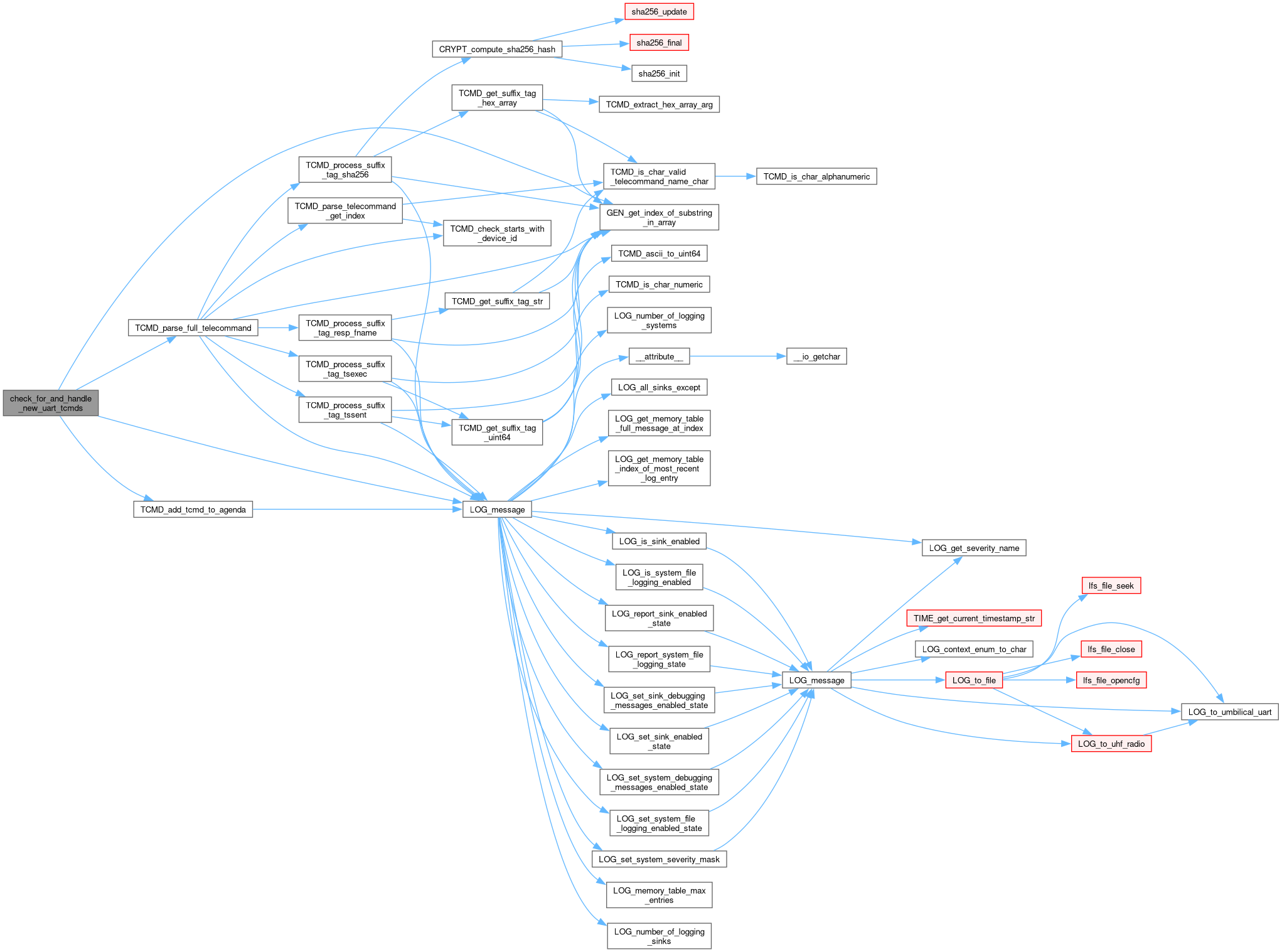

Here is the call graph for this function:

Here is the caller graph for this function:

TASK_handle_ax100_kiss_telecommands()

void TASK_handle_ax100_kiss_telecommands

(

void *

argument

)

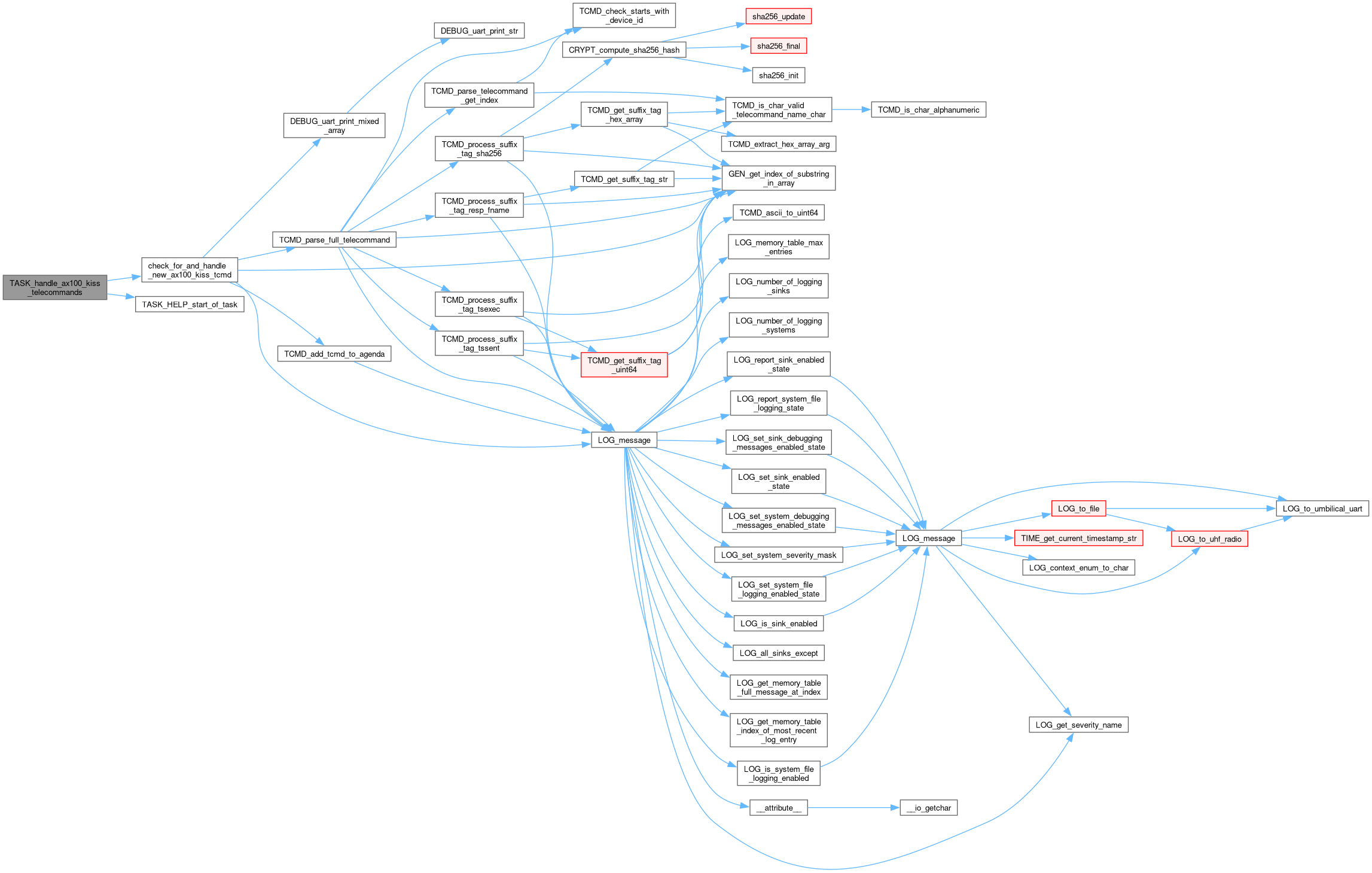

Here is the call graph for this function:

Here is the caller graph for this function:

TASK_handle_uart_telecommands()

void TASK_handle_uart_telecommands

(

void *

argument

)

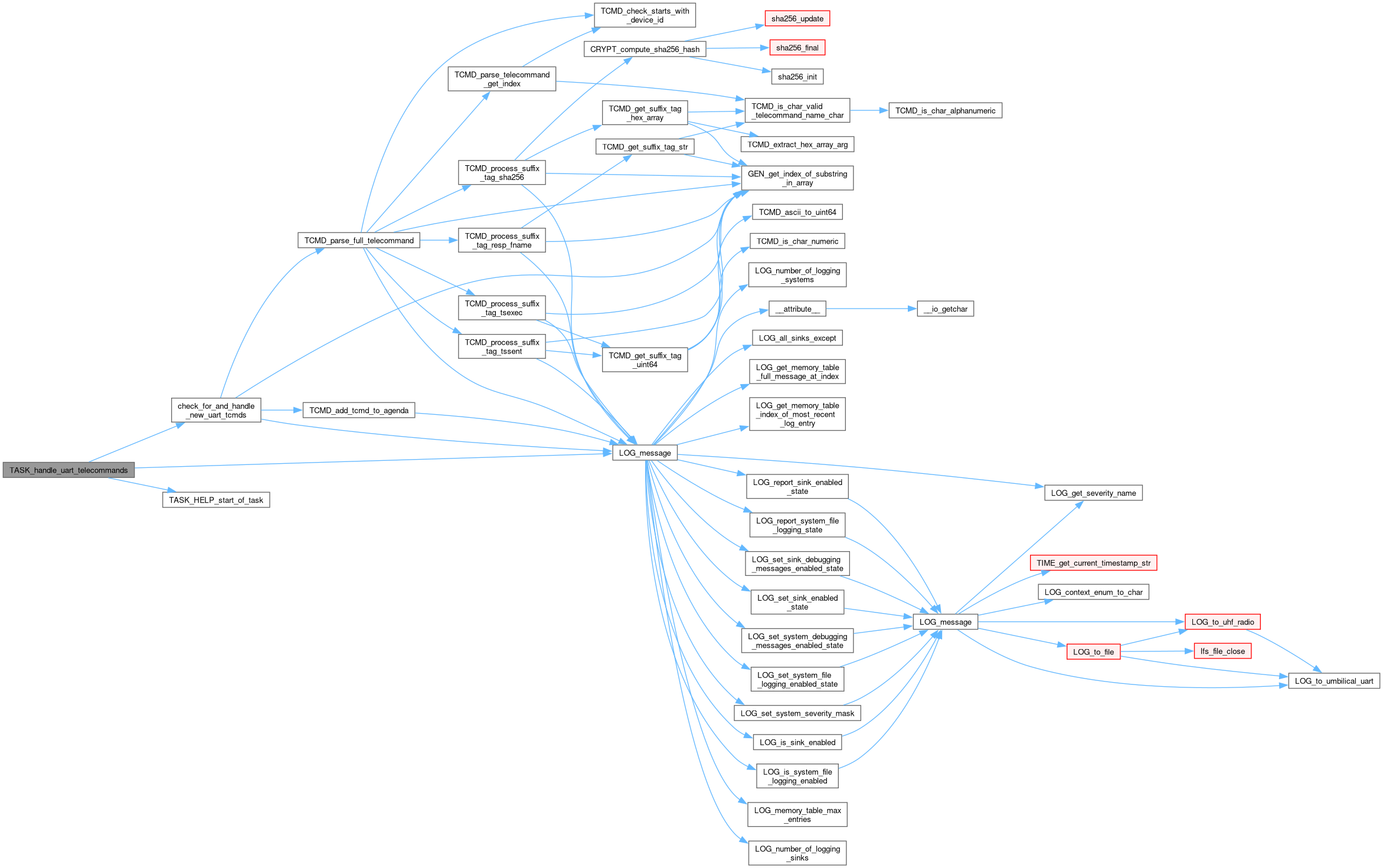

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

AX100_uptime_at_last_received_kiss_tcmd_ms

uint32_t AX100_uptime_at_last_received_kiss_tcmd_ms = 0

The system uptime, as of the last time a telecommand was received by the AX100 (and sent to OBC via KISS).

TCMD_handle_ax100_tcmds_interval_ms

uint32_t TCMD_handle_ax100_tcmds_interval_ms = 400

The interval between handling telecommands (parsing and adding to agenda) uplinked via the UHF radio. Note: Does not include execution. Decrease this to 200ms-250ms (or lower) if bulk uplinking large amounts of data (e.g., firmware).

TCMD_handle_umbilical_tcmds_interval_ms

uint32_t TCMD_handle_umbilical_tcmds_interval_ms = 400

The interval between handling telecommands (parsing and adding to agenda) from the umbilical UART.

Any value from 1ms to millions is reasonable. 20ms is a good value for optimized bulk uplink. Note: Does not include execution.
