telecommand_executor.h File Reference

#include <stdint.h>
#include "telecommand_exec/telecommand_types.h"

Include dependency graph for telecommand_executor.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	TCMD_AGENDA_SIZE   750
#define	TCMD_TIMESTAMP_RECORD_SIZE   750
	Max number of tssent timestamp values that can be stored at a time (for unique telecommand tssent validation).

Enumerations
enum	TCMD_agenda_entry_state_enum_t { TCMD_AGENDA_ENTRY_INVALID = 0 , TCMD_AGENDA_ENTRY_VALID_AND_PENDING = 1 , TCMD_AGENDA_ENTRY_EXECUTING = 2 }

Functions
uint8_t	TCMD_add_tcmd_to_agenda (const TCMD_parsed_tcmd_to_execute_t *parsed_tcmd)
	Adds a telecommand to the agenda (schedule/queue) of telecommands to execute.
uint16_t	TCMD_get_agenda_used_slots_count ()
	Gets the number of used slots in the agenda (how many valid and pending telecommands).
int16_t	TCMD_get_next_tcmd_agenda_slot_to_execute ()
	Finds the index into TCMD_agenda (slot_num) of the next telecommand to execute.
uint8_t	TCMD_execute_telecommand_in_agenda (const uint16_t tcmd_agenda_slot_num, char *response_output_buf, uint16_t response_output_buf_size)
	Executes a telecommand from the agenda immediately.
uint8_t	TCMD_log_pending_agenda_entries ()
	Fetches the active agendas and logs each as a JSONL entry.

Variables
TCMD_parsed_tcmd_to_execute_t	TCMD_agenda [TCMD_AGENDA_SIZE]
	The agenda (schedule queue) of telecommands to execute.
uint8_t	TCMD_agenda_is_valid [TCMD_AGENDA_SIZE]
	A flag indicating whether a given index in TCMD_agenda is valid (i.e., filled with a not-yet-executed command).
uint16_t	TCMD_agenda_last_used_slot
	Index into TCMD_agenda and TCMD_agenda_is_valid of the last used slot.
uint32_t	TCMD_total_tcmd_queued_count
uint64_t	TCMD_latest_received_tcmd_timestamp_sent

Macro Definition Documentation

TCMD_AGENDA_SIZE

#define TCMD_AGENDA_SIZE   750

TCMD_TIMESTAMP_RECORD_SIZE

#define TCMD_TIMESTAMP_RECORD_SIZE   750

Max number of tssent timestamp values that can be stored at a time (for unique telecommand tssent validation).

Enumeration Type Documentation

TCMD_agenda_entry_state_enum_t

enum TCMD_agenda_entry_state_enum_t

Enumerator
TCMD_AGENDA_ENTRY_INVALID
TCMD_AGENDA_ENTRY_VALID_AND_PENDING
TCMD_AGENDA_ENTRY_EXECUTING

Function Documentation

TCMD_add_tcmd_to_agenda()

uint8_t TCMD_add_tcmd_to_agenda

(

const TCMD_parsed_tcmd_to_execute_t *

parsed_tcmd

)

Adds a telecommand to the agenda (schedule/queue) of telecommands to execute.

Parameters

parsed_tcmd

The parsed telecommand to add to the agenda.

Returns

0 on success, 1 if the agenda is full.

Note

Performs a deep copy of the parsed_tcmd arg into the agenda.

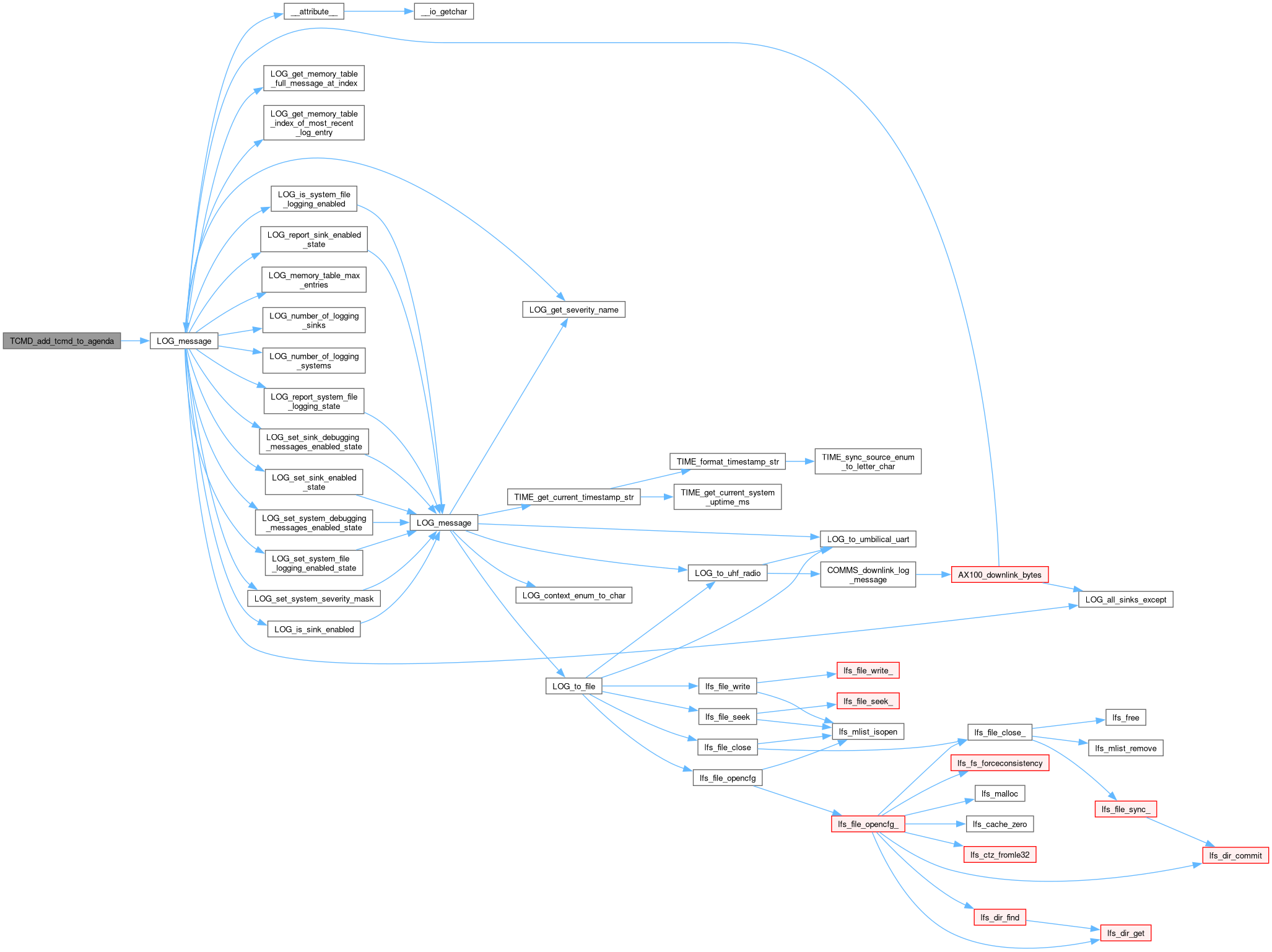

Here is the call graph for this function:

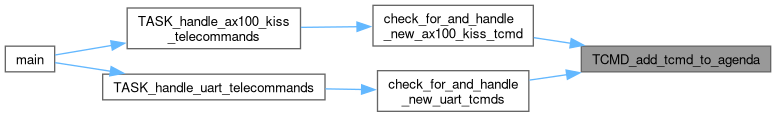

Here is the caller graph for this function:

TCMD_execute_telecommand_in_agenda()

uint8_t TCMD_execute_telecommand_in_agenda	(	const uint16_t	tcmd_agenda_slot_num,
		char *	response_output_buf,
		uint16_t	response_output_buf_size )

Executes a telecommand from the agenda immediately.

Parameters

tcmd_agenda_slot_num	The index into TCMD_agenda for the telecommand to execute.
response_output_buf	A buffer to store the response from the telecommand.
response_output_buf_size	The size of the response_output_buf.

Returns

0 on success, 253/254 if an error occurs in the callers, otherwise the error code from the telecommand function.

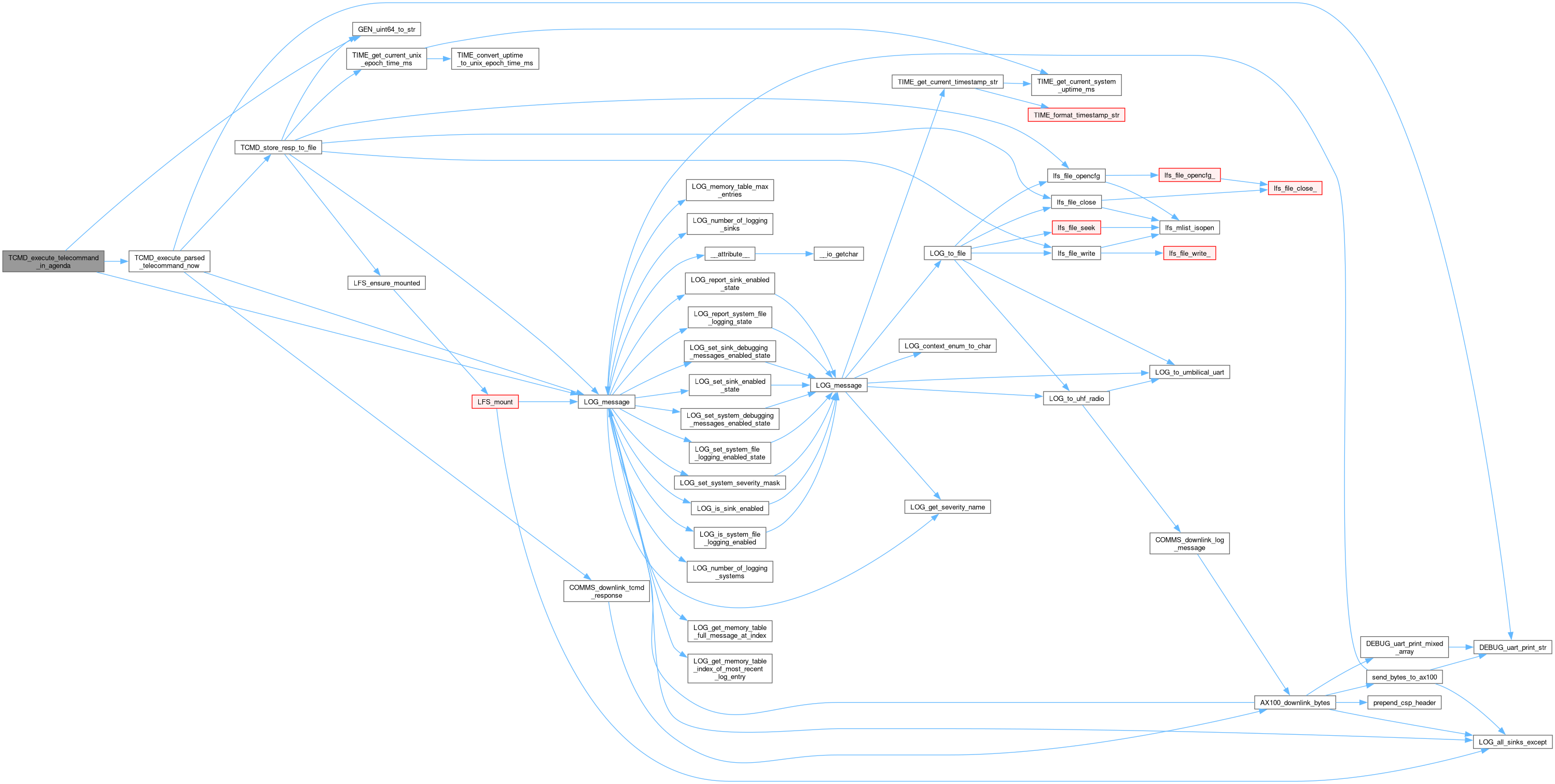

Here is the call graph for this function:

Here is the caller graph for this function:

TCMD_get_agenda_used_slots_count()

uint16_t TCMD_get_agenda_used_slots_count

(

)

Gets the number of used slots in the agenda (how many valid and pending telecommands).

Returns

The number of currently-filled slots in the agenda.

Note

This function is mostly intended for "system stats" telecommands and logging.

Here is the caller graph for this function:

TCMD_get_next_tcmd_agenda_slot_to_execute()

int16_t TCMD_get_next_tcmd_agenda_slot_to_execute

(

)

Finds the index into TCMD_agenda (slot_num) of the next telecommand to execute.

Returns

The index into TCMD_agenda of the next telecommand to execute, or -1 if none are available/ready.

Note

This function will return the slot_num which has the lowest timestamp_to_execute value. If multiple slots have the same timestamp_to_execute, the lowest slot_num will be returned. Thus, based on the insertion order, during tsexec ties, telecommands will be executed in the order they were added to the agenda (received). Edge case: When wrapping around the circular buffer (at 750 telecommands), it is not perfectly guaranteed that tsexec ties will run in the order they were inserted.

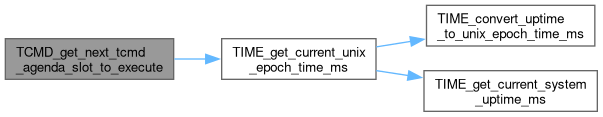

Here is the call graph for this function:

Here is the caller graph for this function:

TCMD_log_pending_agenda_entries()

uint8_t TCMD_log_pending_agenda_entries

(

)

Fetches the active agendas and logs each as a JSONL entry.

Returns

0 on success, 1 if there are no active agendas.

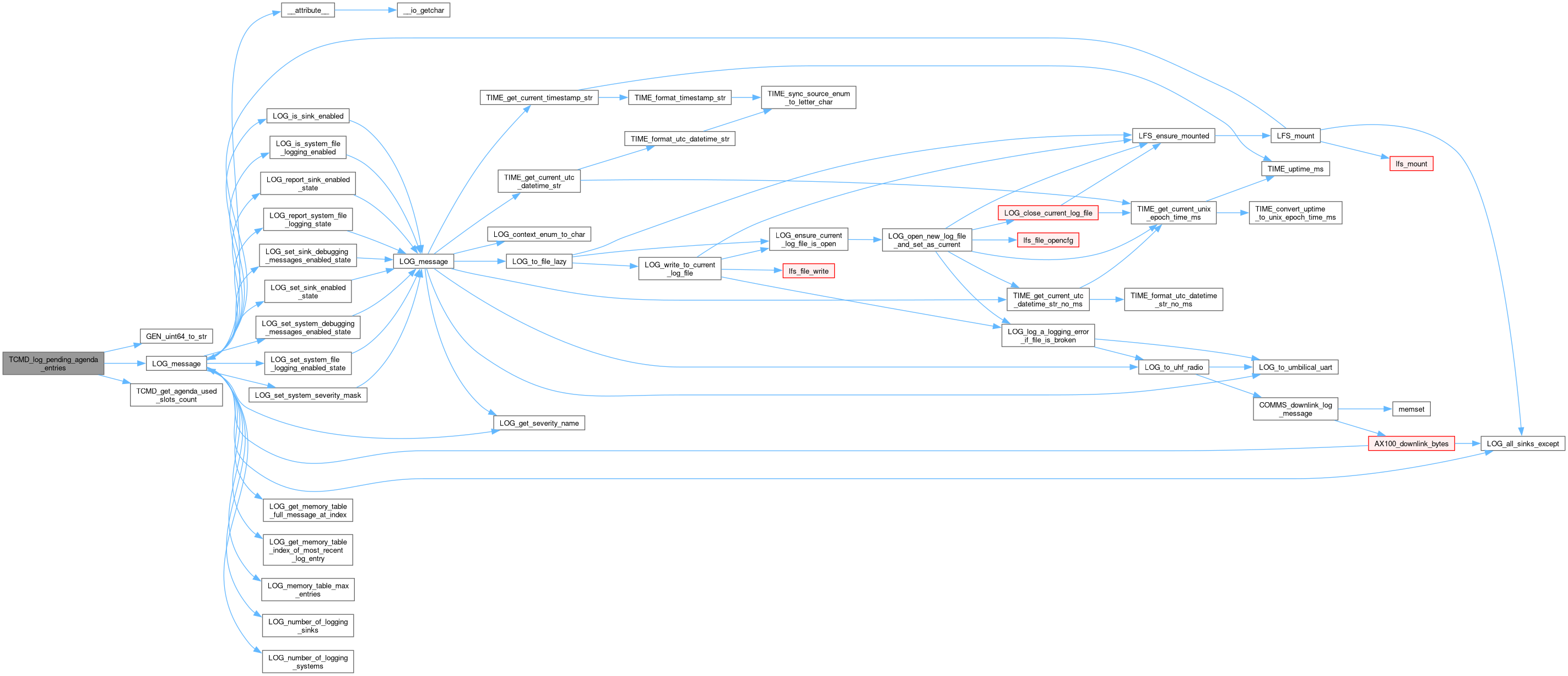

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

TCMD_agenda

TCMD_parsed_tcmd_to_execute_t TCMD_agenda[TCMD_AGENDA_SIZE]

extern

The agenda (schedule queue) of telecommands to execute.

TCMD_agenda_is_valid

uint8_t TCMD_agenda_is_valid[TCMD_AGENDA_SIZE]

extern

A flag indicating whether a given index in TCMD_agenda is valid (i.e., filled with a not-yet-executed command).

Note

The values in here are tri-state via TCMD_agenda_entry_state_enum_t.

TCMD_agenda_last_used_slot

uint16_t TCMD_agenda_last_used_slot

extern

Index into TCMD_agenda and TCMD_agenda_is_valid of the last used slot.

The next telecommand to entered into the agenda will fill this slot, or will go into the first free slot after this one.

TCMD_latest_received_tcmd_timestamp_sent

uint64_t TCMD_latest_received_tcmd_timestamp_sent

extern

TCMD_total_tcmd_queued_count

uint32_t TCMD_total_tcmd_queued_count

extern
